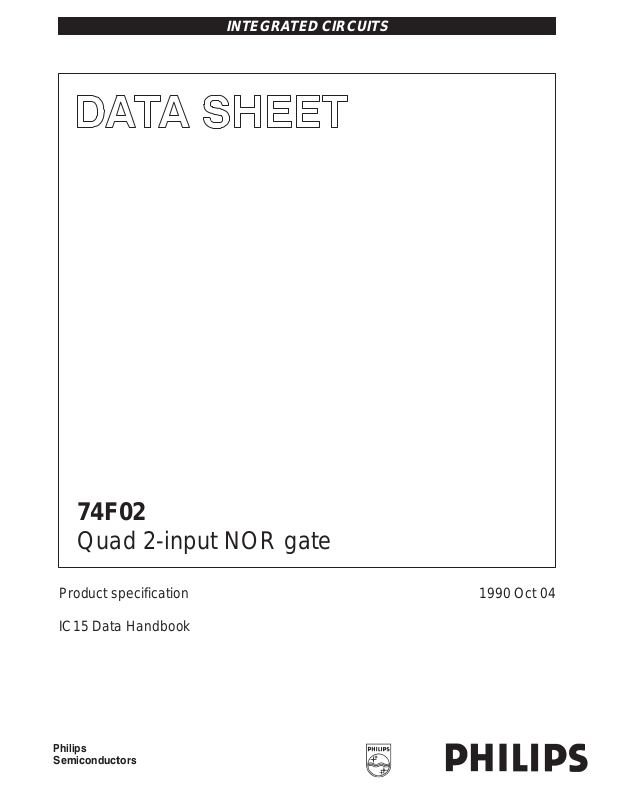

Page 1
INTEGRATED CIRCUITS
74F02
Quad 2-input NOR gate
Product specification
IC15 Data Handbook
1990 Oct 04
Page 2
Philips Semiconductors Product specification
74F02Quad 2-input NOR gate
FEA TURE
•Industrial temperature range available (–40°C to +85°C)
TYPE
74F02 3.4ns 4.4mA
TYPICAL
PROPAGATION
DELAY
TYPICAL SUPPL Y
CURRENT
(TOTAL)
PIN CONFIGURATION
1
0
Q
2
D0a
3
D0b
4
1
Q
D1a
5
D1b
6
GND
14
V
Q
13
12
D3b
D3a
11
Q2
10
9
D2a
87
D2b
SF00007
CC
3
ORDERING INFORMA TION
ORDER CODE
DESCRIPTION
COMMERCIAL RANGE
VCC = 5V ±10%, T
= 0°C to +70°C
amb
VCC = 5V ±10%, T
INDUSTRIAL RANGE
= –40°C to +85°C
amb
PKG DWG #
14-pin plastic DIP N74F02N I74F02N SOT27-1
14-pin plastic SO N74F02D I74F02D SOT108-1
INPUT AND OUTPUT LOADING AND FAN-OUT TABLE
PINS DESCRIPTION 74F (U.L.) HIGH/LOW LOAD VALUE HIGH/LOW
Dna, Dnb Data inputs 1.0/1.0 20µA/0.6mA
Qn Data output 50/33 1.0mA/20mA
NOTE:
One (1.0) FAST unit load is defined as: 20µA in the high state and 0.6mA in the low state.
LOGIC DIAGRAM
VCC = Pin 14
GND = Pin 7
LOGIC SYMBOL
VCC = Pin 14
GND = Pin 7
2
D0a
3
D0b
5
D1a
6
D1b
8
D2a
9
D2b
11
D3a
12
D3b
2356891112
D0a D0bD1a D2a D2b D3a D3bD1b
Q0 Q1 Q2 Q3
1 4 10 13
1
4
10
13
SF00008
SF00009
FUNCTION TABLE
Q
0
Q1
INPUTS OUTPUT
Dna Dnb Qn
L L H
L H L
Q2
Q
3
H L L
H H L
NOTES:
1 H = High voltage level
2 L = Low voltage level
IEC/IEEE SYMBOL
2
3
5
6
8
9
11
12
1
1
4
10
13
SF00010
1990 Oct 04 853-0326 00622
2
Page 3
Philips Semiconductors Product specification
74F02Quad 2-input NOR gate
ABSOLUTE MAXIMUM RATINGS
(Operation beyond the limit set forth in this table may impair the useful life of the device.
Unless otherwise noted these limits are over the operating free air temperature range.)
SYMBOL
V
V
I
IN
V
I
OUT
T
T
CC
IN
OUT
amb
stg
Supply voltage –0.5 to +7.0 V
Input voltage –0.5 to +7.0 V
Input current –30 to +5 mA
Voltage applied to output in high output state –0.5 to V
Current applied to output in low output state 40 mA
Operating free air temperature range Commercial range 0 to +70 °C
Storage temperature range –65 to +150 °C
RECOMMENDED OPERATING CONDITIONS
SYMBOL PARAMETER LIMITS UNIT
V
V
V
I
I
I
T
CC
IH
IL
Ik
OH
OL
amb
Supply voltage 4.5 5.0 5.5 V
High-level input voltage 2.0 V
Low-level input voltage 0.8 V
Input clamp current –18 mA
High-level output current –1 mA
Low-level output current 20 mA
Operating free air temperature range Commercial range 0 +70 °C
PARAMETER RATING UNIT
CC
V
Industrial range –40 to +85 °C
MIN NOM MAX
Industrial range –40 +85 °C
DC ELECTRICAL CHARACTERISTICS
(Over recommended operating free-air temperature range unless otherwise noted.)
SYMBOL
V
OH
High-level output voltage VCC = MIN, VIL = MAX ±10%V
PARAMETER TEST CONDITIONS
VIH = MIN, IOH = MAX ±5%V
V
OL
V
IK
I
I
I
IH
I
IL
I
OS
I
CC
Low-level output voltage VCC = MIN, VIL = MAX ±10%V
VIH = MIN, I
Input clamp voltage VCC = MIN, II = I
Input current at maximum input
VCC = MAX, VI = 7.0V 100 µA
= MAX ±5%V
Ol
IK
voltage
High-level input current VCC = MAX, VI = 2.7V 20 µA
Low-level input current VCC = MAX, VI = 0.5V -0.6 mA
4
3
VCC = MAX -60 -150 mA
I
CCHVCC
I
CCLVCC
= MAX 3.0 5.6 mA
= MAX 7.0 13.0 mA
Short-circuit output current
Supply current (total)
NOTES:
1 For conditions shown as MIN or MAX, use the appropriate value specified under recommended operating conditions for the applicable type.
2 All typical values are at V
3 Not more than one output should be shorted at a time. For testing I
= 5V, T
CC
techniques are preferable in order to minimize internal heating and more accurately reflect operational values. Otherwise, prolonged shorting
amb
= 25°C.
OS
of a high output may raise the chip temperature well above normal and thereby cause invalid readings in other parameter tests. In any
sequence of parameter tests, I
is measured with outputs open.
4I
CC
tests should be performed last.
OS
1
MIN TYP
CC
CC
CC
CC
2.5 V
2.7 3.4 V
LIMITS UNIT
2
MAX
0.30 0.50 V
0.30 0.50 V
-0.73 -1.2 V
, the use of high-speed test apparatus and/or sample-and-hold
1990 Oct 04
3
Page 4
Philips Semiconductors Product specification
TEST
CONDITION
74F02Quad 2-input NOR gate
AC ELECTRICAL CHARACTERISTICS
LIMITS
VCC = +5.0V VCC = +5.0V ± 10% VCC = +5.0V ± 10%
SYMBOL PARAMETER
t
PLH
t
PHL
Propagation delay
Dna, Dnb to Qn
AC WAVEFORMS
For all waveforms, VM = 1.5V.
Waveform 1
T
= +25°C T
amb
= 0°C to +70°C T
amb
= –40°C to +85°C UNIT
amb
CL = 50pF, RL = 500Ω CL = 50pF, RL = 500Ω CL = 50pF, RL = 500Ω
MIN TYP MAX MIN MAX MIN MAX
2.5
2.0
4.4
3.2
5.5
4.3
2.5
2.0
6.5
5.3
2.5
1.5
7.0
6.0
ns
Dna, Dnb
Qn
V
M
t
PHL
V
M
t
PLH
V
M
V
Waveform 1. Propagation delay for inverting outputs
TEST CIRCUIT AND WAVEFORM
V
CC
V
PULSE
GENERATOR
IN
R
T
Test Circuit for Totem-Pole Outputs
DEFINITIONS:
R
= Load resistor;
L
see AC ELECTRICAL CHARACTERISTICS for value.
= Load capacitance includes jig and probe capacitance;
C
L
see AC ELECTRICAL CHARACTERISTICS for value.
R
= Termination resistance should be equal to Z
T
pulse generators.
D.U.T.
V
OUT
C
L
M
SF00005
t
NEGATIVE
PULSE
R
L
POSITIVE
PULSE
90%
10%
V
M
10%
t
THL (tf
t
TLH (tr
90%
V
M
w
V
M
10%
)
)
t
w
t
TLH (tr
t
THL (tf
)
)
90%
V
M
90%
10%
AMP (V)
0V
AMP (V)
0V
Input Pulse Definition
INPUT PULSE REQUIREMENTS
V
amplitude
3.0V
M
1.5V
rep. rate
1MHz 500ns
t
w
t
TLHtTHL
2.5ns 2.5ns
OUT
of
family
74F
1990 Oct 04
SF00006
4
Page 5
Philips Semiconductors Product specification
74F02Quad 2-input NOR gate
DIP14: plastic dual in-line package; 14 leads (300 mil) SOT27-1
1990 Oct 04
5
Page 6
Philips Semiconductors Product specification
74F02Quad 2-input NOR gate
SO14: plastic small outline package; 14 leads; body width 3.9 mm SOT108-1
1990 Oct 04
6
Page 7
Philips Semiconductors Product specification
74F02Quad 2-input NOR gate
NOTES
1990 Oct 04
7
Page 8
Philips Semiconductors Product specification
Quad 2-input NOR gate
DIP14: plastic dual in-line package; 14 leads (300 mil) SOT27-1
74F02
1990 Oct 04
8
Page 9
Philips Semiconductors Product specification
Quad 2-input NOR gate
SO14: plastic small outline package; 14 leads; body width 3.9 mm SOT108-1
74F02
1990 Oct 04
9
Page 10
Philips Semiconductors Product specification
Quad 2-input NOR gate
74F02
NOTES
1990 Oct 04
10
Page 11
Philips Semiconductors Product specification
Quad 2-input NOR gate
74F02
DEFINITIONS
Data Sheet Identification Product Status Definition
Objective Specification
Preliminary Specification
Product Specification
Formative or in Design
Preproduction Product
Full Production
This data sheet contains the design target or goal specifications for product development. Specifications
may change in any manner without notice.
This data sheet contains preliminary data, and supplementary data will be published at a later date. Philips
Semiconductors reserves the right to make changes at any time without notice in order to improve design
and supply the best possible product.
This data sheet contains Final Specifications. Philips Semiconductors reserves the right to make changes
at any time without notice, in order to improve design and supply the best possible product.
