74ALS573B/74ALS574A
Latch flip–flop
Product specification
IC05 Data Handbook
1991 Feb 08
INTEGRATED CIRCUITS
Page 2
Philips Semiconductors Product specification
74ALS573B/74ALS574ALatch/flip-flop
74ALS573B Octal transparent latch (3-State)
74ALS574A Octal D flip-flop (3-State)
2
1991 Feb 08 853–1307 01670
FEA TURES
•74ALS573B is broadside pinout version of 74ALS373
•74ALS574A is broadside pinout version of 74ALS374
•Inputs and outputs on opposite side of package allow easy
interface to microprocessors
•Useful as an input or output port for microprocessors
•3-State outputs for bus interfacing
•Common output enable
•74ALS563A and 74ALS564A are inverting version of 74ALS573B
and 74ALS574A respectively
DESCRIPTION
The 74ALS573B is an octal transparent latch coupled to eight
3-State output devices. The two sections of the device are controlled
independently by enable (E) and output enable (OE
) control gates.
The 74ALS573B is functionally identical to the 74ALS373 but has a
broadside pinout configuration to facilitate PC board layout and
allow easy interface with microprocessors.
The data on the D inputs is transferred to the latch outputs when the
enable (E) input is High. The latch remains transparent to the data
input while E is High, and stores the data that is present one setup
time before the High-to-Low enable transition.
The 74ALS574A is functionally identical to the 74ALS374 but has a
broadside pinout configuration to facilitate PC board layout and
allow easy interface with microprocessors.
It is an 8-bit edge triggered register coupled to eight 3-State output
buffers. The two sections of the device are controlled independently
by clock (CP) and output enable (OE
) control gates.
The register is fully edge triggered. The state of the D input, one
setup time before the Low-to-High clock transition is transferred to
the corresponding flip-flop’s Q output.
The active-Low output enable (OE
) controls all eight 3-State buffers
independent of the latch operation. When OE
is Low, latched or
transparent data appears at the output.
When OE
is High, the outputs are in high impedance “off” state,
which means they will neither drive nor load the bus.
TYPE
TYPICAL
PROPAGATION
DELA Y
TYPICAL
SUPPLY CURRENT
(TOTAL)
74ALS573B 5.0ns 12mA
74ALS574A 6.0ns 15mA
ORDERING INFORMATION
ORDER CODE
DESCRIPTION
COMMERCIAL RANGE
V
CC
= 5V ±10%,
T
amb
= 0°C to +70°C
DRAWING
NUMBER
20-pin plastic DIP 74ALS573BN, 74ALS574AN SOT146-1
20-pin plastic SOL 74ALS573BD, 74ALS574AD SOT163-1
20-pin plastic SSOP
Type II
74ALS573BDB,
74ALS574ADB
SOT339-1
INPUT AND OUTPUT LOADING AND FAN-OUT TABLE
PINS DESCRIPTION
74ALS (U.L.)
HIGH/LOW
LOAD VALUE
HIGH/LOW
D0 – D7 Data inputs 1.0/1.0 20µA/0.2mA
E (74ALS573B) Latch enable input 1.0/1.0 20µA/0.1mA
OE Output Enable input (active-Low) 1.0/1.0 20µA/0.1mA
CP (74ALS574A) Clock pulse input (active rising edge) 1.0/2.0 20µA/0.2mA
Q0 – Q7 Data outputs 130/240 2.6mA/24mA
NOTE: One (1.0) ALS unit load is defined as: 20µA in the High state and 0.1mA in the Low state.
Page 3
Philips Semiconductors Product specification
74ALS573B/74ALS574ALatch/flip-flop
1991 Feb 08
3
PIN CONFIGURATION – 74ALS573B
1
2
3
4
5
6
7
8
9
10 11
12
13
14
15
16
17
18
19
20
OE
GND
V
CC
E
SF01073
Q0
D0
D1
Q1
D2
Q2
Q3
D3
Q4
D4
Q5
D5
Q6
D6
Q7
D7
PIN CONFIGURATION – 74ALS574A
1
2
3
4
5
6
7
8
9
10 11
12
13
14
15
16
17
18
19
20
OE
GND
V
CC
CP
SF01074
Q0
D0
D1
Q1
D2
Q2
Q3
D3
Q4
D4
Q5
D5
Q6
D6
Q7
D7
LOGIC SYMBOL – 74ALS573B
345678
141516171819
1
11 E
OE
Q0
D0 D1Q1D2
Q2 Q3D3Q4D4Q5
D5
9
2
1213
Q6D6Q7
D7
SF01075
VCC=Pin 20
GND=Pin 10
LOGIC SYMBOL – 74ALS574A
345678
141516171819
1
11 CP
OE
Q0
D0 D1Q1D2
Q2 Q3D3Q4D4Q5
D5
9
2
1213
Q6D6Q7
D7
SF01076
VCC=Pin 20
GND=Pin 10
IEC/IEEE SYMBOL – 74ALS573B
2D
1
SF01077
1
11
2
3
4
5
6
7
8
9
EN1
EN2
19
18
17
16
15
14
13
12
IEC/IEEE SYMBOL – 74ALS574A
2D
1
SF01078
1
11
EN1
C2
2
3
4
5
6
7
8
9
19
18
17
16
15
14
13
12
Page 4
Philips Semiconductors Product specification
74ALS573B/74ALS574ALatch/flip-flop
1991 Feb 08
4
LOGIC DIAGRAM – 74ALS573B
V
CC
= Pin 20
GND = Pin 10
D0
D
E
Q
Q0
2
19
D1
D
E
Q
Q1
3
18
D2
D
E
Q
Q2
4
17
D3
D
E
Q
Q3
5
16
D4
D
E
Q
Q4
6
15
D5
D
E
Q
Q5
7
14
D6
D
E
Q
Q6
8
13
D7
D
E
Q
Q7
9
12
11
E
SC00109
1
OE
FUNCTION T ABLE – 74ALS573B
INPUTS
OUTPUTS
INTERNAL
OE E Dn
REGISTER
Q0 – Q7
OPERATING MODE
L H L L L
L H H H H
Enable and read register
L ↓ l L L
L ↓ h H H
Latch and read register
L L X NC NC Hold
H L X NC Z
p
H H Dn Dn Z
Disable outputs
H = High-voltage level
h = High state must be present one setup time before the High-to-Low enable transition
L = Low-voltage level
l = Low state must be present one setup time before the High-to-Low enable transition
NC= No change
X = Don’t care
Z = High impedance “off” state
↓ = High-to-Low enable transition
LOGIC DIAGRAM – 74ALS574A
VCC = Pin 20
D0
D
CP
Q
Q0
2
19
D1
D
CP
Q
Q1
3
18
D2
D
CP
Q
Q2
4
17
D3
D
CP
Q
Q3
5
16
D4
D
CP
Q
Q4
6
15
D5
D
CP
Q
Q5
7
14
D6
D
CP
Q
Q6
8
13
D7
D
CP
Q
Q7
9
12
11
OE
CP
GND = Pin 10
SC00110
1
Page 5
Philips Semiconductors Product specification
74ALS573B/74ALS574ALatch/flip-flop
1991 Feb 08
5
FUNCTION T ABLE – 74ALS574A
INPUTS
OUTPUTS
INTERNAL
OE CP Dn
REGISTER
Q0 – Q7
OPERATING MODE
L ↑ l L L
L ↑ h H H
Latch and read register
L ↑ X NC NC Hold
H ↑ X NC Z
p
H ↑ Dn Dn Z
Disable outputs
H = High-voltage level
h = High state must be present one setup time before the Low-to-High clock transition
L = Low-voltage level
l = Low state must be present one setup time before the Low-to-High clock transition
NC= No change
X = Don’t care
Z = High impedance “off” state
↑ = Low-to-High clock transition
↑
= Not Low-to-High clock transition
ABSOLUTE MAXIMUM RATINGS
(Operation beyond the limit set forth in this table may impair the useful life of the device.
Unless otherwise noted these limits are over the operating free-air temperature range.)
SYMBOL
PARAMETER RATING UNIT
V
CC
Supply voltage –0.5 to +7.0 V
V
IN
Input voltage –0.5 to +7.0 V
I
IN
Input current –30 to +5 mA
V
OUT
Voltage applied to output in High output state –0.5 to V
CC
V
I
OUT
Current applied to output in Low output state 48 mA
T
amb
Operating free-air temperature range 0 to +70 °C
T
stg
Storage temperature range –65 to +150 °C
RECOMMENDED OPERATING CONDITIONS
LIMITS
SYMBOL
PARAMETER
MIN NOM MAX
UNIT
V
CC
Supply voltage 4.5 5.0 5.5 V
V
IH
High-level input voltage 2.0 V
V
IL
Low-level input voltage 0.8 V
I
IK
Input clamp current –18 mA
I
OH
High-level output current –2.6 mA
I
OL
Low-level output current 24 mA
T
amb
Operating free-air temperature range 0 +70 °C
Page 6
Philips Semiconductors Product specification
74ALS573B/74ALS574ALatch/flip-flop
1991 Feb 08
6
DC ELECTRICAL CHARACTERISTICS
(Over recommended operating free-air temperature range unless otherwise noted.)
LIMITS
SYMBOL
PARAMETER
TEST CONDITIONS
1
MIN TYP2MAX
UNIT
p
VCC = ±10%, VIL = MAX,
IOH = –0.4mA V
CC
– 2 V
VOHHigh-level output voltage
CC
,
IL
,
VIH = MIN
IOH = MAX 2.4 3.2 V
p
VCC = MIN, VIL = MAX,
I
OL
= 12mA 0.25 0.40 V
VOLLow-level output voltage
CC
,
IL
,
VIH = MIN
I
OL
= 24mA 0.35 0.50 V
V
IK
Input clamp voltage VCC = MIN, II = I
IK
–0.73 –1.2 V
I
I
Input current at minimum input voltage VCC = MAX, VI = 7.0V 0.1 mA
I
IH
High-level input current VCC = MAX, VI = 2.7V 20 µA
p
74ALS573B VCC = MAX, VI = 0.4V –0.1 mA
IILLow-level input current
74ALS574A VCC = MAX, VI = 0.4V –0.2 mA
I
OZH
Off-state output current,
High-level voltage applied
VCC = MAX, VI = 2.7V 20 µA
I
OZL
Off-state output current,
Low-level voltage applied
VCC = MAX, VI = 0.4V –20 µA
I
O
Output current
3
VCC = MAX, VO = 2.25V –30 –112 mA
I
CCH
7 12 mA
74ALS573B
I
CCL
VCC = MAX
13 21 mA
pp
I
CCZ
15 24 mA
ICCSupply current (total)
I
CCH
10 16 mA
74ALS574A
I
CCL
VCC = MAX
17 27 mA
I
CCZ
18 28 mA
NOTES:
1. For conditions shown as MIN or MAX, use the appropriate value specified under recommended operating conditions for the applicable type.
2. All typical values are at V
CC
= 5V, T
amb
= 25°C.
3. The output conditions have been chosen to produce a current that closely approximates one half of the true short-circuit output current, I
OS
.
Page 7
Philips Semiconductors Product specification
74ALS573B/74ALS574ALatch/flip-flop
1991 Feb 08
7
AC ELECTRICAL CHARACTERISTICS
LIMITS
SYMBOL PARAMETER TEST CONDITION
T
amb
= 0°C to +70°C
V
CC
= +5.0V ± 10%
C
L
= 50pF, RL = 500Ω
UNIT
MIN MAX
t
PLH
t
PHL
Propagation delay
Dn to Qn
Waveform 3
2.0
2.0
10.0
10.0
ns
t
PLH
t
PHL
Propagation delay
E to Qn
Waveform 2
4.0
4.0
12.0
12.0
ns
t
PZH
t
PZL
Output enable time
to High or Low level
74ALS573B
Waveform 6
Waveform 7
2.0
4.0
9.0
11.0
ns
t
PHZ
t
PLZ
Output disable time
from High or Low level
Waveform 6
Waveform 7
1.0
2.0
9.0
11.0
ns
f
MAX
Maximum clock frequency Waveform 1 45 MHz
t
PLH
t
PHL
Propagation delay
CP to Qn
Waveform 1
3.0
4.0
12.0
12.0
ns
t
PZH
t
PZL
Output enable time
to High or Low level
74ALS574A
Waveform 6
Waveform 7
2.0
4.0
9.0
11.0
ns
t
PHZ
t
PLZ
Output disable time
from High or Low level
Waveform 6
Waveform 7
1.0
2.0
9.0
11.0
ns
AC SETUP CHARACTERISTICS
LIMITS
SYMBOL PARAMETER TEST CONDITION
T
amb
= 0°C to +70°C
V
CC
= +5.0V ± 10%
C
L
= 50pF, RL = 500Ω
UNIT
MIN MAX
tsu(H)
t
su
(L)
Setup time, High or Low
Dn to E
Waveform 4
6.0
6.0
ns
th(H)
t
h
(L)
Hold time, High or Low
Dn to E
74ALS573B
Waveform 4
6.0
6.0
ns
tw(H) E Pulse width, High Waveform 1 10.0 ns
tsu(H)
t
su
(L)
Setup time, High or Low
Dn to CP
Waveform 5
6.0
6.0
ns
th(H)
t
h
(L)
Hold time, High or Low
Dn to CP
74ALS574A
Waveform 5
1.0
1.0
ns
tw(H)
t
w
(L)
CP Pulse width,
High or Low
Waveform 5
8.0
12.0
ns
Page 8
Philips Semiconductors Product specification
74ALS573B/74ALS574ALatch/flip-flop
1991 Feb 08
8

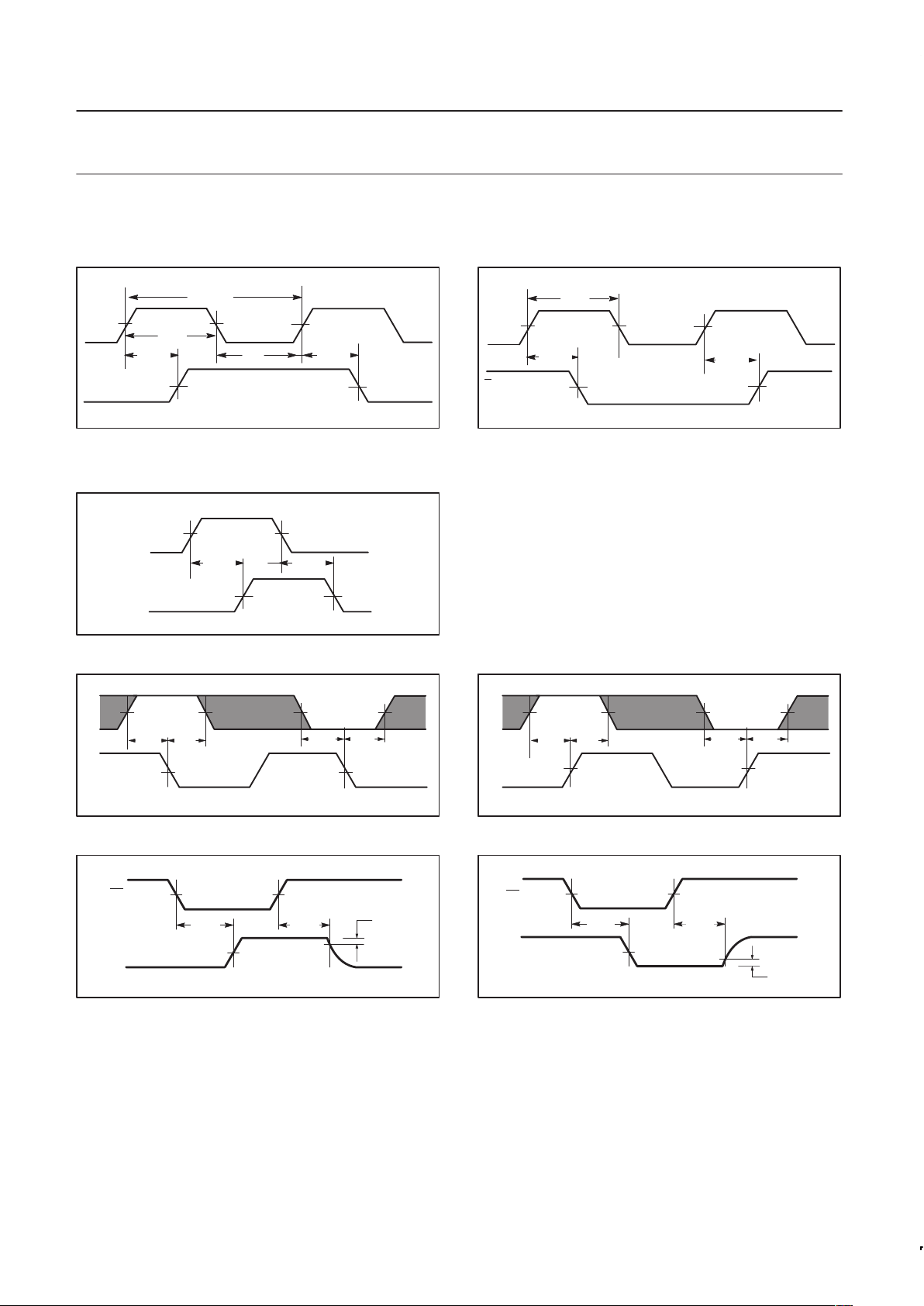

AC WAVEFORMS
For all waveforms, VM = 1.3V .
The shaded areas indicate when the input is permitted to change for predictable output performance.
CP
V
M
V
M
V
M
tw(H)
1/f
max
V
M
V
M
t
PHL
tw(L)t
PLH
Qn
SF00258
Waveform 1. Propagation Delay for Clock Input to Output,
Clock Pulse Widths, and Maximum Clock Frequency
t
PHL
EV
M
V
M
V
M
tw(H)
V
M
V
M
Qn
t
PLH
SF00259
Waveform 2. Propagation Delay for Enable to Output and
Enable Pulse Width
Dn
V
M
V
M
V
M
V
M
t
PHL
t
PLH
Qn
SF00260
Waveform 3. Propagation Delay for Data to Output
V
M
V
M
V
M
V
M
V
M
V
M
tsu(L) th(L)
t
su
(H) th(H)
E
Dn
SF00261
Waveform 4. Data Setup Time and Hold T imes
V
M
V
M
V
M
V
M
V
M
V
M
tsu(L) th(L)
t
su
(H) th(H)
CP
Dn
SF00262
Waveform 5. Data Setup Time and Hold T imes
V
M
V
M
V
M
t
PHZ
t
PZH
OE
Qn
VOH -0.3V
0V
SC00099
Waveform 6. 3-State Output Enable Time to High Level and
Output Disable Time from High Level
V
M
V
M
V
M
t
PLZ
t
PZL
OE
Qn
V
OL
+0.3V
SC00100
3.5V
Waveform 7. 3-State Output Enable Time to Low Level and
Output Disable Time from Low Level
Page 9
Philips Semiconductors Product specification
74ALS573B/74ALS574ALatch/flip-flop
1991 Feb 08
9
TEST CIRCUIT AND WAVEFORMS
t
w
90%
V
M
10%
90%
V
M
10%
90%
V
M
10%
90%
V
M
10%
NEGATIVE
PULSE
POSITIVE
PULSE
t
w
AMP (V)
0.3V
0.3V
t
THL (tf
f
)
INPUT PULSE REQUIREMENTS
Rep.Rate
t
w
t
TLHtTHL
1MHz
500ns
2.0ns 2.0ns
Input Pulse Definition
V
CC
Family
74ALS
D.U.T.
PULSE
GENERATOR
R
L
C
L
R
T
V
IN
V
OUT

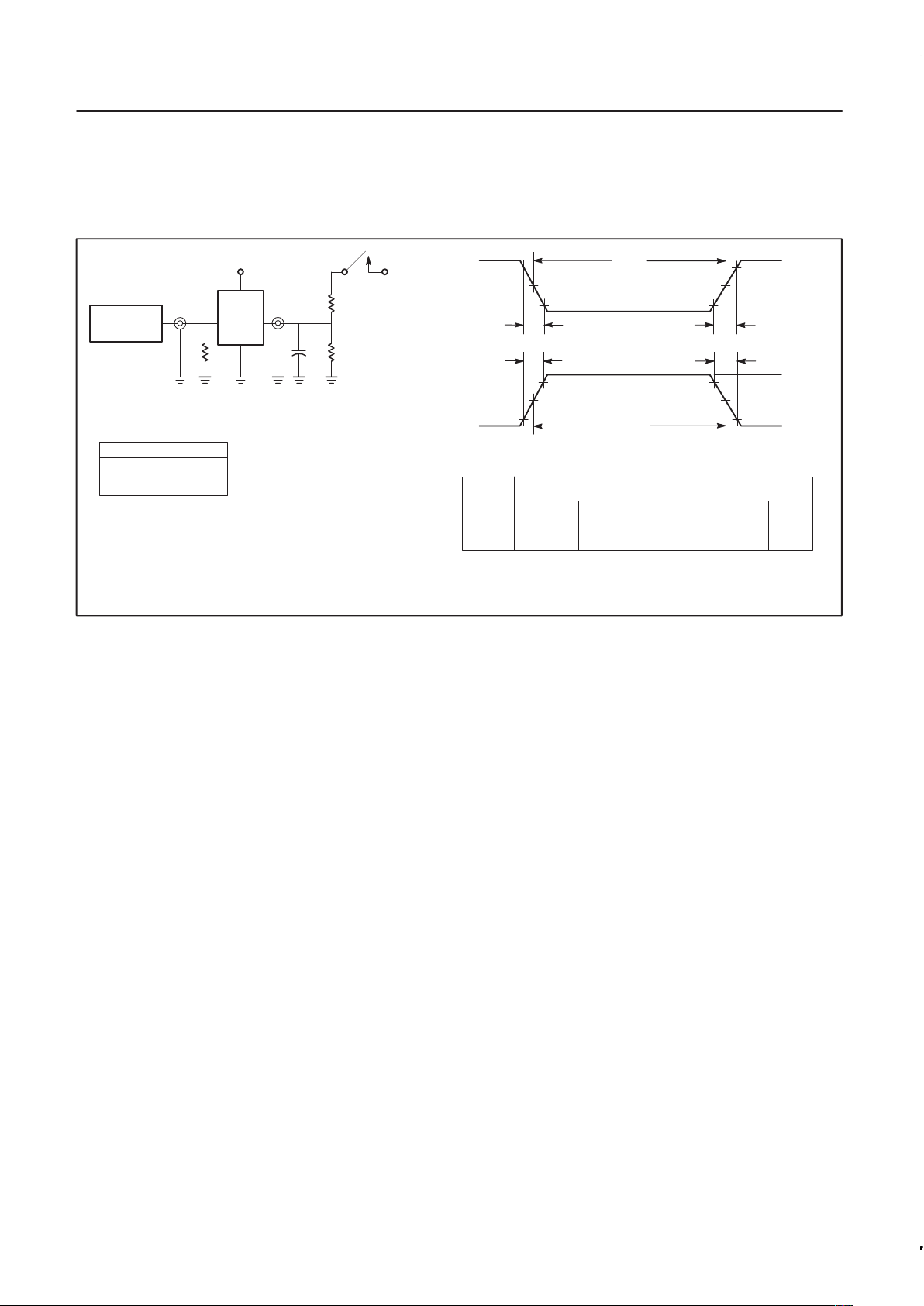

Test Circuit for 3-State Outputs
DEFINITIONS:
R
L
= Load resistor;
see AC electrical characteristics for value.
C
L
= Load capacitance includes jig and probe capacitance;
see AC electrical characteristics for value.
R
T
= Termination resistance should be equal to Z
OUT
of
pulse generators.
t
THL (tf
)
t
TLH (tr
)
t
TLH (tr
)
AMP (V)
Amplitude
3.5V
1.3V
V
M
SC00072
R
L
7.0V
SWITCH POSITION
TEST SWITCH
t
PLZ
, t
PZL
closed
All other open
Page 10
Philips Semiconductors Product specification
74ALS573B/74ALS574ALatch/flip–flop
1991 Feb 08
10

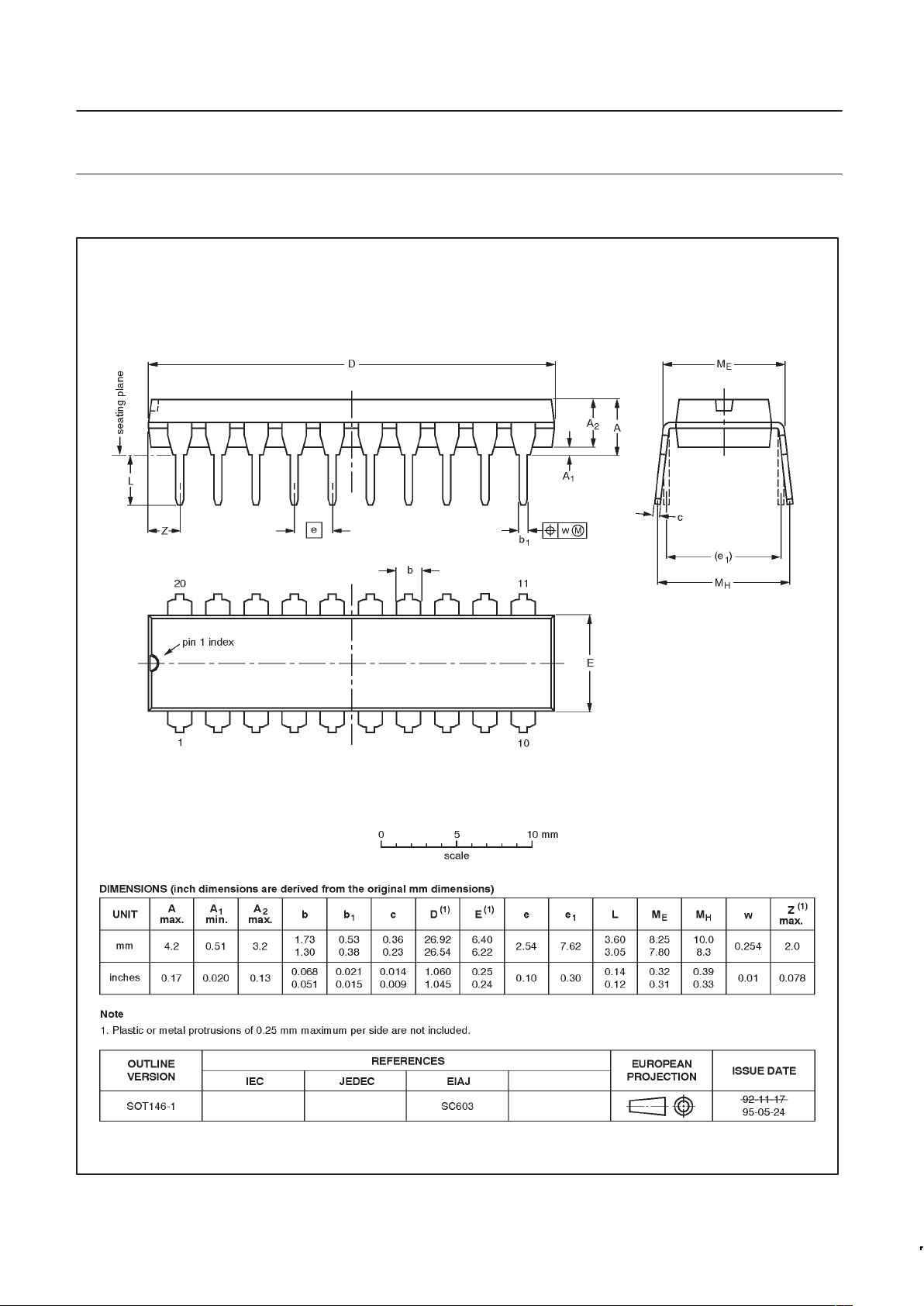

DIP20: plastic dual in-line package; 20 leads (300 mil) SOT146-1
Page 11
Philips Semiconductors Product specification
74ALS573B/74ALS574ALatch/flip–flop
1991 Feb 08
11

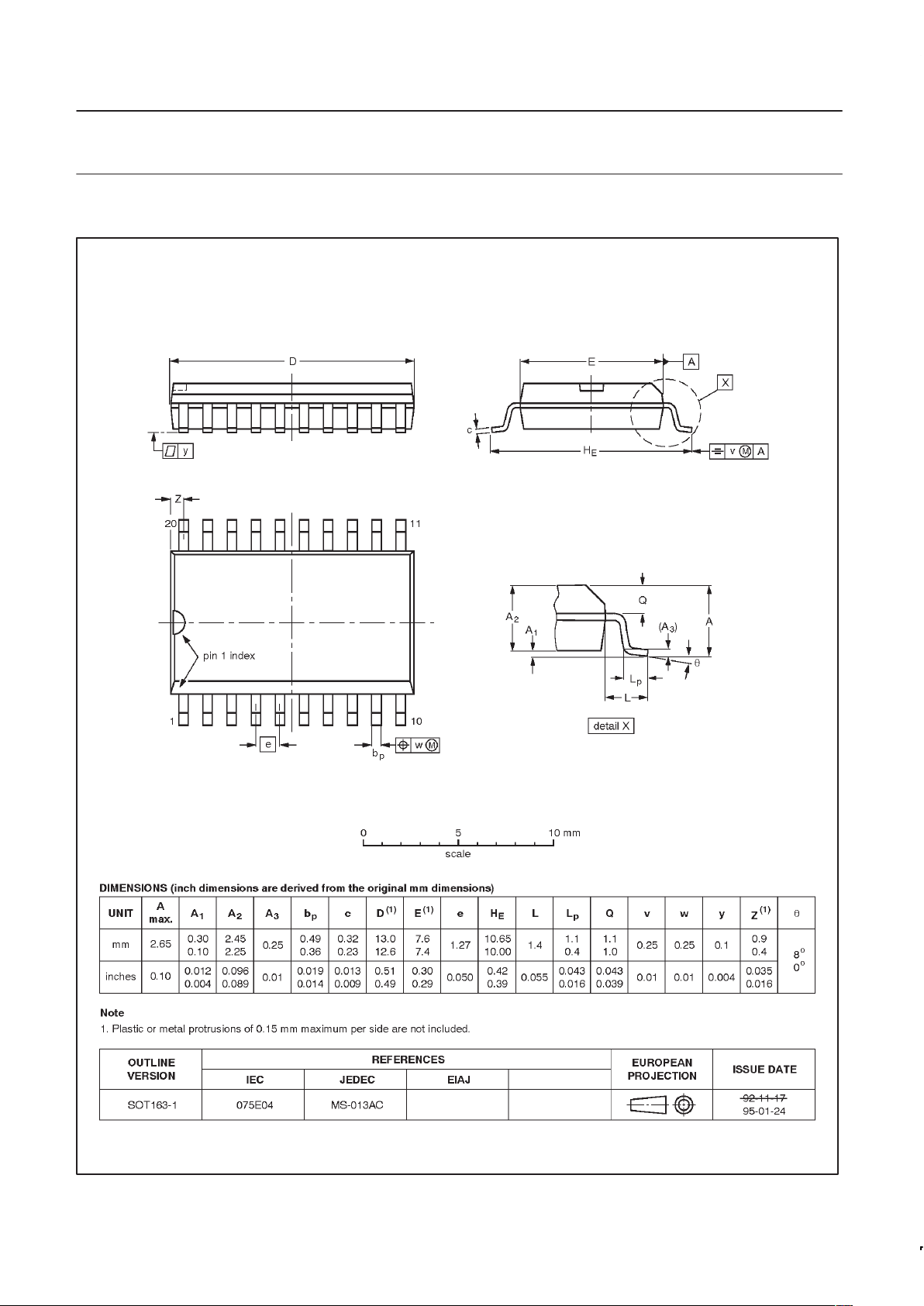

SO20: plastic small outline package; 20 leads; body width 7.5 mm SOT163-1
Page 12
Philips Semiconductors Product specification
74ALS573B/74ALS574ALatch/flip–flop
1991 Feb 08
12

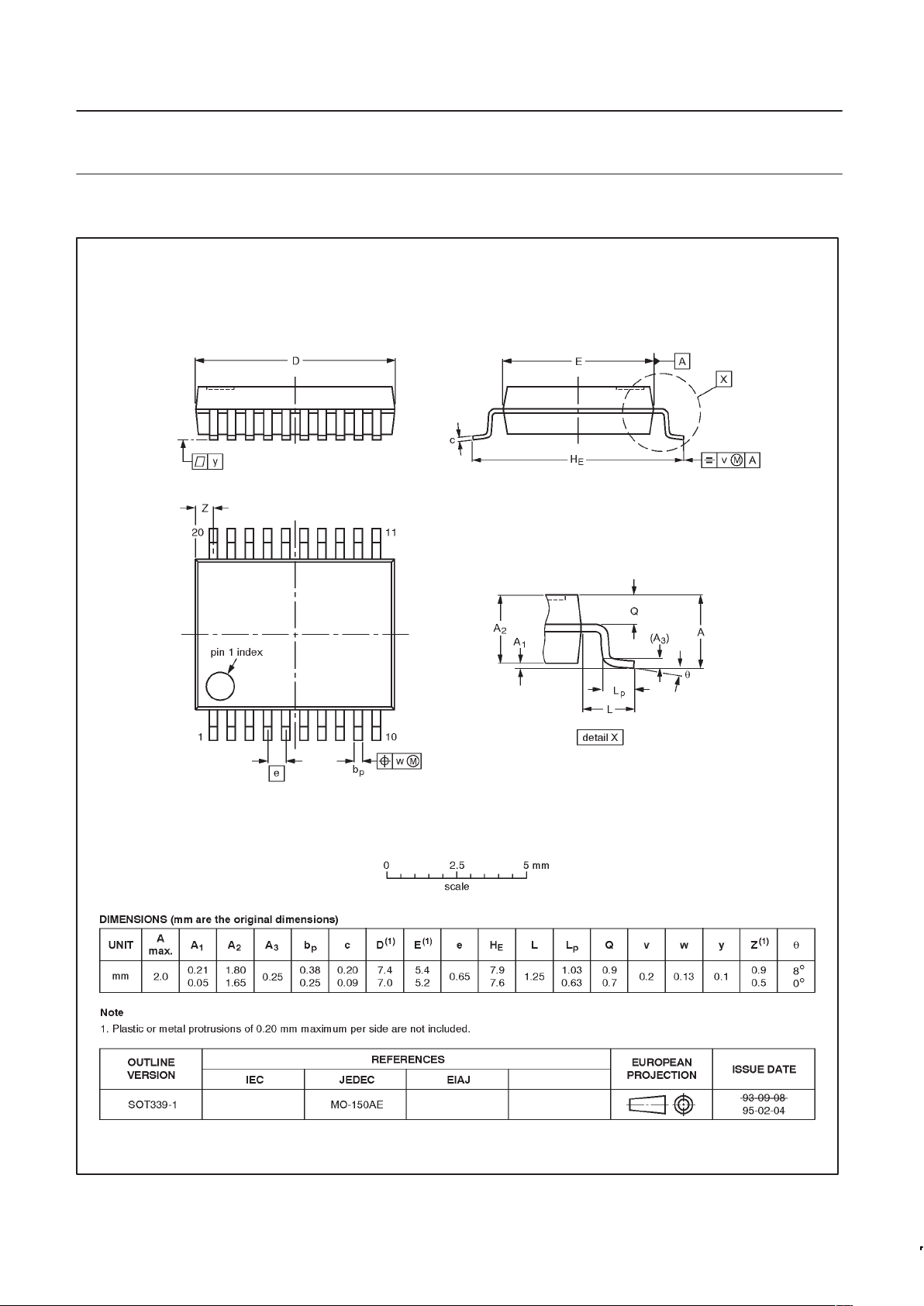

SSOP20: plastic shrink small outline package; 20 leads; body width 5.3 mm SOT339-1
Page 13
Philips Semiconductors Product specification
74ALS573B/74ALS574ALatch/flip–flop
1991 Feb 08
13
Philips Semiconductors and Philips Electronics North America Corporation reserve the right to make changes, without notice, in the products,
including circuits, standard cells, and/or software, described or contained herein in order to improve design and/or performance. Philips
Semiconductors assumes no responsibility or liability for the use of any of these products, conveys no license or title under any patent, copyright,
or mask work right to these products, and makes no representations or warranties that these products are free from patent, copyright, or mask
work right infringement, unless otherwise specified. Applications that are described herein for any of these products are for illustrative purposes
only. Philips Semiconductors makes no representation or warranty that such applications will be suitable for the specified use without further testing
or modification.
LIFE SUPPORT APPLICA TIONS
Philips Semiconductors and Philips Electronics North America Corporation Products are not designed for use in life support appliances, devices,
or systems where malfunction of a Philips Semiconductors and Philips Electronics North America Corporation Product can reasonably be expected
to result in a personal injury. Philips Semiconductors and Philips Electronics North America Corporation customers using or selling Philips
Semiconductors and Philips Electronics North America Corporation Products for use in such applications do so at their own risk and agree to fully
indemnify Philips Semiconductors and Philips Electronics North America Corporation for any damages resulting from such improper use or sale.
This data sheet contains preliminary data, and supplementary data will be published at a later date. Philips
Semiconductors reserves the right to make changes at any time without notice in order to improve design
and supply the best possible product.
Philips Semiconductors
811 East Arques Avenue
P.O. Box 3409
Sunnyvale, California 94088–3409
Telephone 800-234-7381
DEFINITIONS
Data Sheet Identification Product Status Definition
Objective Specification
Preliminary Specification
Product Specification
Formative or in Design
Preproduction Product
Full Production
This data sheet contains the design target or goal specifications for product development. Specifications
may change in any manner without notice.
This data sheet contains Final Specifications. Philips Semiconductors reserves the right to make changes
at any time without notice, in order to improve design and supply the best possible product.
Copyright Philips Electronics North America Corporation 1997
All rights reserved. Printed in U.S.A.
Loading...
