74ALS563A/74ALS564A
Latch flip/flop
Product specification
IC05 Data Handbook
1996 Jul 01
INTEGRATED CIRCUITS
Page 2
Philips Semiconductors Product specification
74ALS563A/74ALS564ALatch/flip-flop
74ALS563A Octal transparent latch, inverting (3-State)
74ALS564A Octal D flip-flop, inverting (3-State)
2
1996 Jul 01 853–1306 01670
FEA TURES
•74ALS563A is broadside pinout and inverting version of
74ALS373
•74ALS564A is broadside pinout and inverting version of
74ALS374
•Inputs and outputs on opposite side of package allow easy
interface to microprocessors
•Useful as an input or output port for microprocessors
•3-State outputs for bus interfacing
•Common output enable
•74ALS573A and 74ALS574A are non-inverting version of
74ALS563B and 74ALS564A respectively
TYPE
TYPICAL
PROPAGATION DELAY
TYPICAL
SUPPLY CURRENT
(TOTAL)
74ALS563A 6.0ns 12mA
74ALS564A 6.0ns 15mA
ORDERING INFORMATION
ORDER CODE
DESCRIPTION COMMERCIAL RANGE
V
CC
= 5V ±10%,
T
amb
= 0°C to +70°C
DRAWING
NUMBER
20-pin plastic DIP 74ALS563AN, 74ALS564AN SOT146-1
20-pin plastic SOL 74ALS563AD, 74ALS564AD SOT163-1
DESCRIPTION
The 74ALS563A is an octal transparent latch coupled to eight
3-State output devices. The two sections of the device are controlled
independently by enable (E) and output enable (OE
) control gates.
The 74ALS563A is a complementary version of the 74ALS373 and
has a broadside pinout configuration to facilitate PC board layout
and allow easy interface with microprocessors.
The data on the D inputs is transferred to the latch outputs when the
enable (E) input is High. The latch remains transparent to the data
input while E is High, and stores the inverted data that is present
one setup time before the High-to-Low enable transition.
The 74ALS564A is a complementary version of the 74ALS373 and
has a broadside pinout configuration to facilitate PC board layout
and allow easy interface with microprocessors.
It is an 8-bit edge triggered register coupled to eight 3-State output
buffers. The two sections of the device are controlled independently
by clock (CP) and output enable (OE
) control gates.
The register is fully edge triggered. The state of the D input, one
setup time before the Low-to-High clock transition is transferred to
the corresponding flip-flop’s Q output.
The active-Low output enable (OE
) controls all eight 3-State buffers
independent of the latch operation. When OE
is Low, latched or
transparent data appears at the output.
When OE
is High, the outputs are in high impedance “off” state,
which means they will neither drive nor load the bus.
INPUT AND OUTPUT LOADING AND FAN-OUT TABLE
PINS DESCRIPTION
74ALS (U.L.)
HIGH/LOW
LOAD VALUE
HIGH/LOW
D0 – D7 Data inputs 1.0/2.0 20µA/0.2mA
E (74ALS563A) Enable input 1.0/1.0 20µA/0.1mA
OE Output enable input (active-Low) 1.0/1.0 20µA/0.1mA
CP (74ALS564A) Clock pulse input (active rising edge) 1.0/2.0 20µA/0.2mA
Q0 – Q7 Data outputs 130/240 2.6mA/24mA
NOTE: One (1.0) ALS unit load is defined as: 20µA in the High state and 0.1mA in the Low state.
Page 3
Philips Semiconductors Product specification
74ALS563A/74ALS564ALatch/flip-flop
1996 Jul 01
3
PIN CONFIGURATION – 74ALS563A
1
2
3
4
5
6
7
8
9
10 11
12
13
14
15
16
17
18
19
20
OE
GND
V
CC
E
SC00111
Q0
D0
D1
Q
1
D2
Q2
Q
3
D3
Q
4
D4
Q
5
D5
Q
6
D6
Q
7
D7
PIN CONFIGURATION – 74ALS564A
1
2
3
4
5
6
7
8
9
10 11
12
13
14
15
16
17
18
19
20
OE
GND
V
CC
CP
SF01052
Q0
D0
D1
Q
1
D2
Q2
Q
3
D3
Q
4
D4
Q
5
D5
Q
6
D6
Q
7
D7
LOGIC SYMBOL – 74ALS563A
345678
141516171819
1
11 E
OE
Q0
D0 D1Q1D2
Q2 Q3D3Q4D4Q5
D5
9
2
1213
Q6D6Q7
D7
SC00112
VCC=Pin 20
GND=Pin 10
LOGIC SYMBOL – 74ALS564A
345678
141516171819
1
11 CP
OE
Q0
D0 D1Q1D2
Q2 Q3D3Q4D4Q5
D5
9
2
1213
Q6D6Q7
D7
SF01053
VCC=Pin 20
GND=Pin 10
IEC/IEEE SYMBOL – 74ALS563A
1
2D
EN1
1
SC00113
11
EN2
2
3
4
5
6
7
8
9
19
18
17
16
15
14
13
12
IEC/IEEE SYMBOL – 74ALS564A
1
2D
EN1
1
SF01054
11
C2
2
3
4
5
6
7
8
9
19
18
17
16
15
14
13
12
Page 4
Philips Semiconductors Product specification
74ALS563A/74ALS564ALatch/flip-flop
1996 Jul 01
4
LOGIC DIAGRAM – 74ALS563A
V
CC
= Pin 20
GND = Pin 10
D0
D
E
Q
Q0
2
19
D1
D
E
Q
Q1
3
18
D2
D
E
Q
Q2
4
17
D3
D
E
Q
Q3
5
16
D4
D
E
Q
Q4
6
15
D5
D
E
Q
Q5
7
14
D6
D
E
Q
Q6
8
13
D7
D
E
Q
Q7
9
12
11
E
SC00116
1
OE
FUNCTION T ABLE – 74ALS563A
INPUTS
OUTPUTS
INTERNAL
OE E Dn
REGISTER
Q0 – Q7
OPERATING MODE
L H L L H
L H H H L
Enable and read register
L ↓ l L H
L ↓ h H L
Latch and read register
L L X NC NC Hold
H L X NC Z
p
H H Dn Dn Z
Disable outputs
H = High voltage level
h = High state must be present one setup time before the High-to-Low enable transition
L = Low voltage level
l = Low state must be present one setup time before the High-to-Low enable transition
NC= No change
X = Don’t care
Z = High impedance “off” state
↓ = High-to-Low enable transition
Page 5
Philips Semiconductors Product specification
74ALS563A/74ALS564ALatch/flip-flop
1996 Jul 01
5

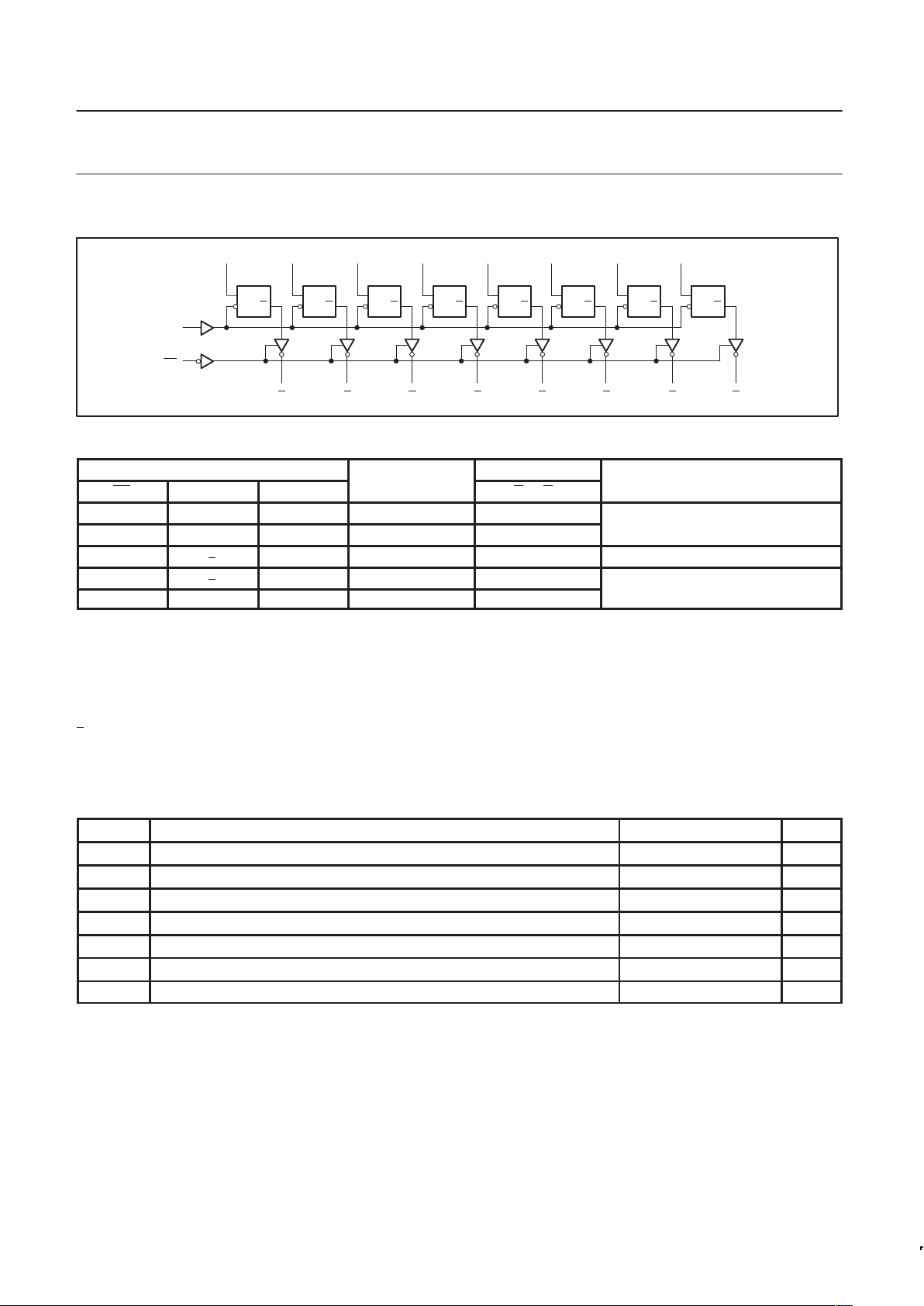

LOGIC DIAGRAM – 74ALS564A
VCC = Pin 20
D0
D
CP
Q
Q0
2
19
D1
D
CP
Q
Q1
3
18
D2
D
CP
Q
Q2
4
17
D3
D
CP
Q
Q3
5
16
D4
D
CP
Q
Q4
6
15
D5
D
CP
Q
Q5
7
14
D6
D
CP
Q
Q6
8
13
D7
D
CP
Q
Q7
9
12
11
OE
CP
GND = Pin 10
SC00117
1
FUNCTION T ABLE – 74ALS564A
INPUTS
OUTPUTS
INTERNAL
OE CP Dn
REGISTER
Q0 – Q7
OPERATING MODE
L ↑ l L H
L ↑ h H L
Load and read register
L ↑ X NC NC Hold
H ↑ X NC Z
p
H ↑ Dn Dn Z
Disable outputs
H = High voltage level
h = High state must be present one setup time before the Low-to-High clock transition
L = Low voltage level
l = Low state must be present one setup time before the Low-to-High clock transition
NC= No change
X = Don’t care
Z = High impedance “off” state
↑ = Low-to-High clock transition
↑
= Not Low-to-High clock transition
ABSOLUTE MAXIMUM RATINGS
(Operation beyond the limit set forth in this table may impair the useful life of the device.
Unless otherwise noted these limits are over the operating free-air temperature range.)
SYMBOL
PARAMETER RATING UNIT
V
CC
Supply voltage –0.5 to +7.0 V
V
IN
Input voltage –0.5 to +7.0 V
I
IN
Input current –30 to +5 mA
V
OUT
Voltage applied to output in High output state –0.5 to V
CC
V
I
OUT
Current applied to output in Low output state 48 mA
T
amb
Operating free-air temperature range 0 to +70 °C
T
stg
Storage temperature range –65 to +150 °C
Page 6
Philips Semiconductors Product specification
74ALS563A/74ALS564ALatch/flip-flop
1996 Jul 01
6
RECOMMENDED OPERATING CONDITIONS
LIMITS
SYMBOL
PARAMETER
MIN NOM MAX
UNIT
V
CC
Supply voltage 4.5 5.0 5.5 V
V
IH
High-level input voltage 2.0 V
V
IL
Low-level input voltage 0.8 V
I
IK
Input clamp current –18 mA
I
OH
High-level output current –2.6 mA
I
OL
Low-level output current 24 mA
T
amb
Operating free-air temperature range 0 +70 °C
DC ELECTRICAL CHARACTERISTICS
(Over recommended operating free-air temperature range unless otherwise noted.)
LIMITS
SYMBOL
PARAMETER
TEST CONDITIONS
1
MIN TYP2MAX
UNIT
p
VCC = ±10%, VIL = MAX,
IOH = –0.4mA V
CC
– 2 V
VOHHigh-level output voltage
CC
,
IL
,
VIH = MIN
IOH = MAX 2.4 3.2 V
p
VCC = MIN, VIL = MAX,
I
OL
= 12mA 0.25 0.40 V
VOLLow-level output voltage
CC
,
IL
,
VIH = MIN
I
OL
= 24mA 0.35 0.50 V
V
IK
Input clamp voltage VCC = MIN, II = I
IK
–0.73 –1.5 V
I
I
Input current at maximum input voltage VCC = MAX, VI = 7.0V 0.1 mA
I
IH
High-level input current VCC = MAX, VI = 2.7V 20 µA
Low-level input
74ALS563A
–0.1 mA
I
IL
current
74ALS564A
V
CC
=
MAX, V
I
= 0.
4V
–0.2 mA
I
OZH
Off-state output current,
High-level voltage applied
VCC = MAX, VI = 2.7V 20 µA
I
OZL
Off-state output current,
Low-level voltage applied
VCC = MAX, VI = 0.4V –20 µA
I
O
Output current
3
VCC = MAX, VO = 2.25V –30 –112 mA
I
CCH
7 12 mA
74ALS563A
I
CCL
VCC = MAX
13 21 mA
pp
I
CCZ
15 24 mA
ICCSupply current (total)
I
CCH
11 18 mA
74ALS564A
I
CCL
VCC = MAX
17 27 mA
I
CCZ
18 28 mA
NOTES:
1. For conditions shown as MIN or MAX, use the appropriate value specified under recommended operating conditions for the applicable type.
2. All typical values are at V
CC
= 5V, T
amb
= 25°C.
3. The output conditions have been chosen to produce a current that closely approximates one half of the true short-circuit output current, I
OS
.
Page 7
Philips Semiconductors Product specification
74ALS563A/74ALS564ALatch/flip-flop
1996 Jul 01
7
AC ELECTRICAL CHARACTERISTICS
LIMITS
SYMBOL PARAMETER TEST CONDITION
T
amb
= 0°C to +70°C
V
CC
= +5.0V ± 10%
C
L
= 50pF, RL = 500Ω
UNIT
MIN MAX
t
PLH
t
PHL
Propagation delay
Dn to Q
n
Waveform 3
2.0
3.0
10.0
10.0
ns
t
PLH
t
PHL
Propagation delay
E to Q
n
Waveform 2
4.0
4.0
13.0
13.0
ns
t
PZH
t
PZL
Output enable time
to High or Low level
74ALS563A
Waveform 6
Waveform 7
1.0
3.0
9.0
11.0
ns
t
PHZ
t
PLZ
Output disable time
from High or Low level
Waveform 6
Waveform 7
1.0
2.0
9.0
11.0
ns
f
MAX
Maximum clock frequency Waveform 1 45 MHz
t
PLH
t
PHL
Propagation delay
CP to Q
n
Waveform 1
3.0
4.0
12.0
12.0
ns
t
PZH
t
PZL
Output enable time
to High or Low level
74ALS564A
Waveform 6
Waveform 7
1.0
3.0
9.0
11.0
ns
t
PHZ
t
PLZ
Output disable time
from High or Low level
Waveform 6
Waveform 7
1.0
2.0
9.0
11.0
ns
AC SETUP REQUIREMENTS
LIMITS
SYMBOL PARAMETER TEST CONDITION
T
amb
= 0°C to +70°C
V
CC
= +5.0V ± 10%
C
L
= 50pF, RL = 500Ω
UNIT
MIN MAX
tsu(H)
t
su
(L)
Setup time, High or Low
Dn to E
Waveform 4
6.0
6.0
ns
th(H)
t
h
(L)
Hold time, High or Low
Dn to E
74ALS563A
Waveform 4
6.0
6.0
ns
tw(H) E Pulse width, High Waveform 1 10.0 ns
tsu(H)
t
su
(L)
Setup time, High or Low
Dn to CP
Waveform 5
6.0
6.0
ns
th(H)
t
h
(L)
Hold time, High or Low
Dn to CP
74ALS564A
Waveform 5
1.0
1.0
ns
tw(H)
t
w
(L)
CP Pulse width,
High or Low
Waveform 5
7.0
11.0
ns
Page 8
Philips Semiconductors Product specification
74ALS563A/74ALS564ALatch/flip-flop
1996 Jul 01
8

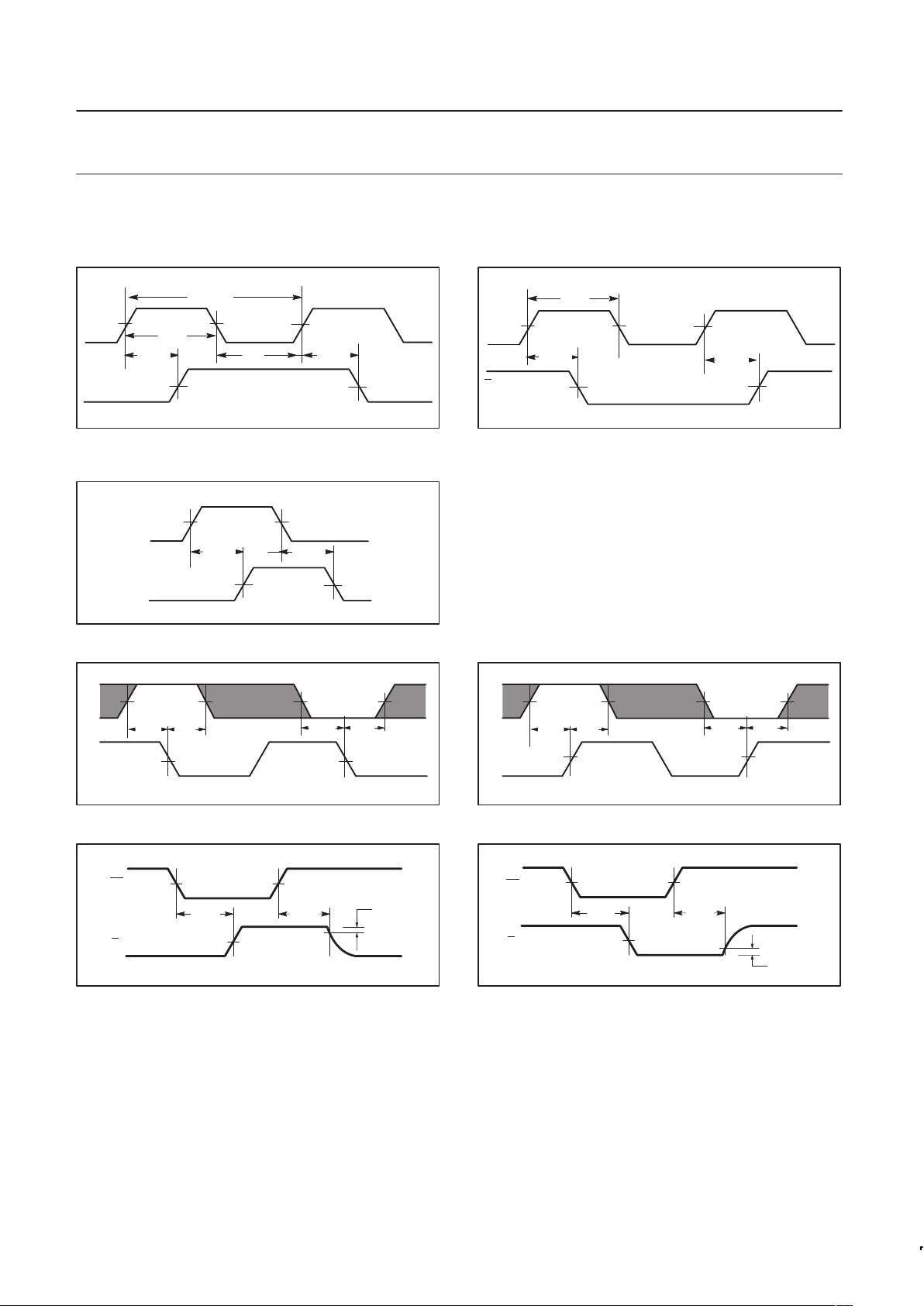

AC WAVEFORMS
For all waveforms, VM = 1.3V .
The shaded areas indicate when the input is permitted to change for predictable output performance.
CP
V
M
V
M
V
M
tw(H)
1/f
max
V
M
V
M
t
PHL
tw(L)t
PLH
Qn
SF00258
Waveform 1. Propagation Delay for Clock Input to Output,
Clock Pulse Widths, and Maximum Clock Frequency
t
PHL
EV
M
V
M
V
M
tw(H)
V
M
V
M
Qn
t
PLH
SF00259
Waveform 2. Propagation Delay for Enable to Output and
Enable Pulse Width
Dn
V
M
V
M
V
M
V
M
t
PHL
t
PLH
Qn
SF00260
Waveform 3. Propagation Delay for Data to Output
V
M
V
M
V
M
V
M
V
M
V
M
tsu(L) th(L)
t
su
(H) th(H)
E
Dn
SF00261
Waveform 4. Data Setup Time and Hold Times
V
M
V
M
V
M
V
M
V
M
V
M
tsu(L) th(L)
t
su
(H) th(H)
CP
Dn
SF00262
Waveform 5. Data Setup Time and Hold Times
V
M
V
M
V
M
t
PHZ
t
PZH
OE
Qn, Qn
VOH -0.3V
0V
SC00114
Waveform 6. 3-State Output Enable Time to High Level and
Output Disable Time from High Level
V
M
V
M
V
M
t
PLZ
t
PZL
OE
Qn, Qn
V
OL
+0.3V
SC00115
3.5V
Waveform 7. 3-State Output Enable Time to Low Level and
Output Disable Time from Low Level
Page 9
Philips Semiconductors Product specification
74ALS563A/74ALS564ALatch/flip-flop
1996 Jul 01
9
TEST CIRCUIT AND WAVEFORMS
t
w
90%
V
M
10%
90%
V
M
10%
90%
V
M
10%
90%
V
M
10%
NEGATIVE
PULSE
POSITIVE
PULSE
t
w
AMP (V)
0.3V
0.3V
t
THL (tf
f
)
INPUT PULSE REQUIREMENTS
Rep.Rate
t
w
t
TLHtTHL
1MHz
500ns
2.0ns 2.0ns
Input Pulse Definition
V
CC
Family
74ALS
D.U.T.
PULSE
GENERATOR
R
L
C
L
R
T
V
IN
V
OUT

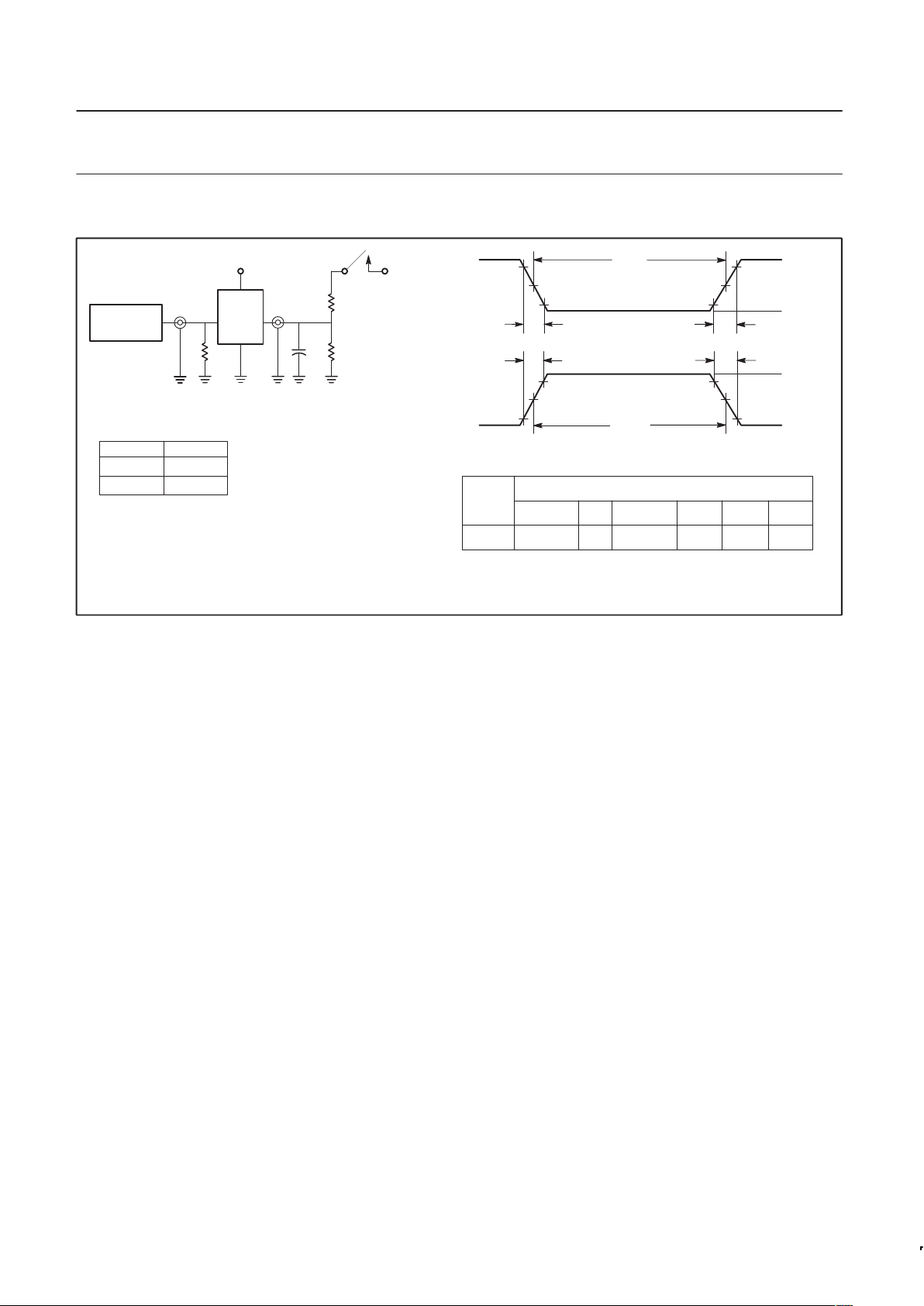

Test Circuit for 3-State Outputs
DEFINITIONS:
R
L
= Load resistor;
see AC electrical characteristics for value.
CL= Load capacitance includes jig and probe capacitance;
see AC electrical characteristics for value.
R
T
= Termination resistance should be equal to Z
OUT
of
pulse generators.
t
THL (tf
)
t
TLH (tr
)
t
TLH (tr
)
AMP (V)
Amplitude
3.5V
1.3V
V
M
SC00072
R
L
7.0V
SWITCH POSITION
TEST SWITCH
t
PLZ
, t
PZL
closed
All other open
Page 10
Philips Semiconductors Product specification
Latch flip–flop
1996 Jul 01
10

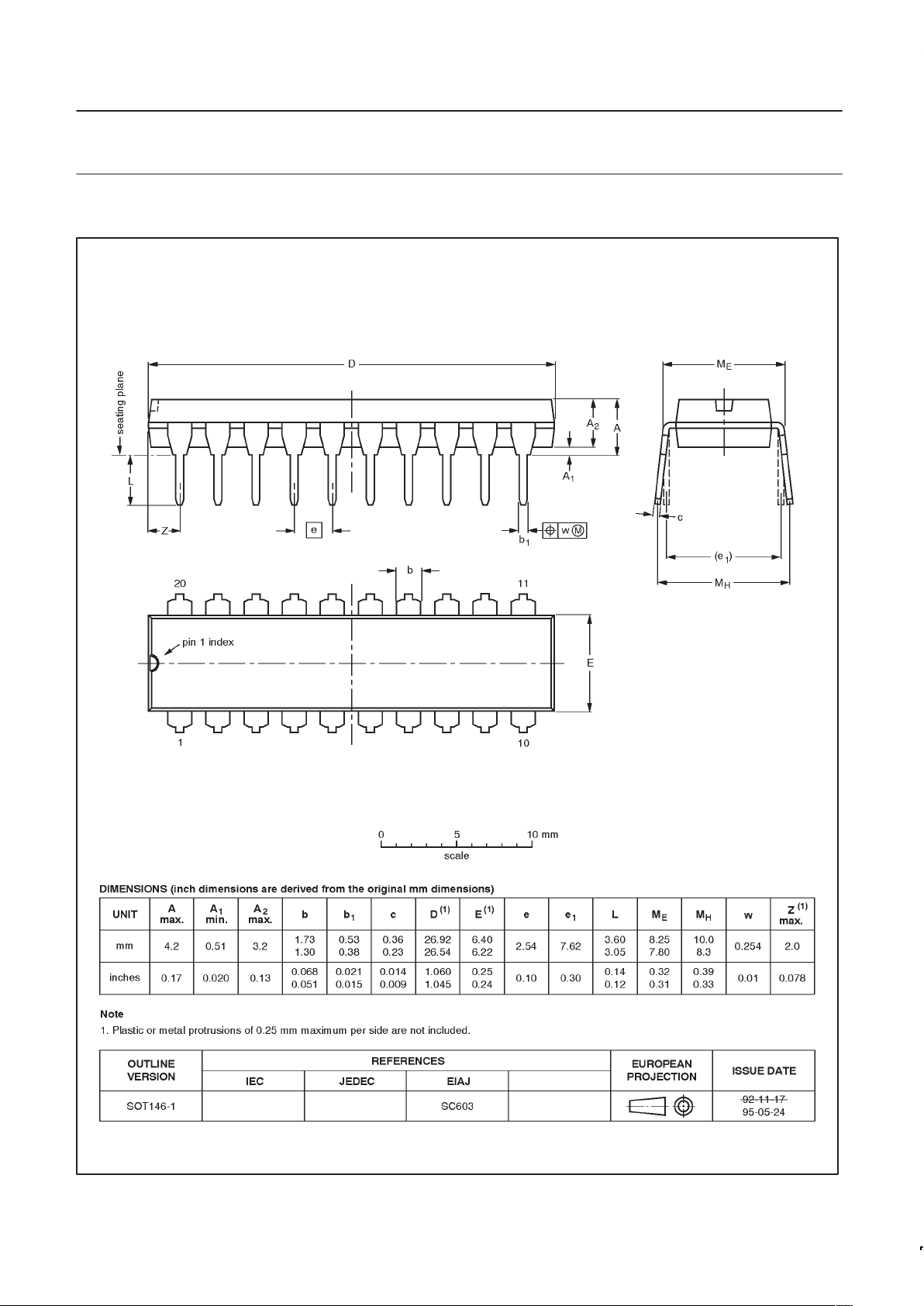

DIP20: plastic dual in-line package; 20 leads (300 mil) SOT146-1
Page 11
Philips Semiconductors Product specification
Latch flip–flop
1996 Jul 01
11

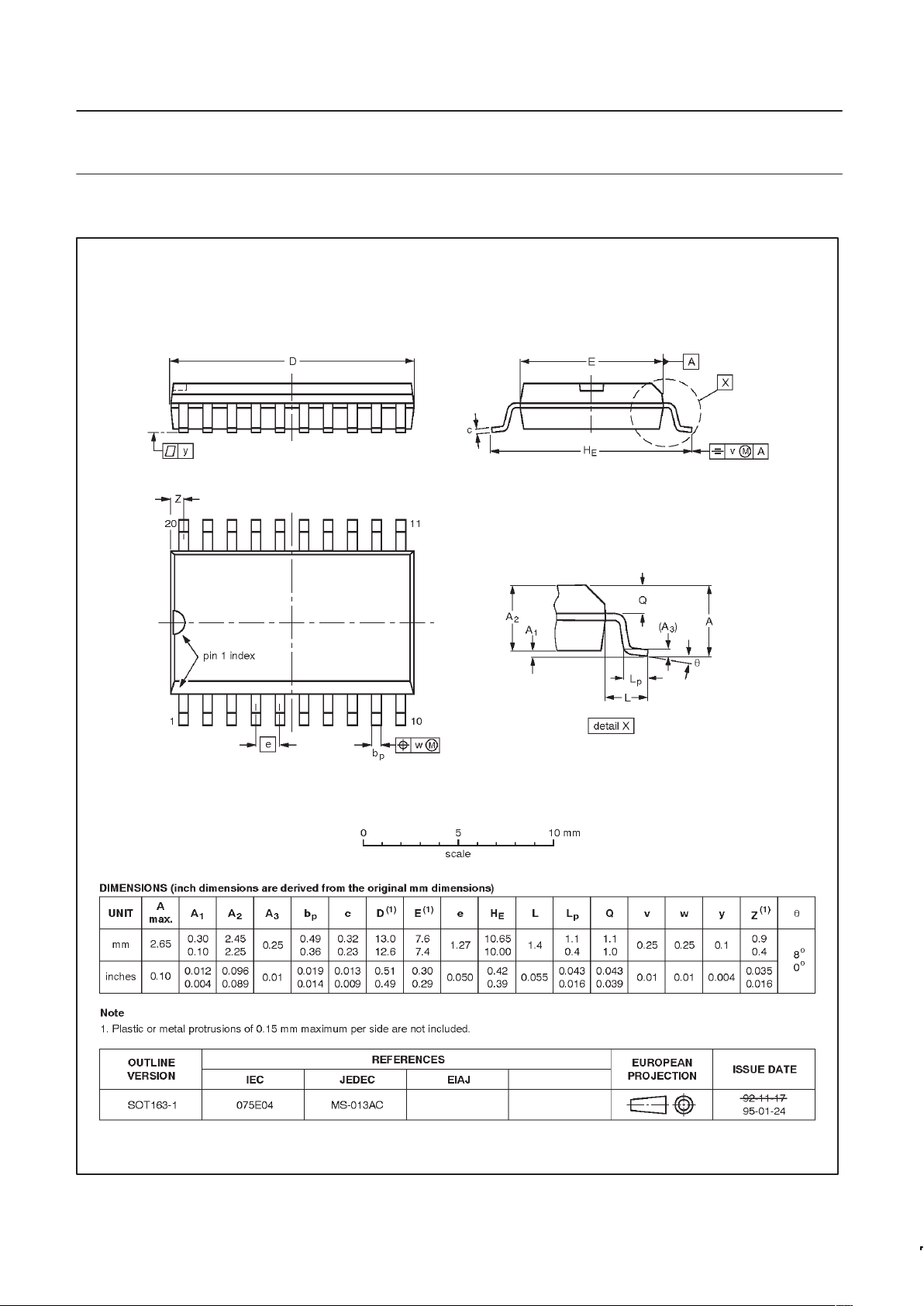

SO20: plastic small outline package; 20 leads; body width 7.5 mm SOT163-1
Page 12
Philips Semiconductors Product specification
Latch flip–flop
1996 Jul 01
12
Philips Semiconductors and Philips Electronics North America Corporation reserve the right to make changes, without notice, in the products,
including circuits, standard cells, and/or software, described or contained herein in order to improve design and/or performance. Philips
Semiconductors assumes no responsibility or liability for the use of any of these products, conveys no license or title under any patent, copyright,
or mask work right to these products, and makes no representations or warranties that these products are free from patent, copyright, or mask
work right infringement, unless otherwise specified. Applications that are described herein for any of these products are for illustrative purposes
only. Philips Semiconductors makes no representation or warranty that such applications will be suitable for the specified use without further testing
or modification.
LIFE SUPPORT APPLICA TIONS
Philips Semiconductors and Philips Electronics North America Corporation Products are not designed for use in life support appliances, devices,
or systems where malfunction of a Philips Semiconductors and Philips Electronics North America Corporation Product can reasonably be expected
to result in a personal injury. Philips Semiconductors and Philips Electronics North America Corporation customers using or selling Philips
Semiconductors and Philips Electronics North America Corporation Products for use in such applications do so at their own risk and agree to fully
indemnify Philips Semiconductors and Philips Electronics North America Corporation for any damages resulting from such improper use or sale.
This data sheet contains preliminary data, and supplementary data will be published at a later date. Philips
Semiconductors reserves the right to make changes at any time without notice in order to improve design
and supply the best possible product.
Philips Semiconductors
811 East Arques Avenue
P.O. Box 3409
Sunnyvale, California 94088–3409
Telephone 800-234-7381
DEFINITIONS
Data Sheet Identification Product Status Definition
Objective Specification
Preliminary Specification
Product Specification
Formative or in Design
Preproduction Product
Full Production
This data sheet contains the design target or goal specifications for product development. Specifications
may change in any manner without notice.
This data sheet contains Final Specifications. Philips Semiconductors reserves the right to make changes
at any time without notice, in order to improve design and supply the best possible product.
Copyright Philips Electronics North America Corporation 1997
All rights reserved. Printed in U.S.A.
Loading...
