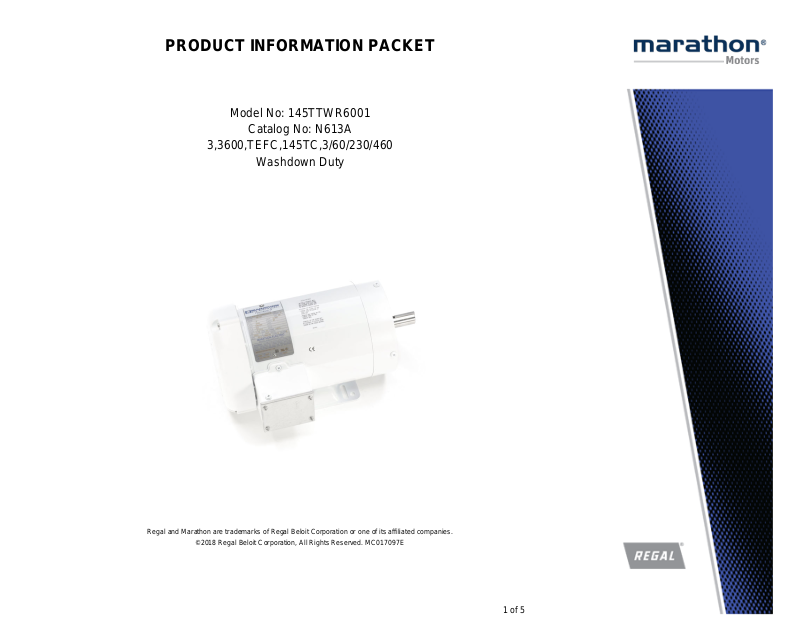

PRODUCT INFORMATION PACKET
Model No: 145TTWR6001
Catalog No: N613A
3,3600,TEFC,145TC,3/60/230/460
Washdown Duty
Regal and Marathon are trademarks of Regal Beloit Corporation or one of its affiliated companies.
©2018 Regal Beloit Corporation, All Rights Reserved. MC017097E
1 of 5
Page 2
Product Information Packet: Model No: 145TTWR6001, Catalog No:N613A 3,3600,TEFC,145TC,3/60/230/460
Nameplate Specifications
Output HP
Frequency 60 Hz Voltage 230/460 V
Current
Service Factor
Efficiency 86.5 % Duty Continous
Insulation Class
KVA Code N Frame 145TC
Enclosure Totally Enclosed Fan Cooled Overload Protector No
Ambient Temperature
Opp Drive End Bearing Size 6203 UL Recognized
CSA
IP Code
3 Hp
8.0/4.0 A
1.15
F
40 °C
Y
55
Output KW
Speed
Phase
Design Code
Drive End Bearing Size
CE
2.2 kW
3490 rpm
3
B
6205
Y
Technical Specifications
Electrical Type
Poles 2 Rotation Reversible
Squirrel Cage Inverter Rated
Starting Method
Line Or Inverter
Mounting
Drive End Bearing Ball Opp Drive End Bearing Ball
Frame Material Rolled Steel Shaft Type T
Overall Length
Shaft Diameter 0.875 in Shaft Extension 2.12 in
Assembly/Box Mounting
Outline Drawing
Rigid base
13.68 in
F1 Only
607-0018-775
Motor Orientation
Frame Length

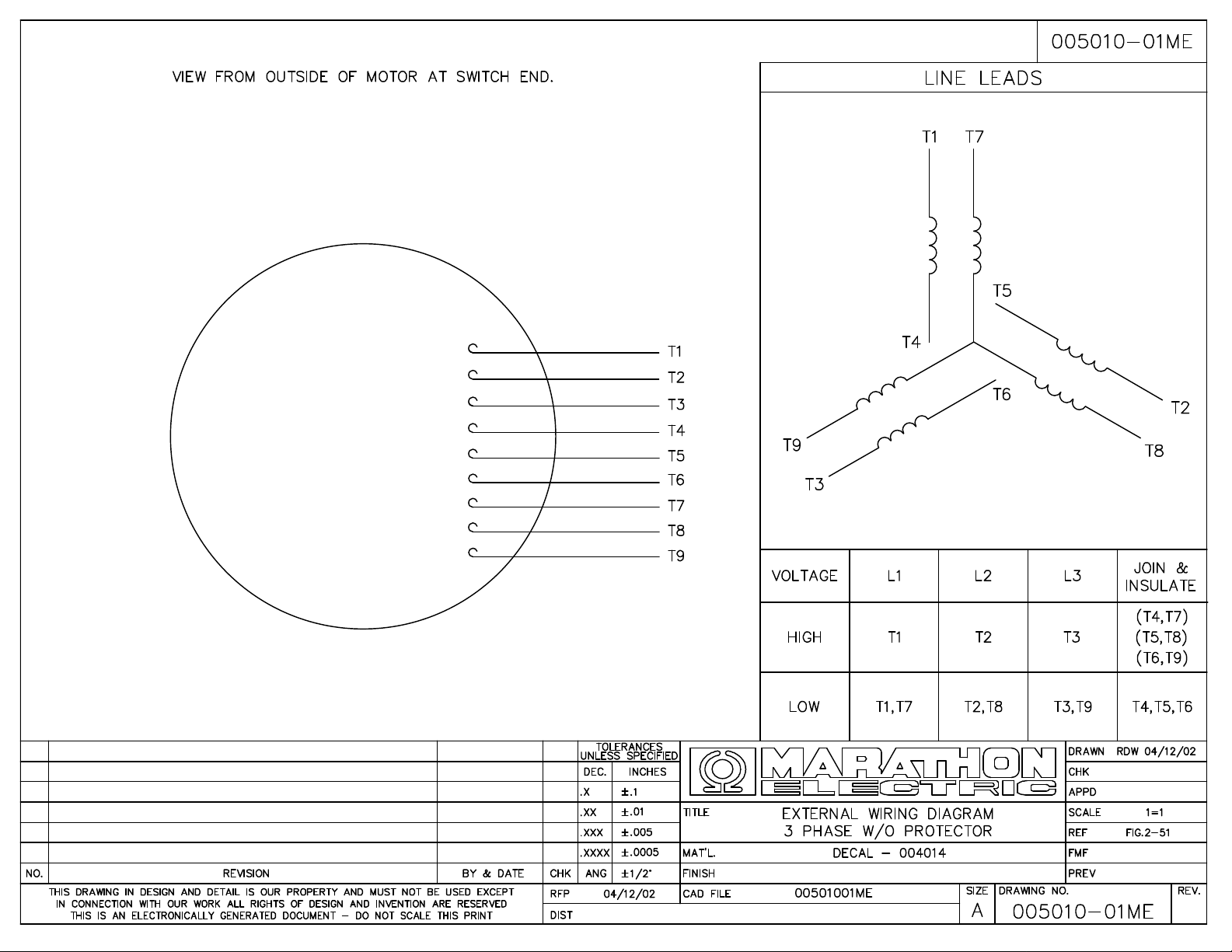

Connection Diagram
Horizontal
7.75 in
005010.01ME
This is an uncontrolled document once printed or downloaded and is subject to change without notice. Date Created: 06/29/2018
2 of 5
Page 3

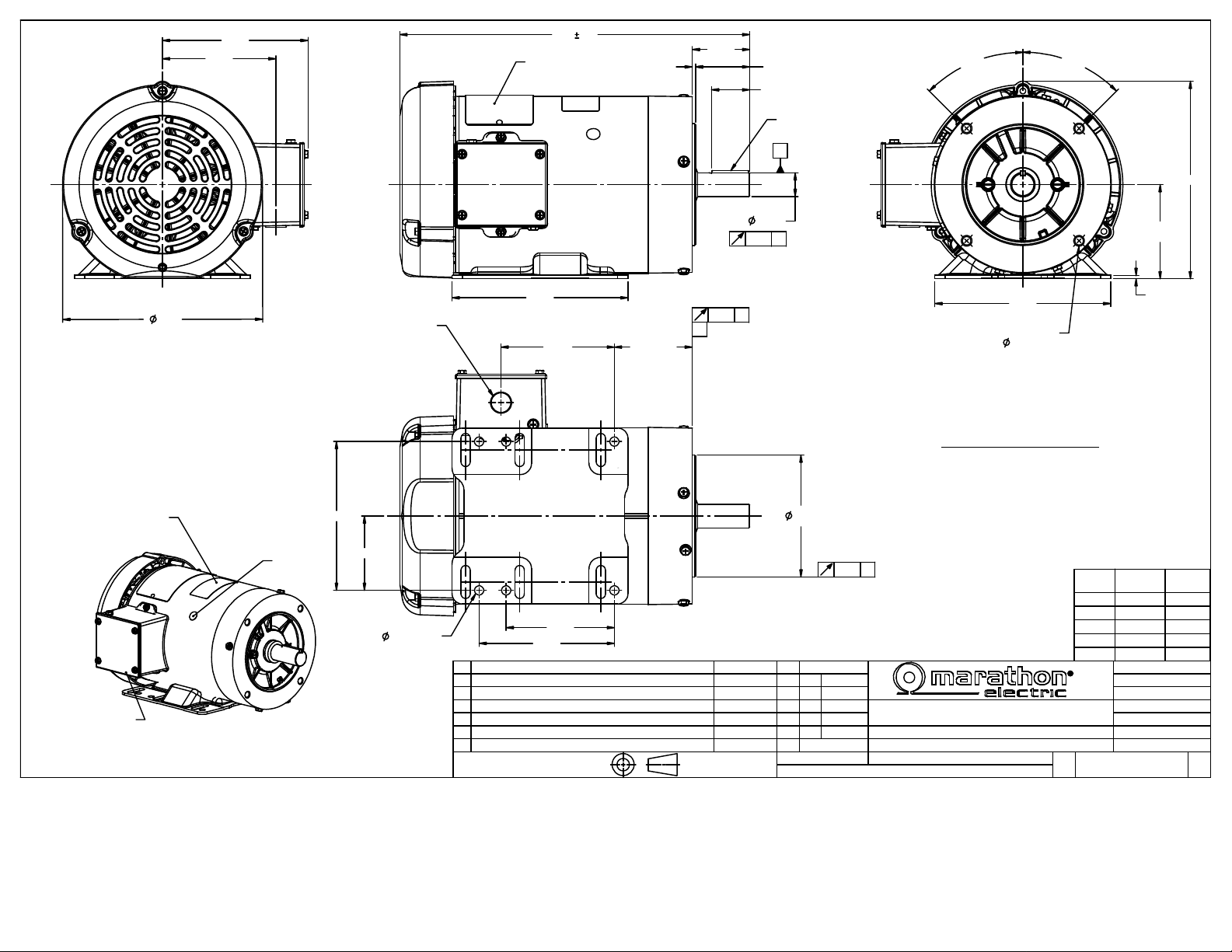

4.19
5.38
"C"
NAMEPLATE
.06
.12
2.12
2.00
1.41
FULL DEPTH
.19 SQ. x 1.38 KEY
H
45°45°
7.30
DRAIN HOLE
CONNECTION DECAL
UNDER COVER
(WHEN REQUIRED)
DECAL
7.39
(1) 1/2-14 NPT CONDUIT HOLE
(PLUGGED)
5.50
CE
DECAL
2.75
(6) .34 HOLES
6.50
"AD"
2.88
±.09
G
.004 H
.002
.8750
.8745
G
6.50
3/8-16 UNC-2B x .56 DEEP
(4) REQ'D. ON A 5.875 B.C.
WASHGUARD MOTOR
SHAFT SEALS & V-RING.1.
PLUGGED DRAIN HOLES IN ENDBELLS & CONDUIT BOX.2.
BUNA-N GASKETS THROUGHOUT.3.
STAINLESS STEEL SHAFT, HARDWARE & NAMEPLATE.4.
DASH
NO.
4.500
4.497
SPECIAL FEATURES:
.004 H
3.50
3.44
.119
"C" "AD"
700 12.93 4.19
750 13.43 4.69
4.00
5.00
TOLERANCES
UNLESS SPECIFIED
DEC
INCHES
.X
±.1
±.03
±.005
±.0005
±1/2°
TITLE
OUTLINE - 140TC FRAME
TEFC - RIGID "C" FACE
MAT'L
WASHGUARD
FINISH
PREV
607-0018
.XX
.XXX
NO
REVISION
THIRD ANGLE
PROJECTION
BY & DATE
.XXXX
ANG
CHK
RFP
NETWORK FILE NAME
775 13.68 4.94
800 13.93 5.19
850 14.43 5.69
DRAWN
CHK
APPR
SCALE
REF
FMF
PAGE
B
607-0018
VS 4/21/2011
3:8
607-0003
145TTVR5030
OF
REVSIZE DRAWING NO
4/21/2011 1:23:11 AM
3 of 5
Page 4
4 of 5
7/20/2012 2:29:41 PM - Converted by Connexus
Page 5
CERTIFICATION DATA SHEET
Model#: 145TTWR6001 AA WINDING#: T632209 FR 3
CONN. DIAGRAM: 005010.01ME ASSEMBLY: F1 ONLY
OUTLINE: 607-0018-775
TYPICAL MOTOR PERFORMANCE DATA
HP KW SYNC. RPM F.L. RPM FRAME ENCLOSURE KVA CODE DESIGN
3 2.24 3600 3490 145TC TEFC N B
PH Hz VOLTS FL AMPS START TYPE DUTY INSL S.F AMB°C ELEVATION
3 60 230/460 8/4 LINE OR
INVERTER
CONTINUOUSF4 1.15 40 3300
FULL LOAD EFF: 86.5 3/4 LOAD EFF: 86 1/2 LOAD EFF: 84.2 GTD. EFF ELEC. TYPE NO LOAD AMPS
FULL LOAD PF: 86 3/4 LOAD PF: 82.2 1/2 LOAD PF: 72.7 0 SQ CAGE INV RATED 3.4 / 1.7
F.L. TORQUE LOCKED ROTOR AMPS L.R. TORQUE B.D. TORQUE F.L. RISE°C
5.24 LB-FT 82 / 41 17.97 LB-FT 399 20.83 LB-FT 463 0
SOUND PRESSURE
@ 3 FT.
SOUND POWER ROTOR WK^2 MAX. WK^2 SAFE STALL TIME STARTS
/HOUR
APPROX. MOTOR
WGT
0 dBA 10 dBA 0.09 LB-FT^2 0.1 LB-FT^2 10 SEC. 0 0 LBS.
*** SUPPLEMENTAL INFORMATION ***
DE BRACKET
TYPE
ODE BRACKET
TYPE
MOUNT
TYPE
ORIENTATION SEVERE
DUTY
HAZARDOUS
LOCATION
DRIP
COVER
SCREENS PAINT
C-FACE STANDARD RIGID HORIZONTAL FALSE NONE FALSE NONE WHITE -
LEESON
(EPOXY)
BEARINGS GREASE SHAFT TYPE SPECIAL DE SPECIAL ODE SHAFT
MATERIAL
FRAME
MATERIAL
DE OPE
BALL BALL POLYREX EM T NONE NONE 303 STAINLESS
(C-501)
ROLLED STEEL
6205 6203
THERMO-PROTECTORS THERMISTORS CONTROL SPACE /n HEATERS
THERMOSTATS PROTECTORS WDG RTDs BRG RTDs
NONE NOT NONE NONE NONE FALSE NONE VOLTS
If Inverter equals NONE, contact factory for further
information
*
N
O
T
E
S
*
INVERTER TORQUE: CONSTANT 10:1
INV. HP SPEED RANGE: NONE
ENCODER: NONE
NONE NONE
NONE NONE PPR
BRAKE: NONE NONE
NONE P/N NONE
NONE NONE
NONE FT-LB NONE V NONE Hz
DATE: 06/27/2017 12:39:55 AM
FORM 3531 REV.3 02/07/99
** Subject to change without notice.
Uncontrolled Copy
5 of 5
