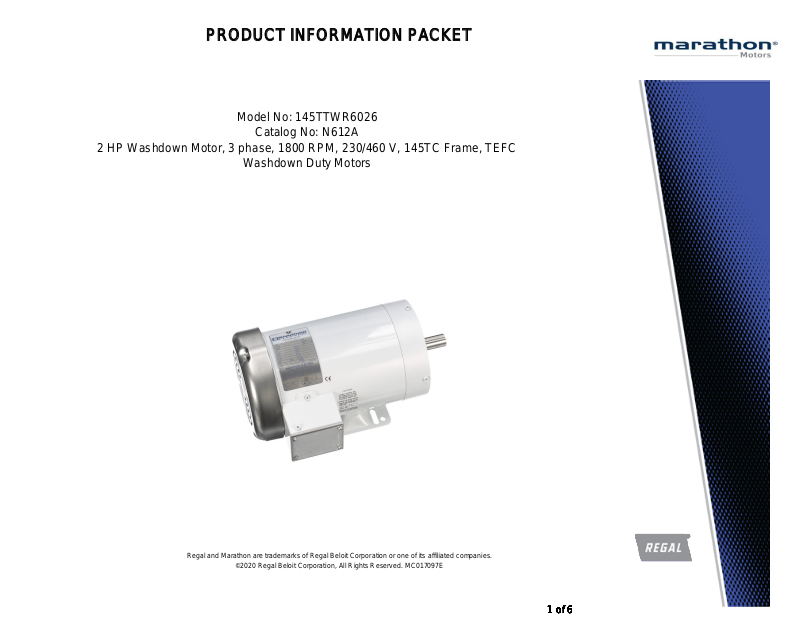

Page 1
PRODUCT INFORMATION PACKET
Model No: 145TTWR6026
Catalog No: N612A
2 HP Washdown Motor, 3 phase, 1800 RPM, 230/460 V, 145TC Frame, TEFC
Washdown Duty Motors
Regal and Marathon are trademarks of Regal Beloit Corporation or one of its affiliated companies.
©2020 Regal Beloit Corporation, All Rights Reserved. MC017097E
1 of 61 of 61 of 61 of 61 of 61 of 61 of 61 of 61 of 61 of 61 of 61 of 61 of 61 of 61 of 61 of 61 of 61 of 61 of 61 of 61 of 61 of 61 of 61 of 61 of 6
Page 2
Product Information Packet: Model No: 145TTWR6026, Catalog No:N612A 2 HP Washdown Motor, 3 phase, 1800 RPM, 230/460 V, 145TC Frame,
TEFC
Nameplate Specifications
Output HP 2 Hp Output KW 1.5 kW
Frequency 60 Hz Voltage 230/460 V
Current 5.8/2.9 A Speed 1745 rpm
Service Factor 1.15 Phase 3
Efficiency 86.5 % Power Factor 75.6
Duty Continuous Insulation Class F
Design Code B KVA Code L
Frame 145TC Enclosure Totally Enclosed Fan Cooled
Thermal Protection No Ambient Temperature 40 °C
Drive End Bearing Size 6205 Opp Drive End Bearing Size 6203
UL Recognized CSA Y
CE Y IP Code 55
Technical Specifications
Electrical Type Squirrel Cage Induction Run Starting Method Across The Line
Poles 4 Rotation Reversible
Resistance Main 6 Ohms Mounting Rigid Base
Motor Orientation Horizontal Drive End Bearing Ball
Opp Drive End Bearing Ball Frame Material Rolled Steel
Shaft Type T Overall Length 13.72 in
Frame Length 8.00 in Shaft Diameter 0.875 in
Shaft Extension 2 in Assembly/Box Mounting F1 ONLY
Outline Drawing 028811ME-800 Connection Drawing 005010.01ME
This is an uncontrolled document once printed or downloaded and is subject to change without notice. Date Created:14/10/2020
2 of 62 of 62 of 62 of 62 of 62 of 62 of 62 of 62 of 62 of 62 of 62 of 62 of 62 of 62 of 62 of 62 of 62 of 62 of 62 of 62 of 62 of 62 of 62 of 62 of 6
Page 3
RBC PROPRIETARY AND CONFIDENTIAL INFORMATION
This document is the property of REGAL BELOIT CORPORATION ("RBC") including
its subsidiaries and divisions and contains proprietary information of RBC. This document
is loaned on the express condition that neither it nor the information contained therein shall
be disclosed to others without the express written consent of RBC, and that the information
shall be used by the recipient only as approved expressly by RBC. This document shall be
returned to RBC upon its request. This document may be subject to certain restrictions
under U.S. export control laws and regulations.
"C" .06
.004 H
G
5.52
"AD"
7.40
NAMEPLATE
DRAIN
DECAL
(1) 1/2-14 NPT
(PLUGGED)
4.00 2.88 .09
5.00
6.50
NOTES:
1) SHAFT SEALS & V-RING.
2) PLUGGED DRAIN HOLES IN ENDBELLS & CONDUIT BOX.
3) GASKETS THROUGHOUT.
4) STAINLESS STEEL SHAFT, HARDWARE, & NAMEPLATE
ADDED ITEM # 775 (145TTWR15503)
0102REMOVED KNOCKOUTS FROM BOX COVER ISAAC 10-3213
NO
THIRD ANGLE
PROJECTION
REVISION
9/5/2012 5:49:55 AM - Converted by Connexus
.12
CE DECAL
6.53
04-09-2012
SADVS7/27/2010
BY & DATE
2.00
.8750
.8745
.002 G
DECAL - CONNECTION
(4) 3/8-16 UNC-2B x .56 DP.
DASH
NO.
"C" "AD"
700 12.72 4.19
750 13.22 4.69
775 13.47 4.94
800 13.72 5.19
TOLERANCES
UNLESS SPECIFIED
DEC
.X
.XX
.XXX
.XXXX
GWS
ANG
CHK
RFP
NETWORK FILE NAME
1.41
FULL
DEPTH
.19 SQ. x 1.38
KEY
4.500
4.497
.004 H
H
UNDER COVER
(WHEN REQ'D.)
ON A Ø5.875 B.C.
INCHES
±.1
±.03
TITLE
±.005
±.0005
±1/2°
MAT'L
FINISH
PREV
028811ME

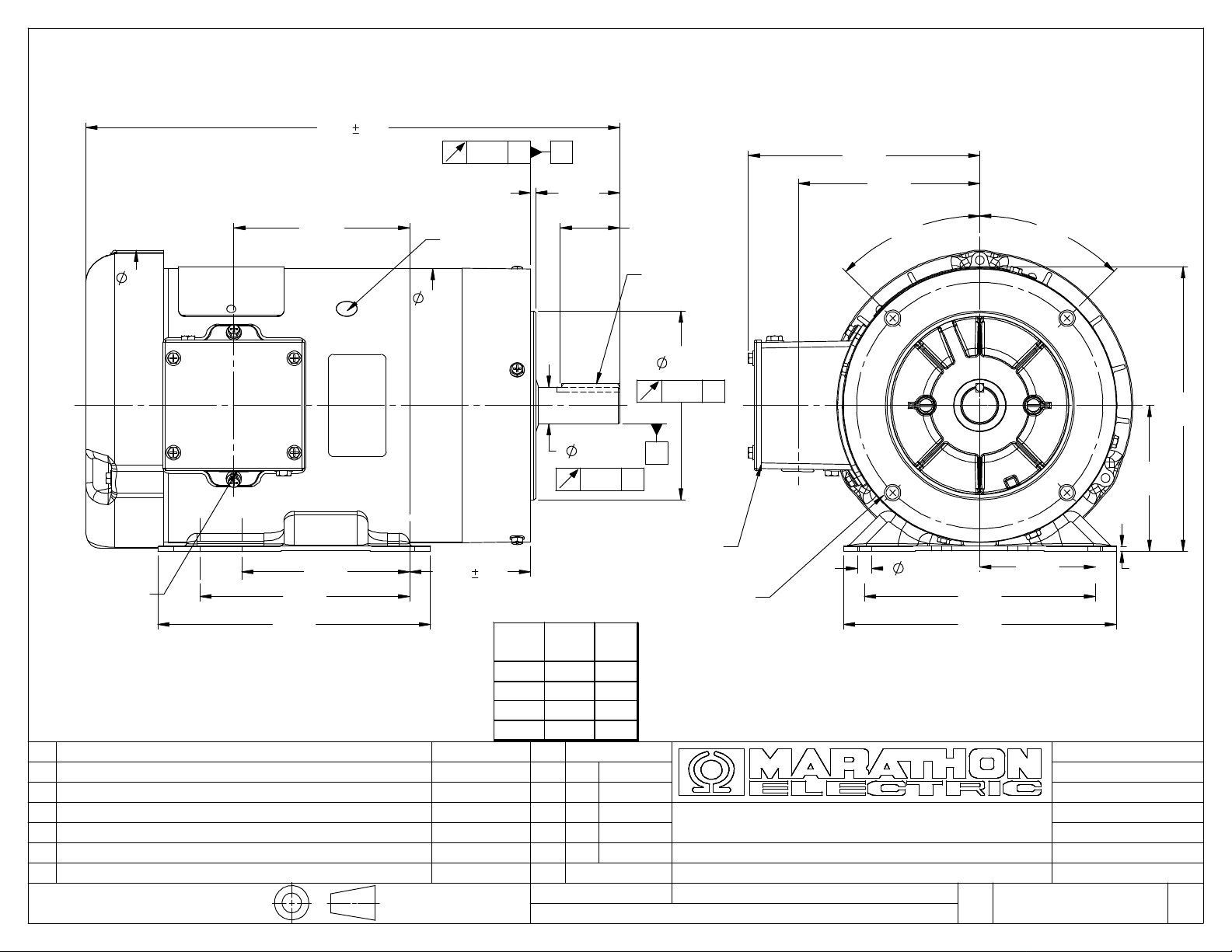

OUTLINE - 140TC FRAME
TEFC - RIGID "C"
WASHGUARD
3 of 63 of 63 of 63 of 63 of 63 of 63 of 63 of 63 of 63 of 63 of 63 of 63 of 63 of 63 of 63 of 63 of 63 of 63 of 63 of 63 of 63 of 63 of 63 of 63 of 6
4.32
45°
.34 .119
45°
2.75
5.50
6.50
DRAWN
CHK
APPR
SCALE
REF
FMF
PAGE
DRAWING NOSIZE REV
A
028811ME 02
6.78
MAX.
3.53
3.47
VS 02/03/09
VS 02/03/09
3:8
028811
145TTWR14002
OF
Page 4
4 of 64 of 64 of 64 of 64 of 64 of 64 of 64 of 64 of 64 of 64 of 64 of 64 of 64 of 64 of 64 of 64 of 64 of 64 of 64 of 64 of 64 of 64 of 64 of 64 of 6
7/20/2012 2:29:41 PM - Converted by Connexus
Page 5
CERTIFICATION DATA SHEET
Model#: 145TTWR6026 A WINDING#: T634340 FR 3

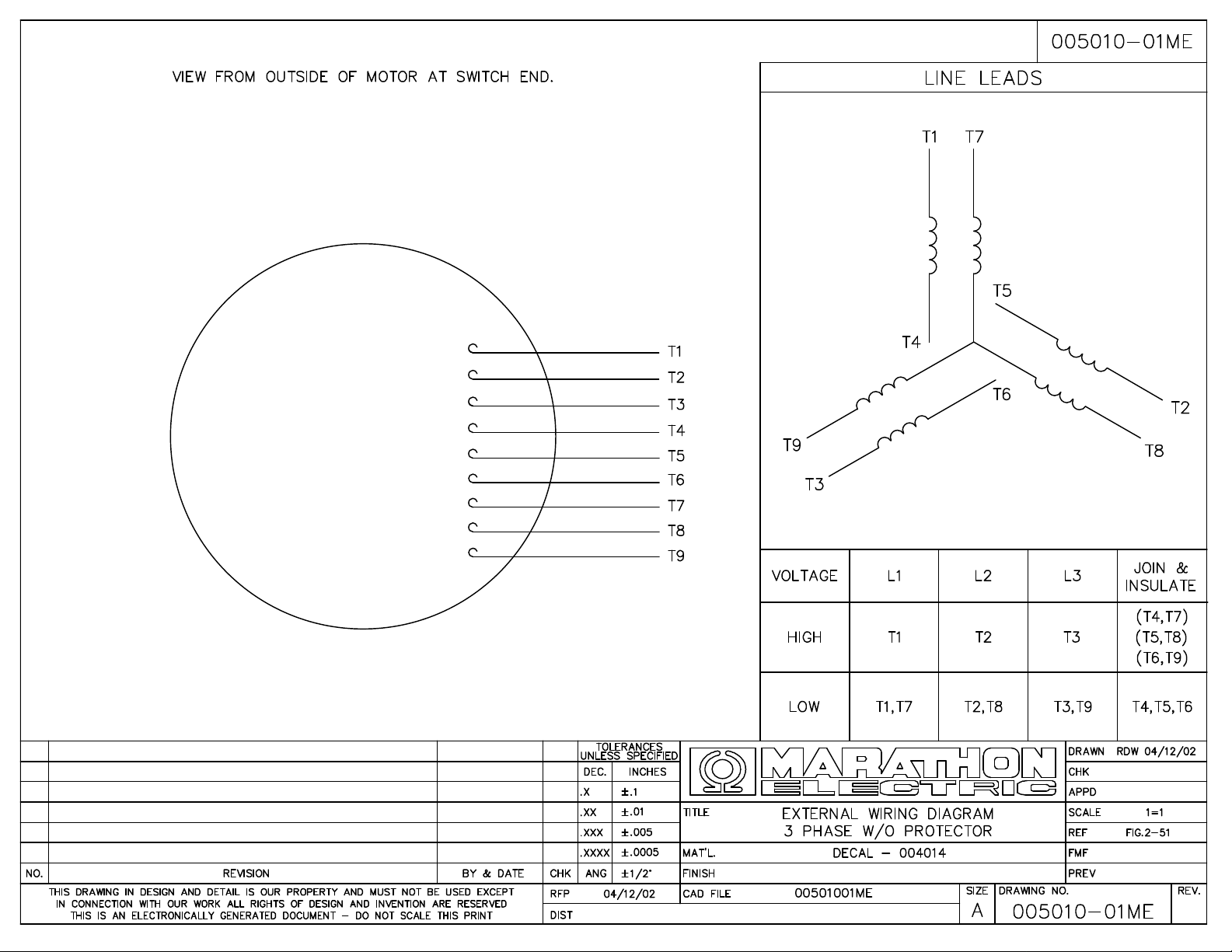

CONN. DIAGRAM: 005010.01ME ASSEMBLY: F1 ONLY
OUTLINE: 028811ME-800
TYPICAL MOTOR PERFORMANCE DATA
HP KW SYNC. RPM F.L. RPM FRAME ENCLOSURE KVA CODE DESIGN
2&1 1/2 1.49&1.12 1800 1745&1435 145TC TEFC L B
PH Hz VOLTS FL AMPS START TYPE DUTY INSL S.F AMB°C ELEVATION
3 60/50 230/460#190/
380
6-5.8/2.9&6/3 ACROSS THE
LINE
CONTINUOUSF4 1.15/1.15 40 3300
FULL LOAD EFF: 86.5 3/4 LOAD EFF: 85.5 1/2 LOAD EFF: 83.5 GTD. EFF ELEC. TYPE NO LOAD AMPS
FULL LOAD PF: 75.6 3/4 LOAD PF: 64 1/2 LOAD PF: 52 0 SQ CAGE IND RUN 3.4 / 1.7
F.L. TORQUE LOCKED ROTOR AMPS L.R. TORQUE B.D. TORQUE F.L. RISE°C
6 LB-FT 53.2 / 26.6 24.6 LB-FT 410 28.8 LB-FT 480 0
SOUND PRESSURE
@ 3 FT.
SOUND POWER ROTOR WK^2 MAX. WK^2 SAFE STALL TIME STARTS
/HOUR
APPROX. MOTOR
WGT
0 dBA 10 dBA 0.16 LB-FT^2 0.2 LB-FT^2 0 SEC. 0 0 LBS.
*** SUPPLEMENTAL INFORMATION ***
DE BRACKET
TYPE
ODE BRACKET
TYPE
MOUNT
TYPE
ORIENTATION SEVERE
DUTY
HAZARDOUS
LOCATION
DRIP
COVER
SCREENS PAINT
C-FACE STANDARD RIGID HORIZONTAL FALSE NONE FALSE NONE WHITE -
LEESON
(EPOXY)
BEARINGS GREASE SHAFT TYPE SPECIAL DE SPECIAL ODE SHAFT
MATERIAL
FRAME
MATERIAL
DE OPE
BALL BALL POLYREX EM T NONE NONE 303 STAINLESS
(C-501)
ROLLED STEEL
6205 6203
THERMO-PROTECTORS THERMISTORS CONTROL SPACE /n HEATERS
THERMOSTATS PROTECTORS WDG RTDs BRG RTDs
NONE NOT NONE NONE NONE FALSE NONE VOLTS
If Inverter equals NONE, contact factory for further
information
*
N
O
T
E
S
*
INVERTER TORQUE: NONE
INV. HP SPEED RANGE: NONE
ENCODER: NONE
NONE NONE
NONE NONE PPR
BRAKE: NONE NONE
NONE P/N NONE
NONE NONE
NONE FT-LB NONE V NONE Hz
DATE: 06/27/2017 12:40:34 AM
FORM 3531 REV.3 02/07/99
** Subject to change without notice.
Uncontrolled Copy
5 of 65 of 65 of 65 of 65 of 65 of 65 of 65 of 65 of 65 of 65 of 65 of 65 of 65 of 65 of 65 of 65 of 65 of 65 of 65 of 65 of 65 of 65 of 65 of 65 of 6

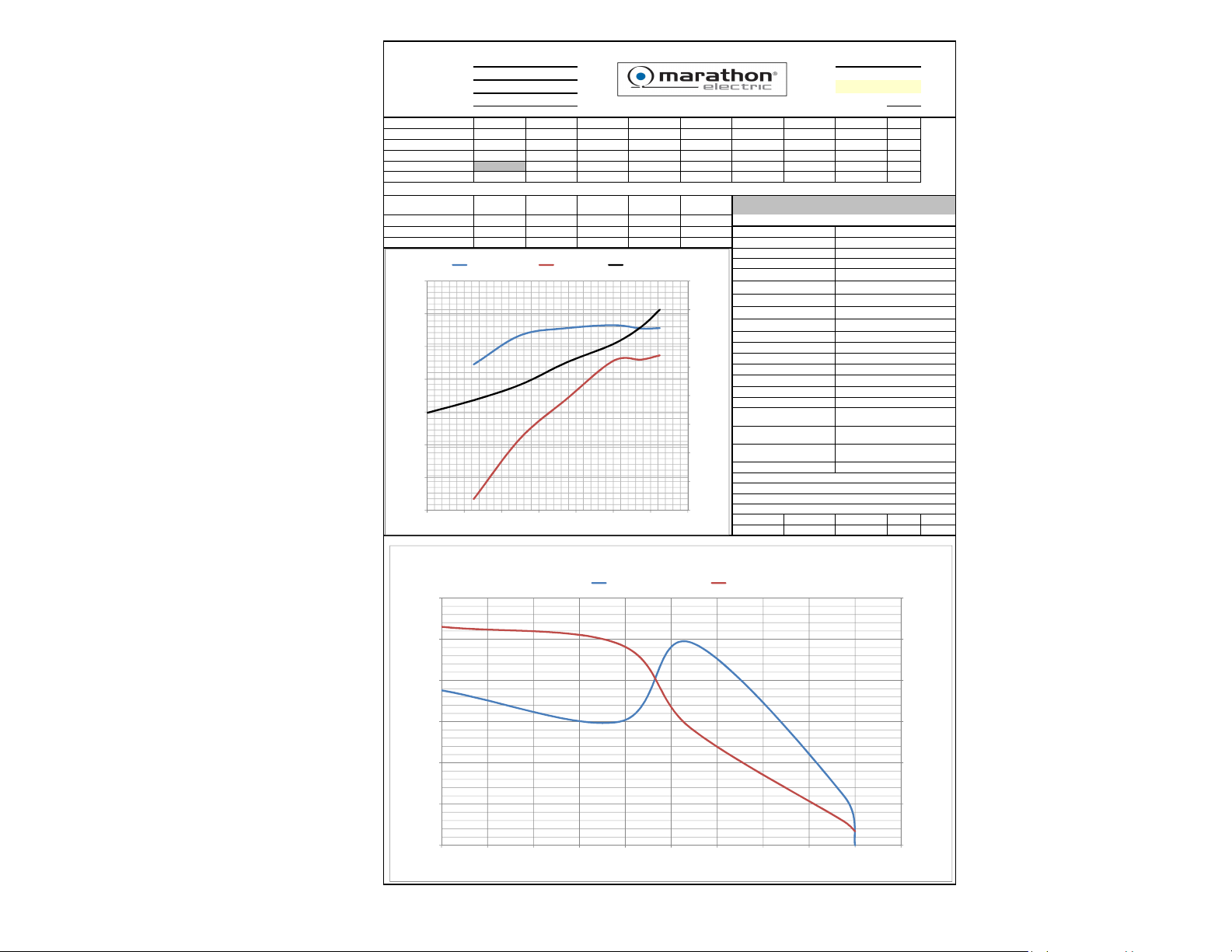

Page 6
Date:
Customer:
Attention:
Submitted by:
Data @
460
v
Load 0% 25% 50% 75% 100% 115% 125% LR
Current (Amps)
1.70 1.92 2.19 2.58 2.90 3.2 3.5 26.5
Torque (ft-lb)
0.00 1.50 3.0 4.5 6.0 6.5 7.5 18.8
RPM
1800 1787 1774 1763 1751 1,730 1732 0
Efficiency (%)
74.5 83.4 85.6 86.5 85.5 85.6
P.F. (%)
7.1 33.4 51.9 64.0 75.6 76.0 77.3 42.0
LR Pull-Up BD Rated Idle
Speed (RPM)
0 775 1085 1751 1800
Information Block
Current (Amps)
26.5 24.4 14.2 2.90 1.70 2.0
Torque (ft-lb)
18.8 15.0 24.6 6.0 0.00 1800
140
TEFC
TFR
V
60
Hz
A
L
1.15
53
°
C
CONT
40
°
C
1,000
feet
0.16
Lb-Ft²
T634340 FR
65 dBA
Additional Specifications:
R1 R2 X1 X2 Xm
0.0000 0.0000 0.0000 0.0000 0.0000
NONE
0
365THFS8036
EQUIV CKT (OHMS / PHASE)
Ref Wdg
Sound Pressure @ 1M
VFD Rating
Outline Dwg 028811ME-800
Conn. Diag 005010.01ME
Rotor/Shaft wk²
Voltage
Frequency
Design
LR Code letter
Service Factor
Temp Rise @ FL
Duty
Ambient
Elevation
Construction
Motor Speed Data
HP
Sync. RPM
Frame
Enclosure
Motor Load Data
Submittal
FAREEDA DUDEKULA
Data Sheet
29-06-2017 145TTWR6026
0.0
0.5
1.0
1.5
2.0
2.5
3.0
3.5
4.0
30.0
40.0
50.0
60.0
70.0
80.0
90.0
100.0
0% 20% 40% 60% 80% 100% 120% 140%
Efficiency (%) P.F. (%) Cu rrent (Amps)
LOAD
A
M
P
S
E
F
F
P
F
0.0
5.0
10.0
15.0
20.0
25.0
30.0
0.0
5.0
10.0
15.0
20.0
25.0
30.0
0 200 400 600 800 1000 1200 1400 1600 1800 2000
Speed -Torque Curve
Torque Amps
RPM
T
O
R
Q
U
E
A
M
P
S
Uncontrolled Copy
6 of 66 of 66 of 66 of 66 of 66 of 66 of 66 of 66 of 66 of 66 of 66 of 66 of 66 of 66 of 66 of 66 of 66 of 66 of 66 of 66 of 66 of 66 of 66 of 66 of 6
