Datasheet N607A Datasheet (Marathon Electric)

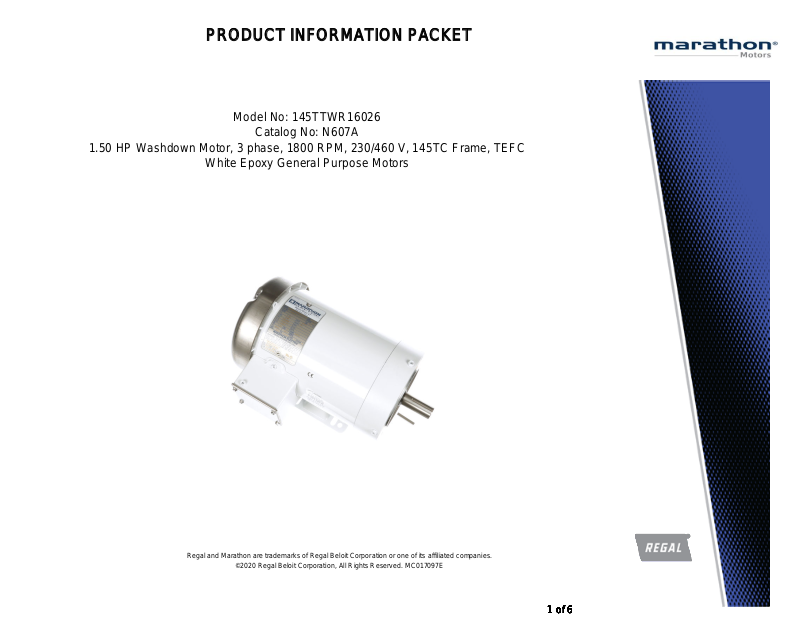

PRODUCT INFORMATION PACKET

Model No: 145TTWR16026

Catalog No: N607A

1.50 HP Washdown Motor, 3 phase, 1800 RPM, 230/460 V, 145TC Frame, TEFC
White Epoxy General Purpose Motors

Regal and Marathon are trademarks of Regal Beloit Corporation or one of its affiliated companies.

©2020 Regal Beloit Corporation, All Rights Reserved. MC017097E

1 of 61 of 61 of 61 of 61 of 61 of 61 of 61 of 61 of 61 of 61 of 61 of 61 of 61 of 61 of 61 of 61 of 61 of 61 of 61 of 61 of 61 of 61 of 61 of 61 of 6

Product Information Packet: Model No: 145TTWR16026, Catalog No:N607A 1.50 HP Washdown Motor, 3 phase, 1800 RPM, 230/460 V, 145TC Frame,
TEFC

Nameplate Specifications

Output HP 1.50 Hp Output KW 1.1 kW
Frequency 60 Hz Voltage 230/460 V
Current 4.3/2.2 A Speed 1746 rpm
Service Factor 1.15 Phase 3
Efficiency 86.5 % Power Factor 85.4
Duty Continuous Insulation Class F
Design Code B KVA Code L
Frame 145TC Enclosure Totally Enclosed Fan Cooled
Thermal Protection No Ambient Temperature 40 °C
Drive End Bearing Size 6205 Opp Drive End Bearing Size 6203
UL Recognized CSA Y
CE Y IP Code 55

Technical Specifications

Electrical Type Squirrel Cage Inverter Rated Starting Method Line Or Inverter
Poles 4 Rotation Reversible
Resistance Main 9.12 Ohms Mounting Rigid Base
Motor Orientation Horizontal Drive End Bearing Ball
Opp Drive End Bearing Ball Frame Material Rolled Steel
Shaft Type T Overall Length 13.22 in
Frame Length 7.50 in Shaft Diameter 0.875 in
Shaft Extension 2.00 in Assembly/Box Mounting F1 ONLY

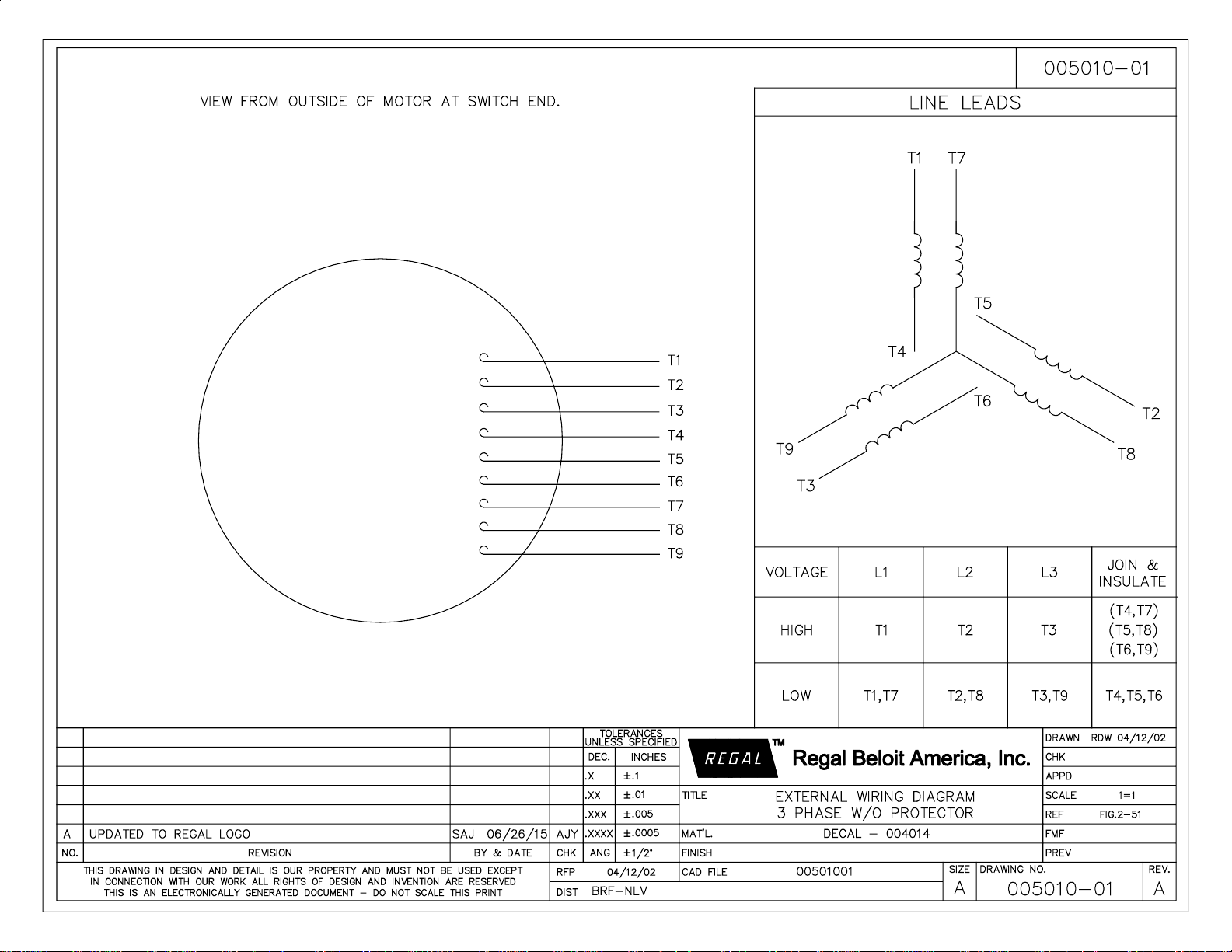

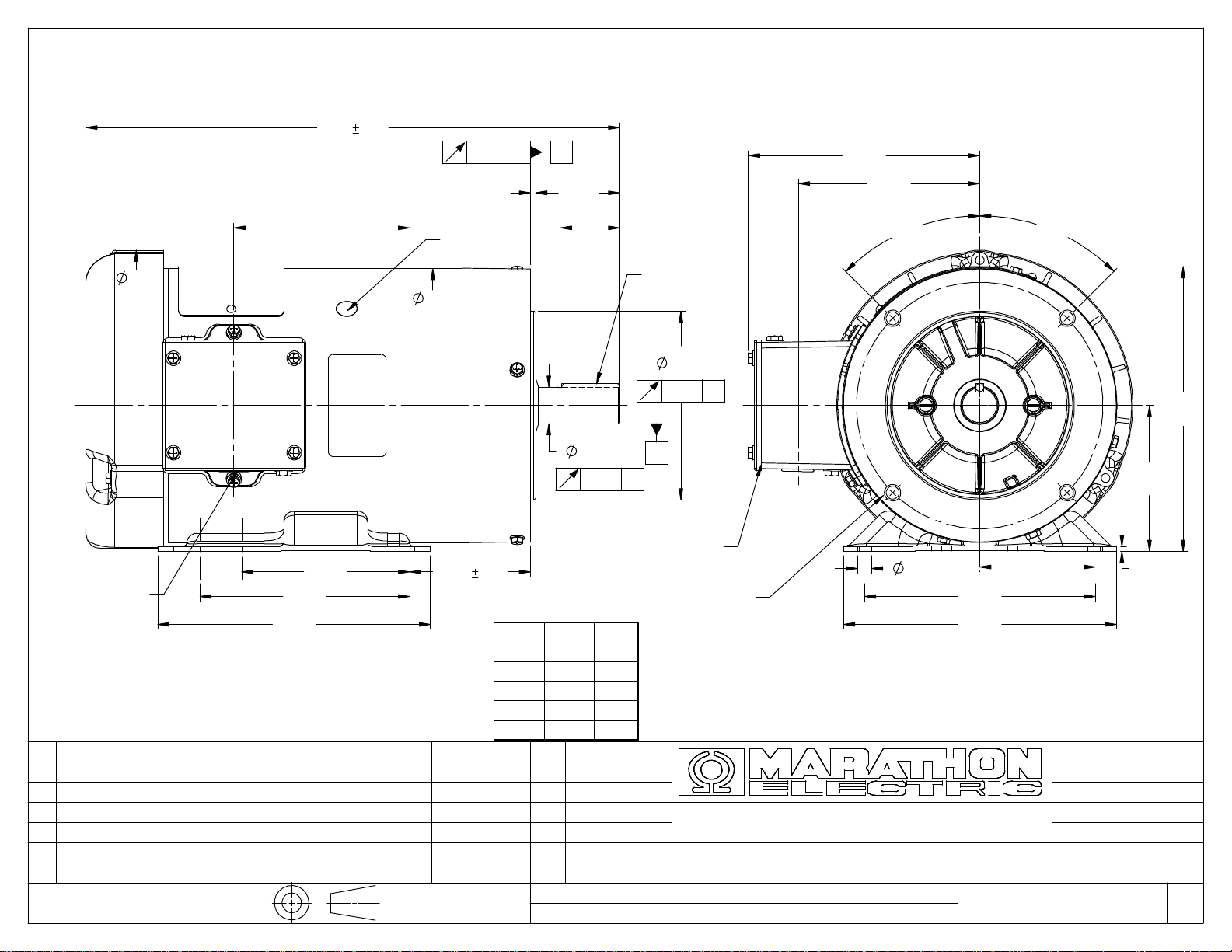

Outline Drawing 028811ME-750 Connection Drawing 005010.01

This is an uncontrolled document once printed or downloaded and is subject to change without notice. Date Created:19/10/2020
