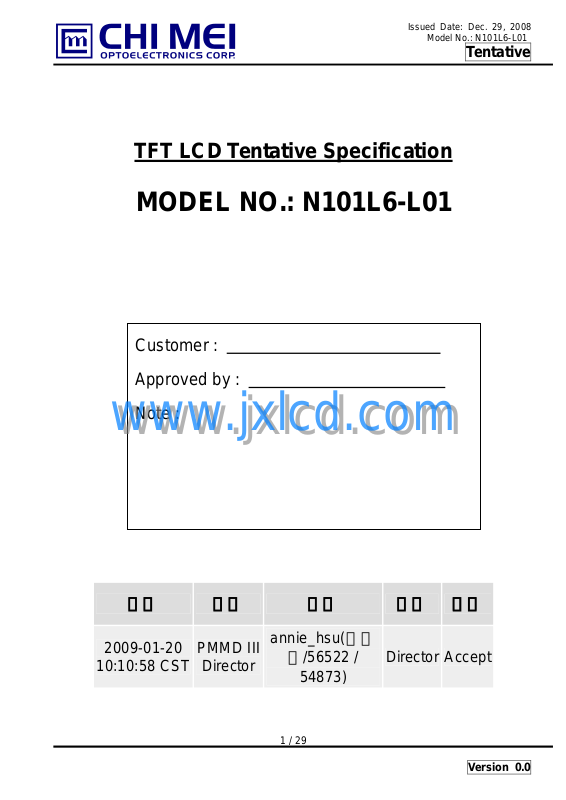

Datasheet N-101L6-L01 Datasheet (Chi Mei Optoelectronics)

Issued Date: Dec. 29, 2008

Model No.: N101L6-L01

Tentative

TFT LCD Tentative Specification

MODEL NO.: N101L6-L01

Customer : Approved by : Note :

www.jxlcd.com

10:10:58 CST

記錄工作審核角色投票

annie_hsu(徐凡

2009-01-20

Version 0.0

PMMD III

Director

琇/56522 /

54873)

1 / 29

Director Accept

Issued Date: Dec. 29, 2008

Model No.: N101L6-L01

Tentative

CONTENTS

REVISION HISTORY

1. GENERAL DESCRIPTION

1.1 OVERVIEW

1.2 FEATURES

1.3 APPLICATION

1.4 GENERAL SPECIFICATIONS

1.5 MECHANICAL SPECIFICATIONS

2. ABSOLUTE MAXIMUM RATINGS

2.1 ABSOLUTE RATI NGS OF ENVIRONMENT

2.2 ELECTRICAL ABSOLUTE RATINGS

2.2.1 TFT LCD MODULE

2.2.2 BACKLIGHT UNIT

3. ELECTRICAL CHARACTERISTICS

3.1 TFT LCD MODULE

3.2 BACKLIGHT UNIT

4. BLOCK DIAGRAM

4.1 TFT LCD MODULE

5. INPUT TERMINAL PIN ASSIGNMENT

5.1 TFT LCD MODULE

5.2 TIMING DIAGRAM OF LVDS INPUT SIGNAL

5.3 COLOR DATA INPUT ASSIGNMENT

5.4 EDID DATA STRUCTURE

6. CONVERTER SPECIFICATION --------------------------------------------------17

6.1 ABSOLUTE MAXIMUM RATINGS

6.2 RECOMMENDED OPERATING RATINGS

6.3 LED BACKLIGHT CONTROLL ON/OFF SEQUENCE

7. INTERFACE TIMING -------------------------------------------------------18

7.1 INPUT SIGNAL TIMING SPECIFICATIONS

7.2 POWER ON/OFF SEQUENCE

8. OPTICAL CHARACTERISTICS

8.1 TEST CONDITIONS

8.2 OPTICAL SPECIFICATIONS

9. PRECAUTIONS

9.1 SYSTEM MATCHING PRECAUTIONS

9.2 HANDLING PRECAUTIONS

9.3 STORAGE PRECAUTIONS

9.4 OPERATION PRECAUTIONS

9.5 OTHER PRECAUTIONS

10. PACKING -------------------------------------------------------24

10.1 CARTON

10.2 PALLET

11. DEFINITION OF LABELS -------------------------------------------------------26

11.1 CMO MODULE LABEL

11.2 CARTON LABEL

www.jxlcd.com

-------------------------------------------------------3

-------------------------------------------------------4

-------------------------------------------------------5

-------------------------------------------------------7

-------------------------------------------------------10

-------------------------------------------------------11

-------------------------------------------------------20

-------------------------------------------------------23

2 / 29

Version 0.0

Issued Date: Dec. 29, 2008

Model No.: N101L6-L01

Tentative

Version Date

Ver 0.0

Dec. 29, 2008

www.jxlcd.com

Page

(New)

Section Description

All All

REVISION HISTORY

Tentative specificatio n first issued.

3 / 29

Version 0.0

Issued Date: Dec. 29, 2008

Model No.: N101L6-L01

Tentative

1. GENERAL DESCRIPTION

1.1 OVERVIEW

N101L6-L01 is a 10.1” TFT Liquid Crystal Display module with LED Backlight unit and 40 pins LVDS

interface. This module supports 1024 x 600 Wide-SVGA mode and can display 262,144 colors. The optimum viewing angle is at 6 o’clock direction. The converter module for Backlight is built in.

1.2 FEATURES

- WSVGA (10 24 x 600 pixels) resolution

- 3.3V LVDS (Low Voltage Differential Signaling) interface with 1 pixel/clock

- Build in LED Converter

1.3 APPLICA TION

- TFT LCD Notebook

1.4 GENERAL SPECIFICATI0NS

Item Specification Unit Note Active Area 222.72 (H) x 125.28 (V) (10.06” diagonal) mm Bezel Opening Area 226.34 (H) x 128.1 (V) mm Driver Element a-si TFT active matrix - Pixel Number 1024 x R.G.B. x 600 pixel Pixel Pitch 0.2175 (H) x 0.2088 (V) mm Pixel Arrange ment RGB vertical stripe - Display Colors 262,144 color Transmissive Mode Normally white - Surface Treatment Hard coating (3H), Anti-gl are Type - -

1.5 MECHANICAL SPECIFICATIONS

Module Size

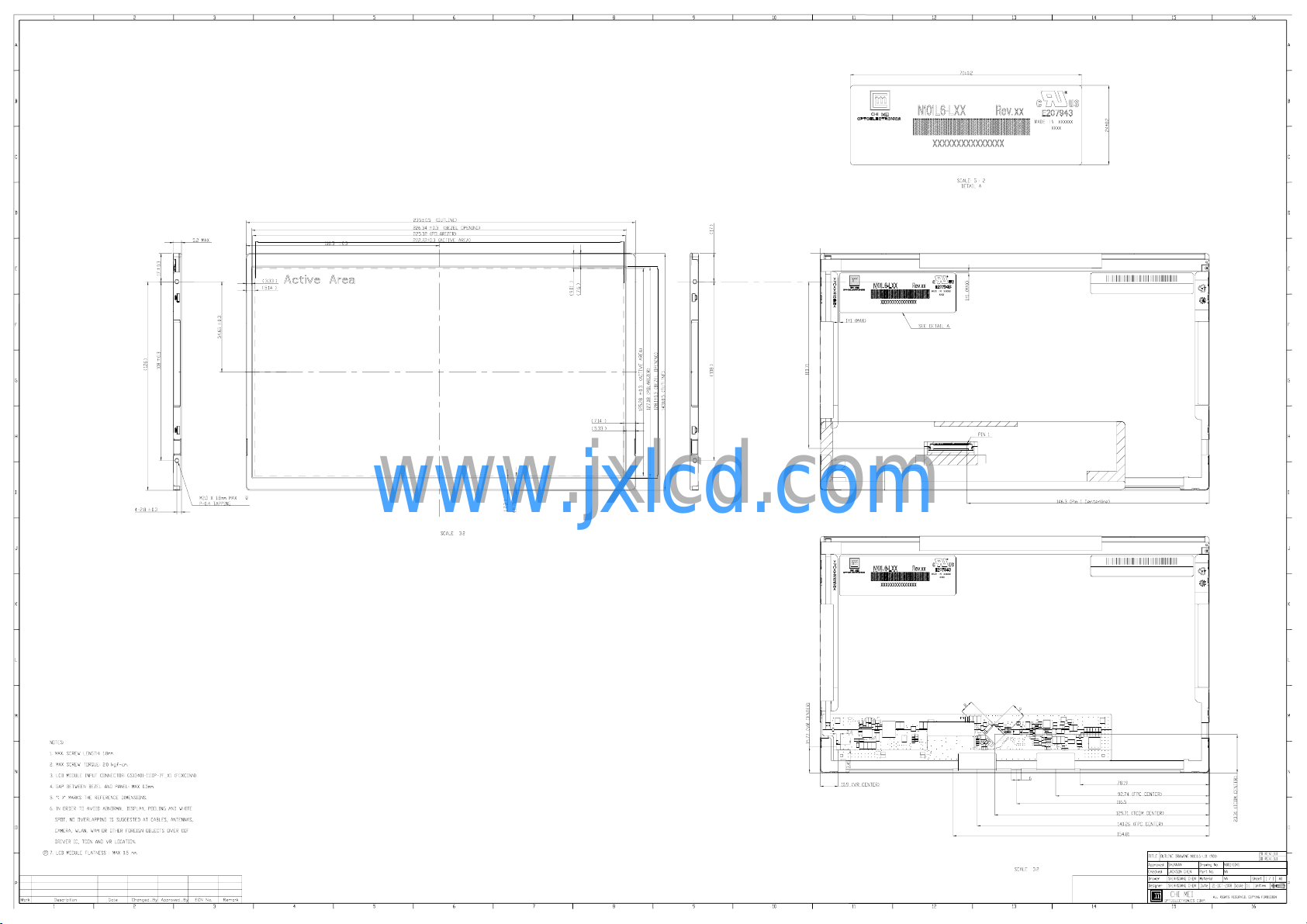

Note (1) Please refer to the attache d drawings for more information of front and back outl ine dimensions.

www.jxlcd.com

Item Min. Typ. Max. Unit Note

Horizontal(H) 234.5 235.0 235.5 mm Vertical(V) 142.5 143.0 143.5 mm Thickness(T) - 4.9 5.2 mm

Weight - 180 190 g

(1)

4 / 29

Version 0.0

A

Issued Date: Dec. 29, 2008

Model No.: N101L6-L01

Tentative

2. ABSOLUTE MAXIMUM RATINGS

2.1 ABSOLUTE RATINGS OF ENVIRONMENT

Item Symbol

Storage Temperature TST -20 +60 ºC (1) Operating Ambient T emperature TOP 0 +50 ºC (1), (2) Shock (Non-Operating) S Vibration (Non-Operating) V

Note (1) Temperature and relative humidity range is shown in the figure below.

(a) 90 %RH Max. (Ta <= 40 ºC). (b) Wet-bulb temperature should be 39 ºC Max. (Ta > 40 ºC). (c) No condensation. Note (2) The temperature of panel surface area should be 0 ºC min. and 60 ºC max.

Relative Humidity (%RH)

- 220/2 G/ms (3), (5)

NOP

- 1.5 G (4), (5)

NOP

Min. Max.

Value

Unit Note

100

90 80

60

40

www.jxlcd.com

Note (3) 1 time for ± X, ± Y, ± Z. for Condition (220G / 2ms) is half Sine Wave,. Note (4) 10~500 Hz, 30 min/cycle, 1cycle for X,Y,Z-axis.

Note (5) At testing Vibration and Shock, the fixture in holding the module has to be ha rd and rigid

20 10

Operating Range

Storage Range

80 60 -20 40 0 20 -40

Temperature (ºC)

enough so that the module would not be twisted or bent by the fixture.

The fixing condition is shown as below:

t Room Temperature

Side Mount Fixing Screw

Gap=2mm

Version 0.0

Bracket

5 / 29

LCD Module

Side Mount Fixing Screw

Stage

Issued Date: Dec. 29, 2008

Model No.: N101L6-L01

Tentative

2.2 ELECTRICAL ABSOLUTE RATINGS

2.2.1 TFT LCD MODULE

Item Symbol

Power Supply V oltage VCC -0.3 +4.0 V Logic Input Voltage VIN -0.3 VCC+0.3 V

Note (1) Permanent damage to the device may occur if maximum values are exceeded. Function operation

should be restricted to the conditions described under Normal Operating Co nditions.

2.2.2 BACKLIGHT UNIT

Item

LED Light Bar Power Supply Voltage -45 30.6 VDC LED Light Bar Power Supply Current 0 50 mADC

Note (1) Permanent damage to the device may occur if maximum values are exceeded. Function

Min. Max.

Min Max.

Value

Unit Note

(1)

Unit Note

(1), (2)

operation should be restricted to the conditions described under Normal Operating Conditions.

Note (2) Specified values are for LED (Refer to Section 3.2 for further information).

www.jxlcd.com

6 / 29

Version 0.0

Issued Date: Dec. 29, 2008

Model No.: N101L6-L01

Tentative

3. ELECTRICAL CHARACTERISTICS

3.1 TFT LCD MODULE Ta = 25 ± 2 ºC

Parameter Symbol

Min. Typ. Max. Power Supply V oltage Vcc 3.0 3.3 3.6 V Ripple Voltage VRP - 50 mV Rush Current I

- - 1.5 A (2)

RUSH

Initial Stage Current IIS - - 1.0 A (2) Power Supply Current

LVDS Differential Input High Threshold V LVDS Differential Input Low Threshold V

White - (160) (180) mA (3)a Black

lcc

TH(LVDS)

-100 - - mV

TL(LVDS)

- (210) (230) mA (3)b

- - +100 mV

LVDS Common Mode Voltage VCM 1.125 - 1.375 V (5) LVDS Differential Input Voltage |VID| 100 - 600 mV (5) Terminating Resistor RT - 100 - Ohm -

Power per EBL WG P

- (1.02) - W (4)

EBL

Note (1) The ambient temperature is Ta = 25 ± 2 ºC.

Value

Unit Note

V

CM

V

CM

(5),

=1.2V

(5)

=1.2V

Note (2) I

: the maximum current when VCC is rising

RUSH

I

: the maximum current of the first 100ms after power-on

IS

Measurement Conditions: Shown as the following figure. Test pattern: black.

www.jxlcd.com

(High to Low)

(Control Signal)

SW

+12V

+3.3V

R1

47K

VR1

47K

R2

1K

Q1 2SK1475

Q2

2SK1470

C2

FUSE

C3 1uF

C1

1uF

0.01uF

Vcc

(LCD Module Input)

7 / 29

Version 0.0

Issued Date: Dec. 29, 2008

Model No.: N101L6-L01

Tentative

Note (3) The specified power supply current is under the conditions at Vcc = 3.3 V, Ta = 25 ± 2 ºC, DC

Current and f

a. White Pattern

0V

Vcc rising time is 470us

+3.3V

0.1Vcc

I

RUSH

= 60 Hz, whereas a power dissipation check pattern below is displayed.

v

b. Black Pattern

VCC

I

IS

ICC

www.jxlcd.com

Note (4) The specified power are the sum of LCD panel electronics input power and the converter

www.jxlcd.com

Active Area

input power. Test conditions are as follows. (a) Vcc = 3.3 V , Ta = 25 ± 2 º C, f (b) The pattern used is a black and white 32 x 36 checkerboard, slide #100 from the VESA file

“Flat Panel Display Monitor Setup Patterns”, FPDMSU.ppt.

(c) Luminance: 60 nits.

= 60 Hz,

v

Active Area

8 / 29

Version 0.0

|

Note (5) The parameters of LVDS signals are defined as the following figures.

Issued Date: Dec. 29, 2008

Model No.: N101L6-L01

Tentative

Single Ended

Differential

www.jxlcd.com

V

0V

V

0V

V

CM

VID|

9 / 29

Version 0.0

3.2 BACKLIGHT UNIT

Issued Date: Dec. 29, 2008

Model No.: N101L6-L01

Tentative

Parameter Symbol

LED Light Bar Power Supply Volt age LED Light Bar Power Supply Current Power Consumption PL -- 1.15 -- W (3)(@IL=40mA) LED Life Time LBL 15000 -- -- Hrs (4)

Note (1) LED current is measured by utilizing a high frequency current meter as shown below :

V

L 26.1 28.8 30.6 V

L -- 40 50 mA

I

V

Min. Typ. Max.

L, IL

Light Bar Feedback Channels

Ta = 25 ± 2 ºC Value

LED Light Bar

Unit Note

(1) (Duty 100%) (2)

Note (2) For better LED light bar driving quality, it is recommended to utilize the adaptive boost

converter with current balancing function to drive LED light-bar. Note (3) P Note (4) The lifetime of LED is defined as the time when it continues to operate under the conditions at

= IL × V

L

www.jxlcd.com

Ta = 25 ± 2

value.

L

o

C and IL = 20.0 mA (Per EA) until the brightness becomes 50% of its original ≦

10 / 29

Version 0.0

4. BLOCK DIAGRAM

4.1 TFT LCD MODULE

Issued Date: Dec. 29, 2008

Model No.: N101L6-L01

Tentative

LVDS Display Data & Clock

Vcc

GND

Data

CLK

V

Converter Input Signals

LVDS INPUT /

TIMING CONTROLLER

INPUT CONNECTOR

DC/DC CONVERTER &

REFERENCE VOLTAGE

EDID

LED CONVERTER

www.jxlcd.com

GENERATOR

EDID

EEPROM

SCAN DRIVER IC

TFT LCD PANEL

DA TA DRIVER IC

BACKLIGHT UNIT

11 / 29

Version 0.0

5. INPUT TERMINAL PIN ASSIGNMENT

5.1 TFT LCD MODULE

Pin Symbol Description Polarity Remark

1 NC No Connection (Reserve) 2 VCC Power Supply (3.3V typ.) 3 VCC Power Supply (3.3V typ.) 4 VEDID DDC 3.3V power 5 NC No Connection (Reserve for CMO test) 6 CLKEDID DDC clock 7 DATAEDID DDC data 8 Rxin0- LVDS differential data input Negative

9 Rxin0+ LVDS differential data input Positive 10 VSS Ground 11 Rxin1- LVDS differential data input Negative 12 Rxin1+ LVDS differential data input Positive

13 VSS Ground 14 Rxin2- LVDS Differential Data Input Negative

15 Rxin2+ LVDS Differential Data Input Positive 16 VSS Ground 17 RxCLK- LVDS differential clock input Negative 18 RxCLK+ LVDS differential clock input Positive 19 VSS Ground 20 NC No Connection (Reserve) 21 NC No Connection (Reserve) 22 VSS Ground 23 NC No Connection (Reserve) 24 NC No Connection (Reserve) 25 VSS Ground 26 NC No Connection (Reserve)

www.jxlcd.com

27 NC No Connection (Reserve) 28 VSS Ground 29 NC No Connection (Reserve) 30 NC No Connection (Reserve) 31 LED_GND LED Ground 32 LED_GND LED Ground 33 LED_GND LED Ground 34 Reserve Non connection 35 LED_PWM PWM Control Signal of LED Converter 36 LED_EN Enable Control Signal of LED Converter 37 NC Non connection 38 LED_VCCS LED Power 39 LED_VCCS LED Power 40 LED_VCCS LED Power

Note (1) Connector Part No.: GS13401-1110P-7F or equivalent

Issued Date: Dec. 29, 2008

Model No.: N101L6-L01

Tentative

R0-R5, G0

G1~G5, B0, B1

B2-B5,HS,VS, DE

Note (2) User’s connector Part No: IPEX-20453-040T-01 or equivalent Note (3) The first pixel is odd as shown in the following figure.

12 / 29

Version 0.0

Issued Date: Dec. 29, 2008

Model No.: N101L6-L01

Tentative

5.2 TIMING DIAGRAM OF LVDS INPUT SIGNAL

CLK+

Rxin2

Rxin1

Rxin0

T/7

IN20 IN19 IN18 IN17 IN16 IN15 IN14

DE B5 B4 B3 B2 Vsync Hsync

IN13 IN12 IN11 IN10 IN9 IN8 IN7

www.jxlcd.com

B1 G4 G3 G2 G1 B0 G5

IN6 IN5 IN4 IN3 IN2 IN1 IN0

G0 R3 R2 R1 R0

R5

R4

Signal for 1 DCLK Cycle (T)

13 / 29

Version 0.0

Issued Date: Dec. 29, 2008

Model No.: N101L6-L01

Tentative

5.3 COLOR DATA INPUT ASSIGNMENT

The brightness of each primary color (red, green and blue) is based on the 6-bit gray scale data input for the color. The higher the binary input the brighter the color. The table below provides the assignment of color versus data input.

Data Signal

Color

R5 R4 R3 R2 R1 R0 G5 G4 G3 G2 G1 G0 B5 B4 B3 B2 B1 B0 Black Red Green

Basic Colors

Gray Scale Of Red

Gray Scale Of Green

Gray Scale Of Blue

Note (1) 0: Low Level Voltage, 1: High Level Voltage

Blue Cyan Magenta Yellow White Red(0)/Dark Red(1) Red(2)

:

: Red(61) Red(62) Red(63) Green(0)/Dark Green(1) Green(2)

:

: Green(61)

www.jxlcd.com

Green(62) Green(63) Blue(0)/Dark Blue(1) Blue(2)

:

: Blue(61) Blue(62) Blue(63)

0 1 0 0 0 1 1 1 0 0 0

:

: 1 1 1 0 0 0

:

: 0 0 0 0 0 0

:

: 0 0 0

Red Green Blue

0

1

0

1

0

1

0

1

0

1

0

1

0

1

0

1

0

:

1

0

1

0

1

0

1

0

1

0

1

0

:

0

1

0

1

0

1

0

1

0

:

0

1

0

1

0

1

0

1

0

1

0

:

0

:

0

1

0

1

0

:

1

0

1

0

1

14 / 29

Version 0.0

Issued Date: Dec. 29, 2008

Model No.: N101L6-L01

Tentative

5.4 EDID DATA STRUCTURE

The EDID (Extended Display Identification Data) data formats are to support displays as defined in the VESA Plug & Display and FPDI standards.

Byte #

(decimal)

0 1 2 3 4 5 6 7 8

9 10 11 12 13 14 15 16 17 18 19 20 21 22 23 24 25 26 27 28 29 30 31 32 33 34 35 36 37 38 39 40 41

Byte #

(hex)

0 Header 1 Header 2 Header 3 Header 4 Header 5 Header 6 Header 7 Header 8 EISA ID manufacturer name (“CMO”)

9 EISA ID manufacturer name (Compressed ASCII) 0A ID product code (N101L6-L01) 07 0B ID product code (hex LSB first; N101L6-L01) 10 0C ID S/N (fixed “0”) 0D ID S/N (fixed “0”) 0E ID S/N (fixed “0”) 0F ID S/N (fixed “0”) 10 Week of manufacture (fixed week code)

11 Year of manufacture (fixed year code) 12 EDID structure version # (“1”) 13 EDID revision # (“3”)

www.jxlcd.com

14 Video I/P definition (“digital”) 15 Max H image size (“22.272cm”) 16 Max V image size (“12.528cm”) 17 Display Gamma (Gamma = ”2.2”) 18 Feature support (“Active off, RGB Color”) 19 Rx1, Rx0, Ry1, Ry0, Gx1, Gx0, Gy1, Gy0 CF 1A Bx1, Bx0, By1, By0, Wx1, Wx0, Wy1, Wy0 45 1B Rx=0.565 90 1C Ry=0.348 59 1D Gx=0.343 57 1E Gy=0.585 95 1F Bx=0.161 29 20 By=0.121 1F 21 Wx=0.313 50 22 Wy=0.329 54 23 Established timings 1 24 Established timings 2 25 Manufacturer’s reserved timings 26 Standard timing ID # 1 27 Standard timing ID # 1 28 Standard timing ID # 2 29 Standard timing ID # 2

Field Name and Comments

Value

(hex)

00 00000000 FF 11111111 FF 11111111 FF 11111111 FF 11111111 FF 11111111 FF 11111111

00 00000000 0D 00001101 AF 10101111

00 00000000

03 00000011

13 00010011

01 00000001

03 00000011

80 10000000

16 00010110 0C 00001100

78 01111000

0A 00001010

00 00000000

01 00000001

Value

(binary)

00000110 00010000

11001111 01000101 10010000 01011001 01010111 10010101 00101001

00011111 01010000 01010100

15 / 29

Version 0.0

Issued Date: Dec. 29, 2008

Model No.: N101L6-L01

Tentative

Byte #

(decimal)

42 43 44 45 46 47 48 49 50 51 52 53

54 36 55

56 57 58 59 60 61 62 63 64

65 41 66

67 68 69 70

71 47 72

73 74

75 76 77 78 79 80 81 82 83 84 85

Byte #

(hex)

2A Standard timing ID # 3 2B Standard timing ID # 3 2C Standard timing ID # 4 2D Standard timing ID # 4 2E Standard timing ID # 5 2F Standard timing ID # 5 30 Standard timing ID # 6 31 Standard timing ID # 6 32 Standard timing ID # 7 33 Standard timing ID # 7 34 Standard timing ID # 8 35 Standard timing ID # 8

37 # 1 Pixel clock (hex LSB first) 38 # 1 H active (“1024”) 39 # 1 H blank (“160”) 3A # 1 H active : H blank (“1024 : 160”) 3B # 1 V active (”600”) 3C # 1 V blank (”19”) 3D # 1 V active : V blank (”600 :19”) 3E # 1 H sync offset (”48”) 3F # 1 H sync pulse width ("32”) 40 # 1 V sync offset : V sync pulse width (”3 : 10”)

www.jxlcd.com

42 # 1 H image size (”222 mm”) DE 43 # 1 V image size (”125 mm”) 7D 44 # 1 H image size : V image size (”222 : 125”) 45 # 1 H boarder (”0”) 46 # 1 V boarder (”0”)

48 Detailed timing description # 2 49 # 2 Flag 4A # 2 Reserved 4B # 2 FE (hex) defines ASCII string (Model Name “N101L6-L01”, ASCII) 4C # 2 Flag 4D # 2 1st character of name (“N”) 4E 4E # 2 2nd character of name (“1”) 31 4F # 2 3rd character of name (“0”) 30 50 # 2 4th character of name (“1”) 31 51 # 2 5th character of name (“L”) 4C 52 # 2 6th character of name (“6”) 36 53 # 2 7th character of name (“-”) 2D 54 # 2 8th character of name (“L”) 4C 55 # 2 9th character of name (“0”)

Field Name and Comments

Detailed timing description # 1 Pixel clock (“43.97MHz”, According to VESA CVT Rev1.1)

# 1 H sync offset : H sync pulse width : V sync of fset : V sync width (”48: 32 : 3 : 10”)

# 1 Non-interlaced, Normal, no stereo, Separate sync, H/V pol Negatives

Value

(hex)

01 00000001 01 00000001 01 00000001 01 00000001 01 00000001 01 00000001 01 00000001 01 00000001 01 00000001 01 00000001 01 00000001 01 00000001

2D 00101101

11 00010001 00 00000000 A0 10100000 40 01000000 58 01011000 13 00010011 20 00100000 30 00110000 20 00100000 3A 00111010

00 00000000

00 00000000 00 00000000 00 00000000

18 00011000 00 00000000

00 00000000 00 00000000

FE 11111110

00 00000000

30 00110000

Value

(binary)

11011110

01111101

01001110 00110001 00110000 00110001 01001100 00110110 00101101 01001100

16 / 29

Version 0.0

Issued Date: Dec. 29, 2008

Model No.: N101L6-L01

Tentative

Byte #

(decimal)

86 87 88 89 90 91 92 93 94

95 5F # 3 1st character of string (“C”) 96 60 # 3 2nd character of string (“M”) 97 61 # 3 3rd character of string (“O”) 98 62 # 3 New line character indicates end of ASCII string

99 63 # 3 Padding with “Blank” character 100 64 # 3 Padding with “Blank” character 101 65 # 3 Padding with “Blank” character 102 66 # 3 Padding with “Blank” character 103 67 # 3 Padding with “Blank” character 104 68 # 3 Padding with “Blank” character 105 69 # 3 Padding with “Blank” character 106 6A # 3 Padding with “Blank” character 107 6B # 3 Padding with “Blank” character 108 6C Detailed timing description # 4 109 6D # 4 Flag 110 6E # 4 Reserved 111 6F # 4 FE (hex) defines ASCII string (Model Name“N101L6-L01”, ASCII) 112 70 # 4 Flag 113 71 # 4 1st character of name (“N”) 4E 114 72 # 4 2nd character of name (“1”) 31 115 73 # 4 3rd character of name (“0”) 30 116 74 # 4 4th character of name (“1”) 31 117 75 # 4 5th character of name (“L”) 4C 118 76 # 4 6th character of name (“6”) 36 119 77 # 4 7th character of name (“-”) 2D 120 78 # 4 8th character of name (“L”) 4C 121 79 # 4 9th character of name (“0”) 122 7A # 4 9th character of name (“1”) 123 7B # 4 New line character indicates end of ASCII string 124 7C # 4 Padding with “Blank” character 125 7D # 4 Padding with “Blank” character 126 7E Extension flag 127 7F Checksum

Byte #

(hex)

56 # 2 9th character of name (“1”) 57 # 2 New line character indicates end of ASCII string 58 # 2 Padding with “Blank” character 59 # 2 Padding with “Blank” character 5A Detailed timing description # 3 5B # 3 Flag 5C # 3 Reserved 5D # 3 FE (hex) defines ASCII string (Vendor “CMO”, ASCII) 5E # 3 Flag

www.jxlcd.com

Field Name and Comments

Value

(hex)

31 00110011 0A 00001010 20 00100000 20 00100000 00 00000000 00 00000000 00 00000000

FE 11111110

00 00000000 43 01000011

4D 01001101

4F 01001111 0A 00001010 20 00100000 20 00100000 20 00100000 20 00100000 20 00100000 20 00100000 20 00100000 20 00100000 20 00100000 00 00000000 00 00000000 00 00000000

FE 11111110

00 00000000

30 00110000 31 00110011 0A 00001010 20 00100000 20 00100000 00 00000000 5B 01011000

Value

(binary)

01001110 00110001 00110000 00110001 01001100 00110110 00101101 01001100

17 / 29

Version 0.0

Issued Date: Dec. 29, 2008

Model No.: N101L6-L01

Tentative

6.CONVERTER SPECIFICATION

6.1 ABSOLUTE MAXIMUM RATINGS

Symbol Ratings

LED_VCCS -0.3V~28.0V

LED_PWM, LED_EN -0.3V~5.5V

6.2 RECOMMENDED OPERATING RATINGS

Parameter Symbol Converter Input power supply voltage EN Control Level

PWM Control Level PWM Control Duty Ratio (20) 100 %

PWM Control Permissive Ripple Voltage PWM Control Frequency f

LED Power Current

Note (1) The specified LED power supply current is under the conditions at “LED_VCCS = Min, Typ,

Backlight on (2) --- (5) V Backlight off PWM High Level (2) --- (5) V PWM Low Level

LED_VCCS=Min (225) (271) (315) mA (1) LED_VCCS=Typ LED_VCCS=Max

LED_Vccs

VPWM_pp

PWM

IBL

Min. Typ. Max.

5 12 20 V 0 --- (0.8) V 0 --- (0.15) V

100 mV

190 210 230 Hz

(94) (113) (131)

(56) (68) (79)

Value

Unit Note

mA (1) mA (1)

6.3 LED

Max”, Ta = 25 ± 2 ºC, f

BACKLIGHT CONTROLL ON/OFF SEQUENCE

www.jxlcd.com

LED_VCCS

LED_PWM

LED_EN

Timing Specifications:

0V

TA ≧ (0ms) T

≧ (0ms)

B

T

≧ (10ms)

C

T

≧ (0ms)

D

Power On

TA

= 200 Hz, Duty=100%.

PWM

TC

Power Off

T

B

T

D

Note (1) Please follow the LED backlight power sequence as above. If the customer could not follow, it might

cause backlight flash issue during display ON/OFF or damage the LED backlight controller.

18 / 29

Version 0.0

Issued Date: Dec. 29, 2008

Model No.: N101L6-L01

Tentative

7. INTERFACE TIMING

7.1 INPUT SIGNAL TIMING SPECIFICATIONS

The input signal timing specifications are shown as the following table and timing diagram.

Signal Item Symbol Min. Typ. Max. Unit Note

DCLK Frequency 1/Tc TBD (43.97) TBD MHz (2)

Vertical Total Time TV TBD (619) TBD TH -

Vertical Active Display Period TVD TBD 600 TBD TH -

DE

Note (1) Because this module is operated by DE only mode, Hsync and Vsync are ignored.

Vertical Active Blanking Period TVB TV-TVD (19) TV-TVD TH

Horizontal Total Time TH TBD (1184) TBD T c (2)

Horizontal Active Display Period THD TBD 1024 TBD Tc (2)

Horizontal Active Blanking Period THB

TH-THD

(160)

TH-THD

Tc (2)

DE

DCLK

TC

www.jxlcd.com

DE

www.jxlcd.com

DATA

7.2 POWER ON/OFF SEQUENCE

INPUT SIGNAL TIMING DIAGRAM

T

HD

Restart

t7

10%

t4

- Power Supply for LCD, Vcc

- Interface Signal (LVDS Signal of Transmitter), V

- Power for LED Backlight

Power On

90%

0V

I

10%

t1

Valid Data

ON OFF OFF

Power Off

90%

t3 t2

t6 t5

50% 50%

19 / 29

Version 0.0

Issued Date: Dec. 29, 2008

Model No.: N101L6-L01

Tentative

Timing Specifications:

0.5< t1 ≦ 10 msec 0 < t2 ≦ 50 msec 0 < t3 ≦ 50 msec

t4 ≧ 500 msec t5 ≧ 200 msec t6 ≧ 200 msec

Note (1) Please follow the power on/off sequence described above. Otherwise, the LCD module might be

damaged.

Note (2) Please avoid floating state of interface signal at invalid period. When the interface signal is invalid,

be sure to pull down the power supply of LCD Vcc to 0 V.

Note (3) The Backlight converter power must be turned on after the power supply for the logic and the

interface signal is valid. The Backlight converter power must be turned off before the power supply for the logic and the interface signal is invalid.

Note (4) Sometimes some slight noise shows when LCD is turned off (even backlight is already off). To

avoid this phenomenon, we suggest that the Vcc falling time is better to follow (50us)≦t7≦10 ms.

www.jxlcd.com

20 / 29

Version 0.0

Issued Date: Dec. 29, 2008

Model No.: N101L6-L01

Tentative

8. OPTICAL CHARACTERISTICS

8.1 TEST CONDITIONS

Item Symbol Value Unit Ambient Temperature Ta Ambient Humidity Ha Supply Volt age VCC 3.3 V Input Signal According to typical value in "3. ELECTRICAL CHARACTERISTICS" LED Light Bar Input Current IL 40 mA

25±2

50±10

8.2 OPTICAL SPECIFICATIONS

Item Symbol Condition Min. Typ. Max. Unit Note

Contrast Ratio CR 400 500 - - (2), (5) Response Time Average Luminance of White

Red

Color Chromaticity

Viewing Angle

White Variation of 5 Points δW5p

www.jxlcd.com

Green

Blue

White

Horizontal

Vertical

TR - 3 8 ms

- 7 12 ms

T

F

L

AVE

Rx

Ry Gx Gy

Bx

By Wx 0.313 Wy

θx+ 40 45 -

θ

- 40 45 -

x

θY+ 15 20 -

θ

-

Y

=0°, θY =0°

θ

x

Viewing Normal Angle

CR≥10

=0°, θY =0° 80 - - % (5),(6)

θ

x

160 200 - cd/m

0.569

0.355

0.344

TYP.

-0.03

40 45 -

0.568

0.155

0.126

0.329

TYP.

+0.03

o

C

%RH

(3)

2

(4), (5)

-

Deg. (1),(5)

(1)

21 / 29

Version 0.0

s

Note (1) Definition of Viewing Angle (θx, θy):

Issued Date: Dec. 29, 2008

Model No.: N101L6-L01

Tentative

Note (2) Definition of Contrast Ratio (CR):

θX- = 90º

6 o’clock

θ

y- = 90º

The contrast ratio can be calculated by the following expression.

Contrast Ratio (CR) = L63 / L0 L63: Luminance of gray level 63

x-

y-

Normal

θx = θy = 0º

θy- θy+

θx−

θx+

12 o’clock direction

y+

θ

y+ = 90º

x+

θX+ = 90º

L 0: Luminance of gray level 0 CR = CR (1)

www.jxlcd.com

CR (X) is corresponding to the Contrast Ratio of the point X at Figure in Note (6).

www.jxlcd.com

Note (3) Definition of Response Time (T

100%

90%

Optical

Response

10%

0%

T

R

66.67 m

, TF):

R

T

F

66.67 ms

Time

22 / 29

Version 0.0

500

Issued Date: Dec. 29, 2008

Model No.: N101L6-L01

Tentative

Note (4) Definition of Average Luminance of White (L

Measure the luminance of gray level 63 at 5 points L

= [L (1)+ L (2)+ L (3)+ L (4)+ L (5)] / 5

AVE

L (x) is corresponding to the luminance of the point X at Figure in Note (6)

Note (5) Measurement Setup:

The LCD module should be stabilized at given temperature for 20 minutes to avoid abrupt temperature change during measuring. In order to stabilize the luminance, the measurement should be executed after lighting Backlight for 20 minutes in a windless room.

LCD Module

LCD Panel

USB2000

Center of the Screen

mm

AVE

):

CS-1000T

Light Shield Room (Ambient Luminance < 2 lux)

www.jxlcd.com

Note (6) Definition of White Variation (δW):

www.jxlcd.com

Measure the luminance of gray level 63 at 5 points

= Minimum [L (1)+ L (2)+ L (3)+ L (4)+ L (5)] / Maximum [L (1)+ L (2)+ L (3)+ L (4)+ L (5)]

δW

5p

10mm

6

H/4

2

10mm

9

45

11

10mm 10mm

W/4 W/4 W/4 W/4

H

H/4 H/4 H/4

7

3

1

12

W

8

X

: Test Point

10

13

X=1 to 13

Active area

23 / 29

Version 0.0

Issued Date: Dec. 29, 2008

Model No.: N101L6-L01

Tentative

9. PRECAUTIONS

9.1 SYSTEM MATCHING PRECAUTIONS

(1) Refer to the drawing. (2) To avoid wireless noise interference, please keep the antenna away from LCD control board.

9.2 HANDLING PRECAUTIONS

(1) The module should be assembled into the system firmly by using every mounting hole. Be careful

not to twist or bend the module.

(2) While assembling or installing modules, it can only be in the clean area. The dust and oil may

cause electrical short or damage the polarizer.

(3) Use fingerstalls or soft gloves in order to keep display clean during the incoming inspection and

assembly process.

(4) Do not press or scratch the surface harder than a HB pencil lead on the panel because the

polarizer is very soft and easily scratched.

(5) If the surface of the polarizer is dirty, please clean it by some absorbent cotton or soft cloth. Do not

use Ketone type materials (ex. Acetone), Ethyl alcohol, Toluene, Ethyl acid or Methyl chloride. It might permanently damage the polarizer due to chemical reaction.

(6) Wipe off water droplets or oil immediately. Staining and discoloration may occur if they left on

panel for a long time.

(7) If the liquid crystal material leaks from the panel, it should be kept away from the eyes or mouth.

In case of contacting with hands, legs or clothes, it must be washed away thoroughly with soap. (8) Protect the module from static electricity, it may cause damage to the C-MOS Gate Array IC. (9) Do not disassemble the module. (10) Do not pull or fold the lamp wire. (11) Pins of I/F connector should not be touched directly with bare hands.

www.jxlcd.com

9.3 STORAGE PRECAUTIONS

(1) High temperature or humidity may reduce the performance of module. Please store LCD module

within the specified storage conditions. (2) It is dangerous that moisture come into or contacted the LCD module, because the moisture may

damage LCD module when it is operating. (3) It may reduce the display quality if the ambient temperature is lower than 10 ºC. For example, the

response time will become slowly, and the starting voltage of lamp will be higher than the room

temperature.

9.4 OPERATION PRECAUTIONS

(1) Do not pull the I/F connector in or out while the module is operating. (2) Always follow the correct power on/off sequence when LCD module is connecting and operating.

This can prevent the CMOS LSI chips from damage during latch-up. (3) The startup voltage of Backlight is approximately 1000 Volts. It may cause electrical shock while

assembling with inverter. Do not disa ssemble the module or insert anything into the Backlig ht unit.

9.5 OTHER PRECAUTIONS

(1) When fixed patterns are displayed for a long time, remnant image is likely to occur.

24 / 29

Version 0.0

10. PACKING

10.1 CARTON

Issued Date: Dec. 29, 2008

Model No.: N101L6-L01

Tentative

www.jxlcd.com

Figure. 10-1 Packing method

25 / 29

Version 0.0

10.2 PALLET

Issued Date: Dec. 29, 2008

Model No.: N101L6-L01

Tentative

www.jxlcd.com

Figure. 10-2 Packing method

26 / 29

Version 0.0

Issued Date: Dec. 29, 2008

Model No.: N101L6-L01

Tentative

11. DEFINITION OF LABELS

11.1 CMO MODULE LABEL

The barcode nameplate is pasted on each module as illustration, and its definitions are as following

explanation.

Rev. XX

(a) Model Name: N101L6 - L01 (b) Revision: Rev. XX, for example: A1, …, C1, C2 …etc.

xxxx RoHS

(c) Serial ID: X X

www.jxlcd.com

(d) Production Location: MADE IN XXXX. XXXX stands for production location.

Serial ID includes the information as below:

(a) Manufactured Date: Year: 1~9, for 2001~2009

(b) Revision Code: cover all the change (c) Serial No.: Manufacturing sequence of product

X X X X X Y M D X N N N N

Month: 1~9, A~C, for Jan. ~ De c.

Day: 1~9, A~Y, for 1

Serial No. CMO Internal Use Year, Month, Date CMO Internal Use

Revision

CMO Internal Use

st

to 31st, exclude I , O and U

27 / 29

Version 0.0

11.2 CARTON LABEL

Issued Date: Dec. 29, 2008

Model No.: N101L6-L01

Tentative

N101L6-L01

40

Production location: Made In XXXX. XXXX stands for production location.

www.jxlcd.com

28 / 29

Version 0.0

www.jxlcd.com
