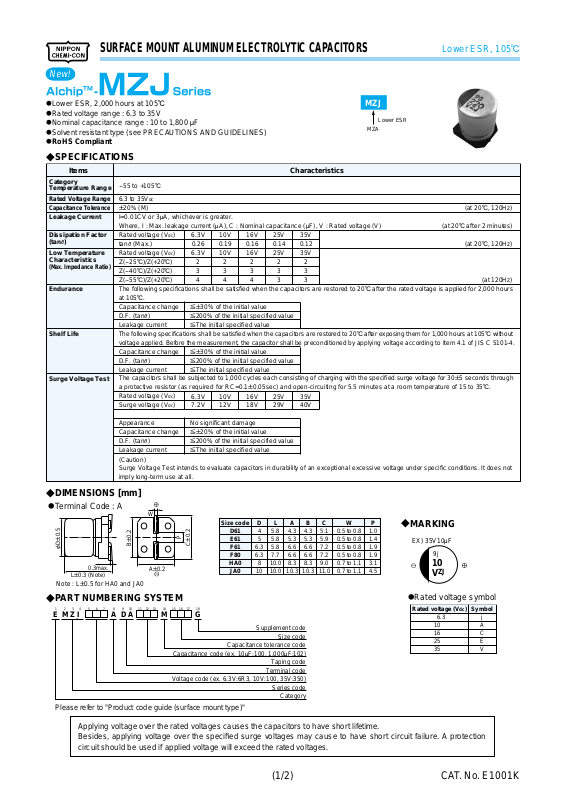

Page 1
New!
SURFACE MOUNT ALUMINUM ELECTROLYTIC CAPACITORS
Lower ESR, 105
C
@Lower ESR, 2,000 hours at 105C
@Rated voltage range : 6.3 to 35V
@Nominal capacitance range : 10 to 1,800 MF
@Solvent resistant type (see PRECAUTIONS AND GUIDELINES)
@RoHS Compliant
SPECIFICATIONS
?
Items
Category
Temperature Range
Rated Voltage Range
Capacitance Tolerance
Leakage Current
Dissipation Factor
(tane)
Low Temperature
Characteristics
(Max. Impedance Ratio)
Endurance
Shelf Life
Surge Voltage Test
-
55 to +105C
6.3 to 35V
P20% (M)
I=0.01CV or 3MA, whichever is greater.
Where, I : Max. leakage current (MA), C : Nominal capacitance (MF), V : Rated voltage (V)
Rated voltage (V
tanE (Max.)
Rated voltage (V
Z(
Z(
Z(
The following specifications shall be satisfied when the capacitors are restored to 20C after the rated voltage is applied for 2,000 hours
at 105C.
Capacitance change [P30% of the initial value
D.F. (tanE) [200% of the initial specified value
Leakage current [The initial specified value
The following specifications shall be satisfied when the capacitors are restored to 20C after exposing them for 1,000 hours at 105C without
voltage applied. Before the measurement, the capacitor shall be preconditioned by applying voltage according to Item 4.1 of JIS C 5101-4.
Capacitance change [P30% of the initial value
D.F. (tanE) [200% of the initial specified value
Leakage current [The initial specified value
The capacitors shall be subjected to 1,000 cycles each consisting of charging with the specified surge voltage for 30P5 seconds through
a protective resistor (as required for RC=0.1P0.05sec) and open-circuiting for 5.5 minutes at a room temperature of 15 to 35C.
Rated voltage (V
Surge voltage (V
dc
-
25C)/Z(+20C)
-
40C)/Z(+20C)
-
55C)/Z(+20C)
dc)
6.3V
0.26
dc)
6.3V
2
3
4
dc)
6.3V
dc)
7.2V
10V
0.19
10V
2
3
4
10V
12V
16V
0.16
16V
2
3
4
16V
18V
Characteristics
35V
25V
0.12
0.14
35V
25V
2
3
3
25V
35V
29V
40V
MZJ
Lower ESR
MZA
(at 20C, 120Hz)
(at 20C after 2 minutes)
(at 20C, 120Hz)
2
3
3
(at 120Hz)
Appearance No significant damage
Capacitance change [P20% of the initial value
D.F. (tanE) [200% of the initial specified value
Leakage current [The initial specified value
(Caution)
Surge Voltage Test intends to evaluate capacitors in durability of an exceptional excessive voltage under specific conditions. It does not
imply long-term use at all.
DIMENSIONS [mm]
?
@Terminal Code : A
FDP0.5
0.3max.
LP0.3 (Note)
BP0.2
W
AP0.2
P
CP0.2
Note : LP0.5 for HA0 and JA0
PART NUMBERING SYSTEM
?
13426789105121311 16 17 181514
E M Z J A A A A D A AAA A A A GM
Capacitance code (ex. 10MF:100, 1,000MF:102)
Voltage code (ex. 6.3V:6R3, 10V:100, 35V:350)
Please refer to "Product code guide (surface mount type)"
D61
E61
F61
F80
HA0
JA0
D
5.8
4
5.8
5
5.8
6.3
7.7
6.3
10.0
8
10
Supplement code
10.3
10.0
Size code
Taping code
Terminal code
Series code
Category
Size code
Capacitance tolerance code
L
4.3
5.3
6.6
6.6
8.3
A
4.3
5.3
6.6
6.6
8.3
10.3
5.1
5.9
7.2
7.2
9.0
11.0
0.5 to 0.8
0.5 to 0.8
0.5 to 0.8
0.5 to 0.8
0.7 to 1.1
0.7 to 1.1
1.0
1.4
1.9
1.9
3.1
4.5
MARKING
?
EX) 35V10MF
9j
10
V
ZJ
P
W
C
B
@Rated voltage symbol
Rated voltage (Vdc)
6.3
10
16
25
35
Symbol
j
A
C
E
V
Applying voltage over the rated voltages causes the capacitors to have short lifetime.
Besides, applying voltage over the specifi ed surge voltages may cause to have short circuit failure. A protection
circuit should be used if applied voltage will exceed the rated voltages.
(1/2)
CAT. No. E1001K
Page 2
SURFACE MOUNT ALUMINUM ELECTROLYTIC CAPACITORS
New!
STANDARD RATINGS
?
Lower ESR, 105
C
WV(Vdc) Cap(mF) Size code tane
47 D61 0.26 0.85 160 EMZJ6R3ADA470MD61G
100 E61 0.26 0.36 240 EMZJ6R3ADA101ME61G
220 F61 0.26 0.26 300 EMZJ6R3ADA221MF61G
6.3
10
16
25
35
330 F80 0.26 0.16 600 EMZJ6R3ADA331MF80G
1,000 HA0 0.26 0.08 850 EMZJ6R3ADA102MHA0G
1,500 JA0 0.26 0.06 1,190 EMZJ6R3ADA152MJA0G
1,800 JA0 0.26 0.06 1,190 EMZJ6R3ADA182MJA0G
33 D61 0.19 0.85 160 EMZJ100ADA330MD61G
150 F61 0.19 0.26 300 EMZJ100ADA151MF61G
680 HA0 0.19 0.08 850 EMZJ100ADA681MHA0G
1,000 JA0 0.19 0.06 1,190 EMZJ100ADA102MJA0G
1,200 JA0 0.19 0.06 1,190 EMZJ100ADA122MJA0G
22 D61 0.16 0.85 160 EMZJ160ADA220MD61G
47 E61 0.16 0.36 240 EMZJ160ADA470ME61G
100 F61 0.16 0.26 300 EMZJ160ADA101MF61G
150 F80 0.16 0.16 600 EMZJ160ADA151MF80G
220 F80 0.16 0.16 600 EMZJ160ADA221MF80G
470 HA0 0.16 0.08 850 EMZJ160ADA471MHA0G
680 JA0 0.16 0.06 1,190 EMZJ160ADA681MJA0G
820 JA0 0.16 0.06 1,190 EMZJ160ADA821MJA0G
10 D61 0.14 0.85 160 EMZJ250ADA100MD61G
22 E61 0.14 0.36 240 EMZJ250ADA220ME61G
33 E61 0.14 0.36 240 EMZJ250ADA330ME61G
33 F61 0.14 0.26 300 EMZJ250ADA330MF61G
47 F61 0.14 0.26 300 EMZJ250ADA470MF61G
68 F61 0.14 0.26 300 EMZJ250ADA680MF61G
100 F80 0.14 0.16 600 EMZJ250ADA101MF80G
330 HA0 0.14 0.08 850 EMZJ250ADA331MHA0G
470 JA0 0.14 0.06 1,190 EMZJ250ADA471MJA0G
560 JA0 0.14 0.06 1,190 EMZJ250ADA561MJA0G
10 D61 0.12 0.85 160 EMZJ350ADA100MD61G
22 E61 0.12 0.36 240 EMZJ350ADA220ME61G
33 F61 0.12 0.26 300 EMZJ350ADA330MF61G
47 F61 0.12 0.26 300 EMZJ350ADA470MF61G
68 F61 0.12 0.26 300 EMZJ350ADA680MF61G
100 F80 0.12 0.16 600 EMZJ350ADA101MF80G
100 HA0 0.12 0.08 850 EMZJ350ADA101MHA0G
150 HA0 0.12 0.08 850 EMZJ350ADA151MHA0G
220 HA0 0.12 0.08 850 EMZJ350ADA221MHA0G
330 JA0 0.12 0.06 1,190 EMZJ350ADA331MJA0G
390 JA0 0.12 0.06 1,190 EMZJ350ADA391MJA0G
ESR
(omax/20c, 100kHz)
Rated ripple current
(mArms/105c, 100kHz)
Part No.
(2/2)
CAT. No. E1001K
