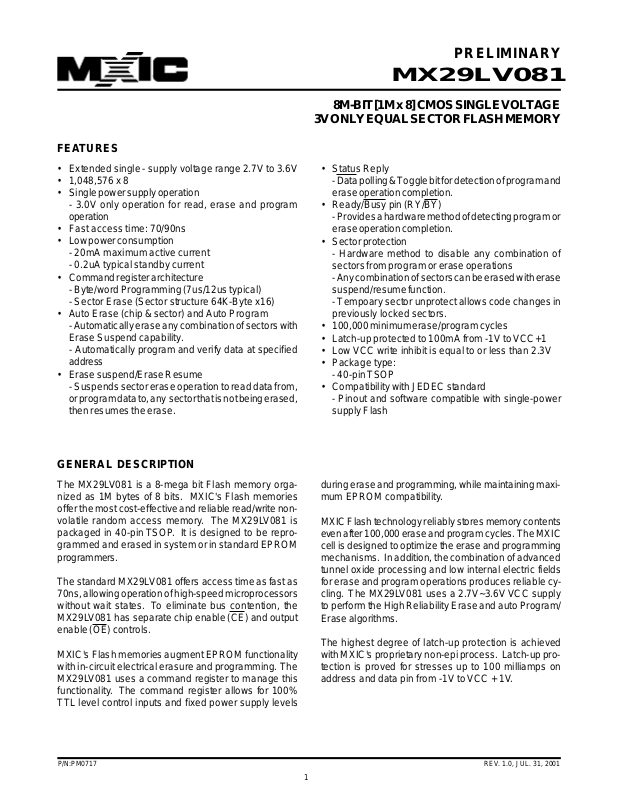

FEA TURES

PRELIMINARY

MX29LV081

8M-BIT [1M x 8] CMOS SINGLE VOLTAGE

3V ONLY EQUAL SECTOR FLASH MEMORY

• Extended single - supply voltage range 2.7V to 3.6V

• 1,048,576 x 8

• Single power supply operation

- 3.0V only operation for read, erase and program
operation

• Fast access time: 70/90ns

• Low power consumption

- 20mA maximum active current

- 0.2uA typical standby current

• Command register architecture

- Byte/word Programming (7us/12us typical)

- Sector Erase (Sector structure 64K-Byte x16)

• Auto Erase (chip & sector) and Auto Program

- Automatically erase any combination of sectors with
Erase Suspend capability.

- Automatically program and verify data at specified
address

• Erase suspend/Erase Resume

- Suspends sector erase operation to read data from,
or program data to, any sector that is not being erased,
then resumes the erase.

• Status Reply

- Data polling & Toggle bit for detection of program and
erase operation completion.

• Ready/Busy pin (RY/BY)

- Provides a hardware method of detecting program or
erase operation completion.

• Sector protection

- Hardware method to disable any combination of
sectors from program or erase operations

- Any combination of sectors can be erased with erase
suspend/resume function.

- Tempoary sector unprotect allows code changes in
previously locked sectors.

• 100,000 minimum erase/program cycles

• Latch-up protected to 100mA from -1V to VCC+1

• Low VCC write inhibit is equal to or less than 2.3V

• Package type:

- 40-pin TSOP

• Compatibility with JEDEC standard

- Pinout and software compatible with single-power
supply Flash

GENERAL DESCRIPTION

The MX29LV081 is a 8-mega bit Flash memory orga­nized as 1M bytes of 8 bits. MXIC's Flash memories
offer the most cost-effective and reliable read/write non­volatile random access memory. The MX29LV081 is
packaged in 40-pin TSOP. It is designed to be repro­grammed and erased in system or in standard EPROM
programmers.

The standard MX29L V081 off ers access time as fast as
70ns, allowing operation of high-speed microprocessors
without wait states. To eliminate bus contention, the
MX29LV081 has separate chip enable (CE) and output
enable (OE) controls.

MXIC's Flash memories augment EPROM functionality
with in-circuit electrical erasure and programming. The
MX29LV081 uses a command register to manage this
functionality. The command register allows for 100%
TTL level control inputs and fixed power supply levels

during erase and programming, while maintaining maxi­mum EPROM compatibility.

MXIC Flash technology reliably stores memory contents
even after 100,000 erase and prog ram cycles. The MXIC
cell is designed to optimize the erase and programming
mechanisms. In addition, the combination of advanced
tunnel oxide processing and low internal electric fields
for erase and program operations produces reliable cy­cling. The MX29LV081 uses a 2.7V~3.6V VCC supply
to perform the High Reliability Erase and auto Program/
Erase algorithms.

The highest degree of latch-up protection is achieved
with MXIC's proprietary non-epi process. Latch-up pro­tection is proved for stresses up to 100 milliamps on
address and data pin from -1V to VCC + 1V.

P/N:PM0717 REV. 1.0, JUL. 31, 2001

1

PIN CONFIGURATIONS

40 TSOP (Standard Type) (10mm x 20mm)

NC

1
2
3
4
5
6
7

A9

8

A8

9
10
11
12
13
14

A7

15

A6

16

A5

17

A4

18

A3

19

A2

20

A1

A16
A15
A14
A13
A12
A11

WE

RESET

RY/BY

A18

MX29LV081

MX29LV081

40

A17

39

GND

38

NC

37

A19

36

A10

35

Q7

34

Q6

33

Q5

32

Q4

31

VCC

30

VCC

29

NC

28

Q3

27

Q2

26

Q1

25

Q0

24

OE

23

GND

22

CE

21

A0

PIN DESCRIPTION

SYMBOL PIN NAME

A0~A19 Address Input
Q0~Q7 Data Input/Output
CE Chip Enable Input
WE Write Enable Input
RESET Hardware Reset Pin/Sector Protect Unlock
OE Output Enable Input
RY/BY Ready/Busy Output
VCC Power Supply Pin (2.7V~3.6V)
GND Ground Pin

P/N:PM0717

REV. 1.0, JUL. 31, 2001

2

MX29LV081

BLOCK STRUCTURE
Table 1: MX29LV081 SECTOR ARCHITECTURE

Sector Sector Size Address range Sector Address

Byte Mode Byte Mode (x8) A1 9 A1 8 A1 7 A1 6 A1 5 A1 4 A13

SA0 64Kbytes 00000h-0FFFFh 0000XXX
SA1 64Kbytes 10000h-1FFFFh 0001XXX
SA2 64Kbytes 20000h-2FFFFh 0010XXX
SA3 64Kbytes 30000h-3FFFFh 0011XXX
SA4 64Kbytes 40000h-4FFFFh 0100XXX
SA5 64Kbytes 50000h-5FFFFh 0101XXX
SA6 64Kbytes 60000h-6FFFFh 0110XXX
SA7 64Kbytes 70000h-7FFFFh 0111XXX
SA8 64Kbytes 80000h-8FFFFh 1000XX X
SA9 64Kbytes 90000h-9FFFFh 1 0 0 1 X X X
SA10 64Kbytes A0000h-AFFFFh 1 0 1 0 X X X
SA11 64Kbytes B0000h-BFFFFh 1 0 1 1 X X X
SA12 64Kbytes C0000h-CFFFFh 1 1 0 0 X X X
SA13 64Kbytes D0000h-DFFFFh 1 1 0 1 X X X
SA14 64Kbytes E0000h-EFFFFh 1 1 1 0 X X X
SA15 64Kbytes F0000h-FFFFFh 1 1 1 1 X X X

P/N:PM0717

REV. 1.0, JUL. 31, 2001

3

BLOCK DIAGRAM

MX29LV081

CE
OE

WE

RESET

A0-A19

CONTROL
INPUT

LOGIC

ADDRESS

LATCH

AND

BUFFER

PROGRAM/ERASE

HIGH VOLTAGE

X-DECODER

MX29L V081

FLASH
ARRA Y

Y-DECODER

Y-PASS GATE

SENSE

AMPLIFIER

PGM

DATA

ARRAY

SOURCE

HV

HV

WRITE

STATE

MACHINE

(WSM)

STATE

REGISTER

COMMAND

DATA
DECODER

COMMAND

DATA LATCH

P/N:PM0717

Q0-Q7

PROGRAM

DATA LATCH

I/O BUFFER

REV. 1.0, JUL. 31, 2001

4

MX29LV081

AUTOMATIC PROGRAMMING

The MX29L V081 is byte prog rammable using the A uto­matic Programming algorithm. The A utomatic Program­ming algorithm makes the external system do not need
to have time out sequence nor to verify the data pro­grammed. The typical chip programming time at room
temperature of the MX29L V081 is less than 10 seconds.

AUTOMATIC PROGRAMMING ALGORITHM

MXIC's Automatic Programming algorithm requires the
user to only write program set-up commands (including
2 unlock write cycle and A0H) and a program command
(program data and address). The device automatically
times the programming pulse width, provides the pro­gram verification, and counts the number of sequences.
The device provides an unlock bypass mode with faster
programming. Only two write cycles are needed to pro­gram a word or byte, instead of f our . A status bit similar
to DATA polling and a status bit toggling between con­secutive read cycles, provide feedback to the user as
to the status of the programming operation. Refer to write
operation status, table 7, for more information on these
status bits.

AUTOMATIC SECTOR ERASE

The MX29L V081 is sector(s) erasable using MXIC's A uto
Sector Erase algorithm. The Automatic Sector Erase
algorithm automatically programs the specified sector(s)
prior to electrical erase. The timing and verification of
electrical erase are controlled internally within the de­vice. An erase operation can erase one sector , multiple
sectors, or the entire device.

AUTOMATIC ERASE ALGORITHM

MXIC's Automatic Erase algorithm requires the user to
write commands to the command register using stan­dard microprocessor write timings. The device will auto­matically pre-program and verify the entire array. Then
the device automatically times the erase pulse width,
provides the erase verification, and counts the number
of sequences. A status bit toggling between consecu­tive read cycles provides feedback to the user as to the
status of the erasing operation.

Register contents serve as inputs to an internal state­machine which controls the erase and programming cir­cuitry . During write cycles, the command register inter­nally latches address and data needed for the program­ming and erase operations. During a system write cycle,
addresses are latched on the falling edge, and data are
latched on the rising edge of WE or CE, whichev er hap­pens first.

MXIC's Flash technology combines years of EPROM
experience to produce the highest lev els of quality, reli­ability, and cost effectiveness. The MX29LV081 electri­cally erases all bits simultaneously using Fowler­Nordheim tunneling. The bytes are prog rammed by us­ing the EPROM programming mechanism of hot elec­tron injection.

During a program cycle, the state-machine will control
the program sequences and command register will not
respond to any command set. During a Sector Erase
cycle, the command register will only respond to Erase
Suspend command. After Erase Suspend is completed,
the device stays in read mode. After the state machine
has completed its task, it will allow the command regis­ter to respond to its full command set.

AUTOMATIC CHIP ERASE

The entire chip is bulk erased using 10 ms erase pulses
according to MXIC's Automatic Chip Erase algorithm.
T ypical erasure at room temper ature is accomplished in
less than 25 second. The Automatic Erase algorithm
automatically programs the entire array prior to electri­cal erase. The timing and v erification of electrical erase
are controlled internally within the device.

P/N:PM0717

AUTOMATIC SELECT

The auto select mode provides manufacturer and de­vice identification, and sector protection verification,
through identifier codes output on Q7~Q0. This mode is
mainly adapted for programming equipment on the de­vice to be programmed with its programming algorithm.
When programming by high voltage method, automatic
select mode requires VID (11.5V to 12.5V) on address
pin A9 and other address pin A6, A1 and A0 as referring
to Table 3. In addition, to access the automatic select
codes in-system, the host can issue the automatic se-

REV. 1.0, JUL. 31, 2001

5

MX29LV081

lect command through the command register without
requiring VID , as shown in tab le4.

T o v erify whether or not sector being protected, the sec­tor address must appear on the appropriate highest or­der address bit (see Table 1 and Table 2). The rest of
address bits, as shown in table3, are don't care. Once
all necessary bits have been set as required, the pro­gramming equipment may read the corresponding iden­tifier code on Q7~Q0.

T ABLE 2. MX29LV081 AUT O SELECT MODE OPERA TION

A19 A12 A9 A8 A6 A5 A1 A0

Description CE OE WE | | | | Q7~Q0

A13 A10 A7 A2

Read Silicon ID L L H X X VID X L X L L C2H
Manfacturer Code
Read Silicon ID L L H X X VID X L X L H 38H

01H

Sector Protection L L H SA X VID X L X H L (protected)
Verification 00H

(unprotected)

NOTE:SA=Sector Address, X=Don't Care , L=Logic Low , H=Logic High

P/N:PM0717

REV. 1.0, JUL. 31, 2001

6

MX29LV081

T ABLE 4. MX29LV081 COMMAND DEFINITIONS

First Bus Second Bus Third Bus Fourth Bus Fifth Bus Sixth Bus

Command Bus Cycle Cycle Cycle Cycle Cycle Cycle

Cycle Addr Data Addr Data Addr Data Addr Data Addr Data Addr Data
Reset 1 XXXH F0H
Read 1 RA RD
Read Manufacturer ID 4 XXXH AAH XXXH 55 H XXXH 9 0H X00H C2H
Read Silicon ID 4 XXXH AAH XXXH 55H XXXH 90H ADI D DI
Sector Protect 4 XXXH AAH XXXH 55H XXXH 90H (SA) 00H
Verify x02H 01 H
Porgram 4 XXXH AAH XXXH 55H XXXH A0H PA P D
Chip Erase 6 XXXH AAH XXXH 55H XXXH 8 0H XXXH AA H XXXH 55H XXXH 10 H
Sector Erase 6 AAAH AAH 555H 55H AAAH 80 H AAAH AAH 555H 55H SA 30 H
Sector Erase Suspend 1 XXXH B0 H
Sector Erase Resume 1 XXXH 30 H

Note:

1. ADI = Address of Device identifier; A1=0, A0 = 0 for manufacturer code,A1=0, A0 = 1 for device code. A2-A19=do not care.
(Refer to table 2)
DDI = Data of Device identifier : C2H for manufacture code, 38H for device code.
X = X can be VIL or VIH
RA=Address of memory location to be read.
RD=Data to be read at location RA.

2.PA = Address of memory location to be programmed.
PD = Data to be programmed at location PA.
SA = Address of the sector to be erased.

3. For Sector Protect V erify operation:If read out data is 01H, it means the sector has been protected. If read out data is 00H, it
means the sector is still not being protected.

P/N:PM0717

REV. 1.0, JUL. 31, 2001

7

COMMAND DEFINITIONS

MX29LV081

Device operations are selected by writing specific ad­dress and data sequences into the command register.
Writing incorrect address and data values or writing them

sequences. Note that the Erase Suspend (B0H) and
Erase Resume (30H) commands are valid only while the

Sector Erase operation is in progress.
in the improper sequence will reset the device to the
read mode. Table 4 defines the valid register command

T ABLE 5. MX29LV081 BUS OPERA TION

ADDRESS

DESCRIPTION CE OE WE RESET A19 A12 A9 A8 A6 A5 A1 A0 Q0~Q7

A13 A10 A7 A2

Read L L H H AIN Dout
Write L H L H AIN DIN(3)
Reset X X X L X High Z
Temproary sector Unprotect X X X VID AIN DIN
Output Disable L H H H X High Z
Standby Vcc±0.3V X X Vcc±0.3V X High Z
Sector Protect L H L VID SA X X X L X H L X
Sector Unprotect L H L VID SA X X X H X H L X
Sector Protection Verify L L H H SA X VID X L X H L CODE(5)

NOTES:

1. Manufacturer and device codes may also be accessed via a command register write sequence. Refer to Table 4.

2. VID is the Silicon-ID-Read high voltage, 11.5V to 12.5V.

3. Refer to Table 4 for valid Data-In during a write operation.

4. X can be VIL or VIH, L=Logic Low=VIL, H=Logic High=VIH.

5. Code=00H means unprotected.

Code=01H means protected.

6. A19~A13=Sector address for sector protect.

7. Sector Protection/Unprotect requires VID on the RESET pin only, and can be implemented either in system or via program-

ming equipment.

P/N:PM0717

REV. 1.0, JUL. 31, 2001

8

MX29LV081

REQUIREMENTS FOR READING ARRAY
DATA

To read array data from the outputs, the system must
drive the CE and OE pins to VIL. CE is the pow er control
and selects the device. OE is the output control and gates
array data to the output pins. WE should remain at VIH.

The internal state machine is set for reading array data
upon device power-up, or after a hardware reset. This
ensures that no spurious alteration of the memory contect
occurs during the power transition. No command is
necessary in this mode to obtain array data. Standard
microprocessor read cycles that assert valid address on
the device address inputs produce valid data on the device
data outputs. The device remains enab led for read access
until the command register contents are altered.

WRITE COMMANDS/COMMAND
SEQUENCES

T o program data to the de vice or erase sectors of memory
, the sysytem must drive WE and CE to VIL, and OE to
VIH.

The device features an Unlock Bypass mode to facilitate
faster programming. Once the device enters the Unlock
Bypass mode, only two write cycles are required to
program a byte, instead of four. The "byte Program
Command Sequence" section has details on
programming data to the device using both standard and
Unlock Bypass command sequences.

An erase operation can erase one sector , multiple sectors
, or the entire device. Table indicates the address space
that each sector occupies. A "sector address" consists
of the address bits required to uniquely select a sector.
The "Writing specific address and data commands or
sequences into the command register initiates device
operations. Table 1 defines the valid register command
sequences. Writing incorrect address and data values or
writing them in the improper sequence resets the device
to reading array data."section has details on erasing a
sector or the entire chip, or suspending/resuming the erase
operation.

After the system writes the autoselect command
sequence, the device enters the autoselect mode. The
system can then read autoselect codes from the internal
reqister (which is separate from the memory array) on
Q7-Q0. Standard read cycle timings apply in this mode.

Refer to the Autoselect Mode and Autoselect Command
Sequence section for more information.

ICC2 in the DC Characteristics table represents the
active current specification for the write mode. The "AC
Characteristics" section contains timing specification
table and timing diagrams for write operations.

STANDBY MODE

When using both pins of CE and RESET, the device
enter CMOS Standby with both pins held at Vcc ± 0.3V.
IF CE and RESET are held at VIH, but not within the
range of VCC ± 0.3V , the device will still be in the standb y
mode, but the standby current will be larger . During Auto
Algorithm operation, Vcc activ e current (Icc2) is required
even CE = "H" until the oper ation is complated. The de­vice can be read with standard access time (tCE) from
either of these standby modes, before it is ready to read
data.

OUTPUT DISABLE

With the OE input at a logic high level (VIH), output from
the devices are disabled. This will cause the output pins
to be in a high impedance state.

RESET OPERATION

The RESET pin provides a hardware method of resetting
the device to reading arra y data. When the RESET pin is
driven low for at least a period of tRP, the device
immediately terminates any operation in progress,
tristates all output pins, and ignores all read/write
commands for the duration of the RESET pluse. The
device also resets the internal state machine to reading
array data. The operation that was interrupted should be
reinitated once the device is ready to accept another
command sequence, to ensure data integrity

Current is reduced for the duration of the RESET pulse.
When RESET is held at VSS±0.3V, the device draws
CMOS standby current (ICC4). If RESET is held at VIL
but not within VSS±0.3V, the standby current will be
greater.

The RESET pin may be tied to system reset circuitry . A
system reset would that also reset the Flash memory,
enabling the system to read the boot-up firm-ware from

P/N:PM0717

REV. 1.0, JUL. 31, 2001

9

MX29LV081

the Flash memory .
If RESET is asserted during a program or erase

operation, the R Y/BY pin remains a "0" (b usy) until the
internal reset operation is complete, which requires a
time of tREADY (during Embedded Algorithms). The
sysytem can thus monitor RY/BY to determine whether
the reset operation is complete. If RESET is asser ted
when a program or erase operation is commpleted within
a time of tREADY (not during Embedded Algorithms).
The system can read data tRH after the RESET pin
returns to VIH.

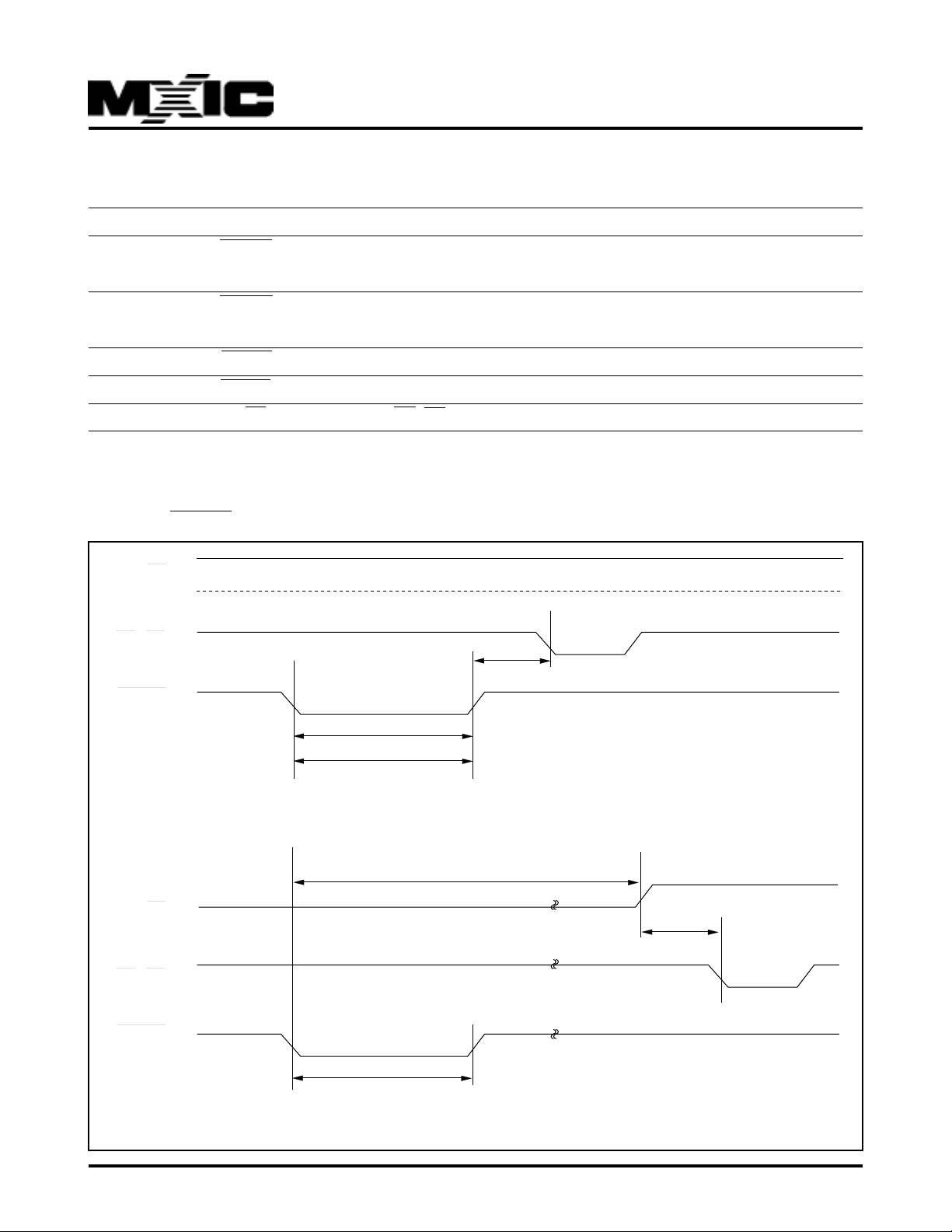

Refer to the AC Characteristics tables for RESET
parameters and to Figure 20 for the timing diagram.

READ/RESET COMMAND

The read or reset operation is initiated by writing the
read/reset command sequence into the command reg­ister. Microprocessor read cycles retrieve array data.
The device remains enabled for reads until the command
register contents are altered.

If program-fail or erase-fail happen, the write of F0H will
reset the device to abort the operation. A valid com­mand must then be written to place the device in the
desired state.

SET-UP AUTOMATIC CHIP/SECTOR ERASE
COMMANDS

Chip erase is a six-bus cycle operation. There are two
"unlock" write cycles. These are followed b y writing the
"set-up" command 80H. Two more "unlock" write cy­cles are then followed by the chip erase command 10H
or sector erase command 30H.

The Automatic Chip Erase does not require the device
to be entirely pre-programmed prior to executing the Au­tomatic Chip Erase. Upon executing the Automatic Chip
Erase, the device will automatically program and verify
the entire memory for an all-zero data pattern. When the
device is automatically verified to contain an all-zero
pattern, a self-timed chip erase and verify begin. The
erase and verify operations are completed when the data
on Q7 is "1" at which time the device returns to the
Read mode. The system is not required to pro vide any
control or timing during these operations.

When using the Automatic Chip Erase algorithm, note
that the erase automatically terminates when adequate
erase margin has been achieved for the memory array(no
erase verification command is required).

If the Erase operation was unsuccessful, the data on
Q5 is "1"(see Table 7), indicating the erase operation
exceed internal timing limit.

SILICON-ID READ COMMAND

Flash memories are intended for use in applications where
the local CPU alters memory contents. As such, manu­facturer and device codes must be accessible while the
device resides in the target system. PROM program­mers typically access signature codes by raising A9 to
a high voltage(VID). Howev er, m ultiplexing high voltage
onto address lines is not generally desired system de­sign practice.

The MX29LV081 contains a Silicon-ID-Read operation
to supple traditional PROM programming methodology.
The operation is initiated by writing the read silicon ID
command sequence into the command register. Fol­lowing the command write, a read cycle with A1=VIL,
A0=VIL retrieves the manufacturer code of C2H. A read
cycle with A1=VIL, A0=VIH returns the device code of
38H for MX29L V081.

P/N:PM0717

The automatic erase begins on the rising edge of the
last WE or CE pulse, whichever happens first in the
command sequence and terminates when the data on
Q7 is "1" and the data on Q6 stops toggling for two con­secutive read cycles, at which time the device returns
to the Read mode.

REV. 1.0, JUL. 31, 2001

10

MX29LV081

TABLE 6. SILICON ID CODE

Pins A0 A1 Q7 Q6 Q5 Q4 Q3 Q2 Q1 Q0 Code(Hex)
Manufacture code VIL VIL 1 1 0 0 0010C2H
Device code VIH VIL 0010011038H
Sector Protection X VIH 0 0 0 0 000101H (Protected)
Ver ification X VIH 0 0 0 0 000000H (Unprotected)

READING ARRAY DATA

The device is automatically set to reading array data
after device power-up. No commands are required to
retrieve data. The device is also ready to read arra y data
after completing an Automatic Program or Automatic
Erase algorithm.

After the device accepts an Erase Suspend command,
the device enters the Erase Suspend mode. The sys­tem can read array data using the standard read tim­ings, except that if it reads at an address within erase­suspended sectors, the device outputs status data. After
completing a programming operation in the Erase
Suspend mode, the system may once again read array
data with the same exception. See rase Suspend/Erase
Resume Commands” for more infor-mation on this mode.
The system
able the device for reading array data if Q5 goes high, or
while in the autoselect mode. See the "Reset Command"
section, next.

must issue the reset command to re-en-

RESET COMMAND

Writing the reset command to the device resets the
device to reading array data. Address bits are don't care
for this command.

The reset command may be written between the se­quence cycles in an erase command sequence before
erasing begins. This resets the device to reading array
data. Once erasure begins, however, the device ignores
reset commands until the operation is complete.

The reset command may be written between the se­quence cycles in a program command sequence be-fore
programming begins. This resets the device to reading
array data (also applies to programming in Erase
Suspend mode). Once prog ramming begins ,how ever, the
device ignores reset commands until the operation is
complete.

The reset command may be written between the se­quence cycles in an SILICON ID READ command
sequence. Once in the SILICON ID READ mode, the
reset command
data (also applies to SILICON ID READ during Erase
Suspend).

must be written to return to reading array

P/N:PM0717

If Q5 goes high during a program or erase operation,
writing the reset command returns the device to read­ing
array data (also applies during Erase Suspend).

REV. 1.0, JUL. 31, 2001

11

MX29LV081

SECTOR ERASE COMMANDS

The Automatic Sector Erase does not require the de­vice to be entirely pre-programmed prior to executing
the Automatic Sector Erase Set-up command and Au­tomatic Sector Erase command. Upon executing the
Automatic Sector Erase command, the device will auto­matically program and verify the sector(s) memory for
an all-zero data pattern. The system is not required to
provide any control or timing during these operations.

When the sector(s) is automatically verified to contain
an all-zero pattern, a self-timed sector erase and verify
begin. The erase and verify operations are complete
when the data on Q7 is "1" and the data on Q6 stops
toggling for two consecutive read cycles, at which time
the device returns to the Read mode. The system is not
required to provide any control or timing during these
operations.

When using the Automatic sector Erase algorithm, note
that the erase automatically terminates when adequate
erase margin has been achieved for the memory array
(no erase verification command is required). Sector
erase is a six-bus cycle operation. There are two "un­lock" write cycles. These are followed by writing the
set-up command 80H. Two more "unlock" write cycles
are then followed by the sector erase command 30H.
The sector address is latched on the falling edge of WE
or CE, whichever happens later , while the command(data)
is latched on the rising edge of WE or CE, whichever
happens first. Sector addresses selected are loaded
into internal register on the sixth falling edge of WE or
CE, whichever happens later. Each successive sector
load cycle started by the falling edge of WE or CE,
whichever happens later must begin within 50us from
the rising edge of the preceding WE or CE, whichev er
happens first. Otherwise, the loading period ends and
internal auto sector erase cycle starts. (Monitor Q3 to
determine if the sector erase timer window is still open,
see section Q3, Sector Erase Timer .) Any command other
than Sector Erase(30H) or Erase Suspend(B0H) during
the time-out period resets the device to read mode.

ERASE SUSPEND

This command only has meaning while the state ma­chine is executing Automatic Sector Erase operation,
and therefore will only be responded during Automatic
Sector Erase operation. When the Erase Suspend Com-

mand is issued during the sector erase operation, the
device requires a maximum 20us to suspend the sector
erase operation. However , when the Erase Suspend com­mand is written during the sector erase time-out, the
device immediately terminates the time-out period and
suspends the erase operation. After this command has
been executed, the command register will initiate erase
suspend mode. The state machine will return to read
mode automatically after suspend is ready . At this time,
state machine only allows the command register to re­spond to Erase Resume, program data to , or read data
from any sector not selected for erasure.

The system can determine the status of the program
operation using the Q7 or Q6 status bits, just as in the
standard program operation. After an erase-suspend pro­gram operation is complete, the system can once again
read array data within non-suspended sectors.

ERASE RESUME

This command will cause the command register to clear
the suspend state and return back to Sector Erase mode
but only if an Erase Suspend command was previously
issued. Erase Resume will not have any effect in all
other conditions. Another Erase Suspend command can
be written after the chip has resumed erasing.

WORD/BYTE PROGRAM COMMAND SEQUENCE

The device programs one byte of data for each program
operation. The command sequence requires four bus
cycles, and is initiated by writing two unlock write cycles,
followed by the program set-up command. The program
address and data are written next, which in turn initiate
the Embedded Program algorithm. The system is
required to provide further controls or timings. The device
automatically generates the program pulses and verifies
the programmed cell margin. Table 1 shows the address
and data requirements for the byte program command
sequence.

When the Embedded Program algorithm is complete,
the device then returns to reading array data and
addresses are no longer latched. The system can
determine the status of the program operation by using
Q7, Q6, or RY/BY. See "Write Operation Status" for
information on these status bits.

Any commands written to the device during the Em-

not

P/N:PM0717

REV. 1.0, JUL. 31, 2001

12

MX29LV081

bedded Program Algorithm are ignored. Note that a
hardware reset immediately terminates the programming
operat ion. The Byte Prog ram command sequence should
be reinitiated once the device has reset to reading array
data, to ensure data integrity.

Programming is allowed in any sequence and across
sector boundaries. A bit cannot be programmed from a
"0" back to a "1". Attempting to do so may halt the
operation and set Q5 to "1" ,” or cause the Data Polling
algorithm to indicate the operation was successful.
However, a succeeding read will show that the data is
still "0". Only erase operations can convert a "0" to a
"1".

WRITE OPERSTION STATUS

The device provides several bits to determine the sta­tus of a write operation: Q2, Q3, Q5, Q6, Q7, and RY/
BY. Table 10 and the follo wing subsections describe the
functions of these bits. Q7, R Y/BY, and DQ6 each offer
a method for determining whether a program or erase
operation is complete or in progress. These three bits
are discussed first.

Q7: Data Polling

The Data Polling bit, Q7, indicates to the host sys-tem
whether an Automatic Algorithm is in progress or com­pleted, or whether the device is in Erase Suspend. Data
Polling is v alid after the rising edge of the final WE pulse
in the program or erase command sequence.

During the Automatic Program algorithm, the device out­puts on Q7 the complement of the datum programmed
to Q7. This Q7 status also applies to progr amming dur­ing Er ase Suspend. When the Automatic Program algo­rithm is complete, the device outputs the datum pro­grammed to Q7. The system must provide the progr am
address to read valid status information on Q7. If a pro­gram address falls within a protected sector, Data Poll­ing on Q7 is active for approximately 1 us, then the de­vice returns to reading array data.

During the Automatic Erase algorithm, Data Polling pro­duces a "0" on Q7. When the Automatic Erase algo­rithm is complete, or if the device enters the Erase Sus­pend mode, Data P olling produces a "1" on Q7. This is
analogous to the complement/true datum out-put de­scribed for the Automatic Program algorithm: the erase

function changes all the bits in a sector to "1" prior to
this, the device outputs the "complement,” or "0".” The
system must provide an address within any of the sec­tors selected for erasure to read valid status information
on Q7.

After an erase command sequence is written, if all sec­tors selected for erasing are protected, Data P olling on
Q7 is active for approximately 100 us, then the device
returns to reading array data. If not all selected sectors
are protected, the Automatic Erase algorithm erases the
unprotected sectors, and ignores the selected sectors
that are protected.

When the system detects Q7 has changed from the
complement to true data, it can read valid data at Q7-Q0
on the following read cycles. This is because Q7 may
change asynchr onously with Q0-Q6 while Output En­able (OE) is asserted low.

RY/BY:Ready/Busy

The RY/BY is a dedicated, open-drain output pin that
indicates whether an Automatic Erase/Program algorithm
is in progress or complete. The RY/BY status is valid
after the rising edge of the final WE or CE, whichever
happens first, in the command sequence. Since R Y/BY
is an open-drain output, sever al RY/BY pins can be tied
together in parallel with a pull-up resistor to Vcc.

If the output is low (Busy), the device is actively erasing
or programming. (This includes programming in the Erase
Suspend mode.)If the output is high (Ready), the device
is ready to read array data (including during the Erase
Suspend mode), or is in the standby mode.

T able 7 sho ws the outputs for R Y/BY during write opera­tion.

Q6:Toggle BIT I

Toggle Bit I on Q6 indicates whether an Automatic Pro­gram or Erase algorithm is in progress or complete, or
whether the device has entered the Erase Suspend mode.
Toggle Bit I may be read at any address, and is valid
after the rising edge of the final WE or CE, whichever
happens first, in the command sequence(prior to the pro­gram or erase operation), and during the sector time­out.

P/N:PM0717

REV. 1.0, JUL. 31, 2001

13

MX29LV081

During an Automatic Program or Erase algorithm opera­tion, successive read cycles to any address cause Q6
to toggle. The system may use either OE or CE to con­trol the read cycles. When the operation is complete , Q6
stops toggling.

After an erase command sequence is written, if all sec­tors selected for erasing are protected, Q6 toggles and
returns to reading array data. If not all selected sectors
are protected, the Automatic Erase algorithm erases the
unprotected sectors, and ignores the selected sectors
that are protected.

The system can use Q6 and Q2 together to determine
whether a sector is actively erasing or is erase sus­pended. When the de vice is actively erasing (that is, the
Automatic Erase algorithm is in progress), Q6 toggling.
When the device enters the Erase Suspend mode, Q6
stops toggling. Ho wever, the system must also use Q2
to determine which sectors are erasing or erase-sus­pended. Alternatively, the system can use Q7.

If a program address falls within a protected sector, Q6
toggles for approximately 2 us after the program com­mand sequence is written, then returns to reading array
data.

Q6 also toggles during the erase-suspend-program mode,
and stops toggling once the Automatic Program algo­rithm is complete.

Table 7 shows the outputs for Toggle Bit I on Q6.

Q2:Toggle Bit II

The "T oggle Bit II" on Q2, when used with Q6, indicates
whether a particular sector is actively eraseing (that is,
the Automatic Erase alorithm is in process), or whether
that sector is erase-suspended. Toggle Bit II is valid
after the rising edge of the final WE or CE, whichever
happens first, in the command sequence.

Q2 toggles when the system reads at addresses within
those sectors that have been selected for erasure. (The
system may use either OE or CE to control the read
cycles.) But Q2 cannot distinguish whether the sector
is actively erasing or is erase-suspended. Q6, by com­parison, indicates whether the device is actively eras­ing, or is in Erase Suspend, but cannot distinguish which
sectors are selected for erasure. Thus , both status bits

are required for sectors and mode information. Refer to
Table 7 to compare outputs for Q2 and Q6.

Reading Toggle Bits Q6/ Q2

Whenever the system initially begins reading toggle bit
status, it must read Q7-Q0 at least twice in a row to
determine whether a toggle bit is toggling. T ypically, the
system would note and store the value of the toggle bit
after the first read. After the second read, the system
would compare the new value of the toggle bit with the
first. If the toggle bit is not toggling, the device has
completed the program or erase operation. The system
can read array data on Q7-Q0 on the following read cycle.

Howe v e r, if after the initial two read cycles, the system
determines that the toggle bit is still toggling, the sys­tem also should note whether the value of Q5 is high
(see the section on Q5). If it is, the system should then
determine again whether the toggle bit is toggling, since
the toggle bit may have stopped toggling just as Q5 went
high. If the toggle bit is no longer toggling, the device
has successfuly completed the program or erase opera­tion. If it is still toggling, the device did not complete the
operation successfully, and the system must wr ite the
reset command to return to reading array data.

The remaining scenario is that system initially determines
that the toggle bit is toggling and Q5 has not gone high.
The system may continue to monitor the toggle bit and
Q5 through successive read cycles, determining the sta­tus as described in the previous paragraph. Alterna­tively, it may choose to perform other system tasks. In
this case, the system must start at the beginning of the
algorithm when it returns to determine the status of the
operation.

Q5
Exceeded Timing Limits

Q5 will indicate if the program or erase time has ex­ceeded the specified limits(internal pulse count). Under
these conditions Q5 will produce a "1". This time-out
condition indicates that the program or erase cycle was
not successfully completed. Data Polling and Toggle Bit
are the only operating functions of the device under this
condition.

If this time-out condition occurs during sector erase op-

P/N:PM0717

REV. 1.0, JUL. 31, 2001

14

MX29LV081

eration, it specifies that a particular sector is bad and it
may not be reused. Howe ver , other sectors are still func­tional and may be used for the program or erase opera­tion. The device must be reset to use other sectors.
Write the Reset command sequence to the device, and
then execute prog ram or erase command sequence. This
allows the system to continue to use the other active
sectors in the device.

If this time-out condition occurs during the chip erase
operation, it specifies that the entire chip is bad or com­bination of sectors are bad.

T able 7. WRITE OPERATION ST ATUS

Status Q7 Q6 Q5 Q3 Q2 RY/BY

Byte Program in Auto Program Algorithm Q7 Toggle 0 N/A No 0

Auto Erase Algorithm 0 Toggle 0 1 Toggle 0

Erase Suspend Read 1 No 0 N/A Toggle 1
(Erase Suspended Sector) Toggle

In Progress

Erase Suspended Mode Erase Suspend Read Data Data Data Data Data 1

(Non-Erase Suspended Sector)

If this time-out condition occurs during the byte program­ming operation, it specifies that the entire sector con­taining that byte is bad and this sector maynot be re­used, (other sectors are still functional and can be re­used).

The time-out condition will not appear if a user tries to
program a non blank location without erasing. Please
note that this is not a device failure condition since the
device was incorrectly used.

(Note1) (Note2)

Toggle

Erase Suspend Program Q7 Toggle 0 N/A N/A 0

Byte Program in Auto Program Algorithm Q7 Toggle 1 N/A No 0

Exceeded
Time Limits Auto Erase Algorithm 0 Toggle 1 1 Toggle 0

Erase Suspend Program Q7 Toggle 1 N/A N/A 0

Toggle

Note:

1. Q7 and Q2 require a valid address when reading status information. Refer to the appropriate subsection for further
details.

2. Q5 switches to '1' when an Auto Program or Auto Erase operation has exceeded the maximum timing limits.
See "Q5:Exceeded Timing Limits " for more information.

P/N:PM0717

REV. 1.0, JUL. 31, 2001

15

MX29LV081

Q3
Sector Erase Timer

After the completion of the initial sector erase command
sequence, the sector erase time-out will begin. Q3 will
remain low until the time-out is complete. Data Polling
and Toggle Bit are valid after the initial sector erase com­mand sequence.

If Data Polling or the Toggle Bit indicates the device has
been written with a valid erase command, Q3 may be
used to determine if the sector erase timer window is
still open. If Q3 is high ("1") the internally controlled
erase cycle has begun; attempts to write subsequent
commands to the device will be ignored until the erase
operation is completed as indicated by Data Polling or
Toggle Bit. If Q3 is low ("0"), the device will accept
additional sector erase commands. To insure the com­mand has been accepted, the system software should
check the status of Q3 prior to and following each sub­sequent sector erase command. If Q3 were high on the
second status check, the command may not have been
accepted.

POWER SUPPLY DECOUPLING

In order to reduce power switching effect, each device
should have a 0.1uF ceramic capacitor connected be­tween its VCC and GND .

POWER-UP SEQUENCE

The MX29LV081 powers up in the Read only mode. In
addition, the memory contents may only be altered after
successful completion of the predefined command se­quences.

TEMPORARY SECTOR UNPROTECT

This feature allows temporary unprotection of previously
protected sector to change data in-system. The T empo­rary Sector Unprotect mode is activated by setting the
RESET pin to VID(11.5V-12.5V). During this mode, for­merly protected sectors can be programmed or erased
as un-protected sector. Once VID is remove from the
RESET pin,all the previously protected sectors are pro­tected again.

DATA PROTECTION

The MX29L V081 is designed to off er protection against
accidental erasure or programming caused by spurious
system level signals that may exist during power transi­tion. During power up the device automatically resets
the state machine in the Read mode. In addition, with
its control register architecture, alteration of the memory
contents only occurs after successful completion of spe­cific command sequences. The device also incorpo­rates sever al features to prev ent inadvertent write cycles
resulting from VCC pow er-up and power-down transition
or system noise.

WRITE PULSE "GLITCH" PROTECTION

Noise pulses of less than 5ns(typical) on CE or WE will
not initiate a write cycle.

LOGICAL INHIBIT

Writing is inhibited by holding any one of OE = VIL, CE
= VIH or WE = VIH. T o initiate a write cycle CE and WE
must be a logical zero while OE is a logical one.

SECTOR PROTECTION

The MX29LV081 features hardware sector protection.
This feature will disable both program and erase opera­tions for these sectors protected. To activate this mode,
the programming equipment must f orce VID on address
pin A9 and OE (suggest VID = 12V). Programming of
the protection circuitry begins on the falling edge of the
WE pulse and is terminated on the rising edge. Please
refer to sector protect algorithm and waveform.

T o verify programming of the protection circuitry , the pro­gramming equipment must force VID on address pin A9
( with CE and OE at VIL and WE at VIH). When A1=VIH,
A0=VIL, A6=VIL, it will produce a logical "1" code at
device output Q0 f or a protected sector . Otherwise the
device will produce 00H for the unprotected sector. In
this mode, the addresses,except for A1, are don't care.
Address locations with A1 = VIL are reserved to read
manufacturer and device codes.(Read Silicon ID)

It is also possible to determine if the sector is protected
in the system by writing a Read Silicon ID command.
Perf orming a read operation with A1=VIH, it will produce
a logical "1" at Q0 for the protected sector .

P/N:PM0717

REV. 1.0, JUL. 31, 2001

16

CHIP UNPROTECT

The MX29LV081 also features the chip unprotect mode,
so that all sectors are unprotected after chip unprotect is
completed to incorporate any changes in the code. It is
recommended to protect all sectors before activating
chip unprotect mode.

To activate this mode, the programming equipment must
force VID on control pin OE and address pin A9. The CE
pins must be set at VIL. Pins A6 must be set to VIH.
Refer to chip unprotect algorithm and waveform for the
chip unprotect algorithm. The unprotection mechanism
begins on the falling edge of the WE pulse and is
terminated on the rising edge.

It is also possible to determine if the chip is unprotected
in the system by writing the Read Silicon ID command.
Performing a read operation with A1=VIH, it will produce
00H at data outputs(Q0-Q7) for an unprotected sector.

MX29LV081

It is noted that all sectors are unprotected after the chip
unprotect algorithm is completed.

P/N:PM0717

REV. 1.0, JUL. 31, 2001

17

MX29LV081

ABSOLUTE MAXIMUM RATINGS

Storage T emperature

Plastic Packages . . . . . . . . . . . . . ..... -65oC to +150oC

Ambient T emperature

with Power Applied. . . . . . . . . . . . . .... -65oC to +125oC

V oltage with Respect to Ground

VCC (Note 1) . . . . . . . . . . . . . . . . . -0.5 V to +4.0 V

A9, OE, and

RESET (Note 2) . . . . . . . . . . . ....-0.5 V to +12.5 V

All other pins (Note 1) . . . . . . . -0.5 V to VCC +0.5 V

Output Short Circuit Current (Note 3) . . . . . . 200 mA

Notes:

1. Minimum DC v oltage on input or I/O pins is -0.5 V.
During voltage transitions, input or I/O pins may over­shoot VSS to -2.0 V for periods of up to 20 ns. See
Figure 6. Maximum DC voltage on input or I/O pins is
VCC +0.5 V. During voltage transitions, input or I/O
pins may ov ershoot to VCC +2.0 V for periods up to
20 ns.

2. Minimum DC input voltage on pins A9, OE, and
RESET is -0.5 V. During voltage tr ansitions, A9, OE,
and RESET may ov ershoot VSS to -2.0 V f or periods
of up to 20 ns. See Figure 6. Maximum DC input volt­age on pin A9 is +12.5 V which may overshoot to

14.0 V f or periods up to 20 ns.

3. No more than one output ma y be shorted to ground at
a time. Duration of the shor t circuit should not be
greater than one second.

OPERATING RATINGS

Commercial (C) Devices

Ambient Temperature (T

Industrial (I) Devices

Ambient Temperature (T

V

CC Supply Voltages

CC for regulated voltage range . . . . . +3.0 V to 3.6 V

V
V

CC for full voltage range. . . . . . . . . . . +2.7 V to 3.6 V

Operating ranges define those limits between which the
functionality of the device is guaranteed.

A ) . . . . . . . . . . . . 0°C to +70°C

A ) . . . . . . . . . . -4 0 °C to +85°C

Stresses above those listed under "Absolute Maximum
Rat-ings" may cause permanent damage to the device.
This is a stress rating only; functional operation of the
device at these or any other conditions above those in­dicated in the operational sections of this data sheet is
not implied. Exposure of the device to absolute maxi­mum rating conditions for extended periods may affect
device reliability.

P/N:PM0717

REV. 1.0, JUL. 31, 2001

18

MX29LV081

CAPACITANCE TA = 25oC, f = 1.0 MHz

SYMBOL PARAMETER MIN. TYP MAX. UNIT CONDITIONS

CIN1 Input Capacitance 8 pF VIN = 0V
CIN2 Control Pin Capacitance 12 pF VIN = 0V
COUT Output Capacitance 12 pF VOUT = 0V

READ OPERATION

o

Table 8. DC CHARACTERISTICS TA = 0

Symbol PARAMETER MIN. TYP MAX. UNIT CONDITIONS

ILI Input Leakage Current ± 1 uA VIN = VSS to VCC
ILIT A9 Input Leakage Current 35 uA VCC=VCC max; A9=12.5V
ILO Output Leakage Current ± 1 uA VOUT = VSS to VCC, VCC=VCC max
ICC1 VCC Active Read Current 7 12 mA CE=VIL, OE=VIH @5MHz

ICC2 VCC Active write Current 1 5 30 mA CE=VIL, OE=VIH
ICC3 VCC Standby Current 0.2 5 u A CE; RESET=VCC ± 0.3V
ICC4 VCC Standby Current 0.2 5 u A RESET=VSS ± 0.3V

During Reset
ICC5 Automative sleep mode 0.2 5 uA VIH=VCC ± 0.3V;VIL=VSS ± 0.3V
VIL Input Low Voltage(Note 1) -0.5 0.8 V
VIH Input High Voltage 0.7xVCC VCC+ 0.3 V
VID Voltage for Automative

Select and Temporary 11.5 12.5 V VCC=3.3V

Sector Unprotect
VOL Output Low Voltage 0.45 V IOL = 4.0mA, VCC= VCC min
VOH1 Output High Voltage(TTL) 0.85xVCC IOH = -2mA, VCC=VCC min
VOH2 Output High Voltage VCC-0.4 IOH = -100uA, VCC min

(CMOS)
VLKO Low VCC Lock-out 2 .3 2.5 V

Voltage

C TO 70oC, VCC = 2.7V to 3.6V

2 4 mA @1MHz

NOTES:

1.VIL min. = -1.0V for pulse width is equal to or less than 50 ns.
VIL min. = -2.0V for pulse width is equal to or less than 20 ns.

2.VIH max. = VCC + 1.5V for pulse width is equal to or less than 20 ns
If VIH is over the specified maximum value, read operation cannot be guaranteed.

3. Automatic sleep mode enable the low power mode when addresses remain stable for tACC +30ns.

P/N:PM0717

19

REV. 1.0, JUL. 31, 2001

MX29LV081

AC CHARACTERISTICS TA = 0oC to 70oC, VCC = 2.7V~3.6V

Table 9. READ OPERATIONS

29LV081-70 29LV081-90

SYMBOL PARAMETER MIN. MAX. MIN. MAX. UNIT CONDITIONS

tRC Read Cycle Time (Note 1) 70 90 ns
tACC Address to Output Delay 7 0 90 ns CE=OE=VIL
tCE CE to Output Delay 7 0 90 ns OE=VIL
tOE OE to Output Delay 30 35 ns CE=VIL
tDF OE High to Output Float (Note1) 0 25 0 30 ns CE=VIL
tOEH Output Enable Read 0 0 ns

Hold Time Toggle and Data Polling 1 0 10 ns

tOH Address to Output hold 0 0 ns CE=OE=VIL

TEST CONDITIONS:

• Input pulse levels: 0V/3.0V.

• Input rise and fall times is equal to or less than 5ns.

• Output load: 1 TTL gate + 100pF (Including scope and
jig), for 29LV081-90. 1 TTL gate + 30pF (Including
scope and jig) for 29LV081-70.

• Reference levels for measuring timing: 1.5V.

NOTE:

1. Not 100% tested.

2. tDF is defined as the time at which the output achieves the
open circuit condition and data is no longer driven.

P/N:PM0717

REV. 1.0, JUL. 31, 2001

20

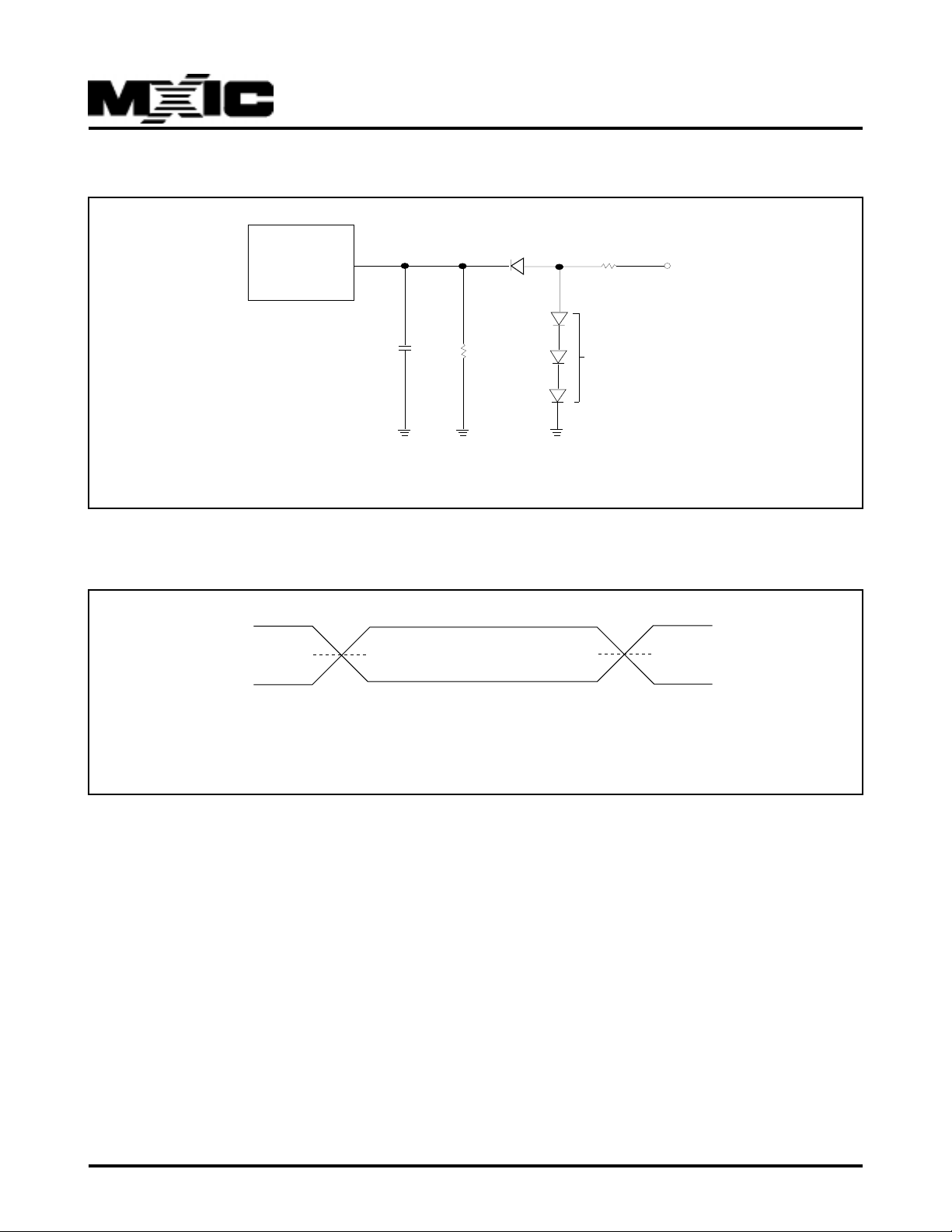

SWITCHING TEST CIRCUITS

MX29LV081

DEVICE UNDER

TEST

CL=100pF Including jig capacitance (30pF for MX29LV081-70)

SWITCHING TEST WAVEFORMS

3.0V

INPUT

0V

1.5V

CL

6.2K ohm

TEST POINTS

2.7K ohm

DIODES=IN3064

OR EQUIVALENT

+3.3V

1.5V

OUTPUT

P/N:PM0717

AC TESTING: Inputs are driven at 3.0V for a logic "1" and 0V for a logic "0".
Input pulse rise and fall times are < 5ns.

REV. 1.0, JUL. 31, 2001

21

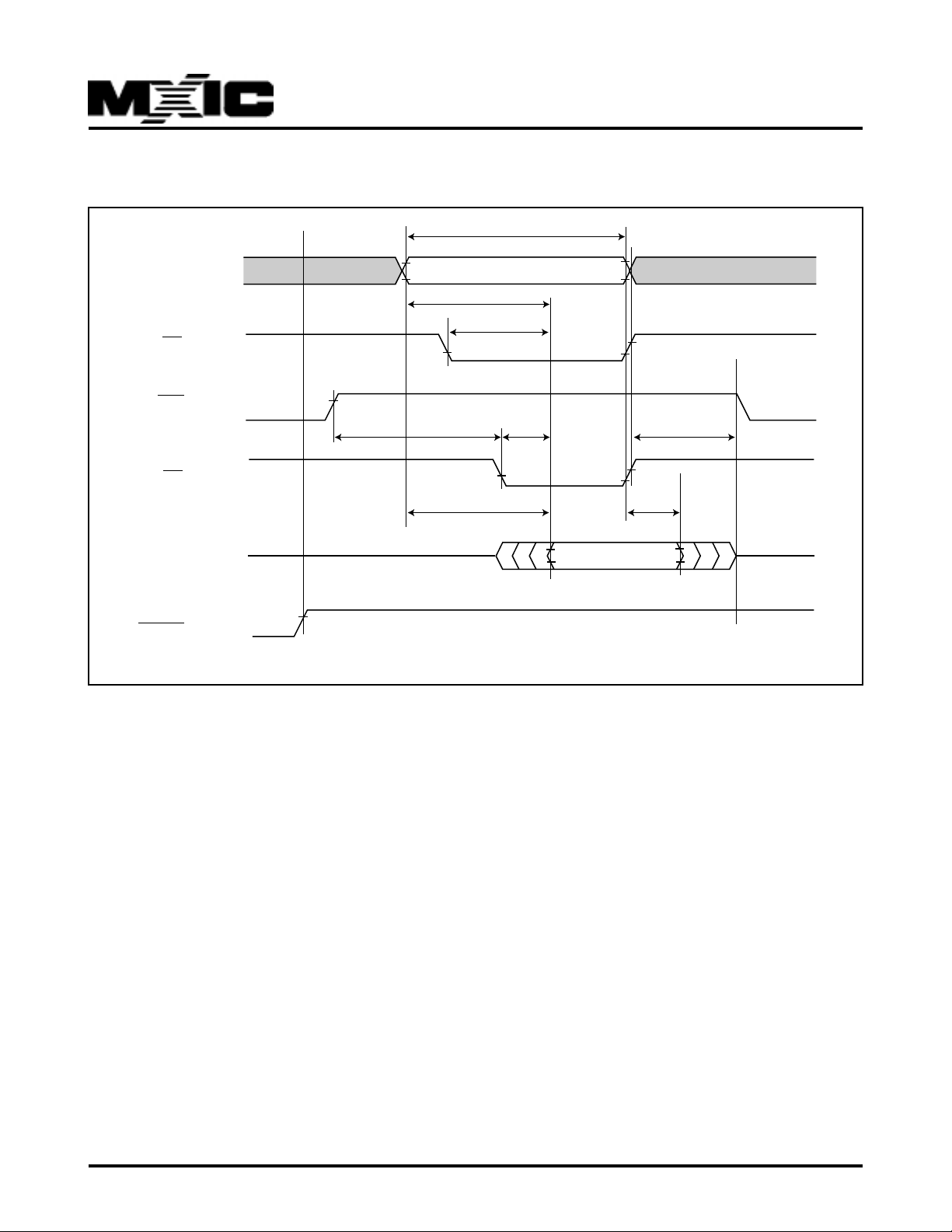

Figure 1. READ TIMING WAVEFORMS

MX29LV081

tRC

Addresses

CE

WE

OE

Outputs

RESET

VIH

VIL

VIH

VIL

VIH

VIL

VIH

VIL

VOH

VOL

VIH
VIL

HIGH Z

tOEH

tACC

tACC

ADD Valid

tCE

tOE

DATA V alid

tDF

tOH

HIGH Z

P/N:PM0717

REV. 1.0, JUL. 31, 2001

22

MX29LV081

AC CHARACTERISTICS TA = 0oC to 70oC, VCC = 2.7V~3.6V

Table 10. Erase/Program Operations

29LV081-70 29LV081-90

SYMBOL PARAMETER MIN. MAX. MIN. MAX. UNIT

tW C Write Cycle Time (Note 1) 7 0 90 ns
tAS Address Setup Time 0 0 ns
tAH Address Hold Time 4 5 45 ns
tDS Data Setup Time 3 5 45 ns
tD H Data Hold Time 0 0 ns
tOES Output Enable Setup Time 0 0 ns
tGHWL Read Recovery Time Before Write 0 0 ns

(OE High to WE Low)
tCS CE Setup Time 0 0 ns
tC H CE Hold Time 0 0 ns
tWP Write Pulse Width 3 5 35 ns
tWPH Write Pulse Width High 3 0 30 ns
tWHWH1 Programming Operation (Note 2) 9 (TYP.) 9 (TYP.) us
tWHWH2 Sector Erase Operation (Note 2) 0.7(TYP.) 0.7(TYP.) sec
tVCS VCC Setup Time (Note 1) 5 0 50 us
tRB Recovery Time from RY/BY 0 0 ns
tBUSY Program/Erase Vaild to RY/BY Delay 90 90 ns

NOTES:

1. Not 100% tested.

2. See the "Erase and Prog ramming P erformance" section for more information.

P/N:PM0717

REV. 1.0, JUL. 31, 2001

23

MX29LV081

AC CHARACTERISTICS TA = 0oC to 70oC, VCC = 2.7V~3.6V

T able 11. Alternate CE Contr olled Erase/Program Operations

29LV081-70 29L V081-90

SYMBOL PARAMETER MIN. MAX. MIN. MAX. UNIT

tW C Write Cycle Time (Note 1) 70 7 0 ns
tAS Address Setup Time 0 0 ns
tAH Address Hold Time 4 5 45 ns
tDS Data Setup Time 35 45 ns
tDH Data Hold Time 0 0 ns
tOES Output Enable Setup Time 0 0 ns
tGHEL Read Recovery Time Bef ore Write 0 0 ns
tWS WE Setup Time 0 0 ns
tWH WE Hold Time 0 0 ns
tCP CE Pulse Width 35 3 5 ns
tCPH CE Pulse Width High 3 0 30 ns
tWHWH1 Programming Operation(note2) 9T yp.) 9(T yp.) us
tWHWH2 Sector Erase Operation (note2) 0.7(T yp.) 0.7(T yp.) sec

NOTE:

1. Not 100% tested.

2. See the "Erase and Programming Performance" section for more information.

P/N:PM0717

REV. 1.0, JUL. 31, 2001

24

Figure 2. COMMAND WRITE TIMING WAVEFORM

MX29LV081

VCC

Addresses

WE

CE

OE

Data

VIH

VIL

VIH

VIL

VIH

VIL

VIH

VIL

VIH

VIL

3V

ADD Valid

tAS

tOES

tCS tCH

tWP

tDS

tAH

tWPH

tCWC

tDH

DIN

P/N:PM0717

REV. 1.0, JUL. 31, 2001

25

AUTOMATIC PROGRAMMING TIMING WAVEFORM

MX29LV081

One byte data is programmed. Verify in fast algorithm
and additional verification by external control are not re­quired because these operations are executed automati­cally by internal control circuit. Programming comple-

after automatic programming starts. Device outputs
DAT A during programming and DAT A after programming
on Q7.(Q6 is for toggle bit; see toggle bit, D AT A polling,
timing waveform)

tion can be verified by D A T A polling and toggle bit checking

Figure 3. AUTOMATIC PROGRAMMING TIMING WAVEFORM

Address

CE

OE

tWC

555h

tGHWL

tWP

tAS

PA

tAH

tCH

Read Status Data (last two cycle)Program Command Sequence(last two cycle)

PA PA

tWHWH1

WE

Data

RY/BY

VCC

tCS tWPH

tDS tDH

Status

DOUT

tVCS

A0h

PD

tBUSY

NOTES:

1.PA=Program Address, PD=Program Data, DOUT is the true data the program address

tRB

P/N:PM0717

REV. 1.0, JUL. 31, 2001

26

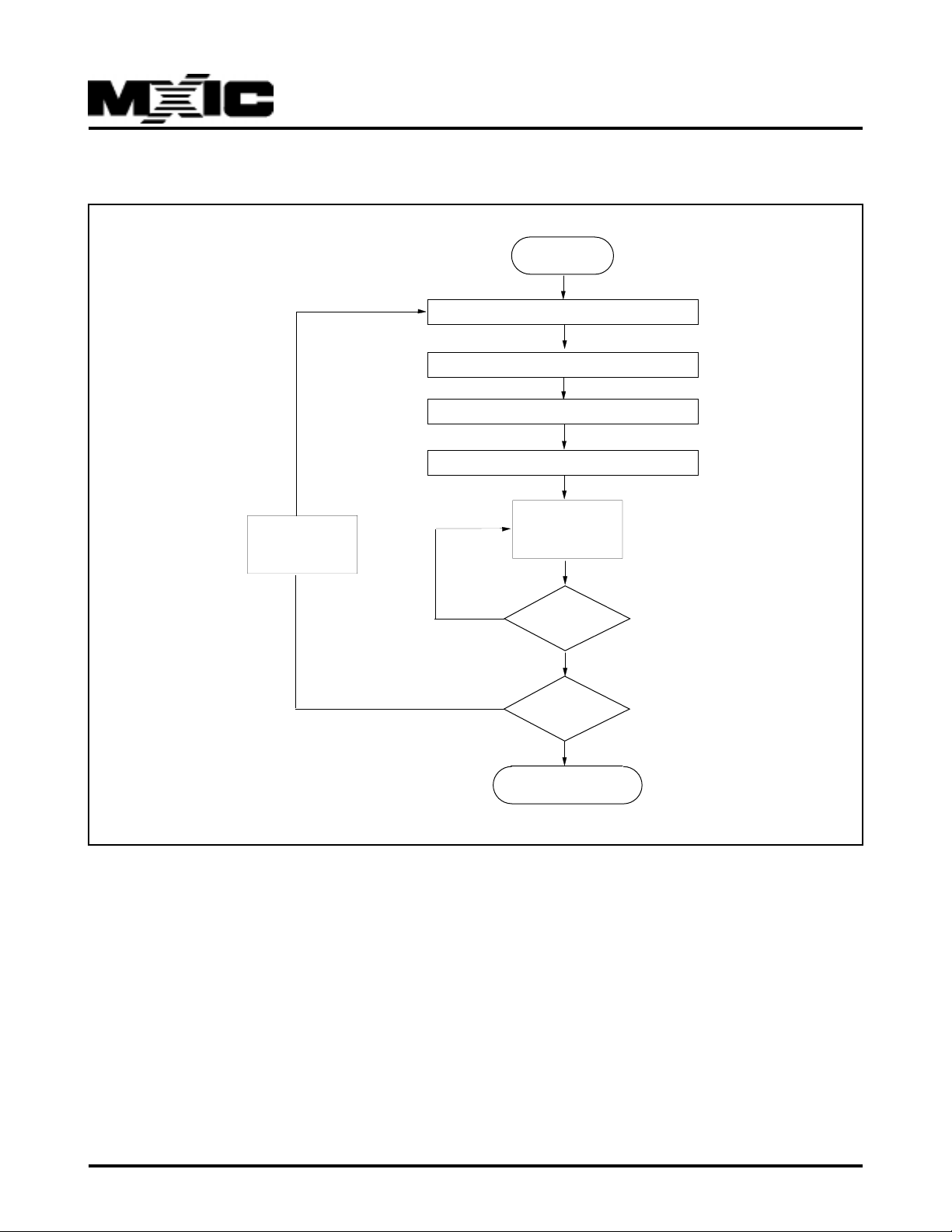

Figure 4. AUTOMATIC PROGRAMMING ALGORITHM FLOWCHART

START

Write Data AAH Address 555H

Write Data 55H Address 2AAH

Write Data A0H Address 555H

Write Program Data/Address

MX29LV081

Increment
Address

No

No

Verify Word Ok ?

Auto Program Completed

Data Poll
from system

YES

Last Address ?

YES

P/N:PM0717

REV. 1.0, JUL. 31, 2001

27

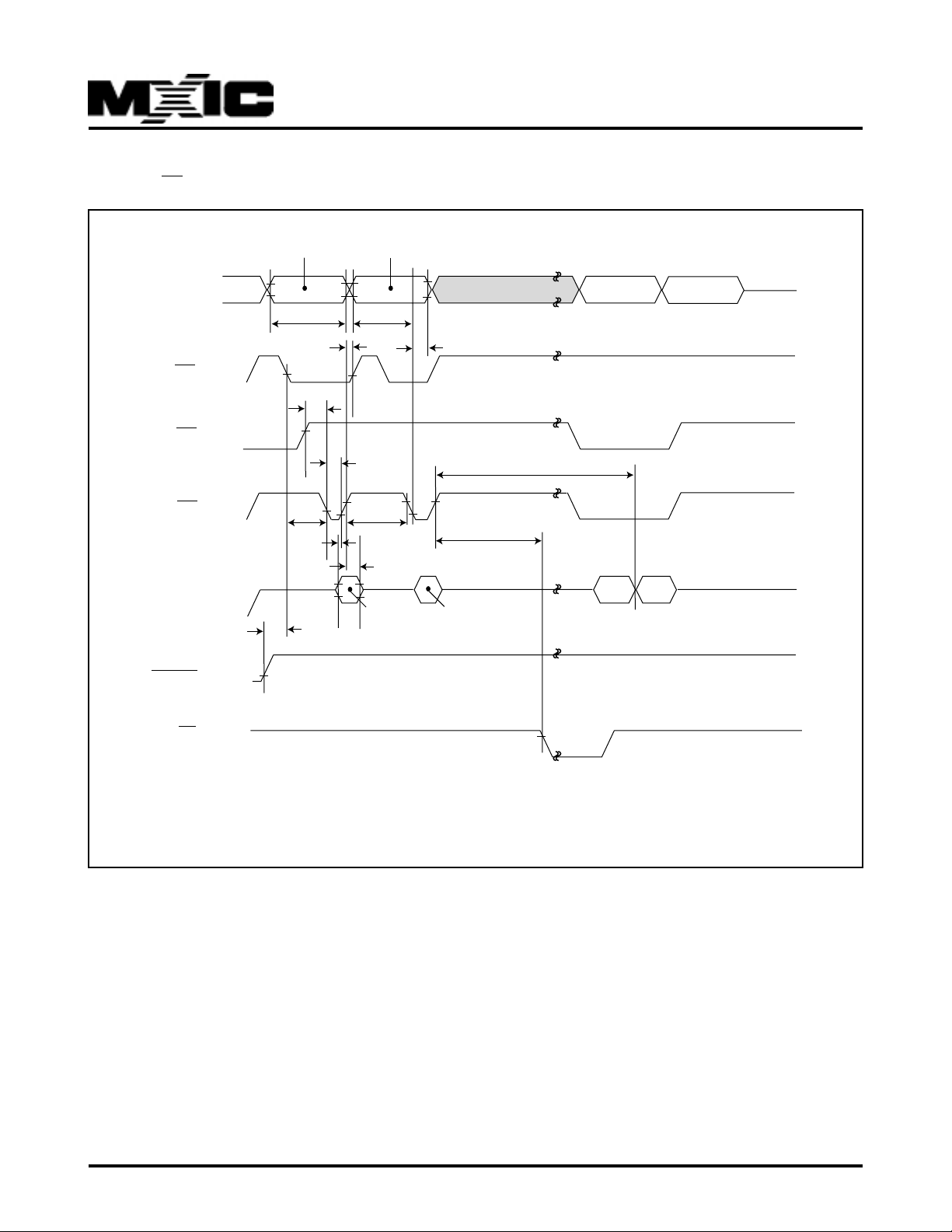

Figure 5. CE CONTROLLED PROGRAM TIMING W A VEFORM

MX29LV081

Address

WE

OE

CE

Data

555 for program
2AA for erase

tWC

tWH

tGHEL

tWS

tRH

PA for program
SA for sector erase
555 for chip erase

tCP

tDS

tDH

tAS

tAH

tCPH

A0 for program
55 for erase

Data Polling

tBUSY

PD for program
30 for sector erase
10 for chip erase

tWHWH1 or 2

PA

DQ7

DOUT

RESET

RY/BY

NOTES:

1.PA=Program Address, PD=Program Data, DOUT=Data Out, DQ7=complement of data written to device.

2.Figure indicates the last two bus cycles of the command sequence.

P/N:PM0717

REV. 1.0, JUL. 31, 2001

28

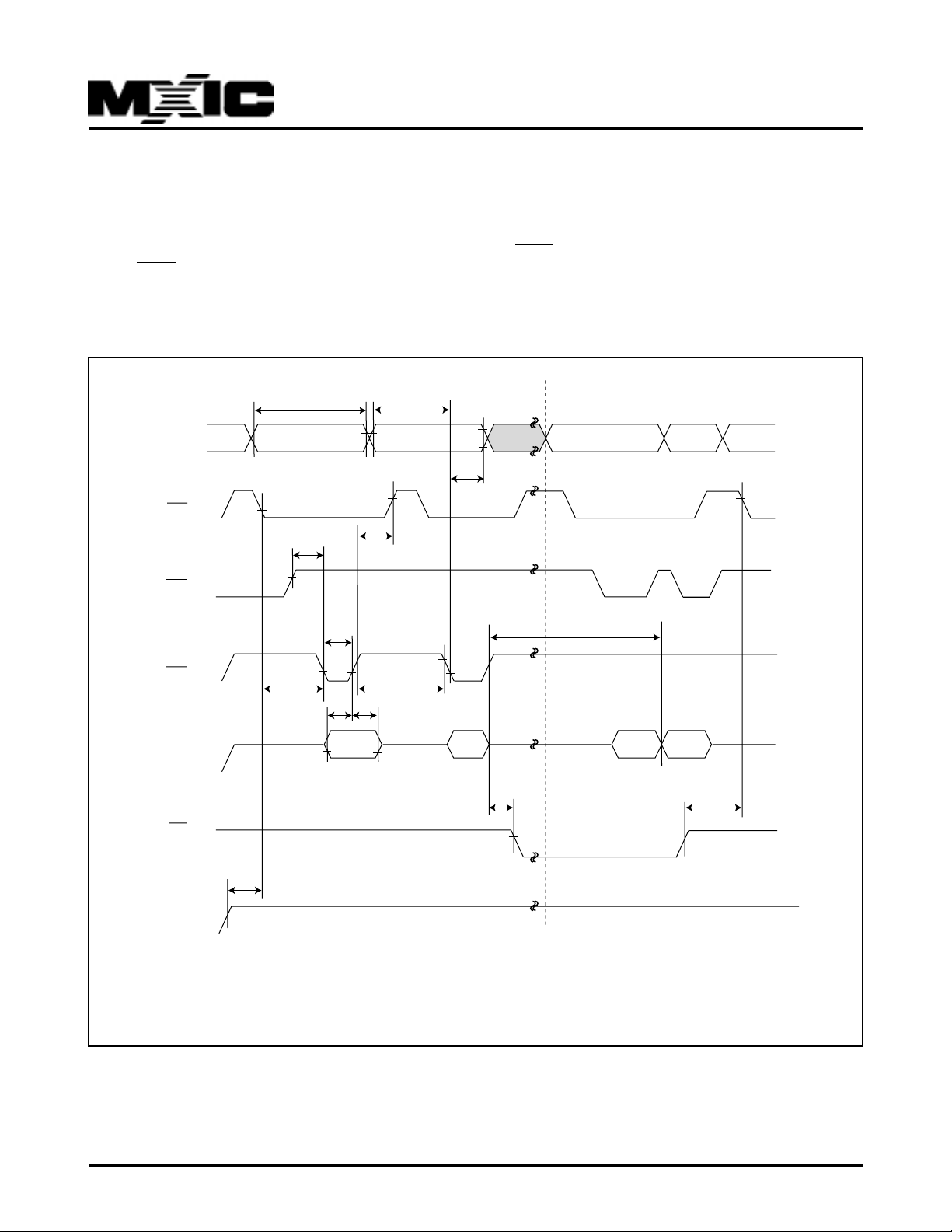

AUTOMATIC CHIP ERASE TIMING WAVEFORM

MX29LV081

All data in chip are erased. External erase verification is
not required because data is verified automatically by
internal control circuit. Erasure completion can be veri-

matic erase starts. Device outputs 0 during erasure
and 1 after erasure on Q7.(Q6 is for toggle bit; see toggle
bit, DAT A polling, timing wav eform)

fied by DATA polling and toggle bit checking after auto-

Figure 6. AUTOMATIC CHIP ERASE TIMING WAVEFORM

Address

CE

OE

tWC

2AAh

tGHWL

tWP

tAS

555h

tAH

tCH

Read Status Data Erase Command Sequence(last two cycle)

VA VA

tWHWH2

WE

Data

RY/BY

VCC

tCS tWPH

tDS tDH

In

Progress

Complete

tRB

tVCS

55h

10h

tBUSY

NOTES:

SA=sector address(for Sector Erase), VA=Valid Address for reading status data(see "Write Operation Status").

P/N:PM0717

REV. 1.0, JUL. 31, 2001

29

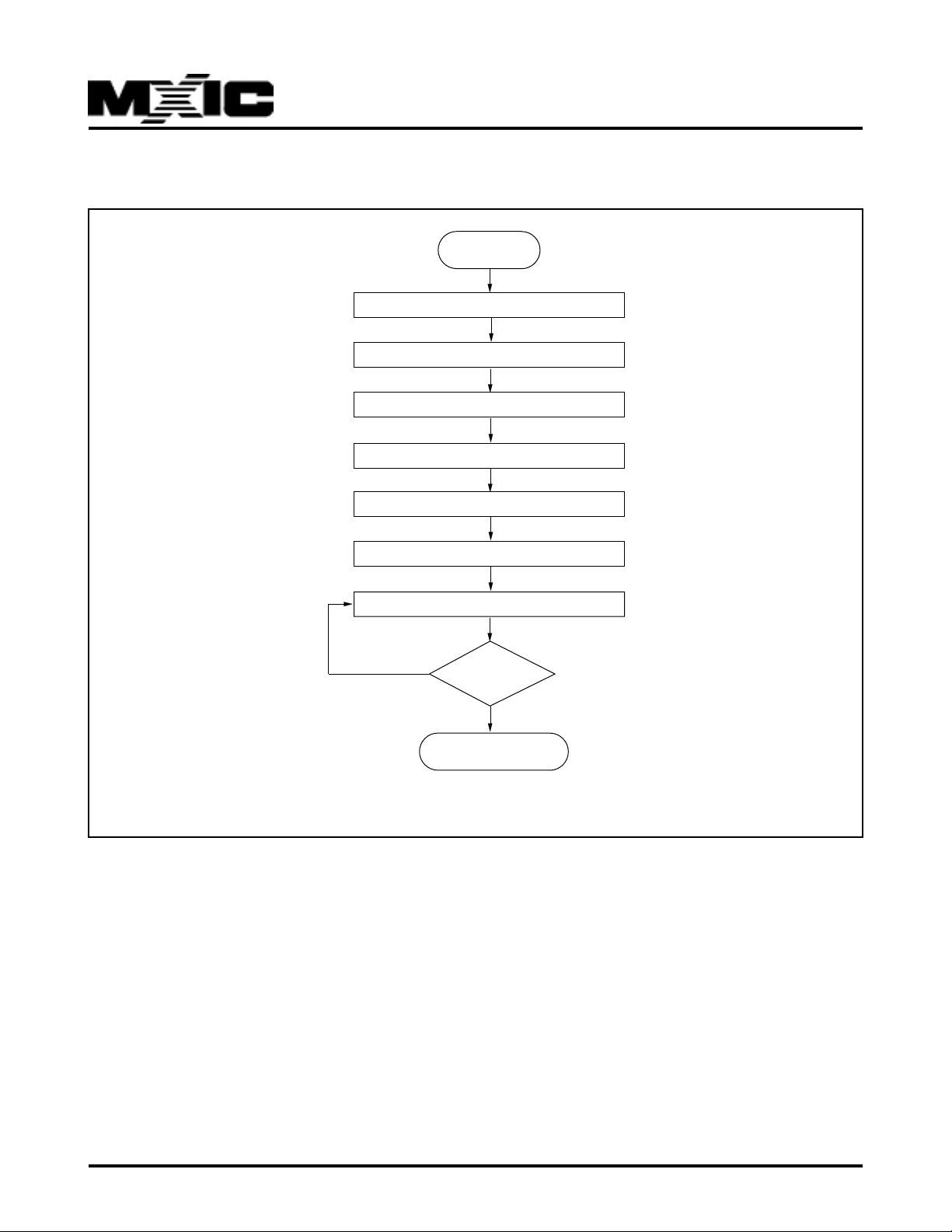

Figure 7. AUTOMATIC CHIP ERASE ALGORITHM FLOWCHART

START

Write Data AAH Address 555H

Write Data 55H Address 2AAH

Write Data 80H Address 555H

Write Data AAH Address 555H

Write Data 55H Address 2AAH

Write Data 10H Address 555H

MX29LV081

NO

Data Pall from System

Data=FFh ?

YES

Auto Chip Erase Completed

P/N:PM0717

REV. 1.0, JUL. 31, 2001

30

AUTOMATIC SECTOR ERASE TIMING WAVEFORM

MX29LV081

Sector indicated by A13 to A19 are erased. External
erase verify is not required because data are verified
automatically by internal control circuit. Erasure comple-

ing after automatic erase starts. De vice outputs 0 dur­ing erasure and 1 after erasure on Q7.(Q6 is for toggle
bit; see toggle bit, D AT A polling, timing wa vef orm)

tion can be verified by DAT A polling and toggle bit check-

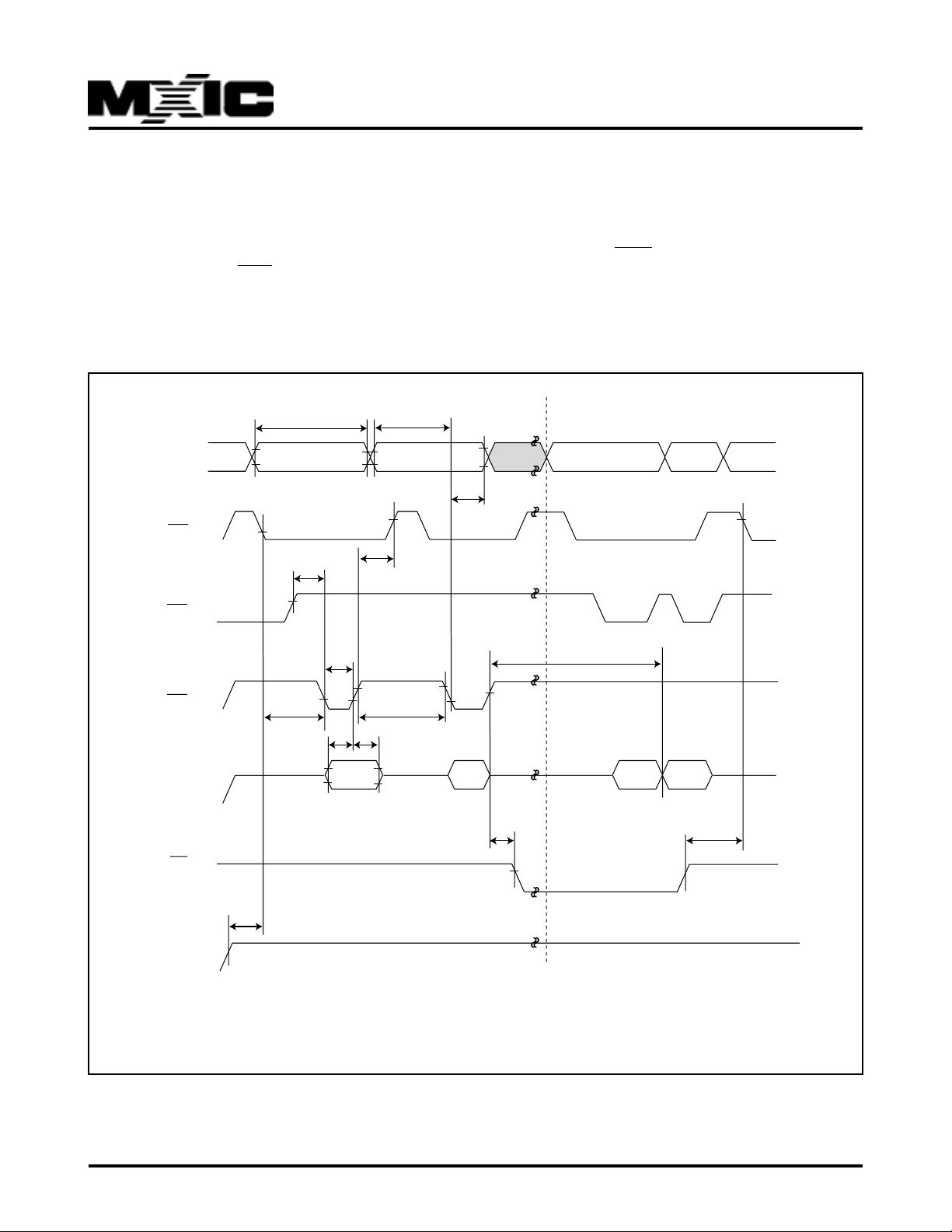

Figure 8. AUTOMATIC SECTOR ERASE TIMING WAVEFORM

Read Status Data Erase Command Sequence(last two cycle)

Address

CE

OE

tWC

2AAh

tGHWL

tWP

tAS

SA

tAH

tCH

VA VA

tWHWH2

WE

Data

RY/BY

VCC

tCS tWPH

tDS tDH

In

Progress

Complete

tRB

tVCS

55h

30h

tBUSY

NOTES:

SA=sector address(for Sector Erase), VA=Valid Address for reading status data(see "Write Operation Status").

P/N:PM0717

REV. 1.0, JUL. 31, 2001

31

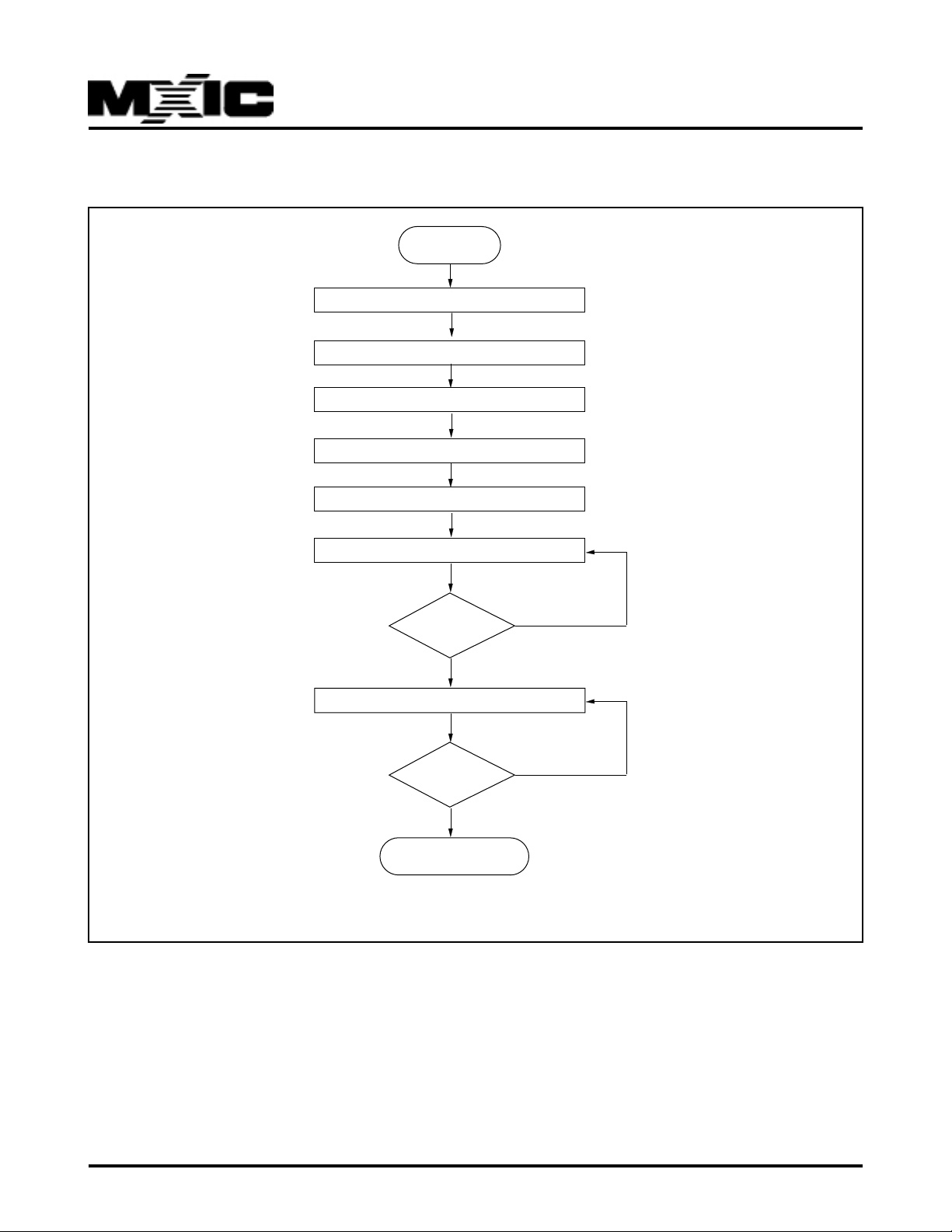

Figure 9. AUTOMATIC SECTOR ERASE ALGORITHM FLOWCHART

START

Write Data AAH Address 555H

Write Data 55H Address 2AAH

Write Data 80H Address 555H

Write Data AAH Address 555H

Write Data 55H Address 2AAH

Write Data 30H Sector Address

MX29LV081

Last Sector
to Erase

YES

Data Poll from System

Data=FFh

YES

Auto Sector Erase Completed

NO

NO

P/N:PM0717

REV. 1.0, JUL. 31, 2001

32

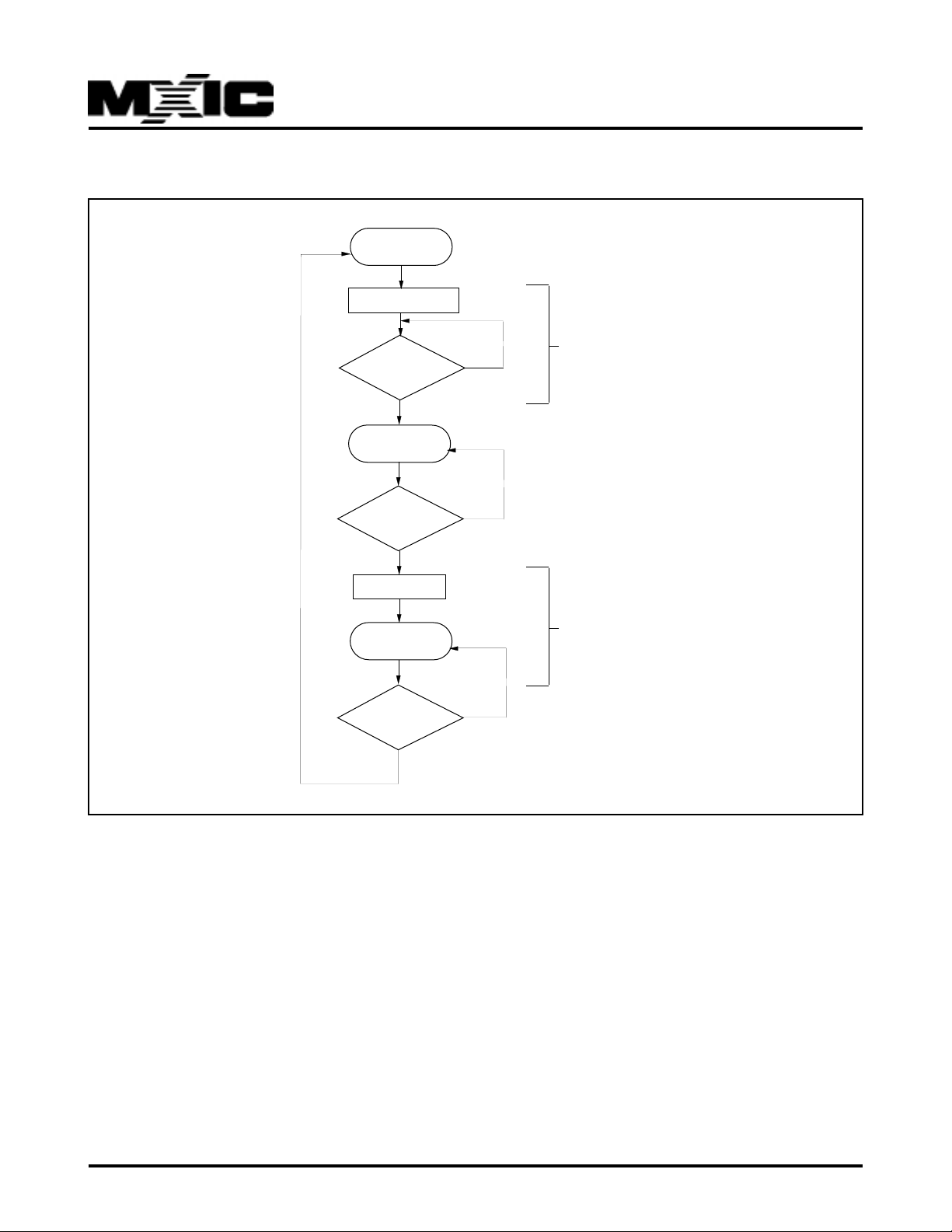

Figure 10. ERASE SUSPEND/ERASE RESUME FLOWCHART

START

Write Data B0H

MX29LV081

Toggle Bit checking Q6

not toggled

YES

Read Array or

Program

Reading or

Programming End

YES

Write Data 30H

Continue Erase

Another

Erase Suspend ?

YES

NO

NO

NO

ERASE SUSPEND

ERASE RESUME

P/N:PM0717

REV. 1.0, JUL. 31, 2001

33

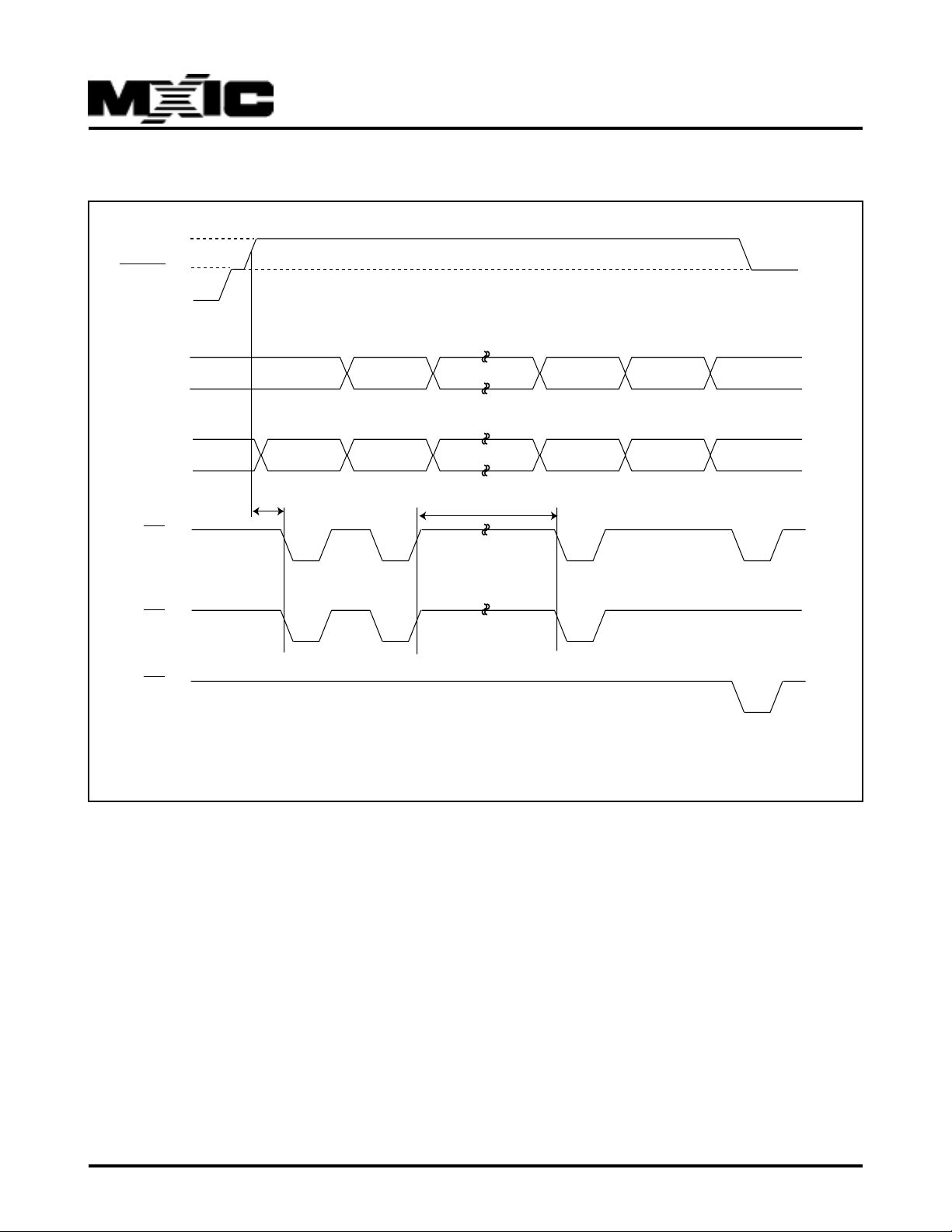

Figure 11. SECTOR PROTECT/UNPROTECT TIMING WAVEFORM

VID

MX29LV081

RESET

SA, A6

A1, A0

Data

CE

WE

OE

VIH

Valid*

Sector Protect or Sector Unprotect

1us

Sector Protect =150us
Sector Unprotect =15ms

Valid* Valid*

Verify

40h60h60h

Status

P/N:PM0717

Note: When sector protect, A6=0, A1=1, A0=0. When sector unprotect, A6=1, A1=1, A0=0.

REV. 1.0, JUL. 31, 2001

34

MX29LV081

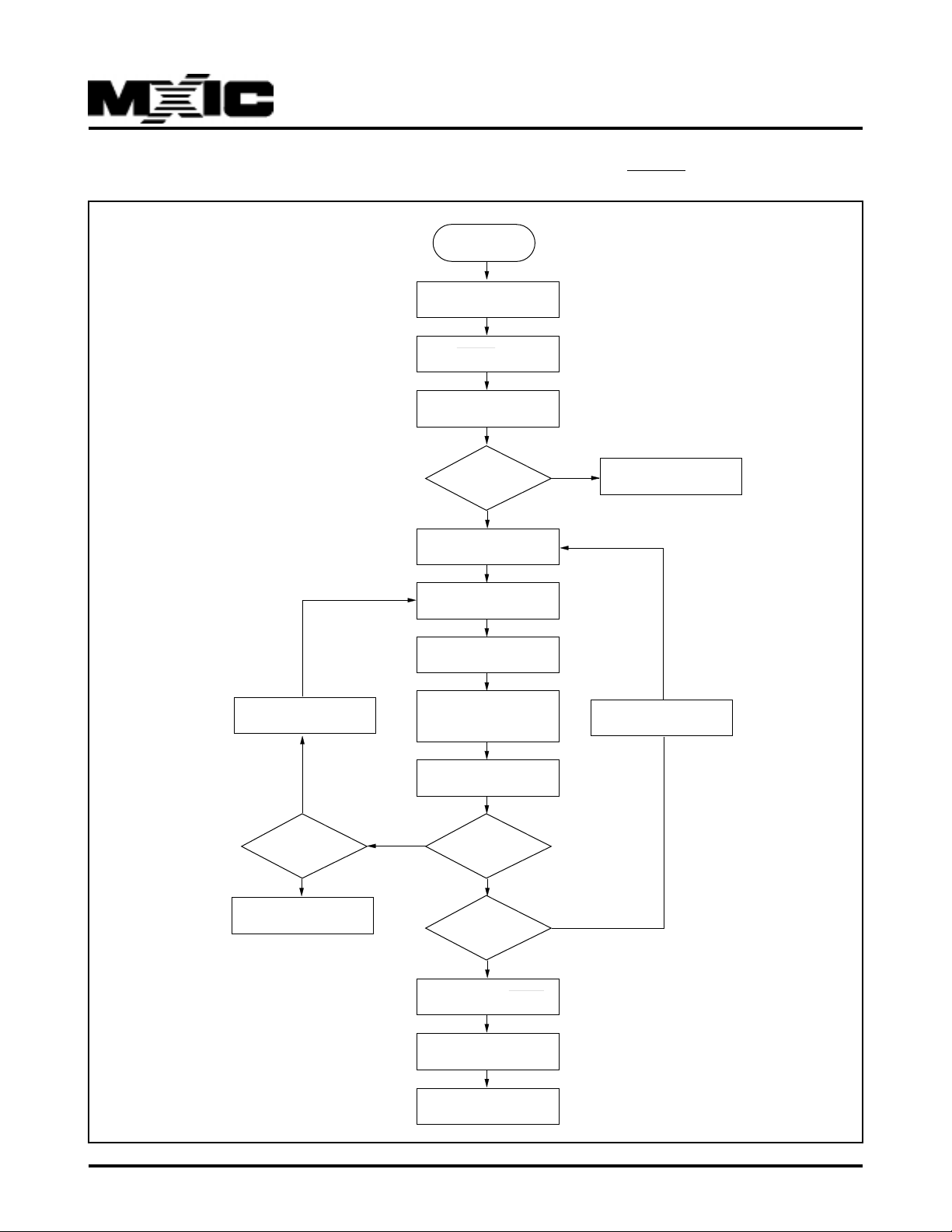

Figure 12. IN-SYSTEM SECTOR PROTECTION ALGORITHM WITH RESET=VID

START

PLSCNT=1

RESET=VID

Wait 1us

Increment PLSCNT

No

PLSCNT=25?

Yes

Device failed

First Write
Cycle=60H

Yes

Set up sector address

Write 60H to sector address

with A6=0, A1=1, A0=0

Wait 150us

Verify sector protect :
write 40H with A6=0,

A1=1, A0=0

Read from sector address

No

Data=01H

Yes

Protect another

sector?

No

?

Yes

Temporary Sector
Unprotect Mode

Reset PLSCNT=1

P/N:PM0717

No

Remove VID from RESET

Write reset command

Sector protect complete

REV. 1.0, JUL. 31, 2001

35

MX29LV081

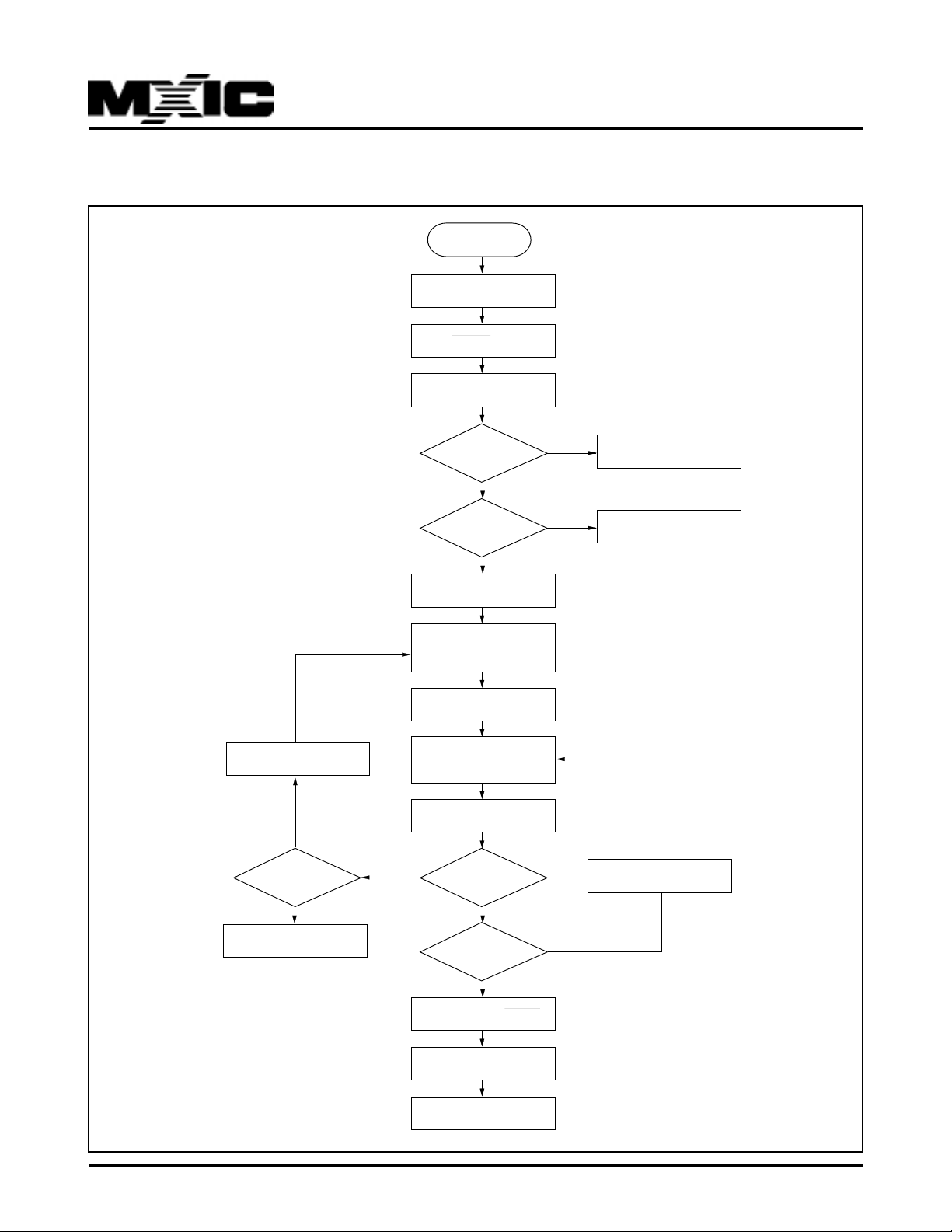

Figure 13. IN-SYSTEM SECTOR UNPROTECTION ALGORITHM WITH RESET=VID

START

PLSCNT=1

RESET=VID

Wait 1us

Increment PLSCNT

No

PLSCNT=1000?

First Write

Cycle=60H ?

All sector

protected?

Set up first sector address

Sector unprotect :

write 60H with

A6=1, A1=1, A0=0

Wait 50ms

Verify sector unprotect

write 40H to sector address

with A6=1, A1=1, A0=0

Read from sector address

with A6=1, A1=1, A0=0

No

Data=00H

Yes

Yes

No

No

?

Temporary Sector
Unprotect Mode

Protect all sectors

Set up next sector address

P/N:PM0717

Yes

Device failed

Yes

Last sector

verified?

No

Remove VID from RESET

Write reset command

Sector unprotect complete

36

Yes

REV. 1.0, JUL. 31, 2001

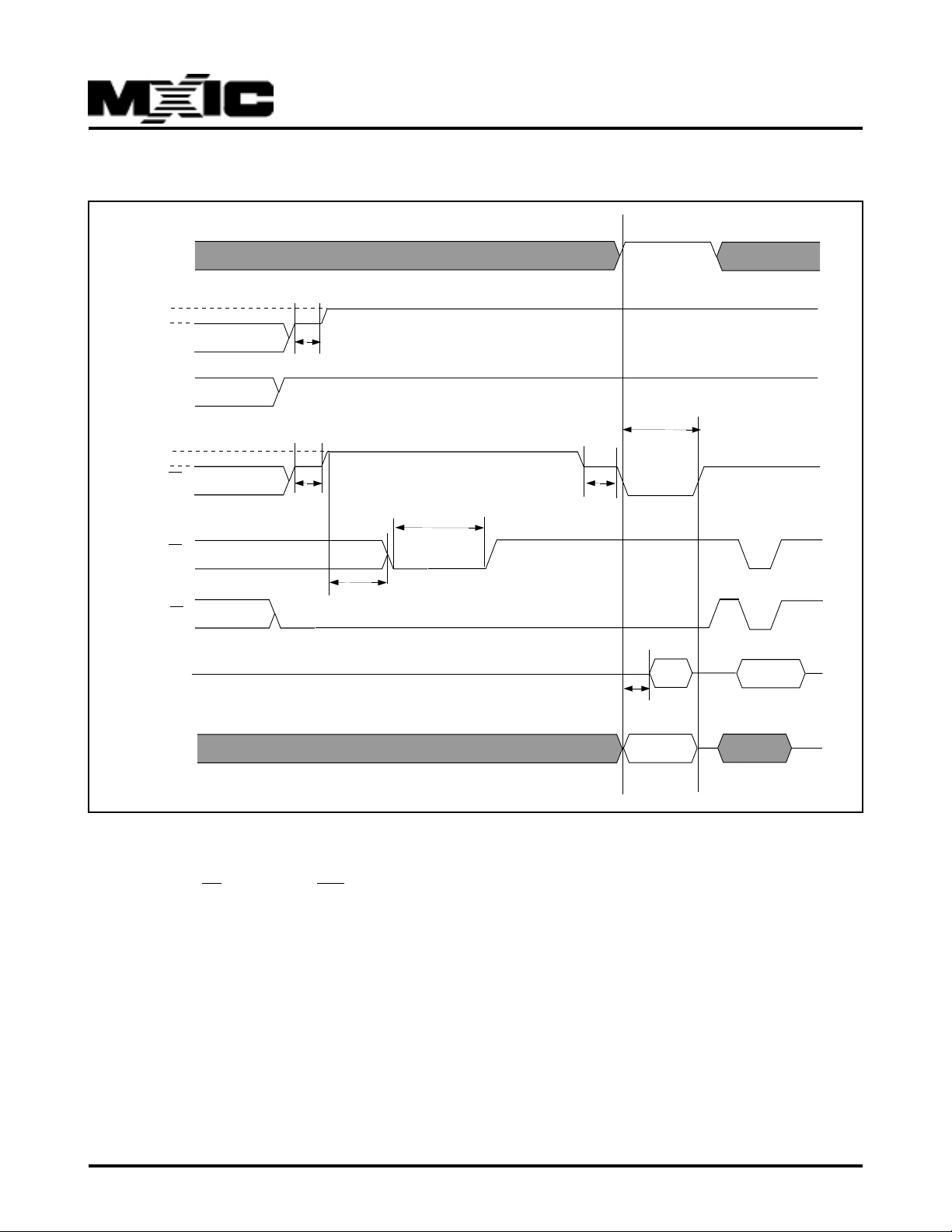

Figure 14. TIMING WAVEFORM FOR CHIP UNPROTECTION

A1

12V

Vcc 3V

A9

tVLHT

A6

MX29LV081

12V

Vcc 3V

OE

tVLHT

WE

tOESP

CE

Data

A18-A12

Notes: tVLHT (Voltage transition time)=4us min.

tWPP1 (Write pulse width for sector protect)=100ns min.
tWPP2 (Write pulse width for sector unprotect)=100ns min.
tOESP (OE setup time to WE activ e)=4us min.

tWPP 2

tVLHT

Sector Address

tOE

Verify

00H

F0H

P/N:PM0717

REV. 1.0, JUL. 31, 2001

37

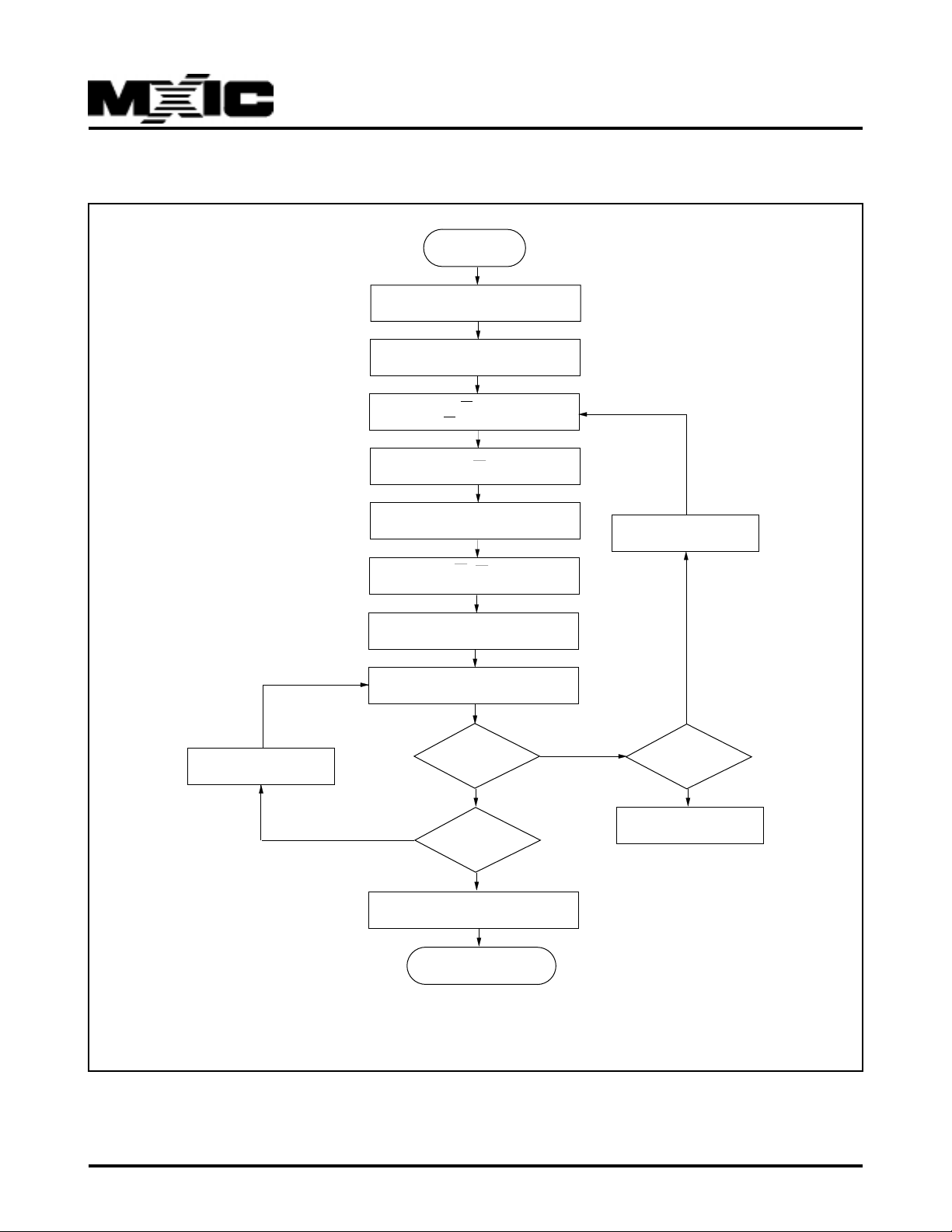

Figure 15. CHIP UNPROTECTION ALGORITHM

Protect All Sectors

PLSCNT=1

Set OE=A9=VID
CE=VIL,A6=1

Activate WE Pulse

MX29LV081

START

Increment

Sector Addr

Set Up First Sector Addr

Read Data from Device

No

Remove VID from A9

Write Reset Command

Time Out 50ms

Set OE=CE=VIL

A9=VID,A1=1

Data=00H?

Yes

All sectors have

been verified?

Yes

Chip Unprotect

Complete

No

Increment

PLSCNT

No

PLSCNT=1000?

Yes

Device Failed

P/N:PM0717

* It is recommended before unprotect whole chip, all sectors should be protected in advance.

REV. 1.0, JUL. 31, 2001

38

WRITE OPERATION STATUS

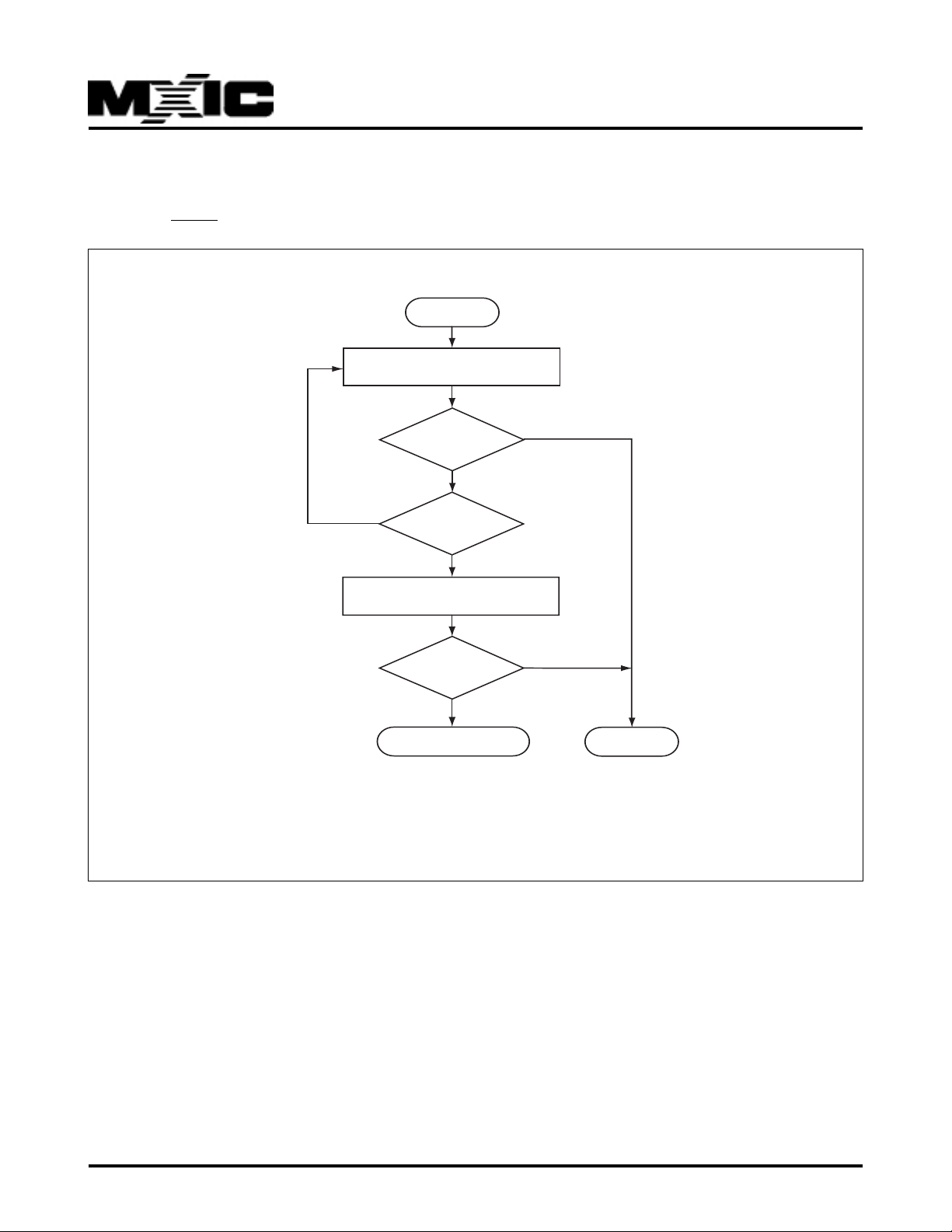

Figure 16. DATA POLLING ALGORITHM

Start

Read Q7~Q0

Add.=VA(1)

MX29LV081

Q7 = Data ?

No

No

NOTE : 1.VA=Valid address for programming

2.Q7 should be re-checked even Q5="1" because Q7 may change
simultaneously with Q5.

Q5 = 1 ?

Yes

Read Q7~Q0

Add.=VA

Q7 = Data ?

No

FAIL

Yes

Yes

(2)

Pass

P/N:PM0717

REV. 1.0, JUL. 31, 2001

39

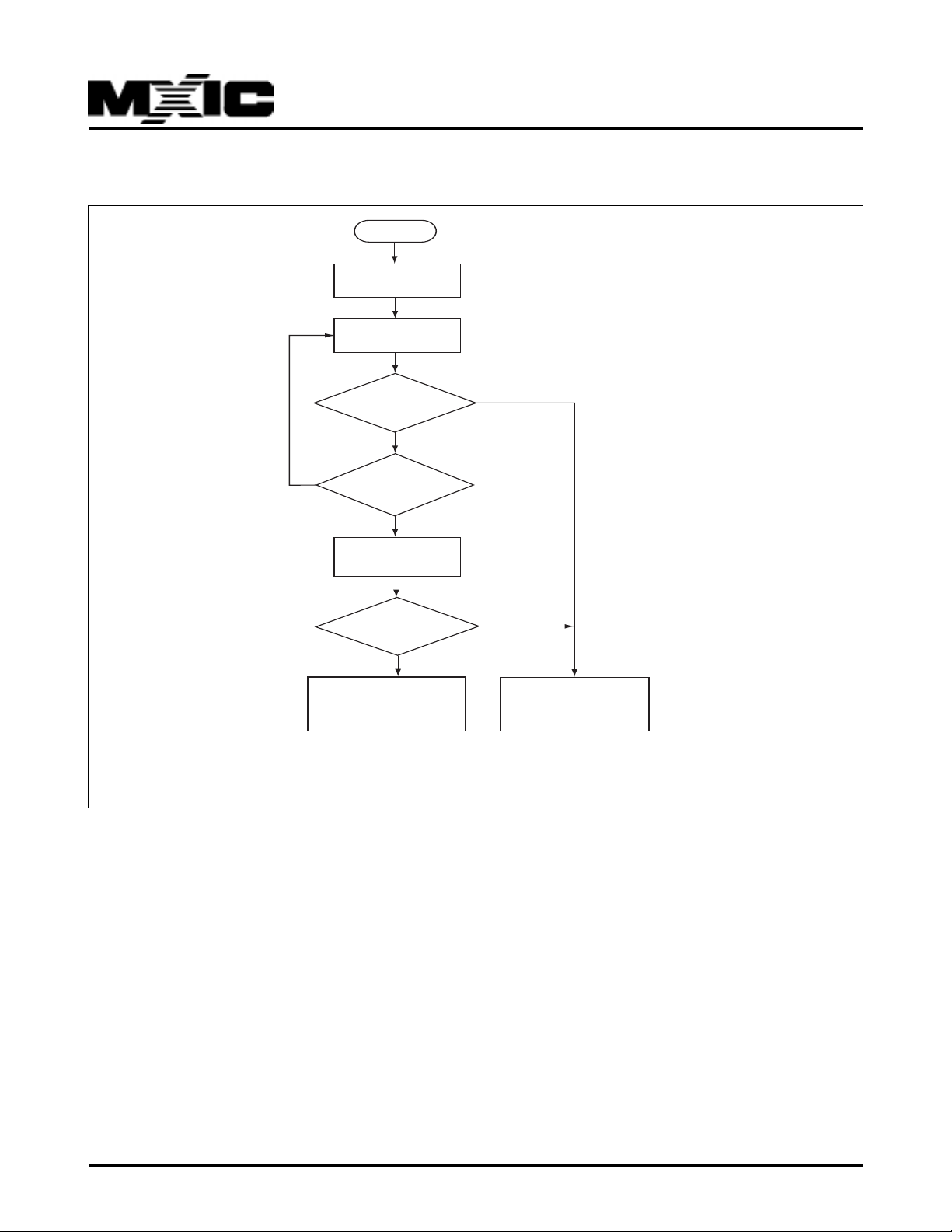

Figure 17. TOGGLE BIT ALOGRITHMS

Start

Read Q7-Q0

MX29LV081

Read Q7-Q0

Toggle Bit Q6 =

Toggle ?

YES

NO

Note:1.Read toggle bit twice to determine whether or not it is toggling.

2. Recheck toggle bit because it may stop toggling as Q5 change to "1".

Q5= 1?

YES

Read Q7~Q0 Twice

Toggle bit Q6=

Toggle?

YES

Program/Erase Operation

Not Complete,Write

Reset Command

(Note 1)

NO

(Note 1,2)

NO

Program/Erase

operation Complete

P/N:PM0717

REV. 1.0, JUL. 31, 2001

40

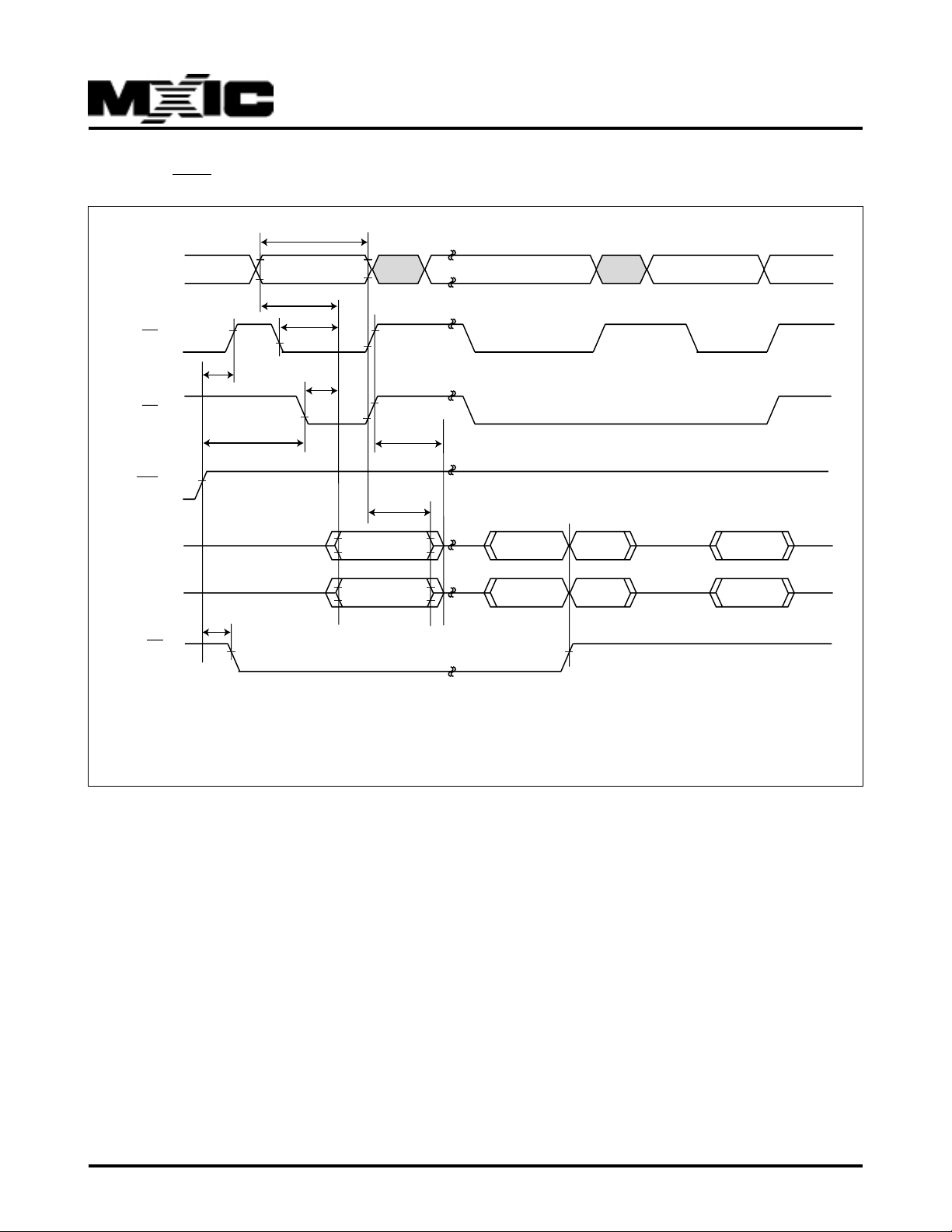

Figure 18. Data Polling Timings (During Automatic Algorithms)

tRC

MX29LV081

Address

CE

OE

WE

DQ7

Q0-Q6

RY/BY

tCH

tBUSY

tOEH

tACC

tCE

tOE

tDF

tOH

Complement

Status Data

Complement

Status Data

VAVAVA

Valid DataTrue

Valid DataTrue

High Z

High Z

NOTES:

P/N:PM0717

VA=Valid address. Figure shows are first status cycle after command sequence, last status read cycle, and array data read cycle.

REV. 1.0, JUL. 31, 2001

41

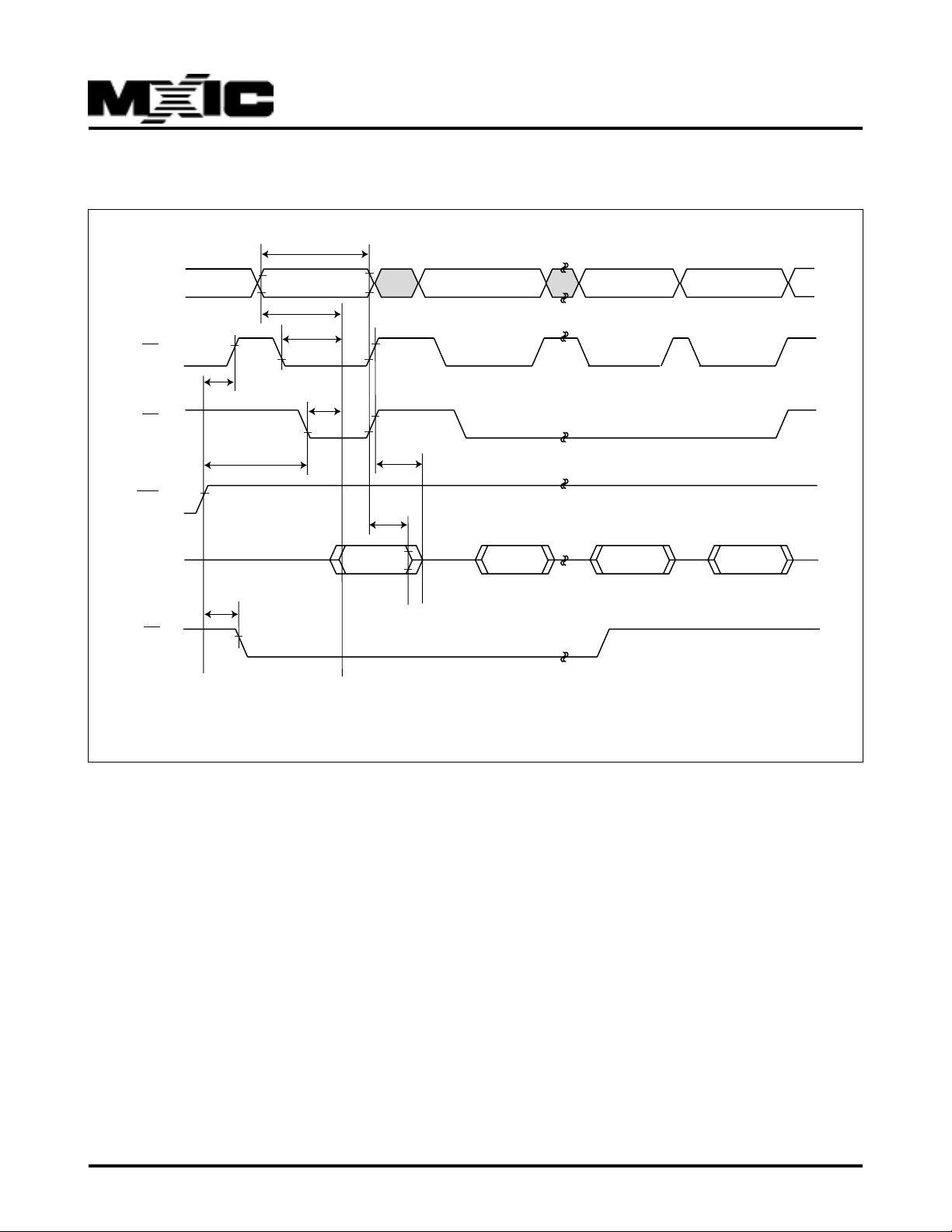

Figure 19. Toggle Bit Timings (During Automatic Algorithms)

tRC

MX29LV081

Address

tACC

VA

tCE

VA

VA

VA

CE

tCH

tOE

OE

tOEH

tDF

WE

tOH

Q6/Q2

tBUSY

High Z

Valid Status

(first raed)

Valid Status

(second read) (stops toggling)

Valid Data

Valid Data

RY/BY

NOTES:

VA=Valid address; not required for Q6. Figure shows first two status cycle after command sequence, last status read cycle, and
array data read cycle.

P/N:PM0717

REV. 1.0, JUL. 31, 2001

42

MX29LV081

Table 11. AC CHARACTERISTICS

Parameter Std Description Test Setup All Speed Options Unit

tREAD Y1 RESET PIN Low (During Automatic Algorithms) MAX 20 us

to Read or Write (See Note)

tREAD Y2 RESET PIN Low (NOT During Automatic MAX 5 00 ns

Algorithms) to Read or Write (See Note)
tRP RESET Pulse Width (During Automatic Algorithms) MIN 500 ns
tR H RESET High Time Bef ore Read(See Note) MIN 5 0 ns
tRB RY/BY Recovery Time(to CE, OE go low) MIN 0 ns

Note:Not 100% tested

Figure 20. RESET TIMING WAVFORM

RY/BY

CE, OE

RESET

RY/BY

CE, OE

tRH

tRP

tReady2

Reset Timing NOT during Automatic Algorithms

tReady1

tRB

RESET

P/N:PM0717

tRP

Reset Timing during Automatic Algorithms

REV. 1.0, JUL. 31, 2001

43

MX29LV081

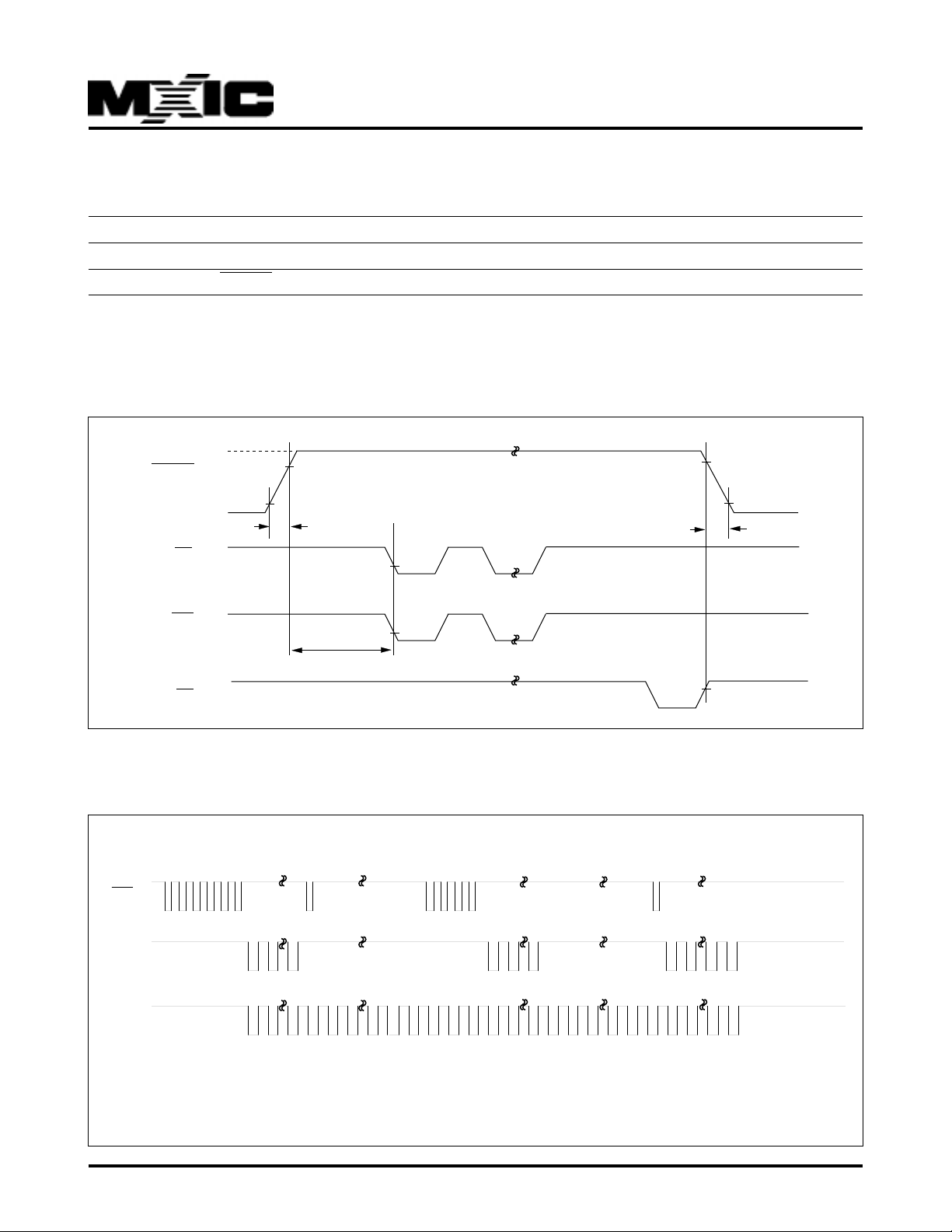

Table 12. TEMPORARY SECTOR UNPROTECT

Parameter Std. Description T est Setup AllSpeed Options Unit
tVIDR VID Rise and Fall Time (See Note) Min 50 0 ns
tRSP RESET Setup Time for T empor ary Sector Unprotect Min 4 us

Note:
Not 100% tested

FIgure 21. TEMPORARY SECTOR UNPROTECT TIMING DIAGRAM

12V

RESET

0 or Vcc

tVIDR

Program or Erase Command Sequence

CE

WE

tRSP

RY/BY

Figure 22. Q6 vs Q2 for Erase and Erase Suspend Operations

Enter Embedded

Erasing

WE

Erase

Erase

Suspend

Enter Erase

Suspend Program

Erase
Suspend
Program

Erase Suspend

Read

Erase

Resume

Erase

0 or Vcc

tVIDR

Erase

Complete

Q6

Q2

P/N:PM0717

NOTES:

The system can use OE or CE to toggle Q2/Q6, Q2 toggles only when read at an address within an erase-suspended

REV. 1.0, JUL. 31, 2001

44

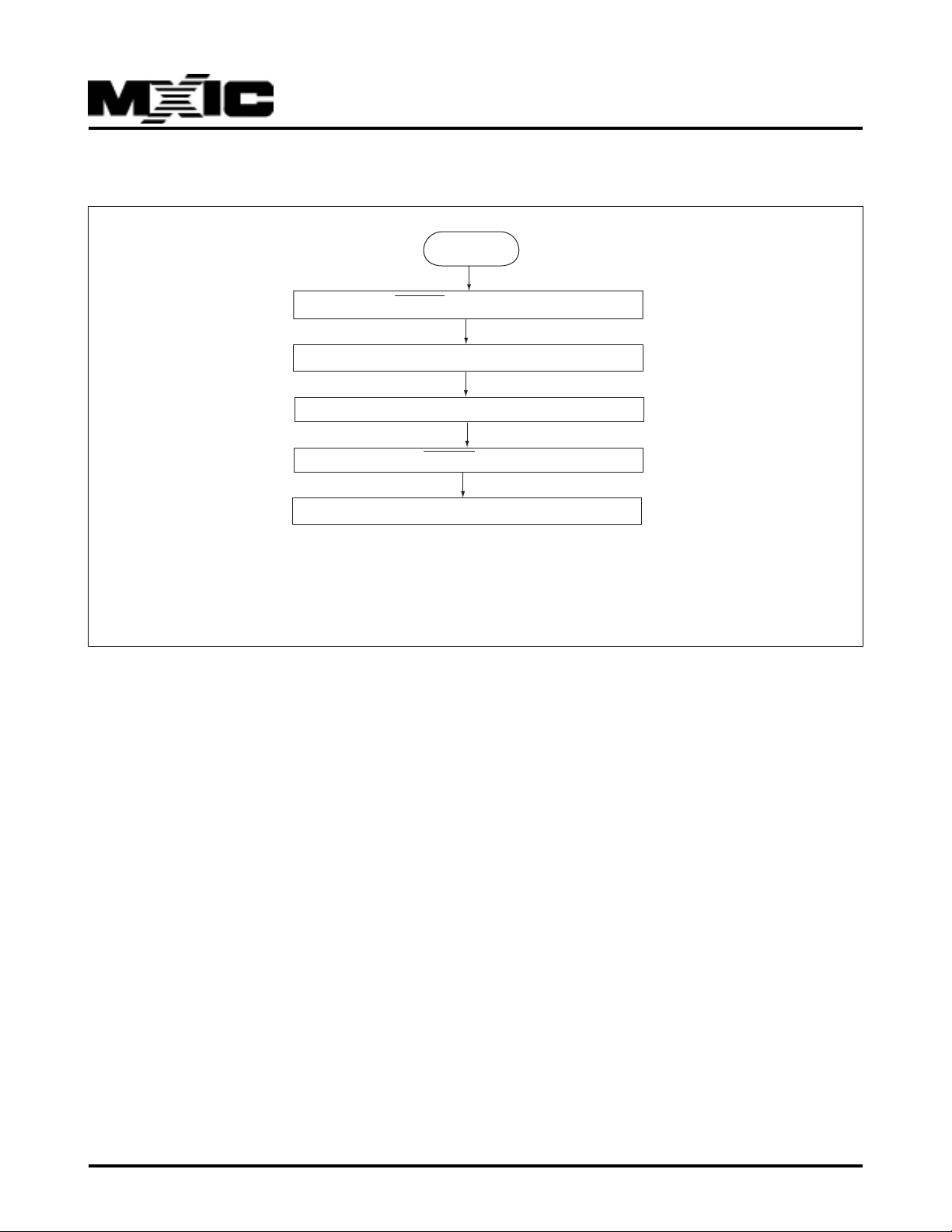

Figure 23. TEMPORAR Y SECT OR UNPROTECT ALGORITHM

Start

RESET = VID (Note 1)

Perform Erase or Program Operation

Operation Completed

RESET = VIH

Temporary Sector Unprotect Completed(Note 2)

MX29LV081

Note :

1. All protected sectors are temporary unprotected.
VID=11.5V~12.5V

2. All previously protected sectors are protected again.

P/N:PM0717

REV. 1.0, JUL. 31, 2001

45

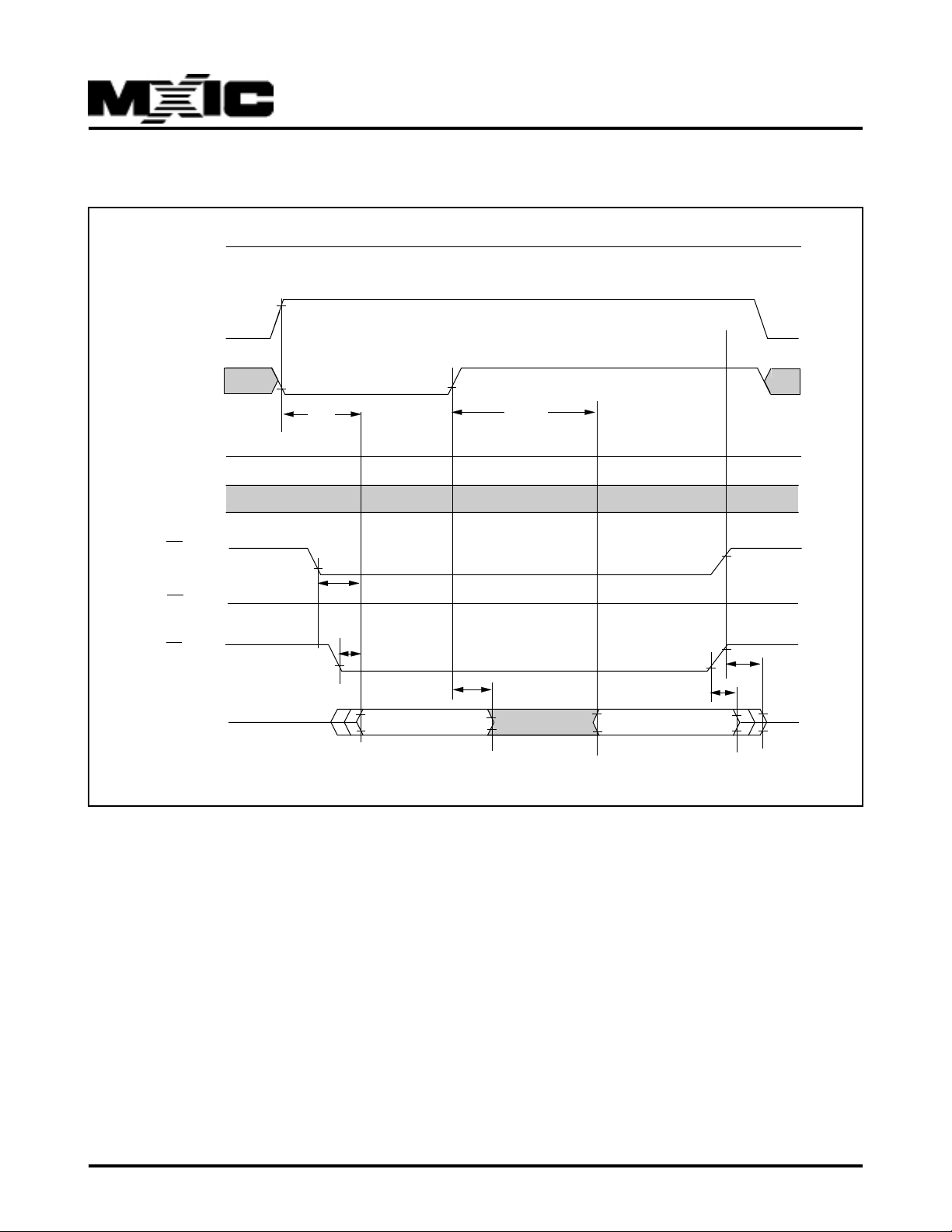

Figure 24. ID CODE READ TIMING WAVEFORM

MX29LV081

VCC

ADD

A9

ADD

A0

A1

ADD

A2-A8

A10-A19

CE

WE

OE

VIH

VIL

VIH

VIL

VIH

VIH

VIH

VIL

VIL

VIL

VIH

VIL

3V

VID
VIH

VIL

tACC

tACC

tCE

tOE

tDF

DATA

Q0-Q7

VIH

VIL

DATA OUT

C2H

tOH

tOH

DATA OUT

38H

P/N:PM0717

REV. 1.0, JUL. 31, 2001

46

MX29LV081

ERASE AND PROGRAMMING PERFORMANCE(1)

LIMITS

PARAMETER MIN. TYP.(2) MAX.(3) UNITS

Sector Erase Time 0.7 15 sec
Chip Erase Time 14 sec
Byte Programming Time 9 30 0 us
Chip Programming Time 9 27 sec
Erase/Program Cycles 100,000 Cycles

Note: 1.Not 100% Tested, Excludes external system level o v er head.

2.Typical values measured at 25°C , 3V.

3.Maximum values measured at 25°C , 2.7V.

LATCHUP CHARACTERISTICS

MIN. MAX.

Input Voltage with respect to GND on all pins except I/O pins -1.0V 12.5V
Input Voltage with respect to GND on all I/O pins -1.0V Vcc + 1.0V
Current -100mA +100mA
Includes all pins except Vcc. Test conditions: Vcc = 3.0V, one pin at a time.

P/N:PM0717

REV. 1.0, JUL. 31, 2001

47

MX29LV081

ORDERING INFORMATION

PLASTIC P ACKA GE

P ART NO . ACCESS TIME OPERA TING CURRENT ST ANDBY CURRENT P AC KAG E

(ns) MAX.(mA) MAX.(uA)

MX29L V081TC-70 70 30 5 40 Pin TSOP
MX29L V081TC-90 90 30 5 40 Pin TSOP
MX29L V081TI-70 70 30 5 40 Pin TSOP
MX29L V081TI-90 90 30 5 40 Pin TSOP

P/N:PM0717

REV. 1.0, JUL. 31, 2001

48

PACKAGE INFORMATION

40-PIN PLASTIC TSOP

MX29LV081

P/N:PM0717

REV. 1.0, JUL. 31, 2001

49

MX29LV081

REVISION HISTORY

Revision No. Description Page Date

1.0 1.Heading was changed "Advanced Information" into P1 JUL/31/2001
"PRELIMINARY"

2.Correct mis-typing P9~11,18,19

21,46,48

3.Change tBUSY spec from 90us to ns P23

4.Part number was corrected from "MX29LV081T4C" into 48
"MX29LV081TC"

5.Device ID code was corrected. Actually, it's just a mis-typing, the P10,11,46
device code of product is still "38H"

P/N:PM0717

REV. 1.0, JUL. 31, 2001

50

MX29LV081

MACRONIX INTERNATIONAL CO., LTD.

HEADQUARTERS:

TEL:[phone]
FAX:[phone]

EUROPE OFFICE:

TEL:[phone]
FAX:[phone]

JAPAN OFFICE:

TEL:[phone]
FAX:[phone]

SINGAPORE OFFICE:

TEL:[phone]
FAX:[phone]

TAIPEI OFFICE:

TEL:[phone]
FAX:[phone]

MACRONIX AMERICA, INC.

TEL:[phone]
FAX:[phone]

CHICAGO OFFICE:

TEL:[phone]
FAX:[phone]

http : //www.macronix.com

MACRONIX INTERNATIONAL CO., LTD. reserves the right to change product and specifications without notice.

51
