Page 1

FEATURES

PRELIMINARY

MX29F1610A

16M-BIT [2M x8/1M x16] CMOS

SINGLE VOLTAGE FLASH EEPROM

• 5V ± 10% write and erase

• JEDEC-standard EEPROM commands

• Endurance:100,000 cycles

• Fast access time: 90/100/120ns

• Sector erase architecture

- 16 equal sectors of 128k bytes each

- Sector erase time: 1.3 s typical

• Auto Erase and Auto Program Algorithms

- Automatically erases any one of the sectors or the whole chip with Erase Suspend capability

- Automatically programs and verifies data at specified addresses

• Status Register feature for detection of

program or erase cycle completion

• Low VCC write inhibit is equal to or less than 3.2V

• Software and hardware data protection

GENERAL DESCRIPTION

The MX29F1610A is a 16-mega bit Flash memory organized as either 1M wordx16 or 2M bytex8. The MX29F1610A includes 16-128KB(131,072) blocks or 1664KW(65,536) blocks. MXIC's Flash memories offer the most cost-effective and reliable read/write non-volatile random access memory. The MX29F1610A is packaged in 48-pin TSOP or 44-pin SOP. For 48-pin TSOP, CE2 and RY/BY are extra pins compared with 44-pin SOP package. This is to optimize the products (such as solid-state disk drives or flash memory cards) control pin budget. All the above three pins(CE2,RY/BY and PWD) plus one extra VCC pin are not provided in 44-pin SOP. It is designed to be reprogrammed and erased in-system or in-standard EPROM programmers.

The standard MX29F1610A offers access times as fast as 90ns,allowing operation of high-speed microprocessors without wait. To eliminate bus contention, the MX29F1610A has separate chip enables(CE1 and CE2), output enable (OE), and write enable (WE) controls.

MXIC's Flash memories augment EPROM functionality with in-circuit electrical erasure and programming. The MX29F1610A uses a command register to manage this

• Page program operation

- Internal address and data latches for 128 bytes/64 words per page

- Page programming time: 0.9ms typical

- Byte programming time: 7us in average

• Low power dissipation

- 30mA typical active current

- 1uA typical standby current

• CMOS and TTL compatible inputs and outputs

• Sector Protection

- Hardware method that can protect any combination of sectors from write or erase operations.

• Deep Power-Down Input

- 1uA ICC typical

• Industry standard surface mount packaging

- 48 lead TSOP, TYPE I

- 44 lead SOP

functionality. The command register allows for 100% TTL level control inputs and fixed power supply levels during erase and programming, while maintaining maximum EPROM compatibility.

To allow for simple in-system reprogrammability, the MX29F1610A does not require high input voltages for programming. Five-volt-only commands determine the operation of the device. Reading data out of the device is similar to reading from an EPROM.

MXIC Flash technology reliably stores memory contents even after 100,000 cycles. The MXIC's cell is designed to optimize the erase and programming mechanisms. In addition, the combination of advanced tunnel oxide processing and low internal electric fields for erase and programming operations produces reliable cycling. The MX29F1610A uses a 5V ± 10% VCC supply to perform the Auto Erase and Auto Program algorithms.

The highest degree of latch-up protection is achieved with MXIC's proprietary non-epi process. Latch-up protection is proved for stresses up to 100 milliamps on address and data pin from -1V to VCC +1V.

P/N: PM0506

REV.1.7,JUN. 15, 2001

Page 2

PIN CONFIGURATIONS

48 TSOP(TYPE I) (12mm x 20mm)

RY/BY

A16

A15

A14

A13

A12

A11

A10

A19

WE A18 A17

A7 A6 A5 A4 A3 A2 A1 A0

VCC

12 13 14 15 16 17 18 19 20 21 22 23 24

(NORMAL TYPE)

MX29F1610A

PWD

BYTE

GND

Q15/A-1

Q14

Q13

Q12

VCC

Q11

Q10

GND

CE1

CE2

PWD

BYTE

GND

Q15/A-1

Q14

Q13

Q12

VCC

Q11

Q10

Q2 Q9 Q1 Q8 Q0 OE

GND

CE1 CE2

48 47 46 45 44 43 42 41 40 39 38 37 36 35 34 33 32 31 30 29 28 27 26 25

MX29F1610A

(REVERSE TYPE)

RY/BY

A16

A15

A14

A13

A12

A11

A10

A19

A18

A17

VCC

44 SOP(500mil)

WE A18 A17

CE1

GND

Q10

Q11

OE Q0 Q8 Q1 Q9 Q2

PIN DESCRIPTION

A19

2 3 4

12 13 14 15 16 17 18 19 20 21 22

A10

A11

A12

A13

A14

A15

A16

BYTE

GND

MX29F1610A

Q15/A-1

Q14

Q13

Q12

VCC

SYMBOL PIN NAME

A0 - A19 Address Input Q0 - Q14 Data Input/Output Q15/A - 1 Q15(Word mode)/LSB addr.(Byte mode) CE1/CE2 Chip Enable Input PWD Deep Power- Down Input OE Output Enable Input WE Write Enable Input RY/BY Ready/Busy Output WP Sector Write Protect Input BYTE Word/Byte Selection Input VCC Power Supply GND Ground Pin

P/N: PM0506

REV.1.7, JUN. 15, 2001

Page 3

BLOCK DIAGRAM

MX29F1610A

CE1/CE2

PWD

BYTE

Q15/A-1

A0-A19

CONTROL INPUT

LOGIC

ADDRESS

LATCH

AND

BUFFER

PROGRAM/ERASE

HIGH VOLTAGE

X-DECODER

MX29F1610A

FLASH ARRAY

Y-DECODER

Y-PASS GATE

ARRAY

SOURCE

WRITE

STATE

RY/BY

MACHINE

(WSM)

COMMAND INTERFACE

(CIR)

COMMAND DATA

DECODER

P/N: PM0506

Q0-Q15/A-1

SENSE

AMPLIFIER

I/O BUFFER

PGM

DATA

PAGE PROGRAM

DATA LATCH

COMMAND

DATA LATCH

REV.1.7, JUN. 15, 2001

Page 4

MX29F1610A

Table1.PIN DESCRIPTIONS

SYMBOL TYPE NAME AND FUNCTION

A0 - A19 INPUT ADDRESS INPUTS: for memory addresses. Addresses are internally latched

during a write cycle.

Q0 - Q7 INPUT/OUTPUT LOW-BYTE DATA BUS: Input data and commands during Command Interface

Register(CIR) write cycles. Outputs array,status and identifier data in the appropriate read mode. Floated when the chip is de-selected or the outputs are disabled.

Q8 - Q14 INPUT/OUTPUT HIGH-BYTE DATA BUS: Inputs data during x 16 Data-Write operations. Outputs

array, identifier data in the appropriate read mode; not used for status register reads. Floated when the chip is de-selected or the outputs are disabled

.Q15/A -1 INPUT/OUTPUT Selects between high-byte data INPUT/OUTPUT(BYTE = HIGH) and LSB

ADDRESS(BYTE = LOW)

CE1/CE2 INPUT CHIP ENABLE INPUTS: Activate the device's control logic, Input buffers,

decoders and sense amplifiers. With either CE1 or CE2 high, the device is deselected and power consumption reduces to Standby level upon completion of any current program or erase operations. Both CE1,CE2 must be low to select the device. CE2 is not provided in 44-pin SOP package. All timing specifications are the same for both signals. Device selection occurs with the latter falling edge of CE1 or CE2. The first rising edge of CE1 or CE2 disables the device.

PWD INPUT POWER-DOWN: Puts the device in deep power-down mode. PWD is active low;

PWD high gates normal operation. PWD also locks out erase or program operation when active low providing data protection during power transitions.

OE INPUT OUTPUT ENABLES: Gates the device's data through the output buffers during

a read cycle OE is active low.

WE INPUT WRITE ENABLE: Controls writes to the Command Interface Register(CIR).

WE is active low.

RY/BY OPEN DRAIN READY/BUSY: Indicates the status of the internal Write State Machine(WSM).

OUTPUT When low it indicates that the WSM is performing a erase or program operation.

RY/BY high indicate that the WSM is ready for new commands, sector erase is suspended or the device is in deep power-down mode. RY/BY is always active and does not float to tristate off when the chip is deselected or data output are disabled.

WP INPUT WRITE PROTECT: All sectors can be protected by writing a non-volatile protect-

bit for each sector. When WP is low, all prottect-bits status can not be changed, i.e., the user can not execute Sector Protection and Sector Unprotect. The WP input buffer is disabled when PWD transitions low(deep power-down mode).

BYTE INPUT BYTE ENABLE: BYTE Low places device in x8 mode. All data is then input or

output on Q0-7 and Q8-14 float. AddressQ15/A-1 selects between the high and low byte. BYTE high places the device in x16 mode, and turns off the Q15/

A-1 input buffer. Address A0, then becomes the lowest order address. VCC DEVICE POWER SUPPLY(5V±10%) GND GROUND

P/N: PM0506

REV.1.7, JUN. 15, 2001

Page 5

MX29F1610A

BUS OPERATION

Flash memory reads, erases and writes in-system via the local CPU . All bus cycles to or from the flash memory conform to standard microprocessor bus cycles.

Table 2.1 Bus Operations for Word-Wide Mode (BYTE = VIH)

Mode Notes PWD CE1 CE2 OE WE A0 A1 A9 Q0-Q7 Q8-Q14 Q15/A-1 RY/BY

Read 1,2,7 VIH VIL VIL VIL VIH X X X DOUT DOUT DOUT X Output Disable 1,6,7 VIH VIL VIL VIH VIH X X X High Z High Z HighZ X Standby 1,6,7 VIH VIL VIH X X X X X High Z HIgh Z HighZ X

VIH VIL

VIH VIH

Deep Power-Down 1,3 VIL X X X X X X X High Z High Z HighZ VOH

Manufacturer ID 4,8 VIH VIL VIL VIL VIH VIL VIL VID C2H 00H 0B VOH Device ID 4,8 VIH VIL VIL VIL VIH VIH VIL VID FAH/FBH 00H 0B VOH

MX29F1610A Write 1,5,6 VIH VIL VIL VIH VIL X X X DIN DIN DIN X

Table2.2 Bus Operations for Byte-Wide Mode (BYTE = VIL)

Mode Notes PWD CE1 CE2 OE WE A0 A1 A9 Q0-Q7 Q8-Q14 Q15/A-1 RY/BY

Read 1,2,7,9 VIH VIL VIL VIL VIH X X X DOUT HighZ VIL/VIH X Output Disable 1,6,7 VIH VIL VIL VIH VIH X X X High Z HIghZ X X Standby 1,6,7 VIH VIL VIH X X X X X High Z HighZ X X

VIH VIL

VIH VIH

Deep Power-Down 1,3 VIL X X X X X X X High Z HIghZ X VOH

Manufacturer ID 4,8 VIH VIL VIL VIL VIH VIL VIL VID C2H High Z VIL VOH Device ID 4,8 VIH VIL VIL VIL VIH VIH VIL VID FAH/FBH High Z VIL VOH

MX29F1610A Write 1,5,6 VIH VIL VIL VIH VIL X X X DIN HIghZ VIL/VIH X

NOTES :

1.X can be VIH or VIL for address or control pins except for RY/BY which is either VOL or VOH.

2.RY/BY output is open drain. When the WSM is ready, Erase is suspended or the device is in deep power-down mode, RY/BY will be at VOH if it is tied to VCC through a 1K ~ 100K resistor. When the RY/BY at VOH is independent of OE while a WSM operation is in progress.

3.PWD at GND ± 0.2V ensures the lowest deep power-down current.

4. A0 and A1 at VIL provide manufacturer ID codes. A0 at VIH and A1 at VIL provide device ID codes. A0 at VIL, A1 at VIH and with appropriate sector addresses provide Sector Protect Code.(Refer to Table 4)

5. Commands for different Erase operations, Data program operations or Sector Protect operations can only be successfully completed through proper command sequence.

6.While the WSM is running. RY/BY in Level-Mode stays at VOL until all operations are complete. RY/BY goes to VOH when the WSM is not busy or in erase suspend mode.

7. RY/BY may be at VOL while the WSM is busy performing various operations. For example, a status register read during a write operation.

8. VID = 11.5V- 12.5V.

9. Q15/A-1 = VIL, Q0 - Q7 =D0-D7 out . Q15/A-1 = VIH, Q0 - Q7 = D8 -D15 out.

P/N: PM0506

REV.1.7, JUN. 15, 2001

Page 6

MX29F1610A

WRITE OPERATIONS

Commands are written to the COMMAND INTERFACE REGISTER (CIR) using standard microprocessor write timings. The CIR serves as the interface between the microprocessor and the internal chip operation. The CIR can decipher Read Array, Read Silicon ID, Erase and Program command. In the event of a read command, the CIR simply points the read path at either the array or the silicon ID, depending on the specific read command given. For a program or erase cycle, the CIR informs the write state machine that a program or erase has been requested. During a program cycle, the write state machine will control the program sequences and the CIR

TABLE 3. COMMAND DEFINITIONS

Command Read/ Silicon Page/Byte Chip Sector Erase Erase Read Clear Sequence Reset ID Read Program Erase Erase Suspend Resume Status Reg. Status Reg.

Bus Write 4 4 4 6 6 1 1 4 3 Cycles Req'd

will only respond to status reads. During a sector/chip erase cycle, the CIR will respond to status reads and erase suspend. After the write state machine has completed its task, it will allow the CIR to respond to its full command set. The CIR stays at read status register mode until the microprocessor issues another valid command sequence.

Device operations are selected by writing commands into the CIR. Table 3 below defines 16 Mbit flash family command.

First Bus Addr 5555H 5555H 5555H 5555H 5555H XXXX XXXX 5555H 5555H Write Cycle Data AAH AAH AAH AAH AAH B0H D0H AAH AAH

Second Bus Addr 2AAAH 2AAAH 2AAAH 2AAAH 2AAAH 2AAAH 2AAAH Write Cycle Data 55H 55H 55H 55H 55H 55H 55H

Third Bus Addr 5555H 5555H 5555H 5555H 5555H 5555H 5555H Write Cycle Data F0H 90H A0H 80H 80H 70H 50H

Fourth Bus Addr RA 00H/01H PA 5555H 5555H X Read/Write Cycle Data RD C2H/FAH PD AAH AAH SRD

(FBH)

Fifth Bus Addr 2AAAH 2AAAH Write Cycle Data 55H 55H

Sixth Bus Addr 5555H SA Write Cycle Data 10H 30H

P/N: PM0506

REV.1.7, JUN. 15, 2001

Page 7

COMMAND DEFINITIONS(continue Table 3.)

Command Sector Sector Verify Sector Sequence Protection Unprotect Protect

. Bus Write 6 6 4 Cycles Req'd

First Bus Addr 5555H 5555H 5555H Write Cycle Data AAH AAH AAH

Second Bus Addr 2AAAH 2AAAH 2AAAH Write Cycle Data 55H 55H 55H

Third Bus Addr 5555H 5555H 5555H Write Cycle Data 60H 60H 90H

Fourth Bus Addr 5555H 5555H * Read/Write Cycle Data AAH AAH C2H*

Fifth Bus Addr 2AAAH 2AAAH Write Cycle Data 55H 55H

MX29F1610A

Sixth Bus Addr SA** SA** Write Cycle Data 20H 40H

Notes:

1. Address bit A15 -- A19 = X = Don't care for all address commands except for Program Address(PA) and Sector Address(SA). 5555H and 2AAAH address command codes stand for Hex number starting from A0 to A14.

2. Bus operations are defined in Table 2.

3. RA = Address of the memory location to be read. PA = Address of the memory location to be programmed. Addresses are latched on the falling edge of the WE pulse. SA = Address of the sector to be erased. The combination of A16 -- A19 will uniquely select any sector.

4. RD = Data read from location RA during read operation. PD = Data to be programmed at location PA. Data is latched on the rising edge of WE. SRD = Data read from status register.

5. Only Q0-Q7 command data is taken, Q8-Q15 = Don't care.

* Refer to Table 4, Figure 12.

6. The details of sector protection/unprotect algorithm are shown in Fig.10 and Fig.11.

P/N: PM0506

REV.1.7, JUN. 15, 2001

Page 8

DEVICE OPERATION

SILICON ID READ

MX29F1610A

The Silicon ID Read mode allows the reading out of a binary code from the device and will identify its manufacturer and type. This mode is intended for use by programming equipment for the purpose of automatically matching the device to be programmed with its corresponding

The manufacturer and device codes may also be read via the command register, for instances when the MX29F1610A is erased or programmed in a system without access to high voltage on the A9 pin. The

command sequence is illustrated in Table 3. programming algorithm. This mode is functional over the entire temperature range of the device.

Byte 0 (A0=VIL) represents the manfacturer's code

(MXIC=C2H) and byte 1 (A0=VIH) the device identifier To activate this mode, the programming equipment must

code (MX29F1610A=FAH). force VID (11.5V~12.5V) on address pin A9. Two identifier bytes may then be sequenced from the device outputs by toggling address A0 from VIL to VIH. All

The Silicon ID Read mode will be terminated after the

following write command cycle. addresses are don't cares except A0 and A1.

Table 4. MX29F1610 Silion ID Codes and Verify Sector Protect Code

Type A19 A18 A17A16A1A0Code(HEX) DQ7DQ6DQ5DQ4DQ3DQ2DQ1DQ

Manufacturer Code X X X X VIL VIL C2H* 1 1 0 0 0 0 1 0

MX29F1610A Device Code X X X X VIL VIH FAH 1 1 1 1 1 0 1 0/1 Verify Sector Protect Sector Address*** VIH VIL C2H** 1 1 0 0 0 0 1 0

* MX29F1610A Manufacturer Code = C2H, Device Code = FAH when BYTE = VIL MX29F1610A Manufacturer Code = 00C2H, Device Code = 00FAH when BYTE = VIH ** Outputs C2H at protected sector address, 00H at unprotected scetor address. ***All sectors have protect-bit feature. Sector address = (A19, A18,A17,A16)

P/N: PM0506

REV.1.7, JUN. 15, 2001

Page 9

MX29F1610A

READ/RESET COMMAND

The read or reset operation is initiated by writing the read/ reset command sequence into the command register. Microprocessor read cycles retrieve array data from the memory. The device remains enabled for reads until the CIR contents are altered by a valid command sequence.

The device will automatically power-up in the read/reset state. In this case, a command sequence is not required to read data. Standard microprocessor read cycles will retrieve array data. This default value ensures that no spurious alteration of the memory content occurs during the power transition. Refer to the AC Read Characteristics and Waveforms for the specific timing parameters.

The MX29F1610A is accessed like an EPROM. When CE and OE are low and WE is high the data stored at the memory location determined by the address pins is asserted on the outputs. The outputs are put in the high impedance state whenever CE or OE is high. This dual line control gives designers flexibility in preventing bus contention.

CE stands for the combination of CE1 and CE2 in MX29F1610A 48-pin TSOP package. CE and stands for CE in 44-pin SOP package.

Note that the read/reset command is not valid when program or erase is in progress.

PAGE PROGRAM

To initiate Page program mode, a three-cycle command sequence is required. There are two " unlock" write cycles. These are followed by writing the page program command-A0H.

Any attempt to write to the device without the three-cycle command sequence will not start the internal Write State Machine(WSM), no data will be written to the device.

After three-cycle command sequence is given, a byte(word) load is performed by applying a low pulse on the WE or CE input with CE or WE low (respectively) and OE high. The address is latched on the falling edge of CE or WE, whichever occurs last. The data is latched by the first rising edge of CE or WE. Maximum of 128 bytes of data may be loaded into each page by the same procedure as outlined in the page program section below.

BYTE-WIDE LOAD/WORD-WIDE LOAD

Byte(word) loads are used to enter the 128 bytes(64

words) of a page to be programmed or the software codes

for data protection. A byte load(word load) is performed

by applying a low pulse on the WE or CE input with CE or

WE low (respectively) and OE high. The address is

latched on the falling edge of CE or WE, whichever occurs

last. The data is latched by the first rising edge of CE or

WE.

Either byte-wide load or word-wide load is

determined(Byte = VIL or VIH is latched) on the falling

edge of the WE(or CE) during the 3rd command write

cycle.

PROGRAM

Any page to be programmed should have the page in the erased state first, i.e. performing sector erase is suggested before page programming can be performed.

The device is programmed on a page basis. If a byte(word) of data within a page is to be changed, data for the entire page can be loaded into the device. Any byte(word) that is not loaded during the programming of its page will be still in the erased state (i.e. FFH). Once the bytes of a page are loaded into the device, they are simultaneously programmed during the internal programming period. After the first data byte(word) has been loaded into the device, successive bytes(words) are entered in the same manner. The time between byte (word) loads must be less than 30us otherwise the load period could be teminated. A6 to A19 specify the page address, i.e., the device is page-aligned on 128 bytes(64 words)boundary. The page address must be valid during each high to low transition of WE or CE. A-1 to A5 specify the byte address within the page, A0 to A5 specify the word address withih the page. The byte(word) may be loaded in any order; sequential loading is not required. If a high to low transition of CE or WE is not detected whithin 100us of the last low to high transition, the load period will end and the internal programming period will start. The Auto page program terminates when status on DQ7 is '1' at which time the device stays at read status register mode until the CIR contents are altered by a valid command sequence.(Refer to table 3,6 and Figure 1,7,8)

P/N: PM0506

REV.1.7, JUN. 15, 2001

Page 10

MX29F1610A

CHIP ERASE

Chip erase is a six-bus cycle operation. There are two "unlock" write cycles. These are followed by writing the "set-up" command-80H. Two more "unlock" write cycles are then followed by the chip erase command-10H.

Chip erase does not require the user to program the device prior to erase.

The automatic erase begins on the rising edge of the last WE pulse in the command sequence and terminates when the status on DQ7 is "1" at which time the device stays at read status register mode. The device remains enabled for read status register mode until the CIR contents are altered by a valid command sequence.(Refer to table 3,6 and Figure 2,7,9)

Table 5. MX29F1610 Sector Address Table

(Byte-Wide Mode)

A19 A18 A17 A16 Address Range[A19, -1]

SA0 0 0 0 0 000000H--01FFFFH SA1 0 0 0 1 020000H--03FFFFH SA2 0 0 1 0 040000H--05FFFFH SA3 0 0 1 1 060000H--07FFFFH SA4 0 1 0 0 080000H--09FFFFH

Sector erase does not require the user to program the device prior to erase. The system is not required to provide any controls or timings during these operations.

The automatic sector erase begins on the rising edge of the last WE pulse in the command sequence and terminates when the status on DQ7 is "1" at which time the device stays at read status register mode. The device remains enabled for read status register mode until the CIR contents are altered by a valid command sequence.(Refer to table 3,6 and Figure 3,4,7,9))

ERASE SUSPEND

This command only has meaning while the the WSM is executing SECTOR erase operation, and therefore will only be responded to during SECTOR erase operation. After this command has been executed, the CIR will initiate the WSM to suspend erase operations, and then return to Read Status Register mode. The WSM will set the DQ6 bit to a "1". Once the WSM has reached the Suspend state,the WSM will set the DQ7 bit to a "1", At this time, WSM allows the CIR to respond to the Read Array, Read Status Register and Erase Resume commands only. In this mode, the CIR will not resopnd to any other comands. The WSM will continue to run, idling in the SUSPEND state, regardless of the state of all input control pins, with the exclusion of PWD. PWD low will immediately shut down the WSM and the remainder of the chip.

... .... ... ... ................

SA15 1 1 1 1 1E0000H--1FFFFFH

SECTOR ERASE

Sector erase is a six-bus cycle operation. There are two "unlock" write cycles. These are followed by writing the set-up command-80H. Two more "unlock" write cycles are then followed by the sector erase command-30H. The sector address is latched on the falling edge of WE, while the command (data) is latched on the rising edge of WE.

P/N: PM0506

ERASE RESUME

This command will cause the CIR to clear the suspend state and set the DQ6 to a '0', but only if an Erase Suspend command was previously issued. Erase Resume will not have any effect in all other conditions.

REV.1.7, JUN. 15, 2001

Page 11

MX29F1610A

READ STATUS REGISTER

The MXIC's16 Mbit flash family contains a status register which may be read to determine when a program or erase operation is complete, and whether that operation completed successfully. The status register may be read at any time by writing the Read Status command to the CIR. After writing this command, all subsequent read operations output data from the status register until another valid command sequence is written to the CIR. A Read Array command must be written to the CIR to return to the Read Array mode.

The status register bits are output on DQ2 - DQ7(table 6) whether the device is in the byte-wide (x8) or word-wide (x16) mode for the MX29F1610A. In the word-wide mode the upper byte, DQ(8:15) is set to 00H during a Read Status command. In the byte-wide mode, DQ(8:14) are tri-stated and DQ15/A-1 retains the low order address function. DQ0-DQ1 is set to 0H in either x8 or x16 mode.

It should be noted that the contents of the status register are latched on the falling edge of OE or CE whichever occurs last in the read cycle. This prevents possible bus errors which might occur if the contents of the status register change while reading the status register. CE or OE must be toggled with each subsequent status read, or the completion of a program or erase operation will not be evident.

CLEAR STATUS REGISTER

The Eraes fail status bit (DQ5) and Program fail status bit (DQ4) are set by the write state machine, and can only be reset by the system software. These bits can indicate various failure conditions(see Table 6). By allowing the system software to control the resetting of these bits, several operations may be performed (such as cumulatively programming several pages or erasing multiple blocks in squence). The status register may then be read to determine if an error occurred during that programming or erasure series. This adds flexibility to the way the device may be programmed or erased. Additionally, once the program(erase) fail bit happens, the program (erase) operation can not be performed further. The program(erase) fail bit must be reset by system software before further page program or sector (chip) erase are attempted. To clear the status register, the Clear Status Register command is written to the CIR. Then, any other command may be issued to the CIR. Note again that before a read cycle can be initiated, a Read command must be written to the CIR to specify whether the read data is to come from the Array, Status Register or Silicon ID.

The Status Register is the interface between the microprocessor and the Write State Machine (WSM). When the WSM is active, this register will indicate the status of the WSM, and will also hold the bits indicating whether or not the WSM was successful in performing the desired operation. The WSM sets status bits four through seven and clears bits six and seven, but cannot clear status bits four and five. If Erase fail or Program fail status bit is detected, the Status Register is not cleared until the Clear Status Register command is written. The MX29F1610A automatically outputs Status Register data when read after Chip Erase, Sector Erase, Page Program or Read Status Command write cycle. The internal state machine is set for reading array data upon device powerup, or after deep power-down mode.

P/N: PM0506

REV.1.7, JUN. 15, 2001

Page 12

MX29F1610A

TABLE 6. MX29F1610 STATUS REGISTER

STATUS NOTES DQ7 DQ6 DQ5 DQ4 DQ3

IN PROGRESS PROGRAM 1,2 0 0 0 0 0

ERASE 1,3 0 0 0 0 0 SUSPEND (NOT COMPLETE) 1,4 0 0 0 0 0 (COMPLETE) 1 1 0 0 0

COMPLETE PROGRAM 1,2 1 0 0 0 0

ERASE 1,3 1 0 0 0 0

FAIL PROGRAM 1,5 1 0 0 1 0

ERASE 1,5 1 0 1 0 0

AFTER CLEARING STATUS REGISTER 1000 0

NOTES:

1. DQ7 : WRITE STATE MACHINE STATUS 1 = READY, 0 = BUSY DQ6 : ERASE SUSPEND STATUS 1 = SUSPEND, 0 = NO SUSPEND DQ5 : ERASE FAIL STATUS 1 = FAIL IN ERASE, 0 = SUCCESSFUL ERASE DQ4 : PROGRAM FAIL STATUS 1 = FAIL IN PROGRAM, 0 = SUCCESSFUL PROGRAM DQ3=0 = RESERVED FOR FUTURE ENHANCEMENTS. These bits are reserved for future use ; mask them out when polling the Status Register.

2. PROGRAM STATUS is for the status during Page Programming or Sector Unprotect mode.

3. ERASE STATUS is for the status during Sector/Chip Erase or Sector Protection mode.

4. SUSPEND STATUS is for Sector Erase mode .

5. FAIL STATUS bit(DQ4 or DQ5) is provided during Page Program or Sector/Chip Erase modes respectively.

6. DQ3 = 0 all the time.

P/N: PM0506

REV.1.7, JUN. 15, 2001

Page 13

MX29F1610A

HARDWARE SECTOR PROTECTION

The MX29F1610A features sector protection. This feature will disable both program and erase operations. The sector protection feature is enabled using system software by the user(Refer to table 3). The device is shipped with all sectors unprotected. Alternatively, MXIC may protect all sectors in the factory prior to shipping the device.

SECTOR PROTECTION

To activate this mode, a six-bus cycle operation is required. There are two 'unlock' write cycles. These are followed by writing the 'set-up' command. Two more 'unlock' write cycles are then followed by the Lock Sector command - 20H. Sector address is latched on the falling edge of CE or WE of the sixth cycle of the command sequence. The automatic Lock operation begins on the rising edge of the last WE pulse in the command sequence and terminates when the Status on DQ7 is '1' at which time the device stays at the read status register mode.

The users have to write Verify Sector Protect command to verify protect status after executing Sector Protector.

SECTOR UNPROTECT

It is also possible to unprotect the sector , same as the first five write command cycles in activating sector protection mode followed by the Unprotect Sector command - 40H, the automatic Unprotect operation begins on the rising edge of the last WE pulse in the command sequence and terminates when the Status on DQ7 is '1' at which time the device stays at the read status register mode.(Refer to table 3,6 and Figure 11,12)

The users have to write Verify Sector Protect command to verify protect status after executing Sector Unprotect.

The device remains enabled for read status register mode until the CIR contents are altered by a valid command sequence.

Either Protect or Unprotect sector mode is accomplished by keeping WP high, i.e. protect-bit status can only be changed with a valid command sequence and WP at high. Protect-bit status will not be changed during chip/sector erase operations. Only unprotected sectors can be programmed or erased regardless of the WP pin.

The device remains enabled for read status register mode until the CIR contents are altered by a valid command sequence (Refer to table 3,6 and Figure 10,12 ).

VERIFY SECTOR PROTECT

To verify the Protect status, operation is initiated by writing Silicon ID read command into the command register. Following the command write, a read cycle from address XXX0H retrieves the Manufacturer code of C2H. A read cycle from XXX1H returns the Device code FAH/ FBH. A read cycle from appropriate address returns information as to which sectors are protected. To terminate the operation, it is necessary to write the read/ reset command sequence into the CIR. (Refer to table 3,4 and Figure 12)

A few retries are required if Protect status can not be verified successfully after each operation.

DEEP POWER-DOWN MODE

The MXIC's16 Mbit flash family supports a typical ICC of 1uA in deep power-down mode. One of the target markets for these devices is in protable equipment where the power consumption of the machine is of prime importance. When PWD is a logic low (GND ± 0.2V), all circuits are turned off and the device typically draws 1uA of ICC current.

During erase or program modes, PWD low will abort either erase or program operation. The contents of the memory are no longer valid as the data has been corrupted by the PWD function.

PWD transitions to VIL or turning power off to the device will clear the status register.

PWD pin is not provided in 44-pin SOP package.

P/N: PM0506

REV.1.7, JUN. 15, 2001

Page 14

MX29F1610A

RY/BY PIN AND PROGRAM/ERASE POLLING

RY/BY is a dedicated, open-drain page program and sector erase completion. It transitions to VOL after a program or erase command sequence is written to the MX29F1610A, and returns to VCC when the WSM has finished executing the internal algorithm. Since RY/BY is an open-drain output, several RY/BY pins can be tied together in parallel with a pull-up resistor to VCC.

RY/BY can be connected to the interrupt input of the system CPU or controller. It is active at all times, not tristated if the CE or OE inputs are brought to VIH. RY/ BY is also VCC when the device is in erase suspend or deep power-down modes.

RY/BY pin is not provided in 44-pin SOP package.

DATA PROTECTION

The MX29F1610A is designed to offer protection against accidental erasure or programming caused by spurious system level signals that may exist during power transitions. During power up the device automatically resets the internal state machine in the Read Array mode. Also, with its control register architecture, alteration of the memory contents only occurs after successful completion of specific multi-bus cycle command sequences.

LOW VCC WRITE INHIBIT

To avoid initiation of a write cycle during VCC power-up and power-down, a write cycle is locked out for VCC less than VLKO(= 3.2V , typically 3.5V). If VCC < VLKO, the command register is disabled and all internal program/ erase circuits are disabled. Under this condition the device will reset to the read mode. Subsequent writes will be ignored until the VCC level is greater than VLKO. It is the user's responsibility to ensure that the control pins are logically correct to prevent unintentional write when VCC is above VLKO.

WRITE PULSE "GLITCH" PROTECTION

Noise pulses of less than 10ns (typical) on CE or WE will not initiate a write cycle.

LOGICAL INHIBIT

Writing is inhibited by holding any one of OE = VIL,CE =

VIH or WE = VIH. To initiate a write cycle CE and WE

must be a logical zero while OE is a logical one.

The device also incorporates several features to prevent inadvertent write cycles resulting from VCC power-up and power-down transitions or system noise.

P/N: PM0506

REV.1.7, JUN. 15, 2001

Page 15

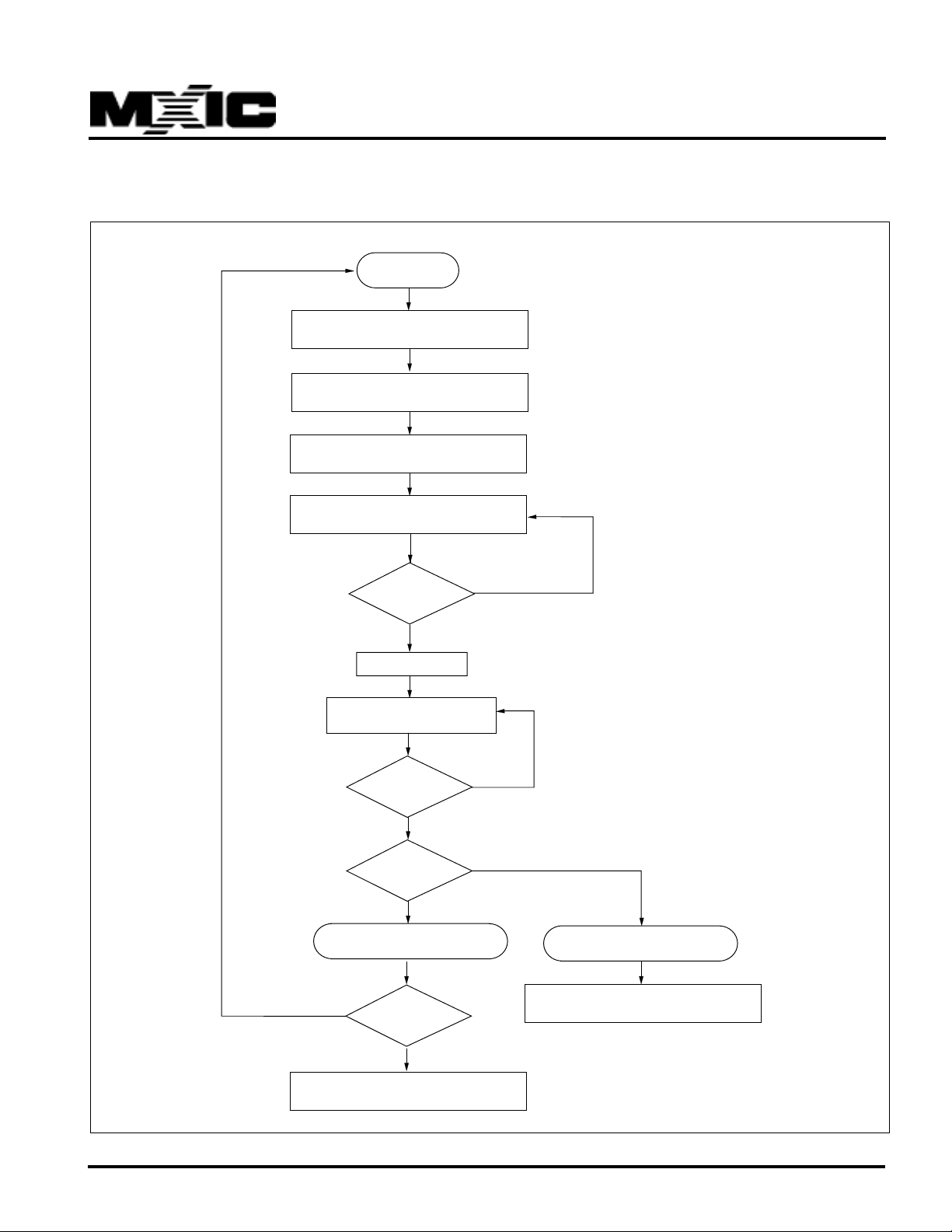

Figure 1. AUTOMATIC PAGE PROGRAM FLOW CHART

START

Write Data AAH Address 5555H

Write Data 55H Address 2AAAH

Write Data A0H Address 5555H

Write Program Data/Address

MX29F1610A

Page Program Completed

YES

Loading End?

YES

Wait 100us

Read Status Register

SR7 = 1

YES

SR4 = 0

YES

Program

another page?

Program Error

To Continue Other Operations,

Do Clear S.R. Mode First

P/N: PM0506

Operation Done, Device Stays At Read S.R. Mode

Note : S.R. Stands for Status Register

REV.1.7, JUN. 15, 2001

Page 16

Figure 2. AUTOMATIC CHIP ERASE FLOW CHART

START

Write Data AAH Address 5555H

Write Data 55H Address 2AAAH

Write Data 80H Address 5555H

Write Data AAH Address 5555H

MX29F1610A

Write Data 55H Address 2AAAH

Write Data 10H Address 5555H

Read Status Register

SR7 = 1

YES

SR5 = 0

YES

Chip Erase Completed

Operation Done,

Device Stays at

Read S.R. Mode

To Execute

Suspend Mode ?

Erase Error

To Continue Other

Operations, Do Clear

S.R. Mode First

YES

Erase Suspend Flow (Figure 4.)

P/N: PM0506

REV.1.7, JUN. 15, 2001

Page 17

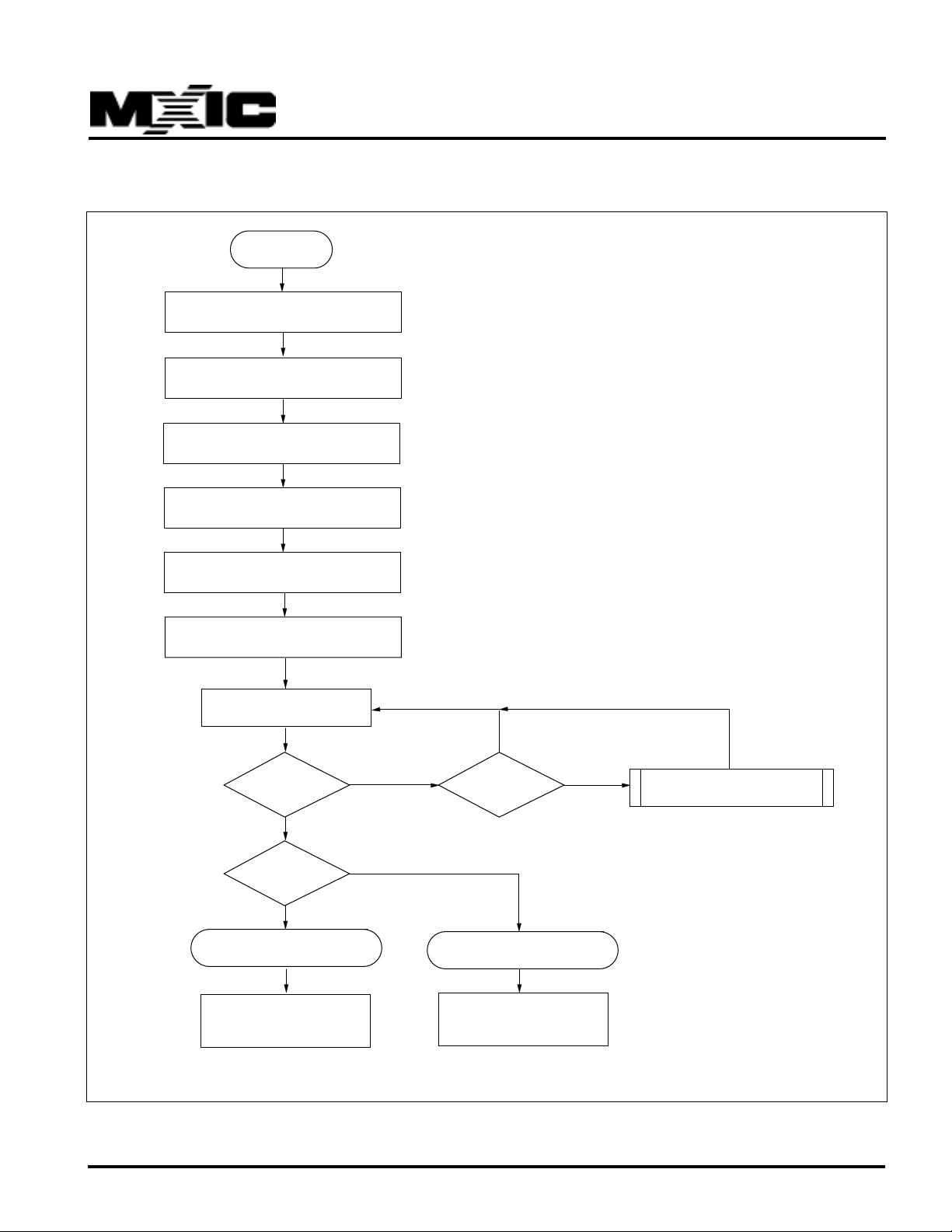

Figure 3. AUTOMATIC SECTOR ERASE FLOW CHART

START

Write Data AAH Address 5555H

Write Data 55H Address 2AAAH

Write Data 80H Address 5555H

Write Data AAH Address 5555H

Write Data 55H Address 2AAAH

MX29F1610A

Write Data 30H Sector Address

Read Status Register

SR7 = 1

YES

SR5 = 0

YES

Sector Erase Completed

Operation Done,

Device Stays at

Read S.R. Mode

To Execute

Suspend Erase ?

Erase Error

To Continue Other

Operations, Do Clear

S.R. Mode First

YES

Erase Suspend Flow (Figure 4.)

P/N: PM0506

REV.1.7, JUN. 15, 2001

Page 18

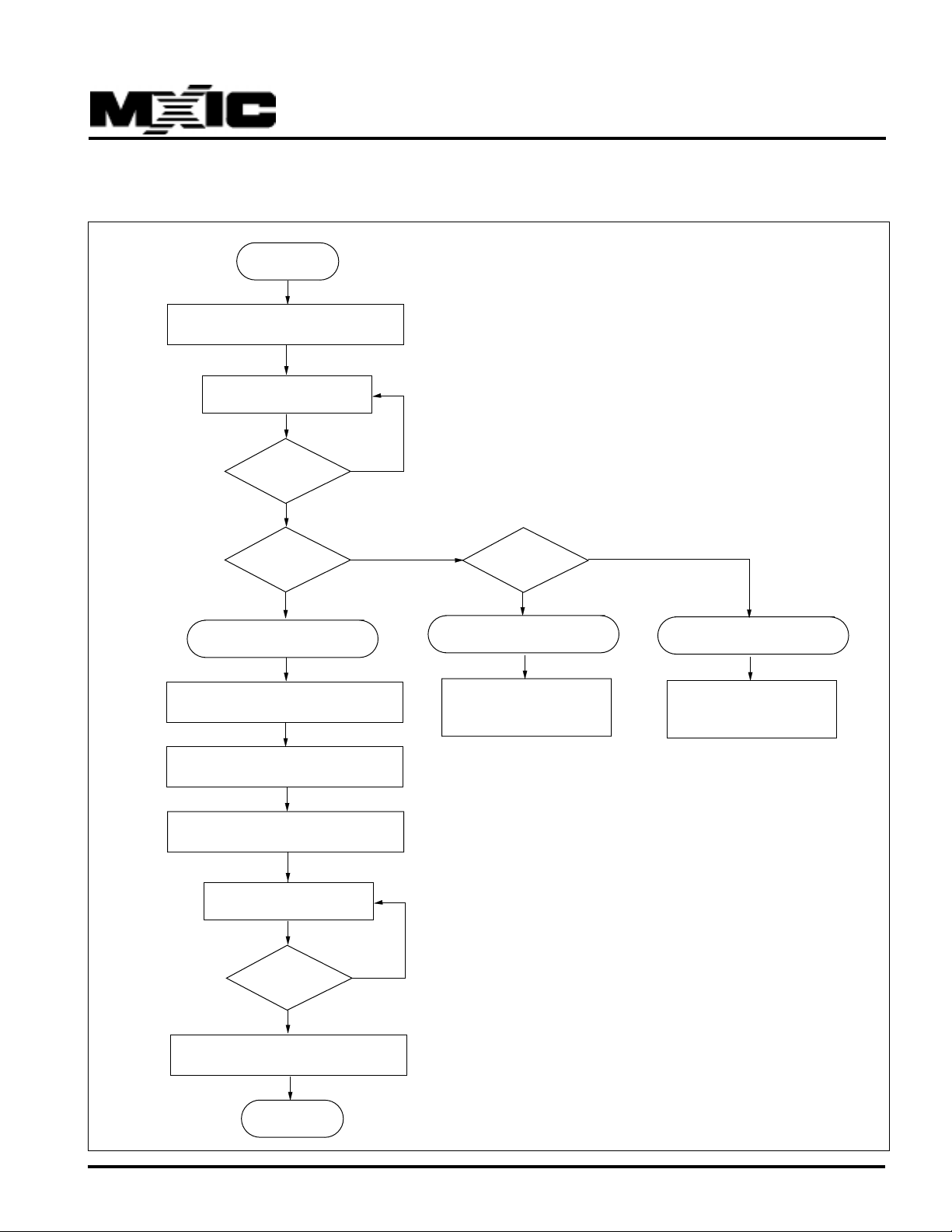

Figure 4. ERASE SUSPEND/ERASE RESUME FLOW CHART

START

Write Data B0H Address xxxxH

Read Status Register

MX29F1610A

SR7 = 1

YES

SR6 = 1

YES

Erase Suspend

Write Data AAH Address 5555H

Write Data 55H Address 2AAAH

Write Data F0H Address 5555H

Read Array

SR5 = 0

YES

Erase has completed

Operation Done,

Device Stays at

Read S,R, Mode

Erase Error

To Continue Other

Operations, Do Clear

S.R. Mode First

P/N: PM0506

Reading End ?

YES

Write Data D0H Address xxxxH

Continue Erase

REV.1.7, JUN. 15, 2001

Page 19

MX29F1610A

ELECTRICAL SPECIFICATIONS

ABSOLUTE MAXIMUM RATINGS

RATING VALUE

Ambient Operating Temperature 0°C to 70°C Storage Temperature -65°C to 125°C Applied Input Voltage -0.5V to 7.0V Applied Output Voltage -0.5V to 7.0V VCC to Ground Potential -0.5V to 7.0V A9 -0.5V to 13.5V

CAPACITANCE TA = 25°C, f = 1.0 MHz

SYMBOL PARAMETER MIN. TYP. MAX. UNIT CONDITIONS

CIN1 Input Capacitance 14 pF VIN = 0V CIN2 Control Pin Input Capacitance 16 pF VIN=0V COUT Output Capacitance 16 pF VOUT = 0V

NOTICE:

Stresses greater than those listed under ABSOLUTE MAXIMUM RATINGS may cause permanent damage to the device. This is stress rating only and functional operational sections of this specification is not implied. Exposure to absolute maximum rating conditions for extended period may affect reliability.

NOTICE:

Specifications contained within the following tables are subject to change.

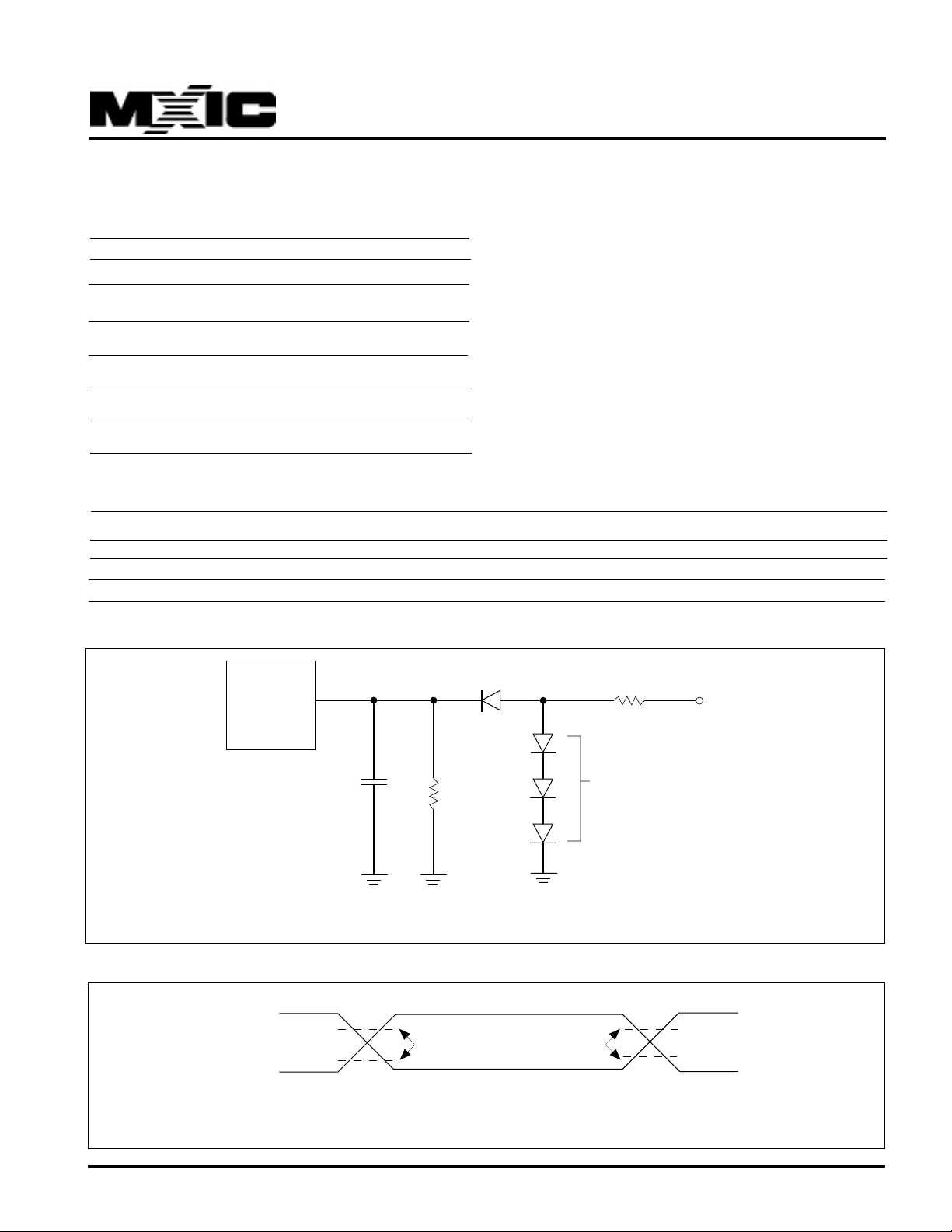

SWITCHING TEST CIRCUITS

DEVICE UNDER TEST

CL = 100 pF Including jig capacitance

SWITCHING TEST WAVEFORMS

2.4V

0.45V

AC TESTING: Inputs are driven at 2.4V for a logic "1" and 0.45V for a logic "0". Input pulse rise and fall times are < 10ns.

INPUT

2.0V

0.8V

1.2K ohm

TEST POINTS

1.6K ohm

DIODES = IN3064 OR EQUIVALENT

2.0V

0.8V OUTPUT

+5V

P/N: PM0506

REV.1.7, JUN. 15, 2001

Page 20

MX29F1610A

DC CHARACTERISTICS = 0°C to 70°C, VCC = 5V±10%

SYMBOL PARAMETER NOTES MIN. TYP. MAX. UNITS TEST CONDITIONS

IIL Input Load 1 ±10 uA VCC = VCC Max

Current VIN = VCC or GND

ILO Output Leakage 1 ±10 uA VCC = VCC Max

Current VIN = VCC or GND

ISB1 VCC Standby 1 1 100 uA VCC = VCC Max

Current(CMOS) CE1, CE2, PWD = VCC ± 0.2V

ISB2 VCC Standby 2 4 mA VCC = VCC Max

Current(TTL) CE1, CE2, PWD = VIH

IDP VCC Deep 1 1 20 uA PWD = GND ± 0.2V

Power-Down Current

ICC1 VCC Read 1 50 60 mA VCC = VCC Max

Current CMOS: CE1, CE2 = GND ± 0.2V

BYTE = GND ± 0.2V or VCC ± 0.2V Inputs = GND ± 0.2V or VCC ± 0.2V TTL : CE1, CE2 = VIL, BYTE = VIL or VIH Inputs = VIL or VIH, f = 10MHz, IOUT = 0 mA

ICC2 VCC Read 1 30 35 mA VCC = VCC Max,

Current CMOS: CE1, CE2 = GND ± 0.2V

BYTE = VCC ± 0.2V or GND ± 0.2V Inputs = GND ± 0.2V or VCC ± 0.2V TTL: CE1, CE2 = VIL, BYTE = VIH or VIL Inputs = VIL or VIH, f = 5MHz, IOUT = 0mA

ICC3 VCC Erase 1,2 5 10 mA CE1, CE2 = VIH

Suspend Current BLock Erase Suspended

ICC4 VCC Program 1 30 50 mA Program in Progress

Current ICC5 VCC Erase Current 1 30 50 mA Erase in Progress VIL Input Low Voltage 3 -0.3 0.8 V VIH Input High Voltage 4 2.4 VCC+0.3 V VOL Output Low Voltage 0.45 V IOL = 2.1mA VOH Output High Voltage 2.4 V IOH = -2mA

P/N: PM0506

REV.1.7, JUN. 15, 2001

Page 21

MX29F1610A

DC CHARACTERISTICS = 0°C to 70°C, VCC = 5V±10%(CONTINUE P.21)

NOTES:

1. All currents are in RMS unless otherwise noted. Typical values at VCC = 5.0V, T = 25 versions (package and speeds).

2. ICC3 is specified with the device de-selected. If the device is read while in erase suspend mode, current draw is the sum of ICC3 and ICC1/2.

3. VIL min. = -1.0V for pulse width is equal to or less than 50ns. VIL min. = -2.0V for pulse width is equal to or less than 20ns.

4. VIH max. = VCC + 1.5V for pulse width is equal to or less than 20ns. If VIH is over the specified maximum value, read operation cannot be guaranteed.

AC CHARACTERISTICS READ OPERATIONS

29F1610A-90 29F1610A-10 29F1610A-12

SYMBOL DESCRIPTIONS MIN. MAX. MIN. MAX. MIN. MAX. UNIT CONDITIONS

tACC Address to Output Delay 90 10 0 1 2 0 ns CE=OE=VIL tCE CE to Output Delay 90 100 12 0 ns OE=VIL

°C. These currents are valid for all product

tOE OE to Output Delay 50 55 60 ns CE=VIL tDF OE High to Output Delay 0 35 0 55 0 55 ns CE=VIL tOH Address to Output hold 0 0 0 ns CE=OE=VIL tBACC BYTE to Output Delay 90 100 120 ns CE= OE=VIL tBHZ BYTE Low to Output in High Z 50 55 55 ns CE=VIL tDPR Deep Power-Down Recovery 0 0 0 ns

TEST CONDITIONS:

• Input pulse levels: 0.45V/2.4V

• Input rise and fall times: 10ns

NOTE:

1. tDF is defined as the time at which the output achieves the open circuit condition and data is no longer driven.

• Output load: 1TTL gate+100pF(Including scope and jig)

• Reference levels for measuring timing: 0.8V, 2.0V

P/N: PM0506

REV.1.7, JUN. 15, 2001

Page 22

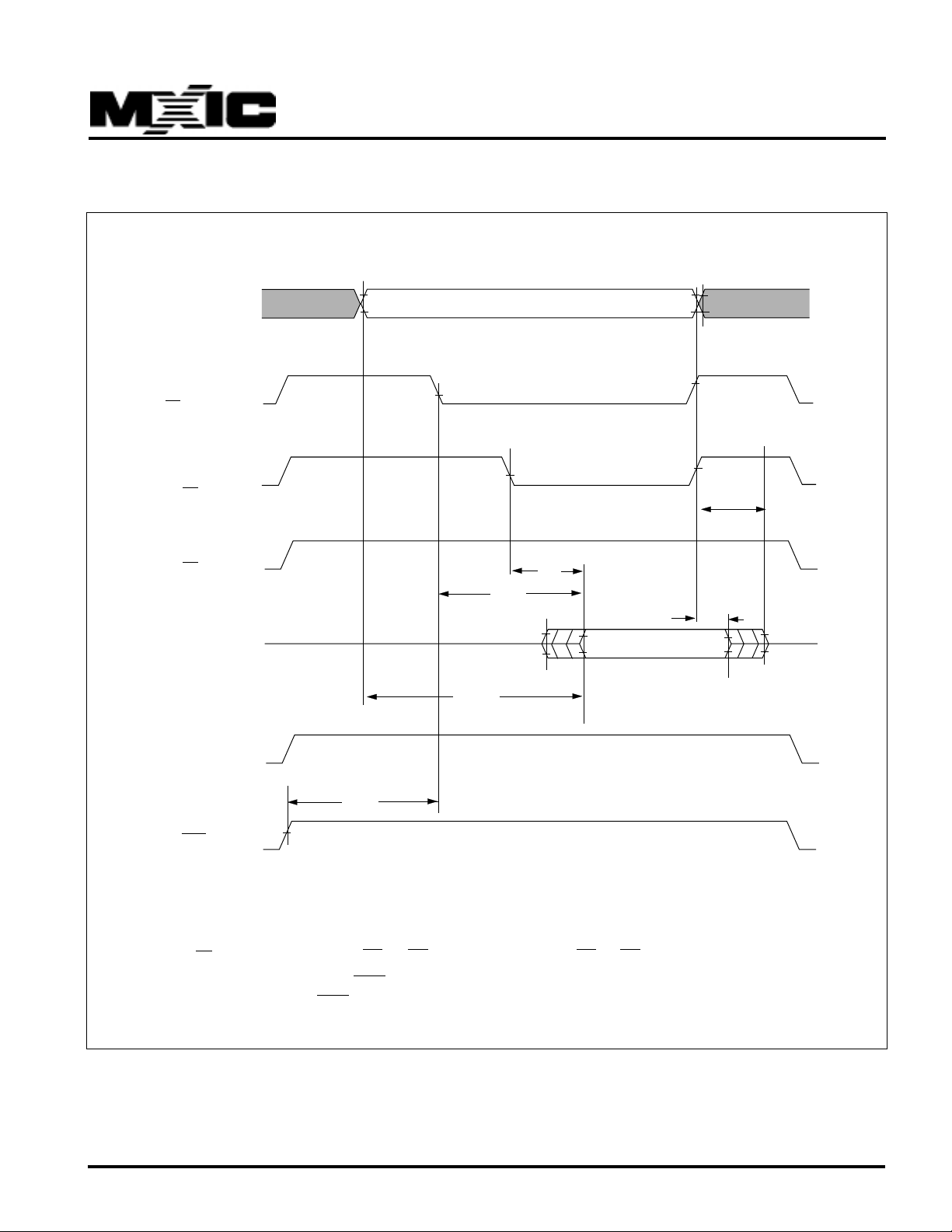

Figure 5. READ TIMING WAVEFORMS

MX29F1610A

ADDRESSES

CE (1)

DATA OUT

Vcc

VIH

VIL

VIH

VIL

VIH

VIL

VIH

VIL

VOH

VOL

Power-up

HIGH Z

Standby

Device and address selection

ADDRESSES STABLE

Outputs Enabled

tCE

tACC

tOE

Data valid

Data out valid

Standby

tOH

tDF

Vcc

Power-down

HIGH Z

P/N: PM0506

5.0V

VCC

GND

tDPR

VIH

PWD

VIL

NOTE:

1.CE is defined as the latter of CE1 or CE2 going Low or the first of CE1 or CE2 going High.

2.For real world application, BYTE pin should be either static high(word mode) or static low(byte mode); dynamic switching of BYTE pin is not recommended.

REV.1.7, JUN. 15, 2001

Page 23

Figure 6. BYTE TIMING WAVEFORMS

MX29F1610A

ADDRESSES

CE (1)

DATAOUT

VCC

Power-up Standby

VIH

VIL

VIH

VIL

VIH

VIL

VIH

VIL

VOH

VOL

HIGH Z

Device and

address selection

Outputs Enable

ADDRESSES STABLE

tOE

tCE

tACC

Data valid

Data Output

Standby

tOH

tDF

VCC

Power-down

HIGH Z

VOH

VCC

PWD

VOL

VIH

VIL

tDPR

NOTE:

1.CE is defined as the latter of CE1 or CE2 going Low or the first of CE1 or CE2 going High.

2.For real world application, BYTE pin should be either static high(word mode) or static low(byte mode); dynamic switching of BYTE pin is not recommended.

P/N: PM0506

REV.1.7, JUN. 15, 2001

Page 24

MX29F1610A

AC CHARACTERISTICS WRITE/ERASE/PROGRAM OPERATIONS

29F1610A-90 29F1610A-10 29F1610A-12

SYMBOL DESCRIPTION MIN. MAX. MIN. MAX. MIN. MAX. UNIT

tWC Write Cycle Time 90 100 120 ns tAS Address Setup Time 0 0 0 ns tAH Address Hold Time 50 55 6 0 ns tDS Data Setup Time 50 55 6 0 ns tDH Data Hold Time 0 0 0 ns tOES Output Enable Setup Time 0 0 0 ns tCES CE Setup Time 0 0 0 ns tGHWL Read Recover TimeBefore Write 0 0 0 tCS CE Setup Time 0 0 0 ns tCH CE Hold Time 0 0 0 n s tWP Write Pulse Width 50 55 60 ns tWPH Write Pulse Width High 30 50 5 0 ns tBALC Byte(Word) Address Load Cycle 0.3 30 0.3 3 0 0.3 30 us tBAL Byte(Word) Address Load Time 10 0 100 10 0 us tSRA Status Register Access Time 90 100 120 ns tCESR CE Setup before S.R. Read 7 0 70 70 ns tWHRL WE High to RY/BY Going Low 90 90 90 ns tWHRLP WE High to RY/BY Going Low 9 0 90 90 us

(in Page Program mode) tPHWL PWD High Recovery to WE Going Low 0 0 0 n s tVCS VCC Setup Time 50 50 5 0 us

P/N: PM0506

REV.1.7, JUN. 15, 2001

Page 25

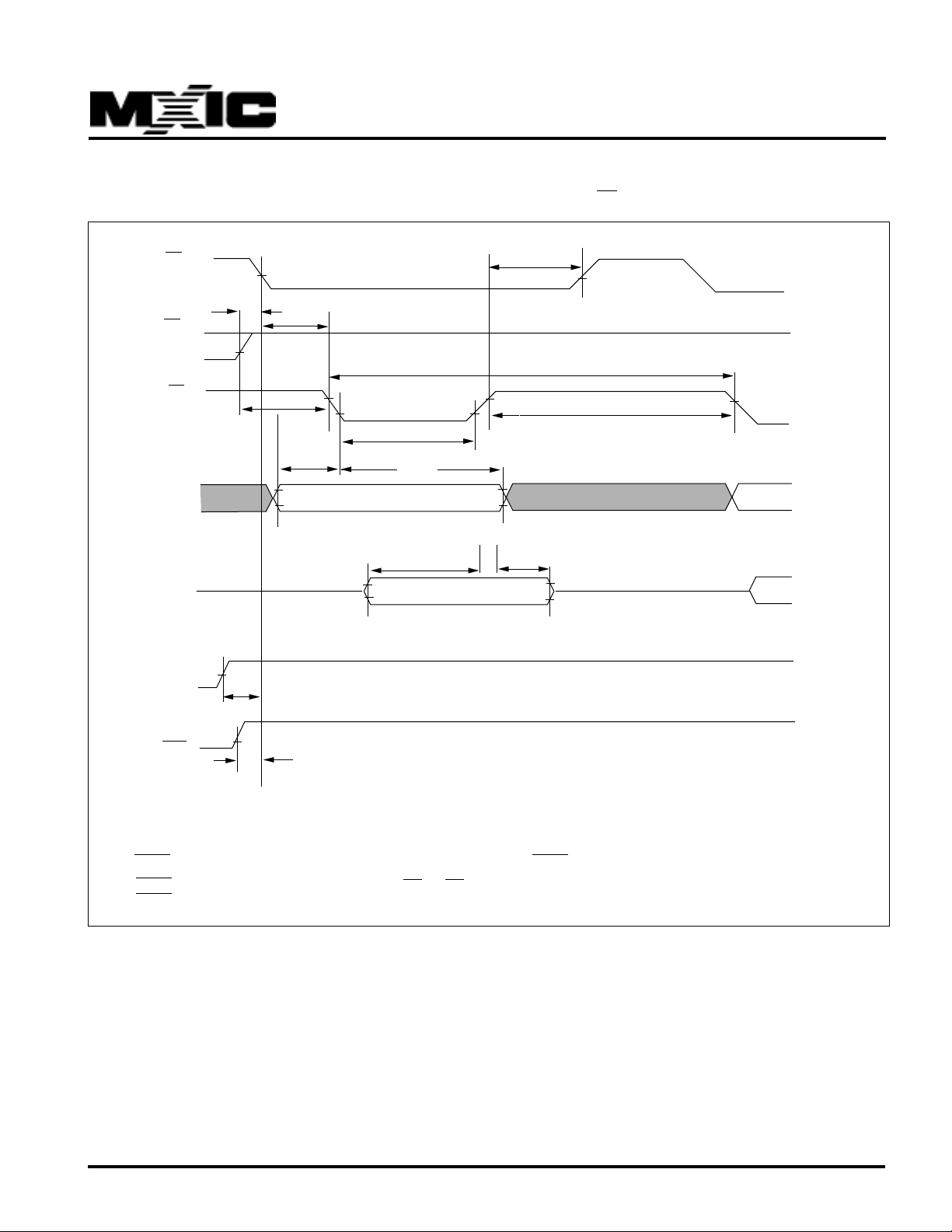

Figure 7. COMMAND WRITE TIMING WAVEFORMS

MX29F1610A

ADDRESSES

DATA (D/Q)

tOES

tCS

tGHWL

HIGH Z

tAS

VALID

tWP

tAH

tDS

tCH

tWC

tWPH

tDH

DIN

VCC

tVCS

PWD

tPHWL

NOTE:

1.BYTE pin is treated as Address pin. All timing specifications for BYTE pin are the same as those for address pin.

2.BYTE pin is sampled on the falling edge of WE or CE during the 3rd command write bus cycle; for real world application, BYTE pin should be either static high(word mode) or static low(byte mode).

P/N: PM0506

REV.1.7, JUN. 15, 2001

Page 26

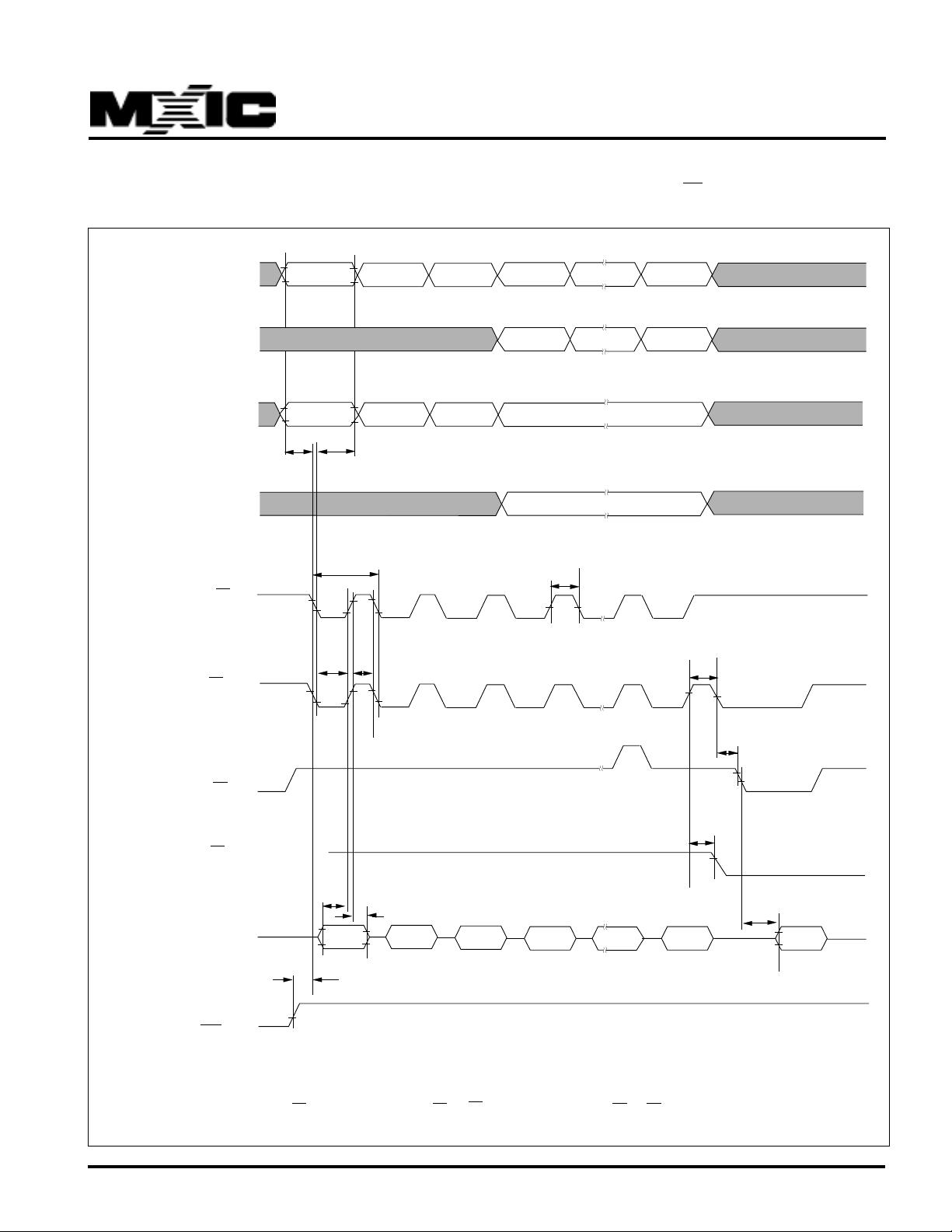

Figure 8. AUTOMATIC PAGE PROGRAM TIMING WAVEFORMS

MX29F1610A

A0~A5

A-1

(byte mode only)

A6~A14

A15~A19

CE(1)

tAS

55H

tWP

tAH

tWC

tWPH

AAH

2AH

55H

Word offset Address

Low/High Byte Select

Page Address

tBALC

Last Word offset Address

Last Low/High Byte Select

tBAL

P/N: PM0506

RY/BY

DATA

PWD

tWHRLP

tDS

tDH

tPHWL

AAH 55H

A0H SRD

Write Data

Last Write Data

NOTE:

1.CE is defined as the latter of CE1 or CE2 going low, or the first of CE1 or CE2 going high.

2.Please refer to page 9 for detail page program operation.

tCES

tSRA

REV.1.7, JUN. 15, 2001

Page 27

Figure 9. AUTOMATIC SECTOR/CHIP ERASE TIMING WAVEFORMS

MX29F1610A

A0~A14

A15

A16~A19

CE#

5555H 2AAAH 5555H

tAS

tAH

tWPH

tWP

tWC

5555H

2AAAH */5555H

SA/*

tCESR

tCES

P/N: PM0506

RY/BY

DATA

PWD

tWHRL

tDS

tDH

tPHWL

AAH 55H

80H

AAH

55H 30H/10H

NOTES:

1.CE# is defined as the latter of CE1 or CE2 going low, or the first of CE1 or CE2 going high.

2."*" means "don't care" in this diagram.

3."SA" means "Sector Adddress".

tSRA

SRD

REV.1.7, JUN. 15, 2001

Page 28

Figure 10. SECTOR PROTECTION ALGORITHM

(Only one sector can be protected at one time)

START

N=1

MX29F1610A

Sector protect Flow

Verify Sector Protect/Unprotect Flow

Pass?

YES

Write RESET Command

Sector Unprotect Complete and Device Return to Read Mode

NOTE 1 : Address means A14-A0 for word and byte mode NOTE 2 : Sector Address=(A19,A18,A17,A16)

N=N+1

N=1024?

YES

Device Failed

P/N: PM0506

NOTE 3 : Sector protection will be disabled when WP is low

REV.1.7, JUN. 15, 2001

Page 29

MX29F1610A

Sector Protect Flow

START

Write Command Address=5555H Data=AAH

Write Command Address=2AAAH Data=55H

Write Command Address=5555H Data=60H

Write Command Address=5555H Data=AAH

Write Command Address=2AAAH Data=55H

Verify Sector Protect/Unprotect Flow

START

Write Command Address=5555H Data=AAH

Write Command Address=2AAAH Data=55H

Write Command Address=5555H Data=90H

Wait 1us

Read Data Ouput DQ7-DQ0 with Address=Sector Address and A1=VIH

Write Command Address=Sector Address;Data=20H

Read Status Register

SR7=1?

YES

END

Data=C2:Protect Data=00:Unprotect

Verify Another Sector?

END

YES

P/N: PM0506

REV.1.7, JUN. 15, 2001

Page 30

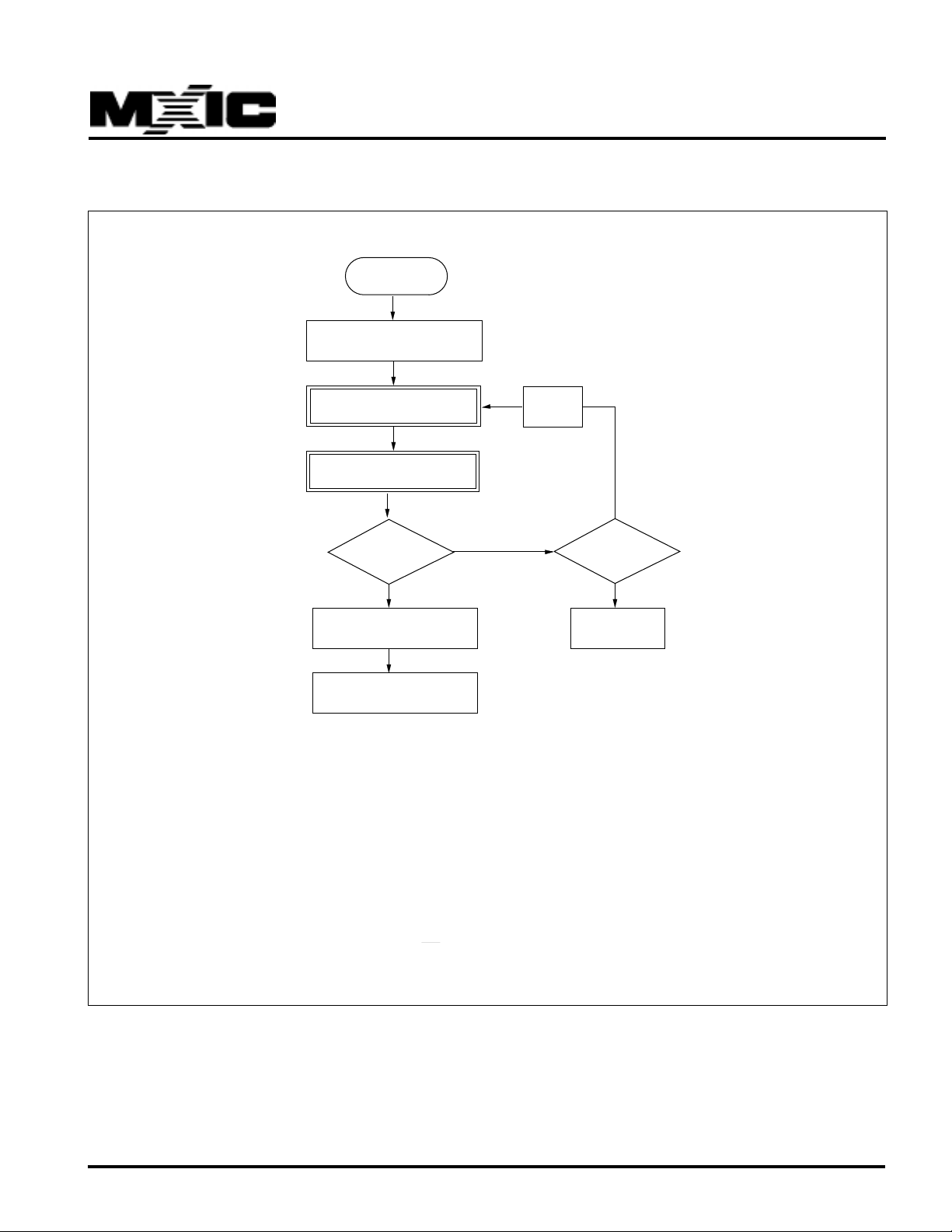

Figure 11. SECTOR UNPROTECT ALGORITHM

START

N=1

MX29F1610A

N=N+1

N=1024?

YES

Device Failed

Sector Unprotect Flow

Verify Sector Protect/Unprotect Flow

Pass?

YES

Write RESET Command

Sector Unprotect Complete and Device Return to Read Mode

NOTE 1 : Address means A14-A0 for word and byte mode NOTE 2 : During interation, sector address should be the sectors which have not passed the verify procedure after previous interation

P/N: PM0506

NOTE 3 : The sector(s), which had passed the sector unprotect verification must not enter the sector unprotect flow anymore NOTE 4 : During loading sector addresses, DATA=BOH means the last sector address loaded to be unprotected

NOTE 5 : Sector Address=(A19, A18, A17, A16) NOTE 6 : Sector Unprotect will be disabled when WP is low

REV.1.7, JUN. 15, 2001

Page 31

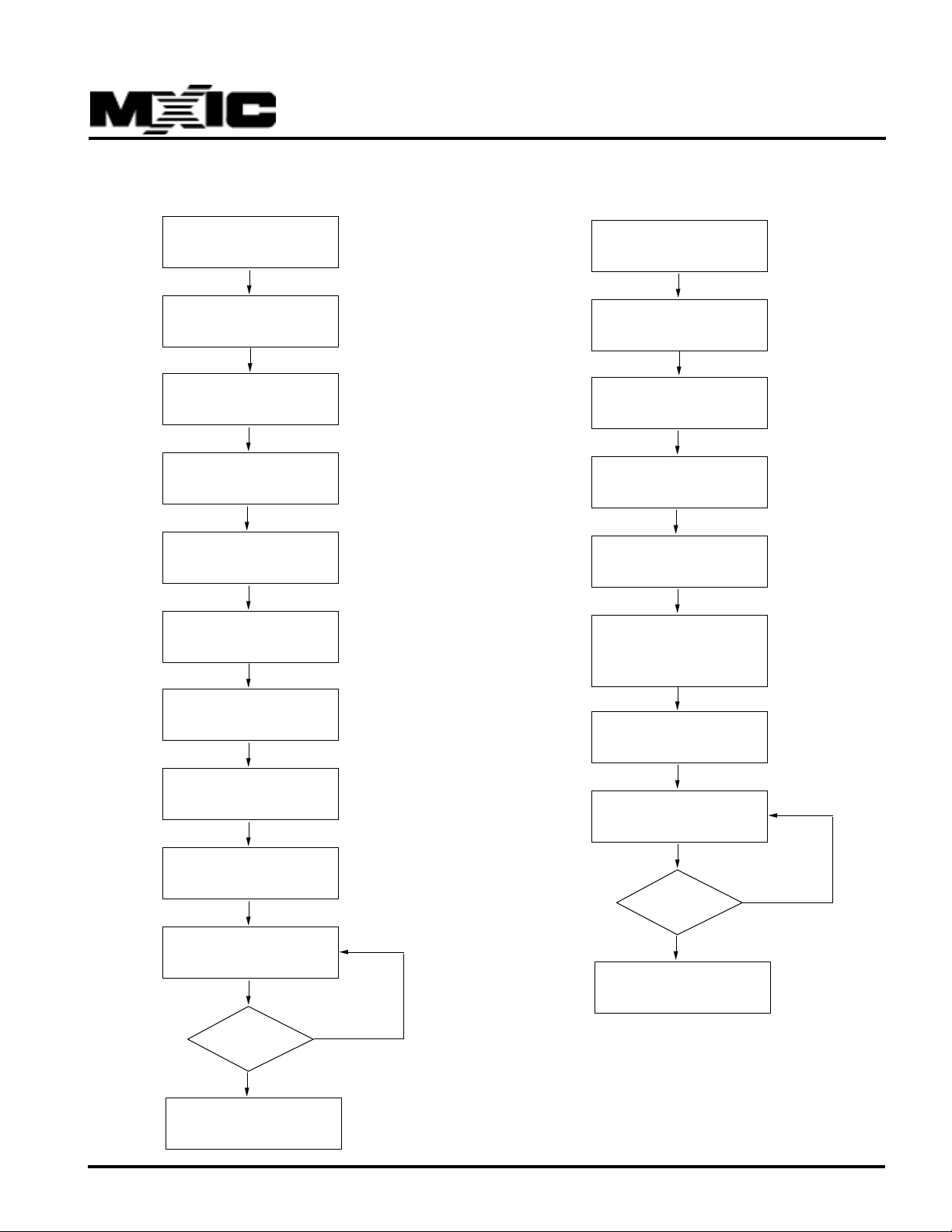

MX29F1610A

Sector Unprotect Flow

START

Write Command Address=5555H Data=AAH

Write Command Address=2AAAH Data=55H

Write Command Address=5555H Data=60H

Write Command Address=5555H Data=AAH

Write Command Address=2AAAH Data=55H

Verify Sector Protect/Unprotect Flow

START

Write Command Address=5555H Data=AAH

Write Command Address=2AAAH Data=55H

Write Command Address=5555H Data=90H

Wait 1us

Read Data Ouput DQ7-DQ0 with Address=Sector Address and A1=VIH

Write Command Address=Sector Address;Data=40H

Load Other Sector Addresses If Necessary;Data=40H

Load The Last Sector Address; Data=B0H

Read Status Register

SR7=1?

YES

END

(NOTE 2)

(NOTE 3)

(NOTE 4)

Data=C2:Protect Data=00:Unprotect

Read Status Register

Verify Another Sector?

END

YES

P/N: PM0506

REV.1.7, JUN. 15, 2001

Page 32

Figure 12. VERIFY SECTOR PROTECT FLOW CHART

START

Write Data AAH, Address 5555H

Write Data 55H, Address 2AAAH

Write Data 90H, Address 5555H

Ptoect Status Read*

MX29F1610A

* 1. Protect Status: Data Outputs C2H as Protected Sector Verified Code. Data Outputs 00H as Unprotected Sector Verified Code.

2. Sepecified address will be (A19,A18,A17,A16) = Sector address (A1, A0)=(1,0) the rest of the address pins are don't care.

3. Silicon ID can be read via this Flow Chart. Refer to Table 4.

P/N: PM0506

REV.1.7, JUN. 15, 2001

Page 33

MX29F1610A

tAS

tOES

tDS

tAH

DIN

tDH

tWH

tGHWL

VALID

ADDRESSES

DATA

HIGH Z

(D/Q)

VCC

PWD

tWS

tCPH

tCP

tWC

tVCS

tPHWL

NOTE:

1.BYTE pin is treated as Address pin. All timing specifications for BYTE pin are the same as those for address pin.

2.BYTE pin is sampled on the falling edge of WE or CE during the 3rd command write bus cycle; for real world application, BYTE pin should be either static high(word mode) or static low(byte mode).

Figure 13. COMMAND WRITE TIMING WAVEFORMS(Alternate CE Controlled)

P/N: PM0506

REV.1.7, JUN. 15, 2001

Page 34

MX29F1610A

Figure 14. AUTOMATIC PAGE PROGRAM TIMING WAVEFORM(Alternate CE Controlled)

A0~A5

A-1

((Byte Mode Only)

A6~A14

A15~A19

CE(1)

tAS

55H

tCP

tWC

tAH

tCPH

AAH

2AH

55H

Word offset Address

Low/High Byte Select

Page Address

tBALC

Last Word Offset Address

Last Low/High Byte Select

tBAL

P/N: PM0506

RY/BY

DATA

PWD

tWHRLP

tDS

tDH

tPHWL

AAH 55H

A0H SRD

Write Data

Last Write Data

NOTE:

1.CE is defined as the latter of CE1 or CE2 going low, or the first of CE1 or CE2 going high.

2.Please refer to page 9 for detail page program operation.

tCES

tSRA

REV.1.7, JUN. 15, 2001

Page 35

MX29F1610A

ERASE AND PROGRAMMING PERFORMANCE

LIMITS

PARAMETER MIN. TYP.(1) MAX.(2) UNITS

Sector Erase Time 1 8 s Chip Erase Time 32 25 6 s Page Programming Time 0.9 27 ms Chip Programming Time 14 42 sec Erase/Program Cycles 100,000 Cycles Byte Program Time 7 30 0 us

Note: 1.All numbers are sampled, not 100% tested.

2.Typical values measured at 25°C,VCC=5.0V.

LATCHUP CHARACTERISTICS

MIN. MAX.

Input Voltage with respect to GND on all pins except I/O pins -1.0V 13.5V Input Voltage with respect to GND on all I/O pins -1.0V Vcc + 1.0V Current -100mA +100mA Includes all pins except Vcc. Test conditions: Vcc = 5.0V, one pin at a time.

P/N: PM0506

REV.1.7, JUN. 15, 2001

Page 36

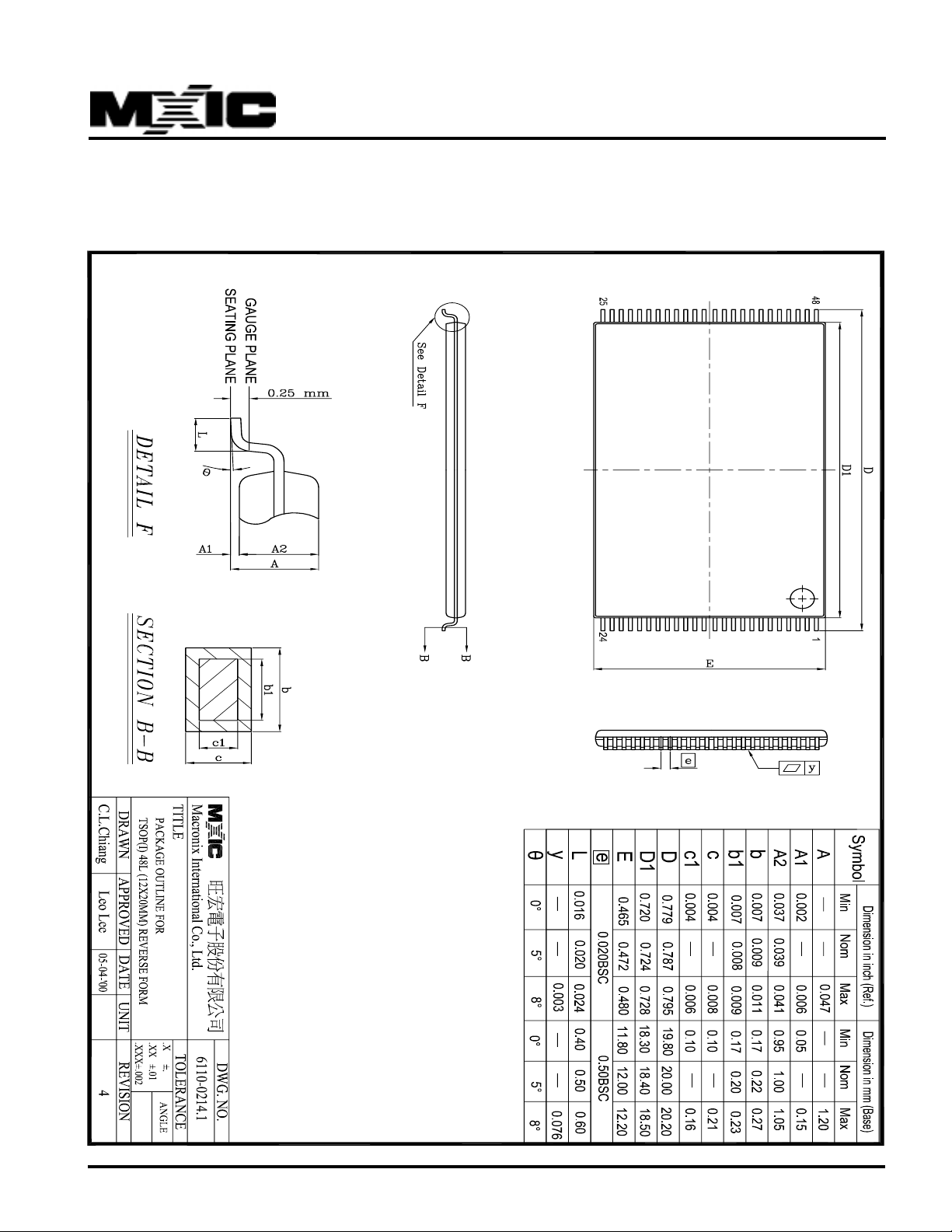

PACKAGE INFORMATION

48-PIN PLASTIC TSOP

MX29F1610A

P/N: PM0506

REV.1.7, JUN. 15, 2001

Page 37

44-PIN PLASTIC SOP

MX29F1610A

P/N: PM0506

REV.1.7, JUN. 15, 2001

Page 38

MX29F1610A

Revision History

Revision# Description Page Date

1.1 Update ISB1 typical value to 1uA--P20 May/13/1998 Add Control Pin Input Capacitance

1.2 Change resistance value at switching test circuits P19 Nov/10/1998 Change IOH value at DC characteristics P20

1.3 Change Pin12 of MX29F1610B TSOP from NC to GND P2 MAR/31/1999

1.4 Remove the 70ns speed grade. P1 MAY/18/1999 Modify Erase and Programming Performance P35

1.5 Added 100ns to access time P1,21,24 JUN/20/2000

1.6 Cancel the MX29F1610B Type section P1~3,8~14 NOV/16/2000

P21,24

1.7 To modify "Package Information" P36~37 JUN/15/2001

P/N: PM0506

REV.1.7, JUN. 15, 2001

Page 39

MX29F1610A

MACRONIX INTERNATIONAL CO., LTD.

HEADQUARTERS:

TEL:+886-3-578-6688 FAX:+886-3-563-2888

EUROPE OFFICE:

TEL:+32-2-456-8020 FAX:+32-2-456-8021

JAPAN OFFICE:

TEL:+81-44-246-9100 FAX:+81-44-246-9105

SINGAPORE OFFICE:

TEL:+65-348-8385 FAX:+65-348-8096

TAIPEI OFFICE:

TEL:+886-2-2509-3300 FAX:+886-2-2509-2200

MACRONIX AMERICA, INC.

TEL:+1-408-453-8088 FAX:+1-408-453-8488

CHICAGO OFFICE:

TEL:+1-847-963-1900 FAX:+1-847-963-1909

http : //www.macronix.com

MACRONIX INTERNATIONAL CO., LTD. reserves the right to change product and specifications without notice.
