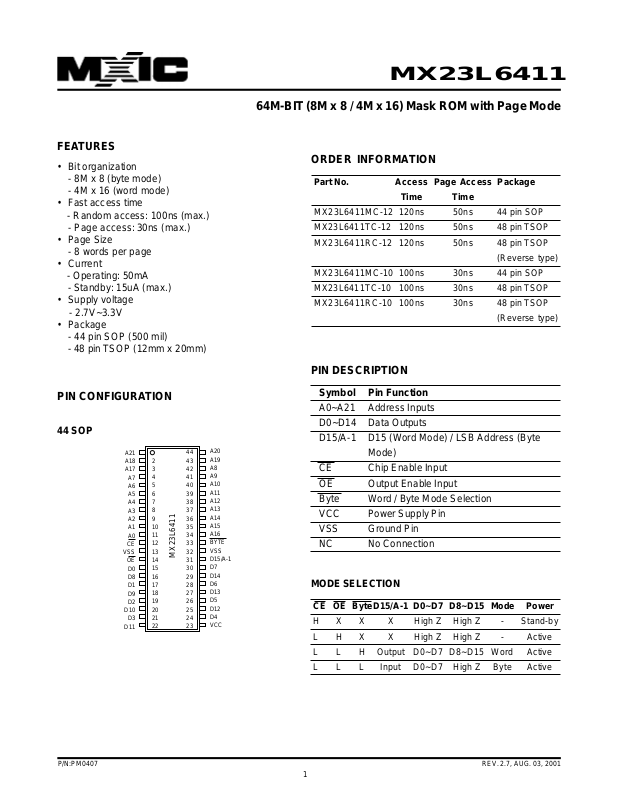

FEATURES
• Bit organization
- 8M x 8 (byte mode)
- 4M x 16 (word mode)
• Fast access time
- Random access: 100ns (max.)
- Page access: 30ns (max.)
• Page Size
- 8 words per page
• Current
- Operating: 50mA
- Standby: 15uA (max.)
• Supply voltage
- 2.7V~3.3V
• Package
- 44 pin SOP (500 mil)
- 48 pin TSOP (12mm x 20mm)
MX23L6411
64M-BIT (8M x 8 / 4M x 16) Mask ROM with Page Mode
ORDER INFORMATION
Part No. Access Page Access Package
Time Time
MX23L6411MC-12 120ns 50ns 44 pin SOP
MX23L6411TC-12 120ns 50ns 48 pin TSOP
MX23L6411RC-12 120ns 50ns 48 pin TSOP
(Reverse type)
MX23L6411MC-10 100ns 30ns 44 pin SOP
MX23L6411TC-10 100ns 30ns 48 pin TSOP
MX23L6411RC-10 100ns 30ns 48 pin TSOP
(Reverse type)
PIN CONFIGURATION
44 SOP
A21
2
A18
3
A17
4
A7
5
A6
6
A5
7
A4
8
A3
9
A2
10
A1
11
A0
12
CE
13
VSS
14
OE
15
D0
16
D8
17
D1
18
D9
19
D2
20
D10
21
D3
22
D11
A20
44
A19
43
A8
42
A9
41
A10
40
A11
39
A12
38
A13
37
A14
36
A15
35
A16
34
BYTE
33
VSS
32
MX23L6411
D15/A-1
31
D7
30
D14
29
D6
28
D13
27
D5
26
D12
25
D4
24
VCC
23
PIN DESCRIPTION
Symbol Pin Function
A0~A21 Address Inputs
D0~D14 Data Outputs
D15/A-1 D15 (W ord Mode) / LSB Address (Byte
Mode)
CE Chip Enable Input
OE Output Enab le Input
Byte Word / Byte Mode Selection
VCC P o wer Supply Pin
VSS Ground Pin
NC No Connection
MODE SELECTION
CE OE ByteD15/A-1 D0~D7 D8~D15 Mode Power
H X X X High Z High Z - Stand-by
L H X X High Z High Z - Active
L L H Output D0~D7 D8~D15 Word Active
L L L Input D0~D7 High Z Byte Active
P/N:PM0407 REV. 2.7, AUG. 03, 2001
1
Page 2
48 TSOP (NORMAL TYPE)
MX23L6411
BYTE
A16
A15
A14
A13
A12
A11
A10
A9
A8
A19
A21
A20
A18
A17
A7
A6
A5
A4
A3
A2
A1
A0
CE
1
2
3
4
5
6
7
8
9
10
11
12
13
14
15
16
17
18
19
20
21
22
23
24
MX23L6411
48
VSS
47
VSS
46
D15/A-1
45
D7
44
D14
43
D6
42
D13
41
D5
40
D12
39
D4
38
VCC
37
VCC
36
NC
35
D11
34
D3
33
D10
32
D2
31
D9
30
D1
29
D8
28
D0
27
OE
26
VSS
25
VSS
48 TSOP (REVERSE TYPE)
D7
D6
D5
D4
NC
D3
D2
D9
D1
D8
D0
OE
48
47
46
45
44
43
42
41
40
39
38
37
36
35
34
33
32
31
30
29
28
27
26
25
VSS
VSS
D15/A-1
D14
D13
D12
VCC
VCC
D11
D10
VSS
VSS
MX23L6411
1
BYTE
2
A16
3
A15
4
A14
5
A13
6
A12
7
A11
8
A10
9
A9
10
A8
11
A19
12
A21
13
A20
14
A18
15
A17
16
A7
17
A6
18
A5
19
A4
20
A3
21
A2
22
A1
23
A0
24
CE
P/N:PM0407
REV. 2.7, AUG. 03, 2001
2
Page 3
BLOCK DIAGRAM
A0/(A-1)
A2
A3
A21
CE
BYTE
OE
Address
Buffer
ABSOLUTE MAXIMUM RATINGS
Memory
Array
Page
Buffer
Page
Decoder
MX23L6411
Word/
Byte
Output
Buffer
D0
D15/(D7)
Item Symbol Ratings
V oltage on any Pin Relativ e to VSS VIN -1.3V to 2.0V
Ambient Operating Temperature T opr 0°C to 70°C
Storage T emperature Tstg -65°C to 125°C
Note: Minimum DC v oltage on input or I/O pins is -0.5V.
During voltage transitions, inputs may undershoot VSS
to -1.3V for periods of up to 20ns. Maximum DC voltage
on input or I/O pins is VCC+0.5V. During v oltage transitions, input may overshoot VCC to VCC+2.0V for periods of up to 20ns.
P/N:PM0407
REV. 2.7, AUG. 03, 2001
3
Page 4
MX23L6411
DC CHARACTERISTICS (Ta = 0°C ~ 70°C, VCC = 2.7V~3.3V)
Item Symbol MIN. MAX. Conditions
Output High Voltage VOH 2.4V - IOH = -0.4mA
Output Low Voltage VOL - 0.4V IOL = 1.6mA
Input High Voltage VIH 2.2V VCC+0.3V
Input Low Voltage VIL -0.3V 0.8V
Input Leakage Current ILI - 5uA 0V, VCC
Output Leakage Current ILO - 5uA 0V, VCC
Operating Current ICC1 - 50mA f=5MHz, all output open
Standby Current (TTL) ISTB1 - 1mA CE = VIH
Standby Current (CMOS) ISTB2 - 15uA CE>VCC-0.2V
Input Capacitance CIN - 10pF Ta = 25°C, f = 1MHZ
Output Capacitance COUT - 10pF Ta = 25°C, f = 1MHZ
AC CHARACTERISTICS (Ta = 0°C ~ 70°C, VCC = 2.7V~3.3V)
Item Symbol 23L6411-10 23L6411-12
MIN. MAX. MIN. MAX.
Read Cycle Time tRC 100ns - 120ns Address Access Time tAA - 100ns - 120ns
Chip Enable Access Time tACE - 100ns - 120ns
Page Mode Access Time tPA - 30ns - 50ns
Output Enable Time tOE - 30ns - 50ns
Output Hold After Address tOH 0ns - 0ns Output High Z Delay tHZ - 20ns - 20ns
Note:Output high-impedance delay (tHZ) is measured from
OE or CE going high, and this parameter guaranteed by
design over the full voltage and temperature operating
range - not tested.
P/N:PM0407
REV. 2.7, AUG. 03, 2001
4
Page 5
AC T est Conditions
Input Pulse Levels 0.4V~ 2.4V
Input Rise and Fall Times 10ns
Input Timing Level 1.4V
Output Timing Level 1.4V
Output Load See Figure

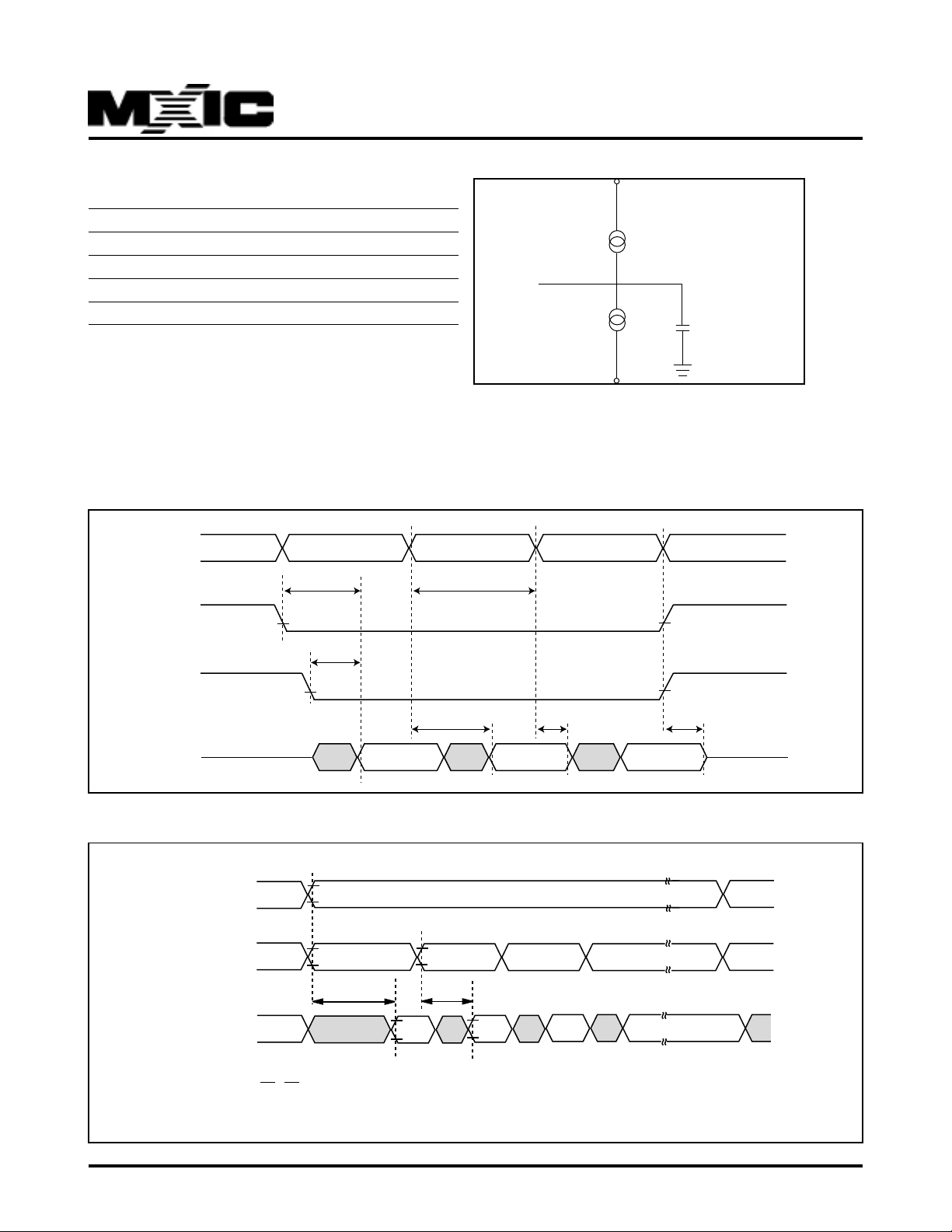

TIMING DIAGRAM
RANDOM READ
MX23L6411
IOH (load)=-0.4mA
DOUT
IOL (load)=1.6mA
Note:No output loading is present in tester load board.
Active loading is used and under software programming control.
Output loading capacitance includes load board's and all stray capacitance.
C<100pF
ADD
CE#
OE#
DATA
PAGE READ
(A-1),A0,A1,A2
A3-A21
ADD ADD ADD
tACE
tOE
VALID VALID VALID
1'st ADD
tAA
tRC
tAA
2'nd ADD
tPA
tOH
VALID ADD
3'rd ADD
tHZ
P/N:PM0407
DATA
Note: CE, OE are enable.
Page size is 8 words in 16-bit mode, 16 bytes in 8-bit mode.
VALID
VALID
5
VALID
REV. 2.7, AUG. 03, 2001
Page 6
PACKAGE INFORMATION

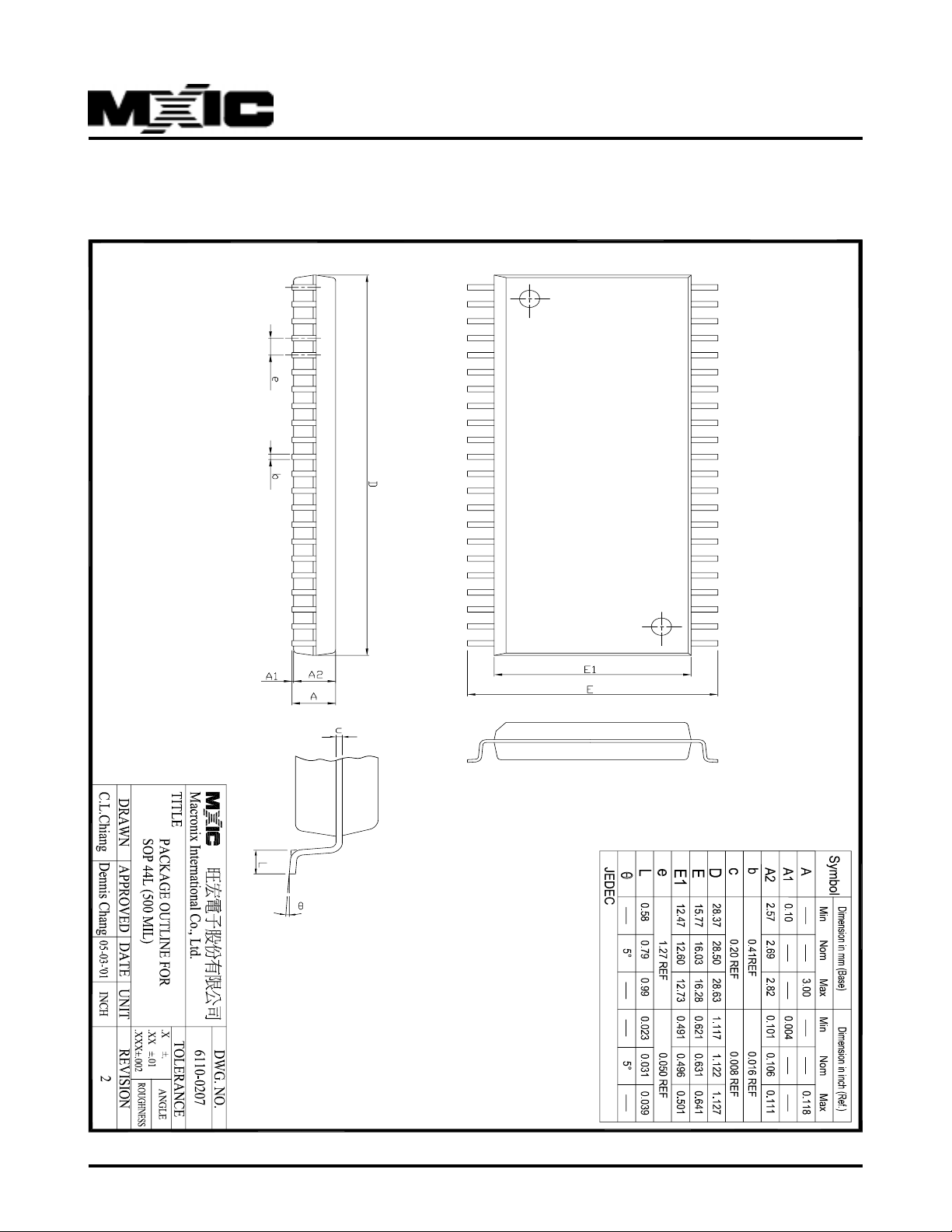

44-PIN PLASTIC SOP
MX23L6411
P/N:PM0407
REV. 2.7, AUG. 03, 2001
6
Page 7

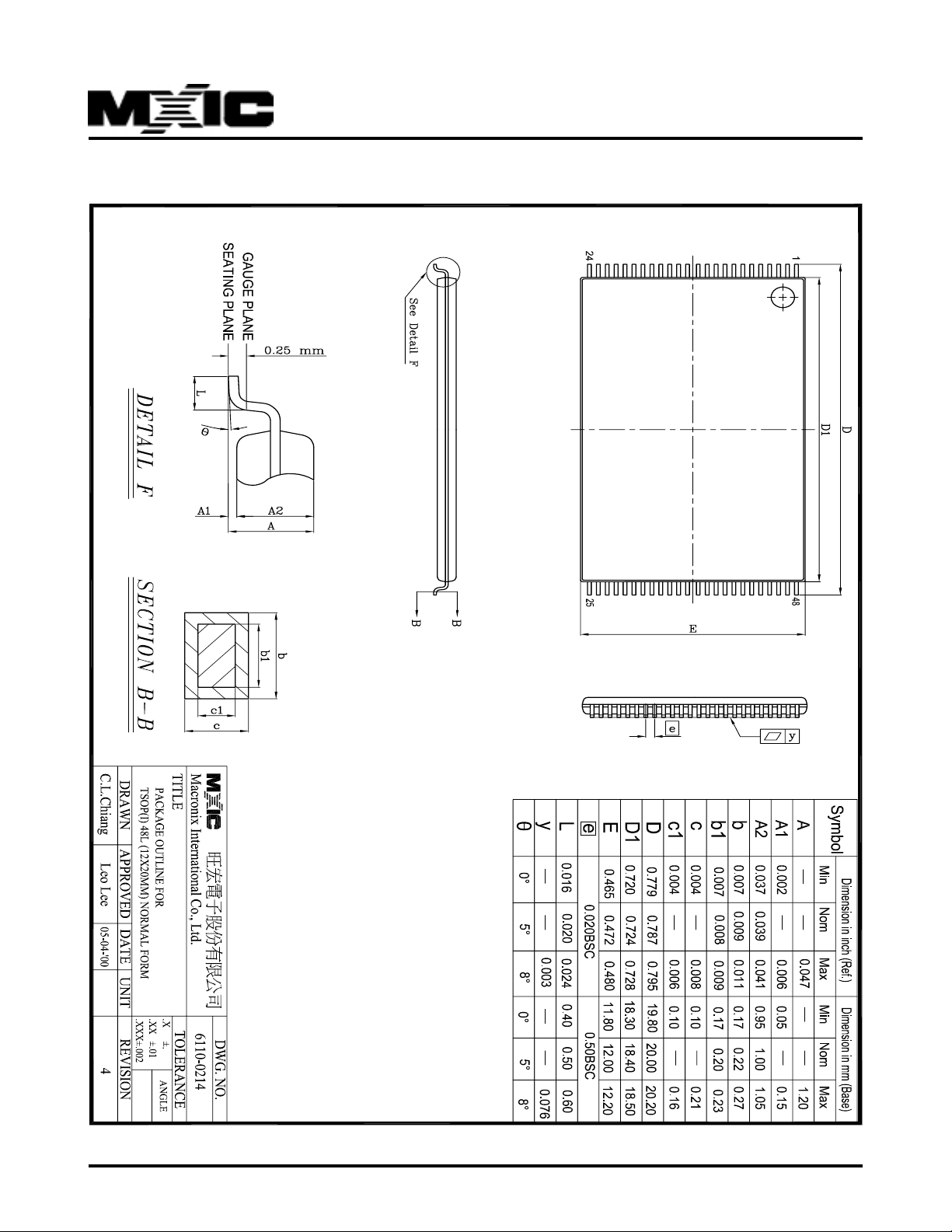

48-PIN PLASTIC TSOP
MX23L6411
P/N:PM0407
REV. 2.7, AUG. 03, 2001
7
Page 8
MX23L6411
REVISION HISTORY
REVISION DESCRIPTION PAGE D ATE
2.1 AC CHARACTERISTICS tOH 10ns-->0ns P4 JAN/29/1999
2.2 DC CHARACTERISTICS ISTB2 5uA-->15uA P4 SEP/03/1999
2.3 DC Characteristics voltage range VCC=2.9V~3.6V -->3.0V~3.6V P3 DEC/24/1999
2.4 Add 100ns speed grade P1,4 JUL/02/2000
2.5 Modify Operating Current:60mA-->50mA P1,4 DEC/29/2000
2.6 Modify Package Information P6,7 JUL/17/2001
2.7 Change VCC from 3.0~3.6V to 2.7~3.3V P1,3 AUG/03/2001
P/N:PM0407
REV. 2.7, AUG. 03, 2001
8
