Page 1
DISCRETE SEMICONDUCTORS
DATA SH EET
MX0912B251Y
NPN microwave power transistor
Product specification
Supersedes data of November 1994
1997 Feb 19
Page 2
Philips Semiconductors Product specification
NPN microwave power transistor MX0912B251Y
FEATURES
• Interdigitated structure; high emitter efficiency
• Diffused emitter ballasting resistors providing excellent
current sharing and withstanding a high VSWR
• Gold metallization realizes very stable characteristics
and excellent lifetime
• Multicell geometry gives good balance of dissipated
power and low thermal resistance
• Input and output matching cell allows an easier design
of circuits.
APPLICATIONS
Intended for use in common base class C broadband
pulse power amplifier from 960 to 1215 MHz for TACAN
application.
DESCRIPTION
NPN silicon planar epitaxial microwave power transistor in
a SOT439A metal ceramic flange package, with base
connected to flange. It is mounted in common base
configuration, and specified in class C.
PINNING - SOT439A
PIN DESCRIPTION
1 collector
2 emitter
3 base connected to flange
lumns
Top view
1
2
Fig.1 Simplified outline and symbol.
c
b
33
e
MAM045
QUICK REFERENCE DATA
Microwave performance up to T
MODE OF
OPERATION
Class C
=10µs; δ = 10%
t
p
(GHz)
0.960 to 1.215 50 >235 >7 >42 see Figs 7 and 8
=25°C in a common base class C broadband amplifier.
mb
f
V
(V)
CC
P
(W)
L
G
po
(dB)
η
(%)
C
Zi/Z
L
(Ω)
WARNING
Product and environmental safety - toxic materials
This product contains beryllium oxide. The product is entirely safe provided that the BeO slab is not damaged.
All persons who handle, use or dispose of this product should be aware of its nature and of the necessary safety
precautions. After use, dispose of as chemical or special waste according to the regulations applying at the location of
the user. It must never be thrown out with the general or domestic waste.
1997 Feb 19 2
Page 3
Philips Semiconductors Product specification
NPN microwave power transistor MX0912B251Y
LIMITING VALUES
In accordance with the Absolute Maximum Rating System (IEC 134).
SYMBOL PARAMETER CONDITIONS MIN. MAX. UNIT
V
CBO
V
CES
V
CEO
V
EBO
I
C
P
tot
T
stg
T
j
T
sld
Note
1. Up to 0.2 mm from ceramic.
collector-base voltage open emitter − 65 V
collector-emitter voltage RBE=0Ω−60 V
collector-emitter voltage open base − 20 V
emitter-base voltage open collector − 3V
collector current tp≤ 10 µs; δ≤10% − 15 A
total power dissipation
Tmb=75°C; tp≤ 10 µs; δ≤10% − 690 W
(peak power)
storage temperature −65 +200 °C
operating junction temperature − 200 °C
soldering temperature t ≤ 10 s; note 1 − 235 °C
1000
handbook, halfpage
P
tot
(W)
800
600
400
200
0
−
50 200
tp=10µs; δ = 10%; P
0
tot max
100
= 690 W.
MGL041
Tmb (°C)
Fig.2 Maximum power dissipation derating as a
function of mounting base temperature.
1997 Feb 19 3
Page 4
Philips Semiconductors Product specification
NPN microwave power transistor MX0912B251Y
THERMAL CHARACTERISTICS
T
= 125 °C unless otherwise specified.
j
SYMBOL PARAMETER CONDITIONS MAX. UNIT
R
th j-mb
R
th mb-h
Z
th j-h
Notes
1. See “
2. Equivalent thermal impedance under nominal pulse microwave operating conditions.
CHARACTERISTICS
=25°C unless otherwise specified.
T
mb
SYMBOL PARAMETER CONDITIONS MAX. UNIT
I
CBO
I
CES
I
EBO
thermal resistance from junction to mounting base CW 1.9 K/W
thermal resistance from mounting base to heatsink CW; note 1 0.2 K/W
thermal impedance from junction to heatsink tp=10µs; δ = 10%
0.28 K/W
notes 1 and 2
Mounting recommendations in the General part of handbook SC19a”
.
collector cut-off current VCB=65V; IE= 0 100 mA
V
=50V; IE= 0 10 mA
CB
collector cut-off current VCE=60V; RBE= 0 100 mA
emitter cut-off current VEB= 1.5 V; IC=0 1 mA
APPLICATION INFORMATION
Microwave performance up to T
=25°C measured in the test jig as shown in Fig.6 and working in class C broadband
mb
mode in pulse; note 1.
MODE OF OPERATION
Class C;
=10µs; δ = 10%
t
p
t
= 300 µs; δ = 10%;
p
f
(GHz)
0.960 to 1.215 50 >235
1.03 to 1.09 50 typ. 280 typ. 8 typ. 48
V
(V)
CC
(2)
P
L
(W)
typ. 275
G
po
(dB)
>7
typ. 7.4
η
C
(%)
>42
typ. 47
see Fig.5
Notes
1. Operating conditions and performance for other pulse formats can be made available on request.
2. V
during pulse.
CC
Zi/Z
L
(Ω)
see Figs 7 and 8
1997 Feb 19 4
Page 5
Philips Semiconductors Product specification
NPN microwave power transistor MX0912B251Y
300
handbook, halfpage
P
L
(W)
250
200
0.95 1.05 1.15 1.25
VCC= 50 V; tp=10µs; δ = 10%.
f (GHz)

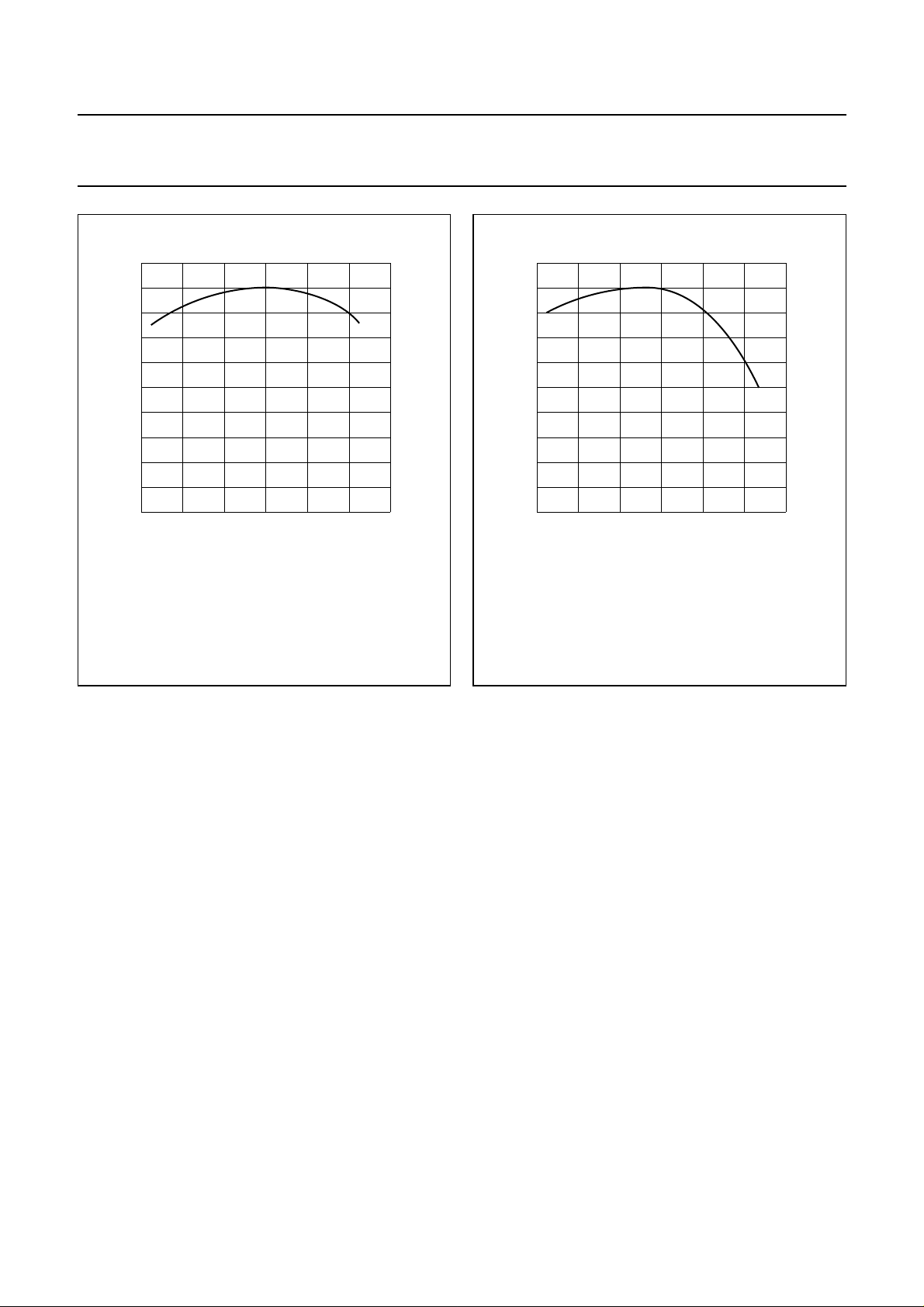

Fig.3 Load power as a function of frequency.
(In broadband test circuit as shown in Fig.6)
MGL042
50
handbook, halfpage
η
C
(%)
45
40
0.95 1.05 1.15 1.25
VCC= 50 V; tp=10µs; δ = 10%.
Fig.4 Collector efficiency as a function of
frequency. (In broadband test circuit as
shown in Fig.6)
MGL043
f (GHz)
1997 Feb 19 5
Page 6
Philips Semiconductors Product specification
NPN microwave power transistor MX0912B251Y
handbook, full pagewidth
1 µs
1 µs
300 µs
3 ms
MGK066

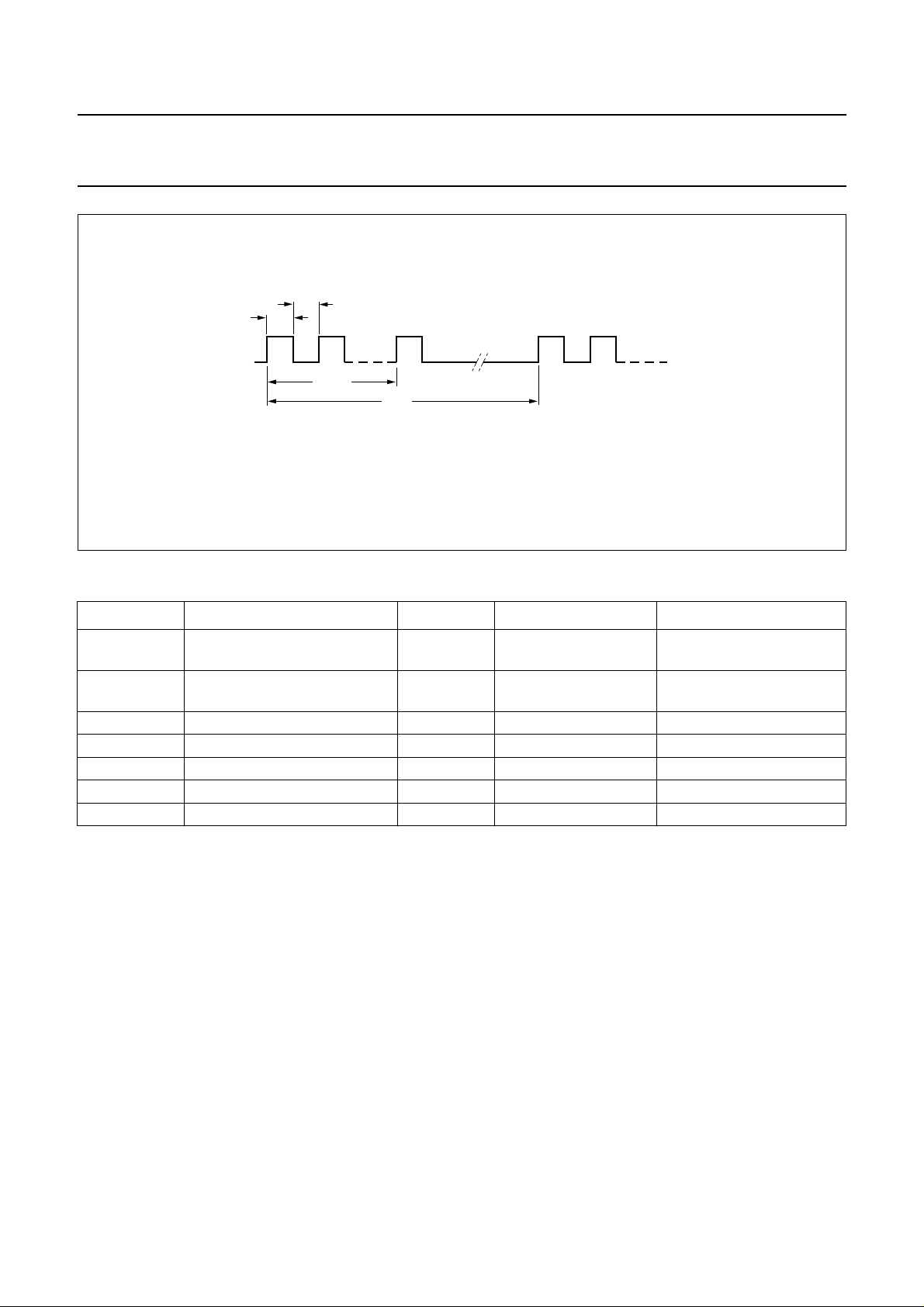

Fig.5 Pulse definition.
List of components
COMPONENT DESCRIPTION VALUE DIMENSIONS CATALOGUE NO.
L1, L2 0.65 mm diameter copper wire − total length = 12 mm;
−
height of loop = 9 mm
L3 4 turns 0.65 mm diameter
copper wire
− int. diameter 3 mm;
L=5mm
−
C1 DC block 100 pF ATC, ref. 100A101KP50X
C2 tantalum capacitor 10 µF; 50 V
C3 electrolytic capacitor 470 µF; 63 V
C4 feedthrough bypass capacitor Erie, ref. 1250-003
C5, C6 variable gigatrim capacitor 0.8 to 8 pF Tekelec, ref. 729.1
1997 Feb 19 6
Page 7
Philips Semiconductors Product specification
NPN microwave power transistor MX0912B251Y
handbook, full pagewidth
30
6
40
0.635
6
−V
CC
83323
2.5
9
5
3
22
C3
5
5
22
30
53 12
0.635
11
+V
121
40
3
CC
C4
L1
4.5 5
L2
C5 C6
Dimensions in mm.
Substrate: Epsilam 10.
Thickness: 0.635 mm.
Permittivity: εr= 10.

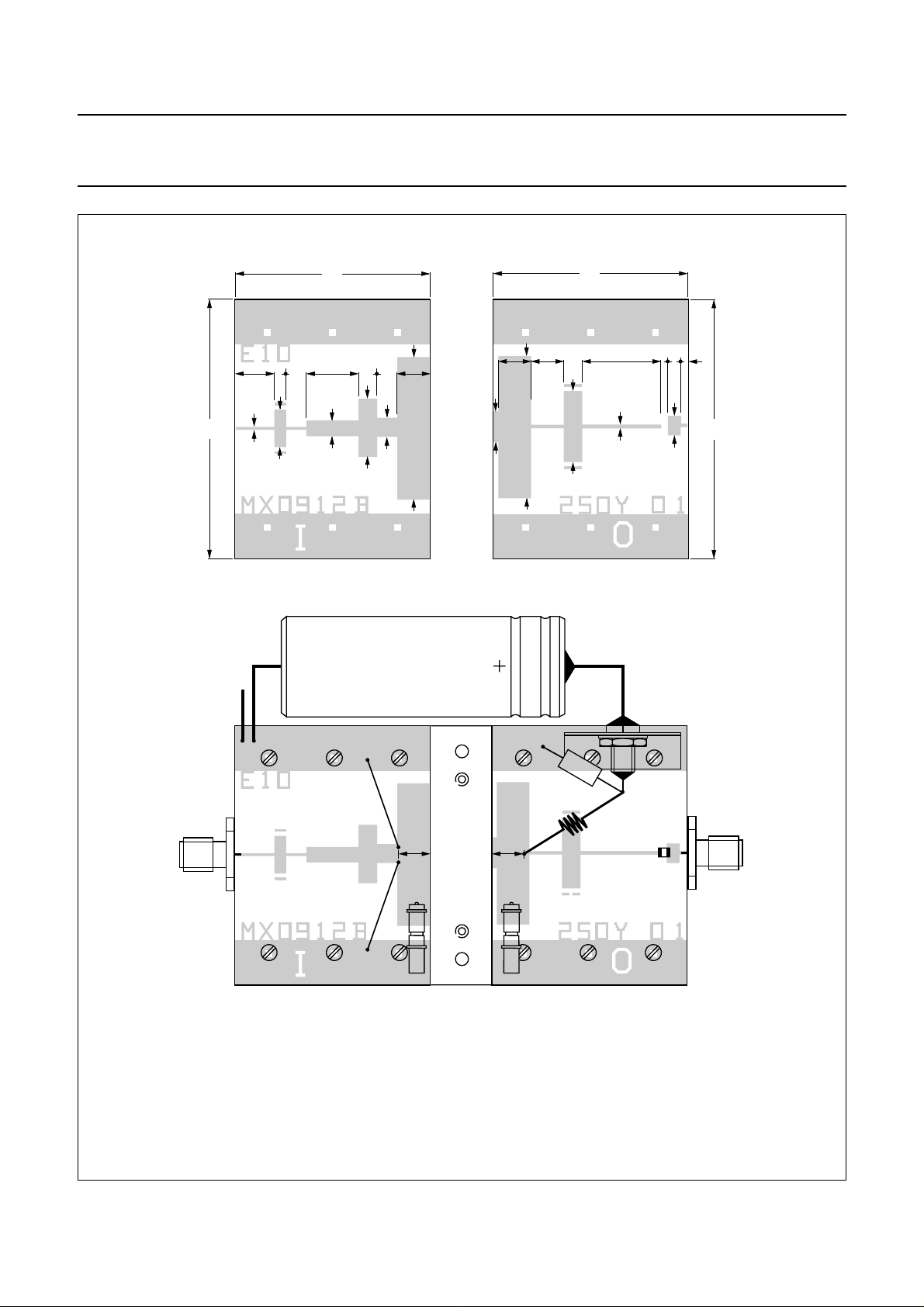

Fig.6 Broadband test circuit.
1997 Feb 19 7
L3
C1
MGK068
Page 8
Philips Semiconductors Product specification
NPN microwave power transistor MX0912B251Y
handbook, full pagewidth
VCC= 50 V; Zo=5Ω; PL= 235 W.

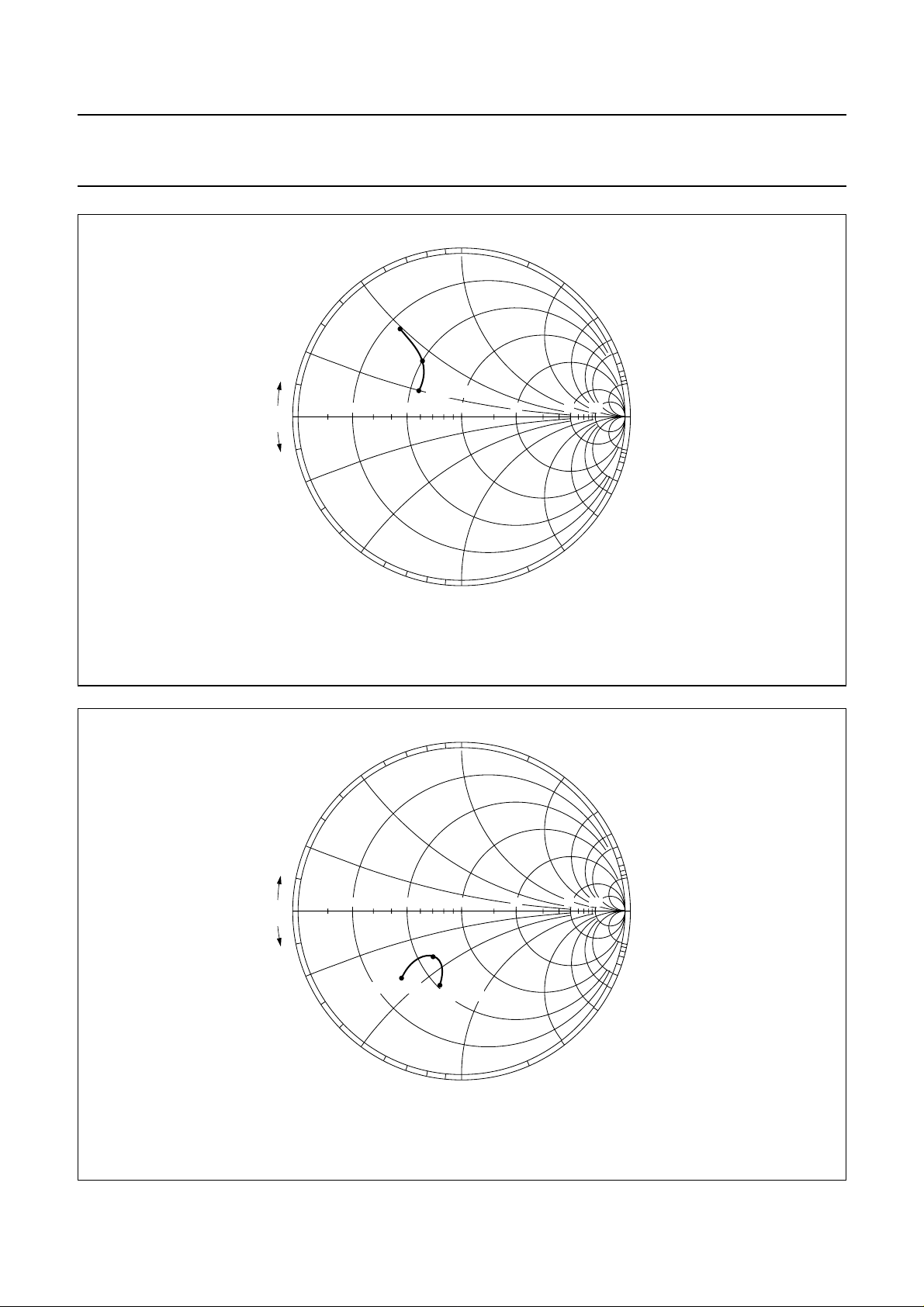

Fig.7 Input impedance as a function of frequency associated with optimum load impedance.
1
0.5
0.960 GHz
0.2
+
j
0
− j
0.2
0.2 0.5 1 2 5 10
0.5
1.215 GHz
1
2
5
10
∞
10
5
2
MGL039
handbook, full pagewidth
VCC= 50 V; Zo=5Ω; PL= 235 W.
Fig.8 Optimum load impedance as a function of frequency associated with input impedance.
1
0.5
0.2
+
j
0
− j
0.2
0.2 0.5 1 2 5 10
1.215 GHz
0.5
0.960 GHz
1
2
5
10
∞
10
5
2
MGL040
1997 Feb 19 8
Page 9
Philips Semiconductors Product specification
NPN microwave power transistor MX0912B251Y
PACKAGE OUTLINE
handbook, full pagewidth
3.3
2.9
0.15 max
3.3
seating plane
8.25
12.85 max
23 max
3.7
max
16.5
6
max
1.6 max
3
9.85
max
MBC881
2.7
min
10.3
10.0
2.7
min
1
2
Dimensions in mm.
Torque on screws: max. 0.4 Nm.
Recommended screw: M3.
Recommended pitch for mounting screws: 19 mm.

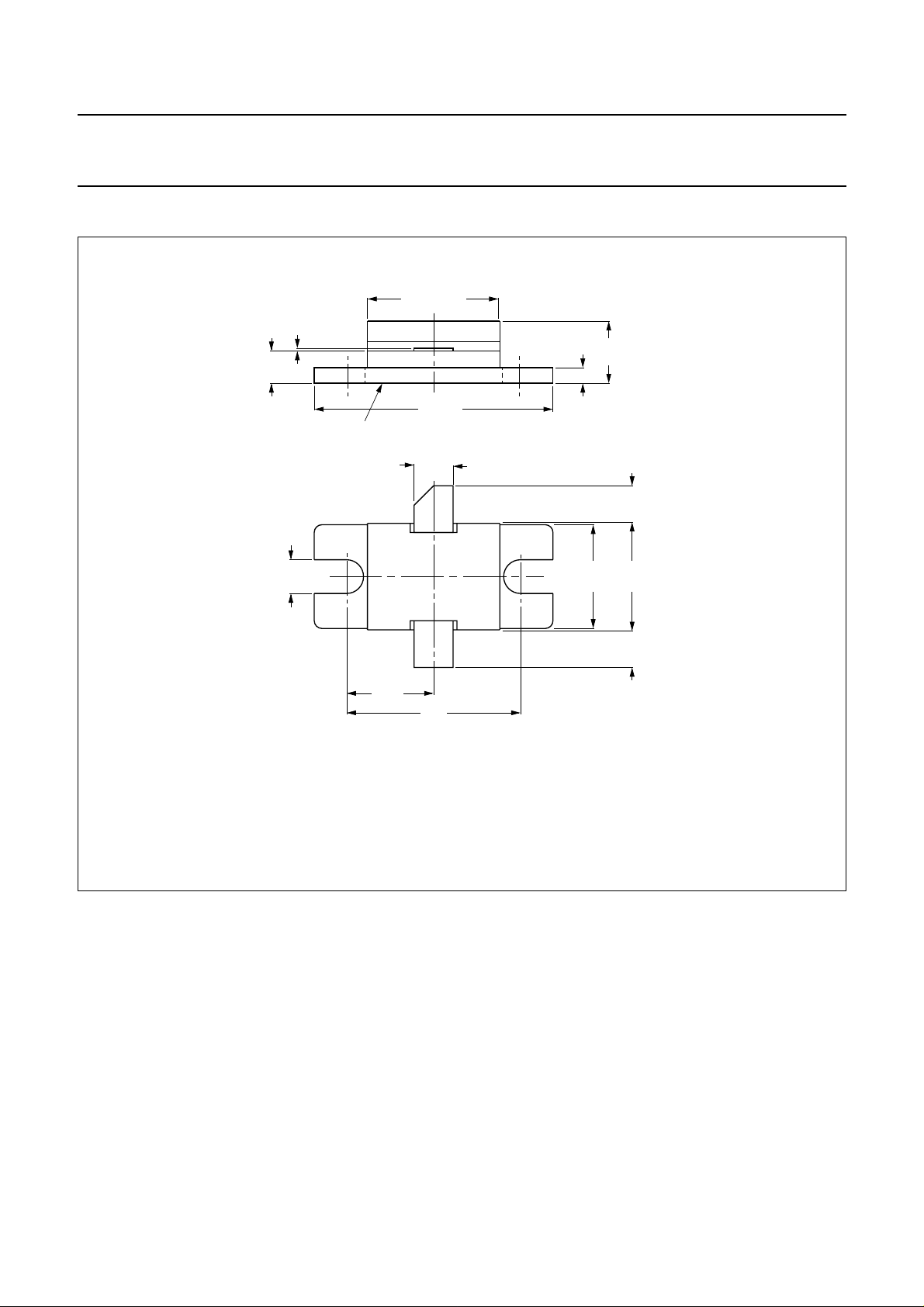

Fig.9 SOT439A.
1997 Feb 19 9
Page 10
Philips Semiconductors Product specification
NPN microwave power transistor MX0912B251Y
DEFINITIONS
Data sheet status
Objective specification This data sheet contains target or goal specifications for product development.
Preliminary specification This data sheet contains preliminary data; supplementary data may be published later.
Product specification This data sheet contains final product specifications.
Limiting values
Limiting values given are in accordance with the Absolute Maximum Rating System (IEC 134). Stress above one or
more of the limiting values may cause permanent damage to the device. These are stress ratings only and operation
of the device at these or at any other conditions above those given in the Characteristics sections of the specification
is not implied. Exposure to limiting values for extended periods may affect device reliability.
Application information
Where application information is given, it is advisory and does not form part of the specification.
LIFE SUPPORT APPLICATIONS
These products are not designed for use in life support appliances, devices, or systems where malfunction of these
products can reasonably be expected to result in personal injury. Philips customers using or selling these products for
use in such applications do so at their own risk and agree to fully indemnify Philips for any damages resulting from such
improper use or sale.
1997 Feb 19 10
Page 11
Philips Semiconductors Product specification
NPN microwave power transistor MX0912B251Y
NOTES
1997 Feb 19 11
Page 12
Philips Semiconductors – a worldwide company
Argentina: see South America
Australia: 34 Waterloo Road, NORTH RYDE, NSW 2113,
Tel. +61 2 9805 4455, Fax. +61 2 9805 4466
Austria: Computerstr. 6, A-1101 WIEN, P.O. Box 213,
Tel. +43 1 60 101, Fax. +43 1 60 101 1210
Belarus: Hotel Minsk Business Center, Bld. 3, r. 1211, Volodarski Str. 6,
220050 MINSK, Tel. +375 172 200 733, Fax. +375 172 200 773
Belgium: see The Netherlands
Brazil: seeSouth America
Bulgaria: Philips Bulgaria Ltd., Energoproject, 15thfloor,
51 James Bourchier Blvd., 1407 SOFIA,
Tel. +359 2 689 211, Fax. +359 2 689 102
Canada: PHILIPS SEMICONDUCTORS/COMPONENTS,
Tel. +1 800 234 7381
China/Hong Kong: 501 Hong Kong Industrial Technology Centre,
72 Tat Chee Avenue, Kowloon Tong, HONG KONG,
Tel. +852 2319 7888, Fax. +852 2319 7700
Colombia: see South America
Czech Republic: see Austria
Denmark: Prags Boulevard 80, PB 1919, DK-2300 COPENHAGEN S,
Tel. +45 32 88 2636, Fax. +45 31 57 1949
Finland: Sinikalliontie 3, FIN-02630 ESPOO,
Tel. +358 9 615800, Fax. +358 9 61580/xxx
France: 4 Rue du Port-aux-Vins, BP317, 92156 SURESNES Cedex,
Tel. +33 1 40 99 6161, Fax. +33 1 40 99 6427
Germany: Hammerbrookstraße 69, D-20097 HAMBURG,
Tel. +49 40 23 53 60, Fax. +49 40 23 536 300
Greece: No. 15, 25th March Street, GR 17778 TAVROS/ATHENS,
Tel. +30 1 4894 339/239, Fax. +30 1 4814 240
Hungary: seeAustria
India: Philips INDIA Ltd, Shivsagar Estate, A Block, Dr. Annie Besant Rd.
Worli, MUMBAI 400 018, Tel. +91 22 4938 541, Fax. +91 22 4938 722
Indonesia: see Singapore
Ireland: Newstead, Clonskeagh, DUBLIN 14,
Tel. +353 1 7640 000, Fax. +353 1 7640 200
Israel: RAPAC Electronics, 7 Kehilat Saloniki St, TEL AVIV 61180,
Tel. +972 3 645 0444, Fax. +972 3 649 1007
Italy: PHILIPS SEMICONDUCTORS, Piazza IV Novembre 3,
20124 MILANO, Tel. +39 2 6752 2531, Fax. +39 2 6752 2557
Japan: Philips Bldg 13-37, Kohnan 2-chome, Minato-ku, TOKYO 108,
Tel. +81 3 3740 5130, Fax. +81 3 3740 5077
Korea: Philips House, 260-199 Itaewon-dong, Yongsan-ku, SEOUL,
Tel. +82 2 709 1412, Fax. +82 2 709 1415
Malaysia: No. 76 Jalan Universiti, 46200 PETALING JAYA, SELANGOR,
Tel. +60 3 750 5214, Fax. +60 3 757 4880
Mexico: 5900 Gateway East, Suite 200, EL PASO, TEXAS 79905,
Tel. +9-5 800 234 7381
Middle East: see Italy
Netherlands: Postbus 90050, 5600 PB EINDHOVEN, Bldg. VB,
Tel. +31 40 27 82785, Fax. +31 40 27 88399
New Zealand: 2 Wagener Place, C.P.O. Box 1041, AUCKLAND,
Tel. +64 9 849 4160, Fax. +64 9 849 7811
Norway: Box 1, Manglerud 0612, OSLO,
Tel. +47 22 74 8000, Fax. +47 22 74 8341
Philippines: Philips Semiconductors Philippines Inc.,
106 Valero St. Salcedo Village, P.O. Box 2108 MCC, MAKATI,
Metro MANILA, Tel. +63 2 816 6380, Fax. +63 2 817 3474
Poland: Ul. Lukiska 10, PL 04-123 WARSZAWA,
Tel. +48 22 612 2831, Fax. +48 22 612 2327
Portugal: see Spain
Romania: see Italy
Russia: Philips Russia, Ul. Usatcheva 35A, 119048 MOSCOW,
Tel. +7 095 755 6918, Fax. +7 095 755 6919
Singapore: Lorong 1, Toa Payoh, SINGAPORE 1231,
Tel. +65 350 2538, Fax. +65 251 6500
Slovakia: see Austria
Slovenia: see Italy
South Africa: S.A. PHILIPS Pty Ltd., 195-215 Main Road Martindale,
2092 JOHANNESBURG, P.O. Box 7430 Johannesburg 2000,
Tel. +27 11 470 5911, Fax. +27 11 470 5494
South America: Rua do Rocio 220, 5th floor, Suite 51,
04552-903 São Paulo, SÃO PAULO - SP, Brazil,
Tel. +55 11 821 2333, Fax. +55 11 829 1849
Spain: Balmes 22, 08007 BARCELONA,
Tel. +34 3 301 6312, Fax. +34 3 301 4107
Sweden: Kottbygatan 7, Akalla, S-16485 STOCKHOLM,
Tel. +46 8 632 2000, Fax. +46 8 632 2745
Switzerland: Allmendstrasse 140, CH-8027 ZÜRICH,
Tel. +41 1 488 2686, Fax. +41 1 481 7730
Taiwan: Philips Semiconductors, 6F, No. 96, Chien Kuo N. Rd., Sec. 1,
TAIPEI, Taiwan Tel. +886 2 2134 2870, Fax. +886 2 2134 2874
Thailand: PHILIPS ELECTRONICS (THAILAND) Ltd.,
209/2 Sanpavuth-Bangna Road Prakanong, BANGKOK 10260,
Tel. +66 2 745 4090, Fax. +66 2 398 0793
Turkey: Talatpasa Cad. No. 5, 80640 GÜLTEPE/ISTANBUL,
Tel. +90 212 279 2770, Fax. +90 212 282 6707
Ukraine: PHILIPS UKRAINE, 4 Patrice Lumumba str., Building B, Floor 7,
252042 KIEV, Tel. +380 44 264 2776, Fax. +380 44 268 0461
United Kingdom: Philips Semiconductors Ltd., 276 Bath Road, Hayes,
MIDDLESEX UB3 5BX, Tel. +44 181 730 5000, Fax. +44 181 754 8421
United States: 811 East Arques Avenue, SUNNYVALE, CA 94088-3409,
Tel. +1 800 234 7381
Uruguay: see South America
Vietnam: see Singapore
Yugoslavia: PHILIPS, Trg N. Pasica 5/v, 11000 BEOGRAD,
Tel. +381 11 625 344, Fax.+381 11 635 777
For all other countries apply to: Philips Semiconductors, Marketing & Sales Communications,
Building BE-p, P.O. Box 218, 5600 MD EINDHOVEN, The Netherlands, Fax. +31 40 27 24825
© Philips Electronics N.V. 1997 SCA53
All rights are reserved. Reproduction in whole or in part is prohibited without the prior written consent of the copyright owner.
The information presented in this document does not form part of any quotation or contract, is believed to be accurate and reliable and may be changed
without notice. No liability will be accepted by the publisher for any consequence of its use. Publication thereof does not convey nor imply any license
under patent- or other industrial or intellectual property rights.
Internet: http://www.semiconductors.philips.com
Printed in The Netherlands 127147/00/02/pp12 Date of release: 1997 Feb 19 Document order number: 9397 750 01803
Loading...
