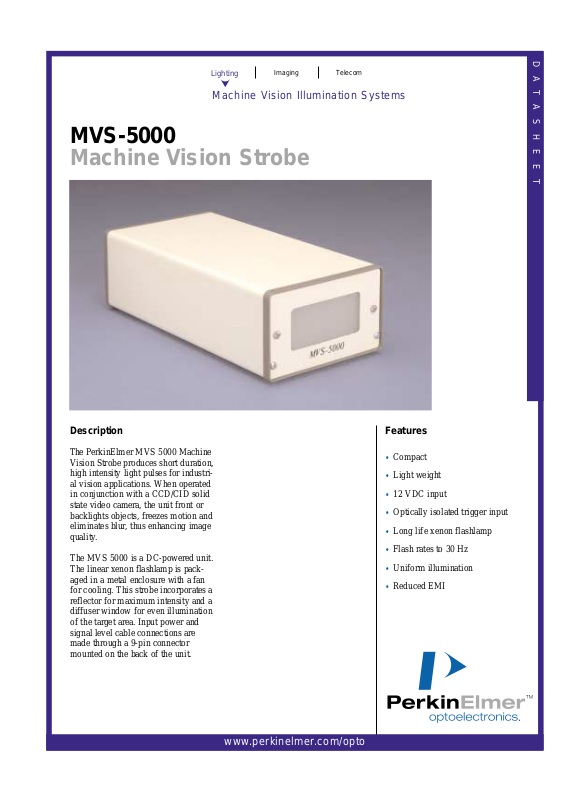

Page 1
.
MVS-5000
Machine Vision Strobe
Description
The PerkinElmer MVS 5000 Machine
Vision Strobe produces short duration,
high intensity light pulses for industrial vision applications. When operated
in conjunction with a CCD/CID solid
state video camera, the unit front or
backlights objects, freezes motion and
eliminates blur, thus enhancing image
quality.
The MVS 5000 is a DC-powered unit.
The linear xenon flashlamp is packaged in a metal enclosure with a fan
for cooling. This strobe incorporates a
reflector for maximum intensity and a
diffuser window for even illumination
of the target area. Input power and
signal level cable connections are
made through a 9-pin connector
mounted on the back of the unit.
www.perkinelmer.com/opto
DATASHEET
Lighting
Imaging
Telecom
Machine Vision Illumination Systems
Features
•
Compact
•
Light weight
•
12 VDC input
•
Optically isolated trigger input
•
Long life xenon flashlamp
•
Flash rates to 30 Hz
•
Uniform illumination
•
Reduced EMI
Page 2
Input voltage
Input current
Flashlamp voltage
Discharge capacitor
Discharge energy
Discharge power
Tirgger input: (1)
Trigger
Pulse duration
11-15 VDC
4.5 amps at 12 V (30Hz)
600 volts
8 microfarads
1.4 Joules
43 watts at 30 Hz
For more information e-mail us at opto@perkinelmer.com or visit our web site at www.perkinelmer.com/opto.
All values are nominal; specifications subject to change without notice.
© 2001 PerkinElmer inc. All rights reserved. 0601
.
USA:
PerkinElmer Optoelectronics
35 Congress Street
Salem, MA 01970
Toll Free: (800) 950-3441 (USA)
Phone: (978) 745-3200
Fax: (978) 745-0894
Europe:
PerkinElmer Optoelectronics
Wenzel-Jaksch-Str. 31, D-65199
Weisbaden, Germany
Phone: +49 (0) 611-492-437
Fax: +49 (0)611-492-159
Asia:
PerkinElmer Optoelectronics
47 Ayer Rajah Crescent #06-12
Singapore 139947
Phone: +65 775 2022
Fax: +65 775 1008
Spectral bandwidth (1)
Flash rate
Flashlamp life (3)
Flash duration (2)
Flash to flash variation
300 to 1100+ nm
30 Hz maximum
>10
8
flashes
20 microseconds
< 5%
Optical Specifications
Electrical Specifications
MVS-5000 Strobe
www.perkinelmer.com/opto
MVS 5000
2.50 (63.5)
4.13 (104.8)
DIMENSIONS
ARE IN INCHES
(MILLIMETERS)
(30.2) 1.19
2.50 (63.5)
2.06 (52.3)
1.75
(44.5)
8.38 (212.7)
2.25
(37.2)
1/4–20 FOR MOUNTING
(2 PLACES)
Mechanical Specifications
Note 1: Delay between flash command and light output is 8 microseconds typical
Note 1: Spectral bandwidth may be extended into the ultraviolet with other enclosure window materials.
Note 2: Measured at 1/3 of peak value.
Note 3: Prior to light output decreasing to 50% of the initial value.
Note 4: Area where energy is not less than 50% of maximum.
Note 5: Variations available: MVS 5002: 2.9 J at 15 Hz max and MVS 5004: .75 J at 60 Hz max
+5 volt pulse into opto-isolator with 150 ohm nominal series resistor
10 to 100 microseconds
Distance
1 foot
2 feet
3 feet
Area Illuminated
14.25 in. x 13 in.
29 in. x 28 in.
37.5 in. x 36.5 in.
Photometric
60 lux-sec
16 lux-sec
7 lux-sec
Radiometric
4.90 x 10
-5
J/cm
2
1.33 x 10-5J/cm
2
5.5 x 10-6J/cm
2
Illumination Characteristics
