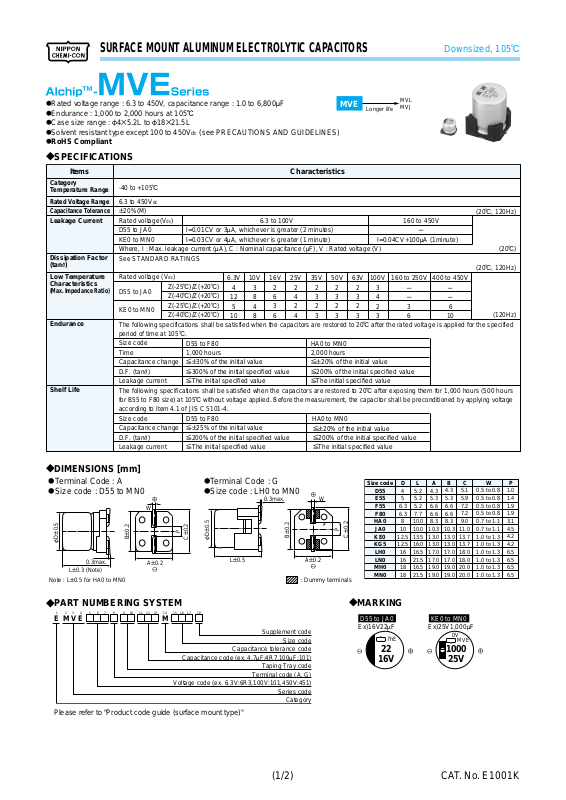

Page 1
SURFACE MOUNT ALUMINUM ELECTROLYTIC CAPACITORS
Downsized, 105
C
@Rated voltage range : 6.3 to 450V, capacitance range : 1.0 to 6,800MF
@Endurance : 1,000 to 2,000 hours at 105C
@Case size range : F4B5.2L to F18B21.5L
@Solvent resistant type except 100 to 450Vdc (see PRECAUTIONS AND GUIDELINES)
@RoHS Compliant
SPECIFICATIONS
?
Items Characteristics
Category
Temperature Range
Rated Voltage Range
Capacitance Tolerance
Leakage Current
Dissipation Factor
(tane)
Low Temperature
Characteristics
(Max. Impedance Ratio)
Endurance
Shelf Life
-40 to +105C
6.3 to 450V
dc
P20%(M)
Rated voltage(V
dc)
6.3 to 100V 160 to 450V
D55 to JA0 I=0.01CV or 3MA, whichever is greater (2 minutes)
KE0 to MN0 I=0.03CV or 4MA, whichever is greater (1 minute) I=0.04CV+100MA (1minute)
Where, I : Max. leakage current (MA), C : Nominal capacitance (MF), V : Rated voltage (V)
See STANDARD RATINGS
Rated voltage (V
D55 to JA0
KE0 to MN0
dc)
Z(-25C)/Z(+20C)
Z(-40C)/Z(+20C)
Z(-25C)/Z(+20C)
Z(-40C)/Z(+20C)
6.3V
4
12
5
10
10V
3
8
4
8
16V
2
6
3
6
25V
2
4
2
4
35V
2
3
2
3
50V
The following specifications shall be satisfied when the capacitors are restored to 20C after the rated voltage is applied for the specified
period of time at 105C.
Size code
Time 1,000 hours
Capacitance change [P30% of the initial value
D.F. (tanE) [300% of the initial specified value
Leakage current [The initial specified value
D55 to F80 HA0 to MN0
2,000 hours
[P20% of the initial value
[200% of the initial specified value
[The initial specified value
The following specifications shall be satisfied when the capacitors are restored to 20C after exposing them for 1,000 hours (500 hours
for B55 to F80 size) at 105C without voltage applied. Before the measurement, the capacitor shall be preconditioned by applying voltage
according to Item 4.1 of JIS C 5101-4.
Size code
D55 to F80
Capacitance change [P25% of the initial value
D.F. (tanE) [200% of the initial specified value
Leakage current [The initial specified value
HA0 to MN0
[P20% of the initial value
[200% of the initial specified value
[The initial specified value
MVE
2
3
2
3
63V
2
3
2
3
Longer life
100V
3
4
2
3
MVL
MVJ
-
160 to 250V
-
3
6
400 to 450V
-
6
10
(20C, 120Hz)
(20C)
(20C, 120Hz)
(120Hz)
?DIMENSIONS [mm]
@Terminal Code : A
@Size code : D55 to MN0
W
FDP0.5
0.3max.
LP0.3 (Note)
Note : LP0.5 for HA0 to MN0
PART NUMBERING SYSTEM
?
13426789105121311 16 17 181514
E MV E A A A A AA A A A A A A NM
Please refer to "Product code guide (surface mount type)"
BP0.2
AP0.2
Voltage code (ex. 6.3V:6R3,100V:101,450V:451)
@Terminal Code : G
@Size code : LH0 to MN0
P
CP0.2
FDP0.5
Capacitance code (ex. 4.7MF:4R7,100MF:101)
0.3max.
BP0.2
LP0.5
Supplement code
Size code
Capacitance tolerance code
Taping·Tray code
Terminal code (A, G)
Series code
Category
W
P
AP0.2
: Dummy terminals
D55
E55
F55
F80
HA0
JA0
KE0
KG5
LH0
LN0
MH0
MN0
D
6.3
6.3
10
12.5
12.5
16
16
18
18
4
5
8
5.2
5.2
7.7
10.0
10.0
13.5
16.0
16.5
21.5
16.5
21.5
5.3
6.6
6.6
8.3
10.3
13.0
13.0
17.0
17.0
19.0
19.0
4.3
5.2
Size code
CP0.2
MARKING
?
A
L
D55 to JA0 KE0 to MN0
Ex)16V22MF
7hE
Ex)25V1,000MF
22
16V
B
4.3
5.3
6.6
6.6
8.3
10.3
13.0
13.0
17.0
17.0
19.0
19.0
0V
1000
25V
5.1
5.9
7.2
7.2
9.0
11.0
13.7
13.7
18.0
18.0
20.0
20.0
MVE
C
W
0.5 to 0.8
0.5 to 0.8
0.5 to 0.8
0.5 to 0.8
0.7 to 1.1
0.7 to 1.1
1.0 to 1.3
1.0 to 1.3
1.0 to 1.3
1.0 to 1.3
1.0 to 1.3
1.0 to 1.3
P
1.0
1.4
1.9
1.9
3.1
4.5
4.2
4.2
6.5
6.5
6.5
6.5
(1/2)
CAT. No. E1001K
Page 2
SURFACE MOUNT ALUMINUM ELECTROLYTIC CAPACITORS
STANDARD RATINGS
?
Cap
WV
dc)
(V
22 D55 0.30 22
33 E55 0.30 34
47 E55 0.30 38
100 F55 0.30 69
220 F80 0.45 120
330 HA0 0.40 290
470 HA0 0.45 320
680 HA0 0.45 340
1,000 JA0 0.40 410
6.3
1,500 JA0 0.45 550
2,200 KE0 0.40 680
2,200 LH0 0.40 840
3,300 KG5 0.42 850
3,300 MH0 0.42 1,000
4,700 LN0 0.44 1,200
4,700 MH0 0.44 1,200
6,800 LN0 0.48 1,200
6,800 MN0 0.48 1,350
22 E55 0.24 30
33 E55 0.24 34
47 F55 0.24 48
100 F55 0.30 69
150 F80 0.35 100
220 F80 0.35 120
330 HA0 0.35 290
10
470 HA0 0.35 320
1,000 JA0 0.35 410
2,200 KG5 0.36 750
2,200 LH0 0.36 850
3,300 LH0 0.38 1,000
3,300 MH0 0.38 1,100
4,700 LN0 0.40 1,300
4,700 MN0 0.40 1,350
10 D55 0.20 17
22 E55 0.20 30
33 F55 0.20 45
47 F55 0.20 48
100 F55 0.26 69
150 F80 0.28 100
220 F80 0.28 120
330 HA0 0.28 290
16
470 HA0 0.28 320
680 JA0 0.28 470
1,000 KE0 0.30 550
1,000 LH0 0.30 650
2,200 LH0 0.32 950
2,200 MH0 0.32 1,000
3,300 LN0 0.34 1,200
3,300 MH0 0.34 1,200
10 E55 0.16 27
22 F55 0.16 44
33 F55 0.16 50
47 F55 0.16 60
100 F80 0.18 100
150 HA0 0.18 240
25
220 HA0 0.18 320
330 JA0 0.16 450
470 JA0 0.18 490
1,000 LH0 0.26 820
1,000 MH0 0.26 880
2,200 LN0 0.28 1,250
2,200 MN0 0.28 1,300
4.7 D55 0.14 16
10 E55 0.14 27
22 F55 0.14 44
35
47 F80 0.16 80
100 F80 0.16 100
150 HA0 0.16 260
220 JA0 0.16 375
: Enter the appropriate terminal code.
S
(mF)
Size code
tane
Rated ripple
current
(mArms/
105c,120Hz)
Part No.
EMVE6R3ADA220MD55G
EMVE6R3ADA330ME55G
EMVE6R3ADA470ME55G
EMVE6R3ADA101MF55G
EMVE6R3ADA221MF80G
EMVE6R3ADA331MHA0G
EMVE6R3ADA471MHA0G
EMVE6R3ADA681MHA0G
EMVE6R3ADA102MJA0G
EMVE6R3ADA152MJA0G
EMVE6R3ARA222MKE0S
EMVE6R3SDA222MLH0S
EMVE6R3ARA332MKG5S
EMVE6R3SDA332MMH0S
EMVE6R3SDA472MLN0S
EMVE6R3SDA472MMH0S
EMVE6R3SDA682MLN0S
EMVE6R3SDA682MMN0S
EMVE100ADA220ME55G
EMVE100ADA330ME55G
EMVE100ADA470MF55G
EMVE100ADA101MF55G
EMVE100ADA151MF80G
EMVE100ADA221MF80G
EMVE100ADA331MHA0G
EMVE100ADA471MHA0G
EMVE100ADA102MJA0G
EMVE100ARA222MKG5S
EMVE100SDA222MLH0S
EMVE100SDA332MLH0S
EMVE100SDA332MMH0S
EMVE100SDA472MLN0S
EMVE100SDA472MMN0S
EMVE160ADA100MD55G
EMVE160ADA220ME55G
EMVE160ADA330MF55G
EMVE160ADA470MF55G
EMVE160ADA101MF55G
EMVE160ADA151MF80G
EMVE160ADA221MF80G
EMVE160ADA331MHA0G
EMVE160ADA471MHA0G
EMVE160ADA681MJA0G
EMVE160ARA102MKE0S
EMVE160SDA102MLH0S
EMVE160SDA222MLH0S
EMVE160SDA222MMH0S
EMVE160SDA332MLN0S
EMVE160SDA332MMH0S
EMVE250ADA100ME55G
EMVE250ADA220MF55G
EMVE250ADA330MF55G
EMVE250ADA470MF55G
EMVE250ADA101MF80G
EMVE250ADA151MHA0G
EMVE250ADA221MHA0G
EMVE250ADA331MJA0G
EMVE250ADA471MJA0G
EMVE250SDA102MLH0S
EMVE250SDA102MMH0S
EMVE250SDA222MLN0S
EMVE250SDA222MMN0S
EMVE350ADA4R7MD55G
EMVE350ADA100ME55G
EMVE350ADA220MF55G
EMVE350ADA470MF80G
EMVE350ADA101MF80G
EMVE350ADA151MHA0G
EMVE350ADA221MJA0G
Cap
WV
dc)
(V
330 JA0 0.16 450
470 KE0 0.22 520
470 LH0 0.22 650
35
1,000 LH0 0.22 750
1,000 MH0 0.22 1,000
2,200 MN0 0.24 1,450
1.0 D55 0.12 8.0
2.2 D55 0.12 12
3.3 D55 0.12 15
4.7 E55 0.12 20
10 F55 0.12 32
33 F80 0.14 65
47 F80 0.14 80
50
100 HA0 0.14 230
220 JA0 0.14 375
330 KE0 0.18 500
330 LH0 0.18 600
470 LH0 0.18 700
470 MH0 0.18 750
1,000 MN0 0.18 1,200
1.0 D55 0.12 8.0
2.2 D55 0.12 12
3.3 E55 0.12 17
4.7 F55 0.12 22
10 F55 0.12 32
22 F80 0.12 58
33 HA0 0.12 140
63
47 HA0 0.12 170
100 JA0 0.12 310
220 KE0 0.14 470
220 LH0 0.14 560
330 LH0 0.14 700
330 MH0 0.14 750
470 LN0 0.14 900
470 MH0 0.14 900
22 HA0 0.12 100
33 JA0 0.12 150
47 KE0 0.10 250
68 KE0 0.10 300
100
100 KE0 0.10 380
100 LH0 0.10 450
220 LN0 0.10 750
220 MH0 0.10 750
330 MN0 0.10 980
33 KE0 0.15 95
47 LH0 0.15 260
160
68 LN0 0.15 320
68 MH0 0.15 320
100 LN0 0.15 380
10 KE0 0.15 80
22 KG5 0.15 110
33 LH0 0.15 220
200
47 LN0 0.15 270
47 MH0 0.15 270
68 MN0 0.15 330
4.7 KE0 0.15 65
10 KG5 0.15 105
22 LH0 0.15 180
250
33 LN0 0.15 230
33 MH0 0.15 230
47 MN0 0.15 280
4.7 KG5 0.20 50
400
10 LH0 0.20 85
22 MN0 0.20 130
3.3 KE0 0.20 40
4.7 KG5 0.20 50
450
10 LH0 0.20 85
22 MN0 0.20 130
(mF)
Size code
tane
Rated ripple
current
(mArms/
105c,120Hz)
Downsized, 105
is not solvent resistant.
Part No.
EMVE350ADA331MJA0G
EMVE350ARA471MKE0S
EMVE350SDA471MLH0S
EMVE350SDA102MLH0S
EMVE350SDA102MMH0S
EMVE350SDA222MMN0S
EMVE500ADA1R0MD55G
EMVE500ADA2R2MD55G
EMVE500ADA3R3MD55G
EMVE500ADA4R7ME55G
EMVE500ADA100MF55G
EMVE500ADA330MF80G
EMVE500ADA470MF80G
EMVE500ADA101MHA0G
EMVE500ADA221MJA0G
EMVE500ARA331MKE0S
EMVE500SDA331MLH0S
EMVE500SDA471MLH0S
EMVE500SDA471MMH0S
EMVE500SDA102MMN0S
EMVE630ADA1R0MD55G
EMVE630ADA2R2MD55G
EMVE630ADA3R3ME55G
EMVE630ADA4R7MF55G
EMVE630ADA100MF55G
EMVE630ADA220MF80G
EMVE630ADA330MHA0G
EMVE630ADA470MHA0G
EMVE630ADA101MJA0G
EMVE630ARA221MKE0S
EMVE630SDA221MLH0S
EMVE630SDA331MLH0S
EMVE630SDA331MMH0S
EMVE630SDA471MLN0S
EMVE630SDA471MMH0S
EMVE101ADA220MHA0G
EMVE101ADA330MJA0G
EMVE101ARA470MKE0S
EMVE101ARA680MKE0S
EMVE101ARA101MKE0S
EMVE101SDA101MLH0S
EMVE101SDA221MLN0S
EMVE101SDA221MMH0S
EMVE101SDA331MMN0S
EMVE161ARA330MKE0S
EMVE161SDA470MLH0S
EMVE161SDA680MLN0S
EMVE161SDA680MMH0S
EMVE161SDA101MLN0S
EMVE201ARA100MKE0S
EMVE201ARA220MKG5S
EMVE201SDA330MLH0S
EMVE201SDA470MLN0S
EMVE201SDA470MMH0S
EMVE201SDA680MMN0S
EMVE251ARA4R7MKE0S
EMVE251ARA100MKG5S
EMVE251SDA220MLH0S
EMVE251SDA330MLN0S
EMVE251SDA330MMH0S
EMVE251SDA470MMN0S
EMVE401ARA4R7MKG5S
EMVE401SDA100MLH0S
EMVE401SDA220MMN0S
EMVE451ARA3R3MKE0S
EMVE451ARA4R7MKG5S
EMVE451SDA100MLH0S
EMVE451SDA220MMN0S
C
(2/2)
CAT. No. E1001K
