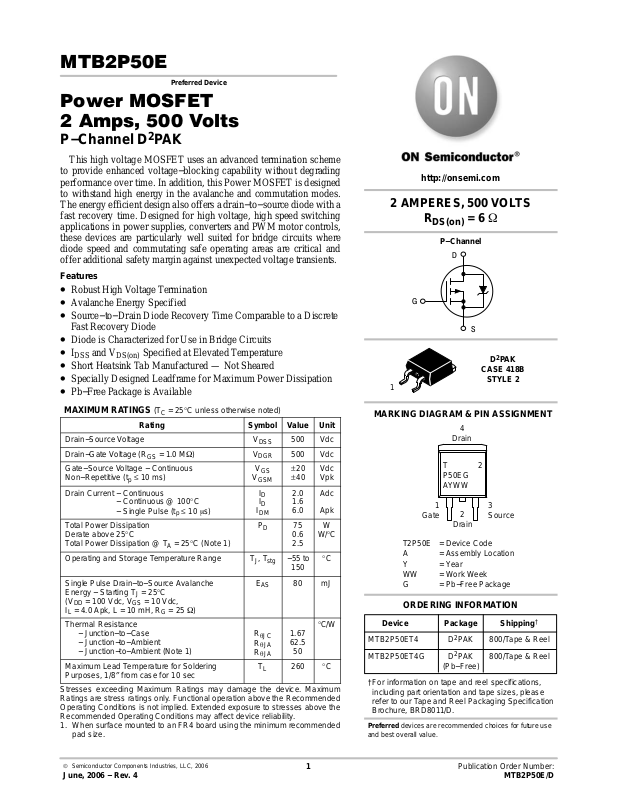

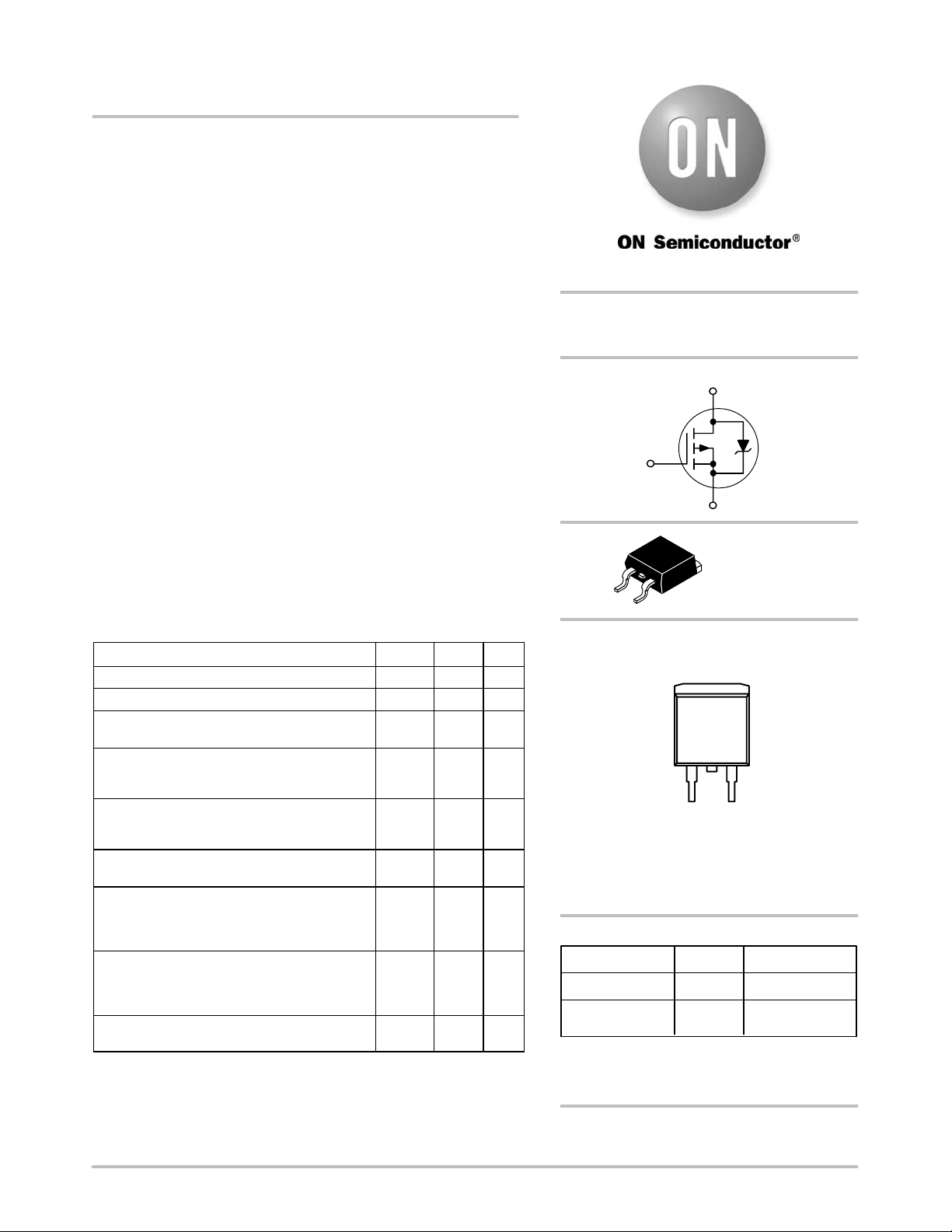

MTB2P50E

and best overall value.

Preferred Device

Power MOSFET
2 Amps, 500 Volts

P−Channel D2PAK

This high voltage MOSFET uses an advanced termination scheme
to provide enhanced voltage−blocking capability without degrading
performance over time. In addition, this Power MOSFET is designed
to withstand high energy in the avalanche and commutation modes.
The energy efficient design also offers a drain−to−source diode with a
fast recovery time. Designed for high voltage, high speed switching
applications in power supplies, converters and PWM motor controls,
these devices are particularly well suited for bridge circuits where
diode speed and commutating safe operating areas are critical and
offer additional safety margin against unexpected voltage transients.

Features

• Robust High Voltage Termination

• Avalanche Energy Specified

• Source−to−Drain Diode Recovery Time Comparable to a Discrete

Fast Recovery Diode

• Diode is Characterized for Use in Bridge Circuits

• I

and V

DSS

• Short Heatsink Tab Manufactured — Not Sheared

• Specially Designed Leadframe for Maximum Power Dissipation

• Pb−Free Package is Available

Specified at Elevated Temperature

DS(on)

http://onsemi.com

2 AMPERES, 500 VOLTS

R

DS(on)

G

1

= 6 W

P−Channel

D

S

D2PAK

CASE 418B

STYLE 2

MAXIMUM RATINGS (T

Drain−Source Voltage V
Drain−Gate Voltage (RGS = 1.0 MW)
Gate−Source Voltage − Continuous

Non−Repetitive (tp ≤ 10 ms)
Drain Current − Continuous

Drain Current − Continuous @ 100°C
Drain Current − Single Pulse (tp ≤ 10 ms)

Total Power Dissipation
Derate above 25°C
Total Power Dissipation @ TA = 25°C (Note 1)

Operating and Storage Temperature Range TJ, T

Single Pulse Drain−to−Source Avalanche
Energy − Starting TJ = 25°C
(VDD = 100 Vdc, VGS = 10 Vdc,
IL = 4.0 Apk, L = 10 mH, RG = 25 W)

Thermal Resistance

− Junction−to−Case

− Junction−to−Ambient

− Junction−to−Ambient (Note 1)

Maximum Lead Temperature for Soldering
Purposes, 1/8″ from case for 10 sec

Stresses exceeding Maximum Ratings may damage the device. Maximum
Ratings are stress ratings only. Functional operation above the Recommended
Operating Conditions is not implied. Extended exposure to stresses above the
Recommended Operating Conditions may affect device reliability.

1. When surface mounted to an FR4 board using the minimum recommended

pad size.

= 25°C unless otherwise noted)

C

Rating Symbol Value Unit

D
D

D

JC
JA
JA

L

stg

500 Vdc
500 Vdc

± 20
± 40

2.0

1.6

6.0
75

0.6

2.5

−55 to
150

80 mJ

1.67

62.5
50

260 °C

Vdc
Vpk

Adc
Apk

W

W/°C

°C

°C/W

V

V

R
R
R

DSS
DGR

V

GSM

I
I

I

DM

P

E

T

GS

AS

q
q
q

MARKING DIAGRAM & PIN ASSIGNMENT

4

Drain

T2
P50EG
AYWW

1

Gate

Drain

T2P50E = Device Code
A = Assembly Location
Y = Year
WW = Work Week
G = Pb−Free Package

3

2

Source

ORDERING INFORMATION

Device Package Shipping

MTB2P50ET4 D2PAK 800/Tape & Reel
MTB2P50ET4G D2PAK

(Pb−Free)

†For information on tape and reel specifications,

including part orientation and tape sizes, please
refer to our Tape and Reel Packaging Specification
Brochure, BRD8011/D.

Preferred devices are recommended choices for future use

800/Tape & Reel

†

© Semiconductor Components Industries, LLC, 2006

June, 2006 − Rev. 4

1 Publication Order Number:

MTB2P50E/D

MTB2P50E

)

ELECTRICAL CHARACTERISTICS (T

= 25°C unless otherwise noted)

J

Characteristic Symbol Min Typ Max Unit

OFF CHARACTERISTICS

Drain−Source Breakdown Voltage

(VGS = 0 Vdc, ID = 250 mAdc)
Temperature Coefficient (Positive)

Zero Gate Voltage Drain Current

(VDS = 500 Vdc, VGS = 0 Vdc)
(VDS = 500 Vdc, VGS = 0 Vdc, TJ = 125°C)

Gate−Body Leakage Current (VGS = ± 20 Vdc, VDS = 0) I

ON CHARACTERISTICS (Note 2)

Gate Threshold Voltage

(VDS = VGS, ID = 250 mAdc)
Temperature Coefficient (Negative)

Static Drain−Source On−Resistance (VGS = 10 Vdc, ID = 1.0 Adc) R
Drain−Source On−Voltage (VGS = 10 Vdc)

(ID = 2.0 Adc)
(ID = 1.0 Adc, TJ = 125°C)

Forward Transconductance (VDS = 15 Vdc, ID = 1.0 Adc) g

DYNAMIC CHARACTERISTICS

Input Capacitance
Output Capacitance C

(VDS = 25 Vdc, VGS = 0 Vdc, f = 1.0 MHz)

Reverse Transfer Capacitance C

SWITCHING CHARACTERISTICS (Note 3)

Turn−On Delay Time
Rise Time t
Turn−Off Delay Time t

(VDD = 250 Vdc, ID = 2.0 Adc,

VGS = 10 Vdc, RG = 9.1 W)

Fall Time t
Gate Charge (See Figure 8)

(VDS = 400 Vdc, ID = 2.0 Adc, VGS = 10 Vdc

SOURCE−DRAIN DIODE CHARACTERISTICS

Forward On−Voltage (Note 2)

(IS = 2.0 Adc, VGS = 0 Vdc)

(IS = 2.0 Adc, VGS = 0 Vdc, TJ = 125°C)

Reverse Recovery Time
(See Figure 14)

(IS = 2.0 Adc, VGS = 0 Vdc,

dIS/dt = 100 A/ms)

Reverse Recovery Stored Charge Q

INTERNAL PACKAGE INDUCTANCE

Internal Drain Inductance

(Measured from the drain lead 0.25″ from package to center of die)

Internal Source Inductance

(Measured from the source lead 0.25″ from package to source bond pad)

2. Pulse Test: Pulse Width ≤ 300 ms, Duty Cycle ≤ 2%.

3. Switching characteristics are independent of operating junction temperature.

V

(BR)DSS

I

DSS

GSS

V

GS(th)

DS(on)

V

DS(on)

C

t

d(on)

d(off)

Q
Q
Q
Q

V

L

L

t
t
t

FS

iss
oss
rss

r

f

SD

rr

a

b
RR

D

S

500

−

−

564

−

Vdc

−

mV/°C

mAdc

−

−

−

−

10

100

− − 100 nAdc

2.0

−

− 4.5 6.0

3.0

4.0

4.0

Vdc

−

mV/°C

W

Vdc

−

−

9.5

−

12.6

14.4

1.5 2.9 − mhos

− 845 1183 pF

− 100 140

− 26 52

− 12 24 ns

− 14 28

− 21 42

− 19 38

T
1
2
3

− 19 27 nC

− 3.7 −

− 7.9 −

− 9.9 −

Vdc

−

−

− 223 −

2.3

1.85

3.5

−
ns

− 161 −

− 62 −

− 1.92 −

mC

nH

− 4.5 −

− 7.5 − nH

2

http://onsemi.com

MTB2P50E

TYPICAL ELECTRICAL CHARACTERISTICS

4

TJ = 25°C VDS ≥ 10 V

3.5

3

2.5

2

1.5

, DRAIN CURRENT (AMPS)

1

D

I

0.5

0

04 8 28

VDS, DRAIN−TO−SOURCE VOLTAGE (VOLTS)

VGS = 10 V

12 16

6 V

5 V

4 V

20 24

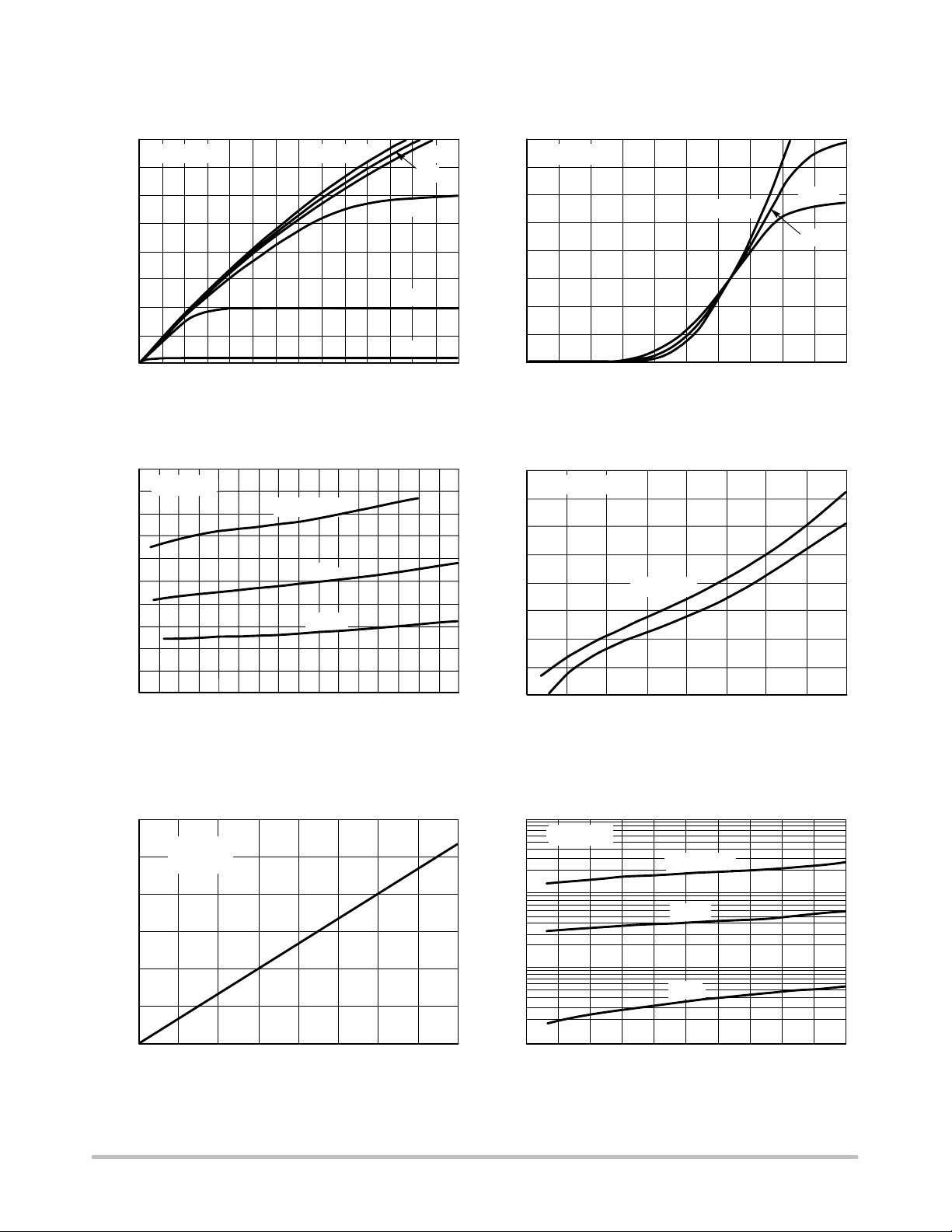

Figure 1. On−Region Characteristics

10

VGS = 10 V

8

6

4

2

, DRAIN-TO-SOURCE RESISTANCE (OHMS)

DS(on)

0

R

0 1 2 2.5 3.5 4

ID, DRAIN CURRENT (AMPS)

TJ = 100°C

25°C

−55°C

31.50.5

7 V

8 V

4

3.5

3

2.5

2

1.5

, DRAIN CURRENT (AMPS)

1

D

I

0.5

0

234567

2.5 3.5 4.5 5.5 6.5

VGS, GATE−TO−SOURCE VOLTAGE (VOLTS)

TJ = − 55°C

100°C

25°C

Figure 2. Transfer Characteristics

6

5.75

5.5

5.25

4.75

4.5

, DRAIN-TO-SOURCE RESISTANCE (OHMS)

4.25

DS(on)

R

TJ = 25°C

5

4

01 2 3 4

0.5 1.5 2.5 3.5

VGS = 10 V

15 V

ID, DRAIN CURRENT (AMPS)

Figure 3. On−Resistance versus Drain Current

and Temperature

2

VGS = 10 V
ID = 1 A

1.5

(NORMALIZED)

1

, DRAIN-TO-SOURCE RESISTANCE

DS(on)

R

0.5

−50 −25 0 25 50 75 100 125 150 0 10050 150 200 250 500300 350 400 450

TJ, JUNCTION TEMPERATURE (°C)

Figure 5. On−Resistance Variation with

Temperature

Figure 4. On−Resistance versus Drain Current

and Gate Voltage

1000

100

, LEAKAGE (nA)

DSS

I

VGS = 0 V

TJ = 125°C

100°C

10

25°C

1

VDS, DRAIN−TO−SOURCE VOLTAGE (VOLTS)

Figure 6. Drain−To−Source Leakage

Current versus Voltage

http://onsemi.com

3

MTB2P50E

POWER MOSFET SWITCHING

Switching behavior is most easily modeled and predicted
by recognizing that the power MOSFET is charge
controlled. The lengths of various switching intervals (Dt)
are determined by how fast the FET input capacitance can
be charged by current from the generator.

The published capacitance data is difficult to use for
calculating rise and fall because drain−gate capacitance
varies greatly with applied voltage. Accordingly, gate
charge data is used. In most cases, a satisfactory estimate of
average input current (I

) can be made from a

G(AV)

rudimentary analysis of the drive circuit so that
t = Q/I

G(AV)

During the rise and fall time interval when switching a
resistive load, VGS remains virtually constant at a level
known as the plateau voltage, V

. Therefore, rise and fall

SGP

times may be approximated by the following:
tr = Q2 x RG/(VGG − V
tf = Q2 x RG/V

GSP

GSP

)

where
VGG = the gate drive voltage, which varies from zero to V

GG

RG = the gate drive resistance
and Q2 and V

are read from the gate charge curve.

GSP

During the turn−on and turn−off delay times, gate current is
not constant. The simplest calculation uses appropriate
values from the capacitance curves in a standard equation for
voltage change in an RC network. The equations are:

t

d(on)

t

d(off)

= RG C

= RG C

In [VGG/(V

iss

In (VGG/V

iss

GG

GSP

− V

)

GSP

)]

The capacitance (C

) is read from the capacitance curve at

iss

a voltage corresponding to the off−state condition when
calculating t
on−state when calculating t

and is read at a voltage corresponding to the

d(on)

.

d(off)

At high switching speeds, parasitic circuit elements
complicate the analysis. The inductance of the MOSFET
source lead, inside t he package and in the circuit wiring which
is common to both the drain a nd gate c urrent p aths, p roduces
a voltage at the source which reduces the gate drive current.
The voltage is determined by Ldi/dt, but since di/dt is a
function of drain current, the mathematical solution is
complex. The MOSFET output c apacitance also c omplicates
the mathematics. And finally, MOSFETs have finite internal
gate resistance which effectively adds to the resistance of the
driving source, but the internal resistance is difficult to
measure and, consequently, is not specified.

The resistive switching time variation versus gate
resistance (Figure 9) shows how typical switching
performance is affected by the parasitic circuit elements. If
the parasitics were not present, the slope of the curves would
maintain a value of unity regardless of the switching speed.
The circuit used to obtain the data is constructed to minimize
common inductance in the drain and gate circuit loops and
is believed readily achievable with board mounted
components. Most power electronic loads are inductive; the
data in the figure is taken with a resistive load, which
approximates an optimally snubbed inductive load. Power
MOSFETs may be safely operated into an inductive load;
however, snubbing reduces switching losses.

1800

1600

1400

1200

1000

C, CAPACITANCE (pF)

VDS = 0 V

C

iss

800

600

C

rss

400

200

0

10 5 0 5 10 15 20 25

V

GS

GATE−TO−SOURCE OR DRAIN−TO−SOURCE VOLTAGE (VOLTS)

VGS = 0 V

C

rss

V

DS

C

iss

C

oss

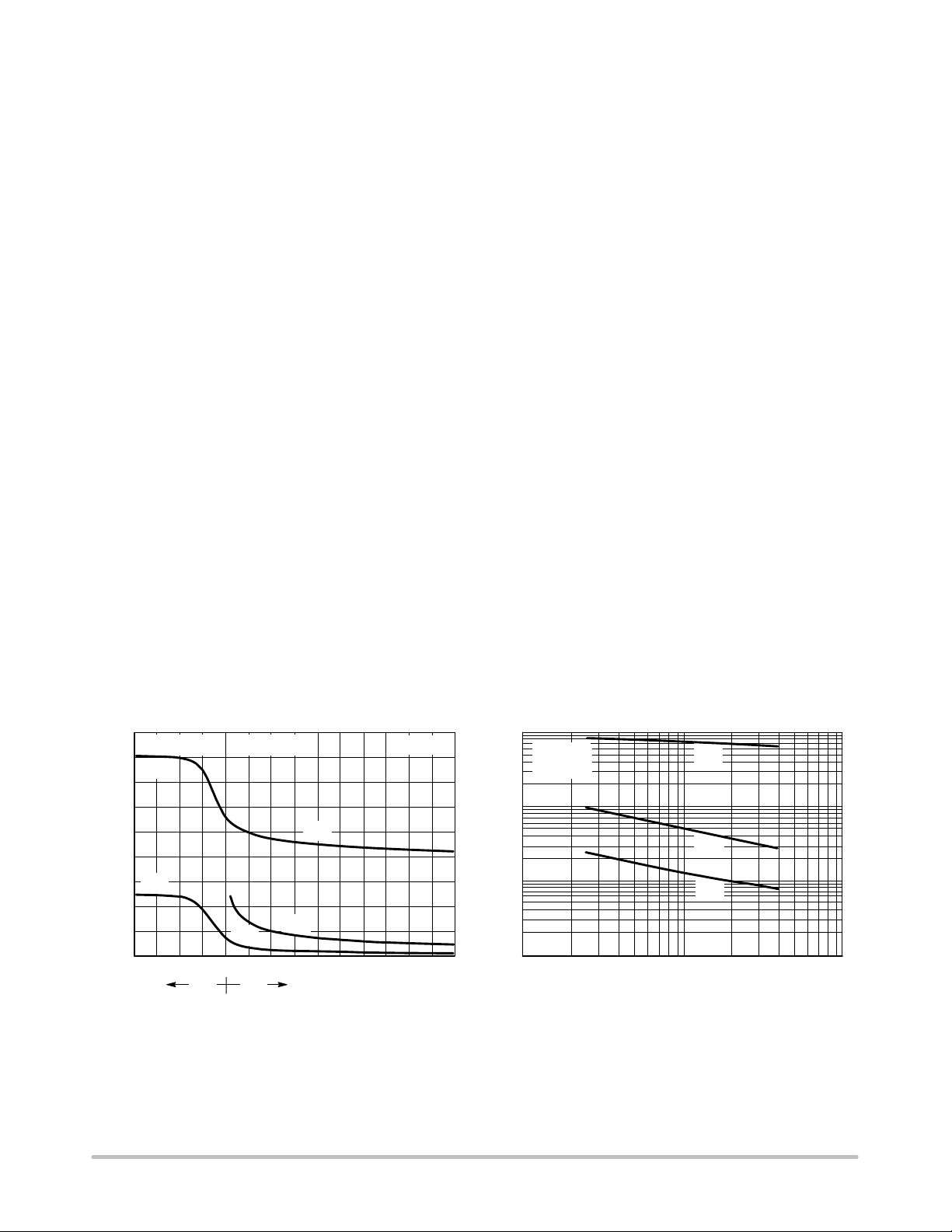

Figure 7a. Capacitance Variation

TJ = 25°C

C, CAPACITANCE (pF)

http://onsemi.com

4

1000

VGS = 0 V
TJ = 25°C

100

10

1

10 100 1000

VDS, DRAIN−TO−SOURCE VOLTAGE (VOLTS)

C

iss

C

oss

C

rss

Figure 7b. High Voltage Capacitance

Variation

MTB2P50E

, GATE-TO-SOURCE VOLTAGE (VOLTS)

GS

V

12

10

8

Q

1

6

4

2

Q

0

0

2

3

4 68 101214161820

QT, TOTAL CHARGE (nC)

Q

T

V

GS

Q

2

ID = 2 A
TJ = 25°C

V

DS

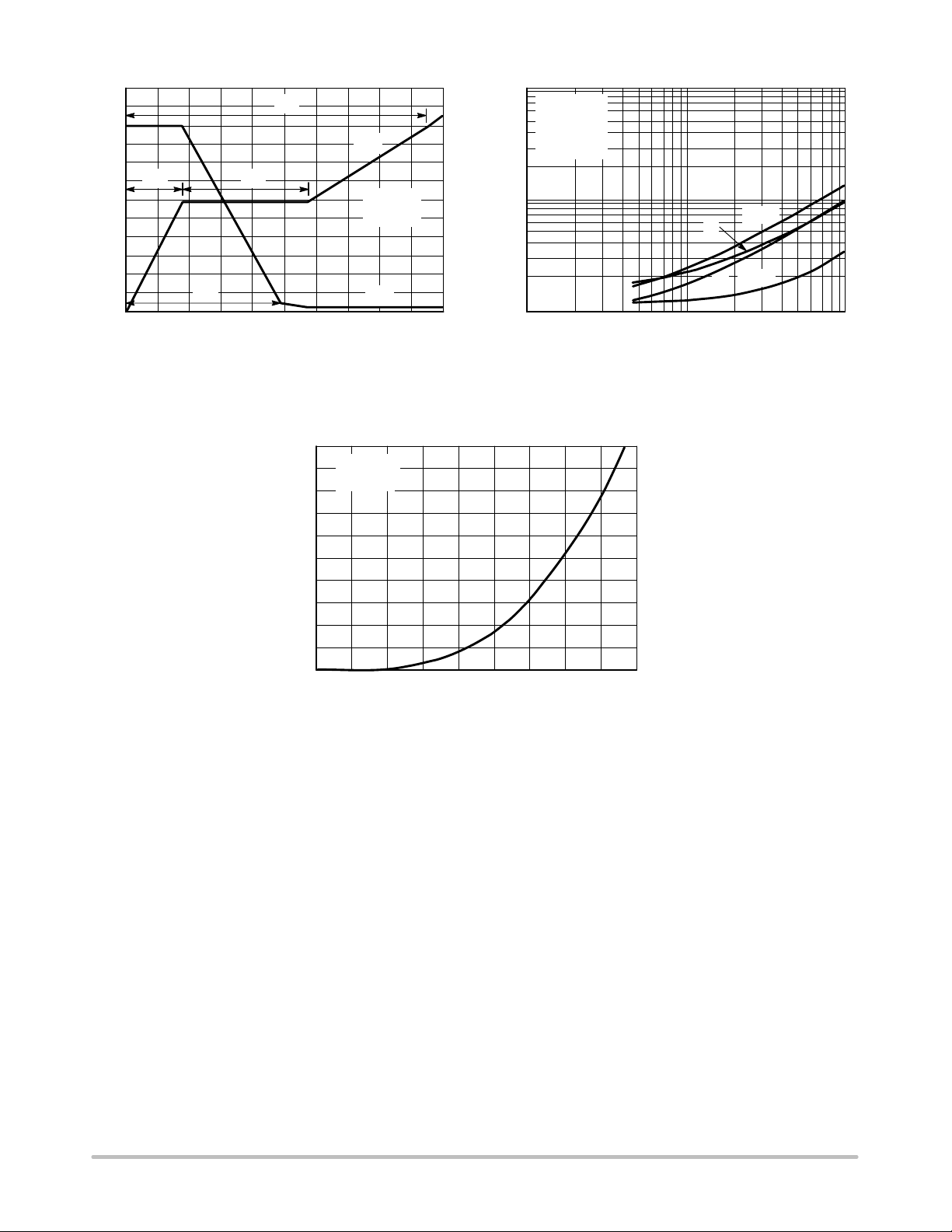

Figure 8. Gate−To−Source and Drain−To−Source

Voltage versus Total Charge

DRAIN−TO−SOURCE DIODE CHARACTERISTICS

2

VGS = 0 V
TJ = 25°C

1.6

1.2

300

250

200

150

100

50

0

DS

V

, DRAIN-TO-SOURCE VOLTAGE (VOLTS)

1000

VDD = 250 V
ID = 2 A
VGS = 10 V
TJ = 25°C

100

t, TIME (ns)

10

1 10 100

RG, GATE RESISTANCE (OHMS)

t

d(off)

t

f

t

d(on)

t

r

Figure 9. Resistive Switching Time

Variation versus Gate Resistance

0.8

0.4

, SOURCE CURRENT (AMPS)

S

I

0

0.6 1 1.4 1.8 2.4

0.8 1.2 1.6

VSD, SOURCE−TO−DRAIN VOLTAGE (VOLTS)

Figure 10. Diode Forward Voltage versus Current

SAFE OPERATING AREA

The Forward Biased Safe Operating Area curves define
the maximum simultaneous drain−to−source voltage and
drain current that a transistor can handle safely when it is
forward biased. Curves are based upon maximum peak
junction temperature and a case temperature (TC) of 25°C.
Peak repetitive pulsed power limits are determined by using
the thermal response data in conjunction with the procedures
discussed in AN569, “Transient Thermal
Resistance−General Data and Its Use.”

Switching between the off−state and the on−state may
traverse any load line provided neither rated peak current
(IDM) nor rated voltage (V

) is exceeded and the

DSS

transition time (tr,tf) do not exceed 10 ms. In addition the total
power averaged over a complete switching cycle must not
exceed (T

J(MAX)

− TC)/(R

qJC

).

A Power MOSFET designated E−FET can be safely used
in switching circuits with unclamped inductive loads. For

2 2.2

reliable operation, the stored energy from circuit inductance
dissipated in the transistor while in avalanche must be less
than the rated limit and adjusted for operating conditions
differing from those specified. Although industry practice is
to rate in terms of energy, avalanche energy capability is not
a constant. The energy rating decreases non−linearly with an
increase of peak current in avalanche and peak junction
temperature.

Although many E−FETs can withstand the stress of
drain−to−source avalanche at currents up to rated pulsed
current (IDM), the energy rating is specified at rated
continuous current (ID), in accordance with industry
custom. The energy rating must be derated for temperature
as shown in the accompanying graph (Figure 12). Maximum
energy at currents below rated continuous I

can safely be

D

assumed to equal the values indicated.

http://onsemi.com

5

MTB2P50E

SAFE OPERATING AREA

10

VGS = 20 V
SINGLE PULSE

10 ms

TC = 25°C

1

100 ms

1 ms

0.1

, DRAIN CURRENT (AMPS)

D

I

R

DS(on)

10 ms

LIMIT
THERMAL LIMIT
PACKAGE LIMIT

0.01

0.1 10 1000

1 100 150

VDS, DRAIN−TO−SOURCE VOLTAGE (VOLTS)

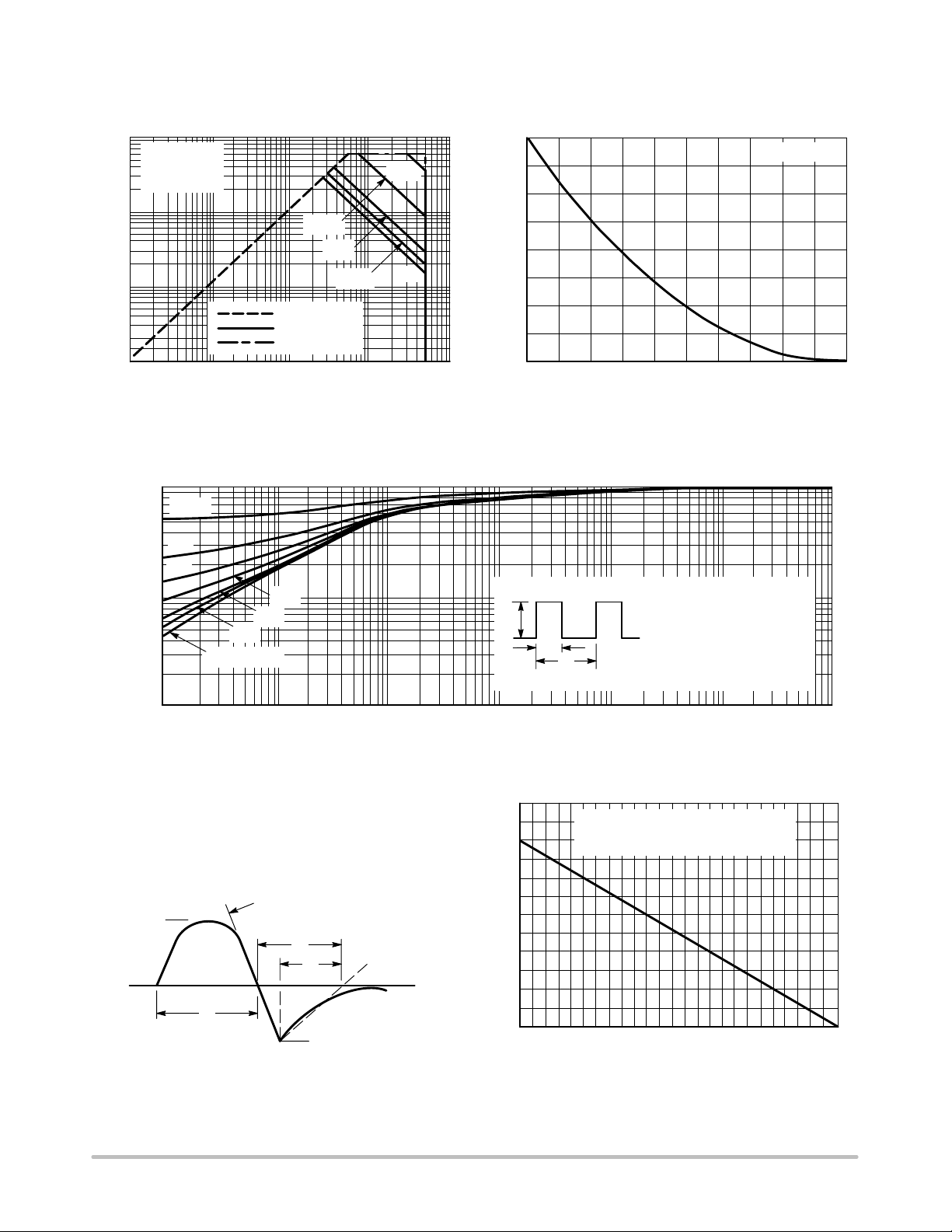

Figure 11. Maximum Rated Forward Biased

Safe Operating Area

1

D = 0.5

0.2

0.1

0.1

r(t), NORMALIZED EFFECTIVE

SINGLE PULSE

TRANSIENT THERMAL RESISTANCE

0.01

1.0E−05 1.0E−04 1.0E−03 1.0E−02 1.0E−01 1.0E+00 1.0E+01

0.05

0.02

0.01

80

ID = 2 A

60

40

dc

20

AVALANCHE ENERGY (mJ)

, SINGLE PULSE DRAIN−TO−SOURCE

AS

E

0

25 50 75 100 125

TJ, STARTING JUNCTION TEMPERATURE (°C)

Figure 12. Maximum Avalanche Energy versus

Starting Junction Temperature

P

(pk)

DUTY CYCLE, D = t1/t

t, TIME (s)

t

1

t

2

R

(t) = r(t) R

q

JC

q

JC

D CURVES APPLY FOR POWER
PULSE TRAIN SHOWN
READ TIME AT t
T

2

J(pk)

− TC = P

1

(pk)

R

(t)

q

JC

Figure 13. Thermal Response

di/dt

I

S

t

rr

t

t

a

b

TIME

t

p

0.25 I

S

I

S

Figure 14. Diode Reverse Recovery Waveform

http://onsemi.com

3

2.5

R

= 50°C/W

q

JA

Board material = 0.065 mil FR−4
Mounted on the minimum recommended footprint
Collector/Drain Pad Size ≈ 450 mils x 350 mils

2.0

1.5

1

0.5

, POWER DISSIPATION (WATTS)

D

P

0

25 50 75 100 125 150

TA, AMBIENT TEMPERATURE (°C)

Figure 15. D2PAK Power Derating Curve

6

−B−

4

231

−T−

SEATING
PLANE

VARIABLE
CONFIGURATION
ZONE

G

M

S

D

3 PL

0.13 (0.005) T

M

R

L

M

MTB2P50E

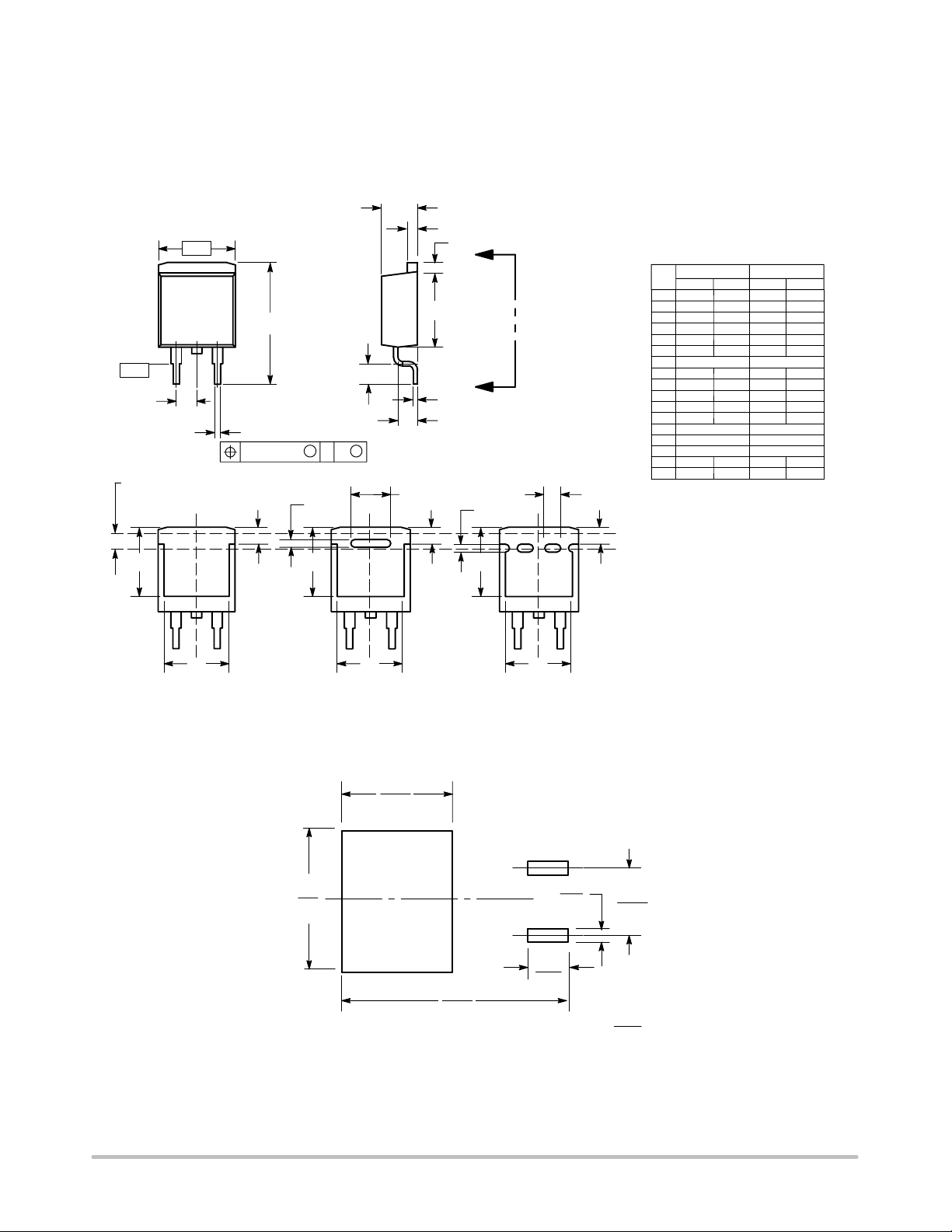

PACKAGE DIMENSIONS

D2PAK 3

CASE 418B−04

ISSUE J

C

E

V

W

A

K

W

J

H

M

B

N P

U

L

M

NOTES:

1. DIMENSIONING AND TOLERANCING
PER ANSI Y14.5M, 1982.

2. CONTROLLING DIMENSION: INCH.

3. 418B−01 THRU 418B−03 OBSOLETE,
NEW STANDARD 418B−04.

DIM MIN MAX MIN MAX

A 0.340 0.380 8.64 9.65
B 0.380 0.405 9.65 10.29
C 0.160 0.190 4.06 4.83
D 0.020 0.035 0.51 0.89
E 0.045 0.055 1.14 1.40
F 0.310 0.350 7.87 8.89
G 0.100 BSC 2.54 BSC
H 0.080 0.110 2.03 2.79
J 0.018 0.025 0.46 0.64
K 0.090 0.110 2.29 2.79
L 0.052 0.072 1.32 1.83
M 0.280 0.320 7.11 8.13
N 0.197 REF 5.00 REF
P 0.079 REF 2.00 REF
R 0.039 REF 0.99 REF
S 0.575 0.625 14.60 15.88
V 0.045 0.055 1.14 1.40

STYLE 2:

PIN 1. GATE

2. DRAIN

3. SOURCE

L

4. DRAIN

MILLIMETERSINCHES

F

VIEW W−W VIEW W−W VIEW W−W

123

F

F

SOLDERING FOOTPRINT*

8.38

0.33

10.66

0.42

17.02

0.67

*For additional information on our Pb−Free strategy and soldering

details, please download the ON Semiconductor Soldering and
Mounting Techniques Reference Manual, SOLDERRM/D.

1.016

3.05

0.12

SCALE 3:1

0.04

ǒ

inches

5.08

0.20

mm

Ǔ

http://onsemi.com

7

MTB2P50E

ON Semiconductor and are registered trademarks of Semiconductor Components Industries, LLC (SCILLC). SCILLC reserves the right to make changes without further notice

to any products herein. SCILLC makes no warranty, representation or guarantee regarding the suitability of its products for any particular purpose, nor does SCILLC assume any liability
arising out of the application or use of any product or circuit, and specifically disclaims any and all liability, including without limitation special, consequential or incidental damages.
“Typical” parameters which may be provided in SCILLC data sheets and/or specifications can and do vary in different applications and actual performance may vary over time. All
operating parameters, including “Typicals” must be validated for each customer application by customer’s technical experts. SCILLC does not convey any license under its patent rights
nor the rights of others. SCILLC products are not designed, intended, or authorized for use as components in systems intended for surgical implant into the body, or other applications
intended to support or sustain life, or for any other application in which the failure of the SCILLC product could create a situation where personal injury or death may occur. Should
Buyer purchase or use SCILLC products for any such unintended or unauthorized application, Buyer shall indemnify and hold SCILLC and its officers, employees, subsidiaries, affiliates,
and distributors harmless against all claims, costs, damages, and expenses, and reasonable attorney fees arising out of, directly or indirectly, any claim of personal injury or death
associated with such unintended or unauthorized use, even if such claim alleges that SCILLC was negligent regarding the design or manufacture of the part. SCILLC is an Equal
Opportunity/Affirmative Action Employer. This literature is subject to all applicable copyright laws and is not for resale in any manner.

PUBLICATION ORDERING INFORMATION

LITERATURE FULFILLMENT:

Literature Distribution Center for ON Semiconductor
P.O. Box 5163, Denver, Colorado 80217 USA

Phone: 303−675−2175 or 800−344−3860 Toll Free USA/Canada
Fax: 303−675−2176 or 800−344−3867 Toll Free USA/Canada
Email: [email protected]

N. American Technical Support: 800−282−9855 Toll Free

USA/Canada

Europe, Middle East and Africa Technical Support:

Phone: [phone]

Japan Customer Focus Center

Phone: 81−3−5773−3850

http://onsemi.com

ON Semiconductor Website: www.onsemi.com
Order Literature: http://www.onsemi.com/orderlit

For additional information, please contact your local
Sales Representative

MTB2P50E/D

8
