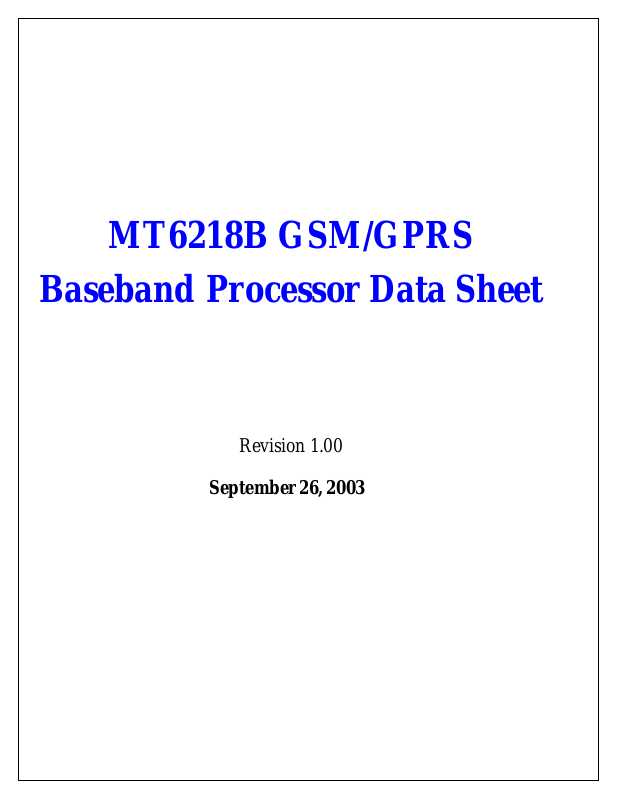

Datasheet MT6218B Datasheet (MediaTek)

MT6218B GSM/GPRS

Baseband Processor Data Sheet

Revision 1.00

September 26, 2003

MT6218B GSM/GPRS Baseband Processor Data Sheet Revision 1.00

Revision History

Revision Date Author Comments

1.00 Sep. 26, 2003 Cliff First Release

2/307 MediaTek Inc. Confidential

MT6218B GSM/GPRS Baseband Processor Data Sheet Revision 1.00

TABLE OF CONTENTS

Revision History ...................................................................................................................................... 2

Preface......................................................................................................................................................5

Acronym for Register Type................................................................................................ ....................................................................5

1. System Overview...............................................................................................................................6

1.1 Features ...........................................................................................................................................................................................8

1.2 General Description ....................................................................................................................................................................12

2 Product Description........................................................................................................................14

2.1 Pin Outs................................................................................................ .........................................................................................14

2.2 Pin Description ............................................................................................................................................................................17

2.3 Power Description................................ .......................................................................................................................................26

3 Micro-Controller Unit Subsystem.................................................................................................34

3.1 Processor Core .............................................................................................................................................................................35

3.2 Memory Management ................................................................................................................................................................35

3.3 Bus System................................................................................................................................................................ ...................38

3.4 Direct Memory Access................................................................................................................................ ...............................41

3.5 Interrupt Controller................................ .....................................................................................................................................58

3.6 Internal Memory Controller ......................................................................................................................................................70

3.7 External Memory Interface ........................................................................................................................................................71

4 Microcontroller Peripherals ..........................................................................................................80

4.1 Pulse-Width Modulation Outputs .............................................................................................................................................81

4.2 Alerter...........................................................................................................................................................................................83

4.3 SIM Interface ...............................................................................................................................................................................86

4.4 Keypad Scanner................................................................................................................................ ...........................................95

4.5 General Purpose Inputs/Outputs ...............................................................................................................................................97

4.6 General Purpose Time r.............................................................................................................................................................108

4.7 UART..........................................................................................................................................................................................110

4.8 IrDA Framer ...............................................................................................................................................................................125

4.9 Real Time Clock................................................................................................................................ ........................................132

4.10 Auxiliary ADC Unit ..................................................................................................................................................................138

5 Microcontroller Co processors .....................................................................................................142

5.1 GPRS Cipher Unit .....................................................................................................................................................................142

5.2 Divider........................................................................................................................................................................................144

5.3 CSD Accelerator................................................................................................................................ ........................................146

5.4 FCS Codec................................................................................................................................................................ ..................158

6 Multi-Media Subsystem ...............................................................................................................160

6.1 LCD Interface ............................................................................................................................................................................160

6.2 JPEG Decoder................................................................ ............................................................................................................170

6.3 Image Resizer................................................................ ............................................................................................................182

6.4 NAND FLASH Interface .........................................................................................................................................................193

6.5 USB Device Controller................................................................................................................................ ............................208

6.6 Memory Stick and SD Memory Card Controller................................................................................................ .................218

7 Audio Front-end............................................................................................................................ 241

7.1 General Description ..................................................................................................................................................................241

7.2 Register Definitions ..................................................................................................................................................................242

7.3 Programming Guide................................................................ ..................................................................................................245

3/307 MediaTek Inc. Confidential

MT6218B GSM/GPRS Baseband Processor Data Sheet Revision 1.00

8 Radio Interface Control ...............................................................................................................246

8.1 Base-band Serial Interface .......................................................................................................................................................246

8.2 Base-band Parallel Interfac e....................................................................................................................................................251

8.3 Automatic Power Control (APC) Unit ..................................................................................................................................254

8.4 Automatic Frequency Control (AFC) Unit ...........................................................................................................................260

9 Baseband Front End..................................................................................................................... 264

9.1 Baseband Serial Ports...............................................................................................................................................................265

9.2 Downlink Path (RX Path) ........................................................................................................................................................267

9.3 Uplink Path (TX Path)................................................................................................................................ ..............................273

10 Timing Generator ......................................................................................................................... 276

10.1 TDMA timer................................ ...............................................................................................................................................276

10.2 Slow Clocking Unit ..................................................................................................................................................................283

11 Power, Clocks and Reset...............................................................................................................287

11.1 Baseband to PMIC Serial Interface ........................................................................................................................................287

11.2 Clocks ..........................................................................................................................................................................................289

11.3 Reset Management................................ ....................................................................................................................................293

11.4 Software Power Down Control...............................................................................................................................................296

12 Analog Front-end Interface ......................................................................................................... 300

12.1 General Description ..................................................................................................................................................................300

12.2 Register Definitions ..................................................................................................................................................................300

4/307 MediaTek Inc. Confidential

MT6218B GSM/GPRS Baseband Processor Data Sheet Revision 1.00

Preface

Acronym for Register Type

R/W Capable of both read and write access RO Read only RC Read only. After reading the register bank, each bit which is HIGH(1) will be cleared to LOW(0 )

automatically.

WO Write only W1S Write only. When writing data bits to register bank, each bit which is HIGH(1) will cause the

corresponding bit to be set to 1. Data bits which are LOW(0) has no effect on the corresponding bit.

W1C Write only. When writing data bits to register bank, each bit which is HIGH(1) will cause the

corresponding bit to be cleared to 0. Data bits which are LOW(0) has no effect on the corresponding bit.

5/307 MediaTek Inc. Confidential

MT6218B GSM/GPRS Baseband Processor Data Sheet Revision 1.00

1. System Overview

The MT6218B is a highly integrated single chip solution for GSM/GPRS phone. Based on 32-bit ARM7EJ-STM RISC processor, MT6218B features not only high performance GPRS Class 12 MODEM but is also designed with support for the wireless multi -media applications, such as advanced display engine, hardware JPEG decoder, synthesis audio with 64-tone polyphony, digital audio playback, Java acceleration, MMS and etc. Additionally, MT6218B provides varieties of advanced interfaces for functionality extensions, like 8-port external memory interface, 3-port 8-bit parallel interface, NAND Flash, IrDA, USB and MMC/SD/MS/MS Pro. The typical application can be shown as Figure 1.

External Memory Interface Providing the greatest capacity for expansion, t he

MT6218B supports up to 8 state-of-the-art devices with SRAM-like interface, including bu rst/page mode Flash, page mode SRAM, Pseudo SRAM, Color/Parallel LCD, and multi-media companion chip, like Camera and Melody chips. Regarding the consideration of power consumption and low noise, this interface is designed for flexible I/O voltage and allows for lowering supply voltage down to

1.8V. In addition, the driving strength is configurable that makes the signal integrity problem easy. Retention technology is also specifically used on data bus to prevent the bus from being floating during turn over.

Multi-media Subsystem In order to provide more flexibility and bandwidth for

multi-media products, an additional 8-bit parallel interface is incorporated. This interface is designed specially for support with Camera companion chip as well as LCD panel. Moreover, it can connect NAND flash device to provide a solution for multi- media data storage. For running multi-media application faster, MT6218B integrates also several hardware-based engines. With hardware based JPEG decoder, the MT6218B easily handles re al-time playback of compressed image. With hardware based Resizer and advanced display engine, it can display and combine arbitrary size of images with up to 4 blending layers.

User Interface For user interactions, the MT6218B brings together all

necessary peripheral blocks for multi-media GSM/GPRS phone. It comprises the Keypad Scanner with capability of multiple key pressing, SIM Controller, Alerter, Real Time Clock, PWM, Serial LCD Controller and General Purpose

Programmable I/Os. For connectivity and data storage, the MT6218B consists of UART, IrDA, USB 1.1 Slave and MMC/SD/MS/MS Pro. Besides, for large amount of data transfer, high performance DMA (Direct Memory Access) and hardware flow control are implemented, that greatly enhances the performance and helps to reserve more processing power.

Audio Interface With highly integrated mixed-signal Audio Front-End, the

MT6218B completes an architecture that allows for easy audio interfacing with direct connection to the audio transducers. Not only D/A and A/D Converters for Voice Band, but also the high resolution Stereo D/A Converters for Audio band are integrated. In addition, the MT6218B provides also Stereo Input and Analog Mixer. All of them enable the MT6218B based terminal a rich platform for multi-media applications.

Radio Interface

Providing a well-organized radio interface with flexibility for efficient customization, the MT6218B integrates mixed-signal Baseband Front -End. It carries out gain and offset calibration mechanisms and filters with programmable coefficients for comprehensive compatibility control on RF modules. The approach is also towards combining a high resolution D/A Converter for controlling VCXO or crystal instead of TCVCXO to reduce the overall system cost. On the other hand, with 14-bit high resolution A/D Converter for RF downlink path, MT6218B achieves great quality of MODEM performance. Besides, to remove the necessary of external current-driving component, the driving strength of some BPI outputs is designed to be configurable.

Debug Function

6/307 MediaTek Inc. Confidential

MT6218B GSM/GPRS Baseband Processor Data Sheet Revision 1.00

The JTAG interface enables in -circuit debugging of software program with the ARM7EJ-S core. With this standardized debugger interface, the MT6218B provides developers with a wide set of options for choosing ARM

development kits from supports of thirty parties. Power Management The MT6218B offers various low-power features helping

reduce system power consumption including Pause Mode

Flash

SRAM

PSRAM

Debugger

JTAG

Speech/Audio Input

Speech/Audio Output

FM Stereo Radio Input

Melody

LCD

External Memory

Interface

MT6218B

HiFi Stero Output

Alerter

of 32KHz clocking at Standby State, Power Down Mode for individual peripherals and Processor Sleep Mode. Fabricate d in low-power CMOS process, together with the low-power features, the overall system can achieve ultra

low power consumption. Package The MT6218B device is offered in a 13mm×13mm,

274-ball, 0.65 mm pitch, TFBGA package .

Camera

NAND

Flash

8-bit Parallel

Interface

LCD

SYSCLK

AFC

APC TX I/Q RX I/Q

B2PSI

AuxADC

TCVCXO

RF

Module

BPI BSI

Power

Management

Circuitry

PWM

SIM

Serial

LCD

Serial

LCD

UART

IrDA

MMC/SD/MS/MSProUSB

Supply Voltages

Keypad

1 2 3 4 5 6 7 8 9

0 #

*

Figure 1 Typical application of MT6218B

7/307 MediaTek Inc. Confidential

MT6218B GSM/GPRS Baseband Processor Data Sheet Revision 1.00

1.1 Features

n General

l Integrated voice-band, audio -band and base-band analog front ends l TFBGA 13mm×13mm, 274-ball, 0.65 mm pitch package

n MCU Subs ystem

l ARM7EJ-S 32-bit RISC processor l Java hardware acceleration for faster Java-based games and other applets

l Operating frequency: 26/52 MHz l 13 DMA channels l 256K Bytes zero -wait-state on-chip SRAM l On-chip boot ROM for Factory Flash Programming l Watchdog timer for system crash recovery l 2 sets of General Purpose Timer l Circuit Switch Data and Division coprocessors

n External Memory Interface

l Support up to 8 external devices l Support 8-bit or 16-bit memory components with size up to 64M Bytes each l Support Flash and SRAM with Page Mode or Burst Mode l Support Pseudo SRA M l Industrial standard Parallel LCD Interface l Built-in hardware acceleration function for color LCD panels l Support multi-media companion chips with 8/16 bits data width l Flexible I/O voltage of 1.8V ~ 3V for memory interface l Configurable driving strength for memory interface

n Multi-media Subsystem

l Dedicated 8-bit Parallel Interface, support up to 3 external devices l High speed hardware JPEG decoder, support both baseline sequential and progressive JPEG files

l High quality hardware Resizer capable of tailoring JP EG image to arbitrary size l Support simultaneously equipping up to 2 parallel LCD and 1 serial LCD panels l Support LCD panel maximum resolution up to 800x600 at 16bpp

8/307 MediaTek Inc. Confidential

MT6218B GSM/GPRS Baseband Processor Data Sheet Revision 1.00

l Capable of combining display memories with up to 4 blending layers l NAND Flash Interface for mass storages l Full-speed USB 1.1 Device l Multi Media Card/Secure Digital Memory Card/Memory Stick/Memory Stick Pro controller

n Audio and Modem CODEC

l Wavetable synthesis with up to 64 notes l Advanced wavetable synthesizer capable of generating simulated stere o l Wavetable including GM full set of 128 instruments and 47 sets of percussion l PCM Playback and Record l Dial tone generation l Voice Memo l Noise Reduction l Echo Suppression l Advanced Sidetone Oscillation Reduction l Digital sidetone generator with programmable gain l Two programmable acoustic compensation filters l GSM/GPRS quad vocoders for adaptive multirate (AMR), enhanced full rate (EFR), full rate (FR) and half rate (HR) l GSM channel coding, equalization and A5/1 and A5/2 ciphering l GPRS GEA and GEA2 ciphering l Programmable GSM /GPRS Modem l Packet Switched Data with CS1/CS2/CS3/CS4 coding schemes l GSM Circuit Switch Data l GPRS Class 12

n User Interfaces

l 6-row × 7-column keypad controller with hardware scanner l Support multiple key press for gaming l SIM Card Controller with hardware flow control l 3 UARTs with hardware flow control and speed up to 921600 bps l IrDA modulator/demodulator with hardware framer l Real Time Clock (RTC) operating with a separate power supply l Serial LCD Interface with 7 bytes TX FIFO

9/307 MediaTek Inc. Confidential

MT6218B GSM/GPRS Baseband Processor Data Sheet Revision 1.00

l General Purpose I/Os (GPIOs) l 2 Sets of Pulse Width Modulation (PWM) Output l Alerter Output with Enhanced PWM or PDM l Six external interrupt lines

n Audio Interface and Audio Front End

l Two microphone inputs sharing one low noise amplifier with programmable gain l Two Voice power amplifiers with programmable gain l 2nd order Sigma -Delta A/D Converter for voice uplink path l D/A Converter for voice downlink path l High resolution D/A Converters for Stereo Audio playback l Stereo analog input for stereo audio source l Analog mixers for Stereo Audio l Stereo to Mono Conversion l Support half-duplex hands-free operation l Complying with GSM 03.50

n Radio Interface and Baseband Front End

l GMSK modulator with analog I and Q channel outputs l 10-bit D/A Converter for uplink baseband I and Q signals l 14-bit high resolution A/D Converter for downlink baseband I and Q signals l Calibration mechanism of offset and gain mismatch for baseband A/D Converter and D/A Converter l 10-bit D/A Converter for Automatic Power Control l 13-bit high resolution D/A Converter for Automatic Frequency Control l Programmable Radio RX filter l 2 Channels Baseband Serial Interface (BSI) with 3-wire control l 10-Pin Baseband Parallel Interface (BPI) with programmable driving strength l Multi-band support

n Power Management

l Power Down Mode for analog and digit al circuits l Processor Sleep Mode

l Pause Mode of 32KHz clocking at Standby State l 7-channel Auxiliary 10-bit A/D Converter for charger and battery monitoring

10/307 MediaTek Inc. Confidential

MT6218B GSM/GPRS Baseband Processor Data Sheet Revision 1.00

n Test and Debug

l Built-in digital and analog loop back modes for both Audio and Baseband Front-End l DAI port complying with GSM Rec.11.10 l JTAG port for debugging embedded MCU

11/307 MediaTek Inc. Confidential

MT6218B GSM/GPRS Baseband Processor Data Sheet Revision 1.00

1.2 General Description

Figure 2 details the block diagram of MT6218B. Based on dual-processor architecture, the major processor of MT6218B is ARM7EJ -S, which mainly runs high-level GSM/GPRS protocol software as well as multi-media applications. With the other one is a digital signal processor corresponding for handling the low -level MODEM as well as advanced audio functions . Except for some mixed-signal circuitries, the other building blocks in MT6218B are connected to either the microcontroller or the digital signal processor. Specifically, MT6218B consists of the following subsystems:

l Microcontroller Unit (MCU) Subsystem, including an ARM7EJ-S RISC processor and it s accompanying memory

management and interrupt handling logics.

l Digital Signal Processor (DSP) Subsystem, including a DSP and its accompanying memory, memory controller,

and interrupt controller.

l MCU/DSP Interface, where the MCU and the DSP exchange hardware and software information. l Microcontroller Peripherals, which includes all user interface modules and RF control interface modules. l Microcontroller Coprocessors, which intends to run computing-intensive processes in place of Microcontroller.

l DSP Peripherals, which are hardware accelerators for GSM /GPRS channel codec. l Multi-media Subsystem, which integrate several advanced accelerators to support multi-media applications. l Audio Front End, the data path of conveying analog speech from and to digital speech. l Audio Front End, also the data path of conveying stereo audio from stereo audio source l Baseband Front End, the data path of conveying digital signal form and to analog signal of RF modules. l Timing Generator, generating the control signals related to the TDMA frame timing.

l Power, Reset and Clock subsystem, managing the power, reset and clock distribution inside MT6218B .

Details of the individual subsystems and blocks are described in following Chapters.

12/307 MediaTek Inc. Confidential

MT6218B GSM/GPRS Baseband Processor Data Sheet Revision 1.00

MIC_0 MIC_1

VOICE_0

VOICE_1

AUDIO_L

AUDIO_R

STEREO_L STEREO_R

RX_I

RX_Q

TX_I

TX_Q

Aux

ADC

AFC

APC

Serial RF

Control

Parallel RF

Control

MT6218B

ADC ADC

DAC DAC

ADC

DAC AFC

DAC APC

BSI

BPI

+

ADC

+

Baseband

Path

32K

OSC

Aux

ADC

RTC

DAC

TDMA

Timer

Audio

Path

Bridge

Interrupt

Controller

GPT

WDT

Patch

Unit

MCU/DSP

ARM7EJ-S

PWM

SIM GPIO

Interface

Keypad

Scanner

Memory

DSP

Boot ROM


Resizer

Serial

LCD

B2PSI IrDA

Trap

Unit

On-Chip

SRAM

MMC SD/MS MS Pro

Interrupt

Controller

JPEG

Decoder

DMA

UART

USBAlerter

DSP

Coprocessor

DSP

Coprocessor

DSP

Coprocessor

DSP

Coprocessor

DSP

Coprocessor

External Memory

Interface

LCD Controller

NAND Flash

Generator

Controller

Clock

Flash SRAM LCD Melody

NAND Flash LCD Camera

JTAG

System Clock 13/26MHz

32KHz Crystal

Wake Up User InterfaceReset

ConnectivitySerial Port

Figure 2 MT6218B block diagram.

13/307 MediaTek Inc. Confidential

MT6218B GSM/GPRS Baseband Processor Data Sheet Revision 1.00

2 Product Description

2.1 Pin Outs

One type of package for this product, TFBGA 13mm*13mm, 274-ball, 0.65 mm pitch Package, is offered. Pin outs and the top view are illustrated in Figure 3 for this package. Outline and dimension of package is illustrated in

Figure 4, while the definition of package is shown in Table 1.

14/307 MediaTek Inc. Confidential

MT6218B GSM/GPRS Baseband Processor Data Sheet Revision 1.00

Figure 3 Top View of MT6218B TFBGA 13mm*13mm, 274-ball, 0.65 mm pitch Package

15/307 MediaTek Inc. Confidential

MT6218B GSM/GPRS Baseband Processor Data Sheet Revision 1.00

Figure 4 Outlines and Dimension of TFBGA 13mm*13mm, 274-ball, 0.65 mm pitch Package

Body Size Ball Count Ball Pitch Ball Dia. Package Thk. Stand Off Substrate Thk.

D E N e b A (Max.) A1 C 13 13 276 0.65 0.3 1.4 0.3 0.36

Table 1 Definition of TFBGA 13mm*13mm, 276-ball, 0.65 mm pitch Package (Unit: mm)

16/307 MediaTek Inc. Confidential

MT6218B GSM/GPRS Baseband Processor Data Sheet Revision 1.00

2.2 Pin Description

Ball

13 X13

Name Dir Description

JTAG Port

E4 JTRST# I E3 JTCK I E2 JTDI I E1 JTMS I

F5 JTDO O F4 JRTCK O

JTAG test port reset input JTAG test port clock input JTAG test port data input JTAG test port mode switch JTAG test port data output JTAG test port returned clock output

RF Parallel Control Unit

F3 BPI_BUS0 O F2 BPI_BUS1 O

G5 BPI_BUS2 O G4 BPI_BUS3 O G3 BPI_BUS4 IO G2 BPI_BUS5 IO G1 BPI_BUS6 IO

H5 BPI_BUS7 IO

H4 BPI_BUS8 IO

H3 BPI_BUS9 IO

RF hard-wire control bus 0 RF hard-wire control bus 1 RF hard-wire control bus 2 RF hard-wire control bus 3 RF hard-wire control bus 4 RF hard-wire control bus 5 RF hard-wire control bus 6 GPIO10 BPI_BU

RF hard-wire control bus 7 GPIO11 BPI_BU

RF hard-wire control bus 4 GPIO12 BPI_BU

RF hard-wire control bus 5 GPIO13 BPI_BU

RF Serial Control Unit

H1 BSI_CS0 O J5 BSI_DATA O J4 BSI_CLK O

RF 3-wire interface chip select 0 RF 3-wire interface data output RF 3-wire interface clock output

PWM Interface

R3 PWM1 IO

R2 PWM2 IO

T4 ALERTER IO

Pulse width modulated signal 1

Pulse width modulated signal 2

Pulse width modulated signal for buzzer

Serial LCD/PM IC Interface

J3 LSCK IO

J2 LSA0 IO

J1 LSDA IO

K4 LSCE0# IO

K3 LSCE1# IO

Serial display interface data output GPIO16 LSCK TBTXE

Serial display interface address output GPIO17 LSA0 TDTIR

Serial display interface clock output GPIO18 LSDA TCTIR

Serial display interface chip select 0 output

Serial display interface chip select 1 GPIO20 LSCE1# LPCE2# TEVTV

Mode0 Mode1 Mode2 Mode3

Pull Reset

PD Input PU Input PU Input PU Input

0 0

Input Input

S6

S7

13MHz 6.5MHz

S8

BSI_CS1

S9

PD Input

0 0 0

GPIO21 PWM1 DSP_G

PO0

GPIO22 PWM2 DSP_G

PO1

GPIO23 ALERT

ER

DSP_G PO2

TBTX FS

TBRX EN

BTRX FS

PD Input

N

PD Input

Q

PD Input

Q2

GPIO19 LSCE0# TCTIR

Q1

PU Input

17/307 MediaTek Inc. Confidential

MT6218B GSM/GPRS Baseband Processor Data Sheet Revision 1.00

output AL

Parallel LCD/Nand-Flash Interface

K2 LPCE1#

L5 LPCE0#

L4 LRST# L3 LRD# L2 LPA0 L1 LWR# M5 NLD7 M4 NLD6 M3 NLD5 N5 NLD4 N4 NLD3 N3 NLD2 N2 NLD1 N1 NLD0 P5 NRNB

P4 NCLE

P3 NALE

P2 NWE#

P1 NRE#

R4 NCE#

Parallel display interface chip select 1 output

Parallel display interface chip select 0 output

Parallel display interface Reset Signal Parallel display interface Read Strobe Parallel display interface address output Parallel display interface Write Strobe Parallel LCD/Nand-Flash Data 7 Parallel LCD/Nand-Flash Data 6 Parallel LCD/Nand-Flash Data 5 Parallel LCD/Nand-Flash Data 4 Parallel LCD/Nand-Flash Data 3 Parallel LCD/Nand-Flash Data 2 Parallel LCD/Nand-Flash Data 1 Parallel LCD/Nand-Flash Data 0 Nand-Flash Read/Busy Flag GPIO25

Nand-Flash Command Latch Signal GPIO26

Nand-Flash Address Latch Signal GPIO27

Nand-Flash Write Strobe GPIO28

Nand-Flash Read Strobe GPIO29

Nand-Flash Chip select output GPIO30

SIM Card Interface

L18 SIMRST O L17 SIMCLK O K15 SIMVCC O K16 SIMSEL O

SIM card reset output SIM card clock output SIM card supply power control SIM card supply power select

GPIO24 LPCE1# DSP_TI

D0

MCU_ TD0

PU

NRNB

NCLE

NALE

NWE#

NRE#

NCE#

DSP_TI D1

DSP_TI D2

DSP_TI D3

DSP_TI D4

DSP_TI D5

DSP_TI D6

MCU_T ID1

MCU_ TID2

MCU_ TID3

MCU_ DID

MCU_ DFS

MCU_ DCK

PU

PD

PU

0 0 0 GPIO32 SIMSEL 0

K17 SIMDATA IO

SIM card data input/output

0

Dedicated GPIO Interface

U2 GPIO0 IO

M19 GPIO1 IO L15 GPIO2 IO L16 GPIO3 IO C17 GPIO4 IO

A19 GPIO5 IO

B18 GPIO6 IO

18/307 MediaTek Inc. Confidential

General purpose input/output 0 GPIO0 DSP_GP

O3

General purpose input/output 1 GPIO1 DICK General purpose input/output 2 GPIO2 DID General purpose input/output 3 GPIO3 DIMS General purpose input/output 4 GPIO4 DSP_CKL DSPLCK TRASD

General purpose input/output 5 GPIO5 AHB_C

LK

General purpose input/output 6 GPIO6 ARM_C

LK

DSPLD3 TRASD

DSPLD2 TRASD

PD Input

PD Input PD Input PD Input PD Input

4

PD Input

3

PD Input

2

MT6218B GSM/GPRS Baseband Processor Data Sheet Revision 1.00

B17 GPIO7 IO

A18 GPIO8 IO

A17 GPIO9 IO

Miscellaneous

U1 SYSRST# I R18 WATCHD

O

OG#

T3 SRCLKEN

O

AN

T1 SRCLKENA O

T2 SRCLKEN

IO

AI E5 IBOOT I

Keypad Interface

G17 KCOL6 I G18 KCOL5 I

G19 KCOL4 I

F15 KCOL3 I F16 KCOL2 I

F17 KCOL1 I F18 KCOL0 I F19 KROW5 O E16 KROW4 O E17 KROW3 O E18 KROW2 O D16 KROW1 O D19 KROW0 O

External Interrupt Interface

V1 EINT0 I U3 EINT1 I W1 EINT2 I V2 EINT3 I R5 MIRQ I R17 MFIQ I

External Memory Interface

R16 ED0 IO R15 ED1 IO T19 ED2 IO T17 ED3 IO U19 ED4 IO U18 ED5 IO V18 ED6 IO

General purpose input/output 7 GPIO7 SLOW_

CK

General purpose input/output 19 GPIO8 F32K_C

K

General purpose input/output 21 GPIO9 TRARS

System reset input active low Watchdog reset output

External TCXO enable output active low

External TCXO enable output active high

External TCXO enable input

Boot Device Configuration Input

Keypad column 6 Keypad column 5 Keypad column 4 Keypad column 3

Keypad column 2 Keypad column 1 Keypad column 0 Keypad row 5 Keypad row 4 Keypad row 3 Keypad row 2 Keypad row 1 Keypad row 0

External interrupt 0 External interrupt 1 External interrupt 2 External interrupt 3 Interrupt to MCU GPIO41 MIRQ 13MHz 6.5MHz Interrupt to MCU GPIO42 MFIQ

External memory data bus 0 External memory data bus 1 External memory data bus 2 External memory data bus 3 External memory data bus 4 External memory data bus 5 External memory data bus 6

Input 1

GPO1

GPO0

GPIO31

SRCLK ENAN

SRCLK ENA

SRCLK ENAI

Input

PU Input PU Input PU Input PU Input

PU Input PU Input PU Input 0 0 0 0 0 0

Input Input Input Input Input Input Input

DSPLD1 TRASD

1

DSPLD0 TRASD

0

YNC

0

1

PD Input

PU Input PU Input PU Input PU Input PU Input PU Input

19/307 MediaTek Inc. Confidential

MT6218B GSM/GPRS Baseband Processor Data Sheet Revision 1.00

W19 ED7 IO U17 ED8 IO V17 ED9 IO W17 ED10 IO T16 ED11 IO W16 ED12 IO T15 ED13 IO U15 ED14 IO V15 ED15 IO U14 ERD# O W14 EWR# O R13 ECS0# O T13 ECS1# O U13 ECS2# O V13 ECS3# O R12 ECS4# O T12 ECS5# O U12 ECS6# O W12 ECS7# O R14 ELB# O T14 EUB# O T11 EPDN# O U11 EADV# O

V11 ECLK O R10 EA0 O T10 EA1 O U10 EA2 O W10 EA3 O T9 EA4 O U9 EA5 O V9 EA6 O R8 EA7 O T8 EA8 O W8 EA9 O R7 EA10 O T7 EA11 O U7 EA12 O V7 EA13 O R6 EA14 O T6 EA15 O U6 EA16 O W6 EA17 O T5 EA18 O U5 EA19 O

External memory data bus 7 External memory data bus 8 External memory data bus 9 External memory data bus 10 External memory data bus 11 External memory data bus 12 External memory data bus 13 External memory data bus 14 External memory data bus 15 External memory read strobe External memory write strobe External memory chip select 0 External memory chip select 1 External memory chip select 2 External memory chip select 3 External memory chip select 4 External memory chip select 5 External memory chip select 6 External memory chip select 7 External memory lower byte strobe External memory upper byte strobe Power Down Control Signal for PSRAM Address valid for burst mode flash

memory Clock for flash memory

External memory address bus 0 External memory address bus 1 External memory address bus 2 External memory address bus 3 External memory address bus 4 External memory address bus 5 External memory address bus 6 External memory address bus 7 External memory address bus 8 External memory address bus 9 External memory address bus 10 External memory address bus 11 External memory address bus 12 External memory address bus 13 External memory address bus 14 External memory address bus 15 External memory address bus 16 External memory address bus 17 External memory address bus 18 External memory address bus 19

Input Input Input Input Input Input Input Input Input 1 1 1 1 1 1 1 1 1 1 1 1 GPO2 EPDN# 0 1

0 0 0 0 0 0 0 0 0 0 0 0 0 0 0 0 0 0 0 0 0

20/307 MediaTek Inc. Confidential

MT6218B GSM/GPRS Baseband Processor Data Sheet Revision 1.00

V5 EA20 O W5 EA21 O V4 EA22 O U4 EA23 O W3 EA24 O W2 EA25 O

USB Interface

P16 USB_DP IO P17 USB_DM IO

Memory Card Interface

P19 MCCM0 IO N15 MCDA0 IO N16 MCDA1 IO N17 MCDA2 IO N18 MCDA3 IO N19 MCCK O M16 MCPWRON O

M17 MCWP I M18 MCINS I

UART Interface

K18 URXD1 I K19 UTXD1 O J16 UCTS1 I J17 URTS1 O J18 URXD2 IO J19 UTXD2 IO H15 URXD3 IO H16 UTXD3 IO H17 IRDA_RXD IO

G15 IRDA_TXD IO

G16 IRDA_PDN IO

Digital Audio Interface

D17 DAICLK IO

D18 DAIPCMO

IO

UT C19 DAIPCMIN IO

C18 DAIRST IO

B19 DAISYNC IO

External memory address bus 20 External memory address bus 21 External memory address bus 22 External memory address bus 23 External memory address bus 24 External memory address bus 25

USB D+ Input/Output USB D- Input/Output

SD Command/MS Bus State Output SD Serial Data IO 0/MS Serial Data IO SD Serial Data IO 1 SD Serial Data IO 2 SD Serial Data IO 3 SD Serial Clock/MS Serial Clock Output SD Power On Control Output

SD Write Protect Input GPIO15 MCWP SD Card Detect Input GPIO14 MCINS

UART 1 receive data PU Input UART 1 transmit data 1 UART 1 clear to send PU Input UART 1 request to send 1 UART 2 receive data GPIO35 URXD2 UCTS3 PU Input UART 2 transmit data GPIO36 UTXD2 URTS3 PU Input UART 3 receive data GPIO33 URXD3 PU Input UART 3 transmit data GPIO34 UTXD3 PU Input IrDA receive data GPIO37 IRDA_R

IrDA transmit data GPIO38 IRDA_T

IrDA Power Down Control GPIO39 IRDA_P

DAI clock output GPIO43 DAICLK TDMA_

DAI pcm data out GPIO44 DAIPC

DAI pcm data input GPIO45 DAIPC

DAI reset signal input GPIO47 DAIRST TDMA_

DAI frame synchronization signal output GPIO46 DAISYNC BFEPRBO TRASD5 PU Input

0 0

0 0 0 0

PU PU

UCTS2 PU Input

XD

URTS2 PU Input

XD

PU Input

DN

MOUT

MIN

CK TDMA_

D1 TDMA_

D2

FS

TRACL K

TRASY NC

TRASD7 PU Input

TRASD6 PU Input

PU Input

PD Input

Analog Interface

21/307 MediaTek Inc. Confidential

MT6218B GSM/GPRS Baseband Processor Data Sheet Revision 1.00

B15 AU_MOUL A15 AU_MOUR C14 AU_M_BYP

B14 AU_FMINL

A14 AU_FMINR

D13 AU_OUT1_P

C13 AU_OUT1_N

B12 AU_OUT0_N

A12 AU_OUT0_P

C12 AU_MICBI

AS_P D12 AU_MICBI

AS_N

C11 AU_VREF_N

Audio analog output left channel Audio analog output right channel Audio DAC bypass pin

FM radio analog input left channel

FM radio analog input right channel

Earphone 1 amplifier output (+)

Earphone 1 amplifier output (-)

Earphone 0 amplifier output (-)

Earphone 0 amplifier output (+)

Microphone bias supply (+)

Microphone bias supply (-)

Audio reference voltage (-)

B11 AU_VREF_P

D10 AU_VIN0_P

C10 AU_VIN0_N

B10 AU_VIN1_N

A10 AU_VIN1_P

D9 BDLAQP

C9 BDLAQN

A9 BDLAIN

B9 BDLAIP

B8 BUPAIP

A8 BUPAIN

C8 BUPAQN

D8 BUPAQP

B7 APC D6 AUXADIN

Audio reference voltage (+)

Microphone 0 amplifier input (+)

Microphone 0 amplifier input (-)

Microphone 1 amplifier input (-)

Microphone 1 amplifier input (+)

Quadrature input (Q+) baseband codec downlink

Quadrature input (Q -) baseband codec downlink In-phase input (I+) baseband codec downlink

In-phase input (I-) baseband codec downlink

In-phase output (I+) baseband codec uplink

In-phase output (I-) baseband codec uplink

Quadrature output (Q+) baseband codec uplink

Quadrature output (Q -) baseband codec uplink

Automatic power control DAC output Auxiliary ADC input 0

22/307 MediaTek Inc. Confidential

MT6218B GSM/GPRS Baseband Processor Data Sheet Revision 1.00

0

C6 AUXADIN1

Auxiliary ADC input 1

B6 AUXADIN2

A6 AUXADIN3

C5 AUXADIN4

B5 AUXADIN5

A5 AUXADIN6

C4 AUX_REF B4 AFC

A4 AFC_BYP

VCXO Interface

A2 SYSCLK

RTC Interface

C2 XIN B1 XOUT C1 BBWAKEUP O

Auxiliary ADC input 2

Auxiliary ADC input 3

Auxiliary ADC input 4

Auxiliary ADC input 5

Auxiliary ADC input 6

Auxiliary ADC reference voltage input Automatic frequency control DAC

output Automatic frequency control DAC

bypass capacitance

13MHz or 26MHz system clock input

32.768 KHz crystal input

32.768 KHz crystal output Baseband power on/off control

1

Supply Voltages

D1 VDDK M1 VDDK V8 VDDK V16 VDDK H19 VDDK C16 VDDK W4 VDD33_E

MI W7 VDD33_E

MI W9 VDD33_E

MI W11 VDD33_E

MI W13 VDD33_E

MI W15 VDD33_E

MI W18 VDD33_E

MI T18 VDD33_E

MI

Supply voltage of internal logic Supply voltage of internal logic Supply voltage of internal logic Supply voltage of internal logic Supply voltage of internal logic Supply voltage of internal logic Supply voltage of memory interface

driver Supply voltage of memory interface

driver

23/307 MediaTek Inc. Confidential

MT6218B GSM/GPRS Baseband Processor Data Sheet Revision 1.00

V3 VSS33_EMI

V6 VSS33_EMI

U8 VSS33_EMI

V10 VSS33_EMI

V12 VSS33_EMI

V14 VSS33_EMI

U16 VSS33_EMI

V19 VSS33_EMI

R19 VSS33_EMI

P19 VDD33_USB

D4 VDD33

F1 VDD33

K1 VDD33

R1 VDD33

L19 VDD33

E19 VDD33

E15 VDD33

E13 VDD33

E11 VDD33

E6 VDD33

A3 VSS33

D2 VSS33

D5 VSS33

H2 VSS33

M2 VSS33

P18 VSS33

Ground of memory interface driver

Supply voltage of drivers for USB

Supply voltage of drivers except memory interface and USB

Supply voltage of drivers except memory interface and USB Supply voltage of drivers except memory interface and USB Supply voltage of drivers except memory interface and USB Ground of drivers except memory interface Ground of drivers except memory interface Ground of drivers except memory

interface Ground of drivers except memory

interface

24/307 MediaTek Inc. Confidential

MT6218B GSM/GPRS Baseband Processor Data Sheet Revision 1.00

H18 VSS33

A16 VSS33

B16 VSS33

E14 VSS33

E12 VSS33

E7 VSS33

B3 AVDD_PLL

C3 AVSS_PLL B2 AVDD_RTC

Analog Supplies

C15 AVDD_MB

UF D14 AVSS_MB

UF

B13 AVDD_BUF

A13 AVSS_BUF D11 AVDD_AFE

A11 AGND_AFE

E10 AVSS_AFE E9 AGND_RFE

E8 AVSS_GS

MRFTX D7 AVDD_GS

MRFTX

C7 AVSS_RFE

A7 AVDD_RFE

Ground of drivers except memory interface

Supply voltage for PLL

Ground for PLL supply Supply voltage for Real Time Clock

Supply Voltage for Audio band section

GND for Audio band section

Supply voltage for voice band transmit section

GND for voice band transmit section Supply voltage for voice band receive

section GND reference voltage for voice band

section GND for voice band receive section GND reference voltage for baseband

section, APC, AFC and AUXADC GND for baseband transmit section

Supply voltage for baseband transmit section

GND for baseband receive section, APC, AFC and AUXADC

Supply voltage for baseband receive section, APC, AFC and AUXADC

Table 2 Pin Descriptions (Bolded types are functions at reset)

25/307 MediaTek Inc. Confidential

MT6218B GSM/GPRS Baseband Processor Data Sheet Revision 1.00

2.3 Power Description

Ball

13X13

B17 GPIO7 VDDK VSSK A18 GPIO8 VDDK VSSK

A17 GPIO9 B16 VSS33 A16 VSS33

C16 VDDK Typ. 1.8V E15 VDD33 Typ. 2.8V E14 VSS33

E13 VDD33 Typ. 2.8V

E12 VSS33

E11 VDD33 Typ. 2.8V E7 VSS33

E6 VDD33 Typ. 2.8V D5 VSS33 D4 VDD33 Typ. 2.8V A3 VSS33 B3 AVDD_PLL Typ. 2.8V A2 SYSCLK AVDD_PLL AVSS_PLL AVDD_PLL AVSS_PLL C3 AVSS_PLL B2 AVDD_RTC Typ. 1.5V B1 XOUT AVDD_RTC VSS33 AVDD_RTC VSS33 C2 XIN AVDD_RTC VSS33 AVDD_RTC VSS33 C1 BBWAKEUP AVDD_RTC VSS33 AVDD_RTC VSS33 D2 VSS33 D3 TESTMODE VDD33 VSS33 VDDK VSSK D1 VDDK Typ. 1.8V

Name IO Supply IO GND Core Supply Core GND Remark

VDD33 VSS33

VDDK VSSK

E5 IBOOT VDDK VSSK E4 JTRST# VDDK VSSK E3 JTCK VDDK VSSK E2 JTDI VDDK VSSK E1 JTMS VDDK VSSK F5 JTDO VDDK VSSK F4 JRTCK VDDK VSSK F3 BPI_BUS0 VDDK VSSK F2 BPI_BUS1

26/307 MediaTek Inc. Confidential

VDD33 VSS33

VDDK VSSK

MT6218B GSM/GPRS Baseband Processor Data Sheet Revision 1.00

F1 VDD33 Typ. 2.8V G5 BPI_BUS2 VDDK VSSK

VDD33 VSS33

G4 BPI_BUS3 VDDK VSSK G3 BPI_BUS4 VDDK VSSK G2 BPI_BUS5 VDDK VSSK G1 BPI_BUS6 VDDK VSSK H5 BPI_BUS7 VDDK VSSK H4 BPI_BUS8

VDDK VSSK

H2 VSS33 H3 BPI_BUS9 VDDK VSSK

VDD33 VSS33

H1 BSI_CS0 VDDK VSSK J5 BSI_DATA VDDK VSSK J4 BSI_CLK VDDK VSSK

J3 LSCK VDDK VSSK J2 LSA0 VDDK VSSK

J1 LSDA VDDK VSSK K4 LSCE0# VDDK VSSK K3 LSCE1#

VDDK VSSK

K1 VDD33 K2 LPCE1# VDDK VSSK

VDD33 VSS33

L5 LPCE0# VDDK VSSK L4 LRST# VDDK VSSK L3 LRD# VDDK VSSK

L2 LPA0 VDDK VSSK L1 LWR# VDDK VSSK M5 NLD7 VDDK VSSK M4 NLD6 VDDK VSSK M3 NLD5

VDDK VSSK

M2 VSS33 M1 VDDK Typ. 1.8V N5 NLD4 VDDK VSSK

VDD33 VSS33

N4 NLD3 VDDK VSSK N3 NLD2 VDDK VSSK N2 NLD1 VDDK VSSK N1 NLD0 VDDK VSSK P5 NRNB VDDK VSSK P4 NCLE VDDK VSSK P3 NALE VDDK VSSK P2 NEW#

27/307 MediaTek Inc. Confidential

VDDK VSSK

MT6218B GSM/GPRS Baseband Processor Data Sheet Revision 1.00

P1 NRE# VDDK VSSK R4 NCE# VDDK VSSK R1 VDD33 Typ. 2.8V R3 PWM1 VDDK VSSK

VDD33 VSS33

R2 PWM2 VDDK VSSK T4 ALERTER VDDK VSSK T1 SRCLKENA VDDK VSSK

T3 SRCLKENAN VDDK VSSK T2 SRCLKENAI VDDK VSSK U1 SYSRST# VDDK VSSK

U2 GPIO0 VDDK VSSK V1 EINT0 VDDK VSSK U3 EINT1 VDDK VSSK

W1 EINT2 VDDK VSSK V2 EINT3

VDDK VSSK

V3 VSS33_EMI W2 EA25 VDDK VSSK W3 EA24 VDDK VSSK

VDD33_EMI VSS33_EMI

U4 EA23 VDDK VSSK V4 EA22

VDDK VSSK

W4 VDD33_EMI Typ. 1.8~2.8V R5 MIRQ VDDK VSSK W5 EA21 VDDK VSSK

VDD33_EMI VSS33_EMI

V5 EA20 VDDK VSSK U5 EA19 VDDK VSSK T6 EA18

VDDK VSSK

V6 VSS33_EMI W6 EA17 VDDK VSSK U6 EA16 VDDK VSSK

VDD33_EMI VSS33_EMI

T6 EA15 VDDK VSSK R6 EA14

VDDK VSSK

W7 VDD33_EMI Typ. 1.8~2.8V V7 EA13 VDDK VSSK

VDD33_EMI VSS33_EMI

U7 EA12 VDDK VSSK T7 EA11 VDDK VSSK R7 EA10

VDDK VSSK

V8 VDDK Typ. 1.8V U8 VSS33_EMI

W8 EA9 VDD33_EMI

28/307 MediaTek Inc. Confidential

VSS33_EMI

VDDK VSSK

MT6218B GSM/GPRS Baseband Processor Data Sheet Revision 1.00

T8 EA8 VDDK VSSK R8 EA7 VDDK VSSK V9 EA6 VDDK VSSK W9 VDD33_EMI Typ. 1.8~2.8V U9 EA5 VDDK VSSK T9 EA4 VDDK VSSK W10 EA3

VDD33_EMI VSS33_EMI

VDDK VSSK

V10 VSS33_EMI U10 EA2 VDDK VSSK

VDD33_EMI VSS33_EMI

T10 EA1 VDDK VSSK R10 EA0

VDDK VSSK

W11 VDD33_EMI Typ. 1.8~2.8V U11 EADV# VDDK VSSK

VDD33_EMI VSS33_EMI

V11 ECLK VDDK VSSK T11 EPDN#

VDDK VSSK

V12 VSS33_EMI W12 ECS7# VDDK VSSK

VDD33_EMI VSS33_EMI

U12 ECS6# VDDK VSSK T12 ECS5# VDDK VSSK R12 ECS4#

VDDK VSSK

W13 VDD33_EMI Typ. 1.8~2.8V V13 ECS3# VDDK VSSK U13 ECS2# VDDK VSSK

VDD33_EMI VSS33_EMI

T13 ECS1# VDDK VSSK R13 ECS0#

VDDK VSSK

V14 VSS33_EMI W14 EWR# VDDK VSSK U14 ERD# VDDK VSSK

VDD33_EMI VSS33_EMI

T14 EUB# VDDK VSSK R14 ELB#

VDDK VSSK

W15 VDD33_EMI Typ. 1.8~2.8V V15 ED15 VDDK VSSK

VDD33_EMI VSS33_EMI

U15 ED14 VDDK VSSK T15 ED13 VDDK VSSK W16 ED12

VDDK VSSK

V16 VDDK U16 VSS33_EMI T16 ED11 VDDK VSSK

VDD33_EMI VSS33_EMI

W17 ED10

29/307 MediaTek Inc. Confidential

VDDK VSSK

MT6218B GSM/GPRS Baseband Processor Data Sheet Revision 1.00

V17 ED9 VDDK VSSK W18 VDD33_EMI Typ. 1.8~2.8V U17 ED8 VDDK VSSK

VDD33_EMI VSS33_EMI

W19 ED7 VDDK VSSK V18 ED6

VDDK VSSK

V19 VSS33_EMI U18 ED5 VDDK VSSK

VDD33_EMI VSS33_EMI

U19 ED4 VDDK VSSK T17 ED3

VDDK VSSK

T18 VDD33_EMI Typ. 1.8~2.8V T19 ED2 VDDK VSSK

R15 ED1 VDDK VSSK

VDD33_EMI VSS33_EMI

R16 ED0 VDDK VSSK R17 MFIQ VDDK VSSK

R18 WATCHDOG

VDDK VSSK

R19 VSS33_EMI P15 VDD33_USB Typ. 3.3V P16 USB_DP VDDK VSSK P17 USB_DM

VDD33_USB VSS33_USB

VDDK VSSK

P18 VSS33 P19 MCCM0 VDDK VSSK

N15 MCDA0 VDDK VSSK

VDD33

VSS33

N16 MCDA1 VDDK VSSK N17 MCDA2 VDDK VSSK

N18 MCDA3 VDDK VSSK N19 MCCK VDDK VSSK M16 MCPWRON VDDK VSSK M17 MCWP VDDK VSSK M18 MCINS VDDK VSSK M19 GPIO1 VDDK VSSK L15 GPIO2 VDDK VSSK L16 GPIO3

VDDK VSSK

L19 VDD33 Typ. 2.8V L18 SIMRST VDDK VSSK L17 SIMCLK VDDK VSSK

VDD33

VSS33

K15 SIMVCC VDDK VSSK K16 SIMSEL VDDK VSSK K17 SIMDATA VDDK VSSK K18 URXD1

30/307 MediaTek Inc. Confidential

VDDK VSSK

MT6218B GSM/GPRS Baseband Processor Data Sheet Revision 1.00

K19 UTXD1 VDDK VSSK J16 UCTS1 VDDK VSSK J17 URTS1 VDDK VSSK J18 URXD2 VDDK VSSK J19 UTXD2 VDDK VSSK H15 URXD3 VDDK VSSK H16 UTXD3 VDDK VSSK H19 VDDK VDDK VSSK Typ. 1.8V H18 VSS33 VDDK VSSK H17 IRDA_PDN VDDK VSSK G15 IRDA_TXD VDDK VSSK

VDD33

VSS33

G16 IRDA_RXD VDDK VSSK G17 KCOL6 VDDK VSSK G18 KCOL5 VDDK VSSK G19 KCOL4 VDDK VSSK F15 KCOL3 VDDK VSSK F16 KCOL2 VDDK VSSK F17 KCOL1 VDDK VSSK F18 KCOL0 VDDK VSSK F19 KROW5 VDDK VSSK E16 KROW4 VDDK VSSK E17 KROW3 VDDK VSSK E18 KROW2

VDDK VSSK

E19 VDD33 Typ. 2.8V D16 KROW1 VDDK VSSK

VDD33 VSS33

D19 KROW0 VDDK VSSK D17 DAICLK VDDK VSSK D18 DAIPCMOUT VDDK VSSK C19 DAIPCMIN VDDK VSSK C18 DAIRST VDDK VSSK B19 DAISYNC VDDK VSSK C17 GPIO4 VDDK VSSK A19 GPIO5 VDDK VSSK A18 GPIO6

VDDK VSSK

C15 AVDD_MBUF Typ. 2.8V B15 AU_MOUTL A15 AU_MOUTR D14 AVSS_MBUF C14 AU_M_BYP

31/307 MediaTek Inc. Confidential

MT6218B GSM/GPRS Baseband Processor Data Sheet Revision 1.00

B14 AU_FMINL A14 AU_FMINR D13 AU_OUT1_P C13 AU_OUT1_N B12 AU_OUT0_N B13 AVDD_BUF Typ. 2.8V A12 AU_OUT0_P A13 AVSS_BUF C12 AU_MICBIAS_P D12 AU_MICBIAS_N D11 AVDD_AFE Typ. 2.8V C11 AU_VREF_N B11 AU_VREF_P A11 AGND_AFE D10 AU_VIN0_P C10 AU_VIN0_N B10 AU_VIN1_N A10 AU_VIN1_P E10 AVSS_AFE D9 BDLAQP C9 BDLAQN E9 AGND_RFE A9 BDLAIN B9 BDLAIP E8 AVSS_GSMRFTX B8 BUPAIP A8 BUPAIN D7 AVDD_GSMRFTX Typ. 2.8V C8 BUPAQN D8 BUPAQP C7 AVSS_RFE B7 APC A7 AVDD_RFE Typ. 2.8V D6 AUXADIN0 C6 AUXADIN1 B6 AUXADIN2 A6 AUXADIN3 C5 AUXADIN4 B5 AUXADIN5

32/307 MediaTek Inc. Confidential

MT6218B GSM/GPRS Baseband Processor Data Sheet Revision 1.00

A5 AUXADIN6 C4 AUX_REF B4 AFC A4 AFC_BYP

Table 3 Power Descriptions

33/307 MediaTek Inc. Confidential

MT6218B GSM/GPRS Baseband Processor Data Sheet Revision 1.00

3 Micro-Controller Unit Subsystem

Figure 5 illustrates the block diagram of the Micro -Controller Unit Subsystem in MT6218B. A 32-bit RISC processor, ARM7EJ -S, plays the role of the major bus master controlling the whole subsystem. Essentially, it communicates with all the other on-chip modules by way of system buses: AHB Bus and APB Bus.

All bus transactions originate from bus masters, while slaves can only respond requests from bus masters. Prior to a data transfer can be established, bus master must ask for bus ownership. This is accomplished by request-grant handshaking protocol between masters and arbiters.

Two levels of bus hierarchy are designed to provide alternatives for different performance requirements, i.e. AHB Bus and APB Bus for system back bone and peripheral buses, respectively. To have high performance and proper efficiency, the AHB Bus provides 32-bit data path with multiplex scheme for bus interconnections.

For APB Bus, it supports 16 -bit addressing and both 16-bit and 32-bit data paths. Since it is designated to reduce interface complexity for lower data transfer rate, it is isolated from high bandwidth AHB Bus by APB Bridge. APB Bus is also optimized for minimal power consumption by employing gated-clock scheme.

Whenever the target slave locates on AHB Bus, the transaction is conducted directly on AHB Bus. However, if the target slave is a peripheral, the transaction should be further forwarded to APB Bus by APB Bridge.

Only memory addressing method is used in MT6218B based system. All components are mapped onto MCU 32 -bit address space. A Memory Management Unit is employed to have a central decode scheme. It generates certain selection signals for each memory -addressed modules on AHB Bus.

In order to off-load the processor core, a DMA Controller is designated to act as a master and share the bus resources on AHB Bus to do fast data movement between modules. This controller comprises thirteen DMA channels.

The Interrupt Controller provides a software interface to manipulate interrupt events. It can handle up to 32 interrupt sources asserted at the same time. In general, it generates 2 levels of interrupt requests, FIQ and IRQ, to the processor.

A 256K Byte SRAM is provided for acting as system memory for high-speed data access. For factory programming purpose, a Boo t ROM module is used. These two modules use the same Internal Memory Controller to connect to AHB Bus.

External Memory Interface supports both 8-bit and 16-bit devices. Since AHB Bus is 32-bit wide, all the data transfer will be converted into several 8-bit or 16 -bit cycles depending on the data width of target device. Note that, this interface is specific to both synchronous and asynchronous components, like Flash, SRAM and parallel LCD. This interface supports also page and burst mode type of Flash.

34/307 MediaTek Inc. Confidential

MT6218B GSM/GPRS Baseband Processor Data Sheet Revision 1.00

System ROM

System RAM

Internal Memory

Controller

Ext Bus

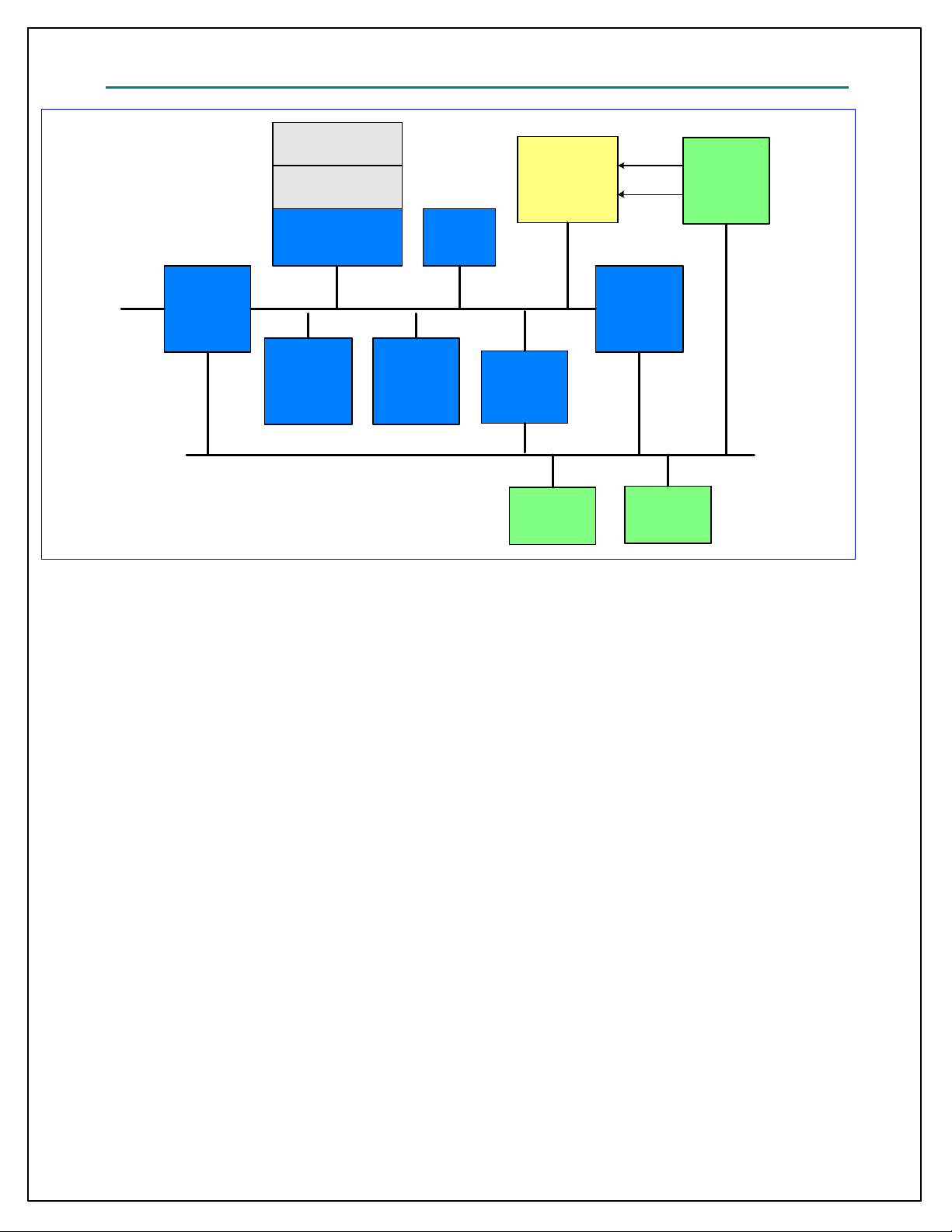

Figure 5 Block Diagram of the Micro -Controller Unit Subsystem in MT6218B

External Memory

Interface

MCU-DSP

Interface

Arbiter

AHB Bus

USB

ARM7EJ-S

DMA

Controller

Peripheral

Interrupt

Controller

APB

Bridge

APB Bus

Peripheral

3.1 Processor Core

3.1.1 General Description

The Micro -Controller Unit Subsystem in MT6218B is built up with a 32 -bit RISC core, ARM7EJ-S that is based on Von Neumann architecture with a single 32 -bit data bus carrying both instructions and data. The memory interface of ARM7EJ -S is totally compliant to AMBA based bus system. Basically, it can be connected to AHB Bus directly.

3.2 Memory Management

3.2.1 General Description

The processor core of MT6218B, ARM7EJ-S, supports only memory addressing method for instruction fetch and data access. It manages a 32-bit address space that has addressing capability up to 4GB. System RAM, System ROM, Registers, MCU Perip herals and external components are all mapped onto such 32-bit address space, as depicted in Figure 6.

35/307 MediaTek Inc. Confidential

MT6218B GSM/GPRS Baseband Processor Data Sheet Revision 1.00

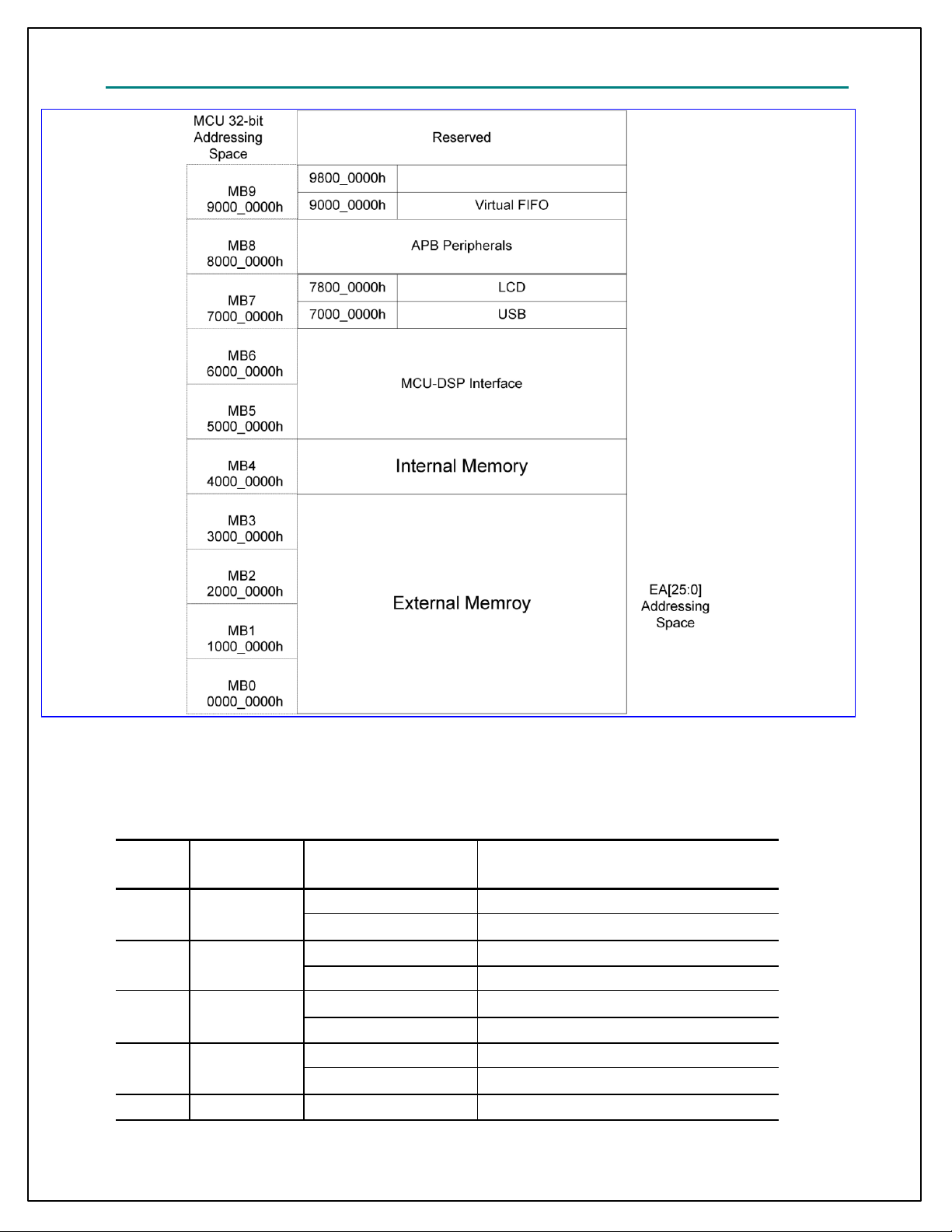

Figure 6 The Memory Layout of MT6218B

The address space is organized as basis of blocks with size of 256M Bytes for each. Memory blocks MB0-MB9 are determined and currently dedicated to specific functions, as shown in Table 4, while the others are reserved for future usage. Essentially, the block number is uniquely selected by address line A31-A28 of internal system bus.

Memory

Block

MB0 0h

Block Address

A31-A28

Address Range Description

00000000h-07FFFFFFh Boot Code, EXT SRAM or EXT Flash/MISC

08000000h-0FFFFFFFh EXT SRAM or EXT Flash/MISC

MB1 1h

10000000h-17FFFFFFh EXT SRAM or EXT Flash/MISC

18000000h-1FFFFFFFh EXT SRAM or EXT Flash/MISC

MB2 2h

20000000h-27FFFFFFh EXT SRAM or EXT Flash/MISC

28000000h-2FFFFFFFh EXT SRAM or EXT Flash/MISC

MB3 3h

30000000h-37FFFFFFh EXT SRAM or EXT Flash/MISC

38000000h-3FFFFFFFh EXT SRAM or EXT Flash/MISC

MB4 4h 40000000h-47FFFFFFh System RAM

36/307 MediaTek Inc. Confidential

MT6218B GSM/GPRS Baseband Processor Data Sheet Revision 1.00

48000000h-4FFFFFFFh System ROM

MB5 5h 50000000h-5FFFFFFFh MB6 6h 60000000h-6FFFFFFFh

MB7 7h

MB8 8h 80000000h-8FFFFFFFh APB Slaves

MB9 9h

70000000h-77FFFFFFh USB

78000000h-7FFFFFFFh LCD

90000000h-97FFFFFFh Virtual FIFO

Table 4 Definitions of Memory Blocks in MT6218B

MCU-DSP Interface

External Access

To have external access, the MT6218B outputs 26 bits (A25-A0) of address lines along with 8 selection signals that correspond to associated memory blocks. That is, MT6218B can support at most 8 MCU addressable external components. The data width of internal system bus is fixed as 32-bit wide, while the data width of the external components can be either 8 or 16 bit.

Since devices are usually available with variety operating grades, adaptive configurations for different applications are needed. MT6218B provides software programmable registers to configure to adapt operating conditions in terms of different wait-states.

Memory Re -mapping Mechanism

To permit system being configured with more flexible, a memory re-mapping mechanism is provided. It allows software program to swap BANK0 (ECS0#) and BANK1 (ECS1#) dynamically. Whenever the bit value of RM0 in register EMI_REMAP is changed, these two banks will be swapped accordingly. Besides, it also permits system being boot in different sequence as detailed in 0 Boot Sequence.

Boot Sequence

Since the ARM7EJ-S core always starts to fetch instructions from the lowest memory address at 00000000h (MB0) after system being reset. It is designed to have a dynamic mapping architecture capable of associating Boot Code, external Flash or external SRAM with memory block MB0.

By default, the Boot Code is mapped onto MB0 while the state of IBOOT is “0”. But, this configuration can be changed by altering the state of IBOOT before system reset or programming bit value of RM1 in register EMI_REMAP directly.

MT6218B system provides two kinds of boot up scheme:

l Start up system of running codes from Boot Code for factory programming l Start up system of running codes from external FLASH or ROM device for normal operation

Boot Code

The Boot Code is placed together with Memory Re-Mapping Mechanism in External Memory Controller and comprises just two words of instructions as shown below. It is quite obvious that there is a jump instruction that leads the processor to run the code started at address of 48000000h where the System ROM is placed.

37/307 MediaTek Inc. Confidential

MT6218B GSM/GPRS Baseband Processor Data Sheet Revision 1.00

ADDRESS BINARY CODE ASSEMBLY

00000000h E51FF004h LDR PC, 0x4 00000004h 48000000h (DATA)

Factory Programming

The configuration for factory programming is shown in Figure 7. Usually the Factory Programming Host connects with MT6218B by way of UART interface. To have it works properly, the system should boot up from Boot Code. That is the IBOOT should be tied to GND. The down load speed can be up to 921K bps while MCU is running at 26MHz.

After system being reset, the Boot Code will guide the processor to run the Factory Programming software placed in System ROM. Then, MT6218B will start and continue to poll the UART1 port until valid information is detected. The first information received on the UART1 will be used to configure the chip for factory programming. The Flash down loader program is then transferred into System RAM or external SRAM.

Further information will be detailed in MT6218B Software Programming Specification.

IBOOT

MT6218B

External Memory

Interface

FLASH

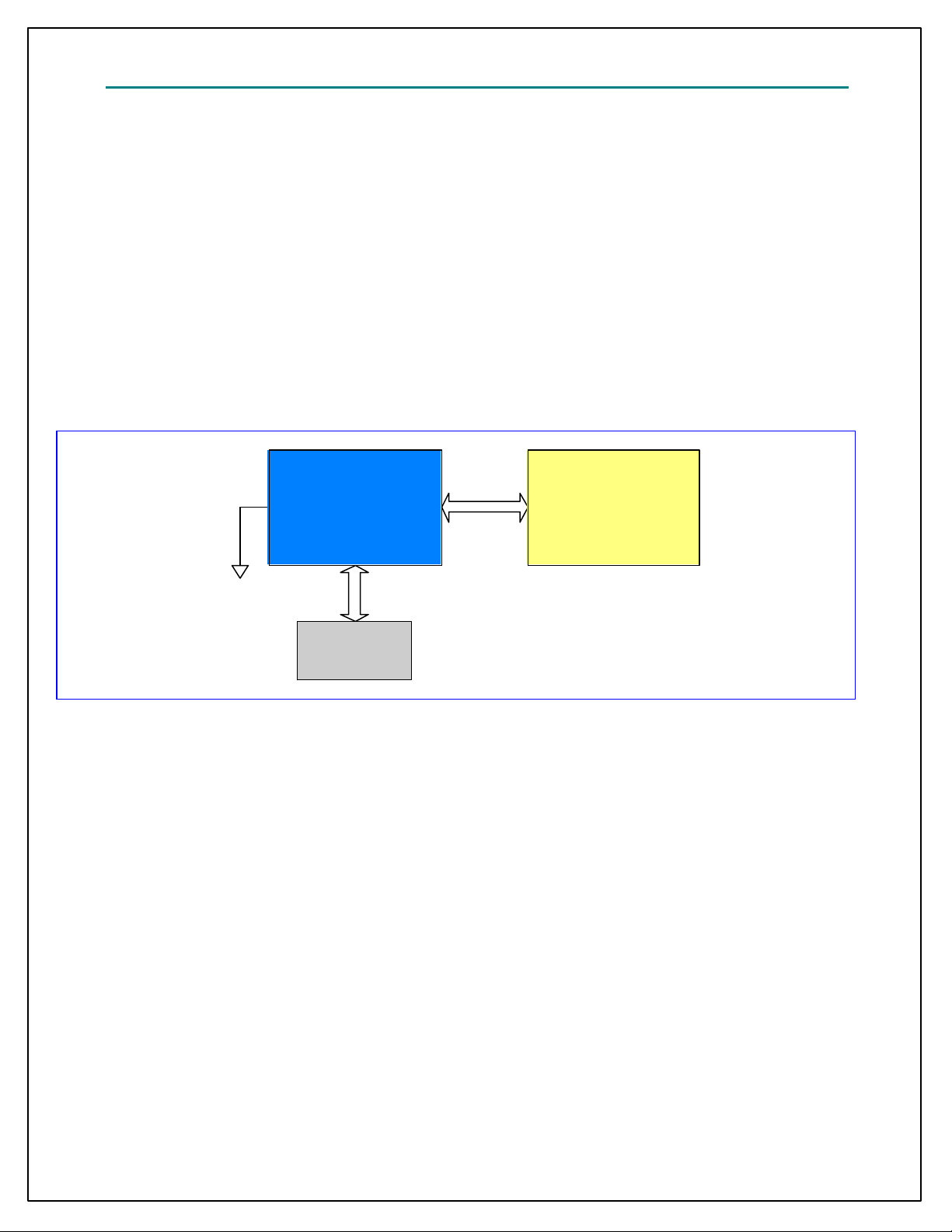

Figure 7 System configuration required for factory programming

UART

Factory

Programming

Host

Little Endian Mode

The MT6218B system always treats 32-bit words of memory in Little Endian format. In Little Endian mode, the lowest numbered byte in a word is stored in the least significant byte, and the highest numbered byte in the most significant

position. Byte 0 of the memory system is therefore connected to data lines 7 through 0.

3.3 Bus System

3.3.1 General Description

Two levels of bus hierarchy are employed in constructing the Micro-Controller Unit Subsystem of MT6218B. As depicted in Figure 5, AHB Bus and APB Bus serve for system backbone and peripheral buses, while an APB bridge connects these two buses. Both AHB and APB Buses operate at the same clock rate as processor core.

The APB Bridge is the only bus master resided on the APB bus. All APB slaves are mapped onto memory block MB8 in MCU 32 -bit addressing space. A central address decoder is implemented inside the bridge to generate those select signals

38/307 MediaTek Inc. Confidential

MT6218B GSM/GPRS Baseband Processor Data Sheet Revision 1.00

for individual peripheral. In addition, since the base address of each APB slave has been associated with select signals, the address bus on APB will contains only the value of offset address.

The maximum address space that can be allocated to a single APB slave is 32KB, i.e. 16-bit address lines. The width of data bus is mainly constrained to 16-bit to minimize the design complexity and power consumption while some of them uses 32-bit data bus to accommodate more bandwidth. In the case where an APB slave needs large amount of transfers, the device driver can also request a DMA resource or channel to conduct a burst of data transfer. The base address and data width of each peripheral are listed in Table 5.

Base Address Description Data Width Software Base ID

8000_0000h

Configuration Registers (Clock, Power Down, Version and Reset)

16 CONFG Base

8001_0000h External Memory Interface 16 EMI Base 8002_0000h Interrupt Controller 32 CIRQ Base 8003_0000h DMA Controller 32 DMA Base

8004_0000h Reset Generation Unit 16 RGU Base 8005_0000h Reserved

8006_0000h GPRS Cipher Unit 32 GCU Base 8007_0000h Software Debug 16 SWDBG Base 8008_0000h MCU Tracer 32 TRC Base 8009_0000h NAND Flash Interface 32 NFI base 8010_0000h General Purpose Timer 16 GPT Base 8011_0000h Keypad Scanner 16 KP Base 8012_0000h General Purpose Inputs/Outputs 16 GPIO Base 8013_0000h UART 1 16 UART1 Base 8014_0000h SIM Interface 16 SIM Base 8015_0000h Pulse-Width Modulation Outputs 16 PWM Base 8016_0000h Alerter Interface 16 ALTER Base 8017_0000h LCD Interface 16 LCD Base 8018_0000h UART 2 16 UART2 Base 8019_0000h Reserved

801a_0000h IrDA 16 IRDA Base

801b_0000h UART 3 16 UART3 Base

801c_0000h Base-Band to PMIC Serial Interface 16 B2PSI Base 8020_0000h TDMA Timer 16 TDMA Base 8021_0000h Real Time Clock 16 RTC Base 8022_0000h Base-Band Serial Interface 32 BSI Base 8023_0000h Base-Band Parallel Interface 16 BPI Base 8024_0000h Automatic Frequency Control Unit 16 AFC Base 8025_0000h Automatic Power Control Unit 32 APC Base 8026_0000h Frame Check Sequence 16 FCS Base

39/307 MediaTek Inc. Confidential

MT6218B GSM/GPRS Baseband Processor Data Sheet Revision 1.00

8027_0000h Auxiliary ADC Unit 16 AUXADC Base 8028_0000h Divider/Modulus Coprocessor 32 DIVIDER Base 8029_0000h CSD Format Conversion Coprocessor 32 CSD_ACC Base

802a_0000h MS/SD Controller 32 MSDC Base 8030_0000h MCU-DSP Shared Register 16 SHARE Base

8031_0000h DSP Patch Unit 16 PATCH Base 8040_0000h Audio Front End 16 AFE Base 8041_0000h Base-Band Front End 16 BFE Base 8050_0000h Analog Chip Interface Controller 16 MIXED Base 8060_0000h JPEG Decoder 32 JPEG Base 8061_0000h Resizer 32 RESZ Base

Table 5 Register Base Addresses for MCU Peripherals

REGISTER ADDRESS REGISTER NAME SYNONYM

CONFG + 0000h Hardware Version Register HW_VER CONFG + 0004h Firmware Version Register FW_VER CONFG + 0008h Hardware Code Register HW_CODE CONFG + 0404h APB Bus Control Register APB_CON

Table 6 APB Bridge Register Map

3.3.2 Register Definitions

CONFG+0000h Hardware Version Register HW_VERSION

Bit 15 14 13 12 11 10 9 8 7 6 5 4 3 2 1 0

Name

Type R O RO RO RO

Reset

This register is useful for software program to determine the hardware version of the chip. It will have a new value whenever each metal fix or major step is performed. All these values are incremented by a step of 1.

HFIX Iteration to fix a hardware bug, in case of some layer mask fixed MINREV Minor Revision of the chip, in case of all layer masks changed MAJREV Major Revision of the chip EXTP This field shows the existence of Hardware Code Register that presents the Hardware ID while the value is other

than zero.

CONFG+0004h Firmware Version Register FW_VERSION

Bit 15 14 13 12 11 10 9 8 7 6 5 4 3 2 1 0

Name

Type R O RO RO RO

Reset

EXTP MAJREV MINREV HFIX

8 B 0 0

EXTP MAJREV MINREV FFIX

8 B 0 0

40/307 MediaTek Inc. Confidential

MT6218B GSM/GPRS Baseband Processor Data Sheet Revision 1.00

This register is useful for software program to determine the Firmware ROM version that is included in this chip. All these values are incremented by a step of 1.

FFIX Iteration to fix a firmware bug MINREV Minor Revision of the firmware

MAJREV Major Revision of the firmware EXTP This field shows the existence of Hardware Code Register that presents the Hardware ID when the value is other

than zero.

CONFG+0008h Hardware Code Register HW_CODE

Bit 15 14 13 12 11 10 9 8 7 6 5 4 3 2 1 0

Name

Type R O RO RO RO

Reset

CODE3 CODE2 CODE1 CODE0

6 2 1 8

This register presents the Hardware ID.

CODE This version of chip is coded as 6218h.

CONFG+0404h APB Bus Control Register APB_CON

Bit 15 14 13 12 11 10 9 8 7 6 5 4 3 2 1 0

Name

Type R/W R/W R/W R/W R/W R/W R/W R/W R/W R/W R/W R/W

Reset 0 0 0 0 0 0 1 1 1 1 1 1

APBW

6

APBW4 APBW

3

APBW

2

APBW1 APBW

0

APBR

6

APBR4 APBR

APBR2 APBR1 APBR

3

0

This register is used to control the timing of Read Cyc le and Write Cycle on APB Bus. Note that APB Bridge 5 is different

from other bridges. The access time is varied, and access is not completed until acknowledge signal from APB slave is asserted.

APBR0-APBR6 Read Access Time on APB Bus

0 1-Cycle Access 1 2-Cycle Access

APBW0 -APBW6 Write Access Time on APB Bus

0 1-Cycle Access 1 2-Cycle Access

3.4 Direct Memory Access

3.4.1 General Description

A generic DMA Controller is placed on Layer 2 AHB Bus to support fast data transfers, and also to off-load the processor. With this controller, specific devices on AHB or APB buses can benefit greatly from quickly completing data movement from or to memory module, i.e. Internal System RAM or External SRAM. Such Generic DMA Controller can also be used to connect any two devices other than memory module as long as they can be addressed in memory space.

41/307 MediaTek Inc. Confidential

MT6218B GSM/GPRS Baseband Processor Data Sheet Revision 1.00

Figure 8 Variety Data Paths of DMA Transfers Thirteen channels of data transfer are supported at one time. Each channel has a similar set of registers to be configured to

different scheme as desired. If more than thirteen devices are requesting the DMA resources at the same time, software based arbitration should be employed. Once the service candidate is decided, the responsible device driver should configure the Generic DMA Controller properly in order to conduct DMA transfers. Both Interrupt and Polling based schemes in handling the completion event are supported. The block diagram of such generic DMA Controller is illustrated in Figure 9.

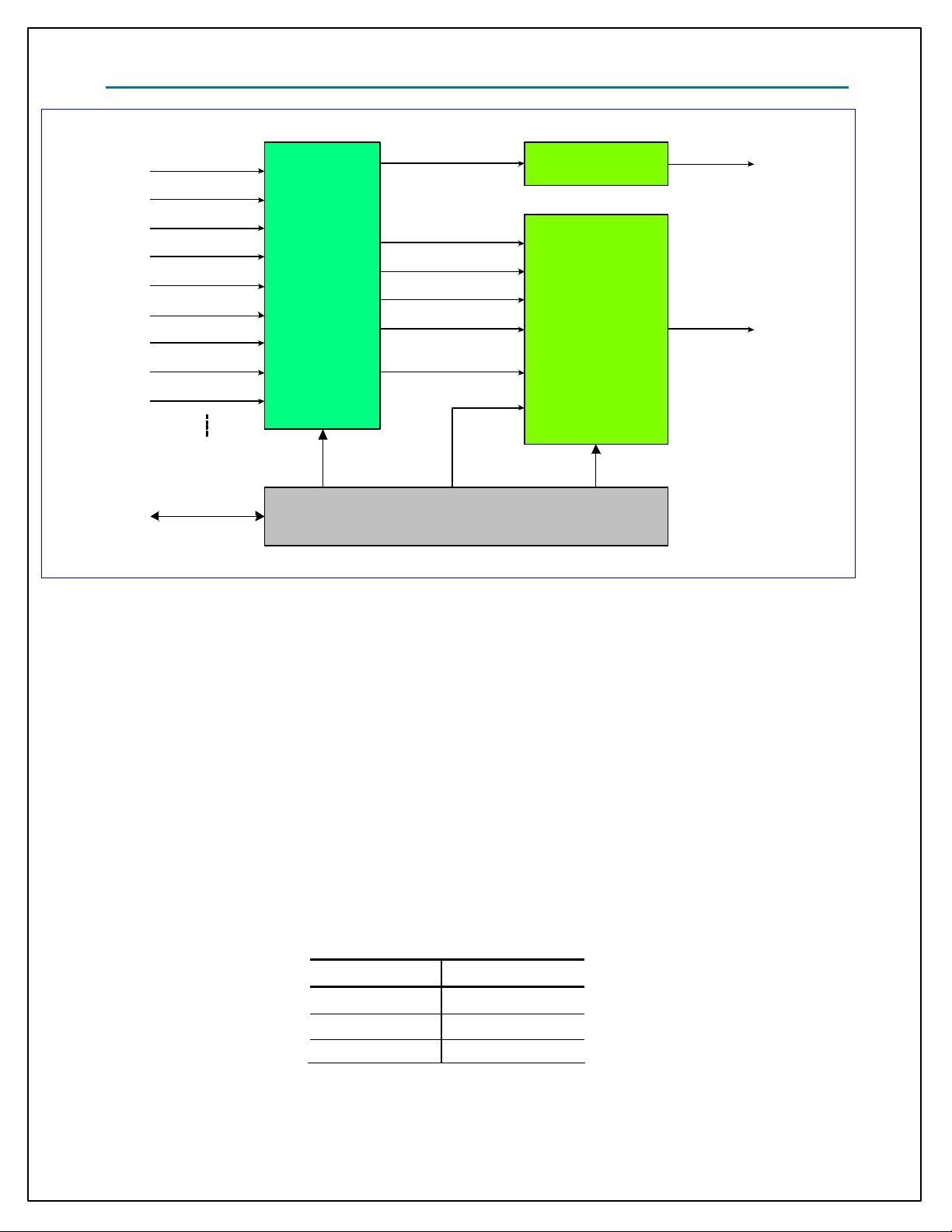

Figure 9 Block Diagram of Direct memory Access Module

3.4.1.1 Full-Size & Half-Size DMA Channels

There are two types of DMA channels in the DMA controller. The first one is called full-size DMA channel, and the second one is called half-size DMA channel. Channel 1 to 3 are full-size DMA channels, and channel 4 to 9 are half-size ones. The difference between the two types of DMA channels is that both source and destination address are programmable in full-size DMA channels, but only one side of address can be programmed in half -size DMA channel. This can be source or destination address. The addresses of the other sides are preset. Which preset address is used depends on the setting of MAS in DMA Channel Control Register. See the section of Register Definition for the detail.

42/307 MediaTek Inc. Confidential

MT6218B GSM/GPRS Baseband Processor Data Sheet Revision 1.00

3.4.1.2 Ring Buffer & Double Buffer Memory Data Movement

DMA channel 1 -9 support ring-buffer and double -buffer memory data movement. This can be achieved by programming DMA_WPPT and DMA_WPTO, as well as set WPEN in DMA_CON register enable. Figure 10 illustrates how this function works. Once transfer counter reaches the value of WPPT, next address will jump to WPTO address after completing data transfer of WPPT. Note that there is only one side can be configured as ring-buffer or two-buffer memory, and this is controlled by WPSD in DMA_CON register.

Figure 10 Ring Buffer and double Buffer Memory Data Movement

3.4.1.3 Unaligned Word Access

The address of word access on AHB bus must be aligned to word boundary, or the 2 LSB will be truncated to 00b. If programmers don’t notice that, it may cause incorrect data fetch. For the case of moving data from unaligned addresses to

aligned addresses, it’s usually done by splitting the word into four bytes, and moves it by byte. This cause four read and four write transfers on bus. To improve bus efficiency, unaligned-word access is provided in DMA 4 -9.

While this function is enable. DMAs move data from unaligned address to aligned address by executing four continuous byte-read access and one word -write access, and vice versa. This reduces three transfers on bus.

43/307 MediaTek Inc. Confidential

MT6218B GSM/GPRS Baseband Processor Data Sheet Revision 1.00

Figure 11 unaligned word accesses

3.4.1.4 Virtual FIFO DMA

Virtual FIFO DMA is used to ease UART control. The difference between the Virtual FIFO DMAs and the ordinary DMAs is additional FIFO controller is designed in DMA. The read and write pointer are kept in Virtual FIFO DMA. Once READ

to this FIFO occurs, the read pointer will points to the address of the next data. On the contrary, the write pointer move to the next address while Write to this FIFO occurs. If FIFO is empty, a FIFO read will not be allowed. In the same way, data won’t be written into FIFO if FIFO is full. For the reason of the requirement of UART flow control, an alert length shall be programmed. Once the FIFO Space is less than this value. An alert signal will issue to enable UART flow control. What kinds of flow control will be taken is depend on the setting in UART.

Each Virtual FIFO DMA can be programmed as RX or TX FIFO. This depends on the setting of DIR in DMA_CON register. If DIR is “0”(READ), it means TX FIFO. On the contrary, if DIR is “1”(WRITE), the Virtual FIFO DMA is specified as a RX FIFO.

Virtual FIFO DMA provides an interrupt to MCU. This interrupt is to inform MCU that there are data in the FIFO, and the amount of data is over or under the value defined in DMA_COUNT register. With this, MCU doesn’t need to poll DMA to know when it needs to remove the data from FIFO or put data into FIFO.

Note that Virtual FIFO DMAs can’t be used as generic DMAs, i.e. DMA1-9.

Figure 12 Virtual FIFO DMA

44/307 MediaTek Inc. Confidential

MT6218B GSM/GPRS Baseband Processor Data Sheet Revision 1.00

DMA number Address of Virtual FIFO Access Port Associated UART

DMA10 7800_0000h UART1 RX / ALL UART TX DMA11 7800_0100h UART2 RX / ALL UART TX

DMA12 7800_0200h UART3 RX / ALL UART TX DMA13 7800_0300h ALL UART TX

Table 7 Virtual FIFO Access Port

DMA number Type Ring Buffer Two Buffer Burst Mode

Unaligned Word

Access DMA1 Full Size ? ? ? DMA2 Full Size ? ? ? DMA3 Full Size ? ? ?

DMA4 Half Size ? ? ? ? DMA5 Half Size ? ? ? ? DMA6 Half Size ? ? ? ?

DMA7 Half Size ? ? ? ? DMA8 Half Size ? ? ? ?

DMA9 Half Size ? ? ? ?

DMA10 Virtual FIFO ? DMA11 Virtual FIFO ?

DMA12 Virtual FIFO ? DMA13 Virtual FIFO ?

Table 8 Function list of DMA channels

REGISTER ADDRESS REGISTER NAME SYNONYM

DMA + 0000h DMA Global Status Register DMA_GLBSTA DMA + 0100h DMA Channel 1 Source Address Register DMA1_SRC DMA + 0104h DMA Channel 1 Destination Address Register DMA1_DST DMA + 0108h DMA Channel 1 Wrap Point Address Register DMA1_WPPT

DMA + 010Ch DMA Channel 1 Wrap To Address Register DMA1_WPTO

DMA + 0110h DMA Channel 1 Transfer Count Register DMA1_COUNT DMA + 0114h DMA Channel 1 Control Register DMA1_CON DMA + 0118h DMA Channel 1 Start Register DMA1_START

DMA + 011Ch DMA Channel 1 Interrupt Status Register DMA1_INTSTA

DMA + 0120h DMA Channel 1 Interrupt Acknowledge Register DMA1_ACKINT DMA + 0124h DMA Ch annel 1 Remaining Length of Current Transfer DMA1_RLCT DMA + 0128h DMA Channel 1 Bandwidth Limiter Register DMA1_LIMITER DMA + 0200h DMA Channel 2 Source Address Register DMA2_SRC DMA + 0204h DMA Channel 2 Destination Address Register DMA2_DST DMA + 0208h DMA Channel 2 Wrap Point Address Register DMA2_WPPT

45/307 MediaTek Inc. Confidential

MT6218B GSM/GPRS Baseband Processor Data Sheet Revision 1.00

DMA + 020Ch DMA Channel 2 Wrap To Address Register DMA2_WPTO

DMA + 0210h DMA Channel 2 Transfer Count Register DMA2_COUNT DMA + 0214h DMA Channel 2 Control Register DMA2_CON DMA + 0218h DMA Channel 2 Start Register DMA2_START

DMA + 021Ch DMA Channel 2 Interrupt Status Register DMA2_INTSTA

DMA + 0220h DMA Channel 2 Interrupt Acknowledge Register DMA2_ACKINT DMA + 0224h DMA Channel 2 Remaining Length of Current Transfer DMA2_RLCT DMA + 0228h DMA Channel 2 Bandwidth Limiter Register DMA2_LIMITER DMA + 0300h DMA Channel 3 Source Address Register DMA3_SRC DMA + 0304h DMA Channel 3 Destination Address Register DMA3_DST DMA + 0308h DMA Channel 3 Wrap Point Address Register DMA3_WPPT

DMA + 030Ch DMA Channel 3 Wrap To Address Register DMA3_WPTO

DMA + 0310h DMA Channel 3 Transfer Count Register DMA3_COUNT DMA + 0314h DMA Channel 3 Control Register DMA3_CON

DMA + 0318h DMA Channel 3 Start Register DMA3_START

DMA + 031Ch DMA Channel 3 Interrupt Status Register DMA3_INTSTA

DMA + 0320h DMA Channel 3 Interrupt Acknowledge Register DMA3_ACKINT DMA + 0324h DMA Channel 3 Remaining Length of Current Transfer DMA3_RLCT

DMA + 0328h DMA Channel 3 Bandwidth Limiter Register DMA3_LIMITER DMA + 0408h DMA Channel 4 Wrap Point Address Register DMA4_WPPT

DMA + 040Ch DMA Channel 4 Wrap To Address Register DMA4_WPTO

DMA + 0410h DMA Channel 4 Transfer Count Register DMA4_COUNT DMA + 0414h DMA Channel 4 Control Register DMA4_CON DMA + 0418h DMA Channel 4 Start Register DMA4_START

DMA + 041Ch DMA Channel 4 Interrupt Status Register DMA4_INTSTA

DMA + 0420h DMA Channel 4 Interrupt Acknowledge Register DMA4_ACKINT DMA + 0424h DMA Channel 4 Remaining Length of Current Transfer DMA4_RLCT DMA + 0428h DMA Channel 4 Bandwidth Limiter Register DMA4_LIMITER

DMA + 042Ch DMA Channel 4 Programmable Address Register DMA4_PGMADDR

DMA + 0508h DMA Channel 5 Wrap Point Address Register DMA5_WPPT

DMA + 050Ch DMA Channel 5 Wrap To Address Register DMA5_WPTO

DMA + 0510h DMA Channel 5 Transfer Count Register DMA5_COUNT DMA + 0514h DMA Channel 5 Control Register DMA5_CON DMA + 0518h DMA Channel 5 Start Register DMA5_START

DMA + 051Ch DMA Channel 5 Interrupt Status Register DMA5_INTSTA

DMA + 0520h DMA Channel 5 Interrupt Acknowledge Register DMA5_ACKINT DMA + 0524h DMA Channel 5 Remaining Length of Current Transfer DMA5_RLCT DMA + 0528h DMA Channel 5 Bandwidth Limiter Register DMA5_LIMITER

DMA + 052Ch DMA Channel 5 Programmable Address Register DMA5_PGMADDR

46/307 MediaTek Inc. Confidential

MT6218B GSM/GPRS Baseband Processor Data Sheet Revision 1.00

DMA + 0608h DMA Channel 6 Wrap Point Address Register DMA6_WPPT

DMA + 060Ch DMA Channel 6 Wrap To Address Register DMA6_WPTO

DMA + 0610h DMA Channel 6 Transfer Count Register DMA6_COUNT DMA + 0614h DMA Channel 6 Control Register DMA6_CON DMA + 0618h DMA Channel 6 Start Register DMA6_START

DMA + 061Ch DMA Channel 6 Interrupt Status Register DMA6_INTSTA

DMA + 0620h DMA Channel 6 Interrupt Acknowledge Register DMA6_ACKINT DMA + 0624h DMA Channel 6 Remaining Length of Current Transfer DMA6_RLCT

DMA + 0628h DMA Channel 6 Bandwidth Limiter Register DMA6_LIMITER

DMA + 062Ch DMA Channel 6 Programmable Address Register DMA6_PGMADDR

DMA + 0708h DMA Channel 7 Wrap Point Address Register DMA7_WPPT

DMA + 070Ch DMA Channel 7 Wrap To Address Register DMA7_WPTO

DMA + 0710h DMA Channel 7 Transfer Count Register DMA7_COUNT DMA + 0714h DMA Channel 7 Control Register DMA7_CON

DMA + 0718h DMA Channel 7 Start Register DMA7_START

DMA + 071Ch DMA Channel 7 Interrupt Status Register DMA7_INTSTA

DMA + 0720h DMA Channel 7 Interrupt Acknowledge Register DMA7_ACKINT DMA + 0724h DMA Channel 7 Remaining Length of Current Transfer DMA7_RLCT

DMA + 0728h DMA Channel 7 Bandwidth Limiter Register DMA7_LIMITER

DMA + 072Ch DMA Channel 7 Programmable Address Register DMA7_PGMADDR

DMA + 0808h DMA Channel 8 Wrap Point Address Register DMA8_WPPT

DMA + 080Ch DMA Channel 8 Wrap To Address Register DMA8_WPTO

DMA + 0810h DMA Channel 8 Transfer Count Register DMA8_COUNT DMA + 0814h DMA Channel 8 Control Register DMA8_CON

DMA + 0818h DMA Channel 8 Start Register DMA8_START

DMA + 081Ch DMA Channel 8 Interrupt Status Register DMA8_INTSTA

DMA + 0820h DMA Channel 8 Interrupt Acknowledge Register DMA8_ACKINT DMA + 0824h DMA Channel 8 Remaining Length of Current Transfer DMA8_RLCT DMA + 0828h DMA Channel 8 Bandwidth Limiter Register DMA8_LIMITER

DMA + 082Ch DMA Channel 8 Programmable Address Register DMA8_PGMADDR

DMA + 0908h DMA Channel 9 Wrap Point Address Register DMA9_WPPT

DMA + 090Ch DMA Channel 9 Wrap To Address Register DMA9_WPTO

DMA + 0910h DMA Channel 9 Transfer Count Register DMA9_COUNT DMA + 0914h DMA Channel 9 Control Register DMA9_CON DMA + 0918h DMA Channel 9 Start Register DMA9_START

DMA + 091Ch DMA Channel 9 Interrupt Status Register DMA9_INTSTA

DMA + 0920h DMA Channel 9 Interrupt Acknowledge Register DMA9_ACKINT DMA + 0924h DMA Channel 9 Remaining Length of Current Transfer DMA9_RLCT

DMA + 0928h DMA Channel 9 Bandwidth Limiter Register DMA9_LIMITER

47/307 MediaTek Inc. Confidential

MT6218B GSM/GPRS Baseband Processor Data Sheet Revision 1.00

DMA + 092Ch DMA Channel 9 Programmable Address Register DMA9_PGMADDR DMA + 0A10h DMA Channel 10 Transfer Count Register DMA10_COUNT DMA + 0A14h DMA Channel 10 Control Register DMA10_CON DMA + 0A18h DMA Channel 10 Start Register DMA10_START

DMA + 0A1Ch DMA Channel 10 Interrupt Status Register DMA10_INTSTA

DMA + 0A20h DMA Channel 10 Interrupt Acknowledge Register DMA10_ACKINT DMA + 0A28h DMA Channel 10 Bandwidth Limiter Register DMA10_LIMITER

DMA + 0A2Ch DMA Channel 10 Programmable Address Register DMA10_PGMADDR

DMA + 0A30h DMA Channel 10 Write Pointer DMA10_WRPTR DMA + 0A34h DMA Channel 10 Read Pointer DMA10_RDPTR DMA + 0A38h DMA Channel 10 FIFO Count DMA10_FFCNT

DMA + 0A3Ch DMA Channel 10 FIFO Status DMA10_FFSTA

DMA + 0A40h DMA Channel 10 Alert Length DMA10_ALTLEN DMA + 0A44h DMA Channel 10 FIFO Size DMA10_FFSIZE

DMA + 0B10h DMA Channel 11 Transfer Count Register DMA11_COUNT DMA + 0B14h DMA Channel 11 Control Register DMA11_CON DMA + 0B18h DMA Channel 11 Start Register DMA11_START

DMA + 0B1Ch DMA Channel 11 Interrupt Status Register DMA11_INTSTA

DMA + 0B20h DMA Ch annel 11 Interrupt Acknowledge Register DMA11_ACKINT DMA + 0B28h DMA Channel 11 Bandwidth Limiter Register DMA11_LIMITER

DMA + 0B2Ch DMA Channel 11 Programmable Address Register DMA11_PGMADDR

DMA + 0B30h DMA Channel 11 Write Pointer DMA11_WRPTR DMA + 0B34h DMA Channel 11 Read Pointer DMA11_RDPTR DMA + 0B38h DMA Channel 11 FIFO Count DMA11_FFCNT

DMA + 0B3Ch DMA Channel 11 FIFO Status DMA11_FFSTA

DMA + 0B40h DMA Channel 11 Alert Length DMA11_ALTLEN DMA + 0B44h DMA Channel 11 FIFO Size DMA11_FFSIZE DMA + 0C10h DMA Channel 12 Transfer Count Register DMA12_COUNT DMA + 0C14h DMA Channel 12 Control Register DMA12_CON DMA + 0C18h DMA Channel 12 Start Register DMA12_START

DMA + 0C1Ch DMA Channel 12 Interrupt Status Register DMA12_INTSTA

DMA + 0C20h DMA Channel 12 Interrupt Acknowledge Register DMA12_ACKINT DMA + 0C28h DMA Channel 12 Bandwidth Limiter Register DMA12_LIMITER

DMA + 0C2Ch DMA Channel 12 Programmable Address Register DMA12_PGMADDR

DMA + 0C30h DMA Channel 12 Write Pointer DMA12_WRPTR DMA + 0C34h DMA Channel 12 Read Pointer DMA12_RDPTR DMA + 0C38h DMA Channel 12 FIFO Count DMA12_FFCNT

DMA + 0C3Ch DMA Channel 12 FIFO Status DMA12_FFSTA

DMA + 0C40h DMA Channel 12 Alert Length DMA12_ALTLEN

48/307 MediaTek Inc. Confidential

MT6218B GSM/GPRS Baseband Processor Data Sheet Revision 1.00

DMA + 0C44h DMA Channel 12 FIFO Size DMA12_FFSIZE DMA + 0D10h DMA Channel 13 Transfer Count Register DMA13_COUNT DMA + 0D14h DMA Channel 13 Control Register DMA13_CON DMA + 0D18h DMA Channel 13 Start Register DMA13_START

DMA + 0D1Ch DMA Channel 13 Interrupt Status Register DMA13_INTSTA

DMA + 0D20h DMA Channel 13 Interrupt Acknowledge Register DMA13_ACKINT DMA + 0D28h DMA Channel 13 Bandwidth Limiter Register DMA13_LIMITER

DMA + 0D2Ch DMA Channel 13 Programmable Address Register DMA13_PGMADDR

DMA + 0D30h DMA Channel 13 Write Pointer DMA13_WRPTR DMA + 0D34h DMA Channel 13 Read Pointer DMA13_RDPTR DMA + 0D38h DMA Channel 13 FIFO Count DMA13_FFCNT

DMA + 0D3Ch DMA Channel 13 FIFO Status DMA13_FFSTA

DMA + 0D40h DMA Channel 13 Alert Length DMA13_ALTLEN DMA + 0D44h DMA Channel 13 FIFO Size DMA13_FFSIZE

Table 9 DMA Controller Register Map

3.4.2 Register Definitions

Registers programming tips,

l Start registers shall be cleared, when associated channels are being programmed.

l PGMADDR, i.e. programmable address, only exists in half -size DMA channels. If DIR in Control Register is high,

PGMADDR represents Destination Address. On the contrary, it represents Source Address.

l Functions of ring-buffer & double-buffer memory data movement can be activated in either source side or

destination side by programming DMA_WPPT & and DMA_WPTO, as well as setting WPEN in DMA_CON register high. WPSD in DMA_CON register determines the activated side.

DMA+0000h DMA Global Status Register DMA_GLBSTA

Bit 31 30 29 28 27 26 25 24 23 22 21 20 19 18 17 16

Name IT13

Type R O RO RO RO RO RO RO RO RO RO

Reset 0 0 0 0 0 0 0 0 0 0

Bit 15 14 13 12 11 10 9 8 7 6 5 4 3 2 1 0

Name IT8 RUN8 IT7 RUN7 IT6 RUN6 IT5 RUN5 IT4 RUN4 IT3 RUN3 IT2 RUN2 IT1 RUN1

Type RO RO RO RO RO RO RO RO RO RO RO RO R O RO RO RO

Reset 0 0 0 0 0 0 0 0 0 0 0 0 0 0 0 0

RUN1

3

This register helps software program being well aware of the global status of DMA channels.

IT12

RUN1

2

IT11

RUN1

1

IT10

RUN1

0

IT9 RUN9

RUNN DMA channel n status

0 Channel n is stopped or has completed the transfer already. 1 Channel n is currently running.

ITN Interrupt status for channel n

49/307 MediaTek Inc. Confidential

MT6218B GSM/GPRS Baseband Processor Data Sheet Revision 1.00

0 No interrupt is generated. 1 An interrupt is pending and waiting for service.

DMA+0n00h DMA Channel n Source Address Register DMAn_SRC

Bit 31 30 29 28 27 26 25 24 23 22 21 20 19 18 17 16

Name

Type R/W

Reset

Bit 15 14 13 12 11 10 9 8 7 6 5 4 3 2 1 0

Name

Type R/W

Reset

The above registers are to prompt the base or current address that a DMA channel is dealing with currently. In regard to a write to this register, it specifies the base address of transfer source for a DMA channel. Before being able to program these

registers, the software program should be sure of that STR in DMAn_START is set to ‘0’, that is the DMA channel is stopped and disabled completely. Other wise, the DMA channel may run out of order. In regard to a read to this set, it shows the value exactly the same as the one being written while SINC in DMAn_CON is set to “0”. With SINC being set to “1”, it appears the current source address that the data being getting from. It allows software program being well tracking the progress of DMA transfer.

SRC[31:16]

0

SRC[15:0]

0

Note that n is from 1 to 3.

SRC SRC[31:0] specifies the base or current address of transfer source for a DMA channel, i.e. channel 1, 2 or 3

WRITE base address of transfer source READ base address of transfer source if SINC in DMAn_CON is “0”

current address of transfer source if SINC in DMAn_CON is “1”

DMA+0n04h DMA Channel n Destination Address Register DMAn_DST

Bit 31 30 29 28 27 26 25 24 23 22 21 20 19 18 17 16

Name

Type R/W

Reset

Bit 15 14 13 12 11 10 9 8 7 6 5 4 3 2 1 0

Name

Type R/W

Reset

The above registers are to index the bas e or current address that a DMA channel is dealing with currently. In regard to a write to this set, it specifies the base address of the transfer destination for a DMA channel. Before being able to program these register, the software should be sure of th at STR in DMAn_START is set to ‘0’, that is the DMA channel is stopped and disabled completely. Other wise, the DMA channel may run out of order. In regard to a read to this set, it shows the value exactly the same as the one being written while DINC in DMAn_CON is set to “0”. With DINC being set to “1”, it appears the current destination address that the data being sending to. It allows software program being well tracking the progress of DMA transfer.

DST[31:16]

0

DST[15:0]

0

Note that n is from 1 to 3.

DST DST[31:0] specifies the base or current address of transfer destination for a DMA channel, i.e. channel 1, 2 or 3.

WRITE base address of transfer destination READ base address of transfer destination if DINC in DMAn_CON is “0”

50/307 MediaTek Inc. Confidential

MT6218B GSM/GPRS Baseband Processor Data Sheet Revision 1.00

current address of transfer destination if DINC in DMAn_CON is “1”

DMA+0n08h DMA Channel n Wrap Point Count Register DMAn_WPPT

Bit 31 30 29 28 27 26 25 24 23 22 21 20 19 18 17 16

Name

Type

Reset

Bit 15 14 13 12 11 10 9 8 7 6 5 4 3 2 1 0

Name

Type R/W

Reset

The above registers are to specify the address of the jump point of a given DMA transfer to support ring buffer or double buffer style memory accesses. To enable this function, two control bit, WPEN and WPSD, in DMA control register should be programmed. See following register description for the detail. While address counter in DMA engine matchs this address, an address jump will occurs, and the next address will be the address specified in DMAn_WPTO. Before being able to program these register, the software should be sure of that STR in DMAn_START is set to ‘0’, that is the DMA channel is stopped and disabled completely. Other wise, the DMA channel may run out of order. To enable this function, WPEN in DMA_CON should be set.

Note that n is from 1 to 9.

WPPT[15:0]

0

WPPT WPPT[15:0] specifies the amount of the transfer count from start to jumping point for a DMA channel, i.e.

channel 1 – 9.

WRITE the address of the jump point. READ the same as what you fill in.

DMA+0n0Ch DMA Channel n Wrap To Address Register DMAn_WPTO

Bit 31 30 29 28 27 26 25 24 23 22 21 20 19 18 17 16

Name

Type R/W

Reset

Bit 15 14 13 12 11 10 9 8 7 6 5 4 3 2 1 0

Name

Type R/W

Reset

The above registers are to specify the address of the jump destination of a given DMA transfer to support ring buffer or double buffer style memory accesses. To enable this function, two control bit, WPEN and WPSD, in DMA control register should be programmed. See following register description for the detail. Before being able to program these register, the software should be sure of that STR in DMAn_START is set to ‘0’, that is the DMA channel is stopped and disabled completely. Other wise, the DMA channel may run out of order. To enable this function, WPEN in DMA_CON should be set.

Note that n is from 1 to 9.

WPTO[31:16]

0

WPTO[15:0]

0

WPTO WPTO[31:0] specifies the address of the jump point for a DMA channel, i.e. channel 1 – 11.

WRITE the address of the jump destination. READ the same as what you fill in.

51/307 MediaTek Inc. Confidential

MT6218B GSM/GPRS Baseband Processor Data Sheet Revision 1.00

DMA+0n10h DMA Channel n Transfer Count Register DMAn_COUNT

Bit 31 30 29 28 27 26 25 24 23 22 21 20 19 18 17 16

Name

Type

Reset

Bit 15 14 13 12 11 10 9 8 7 6 5 4 3 2 1 0

Name

Type R/W

Reset

This register specifies the amount of total transfer count that the DMA channel is required to perform. Upon completion, the DMA channel generates an interrupt request to the processor while ITEN in DMAn_CON is set as ‘1’. Note that the total size of data being transferred by a DMA channel is determined by LEN together with the SIZE in DMAn_CON, i.e. LEN x SIZE.

For virtual FIFO DMA, this register is used to configure the RX threshold and TX threshold. Interrupt is triggered while FIFO count >= RX threshold in RX path or FIFO count =< TX threshold in TX path. Note that ITEN bit in DMA_CON

register shall be set, or no interrupt will issue.

Note that n is from 1 to 13.

LEN

0

LEN The amount of total transfer count

DMA+0n14h DMA Channel n Control Register DMAn_CON

Bit 31 30 29 28 27 26 25 24 23 22 21 20 19 18 17 16

Name MAS DIR WPEN WPSD

Type R/W R/W R/W R/W

Reset 0 0 0 0

Bit 15 14 13 12 11 10 9 8 7 6 5 4 3 2 1 0

Name ITEN BURST B2W DRQ DINC SINC SIZE

Type R/W R/W R/W R/W R/W R/W R/W

Reset 0 0 0 0 0 0 0

This register appeals all the available control schemes for a DMA channel that is ready for software programmer to configure with. Note that all these fields cannot be changed while DMA transfer is in progress or unexpected situation may occur.

Note that n is from 1 to 13.

SIZE Data size within the confine of a bus cycle per transfer

These bits confines the size to the specified value for individual bus cycle that data is moving between source and

destination. The size is in terms of byte and has maximum value of 4 bytes. It is mainly decided by the data width of a DMA master.

00 Byte transfer/1 byte 01 Half-word transfer/2 bytes 10 Word transfer/4 bytes 11 Reserved

SINC Appearance control for the source address registers DMAn_MSBSRC and DMAn_LSBSRC

0 The base address of the source 1 The current address of the source that the DMA channel is currently dealing with.

DINC Appearance control for the destination address registers DMAn_MSBDST and DMAn_LSBDST

52/307 MediaTek Inc. Confidential

MT6218B GSM/GPRS Baseband Processor Data Sheet Revision 1.00

0 The base address of the des tination 1 The current address of the destination that the DMA channel is currently dealing with

DREQ Throttle and handshake control for DMA transfer

0 No throttle control during DMA transfer or transfers occurred only between memories 1 Hardware handshake management

The DMA master is able to throttle down the transfer rate by way of request-grant handshake.

B2W Word to Byte or Byte to Word transfer for the applications of transferring non-word-aligned-address data to

word-aligned-address data. Note that BURST shall be set to 4-beat/8-beat/16-beat burst while enabling this function, and the SIZE shall be set to Byte.

NO effect on channel 1 – 3 & 10 - 13.

0 Disable 1 Enable

BURST Transfer Type. Burst-type transfers have better bus efficiency. Massy data movement is recommended to use this

kind of transfer. But note that burst-type transfer won’t stop until all of the beats are completed or transfer length is reached. FIFO threshold of peripherals shall be configured carefully while you use it to move data from/to this peripheral.

What transfer type can be used is restricted by the SIZE. If SIZE is 00b, i.e. byte transfer, all of the four transfer

types can be used. If SIZE is 01b, i.e. half -word transfer, 16-beat incrementing burst can’t be used. If SIZE is 10b, i.e. byte transfer, only single and 4-beat incrementing burst can be used.

NO effect on channel 10 - 13.

000 Single 001 Reserved 010 4-beat incrementing burst 011 Reserved 100 8-beat incrementing burst 101 Reserved 110 16-beat incrementing burst 111 Reserved

ITEN DMA transfer completion interrupt enable.

0 Disable 1 Enable

WPSD The side using wrap-addressing function. Only one side of a DMA channel can activate wrap-addressing function

at a time.

NO effect on channel 10 - 13.

0 wrap-addressing on source 1 wrap-addressing on destination

WPEN Wrap addressing for ring buffer. The next address of DMA jumps to WRAP TO address while current address

matches WRAP POINT address.

NO effect on channel 10 - 13.

0 Disable 1 Enable

DIR the directions of DMA transfer for half-size DMA channels, i.e. channel 4 – 11. The direction is from the

viewpoint of DMA masters. WRITE means that reads from master and then writes to the address specified in DMA_PGMADDR. Vice versa.

53/307 MediaTek Inc. Confidential

MT6218B GSM/GPRS Baseband Processor Data Sheet Revision 1.00

NO effect on channel 1 - 3.

0 Read 1 Write

MAS Master selection. Specifying which master occupies this DMA channel. Once assigned to certain master,

corresponding DREQ and DACK will be connected. In regard to half-size DMA channels, i.e. channel 4 – 11, a preset address will be assigned as well.

0000 SIM 0001 MSDC 0010 IrDA TX 0011 IrDA RX 0100 USB1 Write 0101 USB1 Read 0110 USB2 Write 0111 USB2 Read 1000 UART1 TX 1001 UART1 RX 1010 UART2 TX 1011 UART2 RX 1100 UART3 TX 1101 UART3 RX 1110 DDMA 1111 Reserved

DMA+0n18h DMA Channel n Start Register DMAn _START

Bit 31 30 29 28 27 26 25 24 23 22 21 20 19 18 17 16

Name

Type

Reset

Bit 15 14 13 12 11 10 9 8 7 6 5 4 3 2 1 0

Name STR

Type R/W

Reset 0

This register controls the activity of a DMA channel. Note that prior to set STR to “1”, all the configurations should be done by giving proper value to the registers including DMAn_SRC, DMAn_DST, DMAn_PGMADDR, DMAn_COUNT and DMAn_CON. Note also that once the STR is set to “1”, the hardware will not clear it automatically no matter the DMA

channel accomplishes the DMA transfer or not. Put another way, the value of STR keeps as “1” in spite of the completion of DMA transfer. Therefore, the software pro gram should be sure to clear STR to “0” before being able to re-start another DMA transfer.

Note that n is from 1 to 13.

STR Start control for a DMA channel

0 The DMA channel is stopped 1 The DMA channel is started and running

DMA+0n1Ch DMA Channel n Interrupt Status Register DMAn_INTSTA

Bit 31 30 29 28 27 26 25 24 23 22 21 20 19 18 17 16

54/307 MediaTek Inc. Confidential

MT6218B GSM/GPRS Baseband Processor Data Sheet Revision 1.00

Name

Type

Reset

Bit 15 14 13 12 11 10 9 8 7 6 5 4 3 2 1 0

Name INT

Type RO

Reset 0

This register shows the interrupt status of a DMA channel. In fact the value is exactly the same as in DMA_GLBSTA.

Note that n is from 1 to 13.

INT Interrupt Status for DMA Channel

0 No interrupt request is generated. 1 One interrupt request is pending and waiting for service

DMA+0n20h DMA Channel n Interrupt Acknowledge Register DMAn_ACKINT

Bit 31 30 29 28 27 26 25 24 23 22 21 20 19 18 17 16

Name

Type

Reset

Bit 15 14 13 12 11 10 9 8 7 6 5 4 3 2 1 0

Name ACK

Type WO

Reset 0

This register is used to acknowledge the current interrupt request associated with the completion event of a DMA channel by software program. Note that this is a write-only register, any read to it will return a value of “0”.

Note that n is from 1 to 13.

ACK Interrupt acknowledge for the DMA channel

0 No effect 1 Interrupt request is acknowledged and should be relinquished.

DMA+0n24h DMA Channel n Remaining Length of Current Transfer DMAn_RLCT

Bit 31 30 29 28 27 26 25 24 23 22 21 20 19 18 17 16

Name

Type

Reset

Bit 15 14 13 12 11 10 9 8 7 6 5 4 3 2 1 0

Name

Type RO

Reset

RLCT

0

This register is to reflect the left amount of the transfer.

Note that n is from 1 to 9

DMA+0n28h DMA Bandwidth limiter Register DMAn_LIMITER

Bit 31 30 29 28 27 26 25 24 23 22 21 20 19 18 17 16

Name

Type

Reset

Bit 15 14 13 12 11 10 9 8 7 6 5 4 3 2 1 0

55/307 MediaTek Inc. Confidential

MT6218B GSM/GPRS Baseband Processor Data Sheet Revision 1.00

Name LIMITER

Type R/W

Reset 0

This register is to suppress the Bus utilization of the DMA channel. The value is from 0 to 255. 0 means no limitation, and 255 means totally banned. The value between 0 and 255 means certain DMA can has permission to use AHB every (4 X n) AHB clock cycles.

Note that it’s not recommended to limit the Bus utilization of the DMA channels because this will increase the latency of response to the masters, and the transfer rate will decrease as well. Before using it, programmer must make sure that

masters have some protective mechanism to avoid going into wrong state.

Note that n is from 1 to 13.

LIMITER from 0 to 255. 0 means no limitation, 255 means totally banned, and others means Bus access permission

every (4 X n) AHB clock.

DMA+0n2Ch DMA Channel n Programmable Address Register

Bit 31 30 29 28 27 26 25 24 23 22 21 20 19 18 17 16

Name

Type R/W

R eset

Bit 15 14 13 12 11 10 9 8 7 6 5 4 3 2 1 0

Name

Type R/W

Reset

The above registers are to specify the address for a half-size DMA channel. This address represents source address if DIR in DMA_CON is set to 0, and on the contrary it represents destination address. Before being able to program these register, the software should be sure of that STR in DMAn_START is set to ‘0’, that is the DMA channel is stopped and disabled completely. Other wise, the DMA channel may run out of order. To enable this function, a control bit in DMA control register should

Note that n is from 4 to 11.

PGMADDR PGMADDR[31:0] specifies the address for a half -size DMA channel, i.e. channel 4 – 11.

WRITE the address of the jump destination. READ base address of transfer destination if SINC/DINC in DMAn_CON is “0”

current address of transfer destination if SINC/DINC in DMAn_CON is “1”

PGMADDR[31:16]

0

PGMADDR[15:0]

0

R

DMAn_PGMADD

DMA+0n30h DMA Channel n Virtual FIFO Write Pointer Register DMAn_WRPTR

Bit 31 30 29 28 27 26 25 24 23 22 21 20 19 18 17 16

Name

Type RO

Bit 15 14 13 12 11 10 9 8 7 6 5 4 3 2 1 0

Name

Type RO

Note that n is from 10 to 13.

WRPTR Virtual FIFO Write Pointer.

56/307 MediaTek Inc. Confidential

WRPTR[31:16]

WRPTR[15:0]

MT6218B GSM/GPRS Baseband Processor Data Sheet Revision 1.00

DMA+0n34h DMA Channel n Virtual FIFO Read Pointer Register DMAn_RDPTR

Bit 31 30 29 28 27 26 25 24 23 22 21 20 19 18 17 16

Name

Type RO

Bit 15 14 13 12 11 10 9 8 7 6 5 4 3 2 1 0

Name

Type RO

RDPTR[31:16]

RDPTR[15:0]

Note that n is from 10 to 13.

RDPTR Virtual FIFO Read Pointer.

DMA+0n38h DMA Channel n Virtual FIFO Data Count Register DMAn_FFCNT

Bit 31 30 29 28 27 26 25 24 23 22 21 20 19 18 17 16

Name

Type

Bit 15 14 13 12 11 10 9 8 7 6 5 4 3 2 1 0

Name

Type RO

Note that n is fr om 10 to 13.

FFCNT

FFCNT To display the number of data stored in FIFO. 0 means FIFO empty, and FIFO is full if FFCNT is equal to

FFSIZE.

DMA+0n3Ch DMA Channel n Virtual FIFO Status Register DMAn_FFSTA

Bit 31 30 29 28 27 26 25 24 23 22 21 20 19 18 17 16

Name

Type

Reset

Bit 15 14 13 12 11 10 9 8 7 6 5 4 3 2 1 0

Name ALT

Type RO RO RO

Reset 0 1 0

Note that n is from 10 to 13.

FULL To indicate FIFO is full.

0 Not Full 1 Full

EMPTY To indicate FIFO is empty.

0 Not Empty 1 Empty

ALT To indicate FIFO Count is larger than ALTLEN. DMA will issue alert signal to UART to enable UART flow

control.

0 Not reach alert region 1 Reach alert region.

EMPT

Y

FULL

DMA+0n40h DMA Channel n Virtual FIFO Alert Length Register DMAn_ALTLEN

Bit 31 30 29 28 27 26 25 24 23 22 21 20 19 18 17 16

57/307 MediaTek Inc. Confidential

MT6218B GSM/GPRS Baseband Processor Data Sheet Revision 1.00

Name

Type

Reset

Bit 15 14 13 12 11 10 9 8 7 6 5 4 3 2 1 0

Name ALTLEN

Type R/W

Reset 0

Note that n is from 10 to 13.

ALTLEN specifies the Alert Length of Virtual FIFO DMA. Once remaining FIFO space is less than ALTLEN, an alert

signal will issued to UART to enable flow control. Normally, ALTLEN shall be larger than 16 for UART application.

DMA+0n44h DMA Channel n Virtual FIFO Size Register DMAn_FFSIZE

Bit 31 30 29 28 27 26 25 24 23 22 21 20 19 18 17 16

Name

Type

Reset

Bit 15 14 13 12 11 10 9 8 7 6 5 4 3 2 1 0

Name

Type R/W

Reset

FFSIZE

0

Note that n is from 10 to 13.

FFSIZE specifies the FIFO Size of Virtual FIFO DMA.

3.5 Interrupt Controller

3.5.1 General Description

Figure 13 outlines the major functionality of the MCU Interrupt Controller. The interrupt controller processes all interrupt sources coming from external lines and internal MCU peripherals. Since ARM7EJ-S core supports two levels of interrupt latency, this controller will generate two request signa ls: FIQ for fast, low latency interrupt request and IRQ for more general interrupts with lower priority.

58/307 MediaTek Inc. Confidential

MT6218B GSM/GPRS Baseband Processor Data Sheet Revision 1.00

EINT FIQ

TDMA

GPT

SIM

UART1

KP

RTC

UART2

DSP2MCU

APB Bus

Interrupt

Input

Multiplex

Figure 13 Block Diagram of the Interrupt Controller

IRQ0 IRQ1

IRQ2 IRQn

IRQ31

SoftIRQ

Registers

FIQ

Controller

IRQ

Controller

IRQ

One and only one of the interrupt sources can be assigned to FIQ Controller and have the highest priority in requesting timing critical service. All the others should share the same IRQ signal by connecting them to IRQ Controller. The IRQ Controller manages up 32 interrupt lines of IRQ0 to IRQ31 with fixed priority in descending order.

The Interrupt Controller provides a simple software interface by mean of registers to manipulate the interrupt request shared system. IRQ Selection Registers and FIQ Selection Register determine the source priority and connecting relation among sources and interrupt lines. IRQ Source Status Register allows software program to identify the source of interrupt that generates the interrupt request. IRQ Mask Register provides software to mask out undesired sources some time. End of Interrupt Register permits software program to indicate the controller that a certain interrupt service routine has been finished.

Binary coded version of IRQ Source Status Register is also made available for software program to helpfully identify the interrupt source. Note that while taking this advantage, it should also take the binary coded version of End of Interrupt Register coincidently.

The essential Interrupt Table of ARM7EJ-S core is shown as Table 10.

Address Description

00000000h System Reset 00000018h IRQ

0000001Ch FIQ

Table 10 Interrupt Table of ARM7EJ -S

59/307 MediaTek Inc. Confidential

MT6218B GSM/GPRS Baseband Processor Data Sheet Revision 1.00

External Interrupt

This interrupt controller also integrates an External Interrupt Controller that can support up to 4 interrupt requests coming from external sources, the EINT0– 3 as shown in Figure 14, and 4 WakeUp interrupt requests, i.e. EINT4-7, coming from peripherals used to inform system to resume system clock.

The four external interrupts can be used fo r different kind of applications, mainly for event detections: detection of hand free connection, detection of hood opening, detection of battery charger connection.

Since the external event may be unstable in a certain period, de -bounce mechanism is intro duced to ensure the functionality. The circuitry is mainly used to verify that if the input signal remains stable for a programmable number of periods of the clock. When this condition is satisfied, for the appearance or the disappearance of the input, the output of the de -bounce logic will change to the desired state. Note that, because it uses the 32KHz slow clock for doing de -bounce process, the parameters takes effect no sooner than 1 32KHz clock cycle, ~31.25us, after software program sets them. For example of changing the polarity of an external interrupt, a 31.25us guard time shall be applied between the two events of changing the polarity value in EINT_CON register and End-of -Interrupt. Or an abnormal external interrupt could be triggered.

Note also that this External Interrupt Controller handles only level sensitive type of interrupt sources.

EINT4-7

EINT3

Debounce Logic

EINT2

Debounce Logic

EINT1

Debounce Logic

EINT0

Debounce Logic

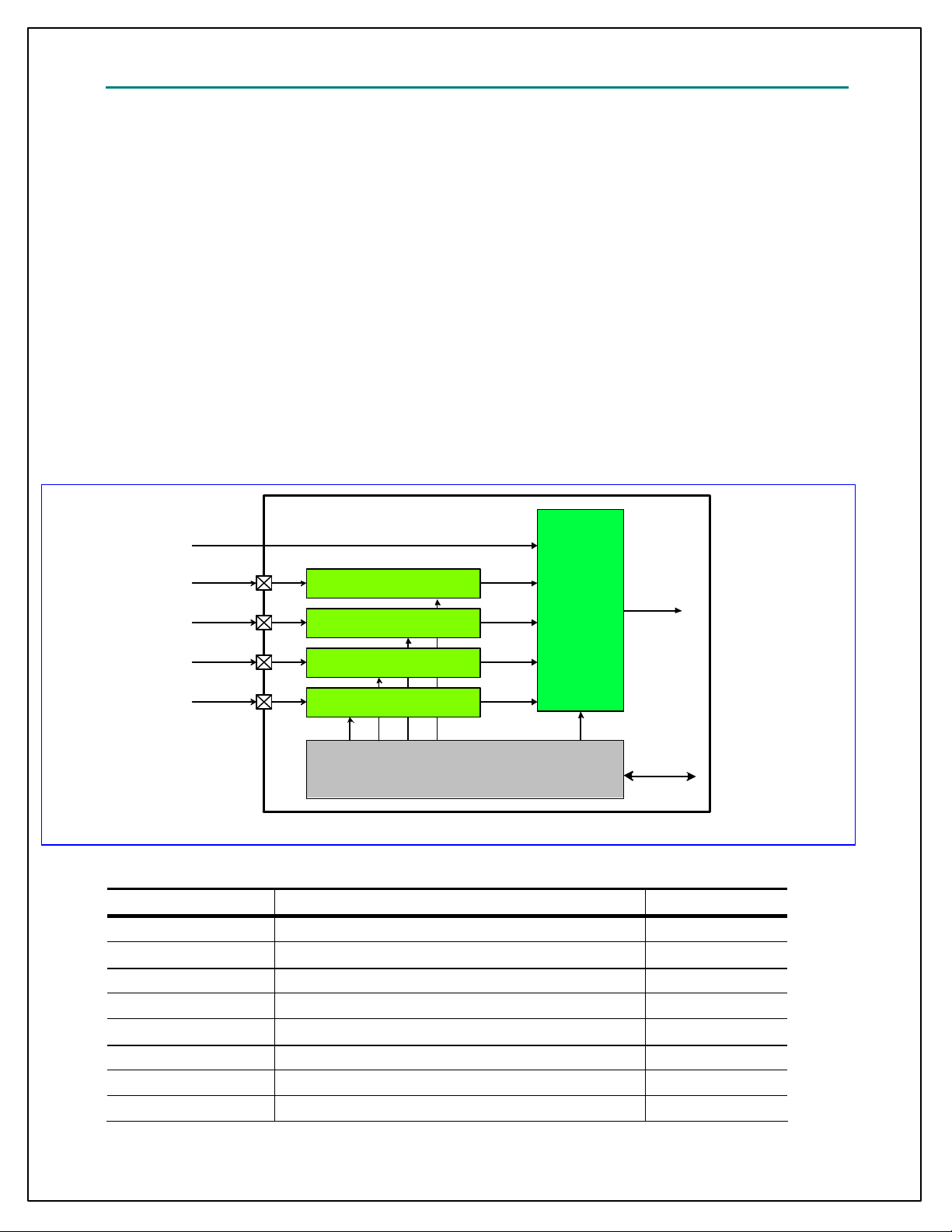

Figure 14 Block diagram of External Interrupt Controller

REGISTER ADDRESS REGISTER NAME SYNONYM

CIRQ + 00 00h IRQ Selection 0 Register IRQ_SEL0 CIRQ + 0004h IRQ Selection 1 Register IRQ_SEL1 CIRQ + 0008h IRQ Selection 2 Register IRQ_SEL2

CIRQ + 000Ch IRQ Selection 3 Register IRQ_SEL3

CIRQ + 0010h IRQ Selection 4 Register IRQ_SEL4

Registers

Interrupt

Control

Logic

MT6218

EINT_IRQ

APB Bus

CIRQ + 0014h IRQ Selection 5 Register IRQ_SEL5 CIRQ + 0018h FIQ Selection Register FIQ_SEL

CIRQ + 001Ch IRQ Mask Register IRQ_MASK

60/307 MediaTek Inc. Confidential

MT6218B GSM/GPRS Baseband Processor Data Sheet Revision 1.00

CIRQ + 0020h IRQ Mask Disable Register IRQ_MASK_DIS CIRQ + 0024h IRQ Mask Enable Register IRQ_MASK_EN CIRQ + 0028h IRQ Status Register IRQ_STA

CIRQ + 002Ch IRQ End of Interrupt Register IRQ_EOI

CIRQ + 0030h IRQ Sensitive Register IRQ_SENS CIRQ + 0034h IRQ Software Interrupt Register IRQ_SOFT CIRQ + 0038h FIQ Control Register FIQ_CON

CIRQ + 003Ch FIQ End of Interrupt Register FIQ_EOI

CIRQ + 00 40h Binary Coded Value of IRQ_STATUS IRQ_STA2 CIRQ + 0044h Binary Coded Value of IRQ_EOI IRQ_EOI2 CIRQ + 0100h EINT Status Register EINT_STA CIRQ + 0104h EINT Mask Register EINT_MASK CIRQ + 0108h EINT Mask Disable Register EINT_MASK_DIS

CIRQ + 010Ch EINT Mask Enable Register EINT_MASK_EN

CIRQ + 0110h EINT Interrupt Acknowledge Register EINT_INTACK

CIRQ + 0114h EINT Sensitive Register EINT_SENS CIRQ + 0120h EINT0 De-bounce Control Register EINT0_CON CIRQ + 0130h EINT1 De-bounce Control Register EINT1_CON CIRQ + 0140h EINT2 De-bounce Control Register EINT2_CON CIRQ + 0150h EINT3 De-bounce Control Register EINT3_CON CIRQ + 0160h EINT4 De-bounce Control Register EINT4_CON CIRQ + 0170h EINT5 De-bounce Control Register EINT5_CON CIRQ + 0180h EINT6 De-bounce Control Register EINT6_CON CIRQ + 0190h EINT7 De-bounce Control Register EINT7_CON

Table 11 Interrupt Controller Register Map

3.5.2 Register Definitions

CIRQ+0000h IRQ Selection 0 Register IRQ_SEL0

Bit 31 30 29 28 27 26 25 24 23 22 21 20 19 18 17 16

Name IRQ5 IRQ4 IRQ3

Type R/W R/W R/W

Reset 5 4 3

Bit 15 14 13 12 11 10 9 8 7 6 5 4 3 2 1 0

Name IRQ2 IRQ1 IRQ0

Type R/W R/W R/W

Reset 2 1 0

CIRQ+0004h IRQ Selection 1 Register IRQ_SEL1

Bit 31 30 29 28 27 26 25 24 23 22 21 20 19 18 17 16

Name IRQB IRQA IRQ9

Type R/W R/W R/W

61/307 MediaTek Inc. Confidential

MT6218B GSM/GPRS Baseband Processor Data Sheet Revision 1.00

Reset B A 9

Bit 15 14 13 12 11 10 9 8 7 6 5 4 3 2 1 0

Name IRQ8 IRQ7 IRQ6

Type R/W R/W R/W

Reset 8 7 6

CIRQ+0008h IRQ Selection 2 Register IRQ_SEL2

Bit 31 30 29 28 27 26 25 24 23 22 21 20 19 18 17 16

Name IRQ11 IRQ10 IRQF

Type R/W R/W R/W

Reset 11 10 F

Bit 15 14 13 12 11 10 9 8 7 6 5 4 3 2 1 0

Name IRQE IRQD IRQC

Type R/W R/W R/W

Reset E D C

CIRQ+000Ch IRQ Selection 3 Register IRQ_SEL3

Bit 31 30 29 28 27 26 25 24 23 22 21 20 19 18 17 16

Name IRQ17 IRQ16 IRQ15

Type R/W R/W R/W

Reset 17 16 15

Bit 15 14 13 12 11 10 9 8 7 6 5 4 3 2 1 0

Name IRQ14 IRQ13 IRQ12

Type R/W R/W R/W

Reset 14 13 12

CIRQ+0010h IRQ Selection 4 Register IRQ_SEL4

Bit 31 30 29 28 27 26 25 24 23 22 21 20 19 18 17 16

Name IRQ1D IRQ1C IRQ1B

Type R/W R/W R/W

Reset 1D 1C 1B

Bit 15 14 13 12 11 10 9 8 7 6 5 4 3 2 1 0

Name IRQ1A IRQ19 IRQ18

Type R/W R/W R/W

Reset 1A 19 18

CIRQ+0014h IRQ Selection 5 Register IRQ_SEL5

Bit 31 30 29 28 27 26 25 24 23 22 21 20 19 18 17 16

Name

Type

Reset

Bit 15 14 13 12 11 10 9 8 7 6 5 4 3 2 1 0

Name IRQ1F IRQ1E

Type R/W R/W

Reset 1F 1E

CIRQ+0018h FIQ Selection Register FIQ_SEL

Bit 31 30 29 28 27 26 25 24 23 22 21 20 19 18 17 16

Name

Type

Reset

62/307 MediaTek Inc. Confidential

MT6218B GSM/GPRS Baseband Processor Data Sheet Revision 1.00

Bit 15 14 13 12 11 10 9 8 7 6 5 4 3 2 1 0

Name FIQ

Type R/W

Reset 0

The IRQ/FIQ Selection Registers provide system designers with a flexible routing scheme to make various mappings of priority among interrupt sources possible. It allows the interrupt sources being mapped onto interrupt requests of either FIQ

or IRQ. Where only one interrupt source can be assigned to FIQ, the other ones should share IRQ by mapping them onto IRQ0 to IRQ1F connected to IRQ controller. The priority of IRQ0-IRQ1F is fixed, i.e. IRQ0 > IRQ1 > IRQ2 > … > IRQ1E > IRQ1F. During the software configuration process, the Interrupt Source Code of desired interrupt source should be written into source field of the corresponding IRQ_SEL0-IRQ_SEL4/FIQ_SEL. 5-bit Interrupt Source Codes for all interrupt sources are fixed and defined in Table 12.

Interrupt Source Interrupt Source Code

GPI_FIQ 00000

TDMA_CTIRQ1 00001 TDMA_CTIRQ2 00010

DSP2CPU 00011

SIM 00100

DMA 00101

TDMA 00110

UART1 00111

KeyPad 01000

UART2 01001

GPTimer 01010

EINT 01011

USB 01100

MSDC 01101

RTC 01110

IrDA 01111

LCD 10000

UART3 10001

GPI 10010

WDT 10011

JPEG 10100

Resizer 10101

NFI 10110

B2PSI 10111 Reserved 11000 Reserved 11001 Reserved 11010 Reserved 11011

63/307 MediaTek Inc. Confidential

MT6218B GSM/GPRS Baseband Processor Data Sheet Revision 1.00

Reserved 11100 Reserved 11101

Reserved 11110 Reserved 11111

Table 12 Interrupt Source Code for Interrupt Sources

FIQ, IRQ0-1F The 5-bit content of this field would be the Interrupt Source Code shown in Table 12 indicating that the

certain interrupt source uses the associated interrupt line to generate interrupt requests.

CIRQ+001Ch IRQ Mask Register IRQ_MASK

Bit 31 30 29 28 27 26 25 24 23 22 21 20 19 18 17 16

Name IRQ1F IRQ1E IRQ1D IRQ1C IRQ1B IRQ1A IRQ19 IRQ18 IRQ17 IRQ16 IRQ15 IRQ14 IRQ13 IRQ12 IRQ11 IRQ10

Type R/W R/W R/W R/W R/W R/W R/W R/W R/W R/W R/W R/W R/W R/W R/W R/W

Reset 1 1 1 1 1 1 1 1 1 1 1 1 1 1 1 1

Bit 15 14 13 12 11 10 9 8 7 6 5 4 3 2 1 0

Name IRQF IRQE IRQD IRQC IRQB IRQA IRQ9 IRQ8 IRQ7 IRQ6 IRQ5 IRQ4 IRQ3 IRQ2 IRQ1 IRQ0

Type R/W R/W R/W R/W R/W R/W R/W R/W R/W R/W R/W R/W R/W R/W R/W R/W

Reset 1 1 1 1 1 1 1 1 1 1 1 1 1 1 1 1

This register contains mask bit for each interrupt line in IRQ Controller. It allows each interrupt source of IRQ0 to IRQ1F to be disabled or masked out separately under software control. After System Reset, all bit values will be set to ‘1’ to

indicate that interrupt requests are prohibited.

IRQ0-1F Mask Control for the Associated Interrupt Source in IRQ Controller

0 Interrupt is enabled 1 Interrupt is disabled

IRQ_MASK_CL

CIRQ+0020h IRQ Mask Clear Register

R

Bit 31 30 29 28 27 26 25 24 23 22 21 20 19 18 17 16

Name IRQ1F IRQ1E IRQ1D IRQ1C IRQ1B IRQ1A IRQ19 IRQ18 IRQ17 IRQ16 IRQ15 IRQ14 IRQ13 IRQ12 IRQ11 IRQ10

Type W1C W1C W1C W1C W1C W1C W1C W1C W1C W1C W1C W1C W1C W1C W1C W1C

Bit 15 14 13 12 11 10 9 8 7 6 5 4 3 2 1 0

Name IRQF IRQE IRQD IRQC IRQB IRQA IRQ9 IRQ8 IRQ7 IRQ6 IRQ5 IRQ4 IRQ3 IRQ2 IRQ1 IRQ0

Type W1C W1C W1C W1C W1C W1C W1C W1C W1C W1C W1C W1C W1C W1C W1C W1C

This register is used to clear bits in the IRQ Mask Register. When writing to this register, each data bit which is high will cause the corresponding bit in the IRQ Mask Register to be cleared. Data bits which are low have no effect on the corresponding bits in the IRQ Mask Register

IRQ0-1F Clear corresponding bits in IRQ Mask Register.

0 no effect 1 Disable corresponding MASK bit

CIRQ+0024h IRQ Mask SET Register IRQ_MASK_SET

Bit 31 30 29 28 27 26 25 24 23 22 21 20 19 18 17 16

Name IRQ1F IRQ1E IRQ1D IRQ1C IRQ1B IRQ1A IRQ19 IRQ18 IRQ17 IRQ16 IRQ15 IRQ14 IRQ13 IRQ12 IRQ11 IRQ10

Type W1S W1S W1S W1S W1S W1S W1S W1S W1S W1S W1S W1S W1S W1S W1S W1S

Bit 15 14 13 12 11 10 9 8 7 6 5 4 3 2 1 0

Name IRQF IRQE IRQD IRQC IRQB IRQA IRQ9 IRQ8 IRQ7 IRQ6 IRQ5 IRQ4 IRQ3 IRQ2 IRQ1 IRQ0

64/307 MediaTek Inc. Confidential

MT6218B GSM/GPRS Baseband Processor Data Sheet Revision 1.00

Type W1S W1S W1S W1S W1S W1S W1S W1S W1S W1S W1S W1S W1S W1S W1S W1S

This register is used to set bits in the IRQ Mask Register. When writing to this register, each data bit which is high will cause the corresponding bit in the IRQ Mask Register to be set. Data bits which are low have no effect on the corresponding bits in the IRQ Mask Register

IRQ0-1F Set corresponding bits in IRQ Mask Register.

0 no effect 1 Enable corresponding MASK bit

CIRQ+0028h IRQ Source Status Register IRQ_STA

Bit 31 30 29 28 27 26 25 24 23 22 21 20 19 18 17 16

Name IRQ1F IRQ1E IRQ1D IRQ1C IRQ1B IRQ1A IRQ19 IRQ18 IRQ17 IRQ16 IRQ15 IRQ14 IRQ13 IRQ12 IRQ11 IRQ10

Type RC RC RC RC RC RC RC RC RC RC RC RC RC RC RC RC

Reset 0 0 0 0 0 0 0 0 0 0 0 0 0 0 0 0

Bit 15 14 13 12 11 10 9 8 7 6 5 4 3 2 1 0

Name IRQF IRQE IRQD IRQC IRQB IRQA IRQ9 IRQ8 IRQ7 IRQ6 IRQ5 IRQ4 IRQ3 IRQ2 IRQ1 IRQ0

Type RC RC RC RC RC RC RC RC RC RC RC RC RC RC RC RC

Reset 0 0 0 0 0 0 0 0 0 0 0 0 0 0 0 0

This Register allows software to poll which interrupt line generates the IRQ interrupt request. A bit set to ‘1’ indicates a corresponding active interrupt line. Only one flag is active at a time. The IRQ_STA is type of READ-ONLY, write access will have no effect to the content.

IRQ0-1F Interrupt Indication for the Associated Interrupt Source

0 The associated interrupt source is non-active 1 The associated interrupt source is asserted

CIRQ+002Ch IRQ End of Interrupt Register IRQ_EOI

Bit 31 30 29 28 27 26 25 24 23 22 21 20 19 18 17 16

Name IRQ1F IRQ1E IRQ1D IRQ1C IRQ1B IRQ1A IRQ19 IRQ18 IRQ17 IRQ16 IRQ15 IRQ14 IRQ13 IRQ12 IRQ11 IRQ10

Type WO WO WO WO WO WO WO WO WO WO WO WO WO WO WO WO

Reset 0 0 0 0 0 0 0 0 0 0 0 0 0 0 0 0

Bit 15 14 13 12 11 10 9 8 7 6 5 4 3 2 1 0

Name IRQF IRQE IRQD IRQC IRQB IRQA IRQ9 IRQ8 IRQ7 IRQ6 IRQ5 IRQ4 IRQ3 IRQ2 IRQ1 IRQ0

Type WO WO WO WO WO WO WO WO WO WO WO WO WO WO WO WO

Reset 0 0 0 0 0 0 0 0 0 0 0 0 0 0 0 0

This register provides a mean for software to relinquish and refresh the Interrupt Cont roller. Writing a ‘1’ to the specific bit position will result in an End of Interrupt Command internally to the corresponding interrupt line.

IRQ0-1F End of Interrupt Command for the Associated Interrupt Line

0 No service is currently in progress or pendin g 1 Interrupt request is in-service

CIRQ+0030h IRQ Sensitive Register IRQ_SENS

Bit 31 30 29 28 27 26 25 24 23 22 21 20 19 18 17 16

Name IRQ1F IRQ1E IRQ1D IRQ1C IRQ1B IRQ1A IRQ19 IRQ18 IRQ17 IRQ16 IRQ15 IRQ14 IRQ13 IRQ12 IRQ11 IRQ10

Type R/W R/W R/W R/W R/W R/W R/W R/W R/W R/W R/W R/W R/W R/W R/W R/W

Reset 0 0 0 0 0 0 0 0 0 0 0 0 0 0 0 0

Bit 15 14 13 12 11 10 9 8 7 6 5 4 3 2 1 0

Name IRQF IRQE IRQD IRQC IRQB IRQA IRQ9 IRQ8 IRQ7 IRQ6 IRQ5 IRQ4 IRQ3 IRQ2 IRQ1 IRQ0

Type R/W R/W R/W R/W R/W R/W R/W R/W R/W R/W R/W R/W R/W R/W R/W R/W

65/307 MediaTek Inc. Confidential

MT6218B GSM/GPRS Baseband Processor Data Sheet Revision 1.00

Reset 0 0 0 0 0 0 0 0 0 0 0 0 0 0 0 0

All interrupt lines of IRQ Controller, IRQ0-IRQ1F can be programmed as either edge or level sensitive. By default, all the interrupt lines are edge sensitive and should be active LOW. For edge sensitive interrupt line, while being activated, the output of edge-detection circuitry will remain HIGH until after the MCU acknowledges the interrupt by issuing End of Interrupt command and then being able to enable further interrupts to occur. For level sensitive interrupt lines, the interrupt source should be cleared before EOI command of writing IRQ_EOI in preventing another interrupt to occur.

IRQ0-1F Sensitive Type of the Associated Interrupt Source

0 Edge sensitivity with active LOW 1 Level sensitivity with active LOW

CIRQ+0034h IRQ Software Interrupt Register IRQ_SOFT

Bit 31 30 29 28 27 26 25 24 23 22 21 20 19 18 17 16

Name IRQ1F IRQ1E IRQ1D IRQ1C IRQ1B IRQ1A IRQ19 IRQ18 IRQ17 IRQ16 IRQ15 IRQ14 IRQ13 IRQ12 IRQ11 IRQ10

Type R/W R/W R/W R/W R/W R/W R/W R/W R/W R/W R/W R/W R/W R/W R/W R/W

Reset 0 0 0 0 0 0 0 0 0 0 0 0 0 0 0 0

Bit 15 14 13 12 11 10 9 8 7 6 5 4 3 2 1 0

Name IRQF IRQE IRQD IRQC IRQB IRQA IRQ9 IRQ8 IRQ7 IRQ6 IRQ5 IRQ4 IRQ3 IRQ2 IRQ1 IRQ0

Type R/W R/W R/W R/W R/W R/W R/W R/W R/W R/W R/W R/W R/W R/W R/W R/W

Reset 0 0 0 0 0 0 0 0 0 0 0 0 0 0 0 0

Setting “1” to the specific bit position generates a software interrupt for corresponding Interrupt Line before mask. This register is used for debug purpose.

IRQ0-IRQ1F Software Interrupt

CIRQ+0038h FIQ Control Register FIQ_CON

Bit 31 30 29 28 27 26 25 24 23 22 21 20 19 18 17 16

Name

Type

Reset

Bit 15 14 13 12 11 10 9 8 7 6 5 4 3 2 1 0

Name SENS MASK

Type R/W R/W

Reset 0 1

This register provides a mean for software program to control the FIQ Controller.

MASK Mask Control for the FIQ Interrupt Source

0 Interrupt is enabled 1 Interrupt is disabled

SENS Sensitive Type of the FIQ Interrupt Source

0 Edge sensitivity with active LOW 1 Level sensitivity with active LOW

CIRQ+003Ch FIQ End of Interrupt Register FIQ_EOI

Bit 31 30 29 28 27 26 25 24 23 22 21 20 19 18 17 16

Name

Type

Reset

Bit 15 14 13 12 11 10 9 8 7 6 5 4 3 2 1 0

66/307 MediaTek Inc. Confidential

MT6218B GSM/GPRS Baseband Processor Data Sheet Revision 1.00

Name EOI

Type WO

Reset 0

This register provides a mean for software to relinquish and refresh the FIQ Con troller. Writing a ‘1’ to the specific bit position will result in an End of Interrupt Command internally to the corresponding interrupt line.

EOI End of Interrupt Command

CIRQ+0040h Binary Coded Value of IRQ_STATUS IRQ_STA2

Bit 31 30 29 28 27 26 25 24 23 22 21 20 19 18 17 16

Name

Type

Reset

Bit 15 14 13 12 11 10 9 8 7 6 5 4 3 2 1 0

Name STS

Type RC

Reset 0

This Register is a binary coded version of IRQ_STA. It is used for software program to poll which interrupt line generates the IRQ interrupt request in much more easy way. Any read to it makes the same result of as reading IRQ_STA. The IRQ_STA2 is also type of READ-ONLY, write access takes no effect to the content. Note that, IRQ_STA2 should be

coupled with IRQ_EOI2 while using it.

STS Binary Coded Value of IRQ_STA

CIRQ+0044h Binary Coded Value of IRQ_EOI IRQ_EOI2

Bit 31 30 29 28 27 26 25 24 23 22 21 20 19 18 17 16

Name

Type

Reset

Bit 15 14 13 12 11 10 9 8 7 6 5 4 3 2 1 0

Name EOI

Type WO

Reset 0

This register is a binary coded version of IRQ_EOI. It provides a more easy way for software program to relinquish and refresh the Interrupt Controller. Writing a specific code will result an End of Interrupt Command internally to the corresponding interrupt line. Note that, IRQ_EOI2 should be coupled with IRQ_STA2 while using it.

EOI Binary Coded Value of IRQ_EOI

CIRQ+0100h EINT Interrupt Status Register EINT_STA

Bit 31 30 29 28 27 26 25 24 23 22 21 20 19 18 17 16

Name

Type

Reset

Bit 15 14 13 12 11 10 9 8 7 6 5 4 3 2 1 0

Name EINT7 EINT6 EINT5 EINT4 EINT3 EINT2 EINT1 EINT0

Type RO RO RO RO RO RO RO RO

Reset 0 0 0 0 0 0 0 0

This register keeps up with current status that which EINT Source generates the interrupt request. If EINT sources are set to edge sensit ivity, EINT_IRQ will be de-asserted while this register is read.

67/307 MediaTek Inc. Confidential

MT6218B GSM/GPRS Baseband Processor Data Sheet Revision 1.00

EINT0-EINT7 Interrupt Status

0 No Interrupt Request is generated 1 Interrupt Request is pending

CIRQ+0104h EINT Interrupt Mask Register EINT_MASK

Bit 31 30 29 28 27 26 25 24 23 22 21 20 19 18 17 16

Name

Type

Reset

Bit 15 14 13 12 11 10 9 8 7 6 5 4 3 2 1 0

Name EINT7 EINT6 EINT5 EINT4 EINT3 EINT2 EINT1 EINT0

Type R/W R/W R/W R/W R/W R/W R/W R/W

Reset 1 1 1 1 1 1 1 1

This register controls that if EINT Source is allowed to generate interrupt request. Setting a “1” to the specific bit

position prohibits the External Interrupt Line to active accordingly.

EINT0-EINT7 Interrupt Mask

0 Interrupt Reques t is enabled 1 Interrupt Request is disabled

CIRQ+0108h EINT Interrupt Mask Clear Register

EINT_MASK_CL

Bit 31 30 29 28 27 26 25 24 23 22 21 20 19 18 17 16

Name

Type

Bit 15 14 13 12 11 10 9 8 7 6 5 4 3 2 1 0

Name EINT7 EINT6 EINT5 EINT4 EINT3 EINT2 EINT1 EINT0

Type W1C W1C W1C W1C W1C W1C W1C W1C

This register is used to individually clear mask bit. Only the bits set to 1 are in effect, and these mask bits will set to 0. Else mask bits keep original value.

EINT0-EINT7 Disable Mask for the Associated External Interrupt Source

0 no effect 1 Disable corresponding MASK bit

EINT_MASK_SE

CIRQ+010Ch EINT Interrupt Mask Set Register

Bit 31 30 29 28 27 26 25 24 23 22 21 20 19 18 17 16

Name

Type

Bit 15 14 13 12 11 10 9 8 7 6 5 4 3 2 1 0

Name EINT7 EINT6 EINT5 EINT4 EINT3 EINT2 EINT1 EINT0

Type W1S W1S W1S W1S W1S W1S W1S W1S

R

T

This register is used to individually set mask bit. Only the bits set to 1 are in effect, and these mask bits will set to 1. Else mask bits keep original value.

EINT0-EINT7 Disable Mask for the Associated External Interrupt Source

0 no effect

68/307 MediaTek Inc. Confidential

MT6218B GSM/GPRS Baseband Processor Data Sheet Revision 1.00

1 Enable corresponding MASK bit

CIRQ+0110h EINT Interrupt Acknowledge Register EINT_INTACK

Bit 31 30 29 28 27 26 25 24 23 22 21 20 19 18 17 16

Name

Type

Reset

Bit 15 14 13 12 11 10 9 8 7 6 5 4 3 2 1 0

Name EINT7 EINT6 EINT5 EINT4 EINT3 EINT2 EINT1 EINT0

Type WO WO WO WO WO WO WO WO

Reset 0 0 0 0 0 0 0 0

Writing “1” to the specific bit position means to acknowledge the interrupt request correspondingly to the External Interrupt Line source.

EINT0-EINT7 Interrupt Acknowledge

0 No effect 1 Interrupt Request is acknowledged

CIRQ+0114h EINT Sensitive Register EINT_SENS

Bit 31 30 29 28 27 26 25 24 23 22 21 20 19 18 17 16

Name

Type

Reset

Bit 15 14 13 12 11 10 9 8 7 6 5 4 3 2 1 0

Name EINT3 EINT2 EINT1 EINT0

Type R/W R/W R/W R/W

Reset 1 1 1 1

Sensitive type of external interrupt source. Only EINT0 – 3 need to be specified. EINT4 – 7 are always edge sensitive.

EINT0-3 Sensitive Type of the Associated External Interrupt Source

0 Edge sensitivity with active LOW 1 Level sensitivity with active LOW

CIRQ+01m0h EINTn De-bounce Control Register EINTn_CON

Bit 31 30 29 28 27 26 25 24 23 22 21 20 19 18 17 16

Name

Type

Reset

Bit 15 14 13 12 11 10 9 8 7 6 5 4 3 2 1 0

Name EN POL CNT

Type R/W R/W R/W

Reset 0 0 0

These registers control the de-bounce logic for external interrupt sources in order to minimize the possibility of false activations. EINT4 – 7 have no de-bounce mechanism. Therefore only bit POL is used.

Note that n is from 0 to 7, and m is n plus 2.

CNT De-bounce Duration in terms of numbers of 32KHz clock cycles POL Activation Type of the EINT Source

0 Negative polarity

69/307 MediaTek Inc. Confidential

MT6218B GSM/GPRS Baseband Processor Data Sheet Revision 1.00

1 Positive polarity

EN De-bounce Control Circuit

0 Disable 1 Enable

3.6 Internal Memory Controller

3.6.1 System RAM

MT6218B provides four 64K Byte size of on-chip memory modules acting as System RAM for data access with zero latency. Such module is composed of four high speed synchronous SRAMs with AHB Slave Interface connected to system backbone AHB Bus, as shown in Figure 15. The synchronous SRAM operates at the same clock as AHB Bus and is organized as 32-bit wide with 4 byte-write signals capable for byte operations.

3.6.2 System ROM

The System ROM is primarily used to store software program for Factory Programming. However, due to it’s advantageous zero latency performance, some of timing critical codes are also placed in this area. This module is composed of high-speed diffusion ROM with AHB Slave Interface connected to system backbone AHB Bus, as shown in Figure 15. It operates at the same clock as AHB Bus and is organized as 32 -bit wide.

Figure 15 Block Diagram of Internal Memory Controller

3.6.3 Register Definitions

ROM+0000h System Memory Configuration Register SYSRAM_CNF

Bit 31 30 29 28 27 26 25 24 23 22 21 20 19 18 17 16

Name

70/307 MediaTek Inc. Confidential

SYSRAM_KEY

MT6218B GSM/GPRS Baseband Processor Data Sheet Revision 1.00

Type W

Reset

Bit 15 14 13 12 11 10 9 8 7 6 5 4 3 2 1 0

Name EN3 ID3 EN2 ID2 EN1 ID1 EN0 ID0

Type W - W W - W W - W W - W

Reset 1 0 1 1 1 0 1 0 1 0 0 1 1 0 0 0

SYSRAM KEY System RAM Key

6218

3.7 External Memory Interface

3.7.1 General Description

MT6218B incorporates a powerful and flexible memory controller, External Memory Interface, to connect with a variety of memory components. This controller provides generic access schemes to asynchronous/synchronous type of memory devices, such as Flash Memory and SRAM. It can simultaneously support up to 8 memory banks BANK0-BANK7 with maximum size of 64MB each.

Since most of the target asynchronous components have similar AC requirements, it is desirable to have a generic configuration scheme to interface them. Such that, software program can treat different components by simply specifying certain predefined parameters. All those parameters are based on cycle time of system clock. The interface definition based on such asynchronous/synchronous scheme is listed in Table 13. Note that, this interface always operates data in Little Endian format for all type of accesses.

Page/Burst mode Flash is supported for those applications required to run EIP (execution in place).

Signal Name Type Description

EA[25:0] O Address Bus ED[15:0] I/O Data Bus EWR# O Write Enable Strobe ERD# O Read Enable Strobe ELB# O Lower Byte Strobe EUB# O Upper Byte Strobe ECS# [7:0] O BANK0~BANK7 Selection Signal EPDN O Pseudo SRAM Power Down Control Signal ECLK O Burst Mode Flash Clock Signal EADV# O Burst Mode Flash Address Latch Signal

Table 13 External Memory Interface of MT6218B for Asynchronous/Synchronous Type Components This controller can also handle parallel type of LCD. By connecting with them, 8080 type of control method is supported.

The interface definition is detailed in Table 14.

Bus Type ECS7# EA25 ERD# EWR# ED[15:0]

8080 series CS# A0 RD# WR# D[15:0]

Table 14 Configuration for LCD Parallel Interface

71/307 MediaTek Inc. Confidential

MT6218B GSM/GPRS Baseband Processor Data Sheet Revision 1.00

REGISTER ADDRESS REGISTER NAME SYNONYM

EMI + 0000h EMI Control Register for BANK0 EMI_CONA EMI + 0008h EMI Control Register for BANK1 EMI_CONB

EMI + 0010h EMI Control Register for BANK2 EMI_CONC EMI + 0018h EMI Control Register for BANK3 EMI_COND EMI + 0020h EMI Control Register for BANK4 EMI_CONE EMI + 0028h EMI Control Register for BANK5 EMI_CONF EMI + 0030h EMI Control Register for BANK6 EMI_CONG EMI + 0038h EMI Control Register for BANK7 EMI_CONH EMI + 0040h EMI Remap Control Register EMI_REMAP EMI + 0044h EMI General Control Register EMI_GEN EMI + 0050h Code Cache and Code Prefetch Control Register PREFETCH_CON EMI + 0060h EMI Patch Enable Register EMI_PATCHEN EMI + 0064h EMI Patch 0 Address Register EMI_PADDR0

EMI + 006Ch EMI Patch 0 Instruction Register EMI_PDATA0

EMI + 0074h EMI Patch 1 Address Register EMI_PADDR1

EMI + 007Ch EMI Patch 1 Instruction Register EMI_PDATA1

Table 15 External Memory Interface Regis ter Map

3.7.2 Register Definitions

EMI+0000h EMI Control Register for BANK0 EMI_CONA

Bit 31 30 29 28 27 26 25 24 23 22 21 20 19 18 17 16

Name C2WS C2WH C2RS ADV PRLT

Type R/W R/W R/W R/W R/W R/W R/W

Reset

Bit 15 14 13 12 11 10 9 8 7 6 5 4 3 2 1 0

Name DW RBLN WST PSIZE RLT

Type R/W R/W R/W R/W R/W

Reset 0 1 0 0 7

0 0 0 1 0 0 0

EMI+0008h EMI Control Register for BANK1 EMI_CONB

Bit 31 30 29 28 27 26 25 24 23 22 21 20 19 18 17 16

Name C2WS C2WH C2RS ADV PRLT

Type R/W R/W R/W R/W R/W R/W R/W

Reset

Bit 15 14 13 12 11 10 9 8 7 6 5 4 3 2 1 0

Name DW RBLN WST PSIZE RLT

Type R/W R/W R/W R/W R/W

Reset 0 1 0 0 7

0 0 0 1 0 0 0

BMODE PMO

DE

BMODE PMO

DE

72/307 MediaTek Inc. Confidential

MT6218B GSM/GPRS Baseband Processor Data Sheet Revision 1.00

EMI+0010h EMI Control Register for BANK2 EMI_CONC

Bit 31 30 29 28 27 26 25 24 23 22 21 20 19 18 17 16

Name C2WS C2WH C2RS ADV PRLT

Type R/W R/W R/W R/W R/W R/W R/W

Reset

Bit 15 14 13 12 11 10 9 8 7 6 5 4 3 2 1 0

Name DW RBLN WST PSIZE RLT

Type R/W R/W R/W R/W R/W

Reset 0 1 0 0 7

0 0 0 1 0 0 0

BMODE PMO

DE

EMI+0018h EMI Control Register for BANK3 EMI_COND

Bit 31 30 29 28 27 26 25 24 23 22 21 20 19 18 17 16

Name C2WS C2WH C2RS ADV PRLT

Type R/W R/W R/W R/W R/W R/W R/W

Reset

Bit 15 14 13 12 11 10 9 8 7 6 5 4 3 2 1 0

Name DW RBLN WST PSIZE RLT

Type R/W R/W R/W R/W R/W

Reset 0 1 0 0 7

0 0 0 1 0 0 0

BMODE PMO

DE

EMI+0020h EMI Control Register for BANK4 EMI_CONE

Bit 31 30 29 28 27 26 25 24 23 22 21 20 19 18 17 16

Name C2WS C2WH C2RS ADV PRLT

Type R/W R/W R/W R/W R/W R/W R/W

Reset

Bit 15 14 13 12 11 10 9 8 7 6 5 4 3 2 1 0

Name DW RBLN WST PSIZE RLT

Type R/W R/W R/W R/W R/W

Reset 0 1 0 0 7

0 0 0 1 0 0 0

BMODE PMO

DE

EMI+0028h EMI Control Register for BANK5 EMI_CONF

Bit 31 30 29 28 27 26 25 24 23 22 21 20 19 18 17 16

Name C2WS C2WH C2RS ADV PRLT

Type R/W R/W R/W R/W R/W R/W R/W

Reset

Bit 15 14 13 12 11 10 9 8 7 6 5 4 3 2 1 0

Name DW RBLN WST PSIZE RLT

Type R/W R/W R/W R/W R/W

Reset 0 1 0 0 7

0 0 0 1 0 0 0

BMODE PMO

DE

EMI+0030h EMI Control Register for BANK6 EMI_CONG

Bit 31 30 29 28 27 26 25 24 23 22 21 20 19 18 17 16

Name C2WS C2WH C2RS ADV PRLT

Type R/W R/W R/W R/W R/W R/W R/W

Reset

Bit 15 14 13 12 11 10 9 8 7 6 5 4 3 2 1 0

0 0 0 1 0 0 0

BMODE PMO

DE

73/307 MediaTek Inc. Confidential

MT6218B GSM/GPRS Baseband Processor Data Sheet Revision 1.00

RLT+1

C2RS

Name DW RBLN WST PSIZE RLT

Type R/W R/W R/W R/W R/W

Reset 0 1 0 0 7

EMI+0038h EMI Control Register for BANK7 EMI_CONH

Bit 31 30 29 28 27 26 25 24 23 22 21 20 19 18 17 16

Name C2WS C2WH C2RS ADV PRLT

Type R/W R/W R/W R/W R/W R/W R/W

Reset

Bit 15 14 13 12 11 10 9 8 7 6 5 4 3 2 1 0

Name DW RBLN WST PSIZE RLT

Type R/W R/W R/W R/W R/W

Reset 0 1 0 0 7

0 0 0 1 0 0 0

For each bank (BANK0-BANK7), there is a dedicate control register in connection with the associated bank controller. These registers have the timing parameters that help the controller to convey memory access into proper timing waveform. Note that, Except for parameter DW that is in unit of bit, all the other parameters specified explicitly are based on bus clock

speed in terms of cycle count.

RLT Read Latency Time Specifying the parameter RLT turns effectively to insert wait -states in bus transfer to requesting agent. Such

parameter should be chosen carefully to meet the common parameter tACC (access time) for device in read operation. Example is shown below.

BMODE PMO

DE

ECLK

EA

ECSn#

ERD#

ED

EADV

Figure 16 Read Wait State Timing Diagram

Access Time

60ns 0 1 3 90ns 1 2 4

120ns 1 3 5

Read Latency Time

13MHz 26MHz 52MHz

Table 16 Reference value of Read Latency Time for variant memory devices

PMODE Page Mode Control

74/307 MediaTek Inc. Confidential

MT6218B GSM/GPRS Baseband Processor Data Sheet Revision 1.00

If target device supports page mode operations, the Page Mode Control can be enabled. Read in Page Mode is

determined by set of parameters: PRLT and PSIZE.

0 disable page mode operation

1 enable page mode operation BMODE Burst Mode Control If target device supports burst mode operations, the Burst Mode Control can be enabled. Read in Burst Mode is

determined by set of parameters: PRLT and PSIZE.

0 disable burst mode operation

1 enable burst mode operation PRLT Read Latency Within the Same Page or in Burst Mode Operation Since page/burst mode operation only help to eliminate read latency in subsequent burst within the same page, it

doesn’t matter with the initial latency at all. Thus, it should still adopt RLT parameter for initial read or burst read

between different pages though PMODE or BMODE is set “1”.

000 zero wait state

001 one wait state

010 two wait state

011 three wait state

100 four wait state

101 five wait state

110 six wait state

111 seven wait state PSIZE Page/Burst Size for Page/Burst Mode Operation These bit positions describe the page/burst size that the Page/Burst Mode enabled device will behave.

000 8 byte, EA[22:3] remains the same

001 16 byte, EA[22:4] remains the same

010 32 byte, EA[22:5] remains the same

011 64 byte, EA[22:6] remains the same

100~110 reserved for future use

111 continu ous sequential burst WST Write Wait State Specifying the parameters to extend adequate setup and hold time for target component in write operation. Those

parameters also effectively insert wait-states in bus transfer to requesting agent. Example is shown in Figure 17

and Table 17 .

75/307 MediaTek Inc. Confidential

MT6218B GSM/GPRS Baseband Processor Data Sheet Revision 1.00

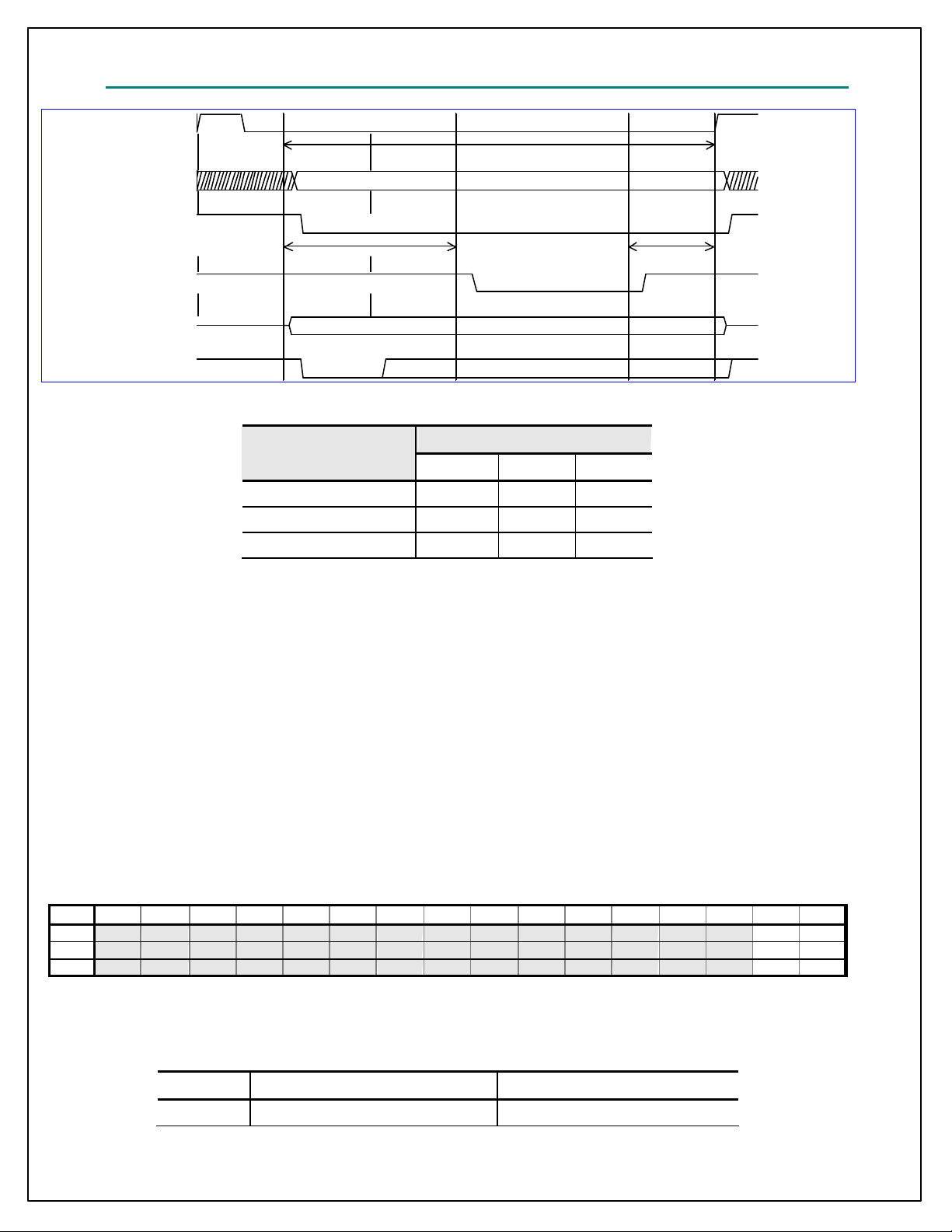

WST+2

C2WS

C2WH

ECLK

EA

ECSn#

EWR#

ED

EADV

Figure 17 Write Wait State Timing Diagram

Write Pulse Width

(Write Data Setup Time)

13MHz 26MHz 52MHz

Write Wait State

30ns 0 0 1 60ns 0 1 3

90ns 1 2 4

Table 17 Reference value of Write Wait State for variant memory devices

RBLN Read Byte Lane Enable

0 all byte lanes held high during system reads

1 all byte lanes held low during system reads DW Data Width

Since the data width of internal system bus is fixed as 32-bit wide, any access to external components might be

converted into more than one cycle s, depending on transfer size and the parameter DW for the specific component.

In general, this bit position of certain component is cleared to ‘0’ upon system reset and is programmed during the

system initialization process prior to begin access to it. Note that, dynamic changing this parameter will cause

unexpected result.

0 16-bit device

1 8-bit device

E MI+0030h EMI Re-map Control Register EMI_REMAP

Bit 15 14 13 12 11 10 9 8 7 6 5 4 3 2 1 0

Name RM1 RM0

Type R/W R/W

Reset BOOT 0

This register accomplishes the Memory Re-mapping Mechanism. Basically, it provides the kernel software program or system designer a capability of changing memory configuration dynamically. Three kinds of configuration are permitted.

RM[1:0] Re-mapping control for Boot Code, BANK0 and BANK1, refer to Table 18.

RM[1:0] Address 00000000h (MB0) Address 10000000h (MB1)

00 Boot Code BANK1

76/307 MediaTek Inc. Confidential

MT6218B GSM/GPRS Baseband Processor Data Sheet Revision 1.00

01 BANK1 BANK0 10 BANK0 BANK1 11 BANK1 BANK0

Table 18 Memory Map Configuration

EMI+0034h EMI General Control Register EMI_GEN

Bit 31 30 29 28 27 26 25 24 23 22 21 20 19 18 17 16

Name CSR CE2 CE4 CE8 DSR DE2 DE4 DE8

Type R/W R/W R/W R/W R/W R/W R/W R/W

Reset 1 1 0 0 1 1 0 0

Bit 15 14 13 12 11 10 9 8 7 6 5 4 3 2 1 0

PRCE

Name

Type R/W R/W R/W R/W R/W R/W R/W R/W R/W

Reset 0 0 1 1 1 1 0 0 0

N

PRCCNT BANK

This register is general control that can alter the behavior of all bank controllers according to specific features below.

PRCEN Pseudo SRAM Write Protection Control

0 Disable

1 Enable PRCCNT Pseudo SRAM Dummy Cycle Insertion Count BANK Inter-Bank Turnaround Cycle Insertion

0 Disable

1 Enable BURST Burst Access Dummy Cycle Insertion

0 Disable

1 Enable EDA ED[15:0] Activity

0 Drive ED Bus only on write access

1 Always drive ED Bus except for read access FLUSH Instruction Cache Write Flush Control PDNE Pseudo SRAM Power Down Mode Control CKE Burst Mode Flash Clock Enable Control CKDLY Burst Mode Flash Clock Delay Control

BURS

T

EDA

FLUS

H

PDNE CKE CKDLY

EMI+0050h Code Cache and Code Prefetch Control Register

Bit 31 30 29 28 27 26 25 24 23 22 21 20 19 18 17 16

Name DB7 DB6 DB5 DB4 DB3 DB2 DB1 DB0

Type R/W R/W R/W R/W R/W R/W R/W R/W R/W RW R/W

Reset 0 0 0 0 0 0 0 0 0 0 0

Bit 15 14 13 12 11 10 9 8 7 6 5 4 3 2 1 0

Name IB7 IB6 IB5 IB4 IB3 IB2 IB1 IB0

Type R/W R/W R/W R/W R/W R/W R/W R/W R/W RW R/W

Reset 0 0 0 0 0 0 0 0 0 0 0

77/307 MediaTek Inc. Confidential

DWRP8 DPRE

IWRP

8

F

IPREF

N

DCAC

H

ICAC

H

PREFETCH_CO

MT6218B GSM/GPRS Baseband Processor Data Sheet Revision 1.00

This register is used to control the functions of Code/Data Cache and Code/Data Prefetch. The Code/Data Cache is a low

latency memory that can store up to 16 most recently used instruction codes/data. While an instruction/data fetch hits the one in the code/data cache, not only the access time could be minimized, but also the singling to off chip ROM or Flash could be relieved. In addition, it can also store up to 16 prefetched instruction codes/data while Code/Data Prefetch function is enabled. The Code/Data Prefetch is a sophisticated controller that can predict and fetch the instruction codes/data in advance based on previous code/data fetching sequence. As the Code/Data Prefetch always performs the fetch staffs during the period that the EMI interface is in IDLE state. The bandwidth to off chip memory could be fully utilized. On the other hand, if the instruction/data fetch hits the one of prefetched codes/data, the access time could be minimized and then enhance the overall system performance.

xWRP8 Prefetch Size

0 8 bytes

1 16 bytes xBn Prefetchable/Cacheable Area There bit positions determine the prefetchable and cacheable region in which the instruction/data could be cached

or prefetched.

xPREF Prefetch Enable xCACH Cache Enable

EMI+0060h EMI Patch Enable Register EMI_PATCHEN

Bit 15 14 13 12 11 10 9 8 7 6 5 4 3 2 1 0

N ame EN1 EN0

Type R/W R/W

Reset 0 0

ENn Patch Enable

EMI+0064h EMI Patch Address 0 Register EMI_PADD0

Bit 31 30 29 28 27 26 25 24 23 22 21 20 19 18 17 16

Name

Type R/W

Bit 15 14 13 12 11 10 9 8 7 6 5 4 3 2 1 0

Name

Type R/W

PADD0

PADD0 Patch 0 Address

EMI+006Ch EMI Patch Instruction 0 Register EMI_PDAT0

Bit 31 30 29 28 27 26 25 24 23 22 21 20 19 18 17 16

Name

Type R/W

Bit 15 14 13 12 11 10 9 8 7 6 5 4 3 2 1 0

Name

Type R/W

PDAT0

PDAT0 Patch 0 Instruction

EMI+0074h EMI Patch Address 1 Register EMI_PADD1

Bit 31 30 29 28 27 26 25 24 23 22 21 20 19 18 17 16

78/307 MediaTek Inc. Confidential

MT6218B GSM/GPRS Baseband Processor Data Sheet Revision 1.00

Name

Type R/W

Bit 15 14 13 12 11 10 9 8 7 6 5 4 3 2 1 0

Name

Type R/W

PADD1

PADD1 Patch 1 Address

EMI+007Ch EMI Patch Instruction 1 Register EMI_PDAT1

Bit 31 30 29 28 27 26 25 24 23 22 21 20 19 18 17 16

Name

Type R/W

Bit 15 14 13 12 11 10 9 8 7 6 5 4 3 2 1 0

Name

Type R/W

PDAT1 Patch 1 Instruction

PDAT1

79/307 MediaTek Inc. Confidential

MT6218B GSM/GPRS Baseband Processor Data Sheet Revision 1.00

4 Microcontroller Peripherals

Microcontroller (MCU) Peripherals are devices that are under direct control of the Microcontroller. Most of them are attached to the Advanced Peripheral Bus (APB) of the MCU subsystem, thus shall serve as APB slaves. Each MCU peripheral has to be accessed as a memory -mapped I/O device, i.e., the MCU or the DMA bus master read or write specific peripheral by issuing memory -addressed transactions.

Following is the list of MCU peripherals:

l Pulse-Width Modulation Outputs l Alerter l SIM Interface l Keypad Scanner l LCD Interface l General Purpose Inputs/Outputs l Watchdog Timer l Real Time Clock l UART l IrDA Framer l MMC/SD/MS/MS Pro l Baseband Serial Interface (BSI) l Baseband Parallel Interface (BPI)

l Automatic Power Control (APC) Unit l Automatic Frequency Control (AFC) Unit l Auxiliary ADC unit l General-Purpose Timers l TDMA Timer l MCU Coprocessors

l JPEG Decoder l Imagine Resizer l NAND Flash Controller

Most of the above items will be mentioned in this chapter, while the others will be covered in other chapters according to their particular category of function.

80/307 MediaTek Inc. Confidential

MT6218B GSM/GPRS Baseband Processor Data Sheet Revision 1.00

_

THRES

PWM

4.1 Pulse-Width Modulation Outputs

4.1.1 General Description

Two generic pulse-width modulators are implemented to generate pulse sequences with programmable frequency and duty cycle for LCD backlight or charging purpose. The duration of the PWM output signal is Low as long as the internal counter value is greater than or equals to the threshold value and the waveform is shown in Figure 18 .

Internal counter

Threshold

PWM Signal

Figure 18 PWM waveform The frequency and volume of PWM output signal are determined by these registers: PWM_COUNT, PWM_THRES,

PWM_CON. POWERDOWN (pdn_pwm) signal is applied to power-down the PWM module. When PWM is deactivated (POWERDOWN=1), the output will in low state.

The output PWM frequency is determined by:

The output PWM duty cycle is determined by:

Care should be taken that PWM_THRES should be less than the PWM_COUNT. If this condition is not satisfied, the output pulse of the PWM will be always in High state.

CLK

)1_(2)1_(

COUNTPWMCONPWM

+××+

1_

+COUNTPWM

whenCLKSELCLK

032000,1CLKSEL when 13000000CLK

====

4.1.2 Register Definitions

PWM+0000h PWM1 Control register PWM1_CON

Bit 15 14 13 12 11 10 9 8 7 6 5 4 3 2 1 0

Name

Type R/W R/W

Reset 0 0

CLKSE

L

CLK [1:0]

CLK Select PWM1 clock prescaler scale

00 CLK Hz

01 CLK/2 Hz

10 CLK/4 Hz

11 CLK/8 Hz

Note: When PWM1 module is disabled, its output should be keep in LOW state.

CLKSEL Select PWM1 clock

0 CLK=13M Hz

81/307 MediaTek Inc. Confidential

MT6218B GSM/GPRS Baseband Processor Data Sheet Revision 1.00

1 CLK=32K Hz

PWM+0004h PWM1 max counter value register PWM1_COUNT

Bit 15 14 13 12 11 10 9 8 7 6 5 4 3 2 1 0

Name PWM1_COUNT [12:0]

Type R/W

Reset 1FFFh

PWM1_COUNT PWM1 max counter value. It will be the initial value for the internal counter. If PWM1_COUNT is

written when th e internal counter is counting backwards, no matter which mode it is, there is no effect until the internal counter counts down to zero, i.e. a complete period.

PWM+0008h PWM1 Threshold Value register PWM1_THRES

Bit 15 14 13 12 11 10 9 8 7 6 5 4 3 2 1 0

Name PWM1_THRES [12:0]

Type R/W

Reset 0

PWM1_THRES Threshold value. When the internal counter value is greater than or equals to PWM1_THRES, the PWM1

output signal will be “0”; when the internal counter is less than PWM1_THRES, the PWM1 output signal will be “1”.

PWM+000Ch PWM2 Control register PWM2_CON

Bit 15 14 13 12 11 10 9 8 7 6 5 4 3 2 1 0

Name

Type R/W R/W

Reset 0 0

CLKSE

L

CLK [1:0]

CLK Select PWM2 clock prescaler scale

00 CLK Hz

02 CLK/2 Hz

10 CLK/4 Hz

11 CLK/8 Hz

Note: When PWM2 module is disabled, its output should be keep in LOW state.

CLKSEL Select PWM2 clock

0 CLK=13M Hz

1 CLK=32K Hz

PWM+0010h PWM2 max counter value register PWM2_COUNT

Bit 15 14 13 12 11 10 9 8 7 6 5 4 3 2 1 0

Name PWM2_COUNT [12:0]

Type R/W

Reset 1FFFh

PWM2_COUNT PWM2 max counter value. It will be the initial value for the internal counter. If PWM2_COUNT is

written when the internal counter is counting backwards, no matter which mode it is, there is no effect until the internal counter counts down to zero, i.e. a complete period.

82/307 MediaTek Inc. Confidential

MT6218B GSM/GPRS Baseband Processor Data Sheet Revision 1.00

PWM+0014h PWM2 Threshold Value register PWM2_THRES

Bit 15 14 13 12 11 10 9 8 7 6 5 4 3 2 1 0

Name PWM2_THRES [12:0]

Type R/W

Reset 0

PWM2_THRES Threshold value. When the internal counter value is greater than or equals to PWM2_THRES, the PWM1

output signal will be “0”; when the internal counter is less than PWM2_THRES, the PWM2 output signal will be “1”.

Figure 19 shows the PWM waveform with register value present.

13MHz

PWM_COUNT =5 PWM_THRES = 1 PWM_CON = 0b

Figure 19 PWM waveform with register value present

4.2 Alerter

4.2.1 General Description

The output of Alerter has two sources: one is the enhanced pwm output signal, which is implemented embedded in Alerter module; the other is PDM signal from DSP domain directly. The enhanced pwm with three operation modes is implemented to generate a signal with programmable frequency and tone volume. The frequency and volume are determined by four registers: ALERTER_CNT1, ALERTER_THRES, ALERTER_CNT2 and ALERTER_CON. ALERTER_CNT1 and

ALERTER_CNT2 are the initial counting values of internal counter1 and internal counter2 respectively. POWERDOWN signal is applied to power-down the Alerter module. When Alerter is deactivated (POWERDOWN=1), the output will be in low state.

With ALERTER_CON, the output source can be chosen from enhanced pwm or PDM. The waveform of the alerter from enhanced pwm source in different modes can be shown in Figure 20 . In mode 1, the polarity of alerter output signal according to the relationship between internal counter1 and the programmed threshold will be inverted each time internal counter2 reaches zero. In mode2, each time the internal counter2 count backwards to zero the alerter output signal is normal pwm signal (i.e. signal is low as long as the internal counter1 value is greater than or equals to ALERTER_THRES, and it is high when the internal counter1 is less than ALERTER_THRES) or low state by turns. In mode3, the value of internal counter2 has no effect on output signal, i.e. the alerter output signal is low as long as the internal counter1 value is above the programmed threshold and is high the internal counter1 is less than ALERTER_THRES when no matter what value the internal counter2 is.

83/307 MediaTek Inc. Confidential

MT6218B GSM/GPRS Baseband Processor Data Sheet Revision 1.00

T1

T2

Internal counter1

ALERTER_THRES

Internal counter2

enhance pwm out (mode 1)

enhance pwm out (mode 2)

enhanced pwmout (mode 3)

T1 = ALERTER_CNT1 * 1/13MHz *( ALERTER_CON[1:0]+1)

T2 = T1 *( ALERTER_CNT2+1)

Figure 20 Alerter waveform The output signal frequency is determined by:

 

 

 



The volume of the output signal is determined by:

13000000

×+

f

)12_()11_()1]0:1[_(2

+×+×+×

CNTALERTERCNTALERTERCONALERTER

CONALERTERCNTALERTER

_

THRESALERTER

])0:1[_()11_(

11_

+CNTALERTER

f

3 modeor

2 mode and 1 modeor

4.2.2 Register Definitions

ALTER+0000h Alerter counter1 value register

Bit 15 14 13 12 11 10 9 8 7 6 5 4 3 2 1 0

Name

Type R/W

Reset

ALERTER_CNT1 Alerter max counter’s value. ALERTER_CNT1 is the initial value of internal counter1. If

ALERTER_CNT1 is written when the internal counter1 is counting backwards, no matter which mode it is, there is no effect until the internal counter1 counts down to zero, i.e. a complete period.

ALERTER_CNT1 [15:0]

FFFFh

ALERTER_CNT

1

ALTER+0004h Alerter threshold value register

Bit 15 14 13 12 11 10 9 8 7 6 5 4 3 2 1 0

Name

84/307 MediaTek Inc. Confidential

ALERTER_THRES [15:0]

ES

ALERTER_THR

MT6218B GSM/GPRS Baseband Processor Data Sheet Revision 1.00

Type R/W

Reset

ALERTER_THRES Threshold value. When the internal counter1 value is greater than or equals to ALERTER_THRES,

the Alerter output signal will be low state; when the counter1 is less than ALERTER_THRES, the Alerter output signal will be high state.

0

ALTER+0008h Alerter counter2 value register

ALERTER_CNT

2

Bit 15 14 13 12 11 10 9 8 7 6 5 4 3 2 1 0

Name ALERTER_CNT2 [ 5:0]

Type R/W

Reset 111111b

AlERTER_CNT2 ALERTER_CNT2 is the initial value for internal counter2. The internal counter2 decreases by one

everytime the internal counter1 count down to be zero. The polarity of alerter output signal which depends on the

relationship between the internal counter1 and ALERTER_THRES will be inverted anytime when the internal

counter2 counts down to zero. E.g. in the beginning, the output signal is low when the internal counter1 isn’t less

ALERTER_THRES and is high when the internal counter1 is less than ALERTER_THRES. But after the internal

counter2 counts down to zero, the output signal will be high when the internal counter1 isn’t less than

ALERTER_THRES and will be low when the internal counter1 is less than ALERTER_THRES.

ALTER+000Ch Alerter control register ALERTER_CON

Bit 15 14 13 12 11 10 9 8 7 6 5 4 3 2 1 0

Name TYPE MODE CLK [1:0]

Type R/W R/W R/W

Reset 0 0 0

CLK Select PWM Waveform clock

00 13M Hz

01 13/2M Hz

10 13/4M Hz

11 13/8M Hz MODE Select Alerter mode

00 Mode 1 selected

01 Mode 2 selected

10 Mode 3 selected TYPE Select the ALERTER output source from PWM or PDM

0 Output generated from PWM path

1 Output generated from PDM path

Note: When alerter module is power down, its output should be kept in low state. Figure 21 shows the Alerter waveform with register value present.

85/307 MediaTek Inc. Confidential

MT6218B GSM/GPRS Baseband Processor Data Sheet Revision 1.00

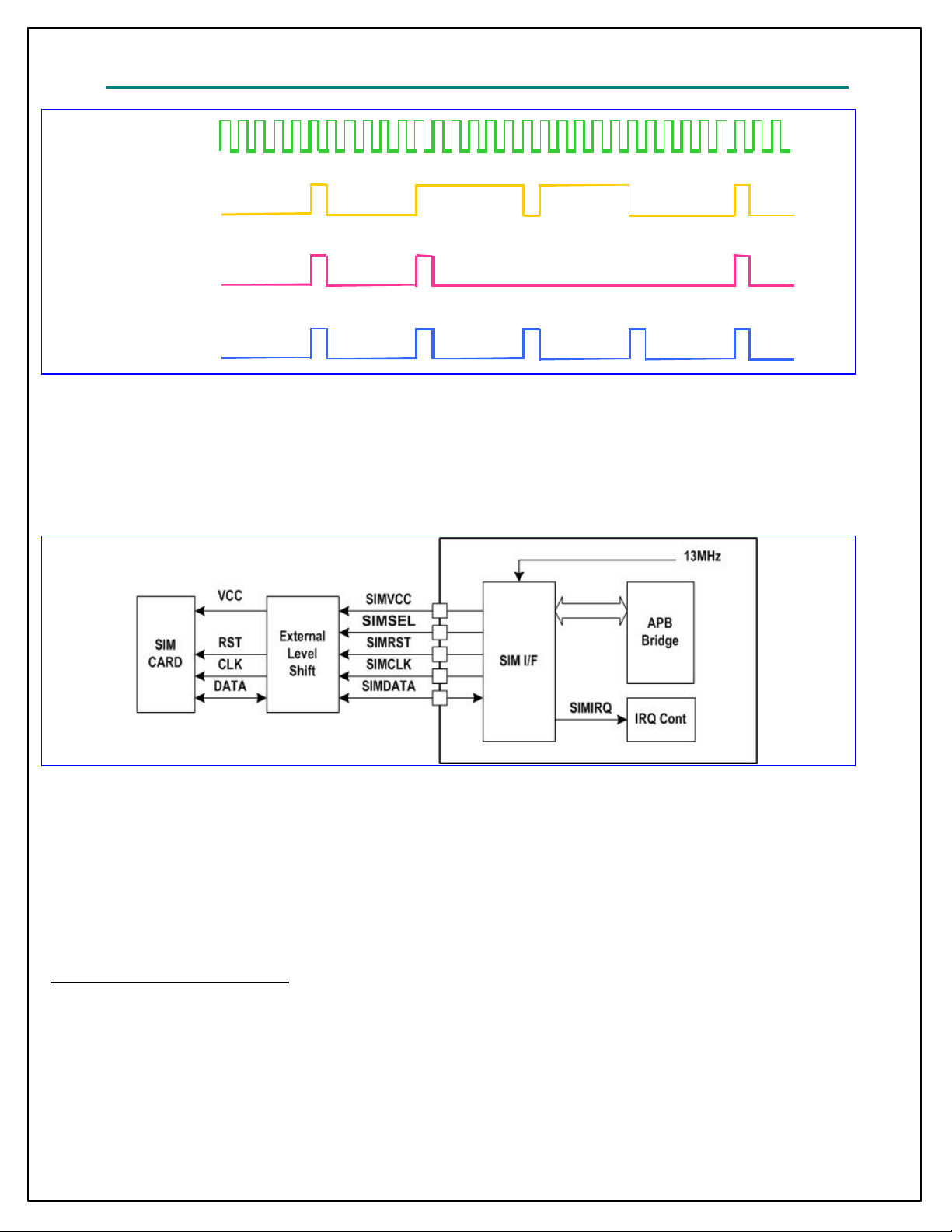

13MHz

ALERTER_CNT1 = 5 ALERTER_CNT2 = 1 ALERTER_THRESH = 1 ALERTER_CON =00000b

ALERTER_CNT1 = 5 ALERTER_CNT2 = 1 ALERTER_THRESH = 1 ALERTER_CON = 00100b

ALERTER_CNT1 = 5 ALERTER_CNT2 = 1 ALERTER_THRESH = 1 ALERTER_CON = 01000b

Figure 21 Alerter output signal from enhanced pwm with register value present

4.3 SIM Interface

The MT6218B contains a dedicated smart card interface to allow the MCU access to the SIM card. It can operate via 5 terminals, using SIMVCC, SIMSEL, SIMRST, SIMCLK and SIMDATA.

Figure 22 SIM Interface Block Diagram

The SIMVCC is used to control the external voltage supply to the SIM card and SIMSEL determines the regulated smart card supply voltage. SIMRST is used as the SIM card reset signal. Besides, SIMDATA and SIMCL K are used for data exchange purpose.

Basically, the SIM interface acts as a half duplex asynchronous communication port and its data format is composed of ten consecutive bits: a start bit in state Low, eight information bits, and a tenth bit used for parity checking. The data format can be divided into two modes as follows:

Direct Mode (ODD=SDIR=SINV=0)

SB D0 D1 D2 D3 D4 D5 D6 D7 PB SB: Start Bit (in state Low) Dx: Data Byte (LSB is first and logic level ONE is High) PB : Even Parity Check Bit

86/307 MediaTek Inc. Confidential

MT6218B GSM/GPRS Baseband Processor Data Sheet Revision 1.00

Indirect Mode (ODD=SDIR=SINV=1)

SB N7 N6 N5 N4 N3 N2 N1 N0 PB SB: Start Bit (in state Low) Nx: Data Byte (MSB is first and logic level ONE is Low)

PB : Odd Parity Check Bit

If the receiver gets a wrong parity bit, it will respond by pulling the SIMDATA Low to inform the transmitter and the transmitter will retransmit the character.

When the receiver is a SIM Card, the error response starts 0.5 bits after the PB and it may last for 1~2 bit periods. When the receiver is the SIM interface, the error response starts 0.5 bit s after the PB and lasts for 1.5 bit period. When the SIM interface is the transmitter, it will take totally 14 bits guard period whether the error response appears. If the

receiver shows the error response, the SIM interface will retransmit the previous character again else it will transmit the next character.

Figure 23 SIM Interface Timing Diagram

4.3.1 Register Definitions

SIM+0000h SIM module control register SIM_CON

Bit 15 14 13 12 11 10 9 8 7 6 5 4 3 2 1 0

Name WRST

Type W R/W R/W

Reset 0 0 0

87/307 MediaTek Inc. Confidential

CSTOP SIMO

N

MT6218B GSM/GPRS Baseband Processor Data Sheet Revision 1.00

SIMON SIM card power-up/power-down control

0 Initiate the card deactivation sequence

1 Initiate the card activation sequence CSTOP Enable clock stop mode. Together with CPOL in SIM_CNF register, it determines the polarity of the SIMCLK in

this mode.

0 Enable the SIMCLK output.

1 Disable the SIMCLK output WRST SIM card warm reset control

SIM+0004h SIM module configuration register SIM_CNF

Bit 15 14 13 12 11 10 9 8 7 6 5 4 3 2 1 0

Name HFEN T0EN T1EN TOUT

Type R/W R/W R/W R/W R/W R/W R/W R/W R/W R/W R/W

Reset 0 0 0 0 0 0 0 0 0 0 0

SIMS

EL

ODD SDIR SINV CPOL

RXACK SIM card reception error handshake control

0 Disable character receipt handshaking

1 Enable character receipt handshaking TXACK SIM card transmission error handshake control

0 Disable character transmission handshaking

1 Enable character transmission handshaking CPOL SIMCLK polarity control in clock stop mode

0 Make SIMCLK stop in LOW level

1 Make SIMCLK stop in HIGH level SINV Data Inverter.

0 Not invert the transmitted and received data

1 Invert the transmitted and received data SDIR Data Transfer Direction

0 LSB is transmitted and received first

1 MSB is transmitted and received first ODD Select odd or even parity

0 Even parity

1 Odd parity SIMSEL SIM card supply voltage select

0 SIMSEL pin is set to LOW level

1 SIMSEL pin is set to HIGH level TOUT SIM work waiting time counter control

0 Disable Time-Out counter

1 Enable Time -Out counter T1EN T=1 protocol controller control

0 Disable T=1 protocol controller

1 Enable T=1 protocol controller T0EN T=0 protocol controller control

0 Disable T=0 protocol controller

1 Enable T=0 protocol controller

TXACK RXAC

K

88/307 MediaTek Inc. Confidential

MT6218B GSM/GPRS Baseband Processor Data Sheet Revision 1.00

HFEN Hardware flow control

0 Disable hardware flow control

1 Enable hardware flow control

SIM +0008h SIM Baud Rate Register SIM_BRR

Bit 15 14 13 12 11 10 9 8 7 6 5 4 3 2 1 0

Name BAUD[4:0] SIMCLK[1:0]

Type R/W R/W

Reset 22d 01

SIMCLK Set SIMCLK frequency

00 13/2 MHz

01 13/4 MHz

10 13/8 MHz

11 13/12 MHz BAUD Determines the 16*baud rate as a division of SIMCLK (SIMCLK/BAUD[3:0])

SIM +0010h SIM interrupt enable register SIM_IRQEN

Bit 15 14 13 12 11 10 9 8 7 6 5 4 3 2 1 0

Name

Type R/W R/W R/W R/W R/W R/W R/W R/W R/W R/W R/W

Reset 0 0 0 0 0 0 0 0 0 0 0

EDCE

T1END RXERR T0END SIMO

RR

ATRERR TXERR TOUT OVRUN RXTIDE TXTID

FF

E

For all these bits

0 Interrupt is disabled

1 Interrupt is enabled

SIM +0014h SIM module status register SIM_STA

Bit 15 14 13 12 11 10 9 8 7 6 5 4 3 2 1 0

Name

Type R/C R/C R/C R/C R/C R/C R/C R/C R/C R R

Reset — — — — — — — — — — —

EDCE

TXTIDE Transmit FIFO tide mark reached interrupt occurred RXTIDE Receive FIFO tide mark reached interrupt occurred

OVRUN Transmit/Receive FIFO overrun interrupt occurred TOUT Between character timeout interrupt occurred TXERR Character transmission error interrupt occurred ATRERR ATR start time-out interrupt occurred SIMOFF Card deactivation complete interrupt occurred T0END Data Transfer handled by T=0 Controller completed interrupt occurred RXERR Character reception error interrupt occurred T1END Data Transfer handled by T=1 Controller completed interrupt occurred EDCERR T=1 Controller CRC error occurred

T1END RXERR T0END SIMO

RR

ATRERR TXERR TOUT OVRUN RXTIDE TXTID

FF

E

SIM +0020h SIM retry limit register SIM_RETRY

Bit 15 14 13 12 11 10 9 8 7 6 5 4 3 2 1 0

89/307 MediaTek Inc. Confidential

MT6218B GSM/GPRS Baseband Processor Data Sheet Revision 1.00

Name TXRETRY RXRETRY

Type R/W R/W

Reset 3h 3h

RXRETRY Specify the max. numbers of receive retries that are allowed when parity error has occurred. TXRETRY Specify the max. numbers of transmit retries that are allowed when parity error has occurred.

SIM +0024h SIM FIFO tide mark register SIM_TIDE

Bit 15 14 13 12 11 10 9 8 7 6 5 4 3 2 1 0

Name TXTIDE[3:0] RXTIDE[3:0]

Type R/W R/W

Reset 0h 0h

RXTIDE Trigger point for RXTIDE interrupt TXTIDE Trigger point for TXTIDE interrupt

SIM +0030h Data register used as Tx/Rx Data Register SIM_DATA

Bit 15 14 13 12 11 10 9 8 7 6 5 4 3 2 1 0

Name DATA[7:0]

Type R/W

Reset —

DATA Eight data digits. These correspond to the character being read or written

SIM +0034h SIM FIFO count register SIM_COUNT

Bit 15 14 13 12 11 10 9 8 7 6 5 4 3 2 1 0

Name COUNT[4:0]

Type R/W

Reset 0h

COUNT The number of characters in the SIM FIFO when read, and flushes when written.

SIM +0040h SIM activation time register SIM_ATIME

Bit 15 14 13 12 11 10 9 8 7 6 5 4 3 2 1 0

Name

Type R/W

Reset

ATIME The register defines the duration, in SIM clock cycles, of the time taken for each of the three stages of the card

activation process

ATIME[15:0]

AFC7h

SIM +0044h SIM deactivation time register SIM_DTIME

Bit 15 14 13 12 11 10 9 8 7 6 5 4 3 2 1 0

Name DTIME[11:0]

Type R/W

Reset 3E7h

DTIME The register defines the duration, in 13MHz clock cycles, of the time taken for each of the three stages of the

card deactivation sequence

SIM +0048h Character to character waiting time register SIM_WTIME

Bit 15 14 13 12 11 10 9 8 7 6 5 4 3 2 1 0

90/307 MediaTek Inc. Confidential

MT6218B GSM/GPRS Baseband Processor Data Sheet Revision 1.00

Name

Type R/W

Reset

WTIME Maximum interval between the leading edge of two consecutive characters in 4 ETU unit

WTIME[15:0]

983h

SIM +004Ch Block to block guard time register SIM_GTIME

Bit 15 14 13 12 11 10 9 8 7 6 5 4 3 2 1 0

Name GTIME

Type R/W

Reset 10d

GTIME Minimum interval between the leading edge of two consecutive characters sent in opposite directions in ETU unit

SIM +0060h SIM command header register: INS SIM_INS

Bit 15 14 13 12 11 10 9 8 7 6 5 4 3 2 1 0

Name INSD SIMINS[7:0]

Type R/W R/W

Reset 0h 0h

SIMINS This field should be identical to the INS instruction code. When writing to this register, the T=0 controller will be

activated and data transfer will be initiated.

INSD [Description for this register field]

0 T=0 controller receives data from the SIM card

1 T=0 controller sends data to the SIM card

SIM +0064h SIM command header register: P3

Bit 15 14 13 12 11 10 9 8 7 6 5 4 3 2 1 0

Nam e SIMP3[8:0]

Type R/W

Reset 0h

SIMP3 This field should be identical to the P3 instruction code. It should be written prior to the SIM_INS register. While

the data transfer is going on, this field shows the no. of the remaining data to be sent or to be received

N)

SIM_SW1(ICC_L

SIM +0068h SIM procedure byte register: SW1

EN)

SIM_P3(ICC_LE

Bit 15 14 13 12 11 10 9 8 7 6 5 4 3 2 1 0

Name SIMSW1[7:0]

Type R

Reset 0h

SIMSW1 This field holds the last received procedure byte for debug purpose. When the T0END interrupt occurred, it

keeps the SW1 procedure byte.

SIM_SW2(ICC_E

SIM +006Ch SIM procedure byte register: SW2

DC)

Bit 15 14 13 12 11 10 9 8 7 6 5 4 3 2 1 0

Name SIMSW2[7:0]

Type R

91/307 MediaTek Inc. Confidential

MT6218B GSM/GPRS Baseband Processor Data Sheet Revision 1.00

Reset 0h

SIMSW2 This field holds the SW2 procedure byte

4.3.2 SIM Card Insertion and Removal

The detection of physical connection to the SIM card and card removal is done by the external interrupt controller or by GPIO.

4.3.3 Card Activation and Deactivation

The card activation and deactivation sequence both are controlled by H/W. The MCU initiates the activation sequence by writing a “1” to bit 0 of the SIM_CON register, and then the interface performs the following activation sequence:

l Assert SIMRST LOW l Set SIMVCC at HIGH level and SIMDATA in reception mode l Enable SIMCLK clock l De-assert SIMRST HIGH (required if it belongs to active low reset SIM card)

The final step in a typical card session is contact deactivation in order that the card is not electrically damaged. The deactivation sequence is initiated by writing a “0” to bit 0 of the SIM_CON register, and then the interface performs the

following deactivation sequence:

l Assert SIMRST LOW l Set SCIMCLK at LOW level l Set SIMDATA at LOW level l Set SIMVCC at LOW level

4.3.4 Answer to Reset Sequence

After card activation, a reset operation results in an answer from the card consisting of the initial character TS, followed by at most 32 characters. The initial character TS provides a bit synchronization sequence and defines the conventions to interpret data bytes in all subsequent characters.

On reception of the first character, TS, MCU should read this character, establish the respective required convention and reprogram the related registers. Thes e processes should be completed prior to the completion of reception of the next character. And then, the remainder of the ATR sequence is received, read via the SIM_DATA in the selected convention and interpreted by the S/W.

The timing requirement and pro cedures for ATR sequence are handled by H/W and shall meet the requirement of ISO 7816-3 as shown in Figure 24.

92/307 MediaTek Inc. Confidential

MT6218B GSM/GPRS Baseband Processor Data Sheet Revision 1.00

Figure 24 Answer to Reset Sequence

Time Value Comment T1 > 400 SIMCLK SIMCLK start to ATR appear

T2 < 200 SIMCLK SIMCLK start to SIMDATA in reception mode T3 > 40000 SIMCLK SIMCLK start to SIMRST High T4 — SIMVCC High to SIMCLK start

T5 — SIMRST Low to SIMCLK stop T6 — SIMCLK stop to SIMDATA Low T7 — SIMDATA Low to SIMVCC Low

Table 19 Answer to Reset Sequence Time -Out Condition

4.3.5 SIM Data Transfer

Two transfer modes are provided, either in software controlled byte by byte fashion or in a block fashion using T=0 controller and DMA controller. In both modes, the time -out counter could be enabled to monitor the elapsed time between two consecutive bytes.

4.3.5.1 Byte Transfer Mode

This mode is used during ATR and PPS procedure. In this mode, the SIM interface only ensures error free character transmission and reception.

Receiving Character

Upon detection of the start -bit sent by SIM card, the interface transforms into reception mode and the following bits are shifted into an internal register. If no parity error is detected or character-receive handshaking is disabled, the

received -character is written into the SIM FIFO and the SIM_CNT register is increased by one. Otherwise, the SIMDATA line is held low at 0.5 etu after detecting the parity error for 1.5 etus, and the character is re -received. If a character fails to be received correctly for the RXRETRY times, the receive-handshaking is aborted and the last-received character is written into the SIM FIFO, the SIM_CNT is increased by one and the RXERR interrupt is generated

When the number of characters held in the receive FIFO exceeds the level defined in the SIM_TIDE register, a RXTIDE interrupt is generated. The number of characters held in the SIM FIFO can be determined by reading the SIM_CNT register and writing to this register will flush the SIM FIFO.

93/307 MediaTek Inc. Confidential

MT6218B GSM/GPRS Baseband Processor Data Sheet Revision 1.00

Sending Character

Characters that are to be sent to the card are first written into the SIM FIFO and then automatically transmitted to the card at timed intervals. If character-transmit handshaking is enabled, the SIMDATA line is sampled at 1 etu after the parity bit. If the card indicates that it did not receive the character correctly, the character is retransmitted a maximum of TXRETRY times before a TXERR interrupt is generated and the transmission is aborted. Otherwise, the succeeding byte in the SIM FIFO is transmitted.

If a character fails to be transmitted and a TXERR interrupt is generated, the interface needs to be reset by flushing the SIM FIFO before any subsequent transmit or receive operation.

When the number of characters held in the SIM FIFO falls below the level defined in the SIM_TIDE register, a TXTIDE interrupt is generated. The number of characters held in the SIM FIFO can be determined by reading the SIM_CNT register and writing to this register will flush the SIM FIFO.

4.3.5.2 Block Transfer Mode

Basically, the SIM interface is designed to work in conjunction with the T=0 protocol controller and the DMA controller during non-ATR and non-PPS phase, though it is still possible for software to service the data transfer manually like in byte transfer mode if necessary and thus the T=0 protocol should be controlled by software.

The T=0 controller is accessed via four registers representing the instruction header bytes INS and P3, and the procedure bytes SW1 and SW2. These registers are:

SIM_INS, SIM_P3 SIM_SW1, SIM_SW2 During characters transfer, SIM_P3 holds the number of characters to be sent or to be received and SIM_SW1 holds the last

received procedure byte including NULL, ACK, NACK and SW1 for debug purpose.

Data Receive Instruction

Data Receive Instructions receive data from the SIM card. It is instantiated as the following procedure.

1. Enable the T=0 protocol controller by setting the T0EN bit to 1 in SIM_CNF register

2. Program the SIM_TIDE register to 0x0000 (TXTIDE = 0, RXTIDE = 0)

3. Program the SIM_IRQEN to 0x019C (Enable RXERR, TXERR, T0END, TOUT and OVRUN interrupts)

4. Write CLA, INS, P1, P2 and P3 into SIM FIFO

5. Program the DMA controller :

DMAn_MSBSRC and DMAn_LSBSRC : address of SIM_DATA register DMAn_MSBDST and DMAn_LSBDST : memory address reserved to store the received characters DMAn_COUNT : identical to P3 or 256 (if P3 == 0) DMAn_CON : 0x0078

6. Write P3 into SIM_P3 register and then INS into SIM_INS register (Data Transfer is initiated

now)

7. Enable the Time-out counter by setting the TOUT bit to 1 in SIM_CNF register

8. Start the DMA controller by writing 0x8000 into the DMAn_START register to

Upon completion of the Data Receive Instruction, T0END interrupt will be generated and then the Time -out counter should be disabled by setting the TOUT bit back to 0 in SIM_CNF register.

If error occurs during data transfer (RXERR, TXERR, OVRUN or TOUT interrupt is generated), the SIM card should be deactivated first and then activated prior subsequent operations.

94/307 MediaTek Inc. Confidential

MT6218B GSM/GPRS Baseband Processor Data Sheet Revision 1.00

Data Send Instruction

Data Send Instructions send data to the SIM card . It is instantiated as the following procedure.

1. Enable the T=0 protocol controller by setting the T0EN bit to 1 in SIM_CNF register

2. Program the SIM_TIDE register to 0x0100 (TXTIDE = 1, RXTIDE = 0)

3. Program the SIM_IRQEN to 0x019C (Enable RXERR, TXERR, T0END, TOUT and OVRUN interrupts)

4. Write CLA, INS, P1, P2 and P3 into SIM FIFO

5. Program the DMA controller :

DMAn_MSBSRC and DMA n_LSBSRC : memory address reserved to store the transmitted characters DMAn_MSBDST and DMAn_LSBDST : address of SIM_DATA register DMAn_COUNT : identical to P3 DMAn_CON : 0x0074

6. Write P3 into SIM_P3 register and then (0x0100 | INS) into SIM_INS register (Data Transfer

is initiated now)

7. Enable the Time-out counter by setting the TOUT bit to 1 in SIM_CNF register

8. Start the DMA controller by writing 0x8000 into the DMAn_START register

Upon completion of the Data Send Instruction, T0END interrupt will be generated and then the Time-out counter should be disabled by setting the TOUT bit back to 0 in SIM_CNF register.

If error occurs during data transfer (RXERR, TXERR, OVRUN or TOUT interrupt is generated), the SIM card should be deactivated first and then activated prior subsequent operations.

4.4 Keypad Scanner

4.4.1 General Description

The keypad can be divided into two parts: one is the keypad interface including 7 columns and 6 rows; the other is the key detection block which provides key pressed, key released and de-bounce mechanism. Each time key pressed or key released, i.e. something different in the 7 x 6 matrix, the key detection block will sense it, and it will start to recognize if it’s a key pressed or key released event. Whenever the key status changes and is stable, a KEYPAD IRQ will be issued. The MCU can then read the key(s) pressed directly in KP_HI_KEY, KP_MID_KEY and KP_LOW_KEY registers. To ensure that the key pressed information won’t be missed, the status register in keypad won’t be read clear by APB bus read command. The status register only changes by the key-pressed detection FSM. This keypad can detect one or two key-pressed simultaneously with any combination. Figure 25 shows one key pressed condition. Figure 26(a) and Figure 26(b) indicate two keys pressed cases. Since the key press detection depends on the high or low level of the external keypad interface, if keys are pressed at the same time and these exists one key is on the same column and the same row with the other keys, there will get a redundant key; e.g. there are three keys, key1 = (x1, y1), key2 = (x2, y2), key3 = (x1, y2), key4 = (x2, y1) will be detected, but key4 is a redundant one. Hence, the keypad can detect one or two keys pressed simultaneously at any combination. Due to the keypad interface, more than two keys pressed simultaneously with some specific pattern will get the wrong information. Without the specific pattern, the keypad-scanning block can detect 11 keys at the same time and it ’s shown as Figure 27.

95/307 MediaTek Inc. Confidential

MT6218B GSM/GPRS Baseband Processor Data Sheet Revision 1.00

Key Pressed

De-bounce time

Key-pressed Status

KP_IRQ

Figure 25 One key pressed wit h de-bounce mechanism denoted

Key1 pressed

Key2 pressed

Status

IRQ

Key1 pressed Key2 pressed Key1 released Key2 released

( a)

Key1 pressed

Key2 pressed

Status

IRQ

Key1 pressed Key2 pressed Key2 released Key1 released

De-bounce time

KEY_PRESS_IRQ KEY_RELEASE_IRQ

( b)

Figure 26 (a) Two keys pressed, case 1 (b) Two keys pressed, case 2

COL4 COL3 COL2 COL1 COL0

COL5

COL6

ROW5

ROW4

ROW3

ROW2

ROW1

ROW0

1

0

1

1 1

1

1 1 1

1

1 1

0

0 0

0 0 0 0 10

Figure 27 10 keys are detected at the same time

4.4.2 Register Definitions

KP +0000h Keypad status KP_STA

Bit 15 14 13 12 11 10 9 8 7 6 5 4 3 2 1 0

Name STA

Type RO

Reset 0

STA This register indicates the keypad status, and it won’t be cleared by read.

96/307 MediaTek Inc. Confidential

MT6218B GSM/GPRS Baseband Processor Data Sheet Revision 1.00

KP_LOW_KEY

0 No key pressed

1 Key pressed

KP +0004h Keypad scanning output, the lower 16 keys

Bit 15 14 13 12 11 10 9 8 7 6 5 4 3 2 1 0

Name

Type RO

Reset

KEYS [15:0]

FFFFh

KP +0008h Keypad scanning output, the medium 16 keys KP_MID_KEY

Bit 15 14 13 12 11 10 9 8 7 6 5 4 3 2 1 0

Name

Type RO

Reset

KEYS [31:16]

FFFFh

KP+000Ch Keypad scanning output, the higher 4 keys KP_HIGH_KEY

Bit 15 14 13 12 11 10 9 8 7 6 5 4 3 2 1 0

Name KEYS[35:32]

Type RO

Reset 3FFh

These two re gisters list the status of 42 keys on the keypad. When the MCU receives the KEYPAD IRQ, both two registers must be read. If any key is pressed, the relative bit will be set to 0.

KEYS Status list of the 42 keys.

KP +00010h De-bounce period setting KP_DEBOUNCE

Bit 15 14 13 12 11 10 9 8 7 6 5 4 3 2 1 0

Name DEBOUNCE [13:0]

Type R/W

Reset 400h

This register defines the waiting period before key press or release events are considering stale.

DEBOUNCE De-bounce time = KP_DEBOUNCE/32 ms .

4.5 General Purpose Inputs/Outputs

MT-6218B offers 48 general-purpose I/O pins and 3 general-purpose output pins. By setting the control registers, MCU software can control the direction, the output value and read the input values on these pins. Besides, these GPIOs and GPOs are multiplexed with other functionalities to reduce the pin count.

97/307 MediaTek Inc. Confidential

MT6218B GSM/GPRS Baseband Processor Data Sheet Revision 1.00

Figure 28 GPIO Block Diagram

GPIOs at RESET

At hardware reset (SYSRST#), GPIOs are all configured as inputs and the following alternative uses of GPIO pins are made:

l GPIO[41] is used as the JMODE input for JTAG mode selection l GPIO[42] is used as the MSIZE input for boot rom size indication

1

These GPIOs are used to latch the inputs at reset to memorize the wanted configuration to make sure that the system restarts or boots in the right mode.

Multiplexing of Signals on GPIO

The GPIO pins can be multiplexed with other signals.

l DAICLK, DAIPCMIN, DAIPCMOUT, DAIRST: digital audio interface for FTA l BPI_BUS4, BPI_BUS5, BPI_BUS6, BPI_BUS7: radio hard-wire control l BSI_CS1: additional chip select signal for radio 3-wire interface

l LCD_CS0#, LCD_CS1#, LCD_DATA, LCD_CLK, LCD_A0: serial display interface l PWM1, PWM2: pulse width modulation signal l UDSR1, UDTR1: hardware flow control signals for UART1 l URXD2, UTXD2, UCTS2, URTS2: data and flow control signals for UART2

Multiplexed of Signals on GPO

l SRCLKENA, SRCLKENAN: power on signal of the external VCXO LDO

4.5.1 Register Definitions

GPIO+0000h GPIO direction control register 1 GPIO_DIR1

Bit 15 14 13 12 11 10 9 8 7 6 5 4 3 2 1 0

1

For detailed BOOT and MSIZE configuration, please see in Micro-Controller Unit System section

98/307 MediaTek Inc. Confidential

MT6218B GSM/GPRS Baseband Processor Data Sheet Revision 1.00

GPIO15 GPIO14 GPIO13 GPIO12 GPIO1

Name

Type R/W R/W R/W R/W R/W R/W R/W R/W R/W R/W R/W R/W R/W R/W R/W R/W

Reset 0 0 0 0 0 0 0 0 0 0 0 0 0 0 0 0

1

GPIO1

0

GPIO9 GPIO8 GPIO7 GPIO6 GPIO5 GPIO4 GPIO3 GPIO2 GPIO1

GPIO

0

GPIO +0010h GPIO direction control register 2 GPIO_DIR2

Bit 15 14 13 12 11 10 9 8 7 6 5 4 3 2 1 0

GPIO31 GPIO30 GPIO29 GPIO28 GPIO2

Name

Type R/W R/W R/W R/W R/W R/W R/W R/W R/W R/W R/W R/W R/W R/W R/W R/W

Reset 0 0 0 0 0 0 0 0 0 0 0 0 0 0 0 0

7

GPIO2

6

GPIO25 GPIO24 GPIO23 GPIO22 GPIO21 PGIO20 GPIO1

9

GPIO18 GPIO17 GPIO

16

GPIO+0020h GPIO direction control register 1 GPIO_DIR3

Bit 15 14 13 12 11 10 9 8 7 6 5 4 3 2 1 0

GPIO47 GPIO46 GPIO45 GPIO44 GPIO4

Name

Type R/W R/W R/W R/W R/W R/W R/W R/W R/W R/W R/W R/W R/W R/W R/W R/W

Reset 0 0 0 0 0 0 0 0 0 0 0 0 0 0 0 0

GPIOn GPIO direction control

0 GPIOs are configured as input

1 GPIOs are configured as output

3

GPIO4

2

GPIO41 GPIO40 GPIO39 GPIO38 G PIO37 GPIO36 GPIO3

5

GPIO34 GPIO33 GPIO

32

GPIO +0030h GPIO pull-up/pull-down enable register 1 GPIO_PULLEN1

Bit 15 14 13 12 11 10 9 8 7 6 5 4 3 2 1 0

GPIO15 GPIO14 GPIO13 GPIO12 GPIO1

Name

Type R/W R/W R/W R/W R/W R/W R/W R/W R/W R/W R/W R/W R/W R/W R/W R/W

Reset 1 1 1 1 1 1 1 1 1 1 1 1 1 1 1 1

1

GPIO1

0

GPIO9 GPIO8 GPIO7 GPIO6 GPIO5 GPIO4 GPIO3 GPIO2 GPIO1

GPIO

0

GPIO +0040h GPIO pull-up/pull-down enable register 2 GPIO_PULLEN2

Bit 15 14 13 12 11 10 9 8 7 6 5 4 3 2 1 0

GPIO31 GPIO30 GPIO29 GPIO28 GPIO2

Name

Type R/W R/W R/W R/W R/W R/W R/W R/W R/W R/W R/W R/W R/W R/W R/W R/W

Reset 1 1 1 1 1 1 1 1 1 1 1 1 1 1 1 1

7

GPIO2

6

GPIO25 GPIO24 GPIO23 GPIO22 GPIO21 PGIO20 GPIO1

9

GPIO18 GPIO17 GPIO

16

GPIO+0050h GPIO pull-up/pull-down enable register 3 GPIO_PULLEN3

Bit 15 14 13 12 11 10 9 8 7 6 5 4 3 2 1 0

GPIO47 GPIO46 GPIO45 GPIO44 GPIO4

Name

Type R/W R/W R/W R/W R/W R/W R/W R/W R/W R/W R/W R/W R/W R/W R/W R/W

Reset 1 1 1 1 1 1 1 1 1 1 1 1 1 1 1 1

GPIOn GPIO direction control

0 GPIOs are configured as input

1 GPIOs are configured as output

3

GPIO4

2

GPIO41 GPIO40 GPIO39 GPIO38 GPIO37 GPIO36 GPIO3

5

GPIO34 GPIO33 GPIO

32

GPIO +0060h Register GPIO_DINV1

Bit 15 14 13 12 11 10 9 8 7 6 5 4 3 2 1 0

99/307 MediaTek Inc. Confidential

MT6218B GSM/GPRS Baseband Processor Data Sheet Revision 1.00

Name INV15 INV14 INV13 INV12 INV11 INV10 INV9 INV8 INV7 INV6 INV5 INV4 INV3 INV2 INV1 INV0

Type R/W R/W R/W R/W R/W R/W R/W R/W R/W R/W R/W R/W R/W R/W R/W R/W

Reset 0 0 0 0 0 0 0 0 0 0 0 0 0 0 0 0

GPIO +0070h Register GPIO_DINV2

Bit 15 14 13 12 11 10 9 8 7 6 5 4 3 2 1 0

Name INV31 INV30 INV29 INV28 INV27 INV26 INV25 INV24 INV23 INV22 INV21 INV20 INV19 IVN18 INV17 INV16

Type R/W R/W R/W R/W R/W R/W R/W R/W R/W R/W R/W R/W R/W R/W R/W R/W

Reset 0 0 0 0 0 0 0 0 0 0 0 0 0 0 0 0

GPIO +0080h Register GPIO_DINV3

Bit 15 14 13 12 11 10 9 8 7 6 5 4 3 2 1 0

Name INV47 INV46 INV45 INV44 INV43 INV42 INV41 INV40 INV39 INV38 INV37 INV36 INV35 INV34 INV33 INV32

Type R/W R/W R/W R/W R/W R/W R/W R/W R/W R/W R/W R/W R/W R/W R/W R/W

Reset 0 0 0 0 0 0 0 0 0 0 0 0 0 0 0 0

GPIO +0090h GPIO data output register 3 GPIO_DOUT1

Bit 15 14 13 12 11 10 9 8 7 6 5 4 3 2 1 0

GPIO15 GPIO14 GPIO13 GPIO12 GPIO1

Name

Type R/W R/W R/W R/W R/W R/W R/W R/W R/W R/W R/W R/W R/W R/W R/W R/W

Reset 0 0 0 0 0 0 0 0 0 0 0 0 0 0 0 0

1

GPIO1

0

GPIO9 GPIO8 GPIO7 GPIO6 GPIO5 GPIO4 GPIO3 GPIO2 GPIO1

GPIO

0

GPIO +00A0h GPIO data output register 2 GPIO_DOUT2

Bit 15 14 13 12 11 10 9 8 7 6 5 4 3 2 1 0

GPIO31 GPIO30 GPIO29 GPIO28 GPIO2

Name

Type R/W R/W R/W R/W R/W R/W R/W R/W R/W R/W R/W R/W R/W R/W R/W R/W

Reset 0 0 0 0 0 0 0 0 0 0 0 0 0 0 0 0

7

GPIO2

6

GPIO25 GPIO24 GPIO23 GPIO22 GPIO21 PGIO20 GPIO1

9

GPIO18 GPIO17 GPIO

16

GPIO +00B0h GPIO data output register 2 GPIO_DOUT3

Bit 15 14 13 12 11 10 9 8 7 6 5 4 3 2 1 0

GPIO47 GPIO46 GPIO45 GPIO44 GPIO4

Name

Type R/W R/W R/W R/W R/W R/W R/W R/W R/W R/W R/W R/W R/W R/W R/W R/W

Reset 0 0 0 0 0 0 0 0 0 0 0 0 0 0 0 0

3

GPIO4

2

GPIO41 GPIO40 GPIO39 GPIO38 GPIO37 GPIO36 GPIO3

5

GPIO34 GPIO33 GPIO

32

GPIO +00C0h GPIO data Input register 1 GPIO_DIN1

Bit 15 14 13 12 11 10 9 8 7 6 5 4 3 2 1 0

GPIO15 GPIO14 GPIO13 GPIO12 GPIO1

Name

Type R R R R R R R R R R R R R R R R

Reset X X X X X X X X X X X X X X X X

1

GPIO1

0

GPIO9 GPIO8 GPIO7 GPIO6 GPIO5 GPIO4 GPIO3 GPIO2 GPIO1

GPIO

0

GPIO +00D0h GPIO data Input register 2 GPIO_DIN2

Bit 15 14 13 12 11 10 9 8 7 6 5 4 3 2 1 0

GPIO31 GPIO30 GPIO29 GPIO28 GPIO2

Name

Type R R R R R R R R R R R R R R R R

7

GPIO2

6

GPIO25 GPIO24 GPIO23 GPIO22 GPIO21 PGIO20 GPIO1

9

GPIO18 GPIO17 GPIO

16

100/307 MediaTek Inc. Confidential

Datasheet MT6218B Datasheet (MediaTek)

Specifications and Main Features

Frequently Asked Questions

User Manual
