FEATURES
• Single +3.3V ±0.3V power supply
• Industry-standard x8 pinout, timing, functions,
and packages
• 13 row, 10 column addresses (E1) or
12 row, 11 column addresses (B6)
• High-performance CMOS silicon-gate process
• All inputs, outputs and clocks are LVTTLcompatible
• FAST PAGE MODE (FPM) access
• 4,096-cycle CAS#-BEFORE-RAS# (CBR) REFRESH
distributed across 64ms
• Optional self refresh (S) for low-power data
retention
OPTIONS MARKING
• Refresh Addressing
4,096 (4K) rows B6
8,192 (8K) rows E1
8 MEG x 8
FPM DRAM
MT4LC8M8E1, MT4LC8M8B6
For the latest data sheet, please refer to the Micron Web
site: www.micron.com/products/datasheets/dramds.html
PIN ASSIGNMENT (Top View)
32-Pin SOJ
**A12 on E1 version, NC on B6 version
32-Pin TSOP
V
CC
1
DQ0
2
DQ1
3
DQ2
4
DQ3
5
NC
6
CC
V
7
WE#
8
RAS#
9
A0
10
A1
11
A2
12
A3
13
A4
14
A5
15
CC
V
16
V
32
SS
31
DQ7
30
DQ6
29
DQ5
28
DQ4
27
SS
V
26
CAS#
25
OE#
24
NC/A12**
23
A11
22
A10
21
A9
20
A8
19
A7
18
A6
SS
17
V
• Plastic Packages
32-pin SOJ (400 mil) DJ
8 MEG x 8 FPM DRAM PART NUMBERS
32-pin TSOP (400 mil) TG
REFRESH
• Timing
50ns access -5
60ns access -6
• Refresh Rates
Standard Refresh (64ms period) None
Self Refresh (128ms period) S*
NOTE: 1. The 8 Meg x 8 FPM DRAM base number
differentiates the offerings in one place—
MT4LC8M8E1. The fifth field distinguishes
various options: E1 designates an 8K refresh and
B6 designates a 4K refresh for FPM DRAMs.
2. The # symbol indicates signal is active LOW.
*Contact factory for availability
Part Number Example:
MT4LC8M8E1DJ-5
KEY TIMING PARAMETERS
SPEED
8 Meg x 8 FPM DRAM Micron Technology, Inc., reserves the right to change products or specifications without notice.
D19_2.p65 – Rev. 5/00 ©2000, Micron Technology, Inc.
-5 90ns 50ns 30ns 25ns 13ns
-6 110ns 60ns 35ns 30ns 15ns
t
RC
t
RAC
t
PC
t
AA
t
CAC
PART NUMBER ADDRESSING PACKAGE REFRESH
MT4LC8M8E1DJ-x 8K SOJ Standard
MT4LC8M8E1DJ-x S 8K SOJ Self
MT4LC8M8E1TG-x 8K TSOP Standard
MT4LC8M8E1TG-x S 8K TSOP Self
MT4LC8M8B6DJ-x 4K SOJ Standard
MT4LC8M8B6DJ-x S 4K SOJ Self
MT4LC8M8B6TG-x 4K TSOP Standard
MT4LC8M8B6TG-x S 4K TSOP Self
x = speed
GENERAL DESCRIPTION
The 8 Meg x 8 DRAMs are high-speed CMOS, dynamic random-access memory devices containing
67,108,864 bits organized in a x8 configuration. The
8 Meg x 8 DRAMs are functionally organized as 8,388,608
locations containing eight bits each. The 8,388,608
memory locations are arranged in 8,192 rows by 1,024
columns for the MT4LC8M8E1 or 4,096 rows by 2,048
columns for the MT4LC8M8B6. During READ or WRITE
cycles, each location is uniquely addressed via the
address bits. First, the row address is latched by the
1
Page 2
FUNCTIONAL BLOCK DIAGRAM
MT4LC8M8E1 (13 row addresses)
8 MEG x 8
FPM DRAM
WE#
CAS#
A0-
A12
RAS#
10
13
NO. 2 CLOCK
GENERATOR
COLUMN-
ADDRESS
BUFFER(10)
REFRESH
CONTROLLER
REFRESH
COUNTER
13
ROW-
ADDRESS
BUFFERS (13)
NO. 1 CLOCK
GENERATOR
CONTROL
LOGIC
10
13
ROW
DECODER
8,192
8,192 x 8
SELECT
COMPLEMENT
ROW SELECT
FUNCTIONAL BLOCK DIAGRAM
MT4LC8M8B6 (12 row addresses)
DATA-IN
BUFFER
DATA-OUT
BUFFER
COLUMN
DECODER
1,024
SENSE AMPLIFIERS
I/O GATING
1,024 x 8
8,192 x 1,024 x 8
MEMORY
ARRAY
8
DQ0DQ7
8
8
OE#
8
DD
V
V
SS
WE#
CAS#
A0-
A11
RAS#
11
12
NO. 2 CLOCK
GENERATOR
COLUMN-
ADDRESS
BUFFER(11)
REFRESH
CONTROLLER
REFRESH
COUNTER
12
ROW-
ADDRESS
BUFFERS (12)
NO. 1 CLOCK
GENERATOR
DATA-IN
BUFFER
CONTROL
LOGIC
11
12
ROW
DECODER
4,096
4,096 x 8
SELECT
COMPLEMENT
DATA-OUT
BUFFER
COLUMN
DECODER
2,048
SENSE AMPLIFIERS
I/O GATING
4,096 x 2,048 x 8
MEMORY
ROW SELECT
2,048 x 8
ARRAY
8
DQ0DQ7
8
8
OE#
8
DD
V
V
SS
8 Meg x 8 FPM DRAM Micron Technology, Inc., reserves the right to change products or specifications without notice.
D19_2.p65 – Rev. 5/00 ©2000, Micron Technology, Inc.
2
Page 3
GENERAL DESCRIPTION (continued)
RAS# signal, then the column address by CAS#. Both
devices provide FAST-PAGE-MODE operation, allowing for fast successive data operations (READ, WRITE,
or READ-MODIFY-WRITE) within a given row.
The MT4LC8M8E1 and MT4LC8M8B6 must be re-
freshed periodically in order to retain stored data.
FAST PAGE MODE ACCESS
Each location in the DRAM is uniquely addressable
as mentioned in the General Description. The data for
each location is accessed via the eight I/O pins (DQ0DQ7). The WE# signal must be activated to execute a
WRITE operation; otherwise, a READ operation will be
performed. The OE# signal must be activated to enable
the DQ output drivers for a read access and can be
deactivated to disable output data if necessary.
FAST-PAGE-MODE operations are always initiated
with a row address strobed in by the RAS# signal,
followed by a column address strobed in by CAS#, just
like for single location accesses. However, subsequent
column locations within the row may then be accessed
at the page mode cycle time. This is accomplished by
cycling CAS# while holding RAS# LOW and entering
new column addresses with each CAS# cycle. Returning
RAS# HIGH terminates the FAST-PAGE-MODE operation.
DRAM REFRESH
The supply voltage must be maintained at the specified levels, and the refresh requirements must be met in
order to retain stored data in the DRAM. The refresh
requirements are met by refreshing all 8,192 rows (E1)
or all 4,096 rows (B6) in the DRAM array at least once
every 64ms. The recommended procedure is to execute
4,096 CBR REFRESH cycles, either uniformly spaced or
grouped in bursts, every 64ms. The MT4LC8M8E1 internally refreshes two rows for every CBR cycle, whereas
8 MEG x 8
FPM DRAM
the MT4LC8M8B6 refreshes one row for every CBR
cycle. So with either device, executing 4,096 CBR cycles
covers all rows. The CBR REFRESH cycle will invoke the
internal refresh counter for automatic RAS# addressing. Alternatively, RAS#-ONLY REFRESH capability is
inherently provided. However, with this method only
one row is refreshed at a time; so for the MT4LC8M8E1,
8,192 RAS#-ONLY REFRESH cycles must be executed
every 64ms to cover all rows. Some compatibility issues
may become apparent. JEDEC strongly recommends
the use of CBR REFRESH for this device.
An optional self refresh mode is also available on the
“S” version. The self refresh feature is initiated by
performing a CBR REFRESH cycle and holding RAS#
LOW for the specified tRASS. The “S” option allows for
an extended refresh period of 128ms, or 31.25µs per
row for a 4K refresh and 15.625µs per row for an 8K
refresh when using a distributed CBR REFRESH. This
refresh rate can be applied during normal operation, as
well as during a standby or battery backup mode.
The self refresh mode is terminated by driving RAS#
HIGH for a minimum time of tRPS. This delay allows for
the completion of any internal refresh cycles that may
be in process at the time of the RAS# LOW-to-HIGH
transition. If the DRAM controller uses a distributed
CBR refresh sequence, a burst refresh is not required
upon exiting self refresh. However, if the DRAM controller utilizes RAS#-ONLY or burst CBR refresh sequence, all rows must be refreshed with a refresh rate of
t
RC minimum prior to the resumption of normal
operation.
STANDBY
Returning RAS# and CAS# HIGH terminates a
memory cycle and decreases chip current to a reduced
standby level. The chip is preconditioned for the next
cycle during the RAS# HIGH time.
8 Meg x 8 FPM DRAM Micron Technology, Inc., reserves the right to change products or specifications without notice.
D19_2.p65 – Rev. 5/00 ©2000, Micron Technology, Inc.
3
Page 4
8 MEG x 8
FPM DRAM
ABSOLUTE MAXIMUM RATINGS*
Voltage on VCC Relative to VSS ................ -1V to +4.6V
Voltage on NC, Inputs or I/O Pins
Relative to VSS ....................................... -1V to +4.6V
Operating Temperature, T
Storage Temperature (plastic) ............ -55°C to +150°C
Power Dissipation ................................................... 1W
(ambient) ... 0°C to +70°C
A
*Stresses greater than those listed under “Absolute
Maximum Ratings” may cause permanent damage to
the device. This is a stress rating only, and functional
operation of the device at these or any other conditions
above those indicated in the operational sections of
this specification is not implied. Exposure to absolute
maximum rating conditions for extended periods may
affect reliability.
DC ELECTRICAL CHARACTERISTICS AND OPERATING CONDITIONS
(Notes: 1, 5, 6) (VCC = +3.3V ±0.3V)
PARAMETER/CONDITION SYMBOL MIN MAX UNITS NOTES
SUPPLY VOLTAGE VCC 3 3.6 V
INPUT HIGH VOLTAGE:
Valid Logic 1; All inputs, I/Os and any NC VIH 2VCC + 0.3 V 26
INPUT LOW VOLTAGE:
Valid Logic 0; All inputs, I/Os and any NC VIL -0.3 0.8 V 26
INPUT LEAKAGE CURRENT:
Any input at VIN (0V £ VIN £ VCC + 0.3V); II -2 2 µA
All other pins not under test = 0V
OUTPUT HIGH VOLTAGE:
IOUT = -2mA VOH 2.4 – V
OUTPUT LOW VOLTAGE:
IOUT = 2mA VOL – 0.4 V
OUTPUT LEAKAGE CURRENT:
Any output at VOUT (0V £ VOUT £ VCC + 0.3V); IOZ -5 5 µA
DQ is disabled and in High-Z state
8 Meg x 8 FPM DRAM Micron Technology, Inc., reserves the right to change products or specifications without notice.
D19_2.p65 – Rev. 5/00 ©2000, Micron Technology, Inc.
4
Page 5
8 MEG x 8
FPM DRAM
ICC OPERATING CONDITIONS AND MAXIMUM LIMITS
(Notes: 1, 2, 3, 5, 6) (VCC = +3.3V ±0.3V)
4K 8K
PARAMETER/CONDITION SYMBOL SPEED REFRESH REFRESH UNITS NOTES
STANDBY CURRENT: TTL ICC1 ALL 1 1 mA
(RAS# = CAS# = VIH)
STANDBY CURRENT: CMOS
(RAS# = CAS# ž V
Other inputs: VIN • VCC - 0.2V or VIN £ 0.2V)
OPERATING CURRENT: Random READ/WRITE ICC3 -5 175 135 mA 25
Average power supply current -6 165 125
(RAS#, CAS#, address cycling: tRC = tRC [MIN])
OPERATING CURRENT: FAST PAGE MODE ICC4 -5 105 105 mA 25
Average power supply current (RAS# = VIL,-69595
CAS#, address cycling: tPC = tPC [MIN])
REFRESH CURRENT: RAS#-ONLY ICC5 -5 175 135 mA 22
Average power supply current -6 165 125
(RAS# cycling, CAS# = VIH: tRC = tRC [MIN])
REFRESH CURRENT: CBR ICC6 -5 175 175 mA 4, 7
Average power supply current -6 165 165
(RAS#, CAS#, address cycling: tRC = tRC [MIN])
REFRESH CURRENT: Extended (“S” version only)
Average power supply current: CAS# = 0.2V or
CBR cycling; RAS# = tRAS (MIN); WE# = VCC - 0.2V; ICC7 ALL 400 400 µA 4, 7
A0-A11, OE# and DIN = VCC - 0.2V or 0.2V
(DIN may be left open)
REFRESH CURRENT: Self (“S” version only)
Average power supply current: CBR with ICC8 ALL 400 400 µA 4, 7
RAS# • tRASS (MIN) and CAS# held LOW;
WE# = VCC - 0.2V; A0-A11, OE# and DIN =
VCC - 0.2V or 0.2V (DIN may be left open)
CC - 0.2V; DQs may be left open; ICC2 ALL 500 500 µA
8 Meg x 8 FPM DRAM Micron Technology, Inc., reserves the right to change products or specifications without notice.
D19_2.p65 – Rev. 5/00 ©2000, Micron Technology, Inc.
5
Page 6
8 MEG x 8
FPM DRAM
CAPACITANCE
(Note: 2)
PARAMETER SYMBOL MAX UNITS
Input Capacitance: Address pins CI1 5pF
Input Capacitance: RAS#, CAS#, WE#, OE# CI2 7pF
Input/Output Capacitance: DQ CIO 7pF
AC ELECTRICAL CHARACTERISTICS
(Notes: 5, 6, 7, 8, 9, 10, 11, 12) (VCC = +3.3V ±0.3V)
AC CHARACTERISTICS -5 -6
PARAMETER SYMBOL MIN MAX MIN MAX UNITS NOTES
Access time from column address
Column-address hold time (referenced to RAS#)
Column-address setup time
Row-address setup time
Column address to WE# delay time
Access time from CAS#
Column-address hold time
CAS# pulse width
CAS# LOW to “Don’t Care” during Self Refresh
CAS# hold time (CBR Refresh)
CAS# to output in Low-Z
CAS# precharge time (FAST PAGE MODE)
Access time from CAS# precharge
CAS# to RAS# precharge time
CAS# hold time
CAS# setup time (CBR Refresh)
CAS# to WE# delay time
WRITE command to CAS# lead time
Data-in hold time
Data-in setup time
Output disable
Output enable time
OE# hold time from WE# during
READ-MODIFY-WRITE cycle
Output buffer turn-off delay
OE# setup prior to RAS# during
HIDDEN REFRESH cycle
FAST-PAGE-MODE READ or WRITE cycle time
FAST-PAGE-MODE READ-WRITE cycle time
Access time from RAS#
t
AA 25 30 ns
t
AR 40 45 ns
t
ASC 0 0 ns
t
ASR 0 0 ns
t
AWD 48 55 ns 18
t
CAC 13 15 ns
t
CAH 8 10 ns
t
CAS 13 10,000 15 10,000 ns
t
CHD 15 15 ns
t
CHR 15 15 ns 4
t
CLZ 3 3 ns
t
CP 8 10 ns 13
t
CPA 30 35 ns
t
CRP 5 5 ns
t
CSH 50 60 ns
t
CSR 5 5 ns 4
t
CWD 36 40 ns 18
t
CWL 13 15 ns
t
DH 8 10 ns 19
t
DS 0 0 ns 19
t
OD 3 13 3 15 ns 23, 24
t
OE 13 15 ns 20
t
OEH 13 15 ns 24
t
OFF 3 13 3 15 ns 17, 23
t
ORD 0 0 ns
t
PC 30 35 ns
t
PRWC 76 85 ns
t
RAC 50 60 ns
8 Meg x 8 FPM DRAM Micron Technology, Inc., reserves the right to change products or specifications without notice.
D19_2.p65 – Rev. 5/00 ©2000, Micron Technology, Inc.
6
Page 7
8 MEG x 8
FPM DRAM
AC ELECTRICAL CHARACTERISTICS
(Notes: 5, 6, 7, 8, 9, 10, 11, 12) (VCC = +3.3V ±0.3V)
AC CHARACTERISTICS -5 -6
PARAMETER SYMBOL MIN MAX MIN MAX UNITS NOTES
RAS# to column-address delay time
Row-address hold time
RAS# pulse width
RAS# pulse width (FAST PAGE MODE)
RAS# pulse width during Self Refresh
Random READ or WRITE cycle time
RAS# to CAS# delay time
READ command hold time (referenced to CAS#)
READ command setup time
Refresh period
Refresh period (2,048 cycles) “S” version
RAS# precharge time
RAS# to CAS# precharge time
RAS# precharge time exiting Self Refresh
READ command hold time (referenced to RAS#)
RAS# hold time
READ-WRITE cycle time
RAS# to WE# delay time
WRITE command to RAS# lead time
Transition time (rise or fall)
WRITE command hold time
WRITE command hold time (referenced to RAS#)
WE# command setup time
WRITE command pulse width
WE# hold time (CBR Refresh)
WE# setup time (CBR Refresh)
t
RAD 13 15 ns 15
t
RAH 8 10 ns
t
RAS 50 10,000 60 10,000 ns
t
RASP 50 125,000 60 125,000 ns
t
RASS 100 100 µs
t
RC 90 110 ns
t
RCD 18 20 ns 14
t
RCH 0 0 ns 16
t
RCS 0 0 ns
t
REF 64 64 ms 22
t
REF 128 128 ms
t
RP 30 40 ns
t
RPC 5 5 ns
t
RPS 90 105 ns
t
RRH 0 0 ns 16
t
RSH 13 15 ns
t
RWC 131 155 ns
t
RWD 73 85 ns 18
t
RWL 13 15 ns
t
T250250ns
t
WCH 8 10 ns
t
WCR 40 45 ns
t
WCS 0 0 ns 18
t
WP 8 10 ns
t
WRH 10 10 ns
t
WRP 10 10 ns
8 Meg x 8 FPM DRAM Micron Technology, Inc., reserves the right to change products or specifications without notice.
D19_2.p65 – Rev. 5/00 ©2000, Micron Technology, Inc.
7
Page 8
8 MEG x 8
FPM DRAM
NOTES
1. All voltages referenced to VSS.
2. This parameter is sampled. VCC = +3.3V; f = 1
MHz.
CC is dependent on output loading and cycle
3. I
rates. Specified values are obtained with minimum cycle time and the outputs open.
4. Enables on-chip refresh and address counters.
5. The minimum specifications are used only to
indicate cycle time at which proper operation
over the full temperature range is ensured.
6. An initial pause of 100µs is required after power-
up, followed by eight RAS# refresh cycles (RAS#ONLY or CBR with WE# HIGH), before proper
device operation is ensured. The eight RAS# cycle
wake-ups should be repeated any time the
refresh requirement is exceeded.
7. AC characteristics assume tT = 5ns.
8. VIH (MIN) and VIL (MAX) are reference levels for
measuring timing of input signals. Transition
times are measured between VIH and VIL (or
between VIL and VIH).
9. In addition to meeting the transition rate
specification, all input signals must transit
between VIH and VIL (or between VIL and VIH) in a
monotonic manner.
10. If CAS# = VIH, data output is High-Z.
11. If CAS# = VIL, data output may contain data from
the last valid READ cycle.
12. Measured with a load equivalent to two TTL
gates, 100pF and VOL = 0.8V and VOH = 2V.
13. If CAS# is LOW at the falling edge of RAS#,
output data will be maintained from the previous
cycle. To initiate a new cycle and clear the dataout buffer, CAS# must be pulsed HIGH for tCP.
14. The tRCD (MAX) limit is no longer specified.
t
RCD (MAX) was specified as a reference point
only. If tRCD was greater than the specified tRCD
(MAX) limit, then access time was controlled
exclusively by tCAC (tRAC [MIN] no longer
applied). With or without the tRCD limit, tAA
and tCAC must always be met.
15. The tRAD (MAX) limit is no longer specified.
t
RAD (MAX) was specified as a reference point
only. If tRAD was greater than the specified tRAD
(MAX) limit, then access time was controlled
exclusively by tAA (tRAC and tCAC no longer
applied). With or without the tRAD (MAX) limit,
t
AA, tRAC and, tCAC must always be met.
16. Either tRCH or tRRH must be satisfied for a READ
cycle.
17.tOFF (MAX) defines the time at which the output
achieves the open circuit condition and is not
referenced to VOH or VOL.
t
REF
t
WCS, tRWD, tAWD, and tCWD are not restrictive
18.
operating
WRITE
parameters. tWCS applies to EARLY
cycles. If tWCS > tWCS MIN, the cycle is an
EARLY WRITE cycle and the data output will
remain
an
open circuit throughout the entire
cycle. tRWD, tAWD and tCWD define READMODIFY-WRITE
allows
for reading and disabling output data and
cycles. Meeting these limits
then applying input data. The values shown were
calculated
external
for reference allowing 10ns for the
latching of read data and application of
write data. OE# held HIGH and WE# taken LOW
after CAS# goes LOW result in a LATE WRITE
(OE#-controlled) cycle. tWCS, tRWD, tCWD and
t
AWD are not applicable in a LATE WRITE cycle.
19. These parameters are referenced to CAS# leading
edge in EARLY WRITE cycles and WE# leading
edge in LATE WRITE or READ-MODIFY-WRITE
cycles.
20. If OE# is tied permanently LOW, LATE WRITE or
READ-MODIFY-WRITE operations are not
possible.
21. A HIDDEN REFRESH may also be performed after
a WRITE cycle. In this case, WE# = LOW and
OE# = HIGH.
22. RAS#-ONLY REFRESH requires that all 8,192 rows
of the MT4LC8M8E1 or all 4,096 rows of the
MT4LC8M8B6 be refreshed at least once every
64ms. CBR REFRESH for either device requires
that at least 4,096 cycles be completed every
64ms.
23. The DQs open during READ cycles once tOD or
t
OFF occurs. If CAS# goes HIGH before OE#, the
DQs will open regardless of the state of OE#. If
CAS# stays LOW while OE# is brought HIGH, the
DQs will open. If OE# is brought back LOW
(CAS# still LOW), the DQs will provide the
previously read data.
24. LATE WRITE and READ-MODIFY-WRITE cycles
must have both tOD and tOEH met (OE# HIGH
during WRITE cycle) in order to ensure that the
output buffers will be open during the WRITE
cycle. If OE# is taken back LOW while CAS#
remains LOW, the DQs will remain open.
25. Column address changed once each cycle.
26. VIH overshoot: VIH (MAX) = VCC + 2V for a pulse
width £ 10ns, and the pulse width cannot be
greater than one third of the cycle rate. VIL
undershoot: VIL (MIN) = -2V for a pulse width £
10ns, and the pulse width cannot be greater than
one third of the cycle rate.
8 Meg x 8 FPM DRAM Micron Technology, Inc., reserves the right to change products or specifications without notice.
D19_2.p65 – Rev. 5/00 ©2000, Micron Technology, Inc.
8
Page 9
RAS#VV
CAS#VV
8 MEG x 8
FPM DRAM
READ CYCLE
t
RC
t
RAS
IH
IL
t
CRP
IH
IL
t
RAD
t
ASR
t
RAH
t
RCD
t
AR
t
ASC
t
CSH
t
RSH
t
CAS
t
CAH
t
RP
t
RRH
ADDRVV
WE#
V
DQ
V
V
V
IOH
IOL
IH
IL
IH
IL
ROW
OPEN
TIMING PARAMETERS
-5 -6
SYMBOL MIN MAX MIN MAX UNITS
t
AA 25 30 ns
t
AR 40 45 ns
t
ASC 0 0 ns
t
ASR 0 0 ns
t
CAC 13 15 ns
t
CAH 8 10 ns
t
CAS 13 10,000 15 10,000 ns
t
CLZ 3 3 ns
t
CRP 5 5 ns
t
CSH 50 60 ns
t
OD 3 13 3 15 ns
t
OE 13 15 ns
t
RCS
COLUMN
ROW
t
RCH
t
AA
t
RAC
t
CAC
t
CLZ
t
OFF
VALID DATA
OPEN
DON’T CARE
UNDEFINED
-5 -6
SYMBOL MIN MAX MIN MAX UNITS
t
OFF 3 13 3 15 ns
t
RAC 50 60 ns
t
RAD 13 15 ns
t
RAH 8 10 ns
t
RAS 50 10,000 60 10,000 ns
t
RC 90 110 ns
t
RCD 18 20 ns
t
RCH 0 0 ns
t
RCS 0 0 ns
t
RP 30 40 ns
t
RRH 0 0 ns
t
RSH 13 15 ns
8 Meg x 8 FPM DRAM Micron Technology, Inc., reserves the right to change products or specifications without notice.
D19_2.p65 – Rev. 5/00 ©2000, Micron Technology, Inc.
9
Page 10
RAS#
CAS#
ADDR
8 MEG x 8
FPM DRAM
EARLY WRITE CYCLE
t
RC
t
RAS
V
IH
V
IL
t
CRP
V
IH
V
IL
t
RAD
t
ASR
V
IH
V
IL
t
RAH
t
WCS
t
RCD
t
AR
t
ASC
COLUMNROW
t
CSH
t
RSH
t
CAS
t
CAH
t
CWL
t
RWL
t
WCR
t
WCH
t
WP
t
RP
ROW
V
IH
WE#
V
IL
V
IOH
DQ
V
IOL
TIMING PARAMETERS
-5 -6
SYMBOL MIN MAX MIN MAX UNITS
t
AR 40 45 ns
t
ASC 0 0 ns
t
ASR 0 0 ns
t
CAH 8 10 ns
t
CAS 13 10,000 15 10,000 ns
t
CRP 5 5 ns
t
CSH 50 60 ns
t
CWL 13 15 ns
t
DH 8 10 ns
t
DS 0 0 ns
t
RAD 13 15 ns
t
DS
VALID DATA
t
DH
DON’T CARE
UNDEFINED
-5 -6
SYMBOL MIN MAX MIN MAX UNITS
t
RAH 8 10 ns
t
RAS 50 10,000 60 10,000 ns
t
RC 90 110 ns
t
RCD 18 20 ns
t
RP 30 40 ns
t
RSH 13 15 ns
t
RWL 13 15 ns
t
WCH 8 10 ns
t
WCR 40 45 ns
t
WCS 0 0 ns
t
WP 8 10 ns
8 Meg x 8 FPM DRAM Micron Technology, Inc., reserves the right to change products or specifications without notice.
D19_2.p65 – Rev. 5/00 ©2000, Micron Technology, Inc.
10
Page 11
RAS#
CAS#
ADDR
WE#
DQ
OE#
8 MEG x 8
FPM DRAM
READ-WRITE CYCLE
(LATE WRITE and READ-MODIFY-WRITE cycles)
t
RWC
t
RAS
V
IH
V
IL
t
CRP
V
IH
V
IL
t
ASR
V
IH
V
IL
V
IH
V
IL
V
IOH
V
IOL
V
IH
V
IL
t
AR
t
RAD
t
RAH
ROW COLUMN ROW
t
RCD
t
t
ASC
RCS
t
CLZ
t
t
CSH
t
RSH
t
CAS
CAH
t
RWD
t
CWD
t
AWD
t
t
t
t
AA
RAC
CAC
OE
VALID D
OUT
t
OD
t
DStDH
VALID D
t
CWL
t
RWL
t
WP
IN
t
OEH
t
RP
OPENOPEN
TIMING PARAMETERS
-5 -6
SYMBOL MIN MAX MIN MAX UNITS
t
AA 25 30 ns
t
AR 40 45 ns
t
ASC 0 0 ns
t
ASR 0 0 ns
t
AWD 48 55 ns
t
CAC 13 15 ns
t
CAH 8 10 ns
t
CAS 13 10,000 15 10,000 ns
t
CLZ 3 3 ns
t
CRP 5 5 ns
t
CSH 50 60 ns
t
CWD 36 40 ns
t
CWL 13 15 ns
t
DH 8 10 ns
t
DS 0 0 ns
DON’T CARE
UNDEFINED
-5 -6
SYMBOL MIN MAX MIN MAX UNITS
t
OD 3 13 3 15 ns
t
OE 13 15 ns
t
OEH 13 15 ns
t
RAC 50 60 ns
t
RAD 13 15 ns
t
RAH 8 10 ns
t
RAS 50 10,000 60 10,000 ns
t
RCD 18 20 ns
t
RCS 0 0 ns
t
RP 30 40 ns
t
RSH 13 15 ns
t
RWC 131 155 ns
t
RWD 73 85 ns
t
RWL 13 15 ns
t
WP 8 10 ns
8 Meg x 8 FPM DRAM Micron Technology, Inc., reserves the right to change products or specifications without notice.
D19_2.p65 – Rev. 5/00 ©2000, Micron Technology, Inc.
11
Page 12
FAST-PAGE-MODE READ CYCLE
8 MEG x 8
FPM DRAM
RAS#
CAS#
ADDR
WE#
DQ
OE#
t
RASP
V
IH
V
IL
t
CRP
V
IH
V
IL
t
ASR
V
IH
V
IL
V
IH
V
IL
V
IOH
V
IOL
V
IH
V
IL
t
t
RAD
RAH
t
CSH
t
CAH
t
t
t
t
CAS
AA
RAC
CAC
t
RCH
t
OE
t
RCD
t
AR
t
ASC
t
RCS
t
CLZ
t
VALID
DATA
OFF
t
OD
t
PC
t
CP
t
ASC
t
CLZ
t
CAH
t
RCS
t
t
t
t
CAS
AA
CPA
CAC
t
t
OE
RCH
t
VALID
DATA
OFF
t
OD
t
CP
t
ASC
t
CLZ
t
RSH
t
CAS
t
CAH
COLUMNCOLUMNCOLUMNROW ROW
t
RCS
t
t
t
AA
CPA
CAC
t
OE
VALID
DATA
t
OD
t
RCH
t
OFF
t
RP
t
CP
t
RRH
OPENOPEN
DON’T CARE
TIMING PARAMETERS
-5 -6
SYMBOL MIN MAX MIN MAX UNITS
t
AA 25 30 ns
t
AR 40 45 ns
t
ASC 0 0 ns
t
ASR 0 0 ns
t
CAC 13 15 ns
t
CAH 8 10 ns
t
CAS 13 10,000 15 10,000 ns
t
CLZ 3 3 ns
t
CP 8 10 ns
t
CPA 30 35 ns
t
CRP 5 5 ns
t
CSH 50 60 ns
t
OD 3 13 3 15 ns
UNDEFINED
-5 -6
SYMBOL MIN MAX MIN MAX UNITS
t
OE 13 15 ns
t
OFF 3 13 3 15 ns
t
PC 30 35 ns
t
RAC 50 60 ns
t
RAD 13 15 ns
t
RAH 8 10 ns
t
RASP 50 125,000 60 125,000 ns
t
RCD 18 20 ns
t
RCH 0 0 ns
t
RCS 0 0 ns
t
RP 30 40 ns
t
RRH 0 0 ns
t
RSH 13 15 ns
8 Meg x 8 FPM DRAM Micron Technology, Inc., reserves the right to change products or specifications without notice.
D19_2.p65 – Rev. 5/00 ©2000, Micron Technology, Inc.
12
Page 13
FAST-PAGE-MODE EARLY WRITE CYCLE
8 MEG x 8
FPM DRAM
RAS#
CAS#
ADDR
WE#
DQ
OE#
t
RASP
V
IH
V
IL
t
CRP
V
IH
V
IL
t
ASR
V
IH
V
IL
V
IH
V
IL
V
IOH
V
IOL
V
IH
V
IL
t
RAH
t
RAD
t
CSH
t
CAH
t
CAS
t
CWL
t
WCH
t
WP
t
WCR
t
DH
t
RCD
t
AR
t
ASC
t
WCS
t
DS
VALID DATA VALID DATA VALID DATA
t
PC
t
CP
t
ASC
t
WCS
t
DS
t
CAH
t
t
t
t
t
CAS
CWL
WCH
WP
DH
t
CP
t
ASC
t
WCS
t
DS
t
RSH
t
CAS
t
CAH
COLUMNCOLUMNCOLUMNROW ROW
t
CWL
t
WCH
t
WP
t
RWL
t
DH
t
RP
t
CP
DON’T CARE
UNDEFINED
TIMING PARAMETERS
-5 -6
SYMBOL MIN MAX MIN MAX UNITS
t
AR 40 45 ns
t
ASC 0 0 ns
t
ASR 0 0 ns
t
CAH 8 10 ns
t
CAS 13 10,000 15 10,000 ns
t
CP 8 10 ns
t
CRP 5 5 ns
t
CSH 50 60 ns
t
CWL 13 15 ns
t
DH 8 10 ns
t
DS 0 0 ns
t
PC 30 35 ns
8 Meg x 8 FPM DRAM Micron Technology, Inc., reserves the right to change products or specifications without notice.
D19_2.p65 – Rev. 5/00 ©2000, Micron Technology, Inc.
SYMBOL MIN MAX MIN MAX UNITS
t
RAD 13 15 ns
t
RAH 8 10 ns
t
RASP 50 125,000 60 125,000 ns
t
RCD 18 20 ns
t
RP 30 40 ns
t
RSH 13 15 ns
t
RWL 13 15 ns
t
WCH 8 10 ns
t
WCR 40 45 ns
t
WCS 0 0 ns
t
WP 8 10 ns
13
-5 -6
Page 14
FAST-PAGE-MODE READ-WRITE CYCLE
(LATE WRITE and READ-MODIFY-WRITE cycles)
8 MEG x 8
FPM DRAM
RAS#
CAS#
ADDR
WE#
DQ
OE#
t
RASP
V
IH
V
IL
t
CRP
V
IH
V
IL
V
IH
V
IL
V
IH
V
IL
V
IOH
V
IOL
V
IH
V
IL
t
AR
t
RAD
t
ASRtRAH
ROW COLUMN COLUMN COLUMN ROW
t
RAC
t
CSH
t
RCD
t
ASC
t
RCS
t
AA
t
CAC
t
CLZ
OPEN
t
CAS
t
CAH
t
RWD
t
CWL
t
WP
t
AWD
t
CWD
t
DH
t
DS
VALID
VALID
D
OUT
t
OE
t
CP
t
ASCtCAH
t
AA
t
CPA
t
CAC
t
CLZ
D
IN
t
OD
t
OE
t
PCNOTE 1
t
AWD
t
CWD
t
CAS
t
DS
VALID
D
t
CWL
OUT
t
t
WP
t
DH
PRWC
VALID
D
t
t
AWD
t
CWD
t
t
DS
VALID
D
OUT
RSH
CAS
VALID
D
t
CP
t
ASCtCAH
t
AA
t
CPA
t
CAC
t
CLZ
IN
t
OD
t
OE
t
RP
t
CP
t
RWL
t
CWL
t
WP
t
DH
IN
OPEN
t
OD
t
OEH
TIMING PARAMETERS
-5 -6
SYMBOL MIN MAX MIN MAX UNITS
t
AA 25 30 ns
t
AR 40 45 ns
t
ASC 0 0 ns
t
ASR 0 0 ns
t
AWD 48 55 ns
t
CAC 13 15 ns
t
CAH 8 10 ns
t
CAS 13 10,000 15 10,000 ns
t
CLZ 3 3 ns
t
CP 8 10 ns
t
CPA 30 35 ns
t
CRP 5 5 ns
t
CSH 50 60 ns
t
CWD 36 40 ns
t
CWL 13 15 ns
t
DH 8 10 ns
t
DS 0 0 ns
NOTE: 1.
t
PC is for LATE WRITE only.
DON’T CARE
UNDEFINED
-5 -6
SYMBOL MIN MAX MIN MAX UNITS
t
OD 3 13 3 15 ns
t
OE 13 15 ns
t
OEH 13 15 ns
t
PC 30 35 ns
t
PRWC 76 85 ns
t
RAC 50 60 ns
t
RAD 13 15 ns
t
RAH 8 10 ns
t
RASP 50 125,000 60 125,000 ns
t
RCD 18 20 ns
t
RCS 0 0 ns
t
RP 30 40 ns
t
RSH 13 15 ns
t
RWD 73 85 ns
t
RWL 13 15 ns
t
WP 8 10 ns
8 Meg x 8 FPM DRAM Micron Technology, Inc., reserves the right to change products or specifications without notice.
D19_2.p65 – Rev. 5/00 ©2000, Micron Technology, Inc.
14
Page 15
FAST-PAGE-MODE READ EARLY WRITE CYCLE
(Pseudo READ-MODIFY-WRITE)
8 MEG x 8
FPM DRAM
RAS#
CAS#
ADDR
WE#
DQ
t
RASP
V
IH
V
IL
t
t
t
RCS
ASC
t
CSH
t
AR
RAC
COLUMN
t
AA
t
CAS
t
CAH
t
CAC
t
CLZ
t
VALID
DATA
OFF
t
CRP
V
IH
V
IL
t
V
IH
V
IL
V
IH
V
IL
V
OH
V
OL
ASR
t
ROW
RAH
t
RAD
OPEN
t
RCD
t
CP
NOTE 1
t
PC
t
ASC
COLUMN
t
WCS
t
DS
VALID DATA
t
t
CAH
t
CWL
t
WP
t
WCH
DH
t
t
CAS
RWL
t
RSH
t
RP
t
CP
ROW
DON’T CARE
UNDEFINED
TIMING PARAMETERS
-5 -6
SYMBOL MIN MAX MIN MAX UNITS
t
AA 25 30 ns
t
AR 40 45 ns
t
ASC 0 0 ns
t
ASR 0 0 ns
t
CAC 13 15 ns
t
CAH 8 10 ns
t
CAS 13 10,000 15 10,000 ns
t
CLZ 3 3 ns
t
CP 8 10 ns
t
CRP 5 5 ns
t
CSH 50 60 ns
t
CWL 13 15 ns
t
DH 8 10 ns
t
DS 0 0 ns
SYMBOL MIN MAX MIN MAX UNITS
t
OFF 3 13 3 15 ns
t
PC 30 35 ns
t
RAC 50 60 ns
t
RAD 13 15 ns
t
RAH 8 10 ns
t
RASP 50 125,000 60 125,000 ns
t
RCD 18 20 ns
t
RCS 0 0 ns
t
RP 30 40 ns
t
RSH 13 15 ns
t
RWL 13 15 ns
t
WCH 8 10 ns
t
WCS 0 0 ns
t
WP 8 10 ns
NOTE: 1. Do not drive input data prior to output data going High-Z.
8 Meg x 8 FPM DRAM Micron Technology, Inc., reserves the right to change products or specifications without notice.
D19_2.p65 – Rev. 5/00 ©2000, Micron Technology, Inc.
15
-5 -6
Page 16
RAS#
CAS#
ADDR
DQ
8 MEG x 8
FPM DRAM
RAS#-ONLY REFRESH CYCLE
(OE# and WE# = DON’T CARE)
t
OPEN
RC
t
RPC
t
RP
ROW
t
RAS
V
IH
V
IL
V
IH
V
IL
V
IH
V
IL
V
OH
V
OL
t
CRP
t
ASR
ROW
t
RAH
CBR REFRESH CYCLE
(Addresses and OE# = DON’T CARE)
RAS#
CAS#
DQ
WE#
t
RP
V
IH
V
IL
V
IH
V
IL
V
OH
V
OL
V
IH
V
IL
t
t
RPC
CP
t
CSR
t
WRPtWRH
t
t
CHR
RAS
NOTE 1
TIMING PARAMETERS
-5 -6
SYMBOL MIN MAX MIN MAX UNITS
t
ASR 0 0 ns
t
CHR 15 15 ns
t
CP 8 10 ns
t
CRP 5 5 ns
t
CSR 5 5 ns
t
RAH 8 10 ns
t
RPC
t
OPEN
RP
t
CSR
t
WRPtWRH
t
CHR
t
RAS
DON’T CARE
UNDEFINED
-5 -6
SYMBOL MIN MAX MIN MAX UNITS
t
RAS 50 10,000 60 10,000 ns
t
RC 90 110 ns
t
RP 30 40 ns
t
RPC 5 5 ns
t
WRH 10 10 ns
t
WRP 10 10 ns
NOTE: 1. End of CBR REFRESH cycle.
8 Meg x 8 FPM DRAM Micron Technology, Inc., reserves the right to change products or specifications without notice.
D19_2.p65 – Rev. 5/00 ©2000, Micron Technology, Inc.
16
Page 17
8 MEG x 8
FPM DRAM
RAS#
CAS#
ADDR
DQ
OE#
HIDDEN REFRESH CYCLE
1
(WE# = HIGH; OE# = LOW)
t
RAS
V
IH
V
IL
V
IH
V
IL
V
IH
V
IL
V
IOH
V
IOL
V
IH
V
IL
t
CRP
t
ASR
t
RAH
t
AR
t
RAD
t
RCD
t
ASC
COLUMNROW
t
CAH
t
AA
t
RAC
t
CAC
t
CLZ
t
RSH
t
OE
t
ORD
t
RP
t
RAS
t
CHR
t
OFF
OPENVALID DATAOPEN
t
OD
TIMING PARAMETERS
-5 -6
SYMBOL MIN MAX MIN MAX UNITS
t
AA 25 30 ns
t
AR 40 45 ns
t
ASC 0 0 ns
t
ASR 0 0 ns
t
CAC 13 15 ns
t
CAH 8 10 ns
t
CHR 15 15 ns
t
CLZ 3 3 ns
t
CRP 5 5 ns
t
OD 3 13 3 15 ns
DON’T CARE
UNDEFINED
-5 -6
SYMBOL MIN MAX MIN MAX UNITS
t
OE 13 15 ns
t
OFF 3 13 3 15 ns
t
ORD 0 0 ns
t
RAC 50 60 ns
t
RAD 13 15 ns
t
RAH 8 10 ns
t
RAS 50 10,000 60 10,000 ns
t
RCD 18 20 ns
t
RP 30 40 ns
t
RSH 13 15 ns
NOTE: 1. A HIDDEN REFRESH may also be performed after a WRITE cycle. In this case, WE# = LOW and OE# = HIGH.
8 Meg x 8 FPM DRAM Micron Technology, Inc., reserves the right to change products or specifications without notice.
D19_2.p65 – Rev. 5/00 ©2000, Micron Technology, Inc.
17
Page 18
SELF REFRESH CYCLE
(Addresses and OE# = DON’T CARE)
8 MEG x 8
FPM DRAM
t
RASS
t
CHD
t
WRH
()(
)
()(
)
()(
)
()(
)
()(
OPEN
)
()(
)
()(
)
RAS#
CAS#
DQ
WE#
t
RP
V
IH
V
IL
V
IH
V
IL
V
OH
V
OL
V
IH
V
IL
t
t
RPC
CP
t
t
WRP
CSR
TIMING PARAMETERS
-5 -6
SYMBOL MIN MAX MIN MAX UNITS
t
CHD 15 15 ns
t
CP 8 10 ns
t
CSR 5 5 ns
t
RASS 100 100 µs
t
RP 30 40 ns
NOTE 1
t
t
RPS
RPC
NOTE 2
()(
t
WRH
)
t
CP
t
WRP
DON’T CARE
UNDEFINED
-5 -6
SYMBOL MIN MAX MIN MAX UNITS
t
RPC 5 5 ns
t
RPS 90 105 ns
t
WRH 10 10 ns
t
WRP 10 10 ns
NOTE: 1. Once
t
RASS (MIN) is met and RAS# remains LOW, the DRAM will enter self refresh mode.
2. Once tRPS is satisfied, a complete burst of all rows should be executed if RAS#-only or burst CBR is used.
8 Meg x 8 FPM DRAM Micron Technology, Inc., reserves the right to change products or specifications without notice.
D19_2.p65 – Rev. 5/00 ©2000, Micron Technology, Inc.
18
Page 19
.445 (11.31)
.435 (11.05)
8 MEG x 8
FPM DRAM
32-PIN PLASTIC SOJ (400 mil)
.829 (21.05)
.823 (20.90)
.405 (10.29)
.399 (10.13)
PIN #1 ID
.024 (0.61)
SEATING PLANE
.050 (1.27) TYP
.750 (19.05) TYP
.032 (0.82)
.026 (0.67)
.037 (0.95) MAX DAMBAR PROTRUSION
.020 (0.51)
.015 (0.38)
.145 (3.68)
.132 (3.35)
R
.095 (2.42)
.080 (2.03)
.040 (1.02)
.030 (0.77)
.380 (9.65)
.360 (9.14)
.030 (0.76)
MIN
NOTE: 1. All dimensions in inches (millimeters)
MAX
or typical where noted.
MIN
2. Package width and length do not include mold protrusion; allowable mold protrusion is .01" per side.
8 Meg x 8 FPM DRAM Micron Technology, Inc., reserves the right to change products or specifications without notice.
D19_2.p65 – Rev. 5/00 ©2000, Micron Technology, Inc.
19
Page 20

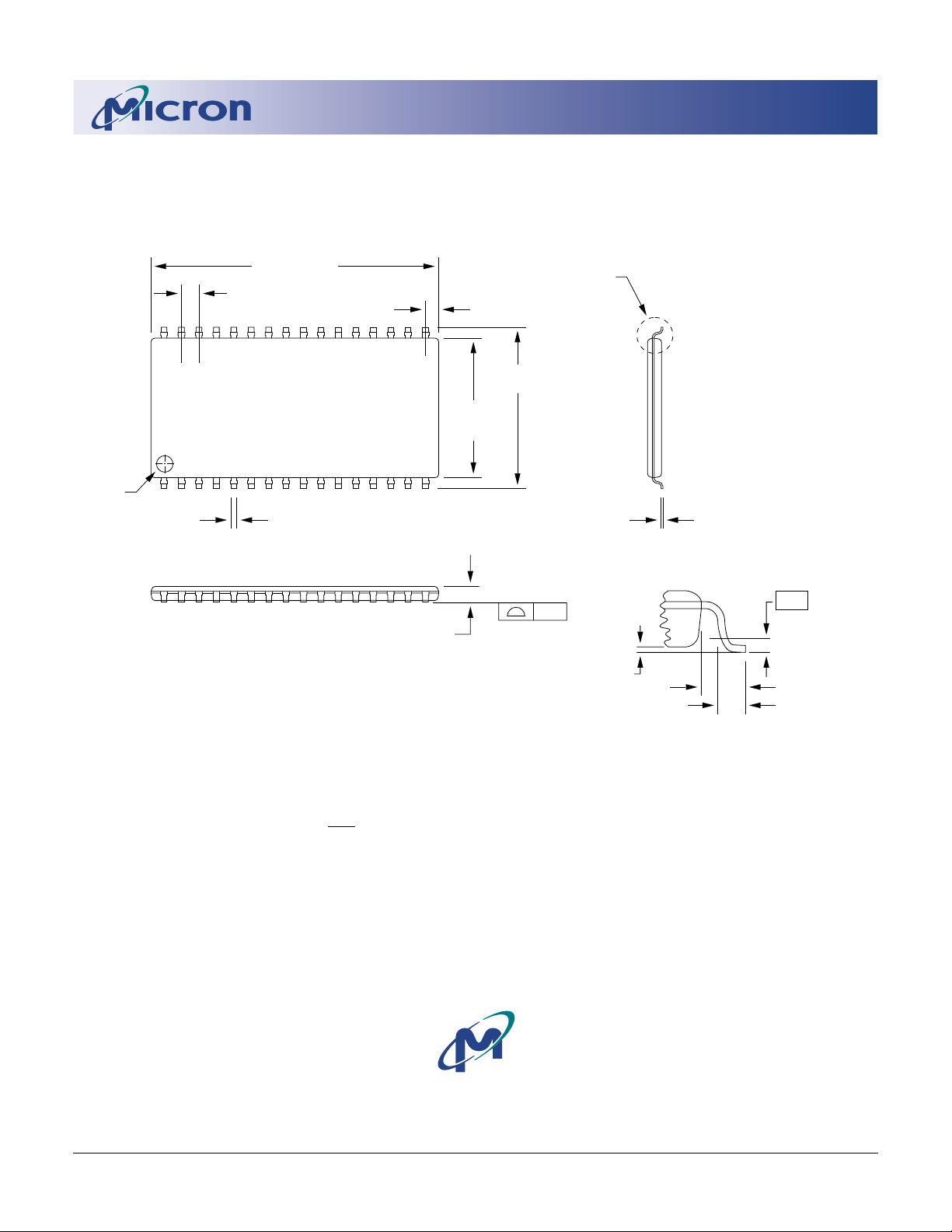

32-PIN PLASTIC TSOP (400 mil)
8 MEG x 8
FPM DRAM
PIN 1 ID
1.27
TYP
20.96 ±0.08
+0.07
0.43
-0.13
1.20
MAX
0.95
10.16 ±0.08
11.76 ±0.10
SEE DETAIL A
0.10
0.10
+0.10
-0.05
0.15
+0.03
-0.02
0.25
GAGE PLANE
0.80 TYP
0.50 ±0.10
DETAIL A
NOTE: 1. All dimensions in millimeters
MAX
or typical where noted.
MIN
2. Package width and length do not include mold protrusion; allowable mold protrusion is .25mm per side.
8000 S. Federal Way, P.O. Box 6, Boise, ID 83707-0006, Tel: 208-368-3900
E-mail: prodmktg@micron.com, Internet: http://www.micron.com, Customer Comment Line: 800-932-4992
Micron is a registered trademark of Micron Technology, Inc.
8 Meg x 8 FPM DRAM Micron Technology, Inc., reserves the right to change products or specifications without notice.
D19_2.p65 – Rev. 5/00 ©2000, Micron Technology, Inc.
20
Loading...
