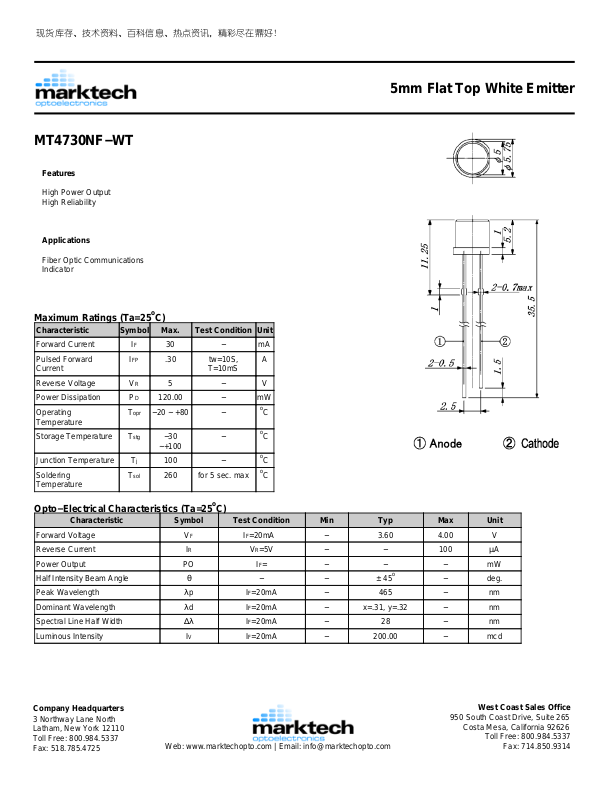

MT4730NF−WT
Features
High Power Output
High Reliability
Applications
Fiber Optic Communications
Indicator
Maximum Ratings (Ta=25oC)
Characteristic Symbol Max. Test Condition Unit
Forward Current IF 30 − mA
Pulsed Forward
Current
Reverse Voltage VR 5 − V
Power Dissipation PD 120.00 − mW
Operating
Temperature
Storage Temperature Tstg −30
Junction Temperature Tj 100 −
Soldering
Temperature
IFP .30 tw=10S,
Topr −20 ~ +80 −
~+100
Tsol 260 for 5 sec. maxoC
T=10mS
−
o
o
o
A
C
C
C
5mm Flat Top White Emitter
Opto−Electrical Characteristics (Ta=25oC)
Characteristic Symbol Test Condition Min Typ Max Unit
Forward Voltage VF IF=20mA − 3.60 4.00 V
Reverse Current IR VR=5V − − 100 µA
Power Output PO IF= − − − mW
Half Intensity Beam Angle θ − − ± 45
Peak Wavelength λp IF=20mA − 465 − nm
Dominant Wavelength λd IF=20mA − x=.31, y=.32 − nm
Spectral Line Half Width ∆λ IF=20mA − 28 − nm
Luminous Intensity IV IF=20mA − 200.00 − mcd
Company Headquarters
3 Northway Lane North
Latham, New York 12110
Toll Free: 800.984.5337
Fax: 518.785.4725
Web: www.marktechopto.com | Email: [email protected]
o
− deg.
West Coast Sales Office
950 South Coast Drive, Suite 265
Costa Mesa, California 92626
Toll Free: 800.984.5337
Fax: 714.850.9314
Page 2
MT4730NF−WT Graphs
5mm Flat Top White Emitter
Company Headquarters
3 Northway Lane North
Latham, New York 12110
Toll Free: 800.984.5337
Fax: 518.785.4725
Web: www.marktechopto.com | Email: [email protected]
West Coast Sales Office
950 South Coast Drive, Suite 265
Costa Mesa, California 92626
Toll Free: 800.984.5337
Fax: 714.850.9314
