Datasheet MSK3554, MSK3554B Datasheet (MSK)

ISO 9001 CERTIFIED BY DSCC

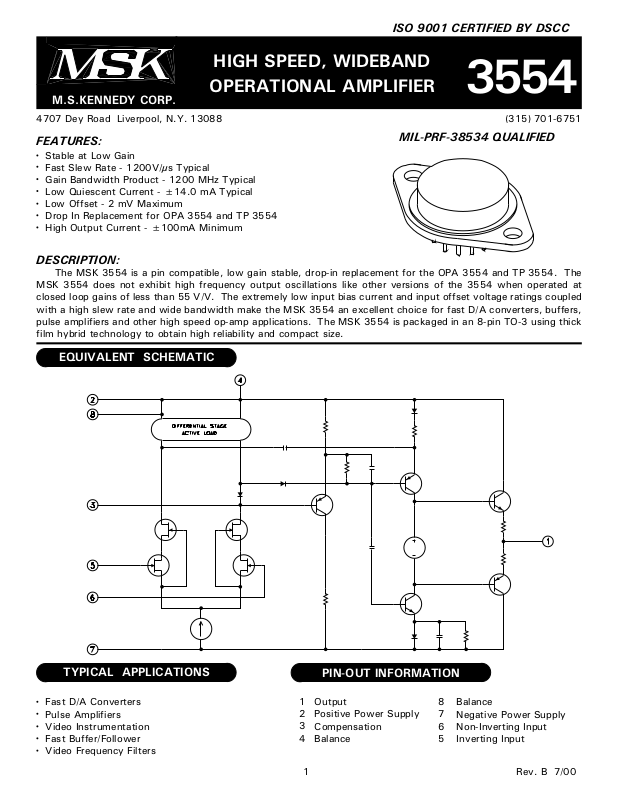

HIGH SPEED, WIDEBAND

OPERATIONAL AMPLIFIER

3554

M.S.KENNEDY CORP.

4707 Dey Road Liverpool, N.Y. 13088

FEATURES:

Stable at Low Gain

Fast Slew Rate - 1200V/µs Typical

Gain Bandwidth Product - 1200 MHz Typical

Low Quiescent Current - ±14.0 mA Typical

Low Offset - 2 mV Maximum

Drop In Replacement for OPA 3554 and TP 3554

High Output Current - ±100mA Minimum

MIL-PRF-38534 QUALIFIED

[phone]

DESCRIPTION:

The MSK 3554 is a pin compatible, low gain stable, drop-in replacement for the OPA 3554 and TP 3554. The

MSK 3554 does not exhibit high frequency output oscillations like other versions of the 3554 when operated at

closed loop gains of less than 55 V/V. The extremely low input bias current and input offset voltage ratings coupled

with a high slew rate and wide bandwidth make the MSK 3554 an excellent choice for fast D/A converters, buffers,

pulse amplifiers and other high speed op-amp applications. The MSK 3554 is packaged in an 8-pin TO-3 using thick

film hybrid technology to obtain high reliability and compact size.

EQUIVALENT SCHEMATIC

TYPICAL APPLICATIONS

Fast D/A Converters

Pulse Amplifiers

Video Instrumentation

Fast Buffer/Follower

Video Frequency Filters

PIN-OUT INFORMATION

1

Output

2

Positive Power Supply

3

Compensation

4

Balance

8

Balance

7

Negative Power Supply

6

Non-Inverting Input

5

Inverting Input

Rev. B 7/001

ABSOLUTE MAXIMUM RATINGS

±VCC

IOUT

VIN

TC

Supply Voltage

○○○○○○○○○○○○○○

Peak Output Current

Differential Input Voltage

Case Operating Temperature

MSK 3554B

MSK 3554

○○○○○○○

○○○○○○○○

ELECTRICAL SPECIFICATIONS

Parameter

STATIC

Supply Voltage Range

Quiescent Current

Thermal Resistance

INPUT

Input Offset Voltage

Input Offset Voltage Drift

Input Offset Adjust

Input Bias Current

Input Offset Current

Input Impedance

Power Supply Rejection Ratio

Input Noise Density

Input Noise Voltage

OUTPUT

Output Voltage Swing

Output Current

Settling Time

2

Power Bandwidth

Bandwidth (Small Signal)

TRANSFER CHARACTERISTICS

Slew Rate

Open Loop Voltage Gain

3

3

Junction to Case Output Devices

Bal.Pins=N/C VIN=0V AV=-10V/V

3

10

3

3

3

3

3

RPOT=20KΩ To +VCC AV=-1V/V

3

RL=100Ω VO=±10V CC=0

3

VOUT=±10V RL=100Ω CC=0

CC=0 RL=100Ω F=1KHz VOUT=±10V

3

○○○○○○○○

○○○○○○○○

-55°C to +125°C

-40°C to +85°C

Test Conditions

VIN=0V

AV=-1V/V

VIN=0V

VCM=0V Either Input

VCM=0V

F=DC Differential

∆ VCC=10V

F=1KHz

F=10Hz To 1MHz

RL=100Ω

TJ<150°C

0.1% 10V step

CC=0

±18V

±150mA

±25V

TST

Storage Temperature Range

TLD

Lead Temperature Range

(10 Seconds)

PD

Power Dissipation

TJ

Junction Temperature

Group A

Subgroup

-

1

2,3

-

1

2,3

1,2,3

1

2,3

1

2,3

-

-

-

-

4

4

4

4

4

4

4

MSK 3554B

Min.

±12

Typ.

±15

±14

-

-

-

-

-

-

37

±0.5

±20

Adjust to Zero Adjust to Zero

±10

-

±10

-

±2.0

-

±2.0

-

10

-

110

80

15

-

10.0

-

-

16

70

800

90

±12

±120

120

19

90

1200

96

±10.5

±100

○○○○○○○○○○

○○○○○○○○○○○○

○○○○○○○○○○○○

MSK 3554

Min.

Max.

±12

±18

±20

±30

±2.0

±50

±50

±50

±25

±30

11

150

-

-

-

-

-

-

-

-

-

-

-

-

80

-

-

-

-

-

±10

-

±100

-

-

15

-

70

-

750

-

88

-

-65°C to +150°C

300°C

See Curve

175°C

Typ.

±15

±14

-

37

±0.5

±20

±20

-

±2.0

-

10

110

15

10.0

±12

±120

120

19

90

1200

96

Max.

±18

±20

±3.0

±100

±30

11

150

Units

V

mA

mA

-

°C/W

-

mV

µV/°C

-

mV

pA

nA

-

pA

nA

-

-

-

-

-

-

-

Ω

dB

nV√Hz

µVrms

V

mA

nS

MHz

-

MHz

-

V/µS

-

dB

-

NOTES:

Unless otherwise specified ±VCC=±15VDC

1

AV=-1, measured in false summing junction circuit.

2

Devices shall be capable of meeting the parameter, but need not be tested. Typical parameters are for reference only.

3

Industrial grade devices shall be tested to subgroups 1 and 4 unless otherwise specified.

4

Military grade devices ('B' suffix) shall be 100% tested to subgroups 1,2,3 and 4.

5

Subgroup 5 and 6 testing available upon request.

6

Subgroup 1,4 TA=TC=+25°C

7

Subgroup 2,5 TA=TC=+125°C

8

Subgroup 3,6 TA=TC=-55°C

9

Measurement taken .5 second after application of power using automatic test equipment.

10

2

Rev. B 7/00

APPLICATION NOTES

HEAT SINKING

Refer to the following thermal model and governing equa-

tions to determine appropriate heat sinking for your application.

Thermal Model:

Governing Equation:

TJ=PD x (RθJC + RθCS + RθSA) + TA

RθSA = ((TJ - TA)/PD) - (RθJC) - (RθCS)

= ((125°C - 90°C) / .64W) - 37°C/W - .15°C/W

= 54.7 - 37.15

= 17.54°C/W

The heat sink in this example must have a thermal resistance

of no more than 17.54°C/W to maintain a junction temperature

of no more than +125°C.

OFFSET NULL

Typically, the MSK 3554(B) has an input offset voltage of

less than ±0.5mV. If it is desirable to adjust the offset closer

to "zero", or to a value other than "zero", the circuit below is

recommended. Rp should be a ten-turn 20KΩ potentiometer.

Typical offset adjust is ±20mV.

Where

TJ = Junction Temperature

D = Total Power Dissipation

P

RθJC = Junction to Case Thermal Resistance
RθCS = Case to Heat Sink Thermal Resistance
RθSA = Heat Sink to Ambient Thermal Resistance

TC = Case Temperature

TA = Ambient Temperature

TS = Sink Temperature

Example:

This example demonstrates a worst case analysis for the op-

amp output stage. This occurs when the output voltage is 1/2

the power supply voltage. Under this condition, maximum power

transfer occurs and the output is under maximum stress.

Conditions:

VCC = ±16VDC

VO = ±8Vp Sine Wave, Freq. = 1KHZ

RL = 100Ω

For a worst case analysis we will treat the +8Vp sine wave

as an 8 VDC output voltage.

1.) Find Driver Power Dissipation

PD = (VCC-VO) (VO/RL)

= (16V-8V) (8V/100Ω)

= .64W

2.) For conservative design, set TJ=+125°C

3.) For this example, worst case TA=+90°C

4.) RθJC = 37°C/W from MSK 3554B Data Sheet

5.) RθCS = 0.15°C/W for most thermal greases

6.) Rearrange governing equation to solve for RθSA

COMPENSATION

The compensation capacitor is connected between pins 1

and 3 and is used to optimize bandwidth and slew rate while

maintaining circuit stability. The effect of compensation ca-

pacitance can be seen in the Bode Plot under the Typical Perfor-

mance Curves. As closed loop gain increases, compensation

capacitance can decrease and higher slew rates and wider band-

widths will be realized. See the component selection table for

recommended values of input and feedback resistance as well

as feedback capacitance and compensation capacitance.

COMPONENT SELECTION TABLE

GAIN

-1

-10

-100

follower

Rin

5.6KΩ
560Ω
100Ω

0Ω

Rfb

5.6KΩ

5.6KΩ
10KΩ

0Ω

Cfb

2.0pF

1.2pF

0.0pF

0pF

Ccomp

10pF

10pF

0.0pF

12pF

3

Rev. B 7/00

TYPICAL PERFORMANCE CURVES

4

Rev. B 7/00

MECHANICAL SPECIFICATIONS

TOP VIEW PIN REFERENCES SHOWN.

ALL DIMENSIONS ARE ±0.010 INCHES UNLESS OTHERWISE LABELED

ORDERING INFORMATION

Part

Number

MSK3554

MSK3554B Military-Mil-PRF-38534

M.S. Kennedy Corp.
