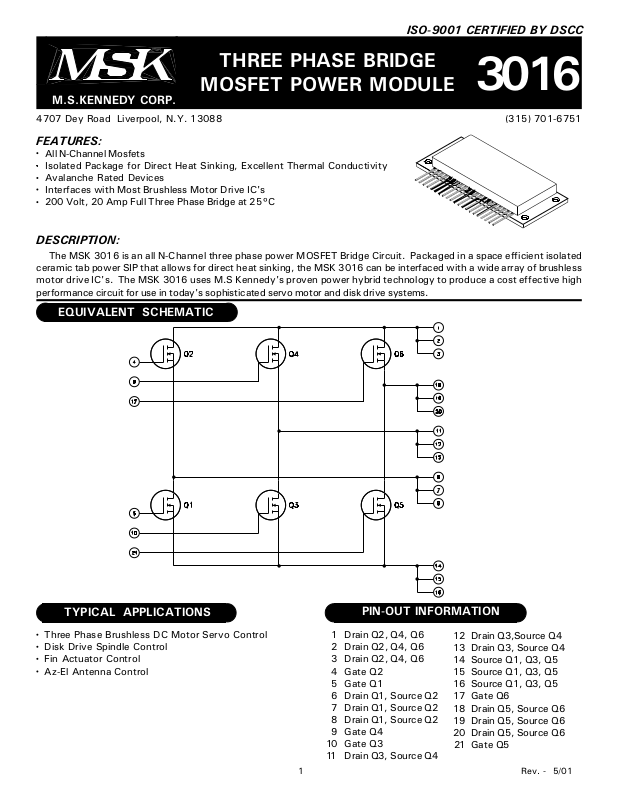

ISO-9001 CERTIFIED BY DSCC
THREE PHASE BRIDGE
MOSFET POWER MODULE
3016
M.S.KENNEDY CORP.
4707 Dey Road Liverpool, N.Y. 13088 (315) 701-6751
FEATURES:
All N-Channel Mosfets
Isolated Package for Direct Heat Sinking, Excellent Thermal Conductivity
Avalanche Rated Devices
Interfaces with Most Brushless Motor Drive IC's
200 Volt, 20 Amp Full Three Phase Bridge at 25°C
DESCRIPTION:
The MSK 3016 is an all N-Channel three phase power MOSFET Bridge Circuit. Packaged in a space efficient isolated
ceramic tab power SIP that allows for direct heat sinking, the MSK 3016 can be interfaced with a wide array of brushless
motor drive IC's. The MSK 3016 uses M.S Kennedy's proven power hybrid technology to produce a cost effective high
performance circuit for use in today's sophisticated servo motor and disk drive systems.
EQUIVALENT SCHEMATIC
TYPICAL APPLICATIONS
Three Phase Brushless DC Motor Servo Control
Disk Drive Spindle Control
Fin Actuator Control
Az-El Antenna Control
PIN-OUT INFORMATION
1
Drain Q2, Q4, Q6
2
Drain Q2, Q4, Q6
3
Drain Q2, Q4, Q6
4
Gate Q2
5
Gate Q1
6
Drain Q1, Source Q2
7
Drain Q1, Source Q2
8
Drain Q1, Source Q2
9
Gate Q4
10
Gate Q3
11
Drain Q3, Source Q4
1 Rev. - 5/01
Drain Q3,Source Q4
12
Drain Q3, Source Q4
13
Source Q1, Q3, Q5
14
Source Q1, Q3, Q5
15
Source Q1, Q3, Q5
16
Gate Q6
17
Drain Q5, Source Q6
18
Drain Q5, Source Q6
19
Drain Q5, Source Q6
20
Gate Q5
21
Page 2
ABSOLUTE MAXIMUM RATINGS
VDSS
VDGDR
VGS
ID
IDM
RTH-JC
Drain to Source Voltage
Drain to Gate Voltage
(RGS=1MΩ)
○○○○○○○○○○○
Gate to Source Voltage
(Continuous)
Continuous Current
Pulsed Current
○○○○○○○○○○
○○○○○○○
○○○○○○○○○○
Thermal Resistance
(Junction to Case)@25°C
RTH-JC
Thermal Resistance
(Junction to Case)@125°C
ELECTRICAL SPECIFICATIONS
Parameter
Drain-Source Breakdown Voltage
Drain-Source Leakage Current
Gate-Source Leakage Current
Gate-Source Threshold Voltage
Drain-Source On Resistance
Drain-Source On Resistance
Forward Transconductance
Total Gate Charge
Gate-Source Charge
Gate-Drain Charge
Turn-On Delay Time
Rise Time
Turn-Off Delay Time
Fall Time
Input Capacitance
Output Capacitance
Reverse Transfer Capacitance
Body Diode
Forward On Voltage
Reverse Recovery Time
Reverse Recovery Charge
1
1
1
2
3
1
1
1
1
1
1
1
1
1
1
1
○○○○
±20V MAX
○○○○○
○○○○
200V MAX
200V MAX
20A MAX
30A MAX
1.3°C/W
2.1°C/W
Test Conditions
VGS=0 ID=0.25mA
DS=200V VGS=0V
V
GS=±20V VDS=0
V
DS=VGS ID=250µA
V
GS=10V ID = 20A
V
GS=10V ID=20A
V
DS=50V ID=20A
V
D = 20A
I
DS=160V
V
GS = 10V
V
DD=100V
V
D = 20A
I
G = 6.2Ω
R
RD = 3.2Ω
VGS=0V
DS=25V
V
f=1MHz
S=20 A VGS=0V
I
S=20 A di/dt=100A/µS
I
Single Pulse Avalanche Energy
Junction Temperature
TJ
Storage Temperature
TST
Case Operating Temperature Range
TC
Lead Temperature Range
TLD
(10 Seconds)
4
○○○○○○○○○○○○○○○○○
○○○○○○○○○○○○
○○○○○○○○○
Min.
200
-
-
2.0
-
-
2.7
-
-
-
-
-
-
-
-
-
-
-
-
-
○○○○○○○○○○
MSK3001
Typ.
-
-
-
-
-
-
-
-
-
-
16
86
70
62
2800
780
250
2.0
360
4.6
410 mJ
+150°C MAX
-55°C to +150°C
-55°C to +125°C
300°C MAX
Max.
-
250
±100
4.0
0.12
0.09
-
140
28
74
-
-
-
-
-
-
-
-
540
6.9
Units
V
µA
nA
V
Ω
Ω
S
nC
nC
nC
nS
nS
nS
nS
pF
pF
pF
V
nS
µC
NOTES:
1
This parameter is guaranteed by design but need not be tested. Typical parameters are representative of actual device performance but are for reference only.
2
Resistance as seen at package pins.
3
Resistance for die only; use for thermal calculations.
4
TA=25°C unless otherwise specified.
2 Rev. - 5/01
Page 3
APPLICATION NOTES
BRIDGE DRIVE CONSIDERATIONS
It is important that the logic used to turn ON and OFF the various transistors allow sufficient "dead time" between a high side
transistor and its low side transistor to make sure that at no time are they both ON. When they are, this is called "shoot-through",
and it places a momentary short across the power supply. This overly stresses the transistors and causes excessive noise as well.
See Figure 1.
Figure 1
This deadtime should allow for the turn on and turn off time of the transistors, especially when slowing them down with gate
resistors. This situation will be present when switching motor direction, or when sophisticated timing schemes are used for servo
systems such as locked antiphase PWM'ing for high bandwidth operation.
3
Rev. - 5/01
Page 4
TYPICAL PERFORMANCE CURVES
4
Rev. - 5/01
Page 5
MECHANICAL SPECIFICATIONS
ALL DIMENSIONS ARE ±0.010 INCHES UNLESS OTHERWISE LABELED.
ORDERING INFORMATION
Part
Number
MSK 3016
M.S. Kennedy Corp.
4707 Dey Road, Liverpool, New York 13088
Phone (315) 701-6751
FAX (315) 701-6752
www.mskennedy.com
The information contained herein is believed to be accurate at the time of printing. MSK reserves the right to make
changes to its products or specifications without notice, however, and assumes no liability for the use of its products.
Please visit our website for the most recent revision of this datasheet.
