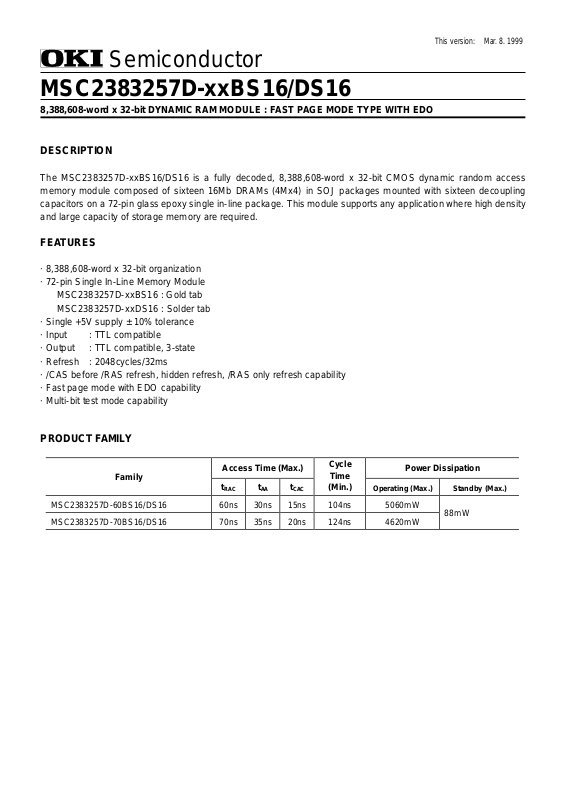

Semiconductor
MSC2383257D-xxBS16/DS16
8,388,608-word x 32-b i t DYNAMIC RAM MODULE : FAST PAGE MODE TYPE WITH EDO
This vers i on: Mar. 8. 1999
DESCRIPTION
The MSC2383257D-xxBS16/DS16 is a fully decoded, 8,388,608-word x 32-bit CMOS dynamic random access
memor y module com posed of six teen 16Mb DRAMs (4Mx 4) in SOJ packages mounted wit h sixteen decoupl ing
capacitors on a 72-pin glass epoxy single in-line package. This module supports any applicat ion where high density
and large capaci ty of storage m emory are required.
FEATURES
· 8,388,608-word x 32- bit organization
· 72-pin Single In-Line Memory Module
MSC2383257D-xxBS16 : Gold tab
MSC2383257D-xxDS16 : Solder t ab
· Singl e +5V supply ± 10% tolerance
· Input : TTL compatible
· Output : TTL compatible, 3-state
· Refresh : 2048cycles/32ms
· /CAS before /RAS refresh, hidden refr esh, /RAS only refresh capability
· Fast page mode with EDO capability
· Multi-bit test mode capability
PRODUCT FAMILY
Access Time (Max. ) Power Dissipation
Family
t
RAC
t
AA
t
CAC
Cycle
Time
(Min.)
Operating (Max.) Standby (Max.)
MSC2383257D-60BS16/DS16 60ns 30ns 15ns 104ns 5060mW
MSC2383257D-70BS16/DS16 70ns 35ns 20ns 124ns 4620mW
88mW
Page 2
Semiconductor MSC2383257D

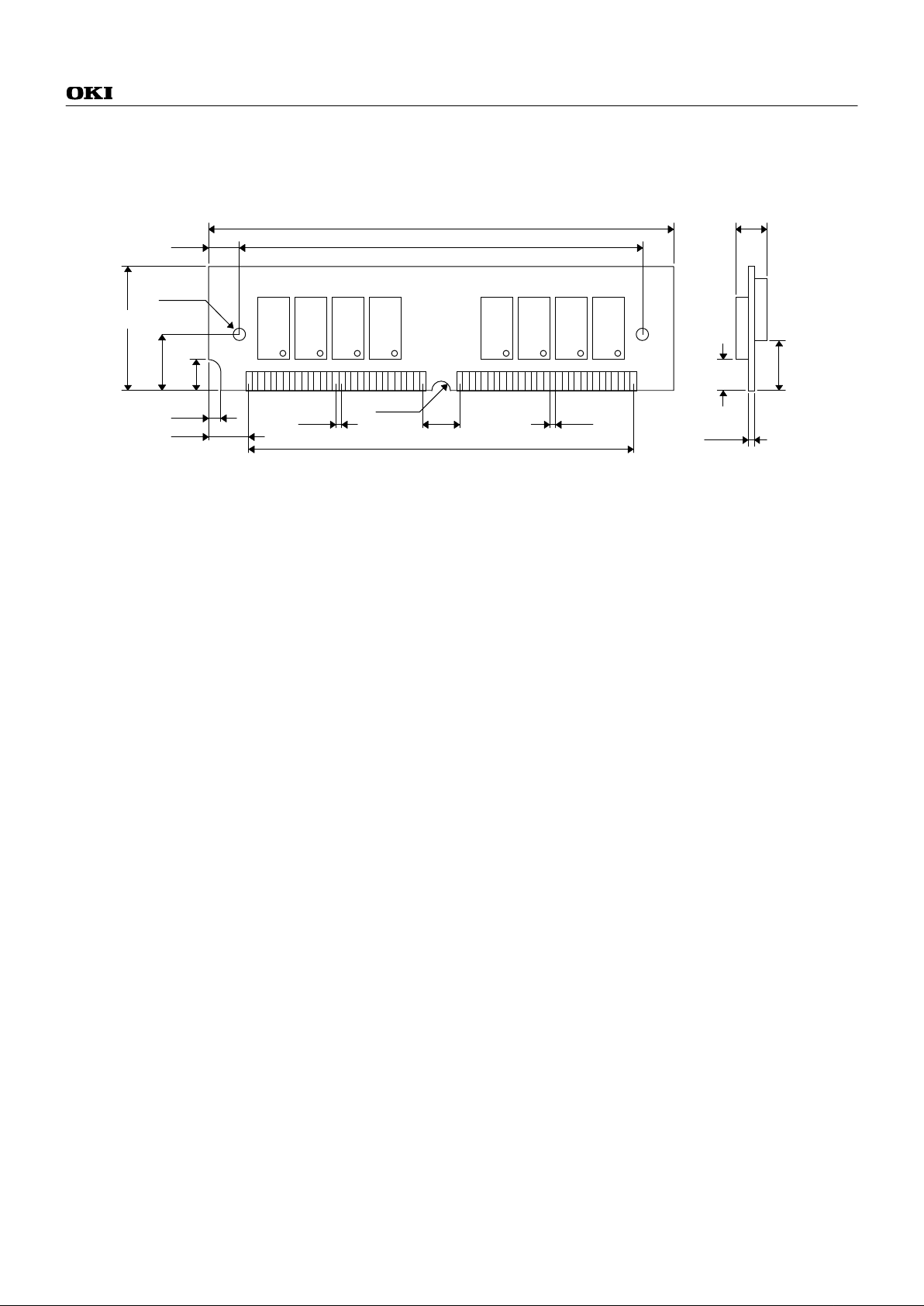

MODULE OUTLINE
1
72
R1.57
6.35
1.04Typ.
1.27±0.1
95.25
2.03Typ.
6.35Typ.
Typ.
6.35
Typ.
10.16
φ
3.18
25.4±0.2
101.19Typ.
107.95±0.2
*1
3.38Typ.
3.17Min.
5.71Min.
9.3Max.
+0.1
-0.08
1.27
(Unit : mm )
MSC2383257D-xxBS16/DS16
*1 The common size difference of the board width 12.5mm of its height is specified as ±0.2.
The value above 12.5mm is specified as ±0.5.
Page 3
Semiconductor MSC2383257D
PIN C ONFIGURATION
Pin No. Pin Name Pin No. Pin Nam e Pin No. Pin Nam e Pin No. Pin Nam e
1VSS19 A10 37 NC 55 DQ11
2 DQ0 20 DQ4 38 NC 56 DQ27
3 DQ16 21 DQ20 39 V
SS
57 DQ12
4 DQ1 22 DQ5 40 /CAS0 58 DQ28
5 DQ17 23 DQ21 41 /CAS2 59 V
CC
6 DQ2 24 DQ6 42 /CAS3 60 DQ29
7 DQ18 25 DQ22 43 /CAS1 61 DQ13
8 DQ3 26 DQ7 44 /RAS0 62 DQ30
9 DQ19 27 DQ23 45 /RAS1 63 DQ14
10 V
CC
28 A7 46 NC 64 DQ31
11 NC 29 NC 47 /WE 65 DQ 1 5
12 A0 30 V
CC
48 NC 66 NC
13 A1 31 A8 49 DQ8 67 PD1
14 A2 32 A9 50 DQ24 68 PD2
15 A3 33 / RAS3 51 DQ9 69 PD3
16 A4 34 / RAS2 52 DQ25 70 PD4
17 A5 35 NC 53 DQ10 71 NC
18 A6 36 NC 54 DQ26 72 V
SS
Presence Detect Pins
Pin No. Pin Name
MSC2383257D
-60BS16/DS16
MSC2383257D
-70BS16/DS16
67 PD1 NC NC
68 PD2 V
SS
V
SS
69 PD3 NC V
SS
70 PD4 NC NC
Page 4
Semiconductor MSC2383257D

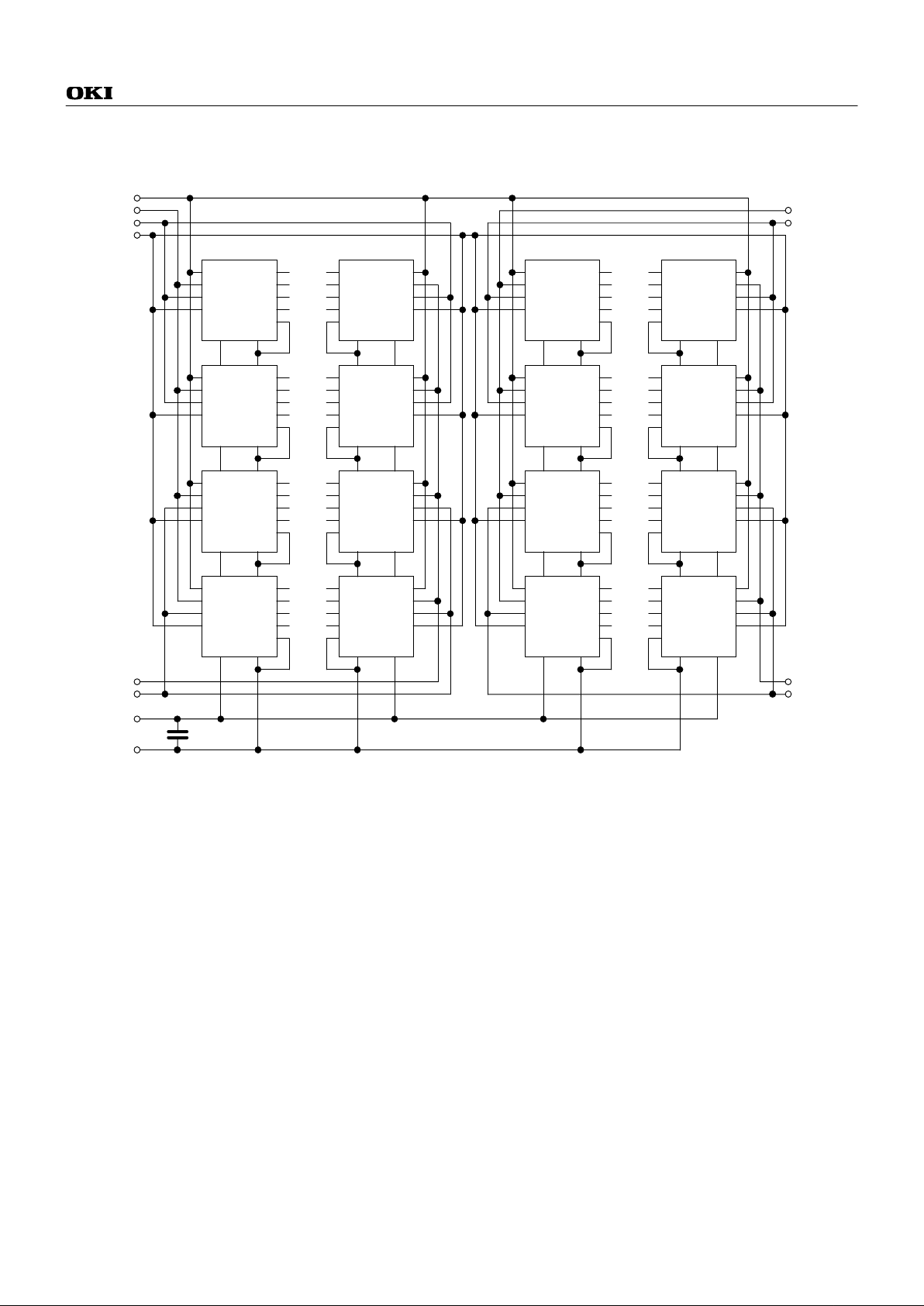

BLOCK DIAGRAM
/WE
/CAS0
/RAS0
A0-A10
/CAS1
/RAS1
A0-A10
DQDQDQ0DQDQ
/OE
V
SS
/RAS
/CAS
/WE
VCCA0-A10
DQ
DQDQDQ
/OE
V
CC
/RAS
/CAS
/WE
V
SS
DQ1
DQ2
DQ3
/CAS2
/RAS2
/CAS3
/RAS3
V
CC
VSSC1-C16
A0-A10
DQ
DQ
DQDQ/OE
VCC/RAS
/CAS
/WE
V
SS
A0-A10
DQ
DQ
DQDQ/OE
VSS/RAS
/CAS
/WE
V
CC
DQ4
DQ5
DQ6
DQ7
A0-A10
DQDQDQDQ/OE
V
CC
/RAS
/CAS
/WE
V
SS
A0-A10
DQDQDQDQ/OE
V
SS
/RAS
/CAS
/WE
V
CC
DQ8
DQ9
DQ10
DQ11
A0-A10
DQ
DQDQDQ
/OE
/RAS
/CAS
/WE
A0-A10
DQ
DQDQDQ
/OE
/RAS
/CAS
/WE
DQ12
DQ13
DQ14
DQ15
A0-A10
DQDQDQ16DQDQ
/OE
/RAS
/CAS
/WE
A0-A10
DQ
DQDQDQ
/OE
/RAS
/CAS
/WE
DQ17
DQ18
DQ19
VSSVCCVCCVSSVCCVSSVSSV
CC
A0-A10
DQDQDQ20DQDQ
/OE
/RAS
/CAS
/WE
A0-A10
DQ
DQ
DQDQ/OE
/RAS
/CAS
/WE
DQ21
DQ22
DQ23
VSSVCCVCCVSSA0-A10
DQDQDQ26DQDQ
/OE
/RAS
/CAS
/WE
A0-A10
DQDQDQDQ/OE
/RAS
/CAS
/WE
DQ27
DQ28
DQ27
VSSVCCVCCV
SS
A0-A10
DQDQDQ28DQDQ
/OE
/RAS
/CAS
/WE
A0-A10
DQ
DQDQDQ
/OE
/RAS
/CAS
/WE
DQ29
DQ30
DQ31
VSSVCCVCCV
SS
Page 5
Semiconductor MSC2383257D
ELECTRICAL CHARACTERISTICS
Absolute Maximum Ratings
Parameter Symbol Rating Unit
Voltage on Any Pin Relative to V
SS
VIN, V
OUT
-0.5 to +7.0 V
Voltage on VCC Supply Relative to V
SS
V
CC
-0.5 to +7.0 V
Short Circuit Output Cur r ent I
OS
50 mA
Power Dissipation PD *16W
Operating Temperature T
OPR
0 to +70 °C
Storage Temperature T
STG
-40 to +125 °C
* Ta = 25°C
Recommended Operating Conditions
( Ta = 0°C to +70°C )
Paramete r Symbol Min. Typ. Max. Unit
V
CC
4.5 5.0 5.5 V
Power Supply Voltage
V
SS
000V
Input High Voltage V
IH
2.4 - VCC + 0.5 V
Input Low Voltage V
IL
-0.5 - 0.8 V
Capacitance
( VCC = 5V ± 10%, Ta = 25°C, f = 1 MHz )
Paramete r Symbol Typ. Max. Uni t
Input Capacitance (A0 - A10) C
IN1
- 109 pF
Input Capacitance (/WE) C
IN2
- 125 pF
Input Capacitance (/RAS0- /RAS3) C
IN3
-35pF
Input Capacitance (/CAS0- /CAS3) C
IN4
-35pF
I/O Capacitance (DQ0 - DQ31) C
DQ
-26pF
Page 6
Semiconductor MSC2383257D
DC CHARACTERISTICS
(VCC = 5V ± 10%, Ta = 0°C to +70°C )
MSC2383257D
-60BS16/DS16
MSC2383257D
-70BS16/DS16
Paramete r Symbol Conditi on
Min. Max. Min. Max.
Unit Note
Input Leakage Current I
LI
0V ≤ VIN ≤ 6.5V;
All other pins not
under test = 0V
-160 160 -160 160 µA
Output Leakage Current I
LO
DQ disable
0V ≤ V
OUT
≤ 5.5V
-20 20 -20 20 µA
Output High Voltage V
OH
IOH = -5.0mA 2.4 V
CC
2.4 V
CC
V
Output Low Voltage V
OL
IOL = 4.2mA 0 0.4 0 0.4 V
Average Power
Supply Current
(Operating)
I
CC1
/RAS, /CAS cy cling,
t
RC
= Min.
- 920 - 840 mA 1, 2
/RAS, /CAS = V
IH
-32-32mA1
Power supply current
(Standby)
I
CC2
/RAS, /CAS
≥ V
CC
-0.2V
-16-16mA1
Average Power
Supply Current
(/RAS only refresh)
I
CC3
/RAS cycling,
/CAS = V
IH
,
t
RC
= Min.
- 920 - 840 mA 1, 2
Average Power
Supply Current
(/CAS before /RAS refresh)
I
CC6
/RAS cycling,
/CAS before /RAS
- 920 - 840 mA 1, 2
Average Power
Supply Current
(Fast Page Mode)
I
CC7
/RAS = VIL,
/CAS cycling,
t
HPC
= Min.
- 760 - 680 mA 1, 3
Notes: 1. ICC Max. is specified as ICC for output open condition.
2. Address can be changed once or less while /RA S = V
IL
.
3. Address can be changed once or less while /CA S = V
IH
.
Page 7
Semiconductor MSC2383257D
AC CHAR ACTERISTICS (1/2)
(VCC = 5V ± 10%, Ta = 0°C to +70°C ) Note: 1, 2, 3, 10, 11
MSC2383257D
-60BS16/DS16
MSC2383257D
-70BS16/DS16
Paramete r Symbol
Min. Max. Min. Max.
Unit Note
Random Read or Writ e Cycle Time t
RC
104 - 124 - ns
Fast Page Mode Cycle Time t
HPC
25 - 30 - ns
Access Time from /RAS t
RAC
- 60 - 70 ns 4, 5, 6
Access Time from /CAS t
CAC
- 15 - 20 ns 4, 5
Access Time from Column Address t
AA
- 30 - 35 ns 4, 6
Access Time from /CAS Precharge t
CPA
- 35 - 40 ns 4
Output Low Impedance Time from / CAS t
CLZ
0-0-ns4
Data Output Hold After /CAS Low t
DOH
5-5-ns
/CAS to Data Output Buffer Turn-off Delay Time t
CEZ
0 15 0 20 ns 7, 8
/RAS to Data Output Buffer Turn-off Delay Time t
REZ
0 15 0 20 ns 7, 8
/WE to Data Output Buffer Turn-off Delay Time t
WEZ
0 15 0 20 ns 7
Transition Time t
T
1 50 1 50 ns 3
Refresh Period t
REF
-32-32ms
/RAS Precharge Tim e t
RP
40 - 50 - ns
/RAS Pulse Width t
RAS
60 10K 70 10K ns
/RAS Pulse Width ( Fast Page Mode with EDO) t
RASP
60 100K 70 100K ns
/RAS Hold Time t
RSH
10 - 13 - ns
/CAS Precharge Time (Fast Page Mode with EDO) t
CP
10 - 10 - ns
/CAS Pulse Width t
CAS
10 10K 13 10K ns
/CAS Hold Time t
CSH
40 - 45 - ns
/CAS to /RAS Pr echarge Time t
CRP
5-5-ns
/RAS Hold Time from /CAS Precharge t
RHCP
35 - 40 - ns
/RAS to /CAS Delay Time t
RCD
14 45 14 50 ns 5
/RAS to Column Address Delay Time t
RAD
12 30 12 35 ns 6
Row Address Set-up Time t
ASR
0-0-ns
Row Address Hol d Time t
RAH
10 - 13 - ns
Column Address Set-up Time t
ASC
0-0-ns
Column Address Hold Ti me t
CAH
10 - 13 - ns
Column Address to /RAS Lead Time t
RAL
30 - 35 - ns
Read Command Set-up Time t
RCS
0-0-ns
Read Command Hold Time t
RCH
0-0-ns9
Read Command Hold Time referenced to /RAS t
RRH
0-0-ns9
Page 8
Semiconductor MSC2383257D
AC Characteristics (2/2)
(VCC = 5V ± 10%, Ta = 0°C to +70°C ) Note: 1, 2, 3, 10, 11
MSC2383257D
-60BS16/DS16
MSC2383257D
-70BS16/DS16
Paramete r Symbol
Min. Max. Min. Max.
Unit Note
Writ e Command Set-up Time t
WCS
0-0-ns
Writ e Command Hold Time t
WCH
10 - 13 - ns
Writ e Command Pulse Widt h t
WP
10 - 10 - ns
/WE Pul se Width (DQ Disabl e) t
WPE
10 - 10 - ns
Writ e Command to /RAS Lead Time t
RWL
10 - 13 - ns
Writ e Command to /CAS Lead Time t
CWL
10 - 13 - ns
Data-in Set-up Time t
DS
0-0-ns
Data-i n Ho ld Time t
DH
10 - 13 - ns
/CAS Active Delay Time from /RAS Precharge t
RPC
5-5-ns
/RAS to /CAS Set-up Time
(/CAS before /RAS)
t
CSR
5-5-ns
/RAS to /CAS Hold Time
(/CAS before /RAS)
t
CHR
10 - 10 - ns
/WE to /RAS Precharge Time
(/CAS before /RAS)
t
WRP
10 - 10 - ns
/WE Hold Time from /RAS
(/CAS before /RAS)
t
WRH
10 - 10 - ns
/RAS to /WE Set-up Time
(Test Mode)
t
WTS
10 - 10 - ns
/RAS to /WE Hold Time
(Test Mode)
t
WTH
10 - 10 - ns
Page 9
Semiconductor MSC2383257D
Notes: 1. A start-up delay of 200µs is required after power-up, foll owed by a mini mum of eight initialization cycles
(/RAS only r efresh or /CAS before /RAS ref r esh) before proper device operation is achiev ed.
2. The AC characteristic s assumes t
T
= 2ns.
3. V
IH
(Min.) and VIL(Max.) are ref erence lev els f or m easuring input tim ing signals. Transiti on ti me (tT) are
measured between V
IH
and VIL.
4. This parameter is m easured wit h a load circuit equivalent to 2TTL loads and 100pF.
5. Operation within the t
RCD
(Max.) limi t ensures that t
RAC
(Max.) can be met.
t
RCD
(Max.) is specified as a reference point only. If t
RCD
is greater than the specified t
RCD
(Max.) limit, then
the access tim e is controlled by t
CAC
.
6. Operation within the t
RAD
(Max.) limi t ensures that t
RAC
(Max.) can be met.
t
RAD
(Max.) is specified as a reference point only. If t
RAD
is greater than the specified t
RAD
(Max.) limit, then
the access tim e is controlled by t
AA
.
7. t
CEZ
(Max.), t
REZ
(Max.) and t
WEZ
(Max.) define the time at which the output achieves the open circuit
conditi on and ar e not referenced to output voltage levels.
8. t
CEZ
and t
REZ
must be satisfied for open circuit condition.
9. t
RCH
or t
RRH
must be satisfi ed for a read cycle.
10. The test mode is initiated by performing a /W E and /CAS before /RAS refresh cycle. This mode is
latched and remains in effect until the exit cycle is generated. The test mode specified in this data sheet
is an 8-bit parallel test functi on. CA0, CA1 and CA10 are not used. In a read cycle, if all internal bits are
equal, the DQ pin will indic ate a hig h le vel. If an y in te rn al b its a re no t equal, the DQ pin will indica te a lo w
level. The test mode is cleared and the memory device returned to it s normal operating state by a /RAS
only refresh or /CAS before /RAS refresh cycle.
1 1. In a test mode read cycle, the value of access time parameters is delayed for 5ns for the specified value.
These parameters should be specifi ed in test m ode cycle by adding the abov e v alue t o the specif ied
value in this data sheet.
Loading...
