Page 1

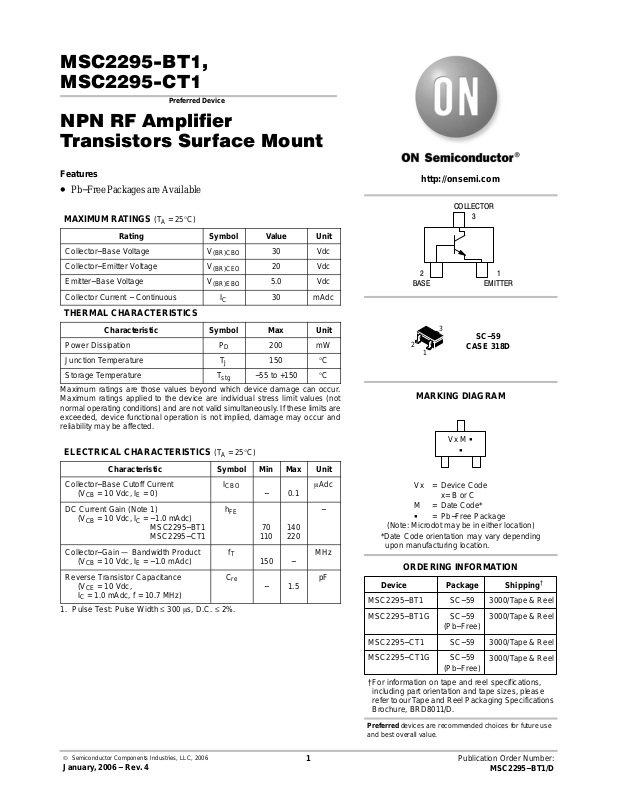

MSC2295−BT1,

l l

MSC2295−CT1

Preferred Device

NPN RF Amplifier Transistors Surface Mount

Features

• Pb−Free Packages are Available

MAXIMUM RATINGS (T

Rating Symbol Value Unit

Collector−Base Voltage V Collector−Emitter Voltage V Emitter−Base Voltage V Collector Current − Continuous I

THERMAL CHARACTERISTICS

Characteristic Symbol Max Unit

Power Dissipation P Junction Temperature T Storage Temperature T

Maximum ratings are those values beyond which device damage can occur. Maximum ratings applied to the device are individual stress limit values (not normal operating conditions) and are not valid simultaneously. If these limits are exceeded, device functional operation is not implied, damage may occur and reliability may be affected.

ELECTRICAL CHARACTERISTICS (T

Characteristic Symbol Min Max Unit

Collector−Base Cutoff Current

(VCB = 10 Vdc, IE = 0)

DC Current Gain (Note 1)

(VCB = 10 Vdc, IC = −1.0 mAdc)

Collector−Gain — Bandwidth Product

(VCB = 10 Vdc, IE = −1.0 mAdc)

Reverse Transistor Capacitance

(VCE = 10 Vdc, IC = 1.0 mAdc, f = 10.7 MHz)

1. Pulse Test: Pulse Width ≤ 300 ms, D.C. ≤ 2%.

= 25°C)

MSC2295−BT1 MSC2295−CT1

(BR)CBO (BR)CEO (BR)EBO

D J

stg

= 25°C)

CBO

30 Vdc 20 Vdc

5.0 Vdc 30 mAdc

200 mW 150 °C

−55 to +150 °C

− 0.1

110

150 −

− 1.5

mAdc

140 220

MHz

−

http://onsemi.com

COLLECTOR

BASE

CASE 318D

EMITTER

SC−59

MARKING DIAGRAM

Vx M G

Vx = Device Code

x= B or C M = Date Code* G = Pb−Free Package

(Note: Microdot may be in either location)

*Date Code orientation may vary depending

upon manufacturing location.

ORDERING INFORMATION

Device Package Shipping

MSC2295−BT1 SC−59 3000/Tape & Ree MSC2295−BT1G

MSC2295−CT1 3000/Tape & Ree MSC2295−CT1G

†For information on tape and reel specifications,

including part orientation and tape sizes, please refer to our Tape and Reel Packaging Specification Brochure, BRD8011/D.

Preferred devices are recommended choices for future use and best overall value.

SC−59

(Pb−Free)

SC−59 SC−59

(Pb−Free)

3000/Tape & Ree

†

January, 2006 − Rev. 4

1 Publication Order Number:

MSC2295−BT1/D

Page 2

MSC2295−BT1, MSC2295−CT1

PACKAGE DIMENSIONS

SC−59

CASE 318D−04

ISSUE G

NOTES: 1. DIMENSIONING AND TOLERANCING PER ANSI

Y14.5M, 1982.

2. CONTROLLING DIMENSION: MILLIMETER.

DIMAMIN NOM MAX MIN

A1 0.01 0.06 0.10 0.001

b 0.35 0.43 0.50 0.014 c 0.09 0.14 0.18 0.003 D 2.70 2.90 3.10 0.106 E 1.30 1.50 1.70 0.051 e 1.70 1.90 2.10 0.067 L 0.20 0.40 0.60 0.008

MILLIMETERS

1.00 1.15 1.30 0.039

2.50 2.80 3.00 0.099

INCHES

NOM MAX

0.045 0.051

0.002 0.004

0.017 0.020

0.005 0.007

0.114 0.122

0.059 0.067

0.075 0.083

0.016 0.024

0.110 0.118

SOLDERING FOOTPRINT*

0.95

0.037

2.4

0.094

1.0

0.039

0.8

0.031

SCALE 10:1

inches

*For additional information on our Pb−Free strategy and soldering

details, please download the ON Semiconductor Soldering and Mounting Techniques Reference Manual, SOLDERRM/D.
