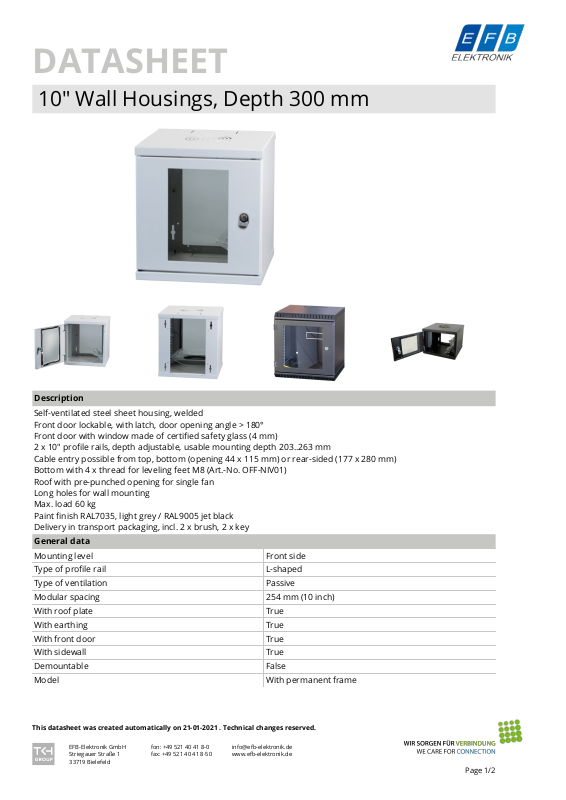

DATASHEET
10" Wall Housings, Depth 300 mm
Description
Self-ventilated steel sheet housing, welded
Front door lockable, with latch, door opening angle > 180°
Front door with window made of certified safety glass (4 mm)
2 x 10" profile rails, depth adjustable, usable mounting depth 203..263 mm
Cable entry possible from top, bottom (opening 44 x 115 mm) or rear-sided (177 x 280 mm)
Bottom with 4 x thread for leveling feet M8 (Art.-No. OFF-NIV01)
Roof with pre-punched opening for single fan
Long holes for wall mounting
Max. load 60 kg
Paint finish RAL7035, light grey / RAL9005 jet black
Delivery in transport packaging, incl. 2 x brush, 2 x key
General data
Mounting level Front side
Type of profile rail L-shaped
Type of ventilation Passive
Modular spacing 254 mm (10 inch)
With roof plate True
With earthing True
With front door True
With sidewall True
Demountable False
Model With permanent frame
This datasheet was created automatically on 21-01-2021 . Technical changes reserved.
EFB-Elektronik GmbH
Striegauer Straße 1
33719 Bielefeld
fon: +49 521 40 41 8-0
fax: +49 521 40 41 8-50
[email protected]
www.efb-elektronik.de
Page 1/2
Page 2
DATASHEET
10" Wall Housings, Depth 300 mm
General data
Material Steel
Type of surface With powder coating
Degree of protection (IP) IP20
Number of doors 1
Available variants
Number of
Article no. Title
691803GR.4
691803GR.6
691803GR.9
691803TS.4
691803TS.6
691803TS.9
10" Wall Housing 4U, Depth 300
10" Wall Housing 6U, Depth 300
10" Wall Housing 9U, Depth 300
10" Wall Housing 4U, Depth 300
10" Wall Housing 6U, Depth 300
10" Wall Housing 9U, Depth 300
mm, RAL7035
mm, RAL7035
mm, RAL7035
mm, RAL9005
mm, RAL9005
mm, RAL9005
height
units
Width Height Depth
4 300 mm 234 mm 300 mm 60 kg 7035 Grey
6 300 mm 322 mm 300 mm 60 kg 7035 Grey
9 300 mm 455 mm 300 mm 60 kg 7035 Grey
4 300 mm 234 mm 300 mm 60 kg 9005 Black
6 300 mm 322 mm 300 mm 60 kg 9005 Black
9 300 mm 455 mm 300 mm 60 kg 9005 Black
Max.
Load
RAL-number Colour
accessory
691820GR.2 10" 1U Cable Routing Panel
691820GR.1 10" 1U Shelf
OFF-NIV01 Leveling Feet 4 Pcs. M8
691642.1 Thermostat
691664 Single Fan Unit for Wall Housing
