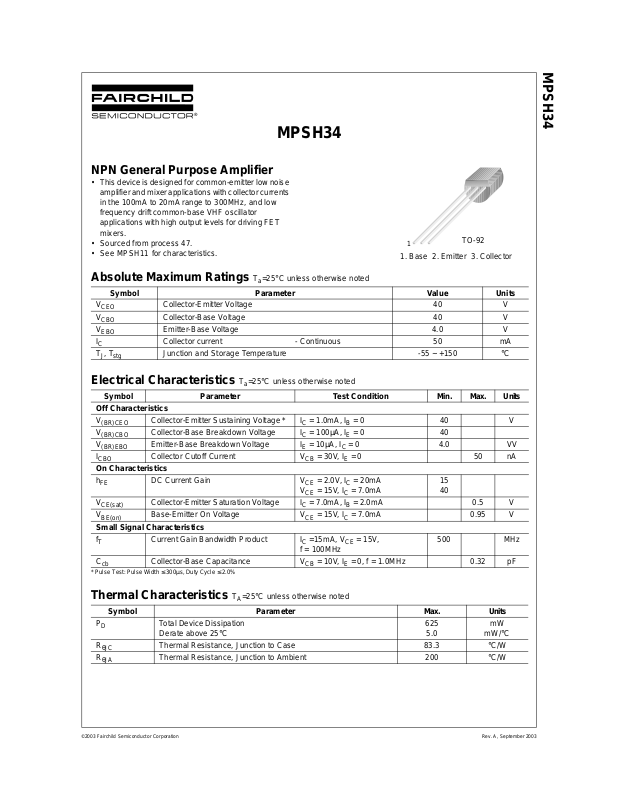

Page 1
MPSH34
NPN General Purpose Amplifier
• This device is designed for common-emitter low noise
amplifier and mixer applications with collector currents
in the 100mA to 20mA range to 300MHz, and low
frequency drift common-base VHF oscillator
applications with high output levels for driving FET
mixers.
• Sourced from process 47.
• See MPSH11 for characteristics.
1
TO-92
1. Base 2. Emitter 3. Collector
MPSH34
Absolute Maximum Ratings T
=25°C unless otherwise noted
a
Symbol Parameter Value Units
V
CEO
V
CBO
V
EBO
I
C
, T
T
J
stg
Electrical Characteristics
Collector-Emitter Voltage 40 V
Collector-Base Voltage 40 V
Emitter-Base Voltage 4.0 V
Collector current - Continuous 50 mA
Junction and Storage Temperature -55 ~ +150 °C
Ta=25°C unless otherwise noted
Symbol Parameter Test Condition Min. Max. Units
Off Characteristics
V
(BR)CEO
V
(BR)CBO
V
(BR)EBO
I
CBO
Collector-Emitter Sustaining Voltage * IC = 1.0mA, IB = 0 40 V
Collector-Base Breakdown Voltage IC = 100µA, IE = 0 40
Emitter-Base Breakdown Voltage IE = 10µA, IC = 0 4.0 VV
Collector Cutoff Current VCB = 30V, IE = 0 50 nA
On Characteristics
h
FE
V
CE(sat)
V
BE(on)
DC Current Gain VCE = 2.0V, IC = 20mA
= 15V, IC = 7.0mA
V
CE
Collector-Emitter Saturation Voltage IC = 7.0mA, IB = 2.0mA 0.5 V
Base-Emitter On Voltage VCE = 15V, IC = 7.0mA 0.95 V
15
40
Small Signal Characteristics
f
T
Current Gain Bandwidth Product IC =15mA, VCE = 15V,
500 MHz
f = 100MHz
C
cb
* Pulse Test: Pulse Width ≤ 300µs, Duty Cycle ≤ 2.0%
Collector-Base Capacitance VCB = 10V, IE = 0, f = 1.0MHz 0.32 pF
Thermal Characteristics
TA=25°C unless otherwise noted
Symbol Parameter Max. Units
P
D
R
θJC
R
θJA
©2003 Fairchild Semiconductor Corporation Rev. A, September 2003
Total Device Dissipation
Derate above 25°C
625
5.0
mW
mW/°C
Thermal Resistance, Junction to Case 83.3 °C/W
Thermal Resistance, Junction to Ambient 200 °C/W
Page 2

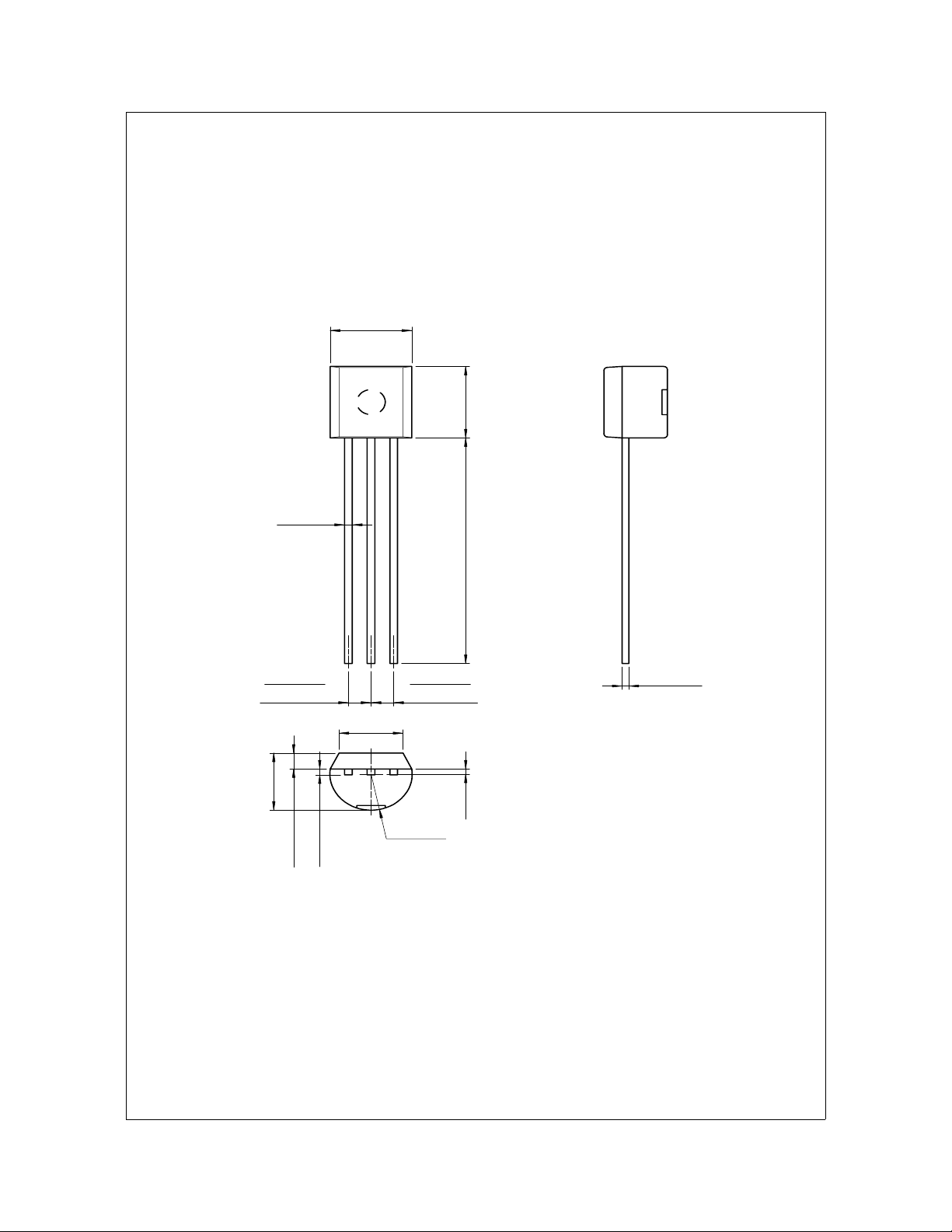

Package Dimensions
0.46
±0.10
4.58
+0.25
–0.15
MPSH34
TO-92
±0.20
4.58
±0.40
1.27TYP
[1.27
±0.20
3.86MAX
±0.10
1.02
+0.10
–0.05
0.38
14.47
1.27TYP
]
3.60
±0.20
[1.27
±0.20
]
0.38
+0.10
–0.05
(0.25)
(R2.29)
Dimensions in Millimeters
Rev. A, September 2003©2003 Fairchild Semiconductor Corporation
