DISCRETE SEMICONDUCTORS
DATA SH EET
ook, halfpage
M3D186
MPSH10

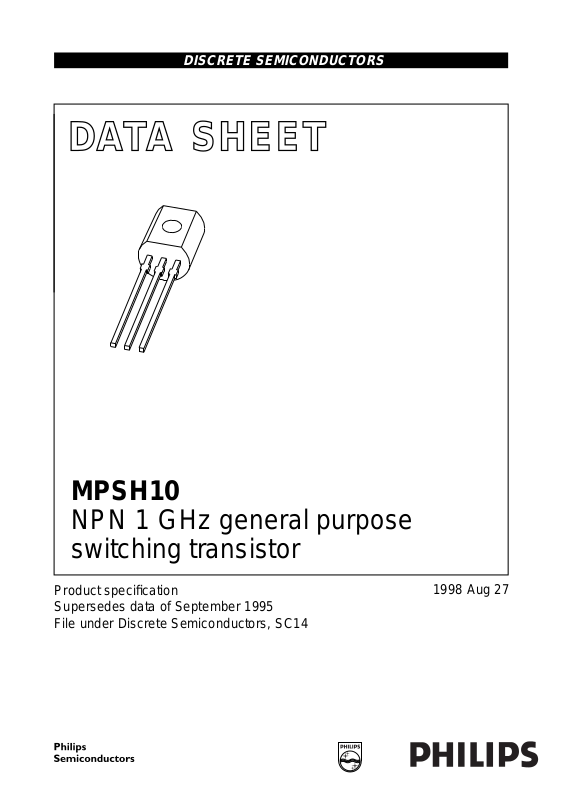

NPN 1 GHz general purpose
switching transistor
Product specification
Supersedes data of September 1995
1998 Aug 27
File under Discrete Semiconductors, SC14
Page 2
Philips Semiconductors Product specification
NPN 1 GHz general purpose switching transistor MPSH10
FEA TURES
• Low cost
• High power gain.
PINNING
PIN DESCRIPTION
1 collector
age
1
2
3
2 emitter
DESCRIPTION
3 base
MSB033
Silicon NPN general purpose
transistor in a SOT54 (TO-92)
package. PNP complement is the
MPSH81.
Marking code: PSH10.
Fig.1 SOT54.
QUICK REFERENCE DATA
SYMBOL PARAMETER CONDITIONS MIN. MAX. UNIT
V
CBO
V
CEO
V
EBO
P
tot
T
j
h
FE
C
re
C
rb
f
T
r
bCc
collector-base voltage open emitter − 30 V
collector-emitter voltage open base − 25 V
emitter-base voltage open collector − 3V
total power dissipation Ts=25°C; note 1 − 1W
junction temperature − 150 °C
DC current gain VCE=10V; IC=4mA 60 −
collector-emitter feedback capacitance VCB=10V; IE= 0; f = 1 MHz − 0.7 pF
collector-base feedback capacitance VCB=10V; IE= 0; f = 1 MHz 0.35 0.65 pF
transition frequency VCE=10V; IC= 4 mA;
f = 100 MHz; T
amb
=25°C
collector-base time constant VCE=10V; IC= 4 mA;
f = 100 MHz; T
amb
=25°C
650 − MHz
− 9ps
Note
is the temperature at the soldering point of the collector lead, 4 mm from the body.
1. T
s
LIMITING VALUES
In accordance with the Absolute Maximum Rating System (IEC 134).
SYMBOL PARAMETER CONDITIONS MIN. MAX. UNIT
V
CBO
V
CEO
V
EBO
I
C
P
tot
T
stg
T
j
collector-base voltage open emitter − 30 V
collector-emitter voltage open base − 25 V
emitter-base voltage open collector − 3V
collector current (DC) − 40 mA
total power dissipation Ts=25°C; note 1 − 1W
storage temperature −65 +150 °C
junction temperature − 150 °C
Note
1. Tsis the temperature at the soldering point of the collector lead, 4 mm from the body.
1998 Aug 27 2
Page 3
Philips Semiconductors Product specification
NPN 1 GHz general purpose switching transistor MPSH10
THERMAL CHARACTERISTICS
SYMBOL PARAMETER CONDITIONS VALUE UNIT
R
th j-s
R
th j-a
Note
1. Ts is the temperature at the soldering point of the collector lead, 4 mm from the body.
CHARACTERISTICS
=25°C unless otherwise specified.
T
j
SYMBOL PARAMETER CONDITIONS MIN. MAX. UNIT
V
(BR)CBO
V
(BR)CEO
V
(BR)EBO
V
CEsat
V
BEon
I
CBO
I
EBO
h
FE
C
re
C
rb
f
T
r
bCc
thermal resistance from junction to soldering point note 1 125 K/W
thermal resistance from junction to ambient 250 K/W
collector-base breakdown voltage open emitter; IC= 100 µA; IE=0 30 − V
collector-emitter breakdown voltage open base; IC= 1 mA; IB=0 25 − V
emitter-base breakdown voltage open collector; IE=10µA; IC=0 3 − V
collector-emitter saturation voltage IC= 4 mA; IB= 0.4 mA − 0.5 V
base-emitter ON voltage VCE= 10 V; IC=4mA − 0.95 V
collector-base cut-off current VCB= 25 V; IE=0 − 100 nA
emitter-base cut-off current VCB= 25 V; IC=0 − 100 nA
DC current gain VCE= 10 V; IC=4mA 60 −
collector-emitter feedback capacitance VCB= 10 V; IE=ie= 0; f = 1 MHz − 0.7 pF
collector-base feedback capacitance VCB= 10 V; IC=ic= 0; f = 1 MHz 0.35 0.65 pF
transition frequency VCE= 10 V; IC= 4 mA;
f = 100 MHz; T
amb
=25°C
collector-base time constant VCB= 10 V; IC= 4 mA;
f = 100 MHz; T
amb
=25°C
650 − MHz
− 9ps
1998 Aug 27 3
Page 4
Philips Semiconductors Product specification
NPN 1 GHz general purpose switching transistor MPSH10
100
handbook, halfpage
Y
11
(mS)
80
60
40
20
0
2
10
VCB= 10V; IC= 4 mA.
g
11
−b
11
MRA154
f (MHz)

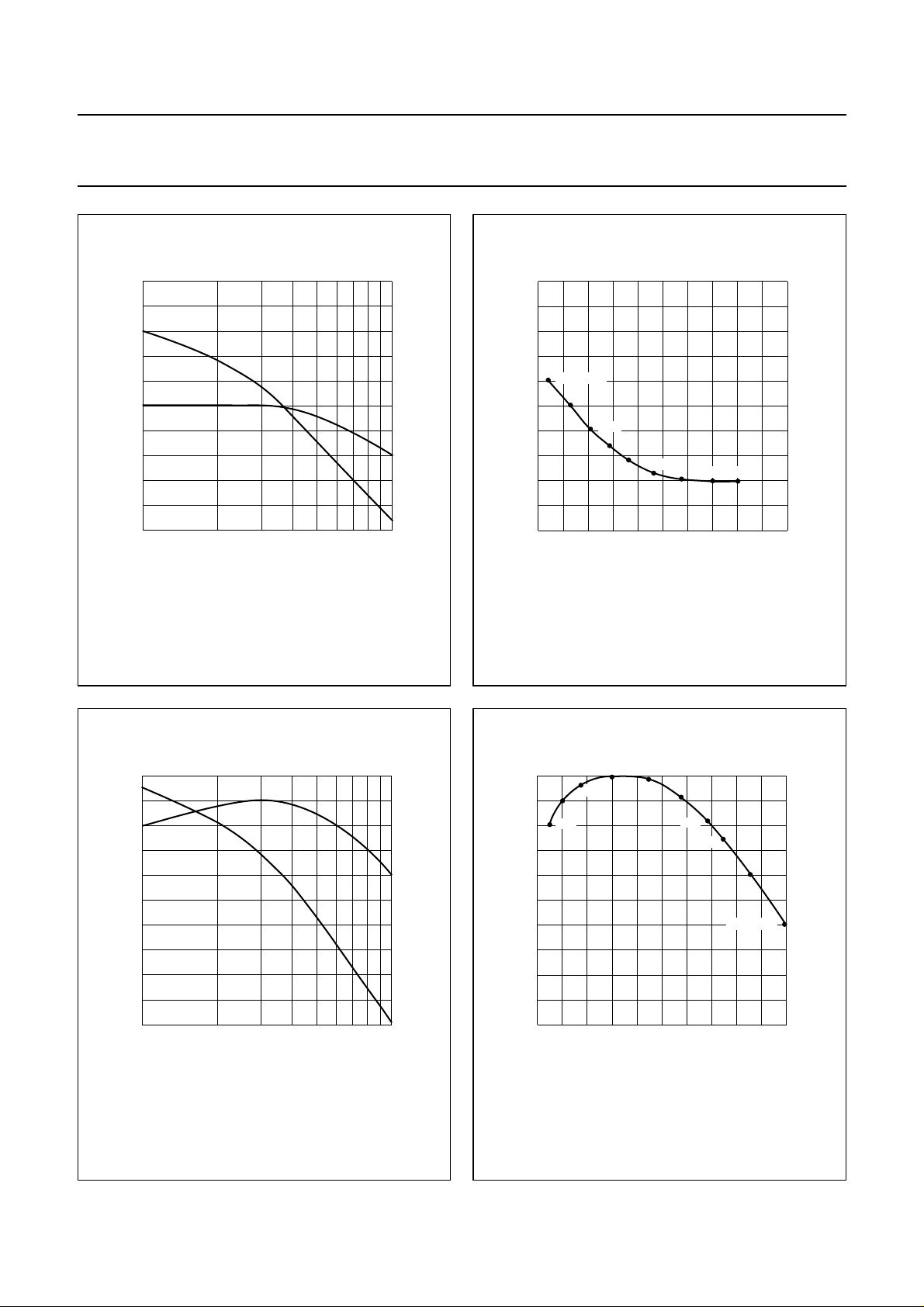

Fig.2 Common base input admittance (Y11) as a
function of frequency.
−10
handbook, halfpage
b
11
(mS)
−20
1000 MHz
−30
−40
−50
3
10
−60
0 100
VCB= 10 V; IC= 4 mA.
700
400
20 40 60 80
200 100
MRA156
g11 (mS)
Fig.3 Common base input admittance (Y11).
f (MHz)
MRA155
3
10
70
handbook, halfpage
Y
21
(mS)
50
30
10
−10
−30
2
10
VCB= 10 V; IC= 4 mA.
b
21
−g
21
Fig.4 Common base forward transfer admittance
(Y21) as a function of frequency.
1998 Aug 27 4
60
handbook, halfpage
b
21
(mS)
100
50
40
30
20
10
−70 30
VCB= 10 V; IC= 4 mA.
200
−50 −30 −10 10
400
600
700
MRA157
1000 MHz
g21 (mS)
Fig.5 Common base forward transfer admittance
(Y21).
Page 5
Philips Semiconductors Product specification
NPN 1 GHz general purpose switching transistor MPSH10
handbook, halfpage
5
Y
12
(mS)
4
3
2
1
0
2
10
VCB= 10 V; IC= 4 mA.
−b
12
g
12
MRA150
f (MHz)

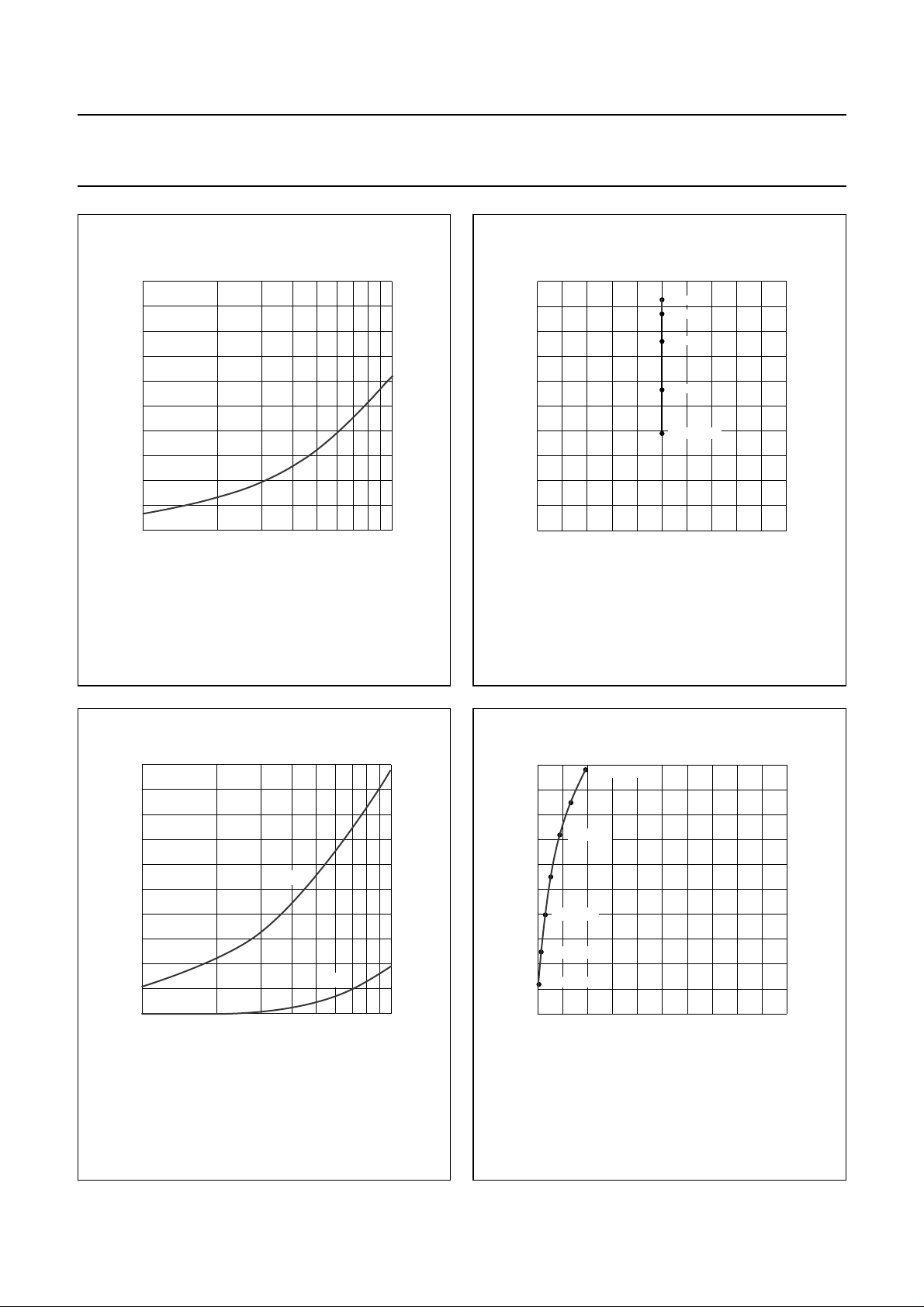

Fig.6 Common base reverse transfer admittance
(Y12) as a function of frequency.
handbook, halfpage
3
10
0
b
12
(mS)
−1
−2
−3
−4
−5
VCB= 10 V; IC= 4 mA.
−1.2 −0.4 0.4 1.2
−22
100
200
400
700
1000 MHz
MRA152
g12 (mS)
Fig.7 Common base reverse transfer admittance
(Y12).
g
22
f (MHz)
MRA151
10
10
handbook, halfpage
Y
22
(mS)
8
6
4
2
0
2
10
VCB= 10 V; IC= 4 mA.
b
22
Fig.8 Common base reverse admittance (Y22)as
a function of frequency.
10
handbook, halfpage
b
22
(mS)
8
6
4
2
3
0
010
VCB= 10 V; IC= 4 mA.
1000 MHz
700 MHz
400 MHz
200 MHz
100 MHz
2468
MRA153
g
(mS)
22
Fig.9 Common base reverse admittance (Y22).
1998 Aug 27 5
Page 6
Philips Semiconductors Product specification
NPN 1 GHz general purpose switching transistor MPSH10

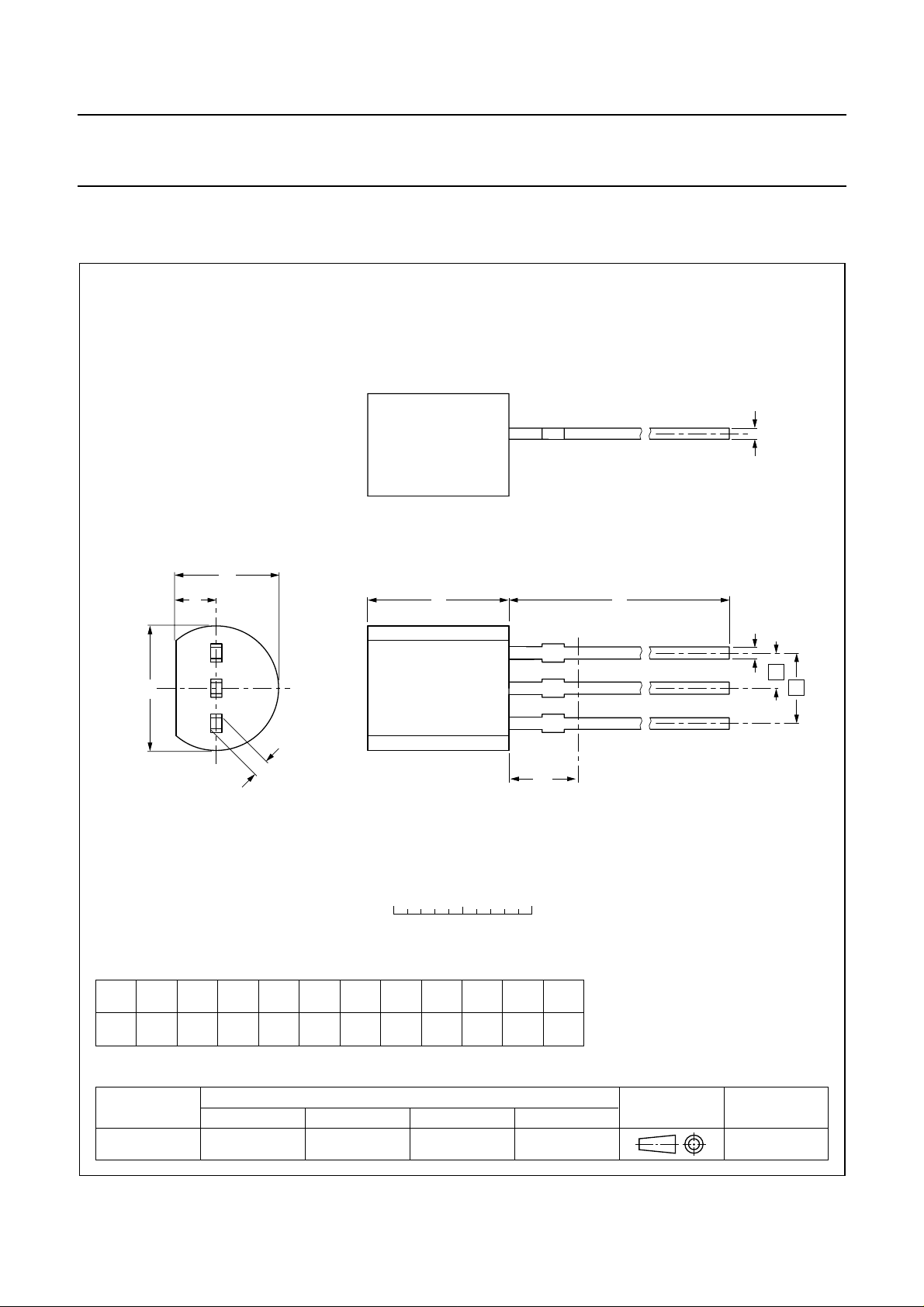

PACKAGE OUTLINE
Plastic single-ended leaded (through hole) package; 3 leads SOT54
c
E
d
A L
1
D
2
3
b
1
0 2.5 5 mm
scale
DIMENSIONS (mm are the original dimensions)
UNIT
Note
1. Terminal dimensions within this zone are uncontrolled to allow for flow of plastic and terminal irregularities.
A
5.2
mm
5.0
OUTLINE
VERSION
SOT54 TO-92 SC-43
b
0.48
0.40
b
c
D
d
1
0.66
0.45
0.40
4.8
4.4
0.56
IEC JEDEC EIAJ
E
1.7
4.2
1.4
3.6
REFERENCES
e
2.54
e
1.27
1
L
14.5
12.7
L
1
(1)
L
1
2.5
EUROPEAN
PROJECTION
b
e
1
e
ISSUE DATE
97-02-28
1998 Aug 27 6
Page 7
Philips Semiconductors Product specification
NPN 1 GHz general purpose switching transistor MPSH10
DEFINITIONS
Data Sheet Status
Objective specification This data sheet contains target or goal specifications for product development.
Preliminary specification This data sheet contains preliminary data; supplementary data may be published later.
Product specification This data sheet contains final product specifications.
Limiting values
Limiting values given are in accordance with the Absolute Maximum Rating System (IEC 134). Stress above one or
more of the limiting values may cause permanent damage to the device. These are stress ratings only and operation
of the device at these or at any other conditions above those given in the Characteristics sections of the specification
is not implied. Exposure to limiting values for extended periods may affect device reliability.
Application information
Where application information is given, it is advisory and does not form part of the specification.
LIFE SUPPORT APPLICATIONS
These products are not designed for use in life support appliances, devices, or systems where malfunction of these
products can reasonably be expected to result in personal injury. Philips customers using or selling these products for
use in such applications do so at their own risk and agree to fully indemnify Philips for any damages resulting from such
improper use or sale.
1998 Aug 27 7
Page 8
Philips Semiconductors – a worldwide company
Argentina: see South America
Australia: 34 Waterloo Road, NORTH RYDE, NSW 2113,
Tel. +61 2 9805 4455, Fax. +61 2 9805 4466
Austria: Computerstr. 6, A-1101 WIEN, P.O. Box 213, Tel. +43 160 1010,
Fax. +43 160 101 1210
Belarus: Hotel Minsk Business Center, Bld. 3, r. 1211, Volodarski Str. 6,
220050 MINSK, Tel. +375 172 200 733, Fax. +375 172 200 773
Belgium: see The Netherlands
Brazil: seeSouth America
Bulgaria: Philips Bulgaria Ltd., Energoproject, 15thfloor,
51 James Bourchier Blvd., 1407 SOFIA,
Tel. +359 2 689 211, Fax. +359 2 689 102
Canada: PHILIPS SEMICONDUCTORS/COMPONENTS,
Tel. +1 800 234 7381
China/Hong Kong: 501 Hong Kong Industrial Technology Centre,
72 Tat Chee Avenue, Kowloon Tong, HONG KONG,
Tel. +852 2319 7888, Fax. +852 2319 7700
Colombia: see South America
Czech Republic: see Austria
Denmark: Prags Boulevard 80, PB 1919, DK-2300 COPENHAGEN S,
Tel. +45 32 88 2636, Fax. +45 31 57 0044
Finland: Sinikalliontie 3, FIN-02630 ESPOO,
Tel. +358 9 615800, Fax. +358 9 61580920
France: 51 Rue Carnot, BP317, 92156 SURESNES Cedex,
Tel. +33 1 40 99 6161, Fax. +33 1 40 99 6427
Germany: Hammerbrookstraße 69, D-20097 HAMBURG,
Tel. +49 40 23 53 60, Fax. +49 40 23 536 300
Greece: No. 15, 25th March Street, GR 17778 TAVROS/ATHENS,
Tel. +30 1 4894 339/239, Fax. +30 1 4814 240
Hungary: seeAustria
India: Philips INDIA Ltd, Band Box Building, 2nd floor,
254-D, Dr. Annie Besant Road, Worli, MUMBAI 400 025,
Tel. +91 22 493 8541, Fax. +91 22 493 0966
Indonesia: PT Philips Development Corporation, Semiconductors Division,
Gedung Philips, Jl. Buncit Raya Kav.99-100, JAKARTA 12510,
Tel. +62 21 794 0040 ext. 2501, Fax. +62 21 794 0080
Ireland: Newstead, Clonskeagh, DUBLIN 14,
Tel. +353 1 7640 000, Fax. +353 1 7640 200
Israel: RAPAC Electronics, 7 Kehilat Saloniki St, PO Box 18053,
TEL AVIV 61180, Tel. +972 3 645 0444, Fax. +972 3 649 1007
Italy: PHILIPS SEMICONDUCTORS, Piazza IV Novembre 3,
20124 MILANO, Tel. +39 2 6752 2531, Fax. +39 2 6752 2557
Japan: Philips Bldg 13-37, Kohnan 2-chome, Minato-ku,
TOKYO 108-8507, Tel. +81 3 3740 5130, Fax. +81 3 3740 5077
Korea: Philips House, 260-199 Itaewon-dong, Yongsan-ku, SEOUL,
Tel. +82 2 709 1412, Fax. +82 2 709 1415
Malaysia: No. 76 Jalan Universiti, 46200 PETALING JAYA, SELANGOR,
Tel. +60 3 750 5214, Fax. +60 3 757 4880
Mexico: 5900 Gateway East, Suite 200, EL PASO, TEXAS 79905,
Tel. +9-5 800 234 7381
Middle East: see Italy
Netherlands: Postbus 90050, 5600 PB EINDHOVEN, Bldg. VB,
Tel. +31 40 27 82785, Fax. +31 40 27 88399
New Zealand: 2 Wagener Place, C.P.O. Box 1041, AUCKLAND,
Tel. +64 9 849 4160, Fax. +64 9 849 7811
Norway: Box 1, Manglerud 0612, OSLO,
Tel. +47 22 74 8000, Fax. +47 22 74 8341
Pakistan: see Singapore
Philippines: Philips Semiconductors Philippines Inc.,
106 Valero St. Salcedo Village, P.O. Box 2108 MCC, MAKATI,
Metro MANILA, Tel. +63 2 816 6380, Fax. +63 2 817 3474
Poland: Ul. Lukiska 10, PL 04-123 WARSZAWA,
Tel. +48 22 612 2831, Fax. +48 22 612 2327
Portugal: see Spain
Romania: see Italy
Russia: Philips Russia, Ul. Usatcheva 35A, 119048 MOSCOW,
Tel. +7 095 755 6918, Fax. +7 095 755 6919
Singapore: Lorong 1, Toa Payoh, SINGAPORE 319762,
Tel. +65 350 2538, Fax. +65 251 6500
Slovakia: see Austria
Slovenia: see Italy
South Africa: S.A. PHILIPS Pty Ltd., 195-215 Main Road Martindale,
2092 JOHANNESBURG, P.O. Box 7430 Johannesburg 2000,
Tel. +27 11 470 5911, Fax. +27 11 470 5494
South America: Al. Vicente Pinzon, 173, 6th floor,
04547-130 SÃO PAULO, SP, Brazil,
Tel. +55 11 821 2333, Fax. +55 11 821 2382
Spain: Balmes 22, 08007 BARCELONA,
Tel. +34 93 301 6312, Fax. +34 93 301 4107
Sweden: Kottbygatan 7, Akalla, S-16485 STOCKHOLM,
Tel. +46 8 5985 2000, Fax. +46 8 5985 2745
Switzerland: Allmendstrasse 140, CH-8027 ZÜRICH,
Tel. +41 1 488 2741 Fax. +41 1 488 3263
Taiwan: Philips Semiconductors, 6F, No. 96, Chien Kuo N. Rd., Sec. 1,
TAIPEI, Taiwan Tel. +886 2 2134 2865, Fax. +886 2 2134 2874
Thailand: PHILIPS ELECTRONICS (THAILAND) Ltd.,
209/2 Sanpavuth-Bangna Road Prakanong, BANGKOK 10260,
Tel. +66 2 745 4090, Fax. +66 2 398 0793
Turkey: Talatpasa Cad. No. 5, 80640 GÜLTEPE/ISTANBUL,
Tel. +90 212 279 2770, Fax. +90 212 282 6707
Ukraine: PHILIPS UKRAINE, 4 Patrice Lumumba str., Building B, Floor 7,
252042 KIEV, Tel. +380 44 264 2776, Fax. +380 44 268 0461
United Kingdom: Philips Semiconductors Ltd., 276 Bath Road, Hayes,
MIDDLESEX UB3 5BX, Tel. +44 181 730 5000, Fax. +44 181 754 8421
United States: 811 East Arques Avenue, SUNNYVALE, CA 94088-3409,
Tel. +1 800 234 7381
Uruguay: see South America
Vietnam: see Singapore
Yugoslavia: PHILIPS, Trg N. Pasica 5/v, 11000 BEOGRAD,
Tel. +381 11 625 344, Fax.+381 11 635 777
For all other countries apply to: Philips Semiconductors,
International Marketing & Sales Communications, Building BE-p, P.O. Box 218,
5600 MD EINDHOVEN, The Netherlands, Fax. +31 40 27 24825
© Philips Electronics N.V. 1998 SCA60
All rights are reserved. Reproduction in whole or in part is prohibited without the prior written consent of the copyright owner.
The information presented in this document does not form part of any quotation or contract, is believed to be accurate and reliable and may be changed
without notice. No liability will be accepted by the publisher for any consequence of its use. Publication thereof does not convey nor imply any license
under patent- or other industrial or intellectual property rights.
Internet: http://www.semiconductors.philips.com
Printed in The Netherlands 125104/00/04/pp8 Date of release: 1998 Aug 27 Document order number: 9397 75004297
Loading...
