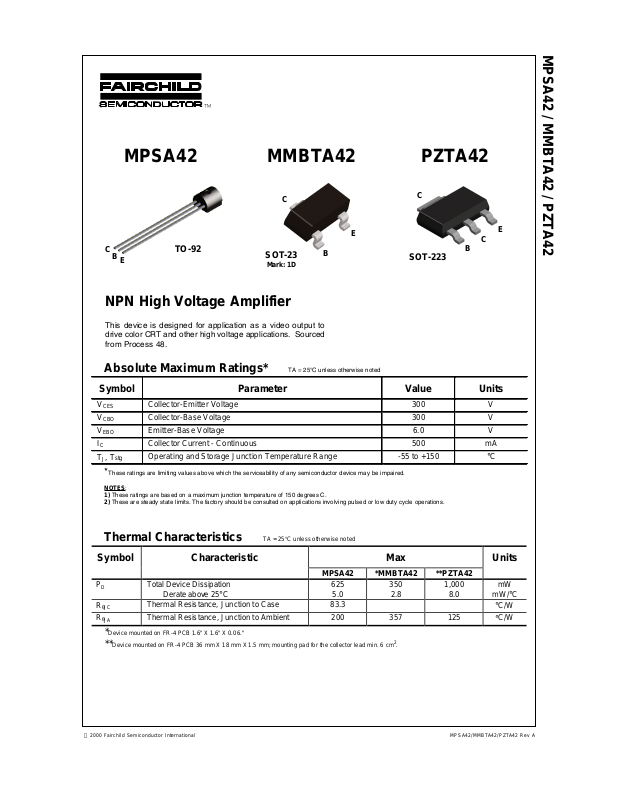

MPSA42 / MMBTA42 / PZTA42

MMBTA42MPSA42

TO-92

SOT-23

Mark: 1D

PZTA42

SOT-223

NPN High Voltage Amplifier

This device is designed for application as a video output to drive color CRT and other high voltage applications. Sourced from Process 48.

Absolute Maximum Ratings* TA = 25°C unless otherwise noted

Symbol Parameter Value Units

CES

CBO

EBO

TJ, T

stg

*These ratings are limiting values above which the serviceability of any semiconductor device may be impaired.

NOTES:

1) These ratings are based on a maximum junction temperature of 150 degrees C.

2) These are steady state limits. The factory should be consulted on applications involving pulsed or low duty cycle operations.

Collector-Emitter V ol tage 300 V Collector-Base Voltage 300 V Emitter-Base Volt age 6.0 V Collector Current - Continuous 500 mA Operating and Storage Junction Temperature Range -55 to +150

Thermal Characteristics TA = 25°C unless otherwise noted

Symbol Characteristic Max Units

MPSA42 *MMBTA42 **PZTA42

*Device mounted on FR-4 PCB 1.6" X 1.6" X 0.06." **Device mounted on FR-4 PCB 36 mm X 18 mm X 1.5 mm; mounting pad for the collector lead min. 6 cm

 2000 Fairchild Semiconductor International

Total Device Dissipation

Derate above 25°C

Ther mal Resistance, Junction to Case 83.3 Thermal Resistance, Junction to Ambient 200 357 125

625

5.0

350

2.8

1,000

8.0

MPSA42/MMBTA42/PZTA42 Rev A

mW/°C

C/W

Page 2

(BR)

NPN High Voltage Amplifier

(continued)

Electrical Characteristics TA = 25°C unless otherwise noted

Symbol Parameter Test Conditions Min Max Units

OFF CHARACTERISTICS

CEO

CBO

EBO

CBO

EBO

ON CHARACTERISTICS*

CE(

sat

BE(

SMALL SIGNAL CHARACTERISTICS

*Pulse Test: Pulse Width ≤ 300 µs, Duty Cycle ≤ 2.0%

Collector-Emitter Breakdown Voltage* IC = 1.0 mA, IB = 0 300 V Collector-Base Breakdown Voltage Emitter-Base Breakdown Voltage

= 100 µA, IE = 0

= 100 µA, IC = 0

300 V

6.0 V Collector-Cutoff Current VCB = 200 V, IE = 0 0.1 Emitte r-Cutoff Current VEB = 6.0 V, IC = 0 0.1

DC Current Gain IC = 1.0 mA, VCE = 10 V

= 10 mA, VCE = 10 V

= 30 mA, VCE = 10 V

Collector-Emitter Saturatio n Voltage IC = 20 mA, IB = 2.0 mA 0.5 V

)

Base-Emitter Saturatio n Voltage IC = 20 mA, IB = 2.0 mA 0.9 V

)

Current Gain - Bandwidth Product IC = 10 mA, VCE = 20 V,

25 40 40

50 MHz

f = 100 MHz

Collector-Base Capacitance VCB = 20 V, IE = 0, f = 1.0 MHz 3.0 pF

A A

MPSA42 / MMBTA42 / PZTA42

Spice Model

NPN (Is=34.9f Xti=3 Eg=1.11 Vaf=100 Bf=2.65K Ne=1.708 Ise=16.32p Ikf=23.79m Xtb=1.5 Br=9.769 Nc=2 Isc=0 Ikr=0 Rc=7 Cjc=14.23p Mjc=.5489 Vjc=.75 Fc=.5 Cje=49.62p Mje=.4136 Vje=.75 Tr=934.3p Tf=1.69n Itf=5 Vtf=20 Xtf=150 Rb=10)

Typical Characteristics

DC Current Gain

vs Collector Current

140 120 100

80 60 40

E F

h - DC CURRENT GAIN

0.1 1 10 100

125 °C

25 °C

- 40 ºC

V = 5V

I - COLLECTOR CURRENT (mA)

Collector-Emitter Saturation

Voltage vs Collector Current

0.3

= 10

0.25

0.2

0.15

0.1

0.05

0.1 1 10 100

CESAT

V - COLLECTOR-EMITTER VOLTAGE (V)

- 40 ºC

I - COLLECTOR CURRENT (mA)

25 °C

125 °C

Page 3

Typical Characteristics (continued)

MPSA42 / MMBTA42 / PZTA42

NPN High Voltage Amplifier

(continued)

Base-Emitter Saturation

Voltage vs Collector Current

0.8

0.6

- 40 ºC 25 °C

125 °C

0.4

0.2

BESAT

V - BASE-EMITTER VOLTAGE (V)

0.1 1 10 100

I - COLLECTOR CURRENT (mA)

Collector-Cuto ff Current

vs Ambient Temperature

100

V = 150V

CBO

I - COLLECTOR CURRENT (nA)

25 50 75 100 125 150

T - AMBIENT TEMPERATURE ( C)

= 10

Base-Emitter ON Voltage vs

Collector Current

0.8

0.6

0.4

0.2

BE(ON)

V - BASE-EMITTER ON VOLTAGE (V)

- 40 ºC 25 °C

125 °C

V = 1V

0.1 1 10 100

I - COLLECTOR CURRENT (mA)

Collector-Base and Emitter-Base

Capacitance vs Reverse Bias Voltage

100

20 10

CAPACITANCE (pF)

2 1

1 10 100 1000

REVERSE BIAS VOLTAGE (V)

T = 25 °C

Power Dissipation vs

Ambient Temperature

0.75

TO-92

0.5

SOT-23

0.25

P - POWER DISSIPATION (W)

0 255075100125150

SOT-223

TEMPERATURE ( C)

Page 4

TO-92 Tape and Reel Data and Package Dimensions

TO-92 Packaging Configuration: Figure 1.0

FSCINT Label sample

FAIRCHILD SEMICONDUCTOR CORPORATION

LOT:

CBVK741B019

NSID:

PN2222N

D/C1:

SPEC REV:

D9842

QA REV:

HTB:B

QTY:

10000

SPEC:

(FSCINT)

F63TNR Label sample

LOT: CBVK741B019

FSID: PN222N

D/C1: D9842 QTY1: SPEC REV: D/C2: QTY2: CPN:

QTY: 2000

SPEC:

N/F: F (F63TNR)3

TO-92 TNR/AMMO PACKING INFROMATION

Packing Style Quantity EOL code

Reel A 2,000 D26Z

Ammo M 2,000 D74Z

Unit w eight = 0.22 gm Reel weight with components = 1.04 kg Amm o weight with componen ts = 1.02 kg Max q uantity per intermediate box = 10,000 u n its

E2,000 D27Z

P2,000 D75Z

(TO-92) BULK PACKING INFORMATION

EOL

CODE

J18Z

J05Z

NO EOL

CODE

DESCRIPTION

TO-18 OPTION STD NO LEAD CLIP

TO-5 OPTION STD NO LEAD CLIP TO-92 STANDARD

STRAIGHT

NO LEADCLIP

LEADCLIP

DIMENSION

327mm x 158mm x 135mm

Immediate Box

Customized Label

QUANTITY

2.0 K / BOX

1.5 K / BOX

2.0 K / BOX

TAPE and REEL OPTION

See Fig 2.0 for various

Reeling Styles

5 Reels per

Intermediate Box

F63TNR Label

Customized Label

AMMO PACK OPTION

See Fig 3.0 for 2 Ammo

Pack Options

5 Ammo boxes per

Intermediate Box

F63TNR Label

BULK OPTION

See Bulk Packing Information table

FSCINT Label

375mm x 267mm x 375mm

Intermediate Box

333mm x 231mm x 183mm

Intermediate Box

Anti-static

Bubble Sheets

FSCINT Label

Customized Label

FSCINT Label

Customized Label

530mm x 130mm x 83mm

FSCINT Label

Intermediate box

2000 units per EO70 box for

std option

C Label

10,000 units maximum

per intermediate box

for std option

ustomized

5 EO70 boxes per intermediate Box

114mm x 102mm x 51mm

Immediate Box

September 1999, Rev. B

Page 5

TO-92 Tape and Reel Data and Package Dimensions, continued

TO-92 Reeling Style Configuration: Figure 2.0

Machine Option “A” (H)

Style “A”, D26Z, D70Z (s/h )

TO-92 Radial Ammo Packaging Configuration: Figure 3.0

FIRST WIRE OFF IS COLLECTOR ADHESIVE TAPE IS ON THE TOP SIDE FLAT OF TRANSISTOR IS ON TOP

ORDER STYLE

D74Z (M)

Machine Option “E” (J)

Style “E”, D27 Z, D71 Z (s/ h)

FIRST WIRE OFF IS EMITTER ADHESIVE TAPE IS ON THE TOP SIDE FLAT OF TRANSISTOR IS ON BOTTOM

ORDER STYLE

D75Z (P)

FIRST WIRE OFF IS EMITTER (ON PKG. 92) ADHESIVE TAPE IS ON BOTTOM SIDE FLAT OF TRANSISTOR IS ON BOTTOM

FIRST WIRE OFF IS COLLECTOR (ON PKG. 92) ADHESIVE TAPE IS ON BOTTOM SIDE FLAT OF TRANSISTOR IS ON TOP

September 1999, Rev. B

Page 6

TO-92 Tape and Reel Data and Package Dimensions, continued

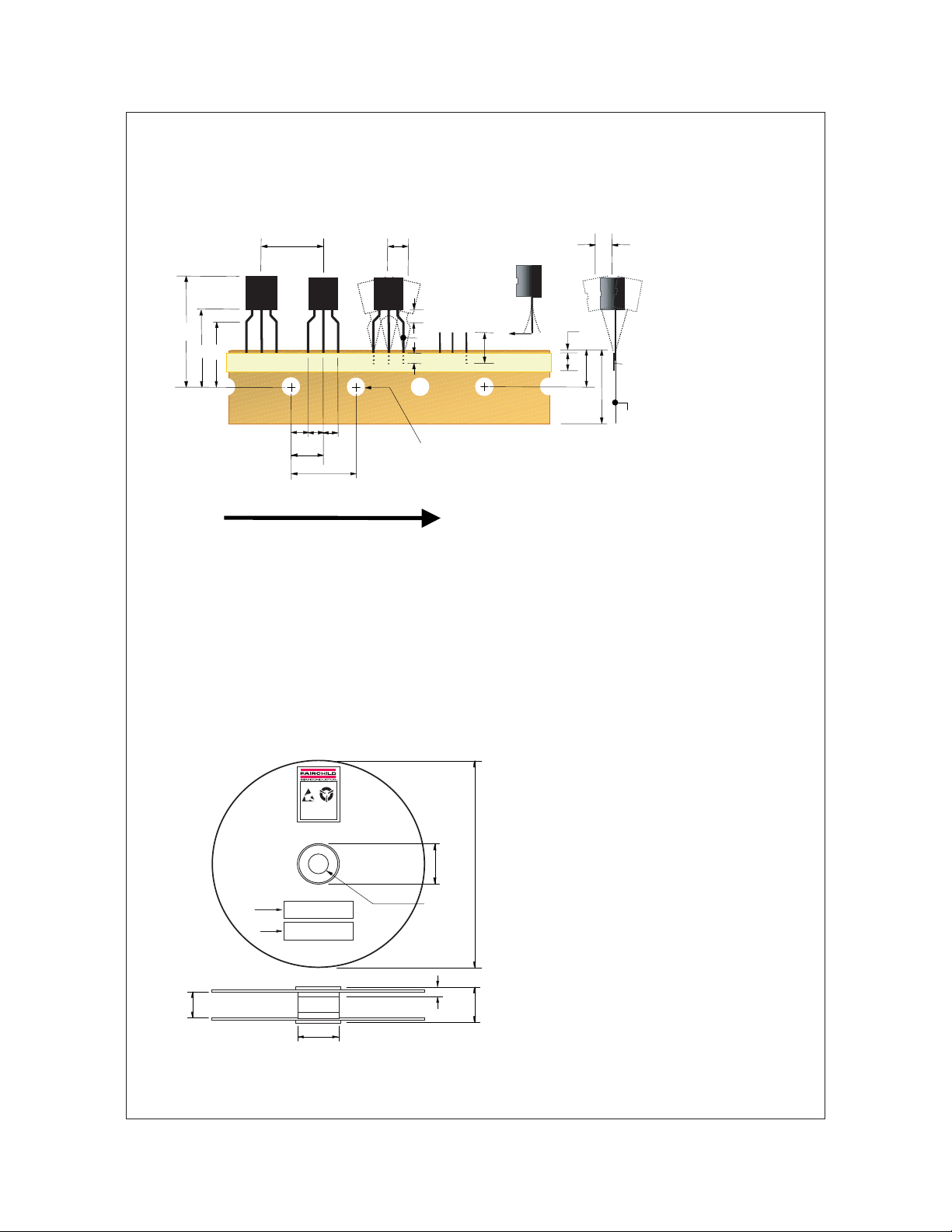

TO-92 Tape and Reel Taping Dimension Configuration: Figure 4.0

P Pd

P1 F1

User Direction of Feed

TO-92 Reel Configuration: Figure 5.0

ITEM DESCRIPTION

Base of Package to Lead Bend Compon en t He ig ht Lead Clinch Height Component Base Height Component Alignment ( side/side ) Component Alignment ( front/back ) Compon en t Pi tc h Feed Hole Pitch Hole Center to First Lead Hole Center to Component Center Lead Spread Lead Thickness Cut Lead Length Taped Lead Length Taped Lead Thickness Carrier Tape Thickness Carrier Tape Width Hold - down Tape Width Hold - down Tape position Feed Hole Position Sprocket Hole Diameter Lead Spring Out

SYMBOL

b Ha HO H1 Pd Hd P PO P1 P2 F1/F2 d L L1 t t1 W WO W1 W2 DO S

DIMENSION

0.098 (m ax )

0.928 (+ /- 0.025)

0.630 (+ /- 0.020)

0.748 (+ /- 0.020)

0.040 (m ax )

0.031 (m ax )

0.500 (+ /- 0.020)

0.500 (+ /- 0.008)

0.150 (+0.009, -0.010)

0.247 (+ /- 0.007)

0.104 (+ /- 0 .010)

0.018 (+0.002, -0.003)

0.429 (m ax )

0.209 (+0.051, -0.052)

0.032 (+ /- 0.006)

0.021 (+ /- 0.006)

0.708 (+0.020, -0.019)

0.236 (+ /- 0.012)

0.035 (m ax )

0.360 (+ /- 0.025)

0.157 (+0.008, -0.007)

0.004 (m ax )

F63TNR Label

Customized Label

ELECTROSTAT I C

SENSITIVE DEVICES

Note : All dimensions are in inches.

ITEM DESCRIPTION SYSMBOL MINIMUM MAXIMUM

Reel Diame t er D1 13.975 14.025 Arbor Hol e Di am et er ( Standard) D2 1.160 1.200

Core Diameter D3 3.100 3.300 Hub Recess Inner Diameter D4 2.700 3.100 Hub Recess Depth W1 0.370 0.570 Flange to Flange Inner Width W2 1.630 1.690 Hub to Hub Center Width W3 2.090

Note: All dimensions are inch es

(Small Hole) D2 0.650 0.700

July 1999, Rev. A

Page 7

TO-92 T ape and Reel Data and Package Dimensions

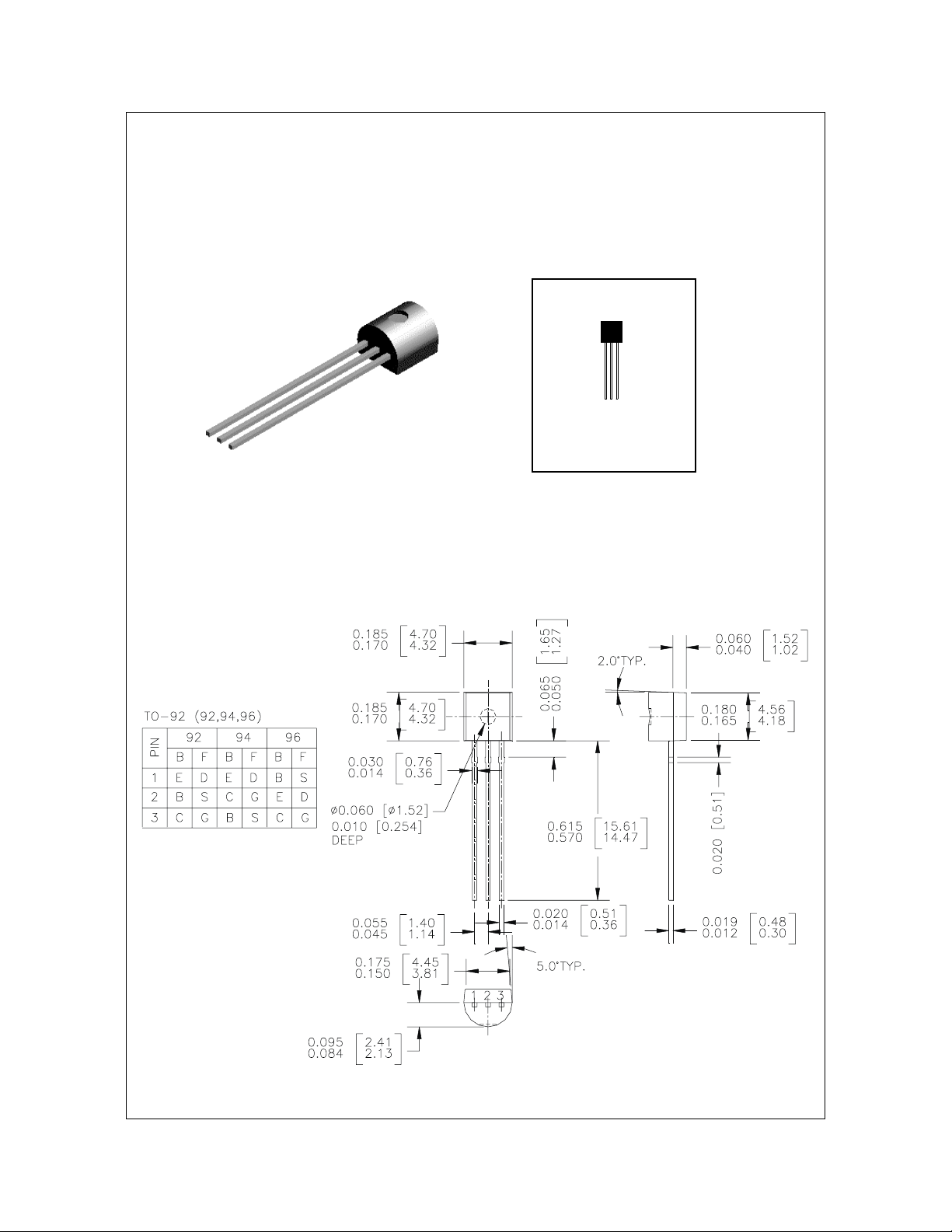

TO-92 (FS PKG Code 92, 94, 96)

Scale 1:1 on letter size paper

Dimensions shown below are in:

inches [millimeters]

Part Weight per unit (gram): 0.1977

1:1

January 2000, Rev. B

Page 8

SOT-23 Tape and Reel Data and Package Dimensions

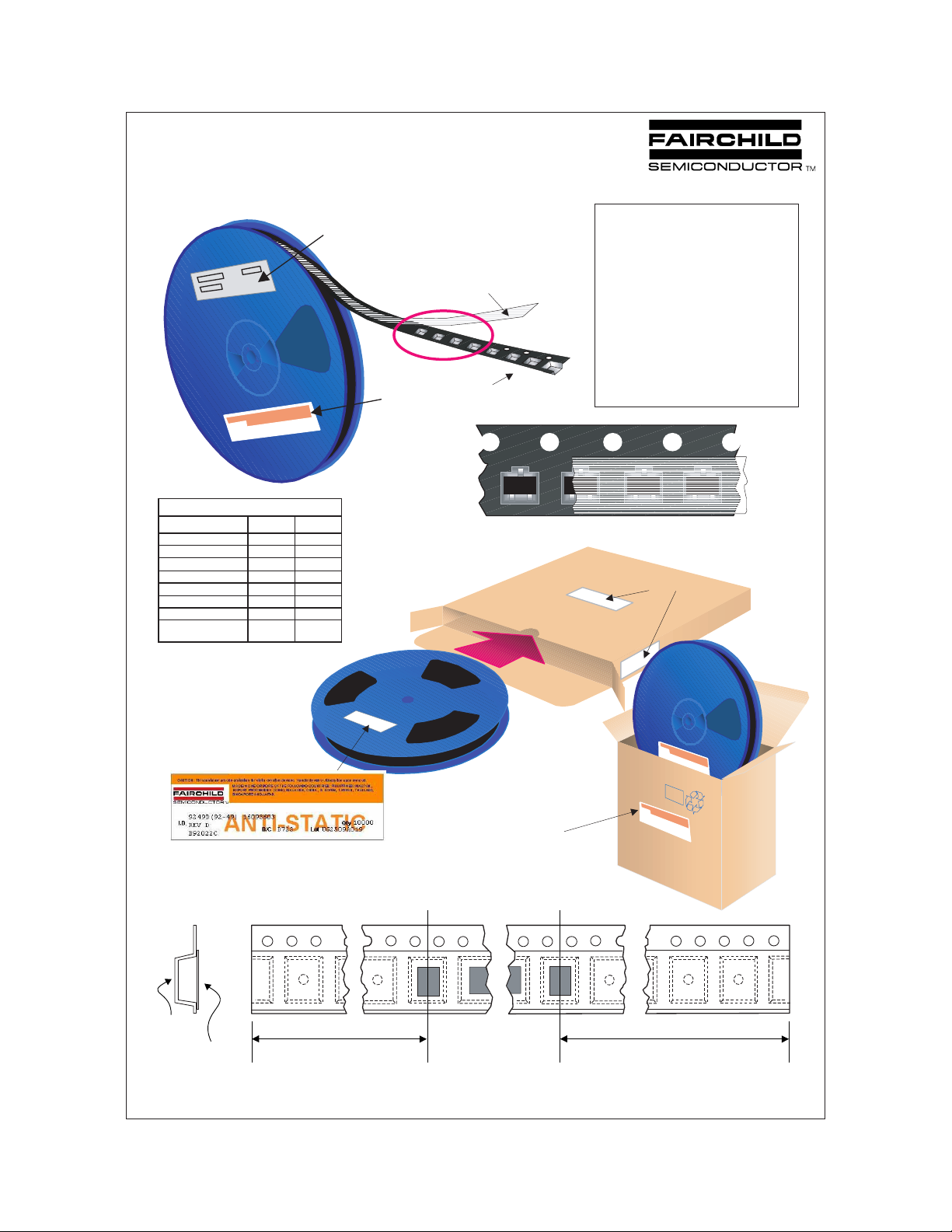

SOT-23 Packaging Configuratio n: Figur e 1.0

SOT-23 Packaging Information

Packaging Option Packaging type

Qty per Reel/Tube/Bag Reel Size Box Dimension (mm) Max qty per B o x Weight per unit (gm) Weight per Reel (kg)

Note/Comments

Customized Label

Stan dard

(no flow code)

3,000 10,000 7" Dia

187x107x183 343x343x64

24,000 30,000

0.0082 0.0082

0.1175 0.4006

TNR

D87Z

TNR

13"

Antistatic Cover Tape

Human Readable

Label

Embossed

Carrier Tape

343mm x 342mm x 64mm

Intermediate box for L87Z Option

Packaging Description:

SOT-23

parts are shipped in tape. The carrier tape is made from a dissipative (carbon filled) polycarbonate resin. The cover tape is a multilayer film (Heat Activated Adhesive in nature) primarily composed of polyester film, adhesive layer, sealant, and anti-static sprayed agent. These reeled parts in standard option are shipped with 3,000 units per 7" or 177cm diameter reel. The reels are dark blue in color and is made of polystyrene plastic (antistatic coated). Other option comes in 10,000 units per 13" or 330cm diameter reel. This and some other opti ons are described in the Packaging Information table.

These full reels are individually labeled and placed inside a standard intermediate made of recyclable corrugated brown paper with a Fairchil d logo printing. One pizza box contains eight reels maximum. And these intermediate boxes are placed inside a labeled shippi ng box which comes in different sizes depending on the number of parts shipped.

3P 3P 3P 3P

SOT-23 Unit Orientation

Human Readable Label

Human Readable Label sample

SOT-23 Tape Leader and Trailer

Configuration: Figure 2.0

Carrier Tape

Cover Tape

Trailer Tape 300mm minimum or

75 empty pocke t s

Components

Human readable Label

187mm x 107mm x 183mm

Intermediate Box for Standard Option

Leader Tape 500mm minimum or

125 empty pockets

September 1999, Rev. C

Page 9

SOT-23 Tape and Reel Data and Package Dimensions, continued

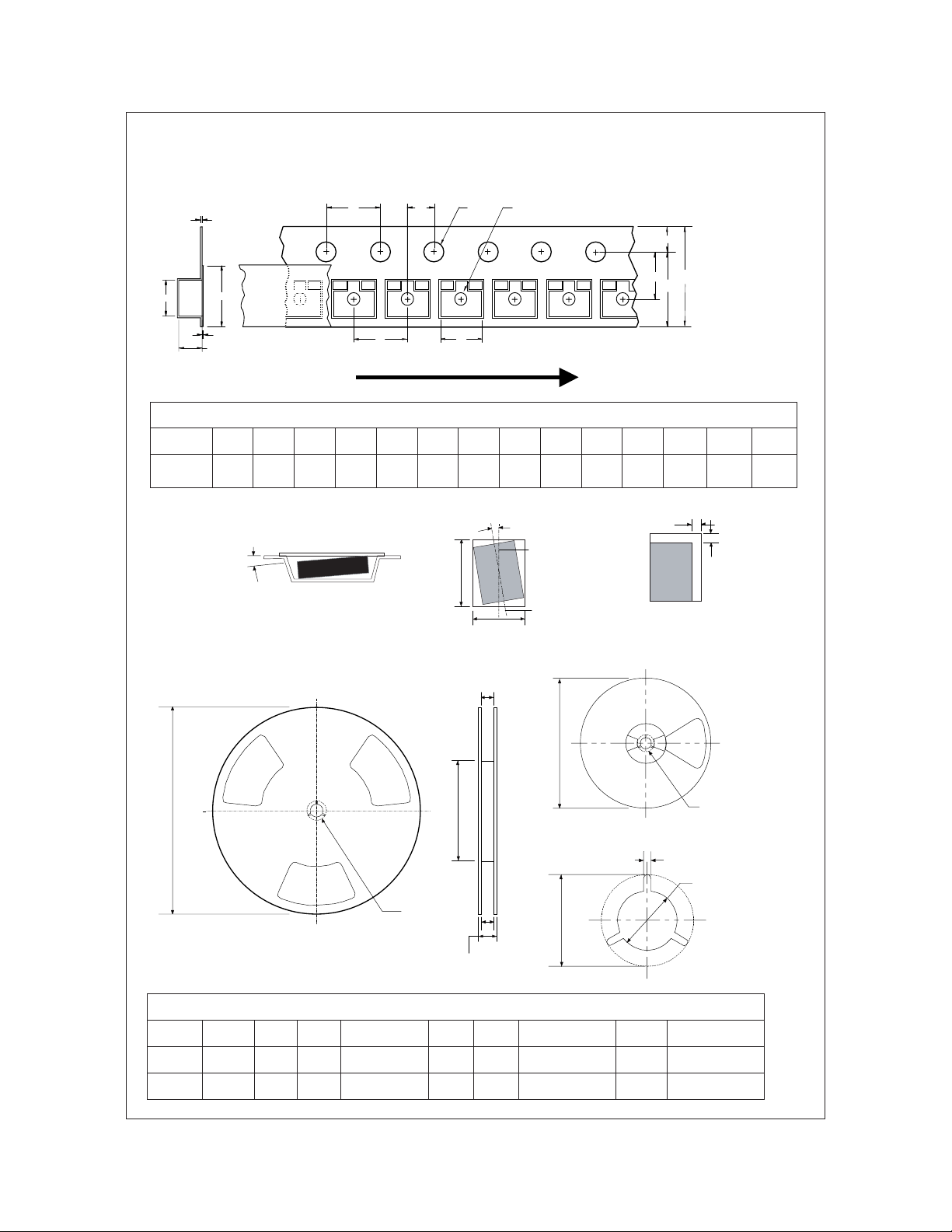

SOT-23 Embossed Carrier Tape Confi guratio n: Figure 3.0

D0P0 P2

User Direction of Feed

Dimensions are in millimeter

Pkg type

SOT-23

(8mm)

Notes: A0, B0, and K0 dimensions are determined with respect to the EIA/Jedec RS-481

SOT-23 Reel Configuration: Figure 4.0

A0 B0 W D0 D1 E1 E2 F P1 P0 K0 T Wc Tc

3.15

2.77

8.0

1.55

1.125

1.75

6.25

+/-0.10

+/-0.3

+/-0.05

+/-0.125

+/-0.10

3.50

min

+/-0.05

rotational and lateral movement requirements (see sketches A, B, and C).

20 deg maximum

20 deg maximum component rotation

Sketch A (Side or Front Sectional View)

Component Rotation

W1 Measured at Hub

Sketch B (Top View)

Component Rotation

4.0 +/-0.1

Typical component cavity center line

Typical component center line

Dim A

Max

4.0 +/-0.1

1.30

0.228 +/-0.013

5.2 +/-0.3

0.5mm maximum

+/-0.10

0.5mm maximum

Sketch C (Top View)

Component lateral movement

0.06 +/-0.02

Dim A

max

Tape Size

8mm 7" Dia

8mm 13" Dia

Reel

Option

Dim N

Diameter Option

See detail AA

B Min

Dim C

13" Diameter Option

See detail AA

W2 max Measured at Hub

Dim D

min

DETAIL AA

Dimensions are in inches and millimeters

Dim A Dim B Dim C Dim D Dim N Dim W1 Dim W2 Dim W3 (LSL-USL)

7.00

0.059

177.8

13.00 330

1.5

0.059

1.5

512 +0.020/-0.008 13 +0.5/-0.2

0.795

2.165550.331 +0.059/-0.000

20.2

0.795

4.00

20.2

100

8.4 +1.5/0

0.331 +0.059/-0.000

8.4 +1.5/0

0.567

14.4

0.567

14.4

0.311 – 0.429

7.9 – 10.9

0.311 – 0.429

7.9 – 10.9

September 1999, Rev. C

Page 10

SOT-23 Tape and Reel Data and Package Dimensions, continued

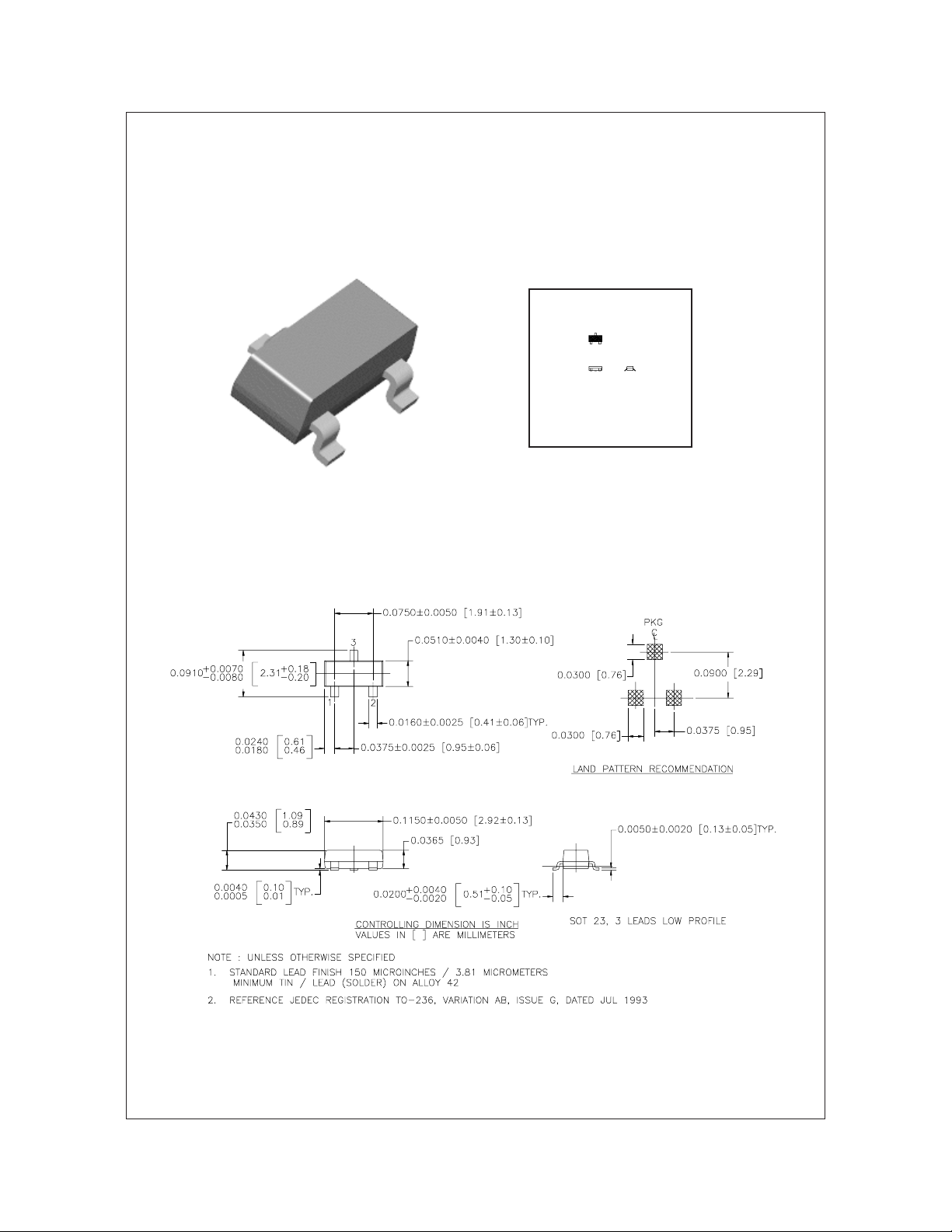

SOT-23 (FS PKG Code 49)

1:1

Scale 1:1 on letter size paper

Dimensions shown below are in:

inches [millimeters]

Part Weight per unit (gr am): 0.0082

September 1998, Rev. A1

Page 11

SOT-223 Tape and Reel Data and Package Dimensions

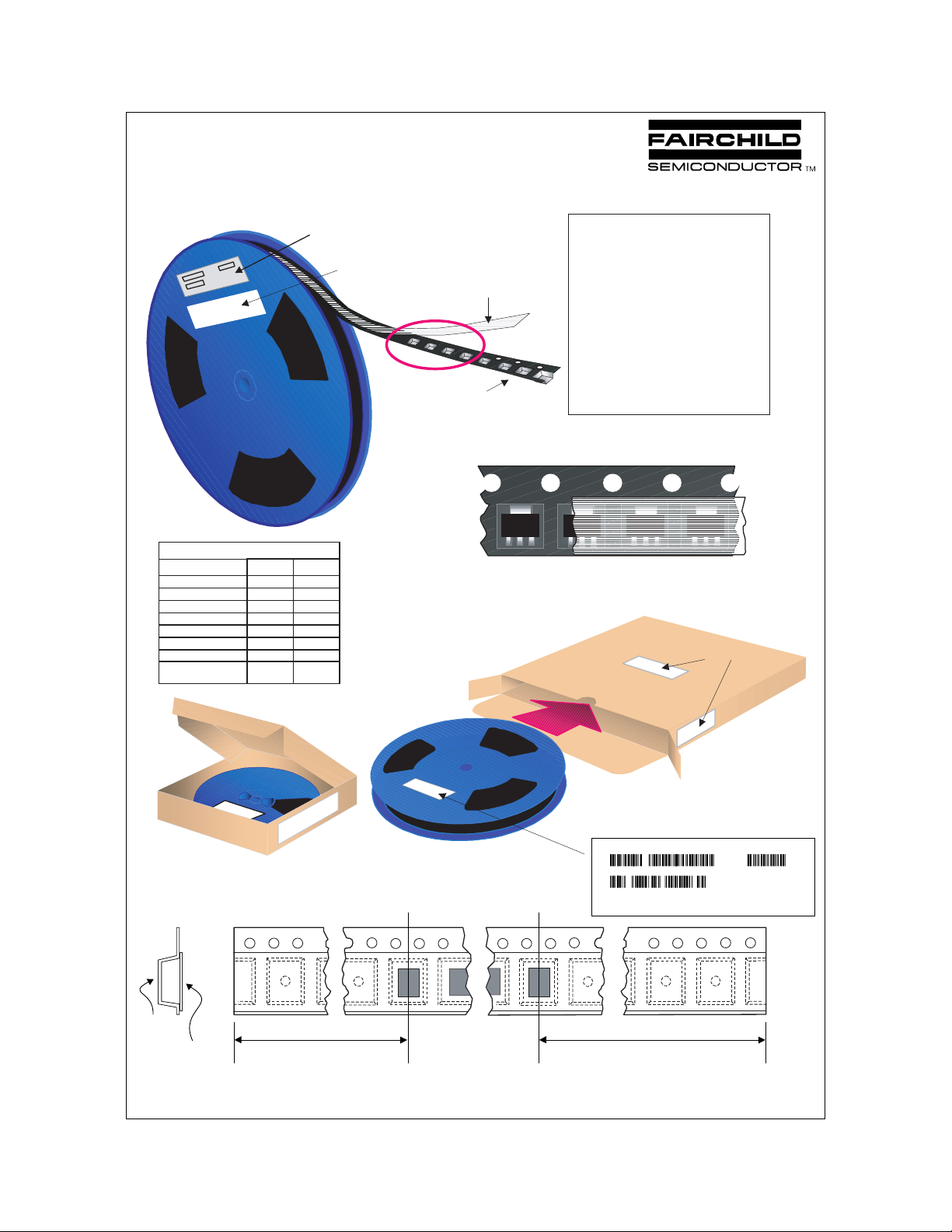

SOT-223 Packaging Configuration: Figure 1.0

Customized Label

F63TNR Label

Antistatic Cover Tape

Static Dissipative

Embossed Car rier Tape

Packaging Description:

SOT-223 parts are shipped in tape. The carrier tape is made from a dissipative (carbon filled) polycarbonate resin. The cover tape is a multilayer film (Heat Activated Adhesive in nature) primarily composed of polyester film, adhesive layer, sealant, and anti-static sprayed agent. These reeled parts in standard option are shipped with 2,500 uni t s pe r 13" o r 33 0c m d ia met er reel . Th e reel s ar e dark blue in color and is made of polystyrene plastic (antistatic coated). Other option comes in 500 units per 7" or 177cm di ameter reel. This and some o ther options are further described in the Packaging Information table.

These full reels are individually barcode labeled and placed inside a standard intermediate box (illustrated in figure 1.0) made of recyclable corrugated brown paper. One box contains two reels maximum. And these boxes are placed inside a barcode labeled shipping box which comes in di ff ere nt siz es depe nd in g on th e num be r of pa rts shippe d.

SOT-223 Packaging Information

Packaging Option Packaging type

Qty per Reel/Tube/Bag Reel Size Box Dimension (mm) Max qty per Box Weight per unit (gm) Weight per Reel (kg)

Note/Comments

Standard

(no flow code)

13" Dia

343x64x343 184x187x47

0.1246 0.1246

0.7250 0.1532

D84Z

TNR

2,500 500

5,000 1,000

TNR

7" Dia

F63TNR Label

184mm x 184mm x 47mm

Pizza Box for D84Z Opti on

SOT-223 Tape Leader and Trailer Configuration: Figure 2.0

014

852

014

852

SOT-223 Unit Orientation

343mm x 342mm x 64mm

Intermediate box for Standard

014

852

014

852

F63TNR Label sample

LOT: CBVK741B019

FSID: PN2222A

D/C1: D9842 QTY1: SPEC REV: D/C2: QTY2: CPN:

F63TNR Label

QTY: 3000

SPEC:

N/F: F (F63TNR)3

Carrier Tape

Cover Tape

Trailer Tape 300mm minimum or 38 empty pockets

Components

Leader Tape 500mm minimum or 62 empty pockets

September 1999, Rev. B

Page 12

SOT-223 Tape and Reel Data and Package Dimensions, continued

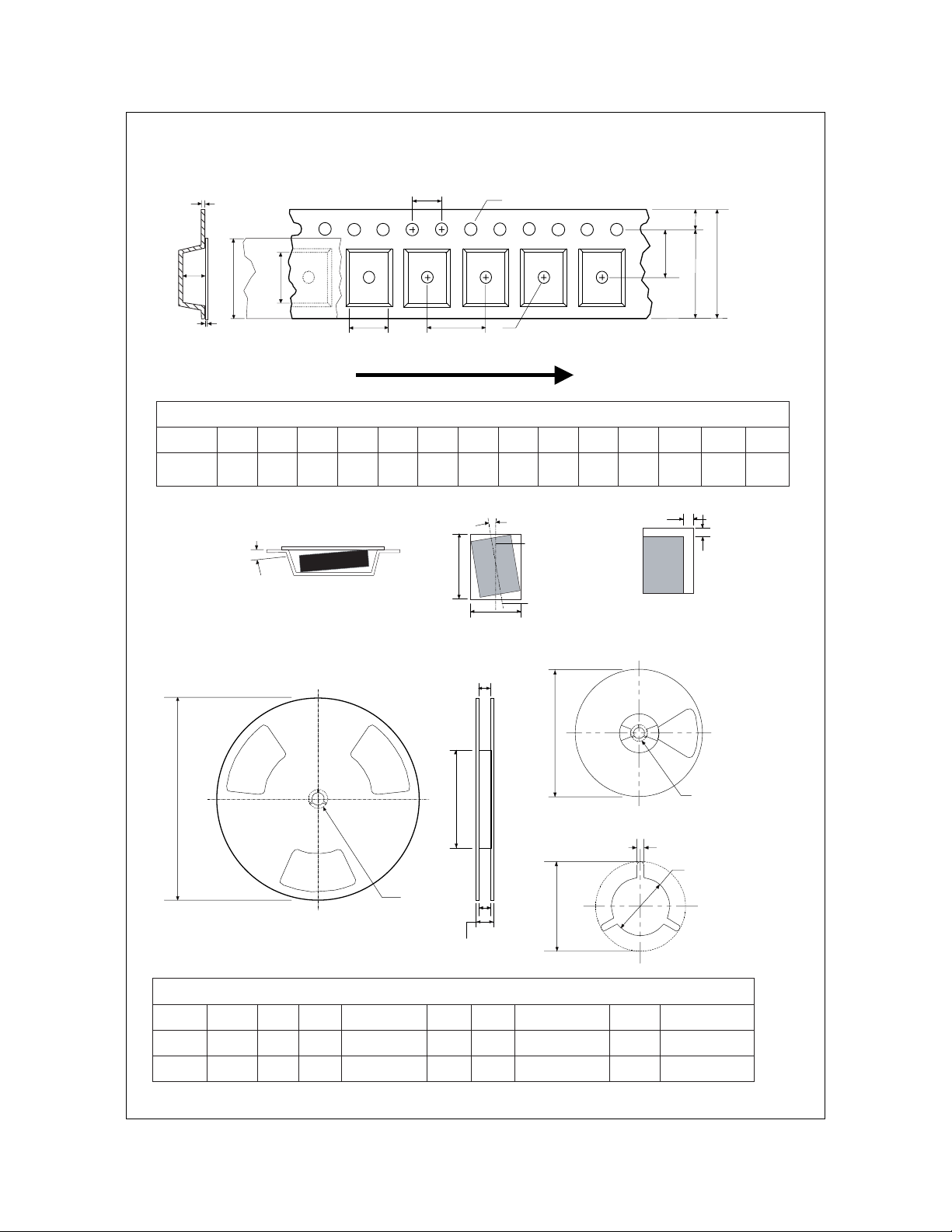

SOT-223 Embossed Carrier Tape Configuration: Figure 3.0

User Direction of Feed

Dimensions are in millimeter

Pkg type

SOT-223

(12mm)

Notes: A0, B0, and K0 dimensions are determined with respect to the EIA/Jedec RS-481

SOT-223 Reel Configuration: Figure 4.0

A0 B0 W D0 D1 E1 E2 F P1 P0 K0 T Wc Tc

6.83

7.42

12.0

1.55

1.50

1.75

10.25

+/-0.10

+/-0.3

+/-0.05

+/-0.10

rotational and lateral movement requirements (see sketches A, B, and C).

20 deg maximum component rotation

Sketch A (Side or Front Sectional View)

Component Rotation

5.50

min

+/-0.05

20 deg maximum

Sketch B (Top View)

Component Rotation

W1 Measured at Hub

8.0 +/-0.1

Typical component cavity center line

Typical component center line

Dim A

Max

4.0 +/-0.1

0.292

1.88 +/-0.10

0.5mm maximum

Sketch C (Top View)

Component lateral movement

+/-

0.0130

9.5 +/-0.025

0.5mm maximum

0.06 +/-0.02

Dim A

max

Tape Size

12mm 7" Dia

12mm 13" Dia

Reel

Option

Dim N

Diameter Option

See detail AA

B Min

Dim C

13" Diameter Option

See detail AA

W2 max Measured at Hub

Dim D

min

DETAIL AA

Dimensions are in inches and millimeters

Dim A Dim B Dim C Dim D Dim N Dim W1 Dim W2 Dim W3 (LSL-USL)

7.00

0.059

177.8

13.00 330

1.5

0.059

1.5

512 +0.020/-0.008 13 +0.5/-0.2

0.795

20.2

0.795

20.2

5.906 150

7.00 178

0.488 +0.078/-0.000

12.4 +2/0

0.488 +0.078/-0.000

12.4 +2/0

0.724

18.4

0.724

18.4

0.469 – 0.606

11.9 – 15.4

0.469 – 0.606

11.9 – 15.4

July 1999, Rev. B

Page 13

SOT-223 Tape and Reel Data and Package Dimensions, continued

SOT-223 (FS PKG Code 47)

1 : 1

Scale 1:1 on letter size paper

Part Weight per unit (gram): 0.1246

September 1999, Rev. C

Page 14

TRADEMARKS

The following are registered and unregistered trademarks Fairchild Semiconductor owns or is authorized to use and is not intended to be an exhaustive list of all such trademarks.

ACEx™ Bottomless™ CoolFET™ CROSSVOLT™

CMOS

FACT™ FACT Quiet Series™



FAST FASTr™ GTO™

HiSeC™ ISOPLANAR™ MICROWIRE™ POP™ PowerTrench



QFET™ QS™

Quiet Series™ SuperSOT™-3 SuperSOT™-6

SuperSOT™-8 SyncFET™ TinyLogic™ UHC™ VCX™

DISCLAIMER

FAIRCHILD SEMICONDUCTOR RESERVES THE RIGHT TO MAKE CHANGES WITHOUT FURTHER NOTICE TO ANY PRODUCTS HEREIN TO IMPROVE RELIABILITY, FUNCTION OR DESIGN. FAIRCHILD DOES NOT ASSUME ANY LIABILITY ARISING OUT OF THE APPLICATION OR USE OF ANY PRODUCT OR CIRCUIT DESCRIBED HEREIN; NEITHER DOES IT CONVEY ANY LICENSE UNDER ITS PATENT RIGHTS, NOR THE RIGHTS OF OTHERS.

LIFE SUPPORT POLICY

FAIRCHILD’S PRODUCTS ARE NOT AUTHORIZED FOR USE AS CRITICAL COMPONENTS IN LIFE SUPPORT DEVICES OR SYSTEMS WITHOUT THE EXPRESS WRITTEN APPROVAL OF FAIRCHILD SEMICONDUCTOR CORPORATION. As used herein:

1. Life support devices or systems are devices or systems which, (a) are intended for surgical implant into the body, or (b) support or sustain life, or (c) whose failure to perform when properly used in accordance with instructions for use provided in the labeling, can be reasonably expected to result in significant injury to the user.

2. A critical component is any component of a life support device or system whose failure to perform can be reasonably expected to cause the failure of the life support device or system, or to affect its safety or

effectiveness.

PRODUCT STA TUS DEFINITIONS Definition of Terms

Datasheet Identification Product Status Definition

Advance Information

Preliminary

No Identification Needed

Obsolete

Formative or In Design

First Production

Full Production

Not In Production

This datasheet contains the design specifications for product development. Specifications may change in any manner without notice.

This datasheet contains preliminary data, and supplementary data will be published at a later date. Fairchild Semiconductor reserves the right to make changes at any time without notice in order to improve design.

This datasheet contains final specifications. Fairchild Semiconductor reserves the right to make changes at any time without notice in order to improve design.

This datasheet contains specifications on a product that has been discontinued by Fairchild semiconductor. The datasheet is printed for reference information only.

Rev. E
