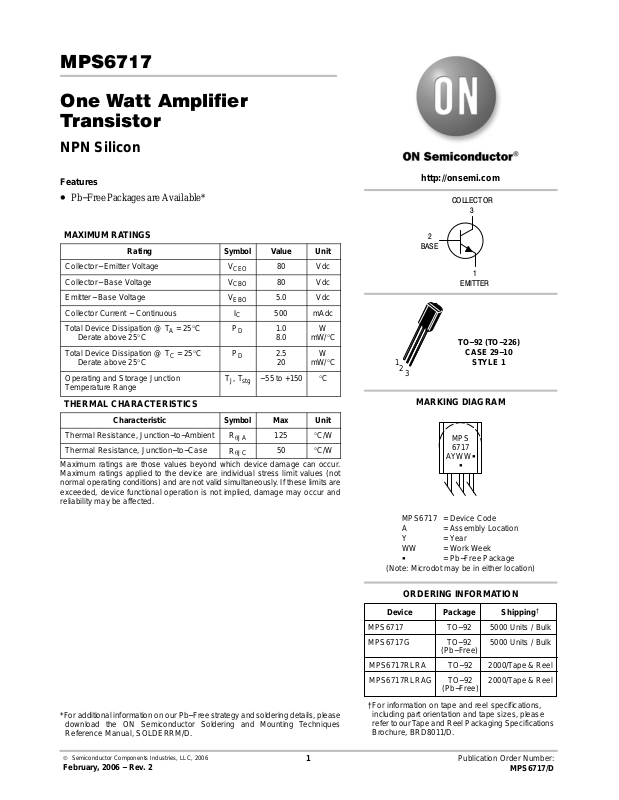

MPS6717

l l

One Watt Amplifier Transistor

NPN Silicon

Features

• Pb−Free Packages are Available*

MAXIMUM RATINGS

Rating Symbol Value Unit

Collector− Emitter Voltage V Collector− Base Voltage V Emitter− Base Voltage V Collector Current − Continuous I Total Device Dissipation @ TA = 25°C

Derate above 25°C

Total Device Dissipation @ TC = 25°C

Derate above 25°C

Operating and Storage Junction Temperature Range

CEO CBO EBO

TJ, T

stg

THERMAL CHARACTERISTICS

Characteristic Symbol Max Unit

Thermal Resistance, Junction−to−Ambient Thermal Resistance, Junction−to−Case

Maximum ratings are those values beyond which device damage can occur. Maximum ratings applied to the device are individual stress limit values (not normal operating conditions) and are not valid simultaneously. If these limits are exceeded, device functional operation is not implied, damage may occur and reliability may be affected.

80 Vdc 80 Vdc

5.0 Vdc

500 mAdc

1.0

8.0

2.5 20

−55 to +150 °C

125 °C/W

50 °C/W

mW/°C

http://onsemi.com

COLLECTOR

BASE

MARKING DIAGRAM

MPS 6717

AYWWG

EMITTER

TO−92 (TO−226)

CASE 29−10

STYLE 1

*For additional information on our Pb−Free strategy and soldering details, please

download the ON Semiconductor Soldering and Mounting Techniques Reference Manual, SOLDERRM/D.

February, 2006 − Rev. 2

1 Publication Order Number:

MPS6717 = Device Code A = Assembly Location Y = Year WW = Work Week G = Pb−Free Package

(Note: Microdot may be in either location)

ORDERING INFORMATION

Device Package Shipping

MPS6717 TO−92 5000 Units / Bulk MPS6717G TO−92

MPS6717RLRA TO−92 2000/Tape & Ree MPS6717RLRAG TO−92

†For information on tape and reel specifications,

including part orientation and tape sizes, please refer to our Tape and Reel Packaging Specification Brochure, BRD8011/D.

(Pb−Free)

5000 Units / Bulk

2000/Tape & Ree

†

MPS6717/D

Page 2

MPS6717

ELECTRICAL CHARACTERISTICS (T

= 25°C unless otherwise noted)

Characteristic Symbol Min Max Unit

OFF CHARACTERISTICS

Collector− Emitter Breakdown Voltage (Note 1)

(IC = 1.0 mAdc, IB = 0)

Collector− Base Breakdown Voltage

(IC = 100 mAdc, IE = 0)

Emitter− Base Breakdown Voltage

(IE = 10 mAdc, IC = 0)

Collector Cutoff Current

(VCB = 60 Vdc, IE = 0)

Emitter Cutoff Current

(VEB = 5.0 Vdc, IC = 0)

ON CHARACTERISTICS

DC Current Gain

(IC = 50 mAdc, VCE = 1.0 Vdc) (IC = 250 mAdc, VCE = 1.0 Vdc)

Collector− Emitter Saturation Voltage

(IC = 250 mAdc, IB = 10 mAdc)

Base− Emitter On Voltage

(IC = 250 mAdc, VCE = 1.0 Vdc)

SMALL− SIGNAL CHARACTERISTICS

Collector−Base Capacitance

(VCB = 10 Vdc, IE = 0, f = 1.0 MHz)

Small−Signal Current Gain

(IC = 200 mAdc, VCE = 5.0 Vdc, f = 20 MHz)

1. Pulse Test: Pulse Width v 300 ms; Duty Cycle v 2.0%.

(BR)CEO

(BR)CBO

(BR)EBO

CBO

EBO

CE(sat)

BE(on)

80 − Vdc

5.0 − Vdc

− 0.1

− 10

mAdc

− 80 50

−

250

− 0.5 Vdc

− 1.2 Vdc

− 30 pF

2.5 25 −

400

TJ = 125°C

200

25°C

−55°C

100

, DC CURRENT GAIN

0.5 0.7 1.0 2.0 3.0 5.0 7.0

10 20 30 50 70 100 200

IC, COLLECTOR CURRENT (mA)

Figure 1. DC Current Gain

VCE = 1.0 V

300 500

http://onsemi.com

Page 3

MPS6717

1.0

0.8

IC = 10 mA

0.6

0.4

0.2

, COLLECTOR−EMITTER VOLTAGE (VOLTS)

0.1 101.0

0.05 0.2 0.5 2.0 5.0 20

100 mA 250 mA

IB, BASE CURRENT (mA)

Figure 2. Collector Saturation Region

−0.8

−1.2

−1.6

qVB for V

−2.0

−2.4

, TEMPERATURE COEFFICIENT (mV/ C)°θ

−2.8

1.0 10010

0.5 2.0 5.0 20 50 200

IC, COLLECTOR CURRENT (mA)

500 mA

TJ = 25°C

500

1.0

TJ = 25°C

0.8 V

@ IC/IB = 10

BE(sat)

0.6

0.4

V, VOLTAGE (VOLTS)

0.2

@ IC/IB = 10

0.5 1.0 20020

CE(sat)

5.0 10 50 100

2.0 500 IC, COLLECTOR CURRENT (mA)

Figure 3. “On” Voltages

C, CAPACITANCE (pF)

8.0

6.0

4.0

VR, REVERSE VOLTAGE (VOLTS)

BE(on)

@ VCE = 1.0 V

ibo

TJ = 25°C

obo

1005020105.02.01.00.50.20.1

Figure 4. Base−Emitter Temperature Coefficient

300

VCE = 2.0 V TJ = 25°C

200

100

f, CURRENT−GAIN  BANDWIDTH PRODUCT (MHz)

IC, COLLECTOR CURRENT (mA)

Figure 6. Current−Gain — Bandwidth Product

, COLLECTOR CURRENT (mA)

20070503020107.05.03.02.0

100

http://onsemi.com

Figure 5. Capacitance

DUTY CYCLE ≤ 10%

2 k

1 k

500

200

100

TA = 25°C

1.0

CURRENT LIMIT THERMAL LIMIT SECOND BREAKDOWN LIMIT

2.0 5.0

VCE, COLLECTOR−EMITTER VOLTAGE (VOLTS)

TC = 25°C

MPS6717

10 20 60 80 100

1.0 ms

1.0 s

dcdc

Figure 7. Active Region — Safe Operating Area

100 ms

Page 4

MPS6717

TO−92 (TO−226)

PACKAGE DIMENSIONS

CASE 29−10

ISSUE AL

SEATING PLANE

SECTION X−X

NOTES:

1. DIMENSIONING AND TOLERANCING PER ANSI Y14.5M, 1982.

2. CONTROLLING DIMENSION: INCH.

3. CONTOUR OF PACKAGE BEYOND DIMENSION R IS UNCONTROLLED.

4. DIMENSION F APPLIES BETWEEN P AND L. DIMENSIONS D AND J APPLY BETWEEN L AND K MIMIMUM. LEAD DIMENSION IS UNCONTROLLED IN P AND BEYOND DIMENSION K MINIMUM.

DIM MIN MAX MIN MAX

A 0.175 0.205 4.44 5.21 B 0.290 0.310 7.37 7.87 C 0.125 0.165 3.18 4.19 D 0.018 0.021 0.457 0.533 F 0.016 0.019 0.407 0.482 G 0.045 0.055 1.15 1.39 H 0.095 0.105 2.42 2.66 J 0.018 0.024 0.46 0.61 K 0.500 −−− 12.70 −−− L 0.250 −−− 6.35 −−− N 0.080 0.105 2.04 2.66 P −−− 0.100 −−− 2.54 R 0.135 −−− 3.43 −−−

STYLE 1:

PIN 1. EMITTER

2. BASE

3. COLLECTOR

MILLIMETERSINCHES
