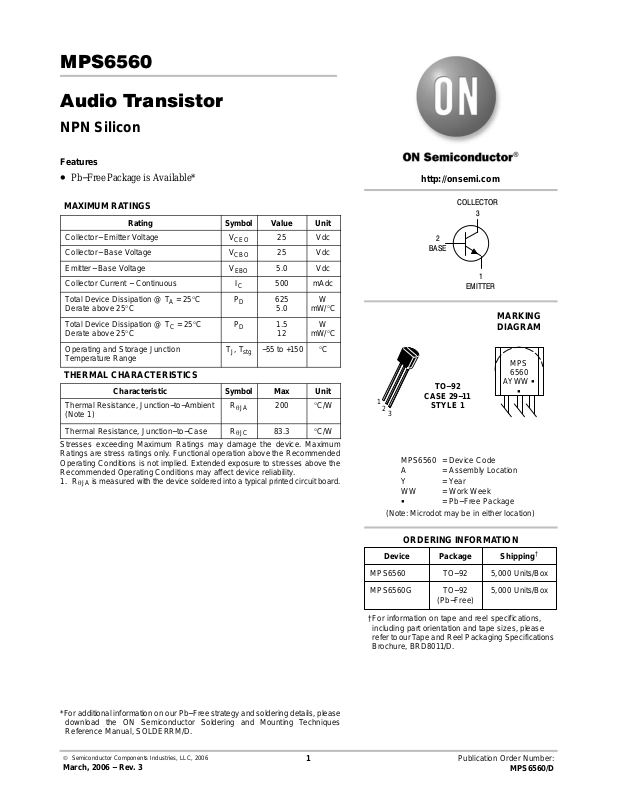

MPS6560
s
Audio Transistor
NPN Silicon
Features
• Pb−Free Package is Available*
http://onsemi.com
MAXIMUM RATINGS
Rating Symbol Value Unit
Collector− Emitter Voltage V
Collector− Base Voltage V
Emitter− Base Voltage V
Collector Current − Continuous I
Total Device Dissipation @ TA = 25°C
Derate above 25°C
Total Device Dissipation @ TC = 25°C
Derate above 25°C
Operating and Storage Junction
Temperature Range
TJ, T
CEO
CBO
EBO
C
P
P
D
D
stg
25 Vdc
25 Vdc
5.0 Vdc
500 mAdc
625
5.0
1.5
12
−55 to +150 °C
W
mW/°C
W
mW/°C
THERMAL CHARACTERISTICS
Characteristic Symbol Max Unit
Thermal Resistance, Junction−to−Ambient
(Note 1)
Thermal Resistance, Junction−to−Case
Stresses exceeding Maximum Ratings may damage the device. Maximum
Ratings are stress ratings only. Functional operation above the Recommended
Operating Conditions is not implied. Extended exposure to stresses above the
Recommended Operating Conditions may affect device reliability.
1. R
is measured with the device soldered into a typical printed circuit board.
q
JA
R
q
JA
R
q
JC
200 °C/W
83.3 °C/W
COLLECTOR
3
2
BASE
1
EMITTER
MARKING
DIAGRAM
TO−92
1
2
3
(Note: Microdot may be in either location)
CASE 29−11
STYLE 1
MPS6560 = Device Code
A = Assembly Location
Y = Year
WW = Work Week
G = Pb−Free Package
AYWW G
MPS
6560
G
*For additional information on our Pb−Free strategy and soldering details, please
download the ON Semiconductor Soldering and Mounting Techniques
Reference Manual, SOLDERRM/D.
© Semiconductor Components Industries, LLC, 2006
March, 2006 − Rev. 3
1 Publication Order Number:
ORDERING INFORMATION
Device Package Shipping
MPS6560 TO−92 5,000 Units/Box
MPS6560G TO−92
(Pb−Free)
†For information on tape and reel specifications,
including part orientation and tape sizes, please
refer to our Tape and Reel Packaging Specification
Brochure, BRD8011/D.
5,000 Units/Box
MPS6560/D
†

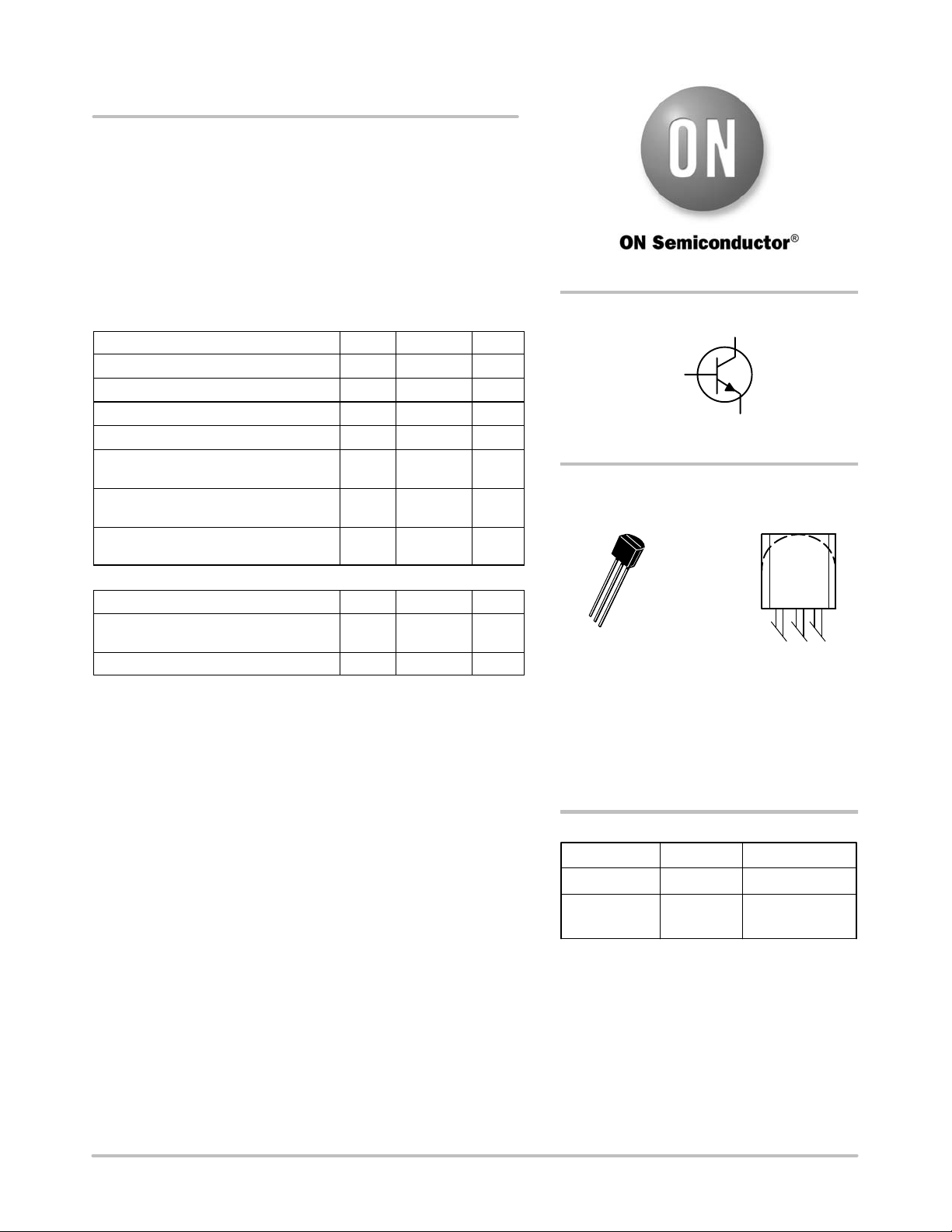

Page 2
MPS6560
ELECTRICAL CHARACTERISTICS (T
= 25°C unless otherwise noted)
A
Characteristic Symbol Min Max Unit
OFF CHARACTERISTICS
Collector− Emitter Breakdown Voltage (Note 2)
(IC = 10 mAdc, IB = 0)
Collector− Base Breakdown Voltage
(IC = 100 mAdc, IE = 0)
Emitter− Base Breakdown Voltage
(IE = 100 mAdc, IC = 0)
Collector Cutoff Current
(VCE = 25 Vdc, IB = 0)
Collector Cutoff Current
(VCB = 20 Vdc, IE = 0)
Emitter Cutoff Current
(V
= 4.0 Vdc, IC = 0)
EB(off)
ON CHARACTERISTICS (Note 2)
DC Current Gain
(IC = 10 mAdc, VCE = 1.0 Vdc)
(IC = 100 mAdc, VCE = 1.0 Vdc)
(IC = 500 mAdc, VCE = 1.0 Vdc)
Collector− Emitter Saturation Voltage
(IC = 500 mAdc, IB = 50 mAdc)
Base− Emitter On Voltage
(IC = 500 mAdc, VCE = 1.0 Vdc)
SMALL− SIGNAL CHARACTERISTICS
Current−Gain — Bandwidth Product
(IC = 10 mAdc, VCE = 10 Vdc, f = 20 MHz)
Output Capacitance
(VCB = 10 Vdc, IE = 0, f = 1.0 MHz)
2. Pulse Test: Pulse Width v 300 ms; Duty Cycle v 2.0%.
V
(BR)CEO
V
(BR)CBO
V
(BR)EBO
I
CES
I
CBO
I
EBO
h
V
CE(sat)
V
BE(on)
f
C
obo
FE
25 − Vdc
25 − Vdc
5.0 − Vdc
− 100 nAdc
− 100 nAdc
− 100 nAdc
−
35
50
50
−
−
200
− 0.5 Vdc
− 1.2 Vdc
T
60 − MHz
− 30 pF
http://onsemi.com
2
Page 3
MPS6560

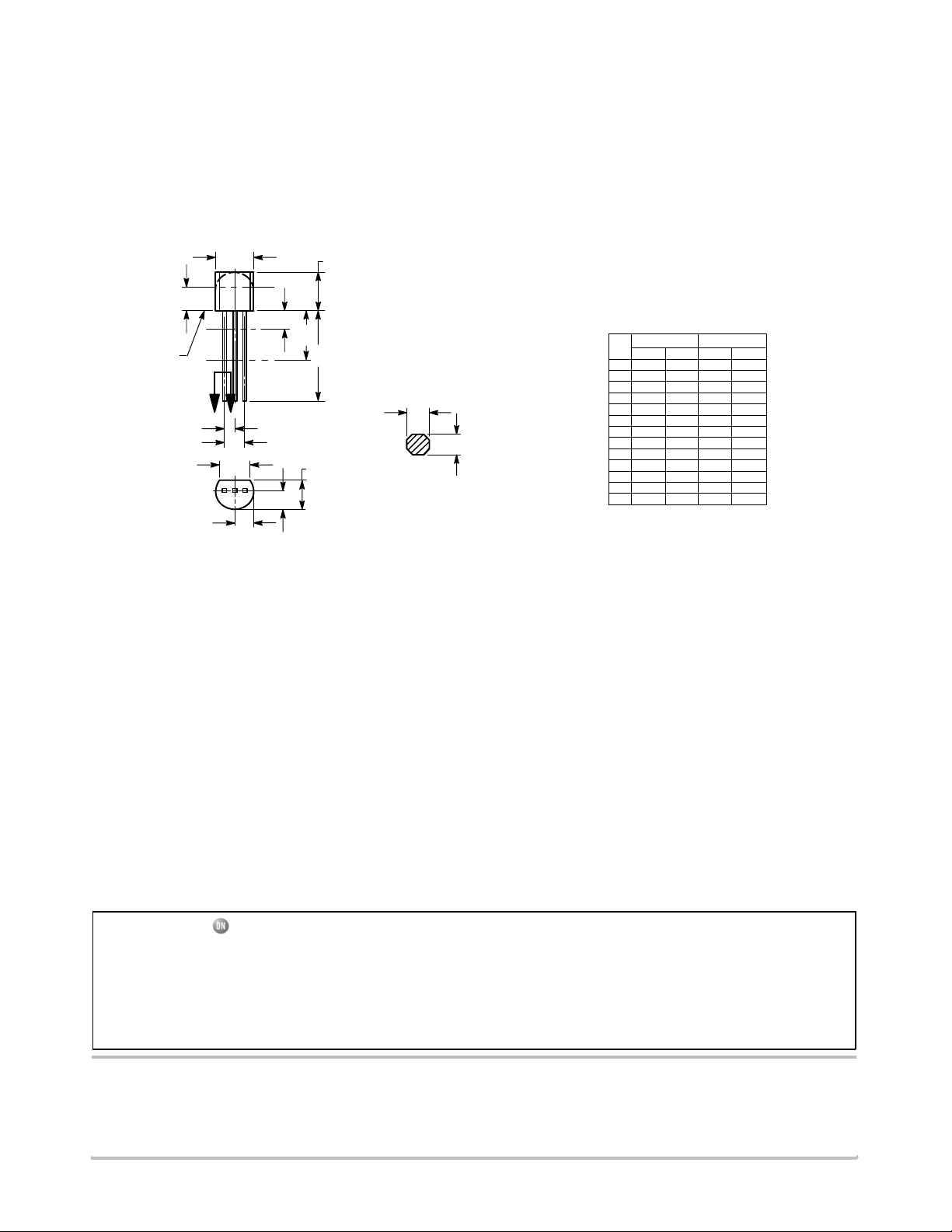

PACKAGE DIMENSIONS
TO−92 (TO−226)
CASE 29−11
ISSUE AL
SEATING
PLANE
A
B
R
P
L
K
XX
V
1
G
H
C
N
D
J
SECTION X−X
N
NOTES:
1. DIMENSIONING AND TOLERANCING PER ANSI
Y14.5M, 1982.
2. CONTROLLING DIMENSION: INCH.
3. CONTOUR OF PACKAGE BEYOND DIMENSION R
IS UNCONTROLLED.
4. LEAD DIMENSION IS UNCONTROLLED IN P AND
BEYOND DIMENSION K MINIMUM.
DIM MIN MAX MIN MAX
A 0.175 0.205 4.45 5.20
B 0.170 0.210 4.32 5.33
C 0.125 0.165 3.18 4.19
D 0.016 0.021 0.407 0.533
G 0.045 0.055 1.15 1.39
H 0.095 0.105 2.42 2.66
J 0.015 0.020 0.39 0.50
K 0.500 −−− 12.70 −−−
L 0.250 −−− 6.35 −−−
N 0.080 0.105 2.04 2.66
P −−− 0.100 −−− 2.54
R 0.115 −−− 2.93 −−−
V 0.135 −−− 3.43 −−−
STYLE 1:
PIN 1. EMITTER
2. BASE
3. COLLECTOR
MILLIMETERSINCHES
ON Semiconductor and are registered trademarks of Semiconductor Components Industries, LLC (SCILLC). SCILLC reserves the right to make changes without further notice
to any products herein. SCILLC makes no warranty, representation or guarantee regarding the suitability of its products for any particular purpose, nor does SCILLC assume any liability
arising out of the application or use of any product or circuit, and specifically disclaims any and all liability, including without limitation special, consequential or incidental damages.
“Typical” parameters which may be provided in SCILLC data sheets and/or specifications can and do vary in different applications and actual performance may vary over time. All
operating parameters, including “Typicals” must be validated for each customer application by customer’s technical experts. SCILLC does not convey any license under its patent rights
nor the rights of others. SCILLC products are not designed, intended, or authorized for use as components in systems intended for surgical implant into the body, or other applications
intended to support or sustain life, or for any other application in which the failure of the SCILLC product could create a situation where personal injury or death may occur. Should
Buyer purchase or use SCILLC products for any such unintended or unauthorized application, Buyer shall indemnify and hold SCILLC and its officers, employees, subsidiaries, affiliates,
and distributors harmless against all claims, costs, damages, and expenses, and reasonable attorney fees arising out of, directly or indirectly, any claim of personal injury or death
associated with such unintended or unauthorized use, even if such claim alleges that SCILLC was negligent regarding the design or manufacture of the part. SCILLC is an Equal
Opportunity/Affirmative Action Employer. This literature is subject to all applicable copyright laws and is not for resale in any manner.
PUBLICATION ORDERING INFORMATION
LITERATURE FULFILLMENT:
Literature Distribution Center for ON Semiconductor
P.O. Box 61312, Phoenix, Arizona 85082−1312 USA
Phone: 480−829−7710 or 800−344−3860 Toll Free USA/Canada
Fax: 480−829−7709 or 800−344−3867 Toll Free USA/Canada
Email: [email protected]
N. American Technical Support: 800−282−9855 Toll Free
USA/Canada
Japan: ON Semiconductor, Japan Customer Focus Center
2−9−1 Kamimeguro, Meguro−ku, Tokyo, Japan 153−0051
Phone: 81−3−5773−3850
http://onsemi.com
ON Semiconductor Website: http://onsemi.com
Order Literature: http://www.onsemi.com/litorder
For additional information, please contact your
local Sales Representative.
MPS6560/D
