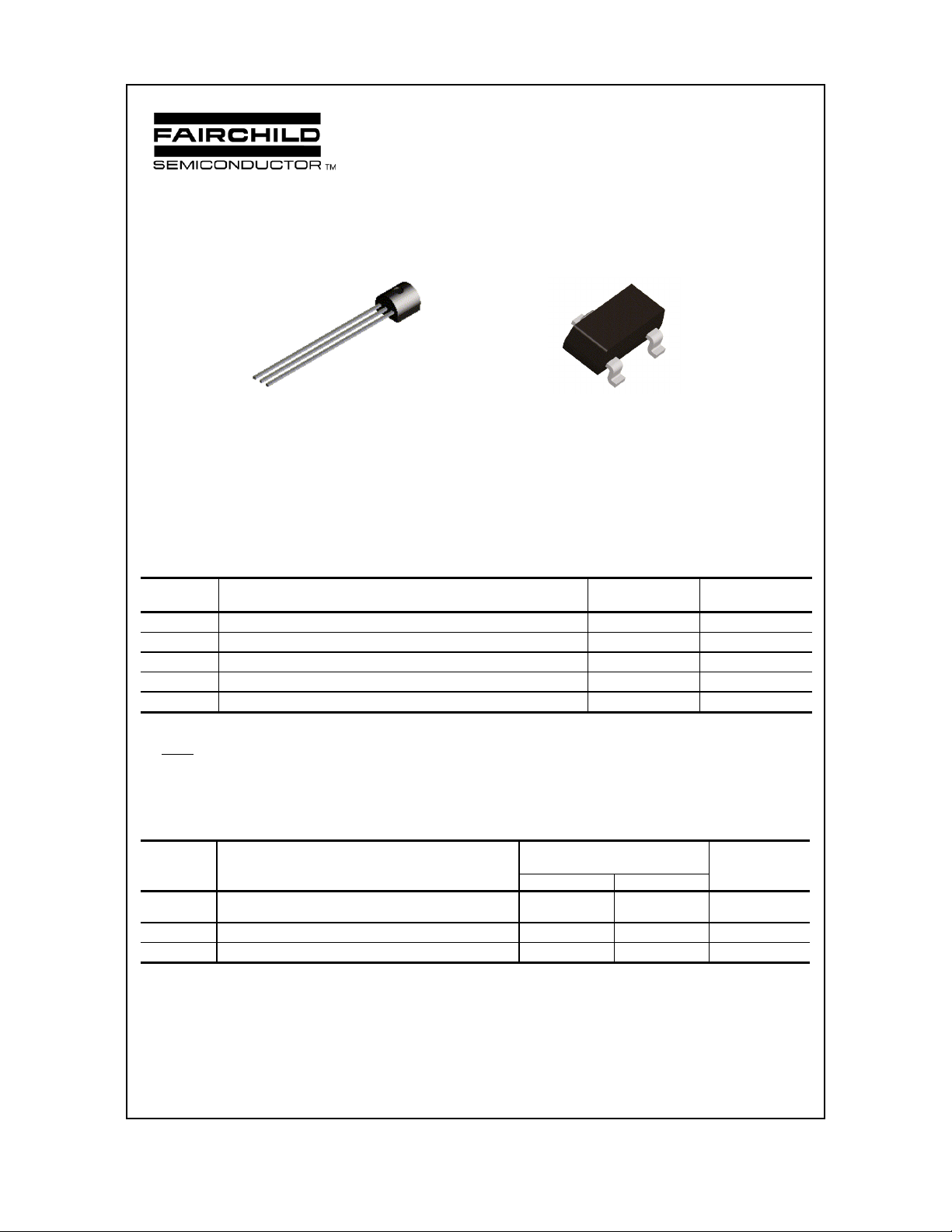

TO-92

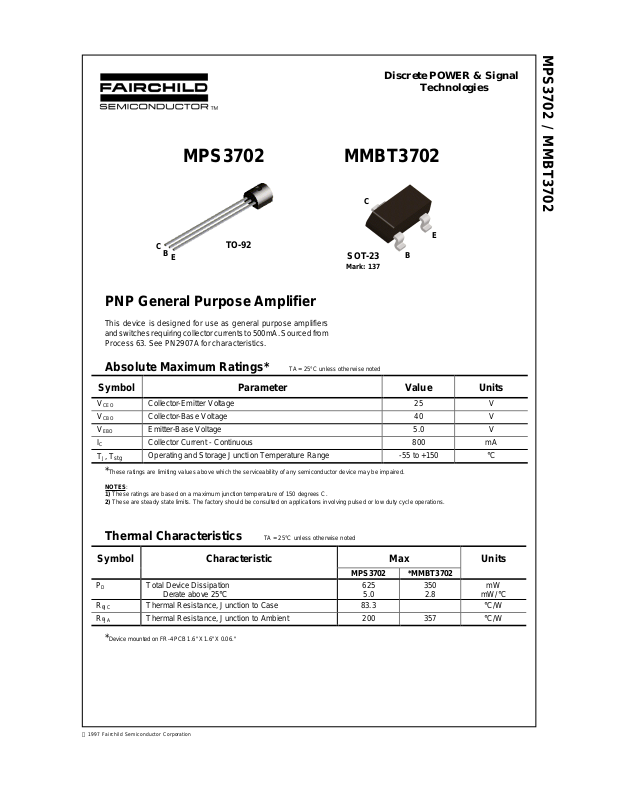

PNP General Purpose Amplifier
This device is designed for use as general purpose amplifiers
and switches requiring collector currents to 500mA. Sourced from
Process 63. See PN2907A for characteristics.
MMBT3702MPS3702
C
SOT-23
Mark: 137
MPS3702 / MMBT3702
Discrete POWER & Signal
Technologies
E
B
Absolute Maximum Ratings* TA = 25°C unless otherwise noted
Symbol Parameter Value Units
V
CEO
V
CBO
V
EBO
I
C
TJ, T
stg
Collector-Emitter Voltage 25 V
Collector-Base Voltage 40 V
Em i t ter - Bas e V olt ag e 5. 0 V
Collector Current - Continuous 800 mA
Operating and Storage Junction Temperature Range -55 to +150
°C
*These ratings are limiting values above which the serviceability of any semiconductor device may be impaired.
NOTES:
1) These ratings are based on a maximum junction temperature of 150 degrees C.
2) These are steady state limits. The factory should be consulted on applications involving pulsed or low duty cycle operations.
Thermal Characteristics TA = 25°C unless otherwise noted
Symbol Characteri st ic Max Units
MPS3702 *MMBT3702
P
D
R
θ
JC
R
θ
JA
*Device mounted on FR-4 PCB 1.6" X 1.6" X 0.06."
Total De vice Dissip at i on
Derate above 25°C
Thermal Resistance, Junction to Case 83.3
Thermal Resistance, Junction to Ambient 200 357 °C/W
625
5.0
350
2.8
mW
mW/°C
°C/W
1997 Fairchild Semiconductor Corporation
Page 2
PNP General Purpose Amplifier
(continued)
Electrical Characteristics TA = 25°C unless otherwise noted
Symbol Parameter Test Conditions Min Max Units
OFF CHARACTERISTICS
V
(BR)CEO
V
(BR)CBO
V
(BR)EBO
I
CBO
I
EBO
ON CHARACTERISTICS*
h
FE
V
sat
CE(
V
BE(
on)
SMALL SIGNAL CHARACTERISTICS
C
ob
f
T
Collector-Emitter Breakdown Voltage* IC = 10 mA, IB = 0 25 V
Collector-Base Breakdown Voltage IC = 100 µA, IE = 0 40 V
Em i t ter - Bas e B r e akdown Vol tage
= 100 µA, IC = 0
I
E
5.0 V
Collector Cutoff Current VCB = 20 V, IE = 0 100 nA
Emit ter Cutoff C u rre nt VEB = 3.0 V, IC = 0 100 nA
DC Cu r re n t Ga in VCE = 5.0 V, IC = 50 mA 60 30 0
Collector-Emitter Saturation Voltage IC = 50 mA, IB = 5.0 mA 0.25 V
)
Base-Emitter On Voltage IC = 50 mA, VCE = 5.0 V 0.6 1.0 V
Output Capacitance VCB = 10 V, f = 1.0 MHz 12 pF
Current Gain - Brandwidth Product IC = 50 mA, VCE = 5.0 V,
100 MHz
f = 20 MHz
MPS3702 / MMBT3702
*Pulse Test: Pulse Width ≤ 300 µs, Duty Cycle ≤ 2.0%
