The MPC953 is a 3.3V compatible, PLL based clock driver device
targeted for high performance clock tree designs. With output frequencies
of up to 87.5MHz and output skews of 150ps the MPC953 is ideal for the
most demanding clock tree designs. The devices employ a fully
differential PLL design to minimize cycle–to–cycle and phase jitter.

• Fully Integrated PLL

• Output Frequency up to 87.5MHz

• Outputs Disable in High Impedance

• TQFP Packaging

• 100ps Cycle–to–Cycle Jitter

The MPC953 has a differential LVPECL reference input along with an
external feedback input. These features make the MPC953 ideal for use
as a zero delay, low skew fanout buffer. The device performance has
been tuned and optimized for zero delay performance. The MR/OE

input
pin will reset the internal counters and tristate the output buffers when
driven “high”.

If the reference clock (PECL_CLK) is lost or shut down when the
MPC953 is in phase–lock, the output frquency will slew slowly downward.
The final VCO frequency will be around TBDMHz.

The MPC953 is fully 3.3V compatible and requires no external loop
filter components. All control inputs accept LVCMOS or LVTTL
compatible levels while the outputs provide LVCMOS levels with the
ability to drive terminated 50Ω transmission lines. For series terminated
50Ω lines, each of the MPC953 outputs can drive two traces giving the
device an effective fanout of 1:18. The device is packaged in a 7x7mm
32–lead TQFP package to provide the optimum combination of board
density and performance.

Figure 1. Logic Diagram

PECL_CLK
PECL_CLK

FB_CLK

Phase

Detector

LPF

VCO

200–350MHz

÷

4

VCO_SEL

BYPASS

QFB

Q0:6

Q7

7

÷

2

MR/OE

This document contains information on a product under development. Motorola reserves the right to change or
discontinue this product without notice.



LOW VOLTAGE

PLL CLOCK DRIVER

FA SUFFIX

32–LEAD TQFP PACKAGE

CASE 873A–02

MPC953

MOTOROLA ECLinPS and ECLinPS Lite

DL140 — Rev 3

2

MR/OE

GNDO

Q0

VCCO

QFB

GNDO

NC

BYPASS

VCO_SEL

Q5
VCCO
Q6
GNDO
Q7
VCCO

Q1

VCCOQ2GNDOQ3VCCOQ4GNDO

VCCA

FB_CLK

NC

NC

NC

NC

GNDI

PECL_CLK

25
26
27
28
29
30
31
32

15
14
13
12
11
10

9

12345678

24 23 22 21 20 19 18 17

16

MPC953

FUNCTION TABLES

BYPASS Function

1
0

PLL Enabled

PLL Bypass

MR/OE Function

1
0

Outputs Disabled

Outputs Enabled

Figure 2. 32–Lead Pinout (Top View)

PECL_CLK

VCO_SEL Function

1
0

÷2
÷1

ABSOLUTE MAXIMUM RATINGS*

Symbol Parameter Min Max Unit

V

CC

Supply Voltage –0.3 4.6 V

V

I

Input Voltage –0.3 VDD + 0.3 V

I

IN

Input Current ±20 mA

T

Stor

Storage Temperature Range –40 125 °C

* Absolute maximum continuous ratings are those values beyond which damage to the device may occur. Exposure to these conditions or

conditions beyond those indicated may adversely affect device reliability. Functional operation under absolute–maximum–rated conditions is
not implied.

MPC953

ECLinPS and ECLinPS Lite
DL140 — Rev 3

3 MOTOROLA

DC CHARACTERISTICS (TA = 0° to 70°C, VCC = 3.3V ±5%)

Symbol Characteristic Min Typ Max Unit Condition

V

IH

Input HIGH Voltage LVCMOS Inputs 2.0 3.6 V

V

IL

Input LOW Voltage LVCMOS Inputs 0.8 V

V

PP

Peak–to–Peak Input Voltage PECL_CLK 300 1000 mV

V

CMR

Common Mode Range PECL_CLK VCC–1.5 VCC–0.6 mV Note 1.

V

OH

Output HIGH Voltage 2.4 V IOH = –40mA, Note 2.

V

OL

Output LOW Voltage 0.5 V IOL = 40mA, Note 2.

I

IN

Input Current ±120 µA

C

IN

Input Capacitance 4 pF

C

pd

Power Dissipation Capacitance 25 pF Per Output

I

CC

Maximum Quiescent Supply Current 75 mA All VCC Pins

I

CCPLL

Maximum PLL Supply Current 15 20 mA VCCA Pin Only

1. V

CMR

is the difference from the most positive side of the differential input signal. Normal operation is obtained when the “HIGH” input is within

the V

CMR

range and the input swing lies within the VPP specification.

2. The MPC953 outputs can drive series or parallel terminated 50Ω (or 50Ω to VCC/2) transmission lines on the incident edge (see Applications

Info section).

PLL INPUT REFERENCE CHARACTERISTICS (TA = 0 to 70°C)

Symbol Characteristic Min Max Unit Condition

f

ref

Reference Input Frequency Note 3. Note 3. MHz

f

refDC

Reference Input Duty Cycle 25 75 %

3. Maximum and minimum input reference is limited by the VCO lock range and the feedback divider.

AC CHARACTERISTICS (TA = 0°C to 70°C, VCC = 3.3V ±5%)

Symbol Characteristic Min Typ Max Unit Condition

tr, t

f

Output Rise/Fall Time 0.10 1.0 ns 0.8 to 2.0V

t

pw

Output Duty Cycle 45 50 55 %

t

sk(O)

Output–to–Output Skews (Relative to QFB) ±75 ps

f

VCO

PLL VCO Lock Range 200 350 MHz

f

max

Maximum Output Frequency 50 87.5 MHz VCO_SEL = ‘0’

tpd(lock) Input to Ext_FB Delay (with PLL Locked) X–100 X

(Note 4.)

X+100 ps f

ref

= 75MHz

tpd(bypass) Input to Q Delay (with PLL Bypassed) 5 10 ns
t

PLZ,HZ

Output Disable Time 7 ns

t

PZL

Output Enable Time 6 ns

t

jitter

Cycle–to–Cycle Jitter (Peak–to–Peak) 100 ps

t

lock

Maximum PLL Lock Time 10 ms

4. X will be targeted for 0ns, but may vary from target by ±150ps based on characterization of silicon.

MPC953

MOTOROLA ECLinPS and ECLinPS Lite

DL140 — Rev 3

4

Power Supply Filtering

The MPC953 is a mixed analog/digital product and as
such it exhibits some sensitivities that would not necessarily
be seen on a fully digital product. Analog circuitry is naturally
susceptible to random noise, especially if this noise is seen
on the power supply pins. The MPC953 provides separate
power supplies for the output buffers (VCCO) and the
phase–locked loop (VCCA) of the device. The purpose of this
design technique is to try and isolate the high switching noise
digital outputs from the relatively sensitive internal analog
phase–locked loop. In a controlled environment such as an
evaluation board this level of isolation is sufficient. However,
in a digital system environment where it is more difficult to
minimize noise on the power supplies a second level of
isolation may be required. The simplest form of isolation is a
power supply filter on the VCCA pin for the MPC953.

Figure 3 illustrates a typical power supply filter scheme.
The MPC953 is most susceptible to noise with spectral
content in the 1KHz to 1MHz range. Therefore the filter
should be designed to target this range. The key parameter
that needs to be met in the final filter design is the DC voltage
drop that will be seen between the VCC supply and the VCCA
pin of the MPC953. From the data sheet the I

VCCA

current
(the current sourced through the VCCA pin) is typically 15mA
(20mA maximum), assuming that a minimum of 3.0V must be
maintained on the VCCA pin very little DC voltage drop can
be tolerated when a 3.3V VCC supply is used. The resistor
shown in Figure 3 must have a resistance of 10–15Ω to meet
the voltage drop criteria. The RC filter pictured will provide a
broadband filter with approximately 100:1 attenuation for
noise whose spectral content is above 20KHz. As the noise
frequency crosses the series resonant point of an individual
capacitor it’s overall impedance begins to look inductive and
thus increases with increasing frequency. The parallel
capacitor combination shown ensures that a low impedance
path to ground exists for frequencies well above the
bandwidth of the PLL. It is recommended that the user start
with an 8–10Ω resistor to avoid potential VCC drop problems
and only move to the higher value resistors when a higher
level of attenuation is shown to be needed.

Figure 3. Power Supply Filter

PLL_VCC

VCC

MPC953

0.01µF

22

µ

F

0.01

µ

F

3.3V

RS=5–15

Ω

Although the MPC953 has several design features to
minimize the susceptibility to power supply noise (isolated
power and grounds and fully differential PLL) there still may

be applications in which overall performance is being
degraded due to system power supply noise. The power
supply filter schemes discussed in this section should be
adequate to eliminate power supply noise related problems
in most designs.

Driving Transmission Lines

The MPC953 clock driver was designed to drive high
speed signals in a terminated transmission line environment.
To provide the optimum flexibility to the user the output
drivers were designed to exhibit the lowest impedance
possible. With an output impedance of less than 10Ω the
drivers can drive either parallel or series terminated
transmission lines. For more information on transmission
lines the reader is referred to application note AN1091 in the
Timing Solutions brochure (BR1333/D).

In most high performance clock networks point–to–point
distribution of signals is the method of choice. In a
point–to–point scheme either series terminated or parallel
terminated transmission lines can be used. The parallel
technique terminates the signal at the end of the line with a
50Ω resistance to VCC/2. This technique draws a fairly high
level of DC current and thus only a single terminated line can
be driven by each output of the MPC953 clock driver. For the
series terminated case however there is no DC current draw,
thus the outputs can drive multiple series terminated lines.
Figure 4 illustrates an output driving a single series
terminated line vs two series terminated lines in parallel.
When taken to its extreme the fanout of the MPC953 clock
driver is effectively doubled due to its capability to drive
multiple lines.

Figure 4. Single versus Dual Transmission Lines

7

Ω

IN

MPC953
OUTPUT
BUFFER

RS = 43

Ω

ZO = 50

Ω

OutA

7

Ω

IN

MPC953
OUTPUT
BUFFER

RS = 43

Ω

ZO = 50

Ω

OutB0

RS = 43

Ω

ZO = 50

Ω

OutB1

The waveform plots of Figure 5 show the simulation
results of an output driving a single line vs two lines. In both
cases the drive capability of the MPC953 output buffers is
more than sufficient to drive 50Ω transmission lines on the
incident edge. Note from the delay measurements in the
simulations a delta of only 43ps exists between the two
differently loaded outputs. This suggests that the dual line
driving need not be used exclusively to maintain the tight
output–to–output skew of the MPC953. The output waveform
in Figure 5 shows a step in the waveform, this step is caused

MPC953

ECLinPS and ECLinPS Lite
DL140 — Rev 3

5 MOTOROLA

by the impedance mismatch seen looking into the driver. The
parallel combination of the 43Ω series resistor plus the output
impedance does not match the parallel combination of the
line impedances. The voltage wave launched down the two
lines will equal:

VL = VS ( Zo / (Rs + Ro +Zo))

Zo = 50Ω || 50Ω
Rs = 43Ω || 43Ω
Ro = 7Ω

VL = 3.0 (25 / (21.5 + 7 + 25) = 3.0 (25 / 53.5)
= 1.40V

At the load end the voltage will double, due to the near
unity reflection coefficient, to 2.8V. It will then increment
towards the quiescent 3.0V in steps separated by one round
trip delay (in this case 4.0ns).

Figure 5. Single versus Dual Waveforms

TIME (nS)

VOLTAGE (V)

3.0

2.5

2.0

1.5

1.0

0.5

0

2 4 6 8 10 12 14

OutB

tD = 3.9386

OutA

tD = 3.8956

In

Since this step is well above the threshold region it will not
cause any false clock triggering, however designers may be
uncomfortable with unwanted reflections on the line. To
better match the impedances when driving multiple lines the
situation in Figure 6 should be used. In this case the series
terminating resistors are reduced such that when the parallel
combination is added to the output buffer impedance the line
impedance is perfectly matched.

Figure 6. Optimized Dual Line Termination

7

Ω

MPC953
OUTPUT
BUFFER

RS = 36

Ω

ZO = 50

Ω

RS = 36

Ω

ZO = 50

Ω

7Ω + 36Ω k 36Ω = 50Ω k 50Ω

25Ω = 25Ω

SPICE level output buffer models are available for
engineers who want to simulate their specific interconnect
schemes. In addition IV characteristics are in the process of
being generated to support the other board level simulators in
general use.

MPC953

MOTOROLA ECLinPS and ECLinPS Lite

DL140 — Rev 3

6

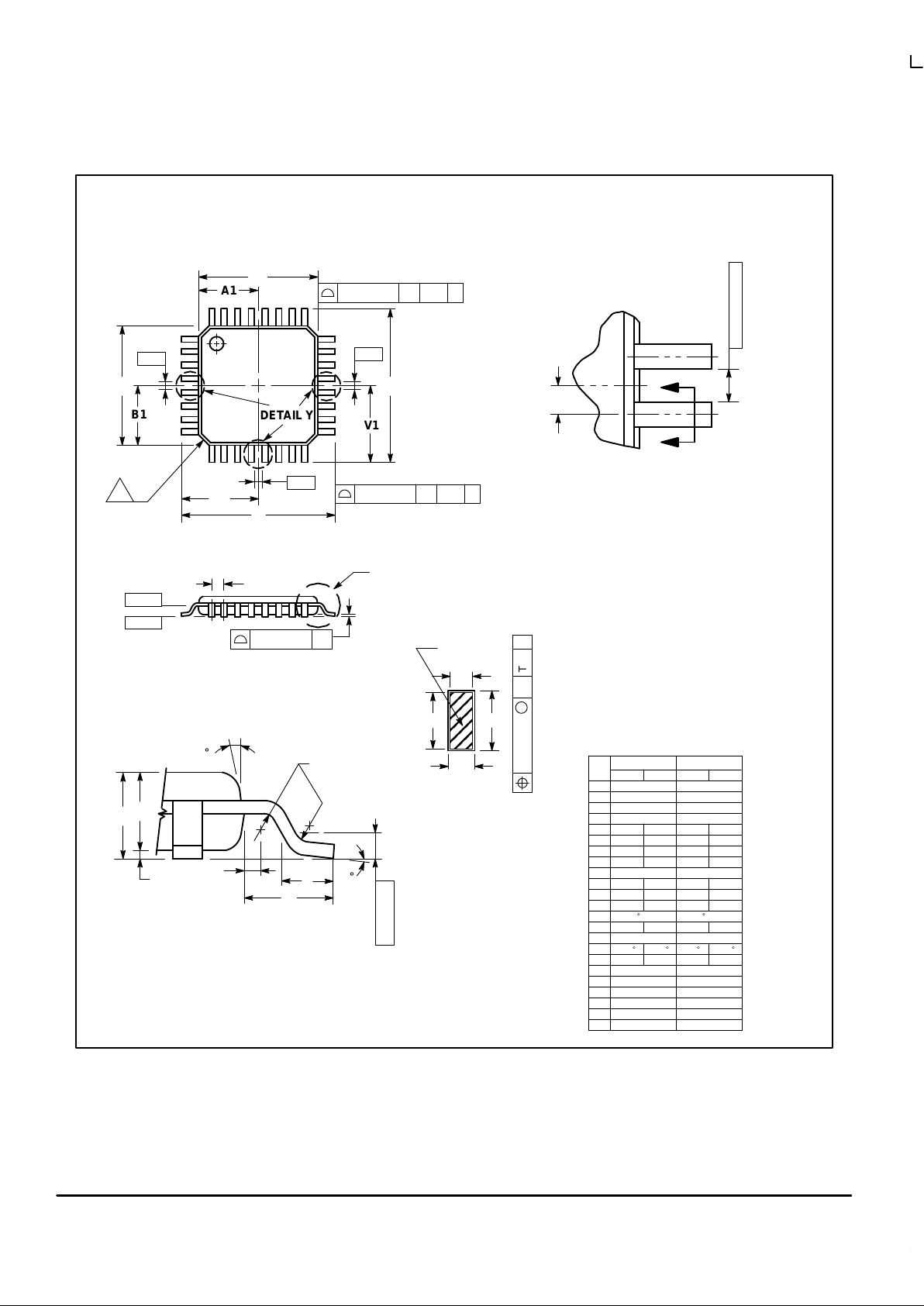

OUTLINE DIMENSIONS

FA SUFFIX

TQFP PACKAGE

CASE 873A–02

ISSUE A

DETAIL Y

A

S1

VB

1

8

9

17

25

32

AE

AE

P

DETAIL Y

BASE

N

J

DF

METAL

SECTION AE–AE

G

SEATING

PLANE

R

Q

_

W

K

X

0.250 (0.010)

GAUGE PLANE

E

C

H

DETAIL AD

NOTES:

1. DIMENSIONING AND TOLERANCING PER ANSI
Y14.5M, 1982.

2. CONTROLLING DIMENSION: MILLIMETER.

3. DATUM PLANE –AB– IS LOCATED AT BOTTOM OF
LEAD AND IS COINCIDENT WITH THE LEAD
WHERE THE LEAD EXITS THE PLASTIC BODY AT
THE BOTTOM OF THE PARTING LINE.

4. DATUMS –T–, –U–, AND –Z– TO BE DETERMINED
AT DATUM PLANE –AB–.

5. DIMENSIONS S AND V TO BE DETERMINED AT
SEATING PLANE –AC–.

6. DIMENSIONS A AND B DO NOT INCLUDE MOLD
PROTRUSION. ALLOWABLE PROTRUSION IS

0.250 (0.010) PER SIDE. DIMENSIONS A AND B
DO INCLUDE MOLD MISMATCH AND ARE
DETERMINED AT DATUM PLANE –AB–.

7. DIMENSION D DOES NOT INCLUDE DAMBAR
PROTRUSION. DAMBAR PROTRUSION SHALL
NOT CAUSE THE D DIMENSION TO EXCEED

0.520 (0.020).

8. MINIMUM SOLDER PLATE THICKNESS SHALL BE

0.0076 (0.0003).

9. EXACT SHAPE OF EACH CORNER MAY VARY
FROM DEPICTION.

DIMAMIN MAX MIN MAX

INCHES

7.000 BSC 0.276 BSC

MILLIMETERS

B 7.000 BSC 0.276 BSC
C 1.400 1.600 0.055 0.063

D 0.300 0.450 0.012 0.018
E 1.350 1.450 0.053 0.057
F 0.300 0.400 0.012 0.016
G 0.800 BSC 0.031 BSC
H 0.050 0.150 0.002 0.006
J 0.090 0.200 0.004 0.008
K 0.500 0.700 0.020 0.028
M 12 REF 12 REF
N 0.090 0.160 0.004 0.006
P 0.400 BSC 0.016 BSC
Q 1 5 1 5
R 0.150 0.250 0.006 0.010

V 9.000 BSC 0.354 BSC

V1 4.500 BSC 0.177 BSC

__

____

DETAIL AD

A1

B1

V1

4X

S

4X

B1 3.500 BSC 0.138 BSC

A1 3.500 BSC 0.138 BSC

S 9.000 BSC 0.354 BSC

S1 4.500 BSC 0.177 BSC

W 0.200 REF 0.008 REF

X 1.000 REF 0.039 REF

9

–T–

–Z–

–U–

T–U0.20 (0.008) ZAC

T–U0.20 (0.008) ZAB

0.10 (0.004) AC

–AC–

–AB–

M

_

8X

–T–, –U–, –Z–

T–U

M

0.20 (0.008) ZAC

MPC953

ECLinPS and ECLinPS Lite
DL140 — Rev 3

7 MOTOROLA

Motorola reserves the right to make changes without further notice to any products herein. Motorola makes no warranty , representation or guarantee regarding
the suitability of its products for any particular purpose, nor does Motorola assume any liability arising out of the application or use of any product or circuit, and
specifically disclaims any and all liability, including without limitation consequential or incidental damages. “T ypical” parameters which may be provided in Motorola
data sheets and/or specifications can and do vary in different applications and actual performance may vary over time. All operating parameters, including “Typicals”
must be validated for each customer application by customer’s technical experts. Motorola does not convey any license under its patent rights nor the rights of
others. Motorola products are not designed, intended, or authorized for use as components in systems intended for surgical implant into the body, or other
applications intended to support or sustain life, or for any other application in which the failure of the Motorola product could create a situation where personal injury
or death may occur. Should Buyer purchase or use Motorola products for any such unintended or unauthorized application, Buyer shall indemnify and hold Motorola
and its officers, employees, subsidiaries, affiliates, and distributors harmless against all claims, costs, damages, and expenses, and reasonable attorney fees
arising out of, directly or indirectly, any claim of personal injury or death associated with such unintended or unauthorized use, even if such claim alleges that
Motorola was negligent regarding the design or manufacture of the part. Motorola and are registered trademarks of Motorola, Inc. Motorola, Inc. is an Equal
Opportunity/Affirmative Action Employer.

MPC953/D

◊

Mfax is a trademark of Motorola, Inc.

How to reach us:
USA/EUROPE/ Locations Not Listed: Motorola Literature Distribution; JAPAN: Nippon Motorola Ltd.: SPD, Strategic Planning Office, 4–32–1,

P.O. Box 5405, Denver, Colorado 80217. 1–303–675–2140 or 1–800–441–2447 Nishi–Gotanda, Shinagawa–ku, Tokyo 141, Japan. 81–3–5487–8488

Customer Focus Center: 1–800–521–6274

Mfax: [e-mail] – TOUCHTONE 1–602–244–6609 ASIA/PACIFIC: Motorola Semiconductors H.K. Ltd.; 8B Tai Ping Industrial Park,

Moto rola Fax Back System – US & Canada ONLY 1–800–774–1848 51 Ting Kok Road, Tai Po, N.T., Hong Kong. 852–26629298

– http://sps.motorola.com/mfax/

HOME PAGE: http://motorola.com/sps/
