SEMICONDUCTOR TECHNICAL DATA

1

REV 1

 Motorola, Inc. 1996

10/96

     
  

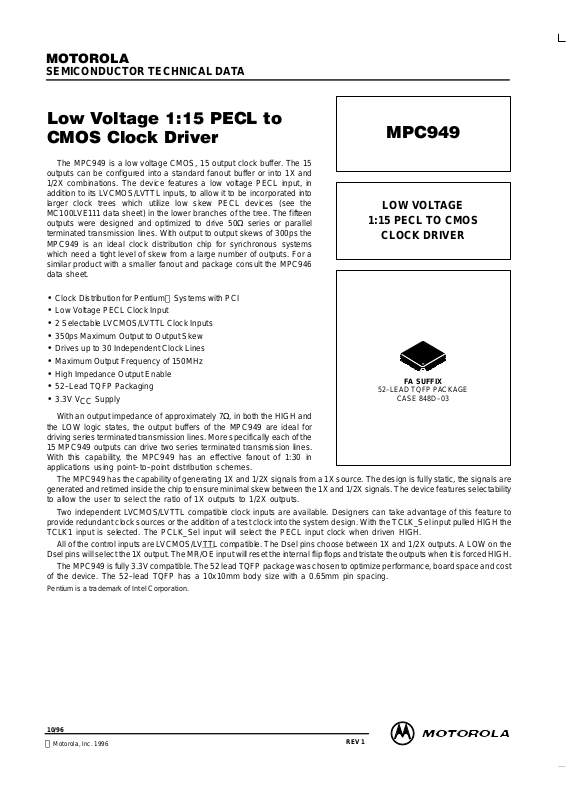

The MPC949 is a low voltage CMOS, 15 output clock buffer. The 15
outputs can be configured into a standard fanout buffer or into 1X and
1/2X combinations. The device features a low voltage PECL input, in
addition to its LVCMOS/LVTTL inputs, to allow it to be incorporated into
larger clock trees which utilize low skew PECL devices (see the
MC100LVE111 data sheet) in the lower branches of the tree. The fifteen
outputs were designed and optimized to drive 50Ω series or parallel
terminated transmission lines. With output to output skews of 300ps the
MPC949 is an ideal clock distribution chip for synchronous systems
which need a tight level of skew from a large number of outputs. For a
similar product with a smaller fanout and package consult the MPC946
data sheet.

• Clock Distribution for Pentium Systems with PCI

• Low Voltage PECL Clock Input

• 2 Selectable LVCMOS/LVTTL Clock Inputs

• 350ps Maximum Output to Output Skew

• Drives up to 30 Independent Clock Lines

• Maximum Output Frequency of 150MHz

• High Impedance Output Enable

• 52–Lead TQFP Packaging

• 3.3V V

CC

Supply

With an output impedance of approximately 7Ω, in both the HIGH and
the LOW logic states, the output buffers of the MPC949 are ideal for
driving series terminated transmission lines. More specifically each of the
15 MPC949 outputs can drive two series terminated transmission lines.
With this capability, the MPC949 has an effective fanout of 1:30 in
applications using point–to–point distribution schemes.

The MPC949 has the capability of generating 1X and 1/2X signals from a 1X source. The design is fully static, the signals are
generated and retimed inside the chip to ensure minimal skew between the 1X and 1/2X signals. The device features selectability
to allow the user to select the ratio of 1X outputs to 1/2X outputs.

Two independent LVCMOS/LVTTL compatible clock inputs are available. Designers can take advantage of this feature to
provide redundant clock sources or the addition of a test clock into the system design. With the TCLK_Sel input pulled HIGH the
TCLK1 input is selected. The PCLK_Sel input will select the PECL input clock when driven HIGH.

All of the control inputs are LVCMOS/LVTTL compatible. The Dsel pins choose between 1X and 1/2X outputs. A LOW on the
Dsel pins will select the 1X output. The MR/OE

input will reset the internal flip flops and tristate the outputs when it is forced HIGH.

The MPC949 is fully 3.3V compatible. The 52 lead TQFP package was chosen to optimize performance, board space and cost
of the device. The 52–lead TQFP has a 10x10mm body size with a 0.65mm pin spacing.

Pentium is a trademark of Intel Corporation.



LOW VOLTAGE

1:15 PECL TO CMOS

CLOCK DRIVER

FA SUFFIX

52–LEAD TQFP PACKAGE

CASE 848D–03

MPC949

MOTOROLA TIMING SOLUTIONS

BR1333 — Rev 6

2

Figure 1. Logic Diagram Figure 2. 52–Lead Pinout (Top View)

NC

VCCb

Qb2

GNDb

Qb1

VCCb

Qb0
GNDb
GNDa

Qa1

VCCa

Qa0
GNDa

NC
VCCd
Qd4
GNDd
Qd3
VCCd
Qd2
GNDd
Qd1
VCCd
Qd0
GNDd
NC

NC

GNDc

Qc0

VCCc

Qc1

GNDc

Qc2

VCCc

Qc3

GNDc

GNDd

Qd5

NC

TCLK_Sel

MR/OE

VCCI

TCLK0

TCLK1

PCLK

PCLK

PCLK_Sel

Dsela

Dselb

Dselc

Dseld

GNDI

40
41
42
43
44
45
46
47
48
49
50
51
52

25
24
23
22
21
20
19
18
17
16
15
14

12345678910111213

39 38 37 36 35 34 33 32 31 30 29 28 27

26

MPC949

TCLK1 (LVTTL)

Qa0:1

TCLK0 (LVTTL)

TCLK_Sel

2

R

÷

2

÷

1

Dsela

Qc0:3

4

Dselc

Qd0:5

6

Dseld

MR/OE

Qb0:2

3

Dselb

PCLK
PCLK

PCLK_Sel

0
1

0
1

0
1

0
1

0
1

0
1

FUNCTION TABLE

Input 0 1

TCLK_Sel
PCLK_Sel
Dseln
MR/OE

TCLK0
TCLKn

÷1

Enabled

TCLK1

PCLK

÷2

Hi–Z

PIN DESCRIPTION

Pin Name Function

TCLK_Sel
(Int Pulldown)

Select pin to choose TCKL0 or TCLK1

TCLK0:1
(Int Pullup)

LVCMOS/LVTTL clock inputs

PCLK
(Int Pulldown)

True PECL clock input

PCLK
(Int Pullup)

Compliment PECL clock input

Dseln
(Int Pulldown)

1x or 1/2x input divide select pins

MR/OE
(Int Pulldown)

Internal reset and output tristate control pin

PCLK_Sel
(Int Pulldown)

Select Pin to choose TCLK or PCLK

MPC949

TIMING SOLUTIONS
BR1333 — Rev 6

3 MOTOROLA

ABSOLUTE MAXIMUM RATINGS*

Symbol Parameter Min Max Unit

V

CC

Supply Voltage –0.3 4.6 V

V

I

Input Voltage –0.3 VDD + 0.3 V

I

IN

Input Current TBD TBD mA

T

Stor

Storage Temperature Range –40 125 °C

* Absolute maximum continuous ratings are those values beyond which damage to the device may occur . Exposure to these conditions or conditions beyond those

indicated may adversely affect device reliability. Functional operation under absolute–maximum–rated conditions is not implied.

DC CHARACTERISTICS (TA = 0° to 70°C, VCC = 3.3V ±5%)

Symbol Characteristic Min Typ Max Unit Condition

V

IH

Input HIGH Voltage (Except PECL_CLK) 2.0 3.60 V

V

IL

Input LOW Voltage (Except PECL_CLK) 0.8 V

V

PP

Peak–to–Peak Input Voltage PECL_CLK 300 1000 mV

V

CMR

Common Mode Range PECL_CLK VCC – 2.0 VCC – 0.6 V Note 1.

V

OH

Output HIGH Voltage 2.5 V IOH = –20mA (Note 2.)

V

OL

Output LOW Voltage 0.4 V IOL = 20mA (Note 2.)

I

IN

Input Current ±120 µA Note 3.

C

IN

Input Capacitance 4 pF

C

pd

Power Dissipation Capacitance 25 pF Per Output

I

CC

Maximum Quiescent Supply Current 70 85 mA

1. V

CMR

is the difference from the most positive side of the differential input signal. Normal operation is obtained when the “HIGH” input is within

the V

CMR

range and the input swing lies within the VPP specification.

2. The MPC949 outputs can drive series or parallel terminated 50Ω (or 50Ω to VCC/2) transmission lines on the incident edge (see Applications
Info section).

3. Inputs have pull–up/pull–down resistors which affect input current.

AC CHARACTERISTICS (TA = 0° to 70°C, VCC = 3.3V ±5%)

Symbol Characteristic Min Typ Max Unit Condition

F

max

Maximum Input Frequency 150 MHz Note 4.

t

PLH

Propagation Delay PECL_CLK to Q

TTL_CLK to Q

4.0

4.2

6.5

7.5

9.0

10.6

ns Note 4.

t

PHL

Propagation Delay PECL_CLK to Q

TTL_CLK to Q

3.8

4.0

6.2

7.2

8.6

10.5

ns Note 4.

t

sk(o)

Output–to–Output Skew 300 350 ps Note 4.

t

sk(pr)

Part–to–Part Skew PECL_CLK to Q

TTL_CLK to Q

1.5

2.0

2.75

4.0

ns Note 5.

t

PZL,tPZH

Output Enable Time 3 11 ns Note 4.

t

PLZ,tPHZ

Output Disable Time 3 11 ns Note 4.

tr, t

f

Output Rise/Fall Time 0.10 1.0 ns 0.8V to 2.0V

4. Driving 50Ω transmission lines terminated to VCC/2.

5. Part–to–part skew at a given temperature and voltage.

MPC949

MOTOROLA TIMING SOLUTIONS

BR1333 — Rev 6

4

APPLICATIONS INFORMATION

Driving Transmission Lines

The MPC949 clock driver was designed to drive high
speed signals in a terminated transmission line environment.
To provide the optimum flexibility to the user, the output
drivers were designed to exhibit the lowest impedance
possible. With an output impedance of less than 10Ω the
drivers can drive either parallel or series terminated
transmission lines. For more information on transmission
lines the reader is referred to application note AN1091 in the
Timing Solutions brochure (BR1333/D).

In most high performance clock networks point–to–point
distribution of signals is the method of choice. In a
point–to–point scheme either series terminated or parallel
terminated transmission lines can be used. The parallel
technique terminates the signal at the end of the line with a
50Ω resistance to VCC/2. This technique draws a fairly high
level of DC current and thus only a single terminated line can
be driven by each output of the MPC949 clock driver. For the
series terminated case however there is no DC current draw,
thus the outputs can drive multiple series terminated lines.
Figure 3 illustrates an output driving a single series
terminated line vs two series terminated lines in parallel.
When taken to its extreme the fanout of the MPC949 clock
driver is effectively doubled due to its capability to drive
multiple lines.

Figure 3. Single versus Dual Transmission Lines

7

Ω

IN

MPC949
OUTPUT
BUFFER

RS = 43

Ω

ZO = 50

Ω

OutA

7

Ω

IN

MPC949
OUTPUT
BUFFER

RS = 43

Ω

ZO = 50

Ω

OutB0

RS = 43

Ω

ZO = 50

Ω

OutB1

The waveform plots of Figure 4 show the simulation
results of an output driving a single line vs two lines. In both
cases the drive capability of the MPC949 output buffers is
more than sufficient to drive 50Ω transmission lines on the
incident edge. Note from the delay measurements in the
simulations a delta of only 43ps exists between the two
differently loaded outputs. This suggests that the dual line
driving need not be used exclusively to maintain the tight
output–to–output skew of the MPC949. The output waveform
in Figure 4 shows a step in the waveform, this step is caused
by the impedance mismatch seen looking into the driver. The
parallel combination of the 43Ω series resistor plus the output
impedance does not match the parallel combination of the

line impedances. The voltage wave launched down the two
lines will equal:

VL = VS ( Zo / Rs + Ro +Zo) = 3.0 (25/53.5) = 1.40V

At the load end the voltage will double, due to the near
unity reflection coefficient, to 2.8V. It will then increment
towards the quiescent 3.0V in steps separated by one round
trip delay (in this case 4.0ns).

Figure 4. Single versus Dual Waveforms

TIME (nS)

VOLTAGE (V)

3.0

2.5

2.0

1.5

1.0

0.5

0

2 4 6 8 10 12 14

OutB

tD = 3.9386

OutA

tD = 3.8956

In

Since this step is well above the threshold region it will not
cause any false clock triggering, however designers may be
uncomfortable with unwanted reflections on the line. To
better match the impedances when driving multiple lines the
situation in Figure 5 should be used. In this case the series
terminating resistors are reduced such that when the parallel
combination is added to the output buffer impedance the line
impedance is perfectly matched.

Figure 5. Optimized Dual Line Termination

7

Ω

MPC949
OUTPUT
BUFFER

RS = 36

Ω

ZO = 50

Ω

RS = 36

Ω

ZO = 50

Ω

7Ω + 36Ω k 36Ω = 50Ω k 50Ω

25Ω = 25Ω

SPICE level output buffer models are available for
engineers who want to simulate their specific interconnect
schemes. In addition IV characteristics are in the process of
being generated to support the other board level simulators in
general use.

MPC949

TIMING SOLUTIONS
BR1333 — Rev 6

5 MOTOROLA

OUTLINE DIMENSIONS

FA SUFFIX

TQFP PACKAGE

CASE 848D–03

ISSUE C

F

NOTES:

1. DIMENSIONING AND TOLERANCING PER ANSI
Y14.5M, 1982.

2. CONTROLLING DIMENSION: MILLIMETER.

3. DATUM PLANE –H– IS LOCATED AT BOTTOM OF
LEAD AND IS COINCIDENT WITH THE LEAD
WHERE THE LEAD EXITS THE PLASTIC BODY AT
THE BOTTOM OF THE PARTING LINE.

4. DATUMS –L–, –M– AND –N– TO BE DETERMINED
AT DATUM PLANE –H–.

5. DIMENSIONS S AND V TO BE DETERMINED AT
SEATING PLANE –T–.

6. DIMENSIONS A AND B DO NOT INCLUDE MOLD
PROTRUSION. ALLOWABLE PROTRUSION IS

0.25 (0.010) PER SIDE. DIMENSIONS A AND B DO
INCLUDE MOLD MISMATCH AND ARE
DETERMINED AT DATUM PLANE -H-.

7. DIMENSION D DOES NOT INCLUDE DAMBAR
PROTRUSION. DAMBAR PROTRUSION SHALL
NOT CAUSE THE LEAD WIDTH TO EXCEED 0.46
(0.018). MINIMUM SPACE BETWEEN
PROTRUSION AND ADJACENT LEAD OR
PROTRUSION 0.07 (0.003).

VIEW AA

VIEW AA

2 X R R1

AB

AB

VIEW Y

SECTION AB–AB

ROTATED 90_ CLOCKWISE

DIMAMIN MAX MIN MAX

INCHES

10.00 BSC 0.394 BSC

MILLIMETERS

A1 5.00 BSC 0.197 BSC

B 10.00 BSC 0.394 BSC

B1 5.00 BSC 0.197 BSC

C ––– 1.70 ––– 0.067
C1 0.05 0.20 0.002 0.008
C2 1.30 1.50 0.051 0.059

D 0.20 0.40 0.008 0.016

E 0.45 0.030

F 0.22 0.35 0.009 0.014

G 0.65 BSC

0.75 0.018

0.026 BSC

J 0.07 0.20 0.003 0.008

K 0.50 REF 0.020 REF
R1 0.08 0.20 0.003 0.008

S 12.00 BSC 0.472 BSC
S1 6.00 BSC 0.236 BSC

U 0.09 0.16 0.004 0.006

V 12.00 BSC 0.472 BSC
V1 6.00 BSC 0.236 BSC

W 0.20 REF 0.008 REF

Z 1.00 REF 0.039 REF

C

L

–X–

X=L, M, N

1

13

14

26

27

39

4052

4X TIPS

4X

N0.20 (0.008) H L–M N0.20 (0.008) T L–M

3X VIEW Y

SEATING
PLANE

C

0.10 (0.004) T

4X θ3

4X θ2

S

0.05 (0.002)

0.25 (0.010)

GAGE PLANE

C2

C1

W

K
E

Z

S

L–M

M

0.13 (0.005) N

S

T

PLATING

BASE METAL

D

J

U

B V

B1

A

S

V1

A1

S1

–L–

–N–

–M–

–H–
–T–

θ1

θ

G

θ

1

θ

θ

3

θ

2

07

__

12

513

_

_

_

07

__

0

_

0

_

––– –––

REF

12

_

REF

13

_

5

_

MPC949

MOTOROLA TIMING SOLUTIONS

BR1333 — Rev 6

6

Motorola reserves the right to make changes without further notice to any products herein. Motorola makes no warranty , representation or guarantee regarding
the suitability of its products for any particular purpose, nor does Motorola assume any liability arising out of the application or use of any product or circuit, and
specifically disclaims any and all liability, including without limitation consequential or incidental damages. “T ypical” parameters which may be provided in Motorola
data sheets and/or specifications can and do vary in different applications and actual performance may vary over time. All operating parameters, including “Typicals”
must be validated for each customer application by customer’s technical experts. Motorola does not convey any license under its patent rights nor the rights of
others. Motorola products are not designed, intended, or authorized for use as components in systems intended for surgical implant into the body, or other
applications intended to support or sustain life, or for any other application in which the failure of the Motorola product could create a situation where personal injury
or death may occur. Should Buyer purchase or use Motorola products for any such unintended or unauthorized application, Buyer shall indemnify and hold Motorola
and its officers, employees, subsidiaries, affiliates, and distributors harmless against all claims, costs, damages, and expenses, and reasonable attorney fees
arising out of, directly or indirectly, any claim of personal injury or death associated with such unintended or unauthorized use, even if such claim alleges that
Motorola was negligent regarding the design or manufacture of the part. Motorola and are registered trademarks of Motorola, Inc. Motorola, Inc. is an Equal
Opportunity/Affirmative Action Employer.

How to reach us:

USA/EUROPE/ Locations Not Listed: Motorola Literature Distribution; JAPAN: Nippon Motorola Ltd.; Tatsumi–SPD–JLDC, 6F Seibu–Butsuryu–Center,

P.O. Box 5405; Denver, Colorado 80217. 303–675–2140 or 1–800–441–2447 3–14–2 T atsumi Koto–Ku, Tokyo 135, Japan. 81–3–3521–8315

Mfax: [e-mail] – TOUCHTONE 602–244–6609 ASIA/PACIFIC: Motorola Semiconductors H.K. Ltd.; 8B Tai Ping Industrial Park,

INTERNET: http://www.mot.com/sps/ 51 Ting Ko k Road, Tai Po, N.T., Hong Kong. 852–26629298

MPC949/D

◊
