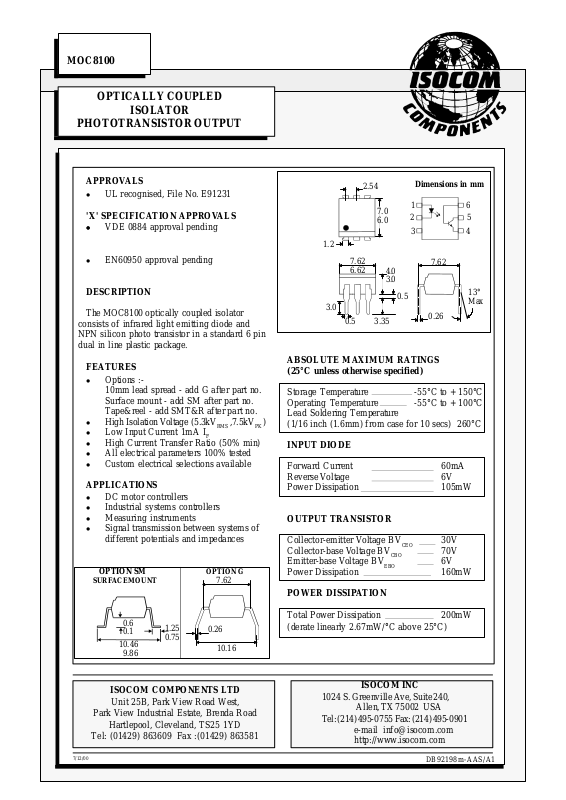

Page 1
7/12/00
MOC8100
OPTICALLY COUPLED
ISOLATOR
PHOTOTRANSISTOR OUTPUT
APPROVALS
l UL recognised, File No. E91231
'X' SPECIFICATION APPROVALS
ll VDE 0884 approval pending
l EN60950 approval pending
DESCRIPTION
The MOC8100 optically coupled isolator
consists of infrared light emitting diode and
NPN silicon photo transistor in a standard 6 pin
dual in line plastic package.
FEATURES
l Options :-
10mm lead spread - add G after part no.
Surface mount - add SM after part no.
Tape&reel - add SMT&R after part no.
l High Isolation Voltage (5.3kV
l Low Input Current 1mA I
l High Current Transfer Ratio (50% min)
l All electrical parameters 100% tested
l Custom electrical selections available
,7.5kV
RMS
F
PK
APPLICATIONS
l DC motor controllers
l Industrial systems controllers
l Measuring instruments
l Signal transmission between systems of
different potentials and impedances
OPTION SM
SURFACE MOUNT
OPTION G
7.62
2.54
7.0
6.0
Dimensions in mm
1
2 5
3 4
1.2
7.62
6.62
4.0
3.0
0.5
3.0
0.5
3.35
ABSOLUTE MAXIMUM RATINGS
(25°C unless otherwise specified)
Storage Temperature -55°C to + 150°C
Operating Temperature -55°C to + 100°C
Lead Soldering Temperature
)
(1/16 inch (1.6mm) from case for 10 secs) 260°C
INPUT DIODE
Forward Current 60mA
Reverse Voltage 6V
Power Dissipation 105mW
OUTPUT TRANSISTOR
Collector-emitter Voltage BV
Collector-base Voltage BV
Emitter-base Voltage BV
Power Dissipation 160mW
CEO
CBO
EBO
POWER DISSIPATION
6
7.62
13°
Max
0.26
30V
70V
6V
0.6
0.1
10.46
9.86
1.25
0.75
0.26
10.16
ISOCOM COMPONENTS LTD
Unit 25B, Park View Road West,
Park View Industrial Estate, Brenda Road
Hartlepool, Cleveland, TS25 1YD
Tel: (01429) 863609 Fax :(01429) 863581
Total Power Dissipation 200mW
(derate linearly 2.67mW/°C above 25°C)
ISOCOM INC
1024 S. Greenville Ave, Suite 240,
Allen, TX 75002 USA
Tel: (214) 495-0755 Fax: (214) 495-0901
e-mail [email protected]
http://www.isocom.com
DB92198m-AAS/A1
Page 2
7/12/00
ELECTRICAL CHARACTERISTICS ( TA= 25°C Unless otherwise noted )
PARAMETER MIN TYP MAX UNITS TEST CONDITION
Input Forward Voltage (VF) 1.2 1.4 V IF = 10mA
Reverse Voltage (VR) 6 V IR = 10µA
Reverse Current (IR) 10 µA VR = 6V
Output Collector-emitter Breakdown (BV
Collector-base Breakdown (BV
Emitter-base Breakdown (BV
Collector-emitter Dark Current (I
Collector-base Dark Current (I
) 30 V IC = 1mA ( note 2 )
CEO
) 70 V IC = 100µA
CBO
) 6 V IE = 100µA
EBO
) 25 nA VCE = 5V
CEO
) 10 nA VCE = 5V
CBO
Coupled Output Collector Current ( IC ) 0.5 mA 1mA IF , 5V V
0.3 mA 1mA IF , 5V V
( TA = 0 to + 70°C )
Collector-emitter Saturation VoltageV
Input to Output Isolation Voltage V
Input-output Isolation Resistance R
CE(SAT)
5300 V
ISO
7500 V
10
5x10
ISO
0.5 V 1mA I
RMS
PK
Ω V
See note 1
See note 1
= 500V (note 1)
IO
, 100µA I
F
Turn-on Time ton 20 µs VCC = 10V , IC= 2mA
Turn-off Time toff 20 µs RL = 100Ω , fig 1
Output Rise Time tr 4 µs VCC = 10V , IC= 2mA
Output Fall Time tf 6 µs RL = 100Ω , fig 1
Note 1 Measured with input leads shorted together and output leads shorted together.
Note 2 Special Selections are available on request. Please consult the factory.
CE
CE
C
RL = 100Ω
V
CC
Input
Output
Output
10%
90%
t
on
t
r
FIG 1
t
off
t
f
10%
90%
DB92198m-AAS/A1
Page 3
7/12/00
Collector Power Dissipation vs. Ambient Temperature
Collector Current vs. Collector-emitter Voltage
200
(mW)
C
150
100
50
Collector power dissipation P
0
-30 0 25 50 75 100 125
Ambient temperature TA ( °C )
Forward Current vs. Ambient Temperature
80
60
(mA)
F
50
40
30
20
Forward current I
10
0
-30 0 25 50 75 100 125
Ambient temperature TA ( °C )
20
16
(mA)
C
12
8
Collector current I
4
IF = 10mA
5mA
2mA
1mA
0
0 2 4 6 8 10
Collector-emitter voltage VCE ( V )
Collector-emitter Saturation
Voltage vs. Ambient Temperature
(V)
0.28
CE(SAT)
0.24
0.20
IF = 1mA
IC = 100µA
0.16
0.12
0.08
0.04
0
Collector-emitter saturation voltage V
-30 0 25 50 75 100
Ambient temperature TA ( °C )
TA = 25°C
Relative Current Transfer Ratio
vs. Ambient Temperature
1.5
IF = 1mA
VCE = 5V
1.0
0.5
Relative current transfer ratio
0
-30 0 25 50 75 100
Ambient temperature TA ( °C )
Relative Current Transfer Ratio
vs. Forward Current
1.4
1.2
1.0
0.8
0.6
0.4
Relative current transfer ratio
0.2
VCE = 5V
TA = 25°C
0
0.1 0.2 0.5 1 2 5
Forward current IF (mA)
DB92198m-AAS/A1
