MOC8021M, MOC8050M — Photodarlington Optocoupler (No Base Connection)

September 2009

MOC8021M, MOC8050M Photodarlington Optocoupler (No Base Connection)

Features

■

High BV – Minimum 50V (MOC8021M) – Minimum 80V (MOC8050M)

■

High current transfer ratio: – Minimum 1,000% (MOC8021M) – Minimum 500% (MOC8050M)

■

500% No base connection for improved noise immunity

■

Underwriters Laboratory (UL) recognized File #E90700, Volume 2

IEC 60747-5-2 approved (ordering option V)

■

CEO

Applications

Appliances, measuring instruments

■

I/O interface for computers Programmable controllers

■

Portable electronics Interfacing and coupling systems of different

■

potentials and impedance

■

Solid state relays

Description

The MOC8021M and MOC8050M are photodarlingtontype optically coupled optocouplers. The devices have a gallium arsenide infrared emitting diode coupled with a silicon darlington phototransistor.

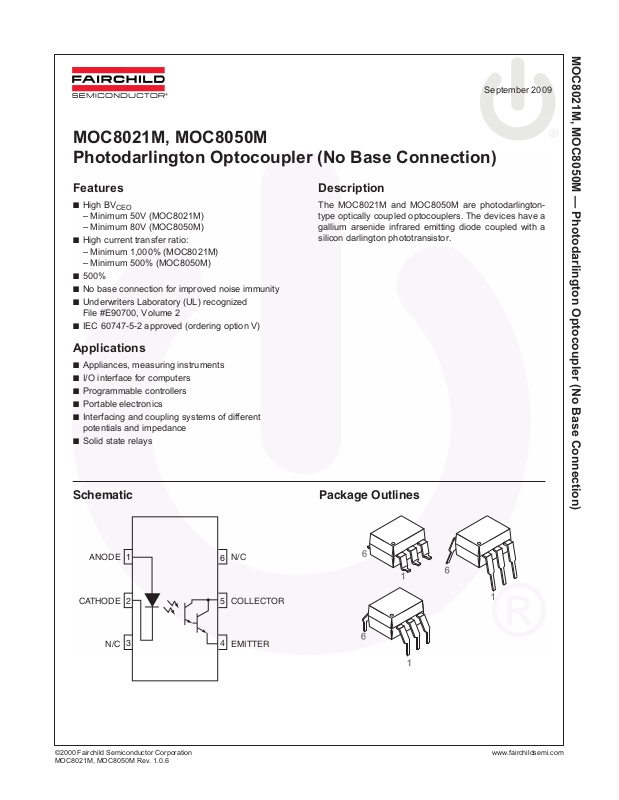

Schematic Package Outlines

ANODE

CATHODE

N/C

1

2

3

N/C

6

COLLECT

5

4

EMITTER

OR

MOC8021M, MOC8050M — Photodarlington Optocoupler (No Base Connection)

Absolute Maximum Ratings

(T

= 25°C Unless otherwise speciﬁed.)

A

Stresses exceeding the absolute maximum ratings may damage the device. The device may not function or be operable above the recommended operating conditions and stressing the parts to these levels is not recommended. In addition, extended exposure to stresses above the recommended operating conditions may affect device reliability. The absolute maximum ratings are stress ratings only.

Symbol Parameter Value Units

TOTAL DEVICE

T

STG

T

OPR

T

SOL

P

D

EMITTER

I

F

V

R

P

D

DETECTOR

V

CEO

P

D

I

C

Storage Temperature -40 to +150 °C

Operating Temperature -40 to +100 °C

Lead Solder Temperature (Wave solder) 260 for 10 sec °C

Total Device Power Dissipation @ T

= 25°C 250 mW

A

Derate above 25°C 2.94 mW/°C

DC/Average Forward Input Current 60 mA

Reverse Input Voltage 3 V

LED Power Dissipation @ T

= 25°C 120 mW

A

Derate above 25°C 1.41 mW/°C

Collector-Emitter Voltage MOC8021M MOC8050M

Detector Power Dissipation @ T

= 25°C 150 mW

A

50 80

V

Derate above 25°C 1.76 mW/°C

Continuous Collector Current 150 mA

Ω

MOC8021M, MOC8050M — Photodarlington Optocoupler (No Base Connection)

Electrical Characteristics

(T

= 25°C Unless otherwise speciﬁed.)

A

Individual Component Characteristics

Symbol Parameter Test Conditions Min. Typ.* Max. Unit

EMITTER

V

I

Input Forward Voltage

F

Reverse Leakage Current

R

I

= 10mA 1.18 2.00 V

F

V

= 3.0V 0.001 10 µA

R

DETECTOR

BV

I

CEO

C

Collector-Emitter Breakdown Voltage

CEO

MOC8021M MOC8050M

Emitter-Collector Breakdown Voltage I

ECO

Collector-Emitter Dark Current

Capacitance

CE

I

= 1.0mA, I

C

= 100µA, I

E

V

= 60V, I

CE

V

= 0V, f = 1MHz 8 pF

CE

= 0

F

50 80

= 0 5 10 V

F

= 0 1 µA

F

100 100

Transfer Characteristics

Symbol Parameter Test Conditions Min. Typ.* Max. Unit

DC CHARACTERISTICS

CTR

AC CHARACTERISTICS

t

on

t

off

Current Transfer Ratio, Collector to Emitter

MOC8021M

MOC8050M

Non-Saturated Turn-on Time I

Tu r n-off Time I

I

= 10mA, V

F

I

= 10mA, V

F

= 5mA, V

F

R

= 100 Ω

L

= 5mA, V

F

R

= 100 Ω

L

CE

= 10V,

CC

= 10V,

CC

= 5V

= 1.5V

1,000

500

8.5 µs

95 µs

V

%

Isolation Characteristics

Symbol Characteristic Test Conditions Min. Typ. Max. Units

V

ISO

R

ISO

C

ISO

Input-Output Isolation Voltage

Isolation Resistance

Isolation Capacitance

Note:

*Typical values at T

= 25°C

A

f = 60Hz, t = 1 sec. 7500 Vac(pk)

V

= 500VDC 10

I-O

V

= Ø, f = 1MHz 0.2 2 pF

I-O

11

Safety and Insulation Ratings

As per IEC 60747-5-2, this optocoupler is suitable for “safe electrical insulation” only within the safety limit data. Compliance with the safety ratings shall be ensured by means of protective circuits.

Symbol Parameter Min. Typ. Max. Unit

MOC8021M, MOC8050M — Photodarlington Optocoupler (No Base Connection)

Installation Classiﬁcations per DIN VDE 0110/1.89

Ta ble 1 For Rated Main Voltage < 150Vrms I-IV For Rated Main voltage < 300Vrms I-IV Climatic Classiﬁcation 55/100/21 Pollution Degree (DIN VDE 0110/1.89) 2

CTI Comparative Tracking Index 175

V

PR

Input to Output Test Voltage, Method b,

V

x 1.875 = V

IORM

, 100% Production Test

PR

1594 V

peak

with tm = 1 sec, Partial Discharge < 5pC

Input to Output Test Voltage, Method a,

V

IORM

x 1.5 = V

, Type and Sample Test

PR

1275 V

peak

with tm = 60 sec, Partial Discharge < 5pC

V

IORM

IOTM

Max. Working Insulation Voltage 850 V

Highest Allowable Over Voltage 6000 V

peak

External Creepage 7 mm External Clearance 7 mm

Insulation Thickness 0.5 mm

RIO Insulation Resistance at Ts, V

= 500V 10

IO

9

Ω

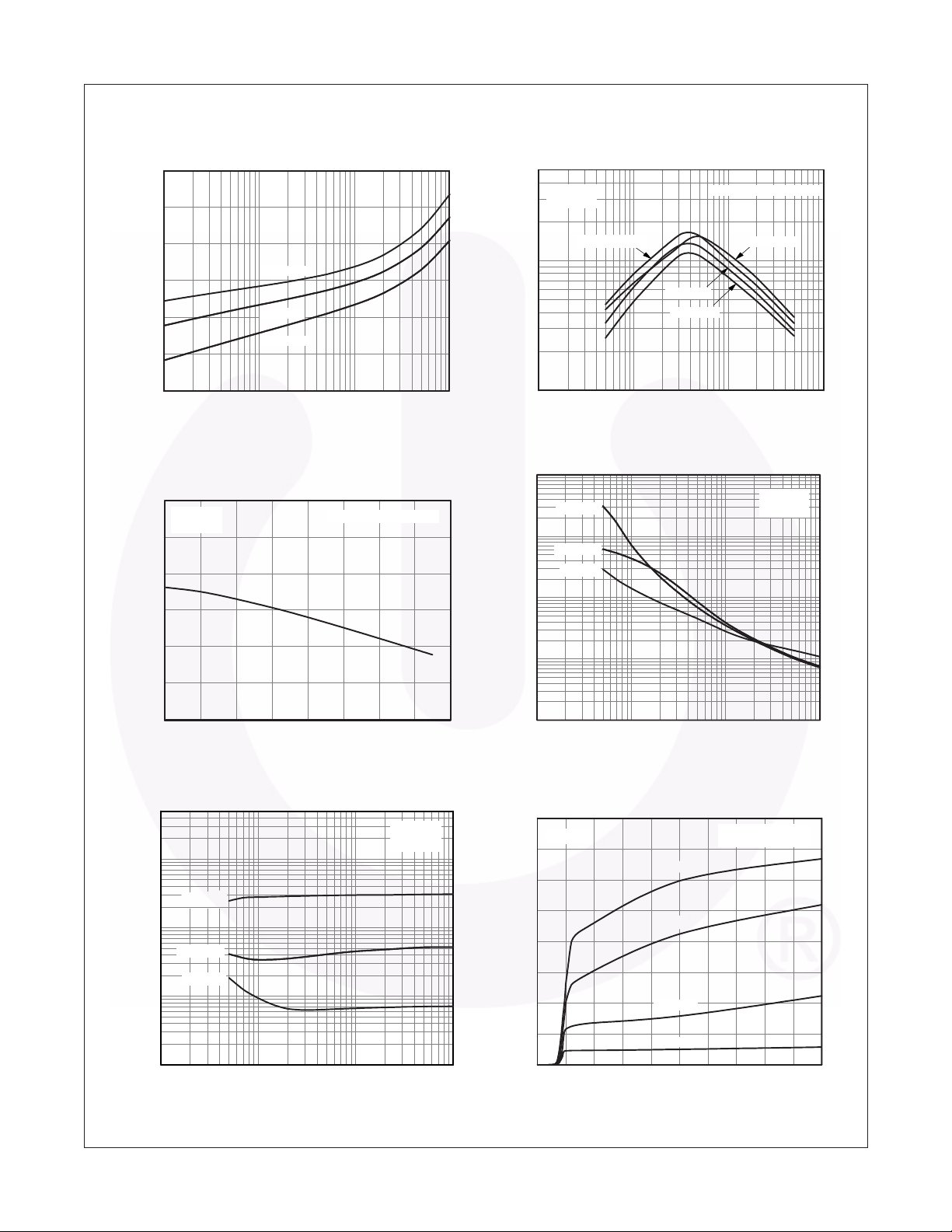

Typical Performance Curves

MOC8021M, MOC8050M — Photodarlington Optocoupler (No Base Connection)

Fig. 1 LED Forward Voltage vs. Forward Current

1.8

1.6

1.4

T

=-40oC

1.2

1.0

- FORWARD VOLTAGE (V)

F

V

0.8

0.6

0.1 1 10 100

I

Fig. 3 Normalized CTR vs. Ambient Temperature

1.6

IF=10mA V

=10V

CE

1.4

A

TA=25oC

T

= 110oC

A

- LED FORWARD CURRENT (mA)

F

Normalized to T

A

1.2

1.0

0.8

0.6

=25oC

Fig. 2 Normalized CTR vs. Forward Current

T

A

T

=7

=110oC

A

Normalized to I

o

C

0

T

A

VCE=10V

=25oC

T

A

T

=0oC, 25oC

A

1

0.1

NORMALIZED CTR – CURRENT TRANSFER RATIO

0.1 1 10 100

IF - FORWARD CURRENT (mA)

Fig. 4 Turn-on Time vs. Forward Current

1000

=1k

R

Ω

L

100

µs)

10

- TURN-ON TIME (

ON

T

1

Ω

= 100

R

L

Ω

=10

R

L

=10mA

F

=-40oC

VCC=10V

=25oC

T

A

NORMALIZED CTR – CURRENT TRANSFER RATIO

0.4

-40 -20 0 20 40 60 80 100 120

TA - AMBIENT TEMPERATURE (°C)

Fig. 5 Turn-off Time vs. Forward Current

VCC=10V

T

1000

µs)

Ω

=1K

R

L

100

= 100

R

Ω

L

- TURN-ON TIME (

OFF

T

10

1

0110100

Ω

=10

R

L

- FORWARD CURRENT (mA)

I

F

A

=25oC

0.1

0.1 1 10 100

IF - FORWARD CURRENT (mA)

Fig. 6 Normalized Collector-Emitter Current

vs. Collector-Emitter Voltage

16

TA=25oC

14

I

=10mA

12

10

F

I

=5mA

F

8

6

- COLLECOTR-EMITTER CURRENT

CE

4

2

NORMALIZED I

0

012345678910

I

F

I

F

=2mA

=1mA

VCE - COLLECTOR-EMITTER VOLTAGE (V)

Normalized to :

=1mA,VCE=5V

I

F

MOC8021M, MOC8050M — Photodarlington Optocoupler (No Base Connection)

Typical Performance Curves

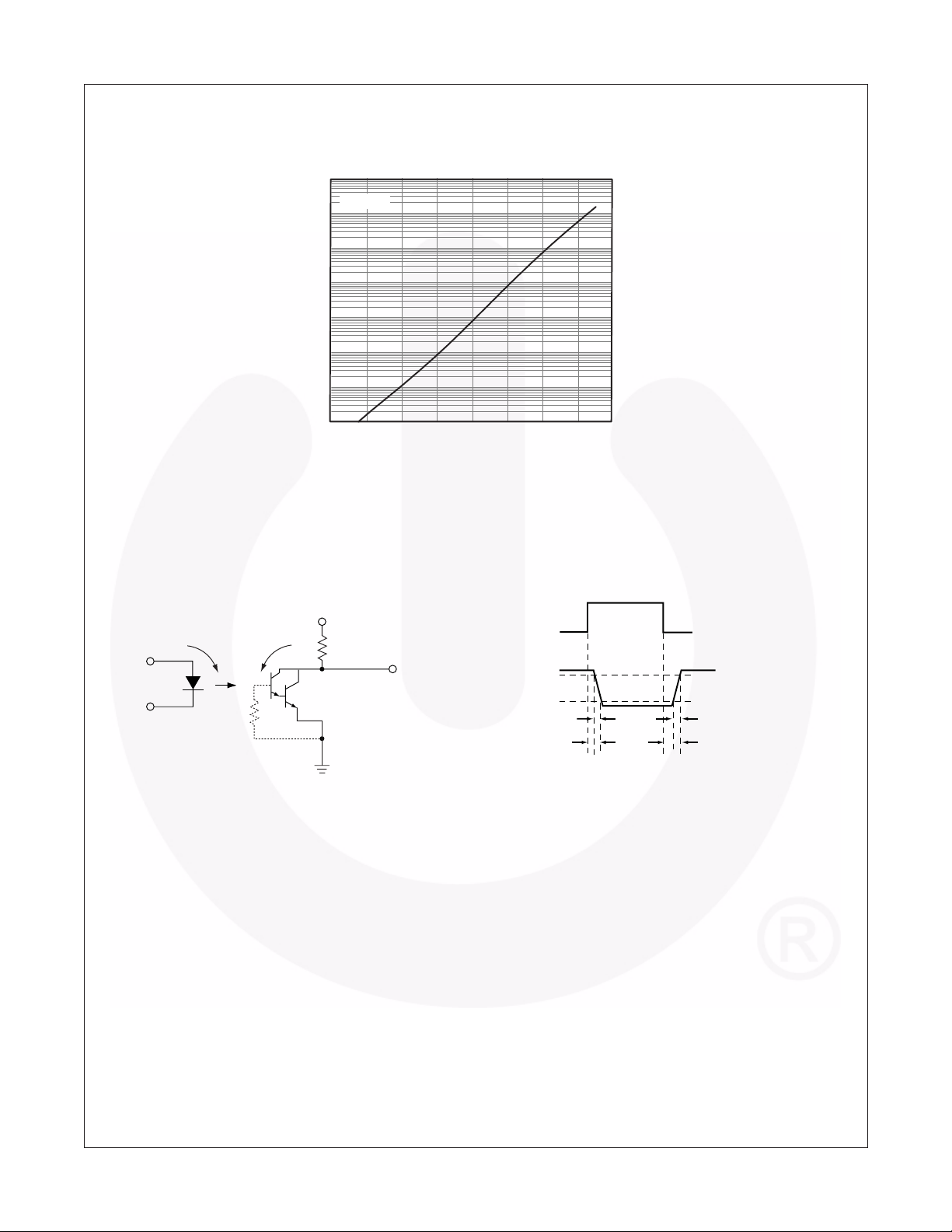

Fig. 7 Dark Current vs. Ambient Temperature

100,000

VCE= 10V

10,000

1.000

100

10

1

0.1

- COLLECTOR -EMITTER DARK CURRENT (nA)

CEO

I

0.01

-40 -20 0 20

TEST CIRCUIT WAVE FORMS

(Continued)

TA - AMBIENT TEMPERATURE

60 80 100 120

40

(°C)

INPUT

= 10V

V

CC

INPUT PULSE

I

F

R

BE

C

R

L

OUTPUT

Adjust

I

F to produce IC = 2 mA

10%

90%

OUTPUT PULSE

t

r

t

on

t

f

t

off

Figure 8. Switching Time Test Circuit and Waveforms

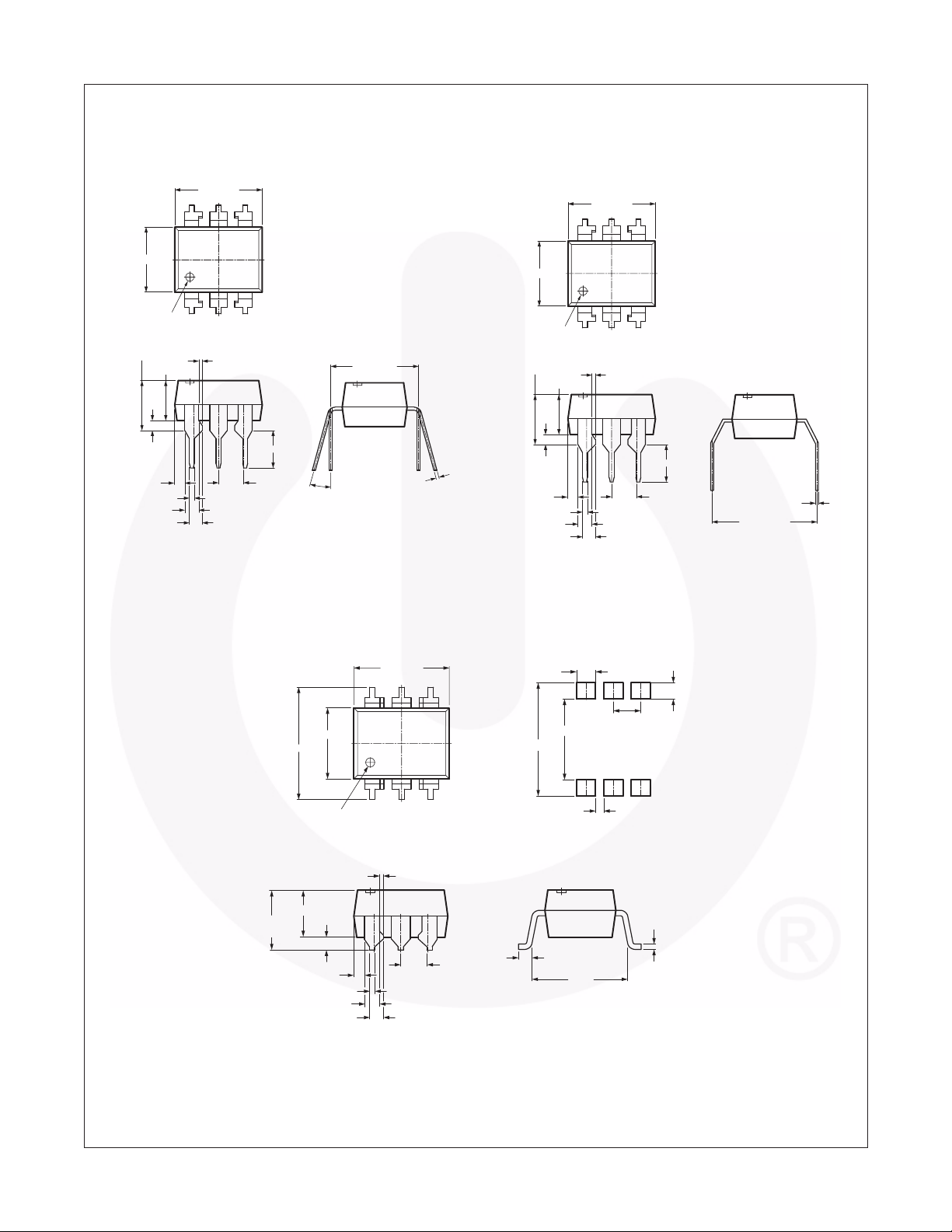

Package Dimensions

Through Hole 0.4" Lead Spacing

8.13–8.89

64

8.13–8.89

64

MOC8021M, MOC8050M — Photodarlington Optocoupler (No Base Connection)

6.10–6.60

5.08 (Max.)

3.28–3.53

0.38 (Min.)

(0.86)

1.02–1.78

Pin 1

13

0.41–0.51

0.25–0.36

0.76–1.14

2.54–3.81

2.54 (Bsc)

Surface Mount

7.62 (Typ.)

15° (Typ.)

8.13–8.89

64

0.20–0.30

6.10–6.60

5.08 (Max.)

3.28–3.53

0.38 (Min.)

(0.86)

1.02–1.78

Pin 1

13

0.41–0.51

(1.78)

0.25–0.36

0.76–1.14

2.54–3.81

2.54 (Bsc)

(1.52)

0.20–0.30

10.16–10.80

(2.54)

(0.76)

8.43–9.90

6.10–6.60

Pin 1

(7.49)

(10.54)

13

Rcommended Pad Layout

0.25–0.36

3.28–3.53

5.08

(Max.)

0.38 (Min.)

(0.86)

1.02–1.78

0.41–0.51

0.76–1.14

2.54 (Bsc)

0.16–0.88

(8.13)

0.20–0.30

Note:

All dimensions in mm.

Ordering Information

Option

No sufﬁx MOC8050M Standard Through Hole Device (50 parts per tube)

S MOC8050SM Surface Mount Lead Bend

SR2 MOC8050SR2M Surface Mount; Tape and Reel

T MOC8050TM 0.4" Lead Spacing

V MOC8050VM IEC60747-5-2

TV MOC8050TVM IEC60747-5-2, 0.4" Lead Spacing

SV MOC8050SVM IEC60747-5-2, Surface Mount

SR2V MOC8050SR2VM IEC60747-5-2, Surface Mount, Tape and Reel

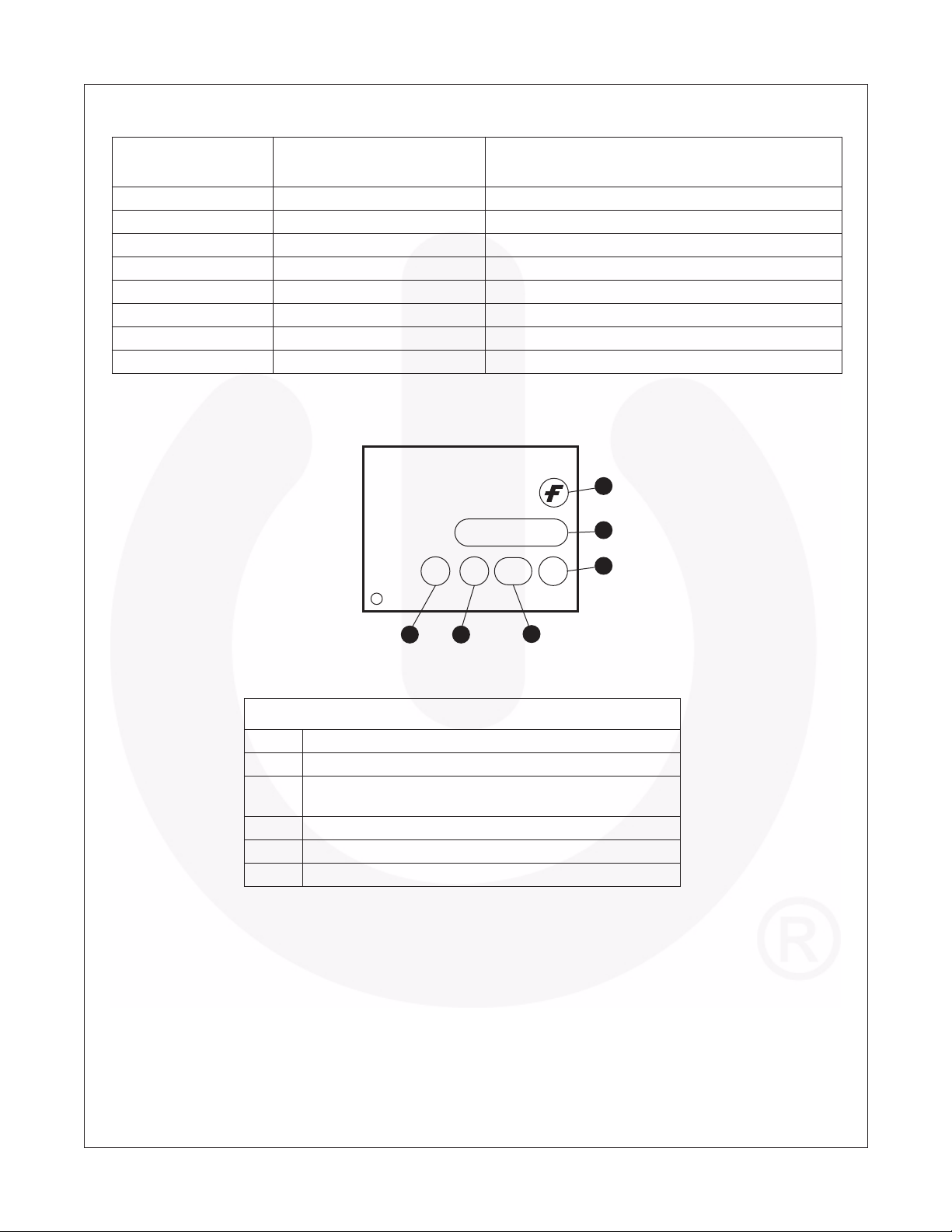

Marking Information

Order Entry Identiﬁer

(Example) Description

MOC8021M, MOC8050M — Photodarlington Optocoupler (No Base Connection)

MOC8050

V X YY Q

43

Deﬁnitions

1 Fairchild logo 2 Device number

VDE mark (Note: Only appears on parts ordered with VDE

3

option – See order entry table)

4 One digit year code, e.g., ‘7’ 5 Two digit work week ranging from ‘01’ to ‘53’ 6 Assembly package code

5

1

2

6

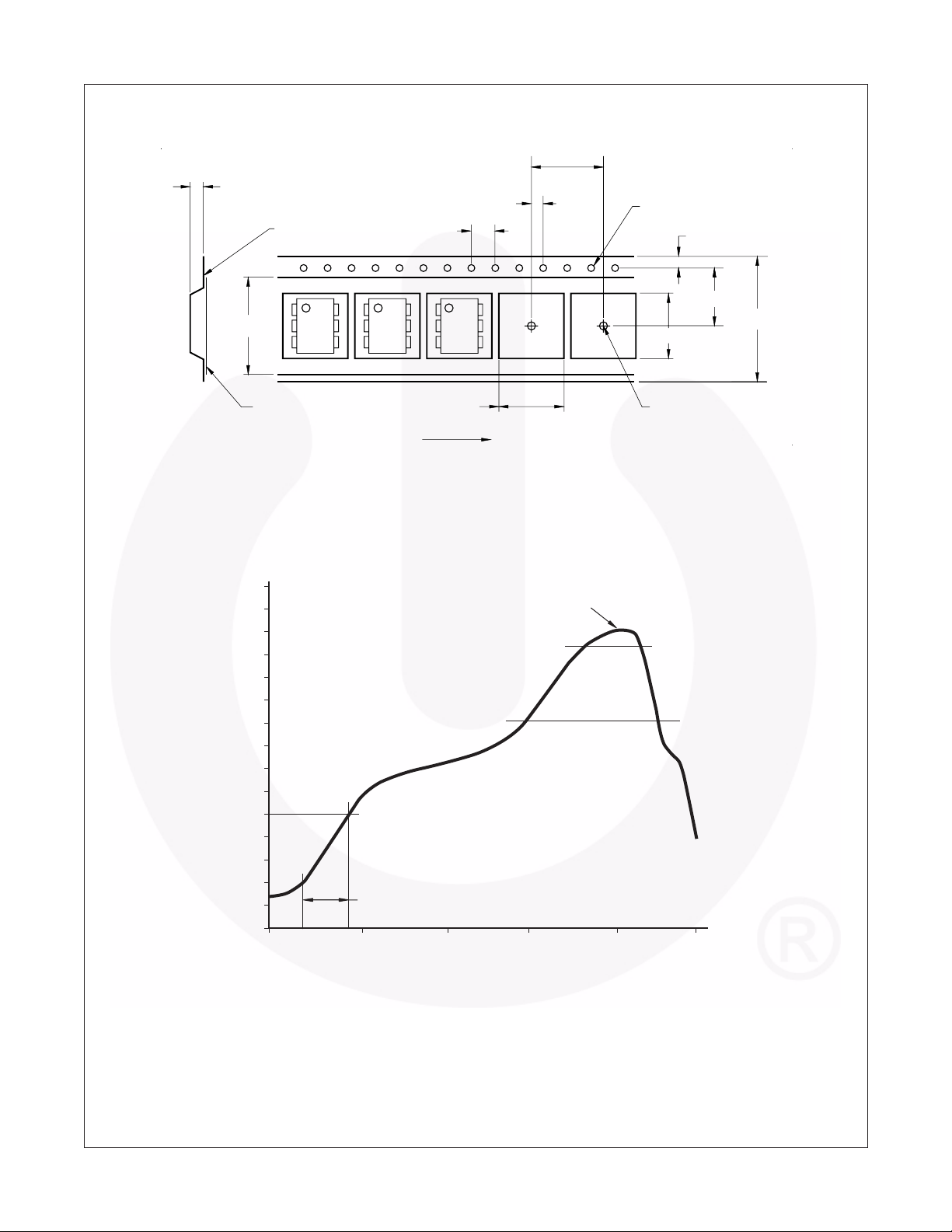

Tape Dimensions

4.5 ± 0.20

0.30 ± 0.05

21.0 ± 0.1

0.1 MAX

4.0 ± 0.1

User Direction of Feed

2.0 ± 0.05

10.1 ± 0.20

12.0 ± 0.1

1.5 MIN

Ø

11.5 ± 1.0

9.1 ± 0.20

Ø

1.5 ± 0.1/-0

1.75 ± 0.10

24.0 ± 0.3

MOC8021M, MOC8050M — Photodarlington Optocoupler (No Base Connection)

Note:

All dimensions are in millimeters.

Reflow Soldering Profile

300

280

260

240

220

200

180

160

°C

140

120

100

80

60

40

20

0

0 60 180120 270

260°C

>245°C = 42 Sec

Time above

183°C = 90 Sec

1.822°C/Sec Ramp up rate

33 Sec

360

Time (s)

TRADEMARKS

The following includes registered and unregistered trademarks and service marks, owned by Fairchild Semiconductor and/or its global subsidiaries,andis not intended to be an exhaustive list of all such trademarks.

Auto-SPM™ Build it Now™ CorePLUS™ CorePOWER™

CROSSVOLT™

CTL™ Current Transfer Logic™ EcoSPARK EfficentMax™ EZSWITCH™*

®

™*

®

Fairchild Fairchild Semiconductor FACT Quiet Series™

®

FACT

®

FAST

®

F-PFS™

®

FRFET Global Power Resource Green FPS™ Green FPS™ e-Series™ Gmax™ GTO™ IntelliMAX™ ISOPLANAR™ MegaBuck™ MICROCOUPLER™ MicroFET™ MicroPak™ MillerDrive™ MotionMax™ Motion-SPM™ OPTOLOGIC OPTOPLANAR

®

FastvCore™ FETBench™ FlashWriter FPS™

®

*

PDP SPM™ Power-SPM™

PowerTrench

SM

PowerXS™ Programmable Active Droop™ QFET QS™ Quiet Series™ RapidConfigure™

Saving our world, 1mW/W/kW at a time™ SmartMax™ SMART START™ SPM STEALTH™ SuperFET™

®

SuperSOT™-3 SuperSOT™-6 SuperSOT™-8 SupreMOS™ SyncFET™ Sync-Lock™

®

ThePower Franchise

TinyBoost™ TinyBuck™

®

TinyLogic

®

TINYOPTO™

™

TinyPower™ TinyPWM™ TinyWire™ TriFault Detect™

®

TRUECURRENT™* µSerDes™

®

UHC Ultra FRFET™ UniFET™ VCX™ VisualMax™

®

*

XS™

*Trademarks of System General Corporation, used under license by Fairchild Semiconductor.

DISCLAIMER

FAIRCHILD SEMICONDUCTOR RESERVES THE RIGHT TO MAKE CHANGES WITHOUT FURTHER NOTICE TO ANY PRODUCTS HEREIN TO IMPROVE RELIABILITY, FUNCTION, OR DESIGN. FAIRCHILD DOES NOT ASSUME ANY LIABILITY ARISING OUT OF THE APPLICATION OR USE OF ANY PRODUCT OR CIRCUIT DESCRIBED HEREIN; NEITHER DOES IT CONVEY ANYLICENSE UNDER ITS PATENT RIGHTS, NOR THE RIGHTS OF OTHERS. THESE SPECIFICATIONS DO NOT EXPAND THE TERMS OF FAIRCHILD’S WORLDWIDE TERMS AND CONDITIONS, SPECIFICALLY THE WARRANTY THEREIN, WHICHCOVERSTHESE PRODUCTS.

MOC8021M, MOC8050M — Photodarlington Optocoupler (No Base Connection)

LIFE SUPPORT POLICY

FAIRCHILD’S PRODUCTS ARE NOT AUTHORIZED FOR USE AS CRITICAL COMPONENTS IN LIFE SUPPORT DEVICES OR SYSTEMS WITHOUT THE EXPRESS WRITTEN APPROVAL OF FAIRCHILD SEMICONDUCTOR CORPORATION.

As used herein:

1. Life support devices or systems are devices or systems which, (a) are intended for surgical implant into the body or (b) support or sustain life, and (c) whose failure to perform when properly used in accordance with instructions for use provided in the labeling, can be reasonably expected to result in a significant injury of the user.

2. A critical component in any component of a life support, device, or system whose failure to perform can be reasonably expected to cause the failure of the life support device or system, or to affect its safety or effectiveness.

ANTI-COUNTERFEITING POLICY

Fairchild Semiconductor Corporation's Anti-Counterfeiting Policy. Fairchild's Anti-Counterfeiting Policy is also stated on our external website, www.fairchildsemi.com, under Sales Support.

Counterfeiting of semiconductor parts is a growing problem in the industry. All manufacturers of semiconductor products are experiencing counterfeiting of their parts. Customers who inadvertently purchase counterfeit parts experience many problems such as loss of brand reputation, substandard performance, failedapplications, and increased cost of production and manufacturing delays. Fairchild is taking strong measures to protect ourselves and our customers from the proliferation of counterfeit parts. Fairchild strongly encourages customers to purchase Fairchild parts either directly from Fairchild or from Authorized Fairchild Distributors who are listed by country on our web page cited above. Products customers buy either from Fairchild directly or from Authorized Fairchild Distributors are genuine parts, have full traceability, meet Fairchild's quality standards for handling and storage and provide access to Fairchild's full range of up-to-date technicalandproduct information. Fairchild and our Authorized Distributors will stand behind all warranties and will appropriately address any warranty issues that may arise. Fairchild will not provide any warranty coverage or other assistance for parts bought from Unauthorized Sources. Fairchild is committed to combat this global problem and encourage our customers to do their part in stopping this practice by buying direct or from authorized distributors.

PRODUCT STATUS DEFINITIONS

Definition of Terms

Datasheet Identification Product Status Definition

Advance Information Formative / In Design

Preliminary

First Production

No Identification Needed Full Production

Obsolete Not In Production

Datasheet contains the design specifications for product development. Specifications may change in any manner without notice.

Datasheet contains preliminary data; supplementary data will be published at a later date. Fairchild Semiconductor reserves the right to make changes at any time without notice to improve design.

Datasheet contains final specifications. Fairchild Semiconductor reserves the right to make changes at any time without notice to improve the design.

Datasheet contains specifications on a product that is discontinued by Fairchild Semiconductor. The datasheet is for reference information only.

Rev. I40
