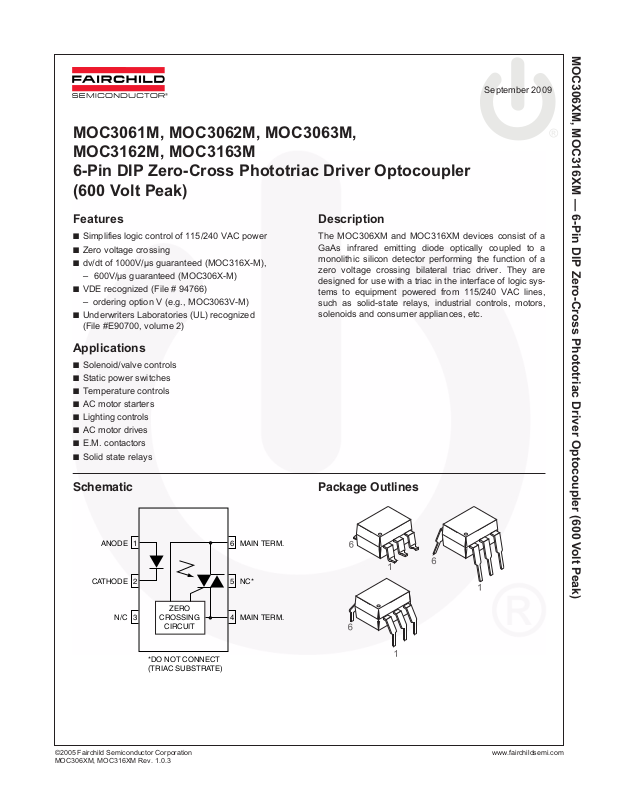

MOC306XM, MOC316XM — 6-Pin DIP Zero-Cross Phototriac Driver Optocoupler (600 Volt Peak)

September 2009

MOC3061M, MOC3062M, MOC3063M, MOC3162M, MOC3163M 6-Pin DIP Zero-Cross Phototriac Driver Optocoupler (600 Volt Peak)

Features

Simplifies logic control of 115/240 VAC power

■

Zero voltage crossing dv/dt of 1000V/µs guaranteed (MOC316X-M),

■

– 600V/µs guaranteed (MOC306X-M) VDE recognized (File # 94766)

■

– ordering option V (e.g., MOC3063V-M)

■

Underwriters Laboratories (UL) recognized (File #E90700, volume 2)

Description

The MOC306XM and MOC316XM devices consist of a GaAs infrared emitting diode optically coupled to a monolithic silicon detector performing the function of a zero voltage crossing bilateral triac driver. They are designed for use with a triac in the interface of logic systems to equipment powered from 115/240 VAC lines, such as solid-state relays, industrial controls, motors, solenoids and consumer appliances, etc.

Applications

Solenoid/valve controls

■

Static power switches Temperature controls

■

AC motor starters Lighting controls

■

AC motor drives E.M. contactors

■

Solid state relays

Schematic Package Outlines

ANODE

CATHODE

N/C

1

2

3

ZERO

CROSSING

CIRCUIT

*DO NOT CONNECT (TRIAC SUBSTRATE)

MAIN TERM.

6

NC*

5

4

MAIN TERM.

MOC306XM, MOC316XM — 6-Pin DIP Zero-Cross Phototriac Driver Optocoupler (600 Volt Peak)

Absolute Maximum Ratings

(T

= 25°C unless otherwise noted)

A

Stresses exceeding the absolute maximum ratings may damage the device. The device may not function or be operable above the recommended operating conditions and stressing the parts to these levels is not recommended. In addition, extended exposure to stresses above the recommended operating conditions may affect device reliability. The absolute maximum ratings are stress ratings only.

Symbol Parameters Device Value Units

TOTAL DEVICE

T

STG

T

OPR

T

SOL

T

V

ISO

P

D

EMITTER

I

F

V

R

P

D

DETECTOR

V

DRM

I

TSM

P

D

Storage Temperature All -40 to +150 °C Operating Temperature All -40 to +85 °C Lead Solder Temperature All 260 for 10 sec °C Junction Temperature Range All -40 to +100 °C

J

Isolation Surge Voltage

(1)

All 7500 Vac(pk)

(peak AC voltage, 60Hz, 1 sec. duration)

Total Device Power Dissipation @ 25°C Ambient Derate above 25°C

All 250 mW

2.94 mW/°C

Continuous Forward Current All 60 mA Reverse Voltage All 6 V

Total Power Dissipation @ 25°C Ambient Derate above 25°C

All 120 mW

1.41 mW/°C

Off-State Output Terminal Voltage All 600 V Peak Repetitive Surge Current

All 1 A

(PW = 100µs, 120pps)

Total Power Dissipation @ 25°C Ambient Derate above 25°C

All 150 mW

1.76 mW/°C

Note:

1. Isolation surge voltage, V

, is an internal device dielectric breakdown rating. For this test, Pins 1 and 2 are

ISO

common, and Pins 4, 5 and 6 are common.

MOC306XM, MOC316XM — 6-Pin DIP Zero-Cross Phototriac Driver Optocoupler (600 Volt Peak)

Electrical Characteristics

(T

= 25°C Unless otherwise speciﬁed)

A

Individual Component Characteristics

Symbol Parameters Test Conditions Device Min. Typ.* Max. Units

EMITTER

V

I

Input Forward Voltage I

F

Reverse Leakage Current V

R

= 30mA All 1.3 1.5 V

F

= 6V All 0.005 100 µA

R

DETECTOR

I

DRM1

Peak Blocking Current, Either Direction

dv/dt Critical Rate of Rise of

Off-State Voltage

V

= 600V, I

DRM

I

= 0 (Figure 9)

F

= 0

(3)

(2)

MOC316XM 10 100 MOC306XM 10 500 MOC306XM 600 1500 MOC316XM 1000

V/µs

Transfer Characteristics

Symbol DC Characteristics Test Conditions Device Min. Typ.* Max. Units

I

FT

V

TM

I

H

LED Trigger Current (rated I

FT

)

Peak On-State Voltage, Either Direction

Holding Current, Either Direction

Main Terminal Voltage = 3V

I

= 100 mA peak,

TM

I

= rated I

F

FT

(3)

MOC3061M 15 mA

MOC3062M/

10

MOC3162M

MOC3063M/

5

MOC3163M

All 1.8 3 V

All 500 µA

nA

Zero Crossing Characteristics

Symbol Characteristics Test Conditions Device Min. Typ.* Max. Units

V

INH

I

DRM2

Inhibit Voltage (MT1-MT2 voltage above which device will not trigger)

Leakage in Inhibited State I

I

= Rated I

F

= Rated I

F

V

= 600V,

DRM

off state

FT

MOC3061M/2M/3M 12 20 V

MOC3162M/3M 12 15

,

All 150 500 µA

Isolation Characteristics

Symbol Characteristics Test Conditions Device Min. Typ.* Max. Units

V

ISO

*Typical values at T

Notes:

2. Test voltage must be applied within dv/dt rating.

3. All devices are guaranteed to trigger at an I I

lies between max I

F

MOC3163M) and absolute max I

4. This is static dv/dt. See Figure 9 for test circuit. Commutating dv/dt is a function of the load-driving thyristor(s) only.

Isolation Voltage f = 60 Hz, t = 1 sec All 7500 V

= 25°C

A

value less than or equal to max I

(15mA for MOC3061M, 10mA for MOC3062M & MOC3162M, 5mA for MOC3063M &

FT

(60mA).

F

. Therefore, recommended operating

FT

Safety and Insulation Ratings

As per IEC 60747-5-2, this optocoupler is suitable for “safe electrical insulation” only within the safety limit data. Compliance with the safety ratings shall be ensured by means of protective circuits.

Symbol Parameter Min. Typ. Max. Unit

MOC306XM, MOC316XM — 6-Pin DIP Zero-Cross Phototriac Driver Optocoupler (600 Volt Peak)

Installation Classiﬁcations per DIN VDE 0110/1.89

Ta ble 1 For Rated Main Voltage < 150Vrms I-IV For Rated Main voltage < 300Vrms I-IV Climatic Classiﬁcation 55/100/21 Pollution Degree (DIN VDE 0110/1.89) 2

CTI Comparative Tracking Index 175 V

PR

Input to Output Test Voltage, Method b,

V

x 1.875 = V

IORM

, 100% Production Test

PR

1594 V

peak

with tm = 1 sec, Partial Discharge < 5pC

Input to Output Test Voltage, Method a,

V

IORM

x 1.5 = V

, Type and Sample Test

PR

1275 V

peak

with tm = 60 sec, Partial Discharge < 5pC

V V

IORM

IOTM

Max. Working Insulation Voltage 850 V

Highest Allowable Over Voltage 6000 V

peak

External Creepage 7 mm External Clearance 7 mm

Insulation Thickness 0.5 mm

RIO Insulation Resistance at Ts, V

= 500V 10

IO

9

Ω

Typical Performance Curves

MOC306XM, MOC316XM — 6-Pin DIP Zero-Cross Phototriac Driver Optocoupler (600 Volt Peak)

Figure 1. LED Forward Voltage vs. Forward Current

1.7

1.6

1.5

1.4

1.3

1.2

1.1

, FORWARD VOLTAGE (V)

1.0

F

V

0.9

0.8

0.7

0.1 1 10 100

TA = -40°C

T

= 25°C

A

= 85°C

T

A

IF, LED FORWARD CURRENT (mA)

Figure 3. LED Current Required to Trigger vs.

LED Pulse Width

16

Figure 2. Trigger Current Vs. Temperature

1.6

1.5

1.4

1.3

1.2

, NORMALIZED

1.1

FT

I

1.0

0.9

0.8

-40 -20 0 20 40 60 80 100

Figure 4. Leakage Current, I

10000

V

= 3V

TM

NORMALIZED TO T

TA, AMBIENT TEMPERATURE (°C)

= 25°C

A

vs. Temperature

DRM

14

12

10

8

6

4

2

, LED TRIGGER CURRENT (NORMALIZED)

FT

I

0

= 25°C

T

A

NORMALIZED TO PW

PWIN, LED TRIGGER PULSE WIDTH (µs)

>> 100µs

IN

101 100

1000

100

10

, LEAKAGE CURRENT (nA)

DRM

1

I

0.1

-40 -20 0 20 40 60 80 100

, AMBIENT TEMPERATURE (°C)

T

A

MOC306XM, MOC316XM — 6-Pin DIP Zero-Cross Phototriac Driver Optocoupler (600 Volt Peak)

Typical Performance Curves

Figure 5. I

2.4

2.2

2.0

1.8

1.6

1.4

1.2

, NORMALIZED

1.0

DRM2

I

0.8

0.6

0.4

-40 -20 0 20 40 60 80 100

3.2

2.8

2.4

2.0

1.6

1.2

0.8

, HOLDING CURRENT (NORMALIZED)

H

I

0.4

0.0

-40 -20 0 20 40 60 80 100

, Leakage in Inhibit State vs. Temperature

DRM2

IF = RATED I NORMALIZED TO TA = 25°C

T

A

Figure 7. I

T

A

FT

, AMBIENT TEMPERATURE (°C)

, Holding Current vs. Temperature

H

, AMBIENT TEMPERATURE (°C)

(Continued)

Figure 6. On-State Characteristics

800

600

TA = 25°C

400

200

0

-200

-400

, ON-STATE CURRENT (mA)

TM

I

-600

-800

-4 -3 -2 -1 0 1 2 3 4 VTM, ON-STATE VOLTAGE (VOLTS)

Figure 8. Inhibit Voltage vs. Temperature

1.20

1.15 NORMALIZED TO TA = 25°C

1.10

1.05

1.00

, NORMALIZED

0.95

INH

V

0.90

0.85

0.80

-40 -20 0 20 40 60 80 100 T

, AMBIENT TEMPERATURE (°C)

A

1. 100x scope probes are used, to allow high speeds and voltages.

2. The worst-case condition for static dv/dt is established by triggering the D.U.T. with a normal LED input current, then removing the current. The variable vernier resistor combined with various capacitor combinations allows the dv/dt to be gradually increased until the D.U.T. continues to trigger in response to the applied voltage pulse, even after the LED current has been removed. The dv/dt is then decreased until the D.U.T. stops triggering. t

is measured at this

RC

point and recorded.

27

2W

470pF

0.001

0.005

0.01

0.047

WIREWOUND

0.33 1000V

1000

10 WATT

1 MEG 2W EACH

POWER

1000V

1.2 MEG

2W

0.047

TEST

X100 PROBE

DIFFERENTIAL

PREAMP

MOUNT DUT ON TEMPERATURE CONTROLLED Cµ PLATE

1

2

X100 PROBE

6

DUT

4

dV

VERNIER

V

DRM/VRRM

dt

20k

SELECT

2W

100

2W

82

2W

MOC306XM, MOC316XM — 6-Pin DIP Zero-Cross Phototriac Driver Optocoupler (600 Volt Peak)

1N914

20V

56

f = 10 Hz PW = 100 µs 50 Ω PULSE GENERATOR

2W

ALL COMPONENTS ARE NON-INDUCTIVE UNLESS SHOWN

Figure 9. Circuit for Static dV Measurement of Power Thyristors

Basic Applications

Typical circuit for use when hot line switching is required. In this circuit the “hot” side of the line is switched and the load connected to the cold or neutral side. The load may be connected to either the neutral or hot line.

R

is calculated so that I

in

of the part, 15mA for the MOC3061M, 10mA for the MOC3062M, or 5mA for the MOC3063M. The 39Ω resistor and 0.01µF capacitor are for snubbing of the triac and is often, but not always, necessary depending upon the particular triac and load used.

Suggested method of firing two, back-to-back SCR’s with a Fairchild triac driver. Diodes can be 1N4001; resistors, R1 and R2, are optional 330Ω.

Note:

This optoisolator should not be used to drive a load directly. It is intended to be a trigger device only.

is equal to the rated I

F

FT

1000 1/4W

V

CC

V

CC

R

1N967A

18V

1

in

2

3

0.1

RFP4N100

0.47

dt

R

in

1

MOC3061-M

2

MOC3062-M MOC3063-M

3

Figure 10. Hot-Line Switching Application Circuit

R1 D1

6

MOC3061-M MOC3062-M MOC3063-M

5

360Ω

4

360Ω

6

5

4

SCR

FKPF12N60

R2 D2

0-1000V

39Ω

0.01µF

SCR

10mA

LOAD

HOT

240 VAC

NEUTRAL

115 VAC

Figure 11. Inverse-Parallel SCR Driver Circuit

Package Dimensions

Through Hole 0.4" Lead Spacing

8.13–8.89

64

8.13–8.89

64

MOC306XM, MOC316XM — 6-Pin DIP Zero-Cross Phototriac Driver Optocoupler (600 Volt Peak)

6.10–6.60

5.08 (Max.)

3.28–3.53

0.38 (Min.)

(0.86)

1.02–1.78

Pin 1

13

0.41–0.51

0.25–0.36

0.76–1.14

2.54–3.81

2.54 (Bsc)

Surface Mount

7.62 (Typ.)

15° (Typ.)

8.13–8.89

64

0.20–0.30

6.10–6.60

5.08 (Max.)

3.28–3.53

0.38 (Min.)

(0.86)

1.02–1.78

Pin 1

13

0.41–0.51

(1.78)

0.25–0.36

0.76–1.14

2.54–3.81

2.54 (Bsc)

(1.52)

0.20–0.30

10.16–10.80

(2.54)

(0.76)

8.43–9.90

6.10–6.60

Pin 1

(7.49)

(10.54)

13

Rcommended Pad Layout

0.25–0.36

3.28–3.53

5.08

(Max.)

0.38 (Min.)

(0.86)

1.02–1.78

0.41–0.51

0.76–1.14

2.54 (Bsc)

0.16–0.88

(8.13)

0.20–0.30

Note:

All dimensions in mm.

Ordering Information

Option

No option MOC3061M Standard Through Hole Device

S MOC3061SM Surface Mount Lead Bend

SR2 MOC3061SR2M Surface Mount; Tape and Reel

T MOC3061TM 0.4" Lead Spacing

V MOC3061VM VDE 0884 TV MOC3061TVM VDE 0884, 0.4" Lead Spacing SV MOC3061SVM VDE 0884, Surface Mount

SR2V MOC3061SR2VM VDE 0884, Surface Mount, Tape and Reel

Marking Information

Order Entry Identiﬁer

(Example) Description

MOC306XM, MOC316XM — 6-Pin DIP Zero-Cross Phototriac Driver Optocoupler (600 Volt Peak)

1

MOC3061

V X YY

43

Q

5

2

6

Deﬁnitions

1Fairchild logo 2Device number

VDE mark (Note: Only appears on parts ordered with VDE

3

option – See order entry table) 4 One digit year code, e.g., ‘3’ 5Two digit work week ranging from ‘01’ to ‘53’ 6 Assembly package code

*Note – Parts that do not have the ‘V’ option (see definition 3 above) that are marked with date code ‘325’ or earlier are marked in portrait format.

Carrier Tape Specification

4.5 ± 0.20

0.30 ± 0.05

21.0 ± 0.1

0.1 MAX

User Direction of Feed

4.0 ± 0.1

10.1 ± 0.20

12.0 ± 0.1

2.0 ± 0.05

1.5 MIN

Ø

9.1 ± 0.20

1.5 ± 0.1/-0

Ø

1.75 ± 0.10

11.5 ± 1.0

24.0 ± 0.3

MOC306XM, MOC316XM — 6-Pin DIP Zero-Cross Phototriac Driver Optocoupler (600 Volt Peak)

Reflow Profile

°C

300 280 260 240 220 200 180 160 140 120 100

80 60 40 20

0

0 60 180120 270

1.822°C/Sec Ramp up rate

33 Sec

260°C

Time above

183°C = 90 Sec

Time (s)

>245°C = 42 Sec

360

TRADEMARKS

The following includes registered and unregistered trademarks and service marks, owned by Fairchild Semiconductor and/or its global subsidiaries,andis not intended to be an exhaustive list of all such trademarks.

Auto-SPM™ Build it Now™ CorePLUS™ CorePOWER™

CROSSVOLT™

CTL™ Current Transfer Logic™ EcoSPARK EfficentMax™ EZSWITCH™*

®

™*

®

Fairchild Fairchild Semiconductor FACT Quiet Series™

®

FACT

®

FAST

®

F-PFS™

®

FRFET Global Power Resource Green FPS™ Green FPS™ e-Series™ Gmax™ GTO™ IntelliMAX™ ISOPLANAR™ MegaBuck™ MICROCOUPLER™ MicroFET™ MicroPak™ MillerDrive™ MotionMax™ Motion-SPM™ OPTOLOGIC OPTOPLANAR

®

FastvCore™ FETBench™ FlashWriter FPS™

®

*

PDP SPM™ Power-SPM™

PowerTrench

SM

PowerXS™ Programmable Active Droop™ QFET QS™ Quiet Series™ RapidConfigure™

Saving our world, 1mW/W/kW at a time™ SmartMax™ SMART START™ SPM STEALTH™ SuperFET™ SuperSOT™-3

®

SuperSOT™-6 SuperSOT™-8 SupreMOS™ SyncFET™ Sync-Lock™

®

ThePower Franchise

TinyBoost™ TinyBuck™

®

TinyLogic

®

TINYOPTO™

™

TinyPower™ TinyPWM™ TinyWire™ TriFault Detect™

®

TRUECURRENT™* µSerDes™

®

UHC Ultra FRFET™ UniFET™ VCX™ VisualMax™

®

*

XS™

*Trademarks of System General Corporation, used under license by Fairchild Semiconductor.

DISCLAIMER

FAIRCHILD SEMICONDUCTOR RESERVES THE RIGHT TO MAKE CHANGES WITHOUT FURTHER NOTICE TO ANY PRODUCTS HEREIN TO IMPROVE RELIABILITY, FUNCTION, OR DESIGN. FAIRCHILD DOES NOT ASSUME ANY LIABILITY ARISING OUT OF THE APPLICATION OR USE OF ANY PRODUCT OR CIRCUIT DESCRIBED HEREIN; NEITHER DOES IT CONVEY ANY LICENSE UNDER ITS PATENT RIGHTS, NOR THE RIGHTS OF OTHERS. THESE SPECIFICATIONS DO NOT EXPAND THE TERMS OF FAIRCHILD’S WORLDWIDE TERMS AND CONDITIONS, SPECIFICALLYTHE WARRANTY THEREIN, WHICHCOVERS THESE PRODUCTS.

MOC306XM, MOC316XM — 6-Pin DIP Zero-Cross Phototriac Driver Optocoupler (600 Volt Peak)

LIFE SUPPORT POLICY

FAIRCHILD’S PRODUCTS ARE NOT AUTHORIZED FOR USE AS CRITICAL COMPONENTS IN LIFE SUPPORT DEVICES OR SYSTEMS WITHOUT THE EXPRESS WRITTEN APPROVAL OF FAIRCHILD SEMICONDUCTOR CORPORATION.

As used herein:

1. Life support devices or systems are devices or systems which, (a) are intended for surgical implant into the body or (b) support or sustain life, and (c) whose failure to perform when properly used in accordance with instructions for use provided in the labeling, can be reasonably expected to result in a significant injury of the user.

2. A critical component in any component of a life support, device, or system whose failure to perform can be reasonably expected to cause the failure of the life support device or system, or to affect its safety or effectiveness.

ANTI-COUNTERFEITING POLICY

Fairchild Semiconductor Corporation's Anti-Counterfeiting Policy. Fairchild's Anti-Counterfeiting Policy is also stated on our external website, www.fairchildsemi.com, under Sales Support.

Counterfeiting of semiconductor parts is a growing problem in the industry. All manufacturers of semiconductor products are experiencing counterfeiting of their parts. Customers who inadvertently purchase counterfeit parts experience many problems such as loss of brand reputation, substandard performance, failedapplications, and increased cost of production and manufacturing delays. Fairchild is taking strong measures to protect ourselves and our customers from the proliferation of counterfeit parts. Fairchild strongly encourages customers to purchase Fairchild parts either directly from Fairchild or from Authorized Fairchild Distributors who are listed by country on our web page cited above. Products customers buy either from Fairchild directly or from Authorized Fairchild Distributors are genuine parts, have full traceability, meet Fairchild's quality standards for handling and storage and provide access to Fairchild's full range of up-to-date technicalandproduct information. Fairchild and our Authorized Distributors will stand behind all warranties and will appropriately address any warranty issues that may arise. Fairchild will not provide any warranty coverage or other assistance for parts bought from Unauthorized Sources. Fairchild is committed to combat this global problem and encourage our customers to do their part in stopping this practice by buying direct or from authorized distributors.

PRODUCT STATUS DEFINITIONS

Definition of Terms

Datasheet Identification Product Status Definition

Advance Information Formative / In Design

Preliminary

First Production

No Identification Needed Full Production

Obsolete Not In Production

Datasheet contains the design specifications for product development. Specifications may change in any manner without notice.

Datasheet contains preliminary data; supplementary data will be published at a later date. Fairchild Semiconductor reserves the right to make changes at any time without notice to improve design.

Datasheet contains final specifications. Fairchild Semiconductor reserves the right to make changes at any time without notice to improve the design.

Datasheet contains specifications on a product that is discontinued by Fairchild Semiconductor. The datasheet is for reference information only.

Rev. I40
