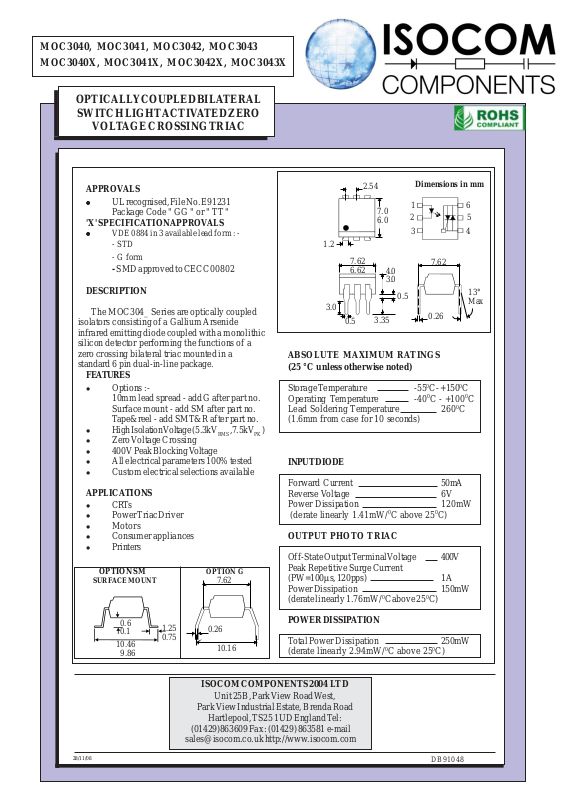

Page 1
MOC3040, MOC3041, MOC3042, MOC3043
MOC3040X, MOC3041X, MOC3042X, MOC3043X
OPTICALL Y COUPLED BILATERAL
SWITCH LIGHT ACTIV A TED ZERO
VOL TAGE CROSSING TRIAC
APPROVALS
zz
z UL recognised, File No. E91231
zz
Package Code " GG " or " TT "
'X' SPECIFICATION APPROV ALS
zz
z VDE 0884 in 3 available lead form : -
zz
- STD
- G form
- SMD approved to CECC 00802
DESCRIPTION
The MOC304_ Series are optically coupled
isolators consisting of a Gallium Arsenide
infrared emitting diode coupled with a monolithic
silicon detector performing the functions of a
zero crossing bilateral triac mounted in a
standard 6 pin dual-in-line package.
FEA TURES
z Options :-
10mm lead spread - add G after part no.
Surface mount - add SM after part no.
T ape&reel - add SMT&R after part no.
z High Isolation V oltage (5.3kV
z Zero V oltage Crossing
z 400V Peak Blocking V oltage
z All electrical parameters 100% tested
z Custom electrical selections available
RMS
,7.5kV
PK
APPLICA TIONS
z CRTs
z Power Triac Driver
z Motors
z Consumer appliances
z Printers
OPTION SM
SURFACE MOUNT
OPTION G
7.62
2.54
7.0
6.0
1
25
34
1.2
7.62
6.62
4.0
3.0
0.5
3.0
0.5
3.35
ABSOLUTE MAXIMUM RATINGS
(25 °C unless otherwise noted)
Storage T emperature -550C - +1500C
Operating Temperature -400C - +1000C
Lead Soldering Temperature 2600C
(1.6mm from case for 10 seconds)
)
INPUT DIODE
Forward Current 50mA
Reverse Voltage 6V
Power Dissipation 120mW
(derate linearly 1.41mW/0C above 250C)
OUTPUT PHOTO TRIAC
Off-State Output T erminal V oltage 400V
Peak Repetitive Surge Current
(PW=100μs, 120pps) 1A
Power Dissipation 150mW
(derate linearly 1.76mW/0C above 250C)
Dimensions in mm
6
7.62
13°
Max
0.26
28/11/08
0.6
0.1
10.46
9.86
1.25
0.75
0.26
10.16
Total Power Dissipation 250mW
(derate linearly 2.94mW/0C above 250C)
ISOCOM COMPONENTS 2004 L TD
Unit 25B, Park V iew Road W est,
Park V iew Industrial Estate, Brenda Road
Hartlepool, TS25 1UD England T el:
(01429)863609 Fax : (01429) 863581 e-mail
sales@isocom.co.uk http://www.isocom.com
POWER DISSIPA TION
DB91048
Page 2
ELECTRICAL CHARACTERISTICS ( TA = 25°C Unless otherwise noted )
PARAMETER MIN TYP MAX UNITS TEST CONDITION
Input Forward V oltage (VF) 1.2 1.4 V IF = 20mA
Reverse Current (IR)10μAV
= 6V
R
Output Peak Off-state Current ( I
Peak Blocking Voltage ( V
On-state V oltage ( V
TM
) 500 nA V
DRM
) 400 V I
DRM
= 400V (note 1 )
DRM
= 500nA
DRM
) 3.0 V ITM = 100mA ( peak )
Critical rate of rise of
off-state Voltage ( dv/dt ) 600 1500 V/μs
Coupled Input Current to Trigger ( IFT )(note 2 )
MOC3040 30 mA VTM = 3V ( note 2 )
MOC3041 15 mA
MOC3042 10 mA
MOC3043 5 mA
Holding Current , either direction ( IH ) 400 μA
Input to Output Isolation Voltage V
Zero Inhibit V oltage ( VIH )20VI
Crossing MT1-MT2 Voltage
Charact- above which device
-eristic will not trigger
Leakage in Inhibited State ( I
) 500 μAI
S
5300 V
ISO
7500 V
RMS
PK
See note 3
See note 3
= Rated I
F
= Rated I
F
V
= Rated V
DRM
Off-state
FT
FT
DRM
Note 1. Test voltage must be applied within dv/dt rating.
Note 2. Guaranteed to trigger at an IF value less than or equal to max. I
between Rated I
Note 3. Measured with input leads shorted together and output leads shorted together.
and absolute max. IF .
FT
, recommended IF lies
FT
28/11/08
DB91048m-AAS/A8
