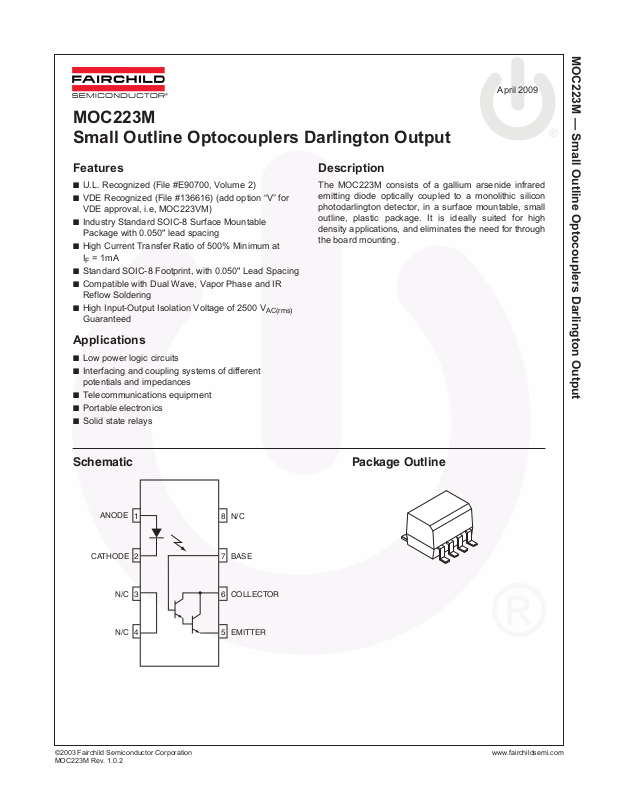

Datasheet MOC223M Datasheet (Fairchild)

MOC223M — Small Outline Optocouplers Darlington Output

April 2009

MOC223M Small Outline Optocouplers Darlington Output

Features

■

U.L. Recognized (File #E90700, Volume 2) VDE Recognized (File #136616) (add option “V” for

■

VDE approval, i.e, MOC223VM)

■

Industry Standard SOIC-8 Surface Mountable Package with 0.050" lead spacing

High Current Transfer Ratio of 500% Minimum at

■

I

= 1mA

F

Standard SOIC-8 Footprint, with 0.050" Lead Spacing

■

Compatible with Dual Wave, Vapor Phase and IR Reflow Soldering

High Input-Output Isolation Voltage of 2500 V

■

Guaranteed

AC(rms)

Applications

■

Low power logic circuits Interfacing and coupling systems of different

■

potentials and impedances

■

Telecommunications equipment Portable electronics

■

Solid state relays

Description

The MOC223M consists of a gallium arsenide infrared emitting diode optically coupled to a monolithic silicon photodarlington detector, in a surface mountable, small outline, plastic package. It is ideally suited for high density applications, and eliminates the need for through the board mounting.

Schematic Package Outline

ANODE

CATHODE

1

2

3

N/C

4 5

N/C

8

7

BASE

6

COLLECTOR

EMITTER

MOC223M — Small Outline Optocouplers Darlington Output

Absolute Maximum Ratings

(T

= 25°C Unless otherwise speciﬁed)

A

Stresses exceeding the absolute maximum ratings may damage the device. The device may not function or be operable above the recommended operating conditions and stressing the parts to these levels is not recommended. In addition, extended exposure to stresses above the recommended operating conditions may affect device reliability. The absolute maximum ratings are stress ratings only.

Symbol Rating Value Unit

EMITTER

I

F

I

(pk) Forward Current – Peak (PW = 100µs, 120pps) 1.0 A

F

V

R

P

D

DETECTOR

V

CEO

V

ECO

V

CBO

I

C

P

D

TOTAL DEVICE

V

ISO

P

D

T

A

T

stg

Forward Current – Continuous 60 mA

Reverse Voltage 6.0 V

LED Power Dissipation @ T Derate above 25°C

= 25°C

A

90

0.8

mW

mW/°C

Collector-Emitter Voltage 30 V

Emitter-Collector Voltage 7.0 V

Collector-Base Voltage 70 V

Collector Current-Continuous 150 mA

Detector Power Dissipation @ T Derate above 25°C

= 25°C

A

150

1.76

mW

mW/°C

Input-Output Isolation Voltage (f = 60Hz, t = 1 min.) 2500 Vac(rms)

Total Device Power Dissipation @ T Derate above 25°C

= 25°C

A

250

2.94

mW

mW/°C

Ambient Operating Temperature Range -40 to +100 °C

Storage Temperature Range -40 to +150 °C

Ω

MOC223M — Small Outline Optocouplers Darlington Output

Electrical Characteristics

(T

= 25°C unless otherwise speciﬁed)

A

Symbol Parameter Test Conditions Min. Typ.* Max. Unit

EMITTER

V

I

C

DETECTOR

I

CEO1

I

CEO2

BV

C

COUPLED

CTR Current Transfer Ratio

V

ISO

R

V

CE (sat)

C

t

Input Forward Voltage I

F

Reverse Leakage Current V

R

Input Capacitance 18 pF

IN

Collector-Emitter Dark Current V

Collector-Emitter Breakdown

CEO

= 1.0mA 1.08 1.3 V

F

= 6.0V 0.001 100 µA

R

= 5.0 V, T

CE

V

= 5.0 V, T

CE

I

= 100µA 30 100 V

C

= 25°C 1.0 50 nA

A

= 100°C 10 µA

A

Voltage

Emitter-Collector Breakdown

ECO

I

= 100µA 7.0 10 V

E

Voltage

Collector-Emitter Capacitance f = 1.0 MHz, V

CE

(3)

I

Isolation Surge Voltage

Isolation Resistance

ISO

(1,2)

(2)

Collector-Emitter Saturation

= 1.0mA, V

F

f = 60Hz AC Peak, t = 1 min. 2500 Vac(rms)

V = 500V 10

I

= 500µA, I

C

= 0 5.5 pF

CE

= 5.0V 500 1000 %

CE

11

= 1.0mA 1.0 V

F

Voltage

Isolation Capacitance

ISO

Tu r n-On Time I

on

(2)

V

= 0V, f = 1MHz 0.2 pF

I-O

= 5.0mA, V

F

= 10V, R

CC

= 100 Ω

L

10 µs

(Fig. 6)

Tu r n-Off Time I

off

= 5.0mA, V

F

= 10V, R

CC

= 100 Ω

L

125 ns

(Fig. 6)

t

Rise Time I

r

= 5.0mA, V

F

= 10V, R

CC

= 100 Ω

L

8µs

(Fig. 6)

t

Fall Time I

f

= 5.0mA, V

F

= 10V, R

CC

= 100 Ω

L

110 µs

(Fig. 6)

*All typicals at T

= 25°C

A

Notes:

1. Isolation Surge Voltage, V

, is an internal device dielectric breakdown rating.

ISO

2. For this test, Pins 1 and 2 are common and Pins 5, 6 and 7 are common. / I

3. Current Transfer Ratio (CTR) = I

C

x 100%.

F

Typical Performance Curves

Fig. 1 LED Forward Voltage vs. Forward Current

1.8

1.7

1.6

1.5

1.4

1.3

1.2

– FORWARD VOLTAGE (V)

F

V

1.1

1.0 110100

IF – LED FORWARD CURRENT (mA)

Fig. 3 Output Current vs. Ambient Temperature

10

1

0.1

– OUTPUT COLLECT OR CUR RENT (N ORM ALI ZED)

C

I

0.01

-80 -60 -40 -20 0 20406080100120

TA – AMBIENT TEMPERATURE (oC)

TA = 55°C

TA = 25°C

TA = 100°C

IF = 1mA, VCE = 5V NORMALIZED TO T

= 25oC

A

Fig. 2 Output Curent vs. Input Current

10

1

– OUTPUT COLLECT OR CURRENT (NORMALIZED)

VCE = 5V

C

I

NOR MALIZE D TO I

0.1

0.1 1 10 100

= 1mA

F

IF – LED INPUT CURRENT (mA)

Fig. 4 Output Current vs. Collector - Emitter Voltage

2.0

1.8

1.6

1.4

1.2

1.0

0.8

0.6

0.4

0.2

– OUTPUT COLLECTOR CURRE NT (N ORMA LIZED)

C

I

0.0 012345678910

VCE – COLLECTOR -EMITTER VOLTAGE (V)

I

= 1mA

F

NORMALIZED TO V

MOC223M — Small Outline Optocouplers Darlington Output

= 5V

CE

Fig. 5 Dark Current vs. Ambient Temperature

5

10

4

10

VCE = 10V

NORMALIZED TO T

3

10

2

10

1

10

0

10

– COLLECTOR -EMITTER DARK CU RRENT (nA )

-1

10

CEO

I

-2

10

020406080100

= 25oC

A

TA – AMBIENT TEMPERATURE (°C)

TEST CIRCUIT WAVE FORMS

= 10V

V

CC

I

F

C

R

L

INPUT PULSE

MOC223M — Small Outline Optocouplers Darlington Output

INPUT

OUTPUT

R

BE

10%

90%

OUTPUT PULSE

t

r

t

on

t

f

t

off

Figure 6. Switching Time Test Circuit and Waveform

Package Dimensions

8-pin SOIC Surface Mount

8

1

0.202 (5.13)

0.182 (4.63)

0.164 (4.16)

0.144 (3.66)

MOC223M — Small Outline Optocouplers Darlington Output

0.143 (3.63)

0.123 (3.13)

SEATING PLANE

0.021 (0.53)

0.011 (0.28)

Lead Coplanarity: 0.004 (0.10) MAX

Recommended Pad Layout

0.050 (1.27) Typ.

0.275 (6.99)

0.155 (3.94)

0.008 (0.20)

0.003 (0.08)

0.024 (0.61)

0.010 (0.25)

0.006 (0.16)

0.244 (6.19)

0.224 (5.69)

0.060 (1.52)

0.050 (1.27)

Dimensions in inches (mm).

Package drawings are provided as a service to customers considering Fairchild components. Drawings may change in any manner without notice. Please note the revision and/or date on the drawing and contact a Fairchild Semiconductor representative to verify or obtain the most recent revision. Package speciﬁcations do not expand the terms of Fairchild’s worldwide terms and conditions, speciﬁcally the warranty therein, which covers Fairchild products.

Always visit Fairchild Semiconductor’s online packaging area for the most recent package drawings:

http://www

.fairchildsemi.com/packaging/

Ordering Information

Option Order Entry Identiﬁer Description

VVVDE 0884

R2 R2 Tape and reel (2500 units per reel)

R2V R2V VDE 0884, Tape and reel (2500 units per reel)

Marking Information

1

MOC223M — Small Outline Optocouplers Darlington Output

223

SYYXV

43

5

2

6

Deﬁnitions

1Fairchild logo

2Device number

3 VDE mark (Note: Only appears on parts ordered with VDE

option – See order entry table)

4 One digit year code, e.g., ‘3’

5Two digit work week ranging from ‘01’ to ‘53’

6 Assembly package code

*Note – ‘V’ option parts marked with date code ‘325’ or earlier are marked in portrait format.

Carrier Tape Specifications

8.0 ± 0.10

MOC223M — Small Outline Optocouplers Darlington Output

3.50 ± 0.20

0.30 MAX

8.3 ± 0.10

0.1 MAX

Dimensions in mm

4.0 ± 0.10

User Direction of Feed

2.0 ± 0.05

6.40 ± 0.20

Ø1.5 MIN

1.75 ± 0.10

5.5 ± 0.05

12.0 ± 0.3

5.20 ± 0.20

Ø1.5 ± 0.1

Reﬂow Proﬁle

MOC223M — Small Outline Optocouplers Darlington Output

Max. Ramp-up Rate = 3°C/S

Max. Ramp-down Rate = 6°C/S

Ts ma x

Preheat Area

Ts mi n

t

L

t

s

260 240 220 200 180 160 140 120

T

P

T

L

100

80 60

Temperature (°C)

40 20

0

120

240 360

Time 25°C to Peak

Time (seconds)

Proﬁle Freature Pb-Free Assembly Proﬁle

Temperature Min. (Tsmin) 150°C

Temperature Max. (Tsmax) 200°C

Time (t

Ramp-up Rate (t

Liquidous Temperature (T

Time (t

Peak Body Package Temperature 260°C +0°C / –5°C

Time (t

Ramp-down Rate (T

Time 25°C to Peak Temperature 8 minutes max.

) from (Tsmin to Tsmax) 60–120 seconds

S

to t

) 3°C/second max.

L

P

) 217°C

L

) Maintained Above (T

L

) within 5°C of 260°C 30 seconds

P

to T

P

) 60–150 seconds

L

) 6°C/second max.

L

t

P
