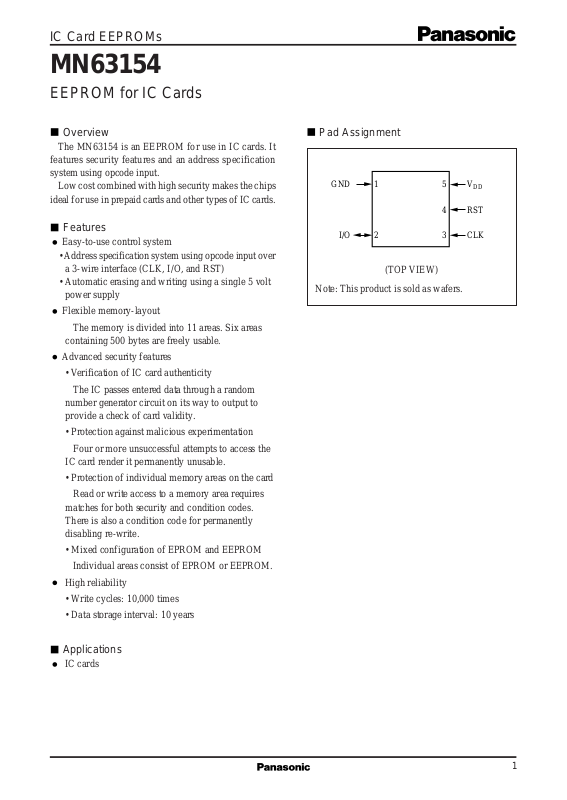

IC Card EEPROMs
MN63154
EEPROM for IC Cards
Overview
The MN63154 is an EEPROM for use in IC cards. It features security features and an address specification system using opcode input.
Features
Easy-to-use control system
• Address specif ication system using opcode input ov er a 3-wire interface (CLK, I/O, and RST)
• Automatic erasing and writing using a single 5 volt power supply
Flexible memory-layout
The memory is divided into 11 areas. Six areas containing 500 bytes are freely usable.
Advanced security features
• Verification of IC card authenticity The IC passes entered data through a random
number generator circuit on its way to output to provide a check of card validity.
• Protection against malicious experimentation Four or more unsuccessful attempts to access the
IC card render it permanently unusable.
• Protection of individual memory areas on the card Read or write access to a memory area requires
matches for both security and condition codes. There is also a condition code for permanently disabling re-write.
• Mixed configuration of EPROM and EEPROM Individual areas consist of EPROM or EEPROM.
High reliability
• Write cycles: 10,000 times
• Data storage interval: 10 years
Pad Assignment
GND
I/O
Note: This product is sold as wafers.
1
2
(TOP VIEW)
5
4
3
V
DD
RST
CLK
Applications
IC cards
1
Page 2
MN63154 IC Card EEPROMs
Block Diagram
GND
CLK
1
3
Memory 256 × 16
Data register
Random number generator
Address decoder
I/O buffer
Mode decode-logic
5
V
DD
2
I/O
4
RST
2
Page 3
IC Card EEPROMs MN63154
Pin Descriptions
Pin No. Symbol Pin Name I/O
1 GND Ground I 2 I/O Data I/O I/O 3 CLK Clock I 4 RST Reset I 5VDDPower supply I
Electrical Characteristics
VCC=4.5 to 5.5V, Ta=–10˚C to +70˚C
Parameter Symbol Test Conditions min max Unit
Power supply voltage V "L" level input leakage current I "H" level input leakage current I
power supply current I
V
CC
LIL
LIH
CC
CC
VCC=5.5V (during operation) CLK=800kHz VCC power supply current I
SB
CLK="L" (during standby) I/O="H"
Notes
: I/O pins use N-channel, open drain configuration.
1
: Input voltages, output voltages, and other items not listed above conform to ISO/IEC 7816-3.
2
4.5 5.5 V
–10 10 µA –10 10 µA
— 5.45 mA
— 0.18 mA
Function Descriptions
Orders Start bit Operation code Address Data Contents
READ 0 10 A8, A7 to A
WRITE 0 01 A8, A7 to A
VERIFY 0 11 000001010 D0, D1 to D
RNGEN 0 00 000001010 D
RESET 0 11 111111111 — Reset
EWEN 0 00 1xxxxxxxx — Enable write
Note: x means "don’t care".
0
0
D0, D1 to D D0, D1 to D
, D1 to D
0
DO0, DO1 to D
31
15
31
Verify code, generate
31
O31
random number
Read
Write
Verify code
3
Page 4
MN63154 IC Card EEPROMs

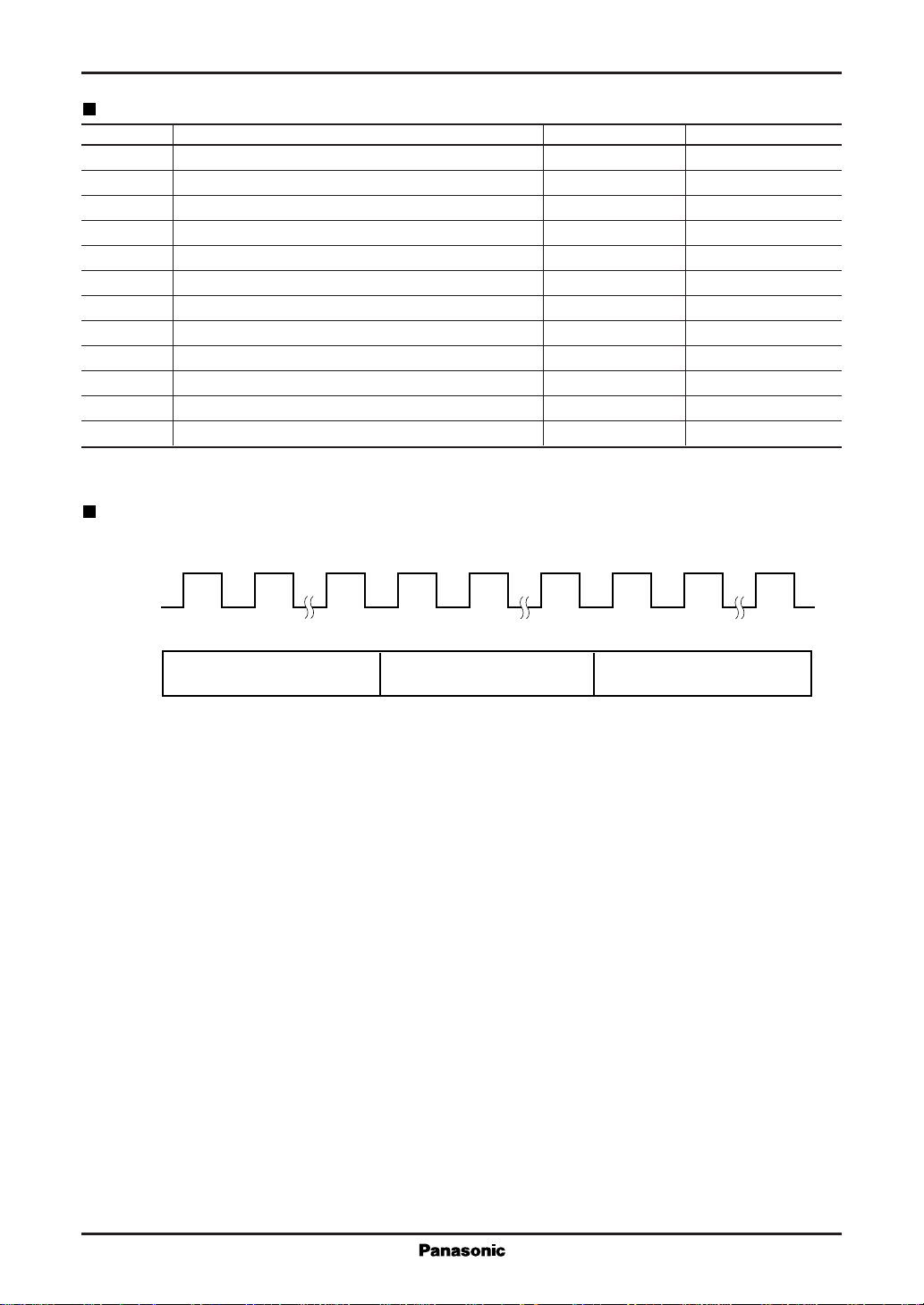

Memory Layout
Area Contents Number of Bits Memory Type
A Chip manufacturer's code 16 EPROM B Card manufacturer's code 16 EPROM C Spare area 1 32 EPROM D Spare area 2 16 EEPROM E Spare area 3 48 EPROM
F Spare area 4 16 EEPROM G Security code 32 EEPROM H Error counter 16 EEPROM I1 Condition code 1 8 EPROM I2 Condition code 2 8 EEPROM
J Application area 1 1952 EEPROM K Application area 2 1936 EEPROM
Timing Chart
CLK
I/O
Note: This product is sold as wafers.
Start bit and opcode Address Data
4
