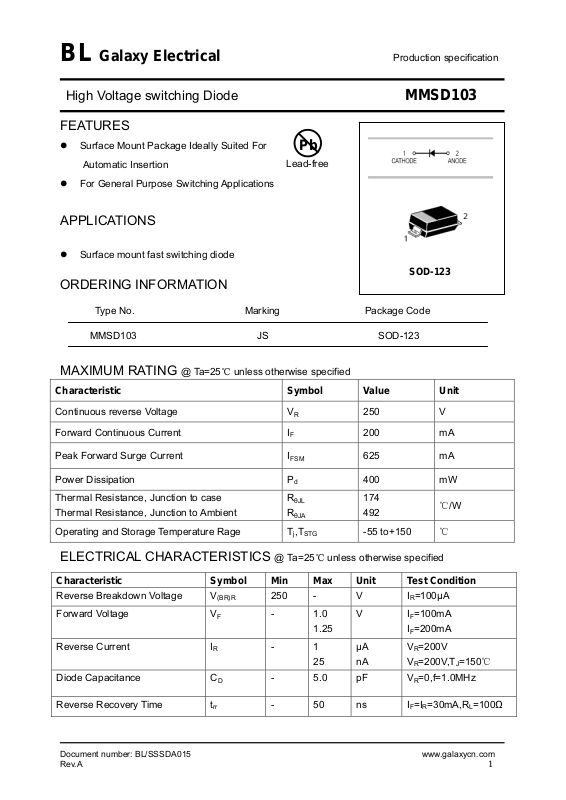

BL Galaxy Electrical Production specification

High Voltage switching Diode MMSD103

FEATURES

z Surface Mount Package Ideally Suited For

Automatic Insertion

z For General Purpose Switching Applications

Pb

Lead-free

APPLICATIONS

z Surface mount fast switching diode
SOD-123

ORDERING INFORMATION

Type No. Marking Package Code

MMSD103 JS SOD-123

MAXIMUM RATING @ Ta=25℃ unless otherwise specified

Characteristic Symbol Value Unit

Continuous reverse Voltage V

R

250 V

Forward Continuous Current I

Peak Forward Surge Current I

Power Dissipation P

Thermal Resistance, Junction to case

Thermal Resistance, Junction to Ambient

Operating and Storage Temperature Rage Tj,T

F

FSM

R

R

d

θJL

θJA

STG

200 mA

625 mA

400 mW

174

492

-55 to+150 ℃

℃/W

ELECTRICAL CHARACTERISTICS @ Ta=25℃ unless otherwise specified

Characteristic Symbol Min Max Unit Test Condition

Reverse Breakdown Voltage V

Forward Voltage V

Reverse Current I

Diode Capacitance C

Reverse Recovery Time t

(BR)R

F

R

D

rr

250 - V IR=100μA

- 1.0

1.25

- 1

25

- 5.0 pF VR=0,f=1.0MHz

- 50 ns IF=IR=30mA,RL=100Ω

V IF=100mA

I

=200mA

F

μA

nA

VR=200V

V

=200V,TJ=150℃

R

Document number: BL/SSSDA015 www.galaxycn.com
Rev.A 1

BL Galaxy Electrical Production specification

High Voltage switching Diode MMSD103

TYPICAL CHARACTERISTICS @ Ta=25℃ unless otherwise specified

PACKAGE OUTLINE

Plastic surface mounted package SOD-123

SOD-123

K

B

A

D

E

J

C

H

Dim Min Max

A 1.4 1.8

B 2.55 2.85

C 1.15 Typical

D 0.5 0.6

E 0.3 0.4

H 0.02 0.10

J 0.1 Typical

K 3.55 3.85

All Dimensions in mm

Document number: BL/SSSDA015 www.galaxycn.com
Rev.A 2

BL Galaxy Electrical Production specification

High Voltage switching Diode MMSD103

SOLDERING FOOTPRINT

Unit：mm

PACKAGE INFORMATION

Device Package Shipping

MMSD103 SOD-123 3000/Tape&Reel

Document number: BL/SSSDA015 www.galaxycn.com
Rev.A 3
