HARDWARE REFERENCE

Gateway Notebook

Contents

Chapter 1: About this reference. . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . .1

About this guide . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 2

Accessing the online User Guide . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 2

Gateway contact information . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 2

Gateway model and serial number . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 2

Microsoft Certificate of Authenticity . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 3

For more information . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 3

Chapter 2: Checking Out Your Gateway Notebook . . . . . . . . . . . . . . . . . . . . . . . . . . . . .5

Identifying features . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 6

Front . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 6

Left . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 7

Right . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 7

Back . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 8

Bottom . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 9

Keyboard area . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 10

Connecting the AC adapter . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 11

Protecting from power source problems . . . . . . . . . . . . . . . . . . . . . . . . . . . . 12

Connecting the dial-up modem . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 12

Connecting to a cable or DSL modem or to an Ethernet network . . . . . . . . 13

Starting your notebook . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 14

Waking up your notebook . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 14

Using CyberLink PowerCinema . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 14

Turning off your notebook . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 15

Restarting (rebooting) your notebook . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 15

Using the status indicators . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 16

Using the keyboard . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 17

Key types . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 17

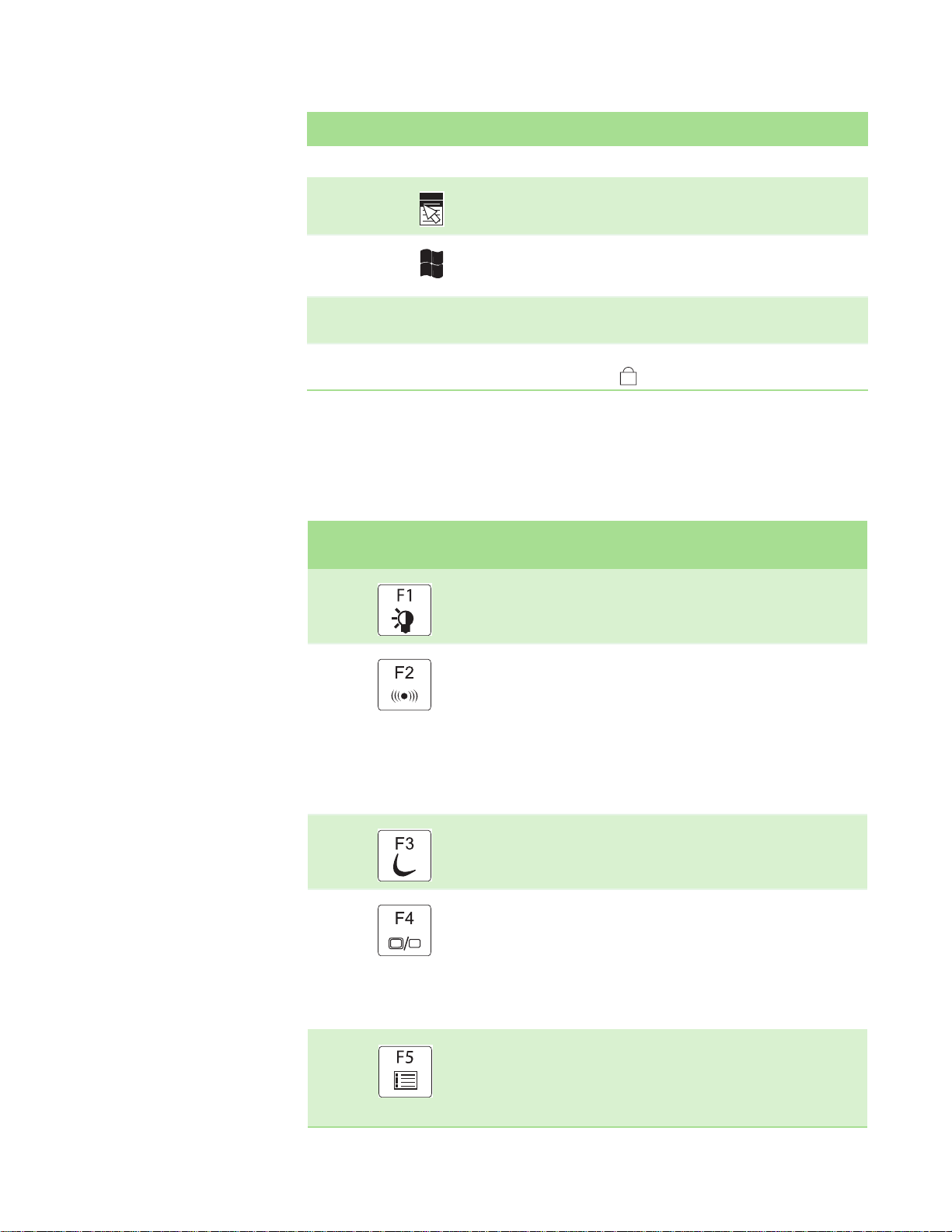

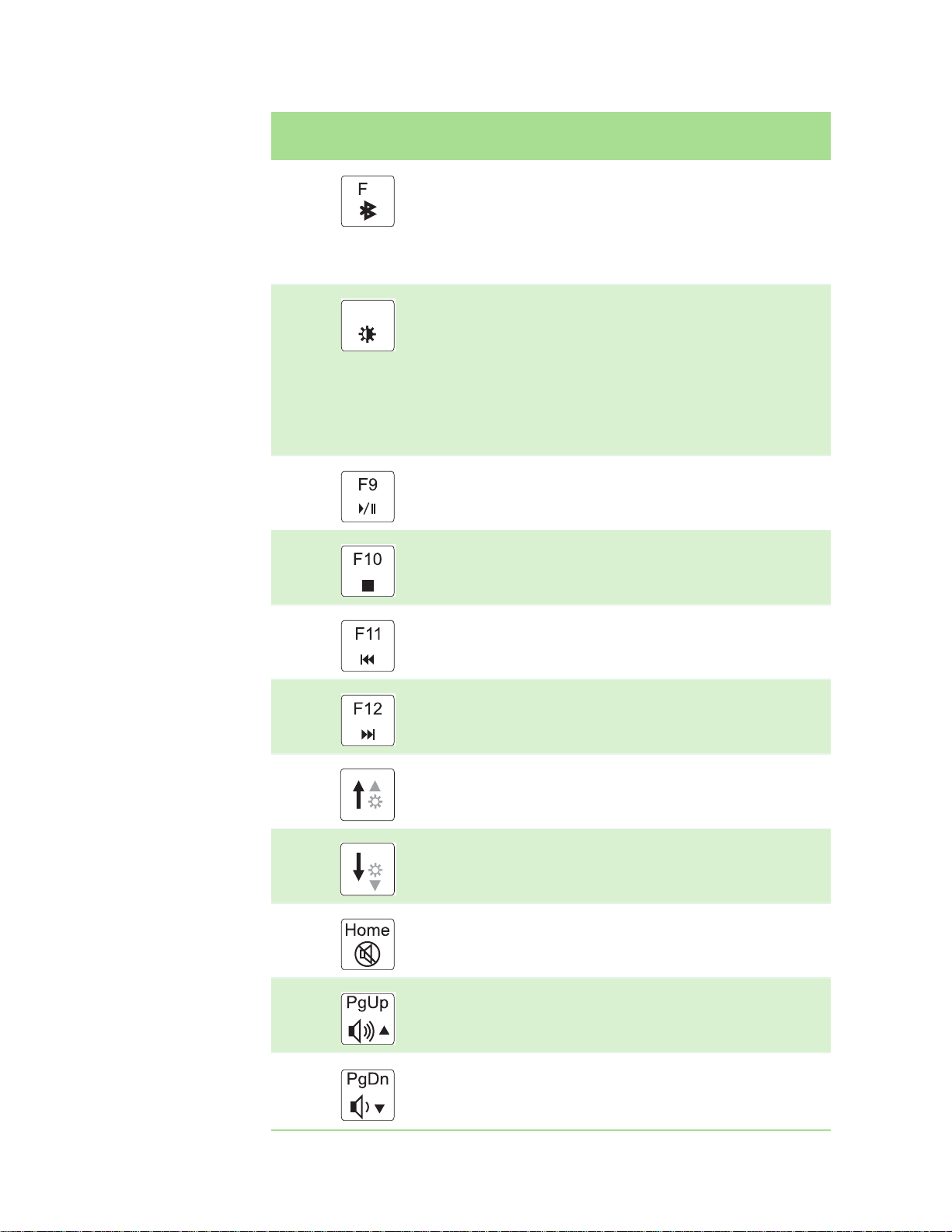

System key combinations . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 18

Using the multimedia buttons . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 20

Using the EZ Pad touchpad . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 21

Adjusting the volume . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 23

Turning your wireless radio on or off . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 23

Using the CD or DVD drive . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 24

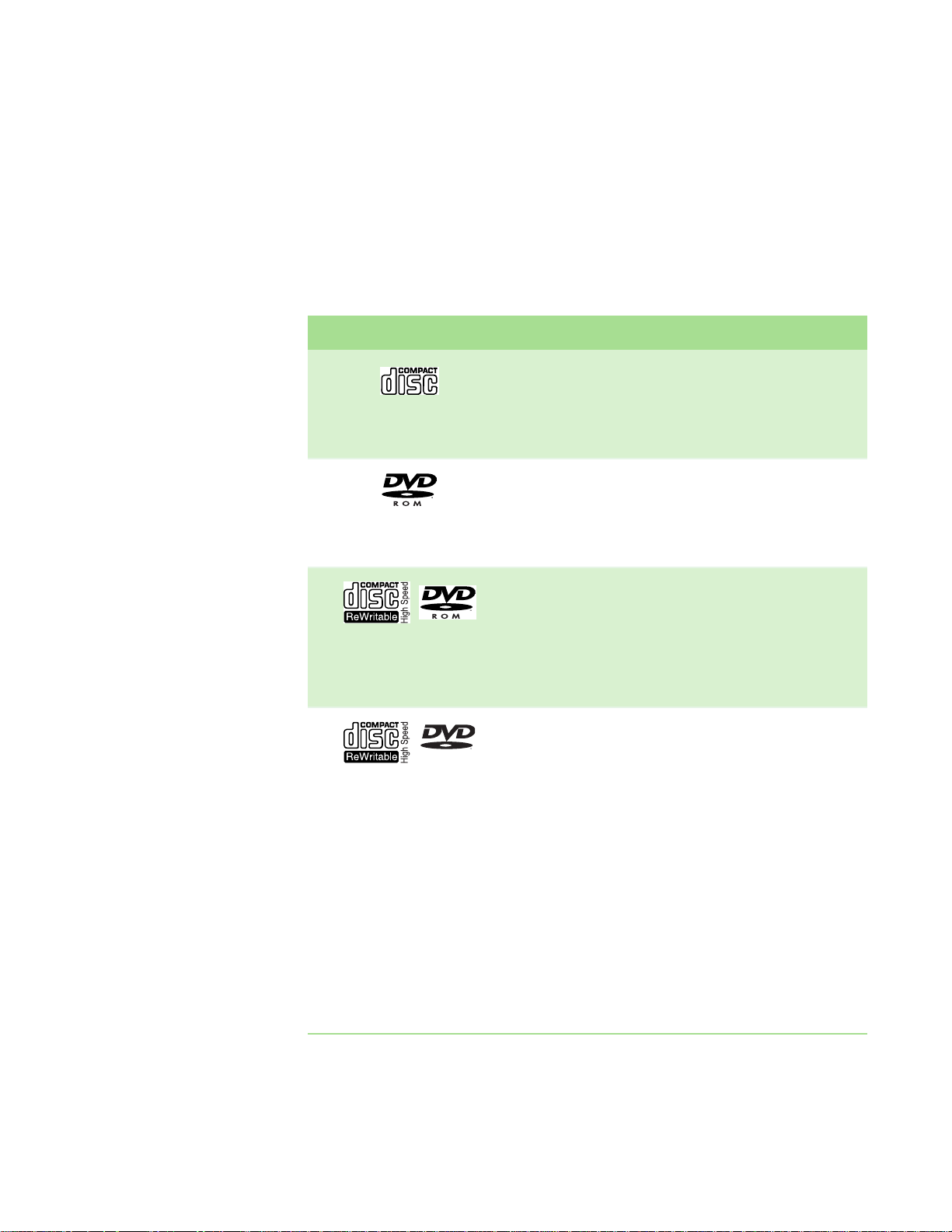

Identifying drive types . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 24

Inserting a CD or DVD . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 25

Using the memory card reader . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 25

Memory card types . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 25

Inserting a memory card . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 25

Using a memory card . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 26

Removing a memory card . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 26

Inserting and removing an Express Card . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 27

Installing a printer, scanner, digital camera, or other peripheral device . . 28

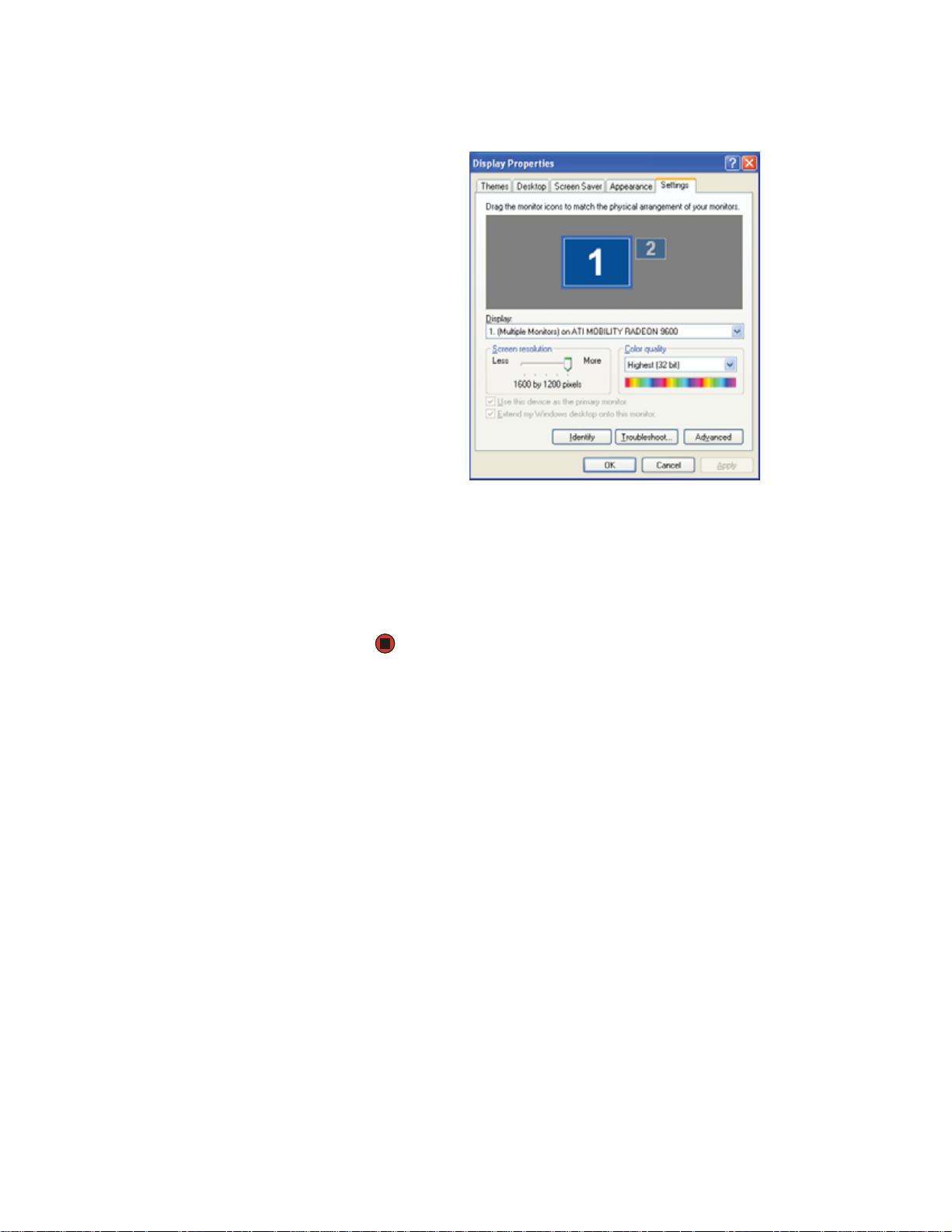

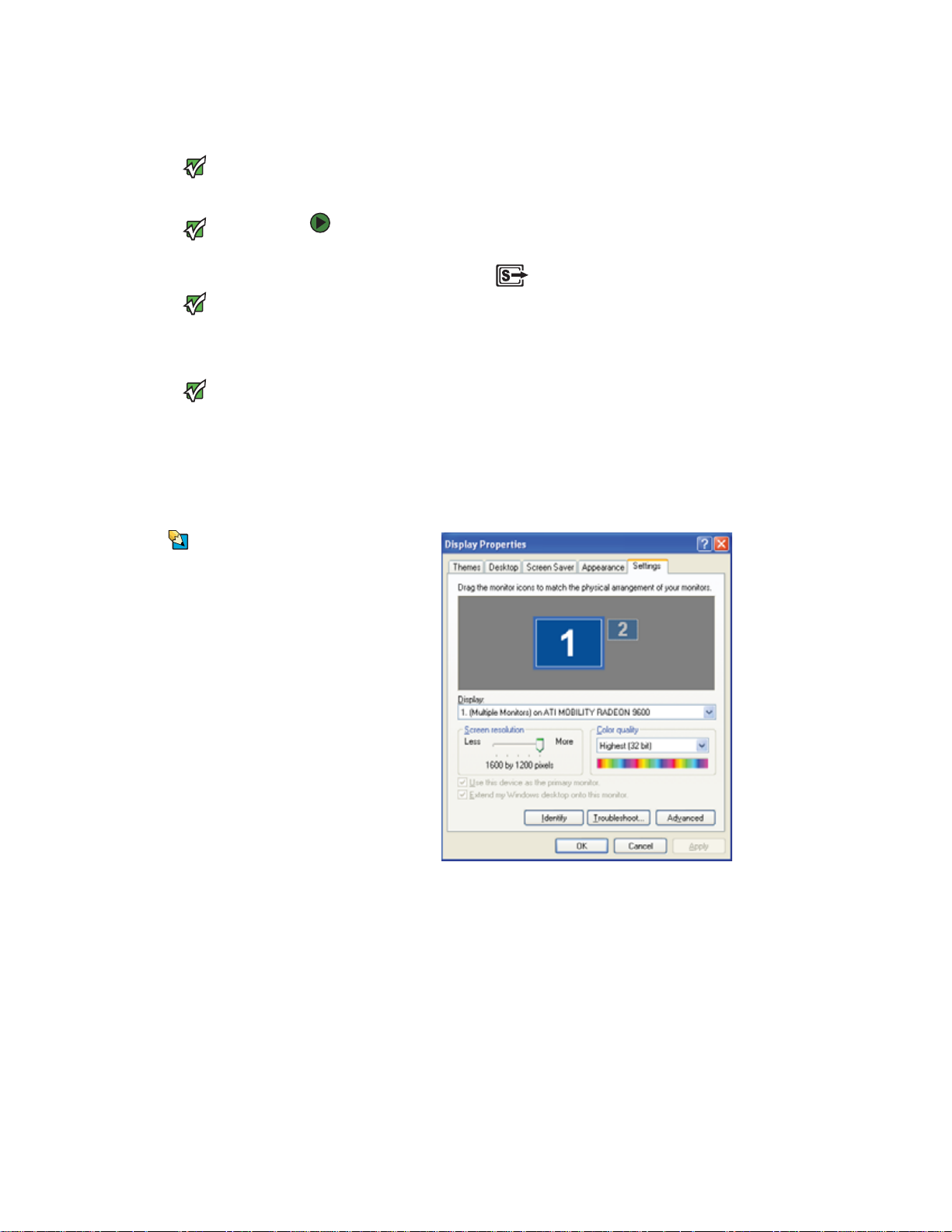

Viewing the display on a projector or monitor . . . . . . . . . . . . . . . . . . . . . . . . . . 28

i

Contents www.gateway.com

Viewing the display on a television . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . .30

Connecting a video camera to your notebook . . . . . . . . . . . . . . . . . . . . . . . . . . .31

Changing batteries . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . .31

Replacing the battery . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . .31

Recalibrating the battery . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . .32

Ordering accessories . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . .33

Chapter 3: Maintaining and Upgrading Your Notebook . . . . . . . . . . . . . . . . . . . . . . .35

Preventing static electricity discharge . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . .36

Adding or replacing memory modules . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . .36

Replacing the CD or DVD drive . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . .40

Replacing the hard drive kit . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . .42

Replacing the keyboard . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . .45

Removing the keyboard . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . .45

Installing the keyboard . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . .49

Appendix A: Safety, Regulatory, and Legal Information . . . . . . . . . . . . . . . . . . . . . . 51

Index . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 63

ii

CHAPTER 1

About this reference

•About this guide

• Accessing the online User Guide

• Gateway contact information

• Microsoft Certificate of Authenticity

•For more information

1

CHAPTER 1: About this reference www.gateway.com

About this guide

This guide includes information and maintenance instructions that are specific

to your model of Gateway notebook. For all other notebook information, see

your online User Guide.

Accessing the online User Guide

In addition to this guide, the online User Guide has been included on your hard

drive. The User Guide is an in-depth, easy-to-read manual that includes

information on the following topics:

■ Help and technical support

■ Using and customizing Windows and other software

■ Controlling audio and video settings

■ Using the Internet

■ Protecting your files

■ Playing and recording media

■ Networking

■ Maintenance and troubleshooting

To access the online User Guide:

■ Click Start, All Programs, then click Gateway Documentation.

Gateway contact information

Gateway model and serial number

The label shown in this section is for

informational purposes only. Label

information varies by model, features

Important

ordered, and location.

The label on the bottom of your notebook contains information that identifies

your notebook model and its features. Gateway Customer Care will need this

information if you call for assistance.

Online Support:

Tech Support Phone:
Hours:
Model:

S/No:

2

www.gateway.com

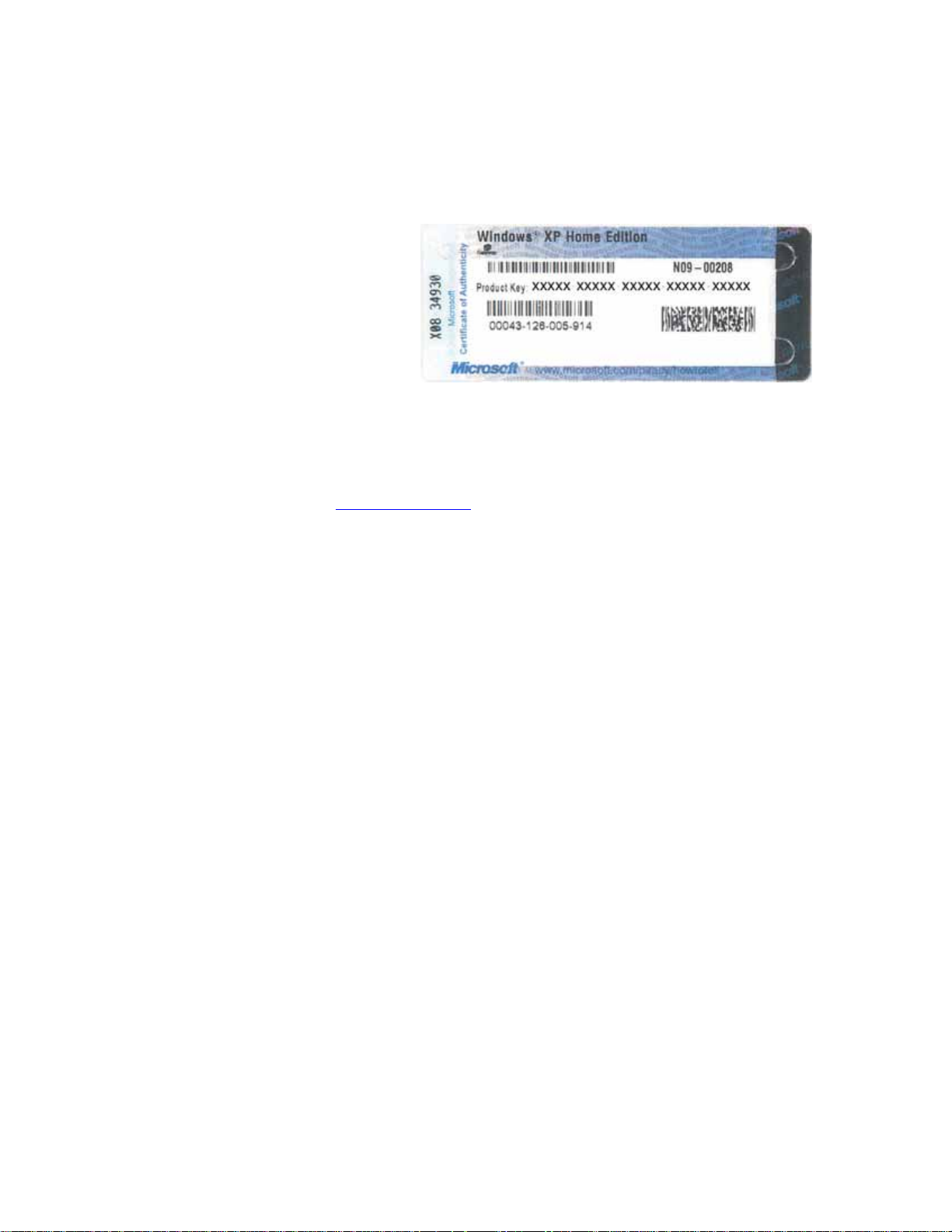

Microsoft Certificate of Authenticity

The Microsoft Certificate of Authenticity label found on the bottom of your
notebook includes the product key code for your operating system.

For more information

For more information about your notebook, visit Gateway’s Support page at

www.gateway.com

Support page also has links to additional Gateway documentation and detailed
specifications.

or the Web address shown on your notebook’s label. The

Microsoft Certificate of Authenticity

3

CHAPTER 1: About this reference www.gateway.com

4

CHAPTER 2

Checking Out Your Gateway Notebook

•Identifying features

• Connecting the AC adapter

• Connecting the dial-up modem

• Connecting to a cable or DSL modem or to an Ethernet
network

• Starting your notebook

• Turning off your notebook

• Restarting (rebooting) your notebook

• Using the status indicators

•Using the keyboard

• Using the EZ Pad touchpad

•Adjusting the volume

• Turning your wireless radio on or off

• Using the CD or DVD drive

• Using the memory card reader

• Inserting and removing an Express Card

• Changing batteries

• Recalibrating the battery

• Ordering accessories

5

CHAPTER 2: Checking Out Your Gateway Notebook www.gateway.com

Identifying features

Front

LCD panel release latch

Speaker

Microphone

jack

Headphone jack

Memory card reader

Power indicator

Speaker

Battery charge indicator

Component Icon Description

LCD panel release
latch

Power indicator

Battery charge
indicator

Speakers Provide audio output when headphones or

Memory card
reader

Press to open the LCD panel.

■

LED on - notebook is on.

■

LED blinking - notebook is in Standby mode.

■

LED off - notebook is off.

■

LED blue - battery is fully charged.

■

LED purple - battery is charging.

■

LED blinking red - battery charge is very low.

■

LED solid red - battery is malfunctioning.

amplified speakers are not plugged in.

<Verify card types> Insert a memory card from a

digital camera, MP3 player, PDA, or cellular
telephone into the memory card reader. For more
information, see “Using the memory card reader”

on page 25. The memory card reader supports

Memory Stick®, Memory Stick Pro®,
MultiMediaCard™, Secure Digital™, xD Picture Card,
Mini Secure Digital™, and RS-MultiMediaCard™.
Note: RS-Multimedia Card and Mini Secure Digital
cards require the use of an adapter that is available
with the media.

Microphone jack Plug a microphone into this jack.

Headphone jack Plug amplified speakers or headphones into this

jack. The built-in speakers are turned off when
speakers or headphones are plugged into this jack.

6

www.gateway.com

Left

Identifying features

Monitor port

CD or DVD drive

Kensington lock slot

S-Video out jack

USB ports

Component Icon Description

Ventilation fan Helps cool internal components.

USB ports Plug USB devices (such as a diskette drive, flash drive,

IEEE 1394 port Plug an IEEE 1394 (also known as Firewire® or i.Link®) device

Express Card
slot

Warning: Do not work for long periods with the notebook
resting on your lap. If the air vents are blocked, the
notebook may become hot enough to harm your skin.
Caution: Do not block or insert objects into these slots. If
these slots are blocked, your notebook may overheat
resulting in unexpected shutdown or permanent damage
to the notebook.
Caution: Provide adequate space around your notebook
so air vents are not obstructed. Do not use the notebook
on a bed, sofa, rug, or other similar surface.

printer, scanner, camera, keyboard, or mouse) into these
ports.

(such as a digital camcorder) into this 4-pin IEEE 1394 port.

Insert one Type 54 Express Card into this slot. For more
information, see “Inserting and removing an Express Card”

on page 27.

Right

PC Card slot

Ventilation fan

USB ports

Modem jack

IEEE 1394 port

Component Icon Description

CD or DVD drive Insert CDs or DVDs into this drive. For more information,

see “Using the CD or DVD drive” on page 24. To
determine the type of drive in your notebook, examine
the drive tray’s plastic cover and compare the logo to
those listed in “Identifying drive types” on page 24.

7

CHAPTER 2: Checking Out Your Gateway Notebook www.gateway.com

Back

Power connector

Ethernet jack

Component Icon Description

Power
connector

Modem jack Plug a dial-up modem cable into this jack. For more

Ethernet jack Plug an Ethernet network cable into this jack. The other

USB ports Plug USB devices (such as a diskette drive, flash drive,

Ventilation fan Helps cool internal components.

Plug the AC adapter cable into this connector.

information, see “Connecting the dial-up modem” on

page 12.

end of the cable can be plugged into a cable modem,
DSL modem, or an Ethernet network jack. For more
information, see “Connecting to a cable or DSL modem

or to an Ethernet network” on page 13.

printer, scanner, camera, keyboard, or mouse) into these
ports.

Warning: Do not work for long periods with the
notebook resting on your lap. If the air vents are
blocked, the notebook may become hot enough to
harm your skin.
Caution: Do not block or insert objects into these slots.
If these slots are blocked, your notebook may overheat
resulting in unexpected shutdown or permanent
damage to the notebook.
Caution: Provide adequate space around your
notebook so air vents are not obstructed. Do not use the
notebook on a bed, sofa, rug, or other similar surface.

S-Video out jack Plug an S-Video device, such as a television, into this

Monitor port Plug an analog VGA monitor or projector into this port.

Kensington™
lock slot

jack. For more information, see “Viewing the display on

a television” on page 30.

For more information, see “Viewing the display on a

projector or monitor” on page 28.

Secure your notebook to an object by connecting a
Kensington cable lock to this slot.

8

www.gateway.com

Bottom

Identifying features

Battery latch

Memory
bay/Hard
drive bay

Ventilation

fan

Customer
care label

Battery

Battery lock

Component Icon Description

Battery lock Slide to unlock the battery. For more information, see

“Changing batteries” on page 31.

Battery latch Slide to release the battery. For more information, see

“Changing batteries” on page 31.

Battery Provides power when the notebook is not plugged into

AC power.

Hard drive bay The hard drive is located in this bay. For more

information, see “Replacing the hard drive kit” on

page 42.

Memory bay Install a memory module into this bay. For more

Custom er Care
label

information, see “Adding or replacing memory

modules” on page 36.

Includes the Customer Care contact information. For
more information, see “Gateway contact information”

on page 2.

9

CHAPTER 2: Checking Out Your Gateway Notebook www.gateway.com

p

Keyboard area

Power button

Live Launch
button

Keyboard

To uc h

Component Icon Description

ad

Status indicators

Power
button

Keyboard Provides all the features of a full-sized, computer keyboard.

Status
indicators

Touchpad Provides all the functionality of a mouse. For more

Live Launch
button

Multimedia
buttons

Press to turn the power on or off. You can also configure the
power button for Standby/Resume mode. For more
information on configuring the power button mode, see
“Changing Power-Saving Settings” in the online User Guide.

For more information, see “Using the keyboard” on

page 17.

Inform you when a drive is in use or when a button has been
pressed that affects how the keyboard is used. For more
information, see “Using the status indicators” on page 16.

information, see “Using the EZ Pad touchpad” on page 21.

Press to run CyberLink PowerCinema and use the
multimedia features of your notebook without running
Windows XP. For more information, see “Using CyberLink

PowerCinema” on page 14.

Press these buttons to control the playback of multimedia.
For more information, see “Using the multimedia buttons”

on page 20.

10

www.gateway.com

Connecting the AC adapter

Connecting the AC adapter

Do not attempt to disassemble the AC

adapter. The AC adapter has no

user-replaceable or user-serviceable

parts inside. The AC adapter has

dangerous voltages that can cause

serious injury or death. Contact Gateway

about returning defective AC adapters.

Caution

Make sure that you use the AC adapter

that came with your notebook or one of

the same type purchased from Gateway.

Replace the power cord if it becomes

damaged. The replacement cord must be

of the same type and voltage rating as

Warnin g

the original cord or your notebook may

If the battery is not fully charged before

you use your notebook on battery power

for the first time, the battery life may be

much shorter than you expect. If the

battery life seems short even after being

charged for three hours, the battery may

need to be recalibrated. For information

on recalibrating the battery, see

“Recalibrating the battery” on page 32.

If the battery charge indicator does not

turn blue after three hours, contact

Gateway Customer Care at

be damaged.

Important

Important

www.gateway.com

You can run your notebook using an AC adapter or your notebook’s battery. The
battery was shipped to you partially charged. You should use the AC adapter
right away to fully charge the battery. Allow three hours for the battery to fully
charge.

To connect the AC adapter:

1 Connect the power cord to the AC adapter.

2 Connect the AC adapter to your notebook’s power connector.

.

3 Plug the power cord into a wall outlet. The battery charge indicator turns

on (see “Front” on page 6 for the location of the battery charge indicator).
If the battery charge indicator does not turn on, complete the following
steps until it turns on:

a Unplug the adapter from your notebook, then plug it back in.

b Press Fn+F1 to toggle the status lights on and off.

4 When you finish using your notebook for the first time, turn off your

notebook and leave your notebook connected to AC power until the
battery charge indicator turns blue.

11

CHAPTER 2: Checking Out Your Gateway Notebook www.gateway.com

Protecting from power source problems

High voltages can enter your notebook

through both the power cord and the

modem connection. To protect your
notebook and avoid electrical shock, use
a surge protector. If you have a telephone
modem, use a surge protector that has a
modem jack. If you have a cable modem,

use a surge protector that has an

antenna/cable TV jack. During an

electrical storm, unplug both the surge

protector and the modem.

Warnin g

During a power surge, the voltage level of electricity coming into your notebook
can increase to levels far above normal levels and cause data loss or system
damage. Protect your notebook and peripheral devices by connecting them to
a surge protector, which absorbs voltage surges and prevents them from
reaching your notebook.

Connecting the dial-up modem

To reduce the risk of fire, use only No. 26

AWG or larger telecommunications line

Warnin g

cord.

Your notebook has a built-in 56K modem that you can use to connect to a
standard telephone line.

To connect the modem:

1 Insert one end of the modem cable into the modem jack on the back

of your notebook.

12

2 Insert the other end of the modem cable into a telephone wall jack. The

modem will not work with digital or PBX telephone lines.

3 Start your notebook, then start your communications program.

www.gateway.com

Connecting to a cable or DSL modem or to an Ethernet network

Connecting to a cable or DSL modem or to an Ethernet
network

Your notebook has a network jack that you can use to connect to a cable or DSL
modem or to an Ethernet network.

To connect to a cable or DSL modem or to an Ethernet network:

1 Insert one end of the network cable into the network jack on the back

of your notebook.

2 Insert the other end of the network cable into a cable modem, DSL

modem, or Ethernet network jack.

13

CHAPTER 2: Checking Out Your Gateway Notebook www.gateway.com

Starting your notebook

Do not work for long periods with the

notebook resting on your lap. If the air

vents are blocked, the notebook may

become hot enough to harm your skin.

Provide adequate space around your

notebook so air vents are not obstructed.

Do not use the notebook on a bed, sofa,

For more information about changing

the power button mode, see “Changing

Power-Saving Settings” in the online User

rug, or other similar surface.

Warnin g

Caution

Tips & Tricks

Guide.

To start your notebook:

1 Press the latch on the front of your notebook, then lift the LCD panel.

2 Press the power button located above the keyboard.

3 If you are starting your notebook for the first time, follow the on-screen

instructions to set up your notebook.

Waking up your notebook

For more information about Standby

mode, see “Changing power modes” in

Tips & Tricks

the online User Guide.

When you have not used your notebook for several minutes or if you close the
LCD panel without turning off your notebook, it may enter a power-saving
mode called Standby. While in Standby, the power indicator flashes. If your
notebook is in Standby mode, press the power button to “wake” it up.

Using CyberLink PowerCinema

Your notebook must be turned off or in

Hibernate mode to use CyberLink

PowerCinema. For more information

about Hibernate mode, see “Changing

power modes” in the online User Guide.

Important

By pressing the Live Launch button you can use CyberLink PowerCinema to
access the multimedia features of your notebook without running Windows XP.

To use CyberLink PowerCinema:

1 Slide the latch on the front of your notebook, then lift the LCD panel.

2 Press the Live Launch <get icon> button located above the keyboard.

For the location of the Live Launch button, see “Keyboard area” on

page 10. The notebook will turn on, and the CyberLink PowerCinema

window opens.

3 Use the touchpad or arrow keys to select a multimedia feature you want

to use, or select Help for a brief tutorial on using the program.

14

www.gateway.com

T urning off your notebook

Turning off your notebook

If for some reason you cannot use the

Turn Off Computer option in Windows to

turn off your notebook, press and hold

the power button for about five seconds,

Important

then release it.

To turn off your notebook:

1 Click Start, then click Turn Of f Computer. The Turn Off Computer dialog

box opens.

2 Click Turn O ff. Windows shuts down and turns off your notebook.

Restarting (rebooting) your notebook

If your notebook does not turn off

immediately, complete the following

steps until the notebook turns off:

1. Press and hold the power button for
about five seconds, then release it.

2. Unplug the power cord and re move the
battery for more than 10 seconds.

Important

If your notebook does not respond to keyboard, touchpad, or mouse input, you
may have to close programs that are not responding. If closing unresponsive
programs does not restore your notebook to normal operation, you may have
to restart (reboot) your notebook.

To close unresponsive programs and restart your notebook:

1 Press CTRL+ALT+DEL. The Windows Security dialog box opens.

2 Click Task Man ager. The Windows Task Manager dialog box opens.

3 Click the program that is not responding.

4 Click End Task.
5 Click X in the top-right corner of the Windows Task Manager dialog box.

6 If your notebook does not respond, turn it off, wait ten seconds, then turn

it on again.

As a part of the regular startup process, a program to check the disk status
runs automatically. When the checks are finished, Windows starts.

15

CHAPTER 2: Checking Out Your Gateway Notebook www.gateway.com

A

1

Using the status indicators

If none of the indicators are on, you may
need to press F

N+F1 to toggle the status

indicators on.

Important

Status indicators inform you when a drive is being used or when a button has
been pressed that affects how the keyboard is used. The status indicators are
located on the right side of the keyboard.

Wireless network

Caps lock

Num lock

Disc drive

Hard drive

16

Indicator Icon Description

AC power

Wireless network
(optional)

Caps lock

Num lock

Hard drive

■

LED on - AC power is connected.

■

LED off - AC power is not connected.

■

LED on - wireless IEEE 802.11 radio is turned on.

■

LED off - wireless IEEE 802.11 radio is turned off.

■

LED on - caps lock is turned on.

■

LED off - caps lock is turned off.

■

LED on - numeric keypad is turned on.

■

LED off - numeric keypad is turned off.

■

LED blinking - hard drive is being accessed.

■

LED off - hard drive is not being accessed.

www.gateway.com

Using the keyboard

Using the keyboard

You can attach an external keyboard to

the notebook using a USB port. You do

not need to shut down the notebook to

Tips & Tricks

connect a USB keyboard.

Key types

Your notebook features a full-size keyboard that functions the same as a desktop
computer keyboard. Many of the keys have been assigned alternate functions,
including shortcut keys for Windows, function keys for specific system
operations, and the Num Lock keys for the numeric keypad.

Function keys/ System keys

Numeric

keypa d

N key

F

Windows key

Application key

Arrow keys

Navigation
keys

The keyboard has several different types of keys. Some keys perform specific
actions when pressed alone and other actions when pressed in combination
with another key.

Key type Icon Description

Function
keys

System keys Press these colored keys in combination with the F

Navigation
keys

Press these keys labeled F1 to F12 to perform actions in
programs. For example, pressing F1 may open help.
Each program uses different function keys for different
purposes. See the program documentation to find out more
about the function key actions.

perform specific actions. For more information, see “System

key combinations” on page 18.

Press these keys to move the cursor to the beginning of a line,
to the end of a line, up the page, down the page, to the
beginning of a document, or to the end of a document.

N key to

17

CHAPTER 2: Checking Out Your Gateway Notebook www.gateway.com

1

Key type Icon Description

Arrow keys Press these keys to move the cursor up, down, right, or left.

System ke y combinat ions

Application
key

Windows
key

FN key Press the FN key in combination with a colored system key to

Numeric
keypad

Press this key for quick access to shortcut menus and help
assistants in Windows.

Press this key to open the Windows Start menu. This key can
also be used in combination with other keys to open utilities
like F (Search utility), R (Run utility), and E (Explorer utility).

perform a specific action.

Use these keys to type numbers when the numeric keypad
is turned on. Press F

N+ to turn on the numeric keypad.

When you press the FN key and a system key at the same time, your notebook
performs the action identified by the text or icon on the key.

Press and hold FN, then

To...

press this system key...

Toggle the status indicators on or off. For more
information, see “Using the status indicators” on

page 16.

Turn the optional wireless network on or off. For more
information, see “Wireless Networking” in your online
User Guide.
Warning: Radio frequency wireless communication
can interfere with equipment on commercial aircraft.
Current aviation regulations require wireless devices
to be turned off while traveling in an airplane.
IEEE 802.11g, IEEE 802.11b, and IEEE 802.11a
communication devices are examples of devices that
provide wireless communication.

Enter Standby mode. Press the power button to leave
Standby mode. For more information, see “Changing
Power-Saving Settings” in your online User Guide.

Toggle the notebook display in the following order:

■

The LCD

■

An external monitor or projector (a monitor or
projector must be plugged into the monitor port on
your notebook)

■

Both displays at the same time
For more information, see “Viewing the display on a

projector or monitor” on page 28.

Display the power status box in the upper-left corner
of your display. The box shows the battery charge
level, the BIOS version, and whether the optional
wireless network is being used. Press the key
combination again to close this box.

18

www.gateway.com

Using the keyboard

Press and hold FN, then
press this system key...

6

F8

+

-

To...

Turn the optional Bluetooth feature on or off.
Warning: Radio frequency wireless communication
can interfere with equipment on commercial aircraft.
Current aviation regulations require wireless devices
to be turned off while traveling in an airplane.
Bluetooth communication devices are examples of
devices that provide wireless communication.

Increase the LCD panel brightness above the normal
brightest setting. Use this feature in bright lighting
situations, such as outside in bright sunlight.
Press a second time to decrease the brightness below
the normal lowest brightness setting. Use this feature
in dim lighting situations.
Press a third time to return the display to the normal
brightness setting.
Important: Using this feature will affect battery
performance.

Play or pause the CD or DVD.

Stop playing the CD or DVD.

Skip back one CD track or DVD chapter.

Skip ahead one CD track or DVD chapter.

Increase the brightness of the display.

Decrease the brightness of the display.

Mute the sound. Press the key combination again to
restore the sound. For more information, see

“Adjusting the volume” on page 23.

Increase volume. For more information, see “Adj us ti ng

the volume” on page 23.

Decrease volume. For more information, see

“Adjusting the volume” on page 23.

19

CHAPTER 2: Checking Out Your Gateway Notebook www.gateway.com

Using the multimedia buttons

Press the multimedia buttons to control the playback of multimedia on your
notebook.

Music player

Volume down

Volume up

E-mail

Internet

Search

Button Icon Press to...

Back Skip back one chapter, song, or track.

Next Skip ahead on e chapte r, song, or track.

Stop Stop playing.

Play/Pause

<get icon>

Mute <get

icon>

Volume down
Volu m e u p

Start or pause playing.

Mute the sound. Press again to restore the
sound. For more information, see “A djus ti ng

the volume” on page 23.

Press to decrease the volume.

—

Press to increase the volume.

+

20

www.gateway.com

Using the EZ Pad touchpad

Using the EZ Pad touchpad

For instructions on how to adjust the

double-click speed, pointer speed,

right-hand or left-hand configuration,

and other touchpad settings, see

“Changing the mouse or touchpad

settings” in the online User Guide.

Tips & Tricks

You received your notebook with the EZ

Pad touchpad set to only accept clicking

by using the touchpad buttons. You can
change this feature to allow tapping on

the touchpad to simulate clicking the left

button. For more information, see

“Changing the mouse or touchpad

settings” in the online User Guide.

Tips & Tricks

The EZ Pad™ consists of a touchpad, two buttons, and a scroll zone.

To uc h pa d

Scroll
zone

Right button

Left button

When you move your finger on the touchpad, the pointer (arrow) on the screen
moves in the same direction. You can use the scroll zone to scroll through
documents. Use of the scroll zone may vary from program to program.

You can use t h e E Z-Pa d left and right buttons below the touchpad to select
objects.

21

CHAPTER 2: Checking Out Your Gateway Notebook www.gateway.com

To.. . Do this...

Move the pointer
on the screen.

Select an object on
the screen.

Start a program or
open a file or
folder.

Move your finger
around on the
touchpad. If you run
out of space and
need to move the
pointer farther, lift
your finger, move it
to the middle of the
touchpad, then
continue moving
your finger.

Position the pointer
over the object.
Quickly press and
release the left
button once. This
action is called
clicking.

Position the pointer
over the object.
Press the left button
twice in rapid
succession. This
action is called
double-clicking.

Access a shortcut
menu or find more
information about
an object on the
screen.

Move an object on
the screen.

Position the pointer
over the object.
Quickly press and
release the right
button once. This
action is called
right-clicking.

Position the pointer
over the object.
Press the left button
and hold it down,
then use the
touchpad to move
(drag) the object to
the appropriate part
of the screen.
Release the button
to drop the object
where you want it.

22

www.gateway.com

Adjusting the volume

Adjusting the volume

For instructions on how to adjust the

Tips & Tricks

volume in Windows, see “Adjusting the

Volume” in the online User Guide.

You can use the volume control to adjust the overall volume of your notebook.

To adjust the overall volume level using hardware controls:

■ If you are using external speakers, turn the knob on the front of the

speakers.

-OR-

Use the mute and volume control buttons above the keyboard. For more
information, see “Using the multimedia buttons” on page 20.

-OR-

Use the mute and volume control buttons on the keyboard. For more
information, see “System key combinations” on page 18.

T urning your wireless radio on or off

Radio frequency wireless com munication

Warnin g

can interfere with equipment on

commercial aircraft. Current aviation
regulations require wireless devices to be
turned off while traveling in an airplane.
IEEE 802.11a, IEEE 802.11b, IEEE 802.11g,

and Bluetooth communication devices

are examples of devices that provide

wireless communication.

Your Gateway notebook may have a factory-installed wireless networking card.

To turn the wireless IEEE 802.11 radio on or off:

■ Press FN + F2. The wireless status indicator turns on or off. For the location

of the wireless status indicator, see “Using the status indicators” on

page 16.

In environments where the risk of

interference to other devices or services is

harmful or perceived as harmful, the

option to use a wireless device may be

restricted or eliminated. Airports,

hospitals, and oxygen or flammable gas

laden atmospheres are limited examples

where use of wireless devices may be

restricted or eliminated. When in

environments where you are uncerta in of

the sanction to use wireless devices, ask

authorization prior to using or turning on

the applicable authority for

the wireless device.

Tips & Tricks

Warnin g

For more information about using your

notebook on a wireless network, see

“Wireless Networking” in the online User

Guide.

Tips & Tricks

For more information about using

Bluetooth, click Start, All Programs,

My Bluetooth Places. When the My

Bluetooth Places window opens, click
Help, then click Bluetooth Help Topics.

To turn the Bluetooth radio on or off:

■ Press FN + F6. The first time you use Bluetooth, you need to configure your

notebook using the Initial Bluetooth Configuration Wizard.

23

CHAPTER 2: Checking Out Your Gateway Notebook www.gateway.com

Using the CD or DVD drive

You can use your notebook to enjoy a wide variety of multimedia features.

Identifying drive types

Your Gateway notebook may contain one of the following drive types. Look on
the front of the drive for one or more of the following logos:

If your drive has this logo... This is your drive type... Use your drive for...

ROM/R/RW

CD drive

DVD drive

Combination
DVD/CD-RW drive

Multi-format double
layer DVD±RW/CD-RW
drive

Installing programs,
playing audio CDs, and
accessing data. You
cannot use this drive to
create CDs or DVDs or
play DVDs.

Installing programs,
playing audio CDs,
playing DVDs, and
accessing data. You
cannot use this drive to
create CDs or DVDs.

Installing programs,
playing audio CDs,
playing DVDs, accessing
data, and recording
music and data to
recordable CDs. You
cannot use this drive to
create DVDs.

Installing programs,
playing audio CDs,
playing DVDs, accessing
data, recording music
and data to CD-R or
CD-RW discs, and
recordi ng video and d ata
to DVD-R, DVD+R,
DVD-RW, DVD+RW, or
double layer DVD+R
discs.
Note: To use the double
layer capability of the
double layer recordable
DVD drive, the blank
DVDs you purchase must
state Double Layer, Dual
Layer, or DL. Using other
types of blank media will
result in less capacity.

24

www.gateway.com

Inserting a CD or DVD

Using the memory card reader

[

Manual eject hole

Eject button

To insert a CD or DVD:

1 Press the eject button on the CD or DVD drive. After the tray opens slightly,

pull the disc tray completely open.

When you place a single-sided disc in the

tray, make sure that the label side is

facing up. If the disc has two playable

sides, place the disc so the name of the

side you want to play is facing up.

Important

2 Place the disc in the tray with the label facing up, then press down carefully

on the disc until it snaps into place.

3 Push the tray in until it is closed.

Using the memory card reader

You can use memory cards to transfer pictures from a digital camera to your
notebook. You can also use the memory card reader to transfer data between
your notebook and a device that uses memory cards, such as a PDA, MP3 player,
or cellular telephone.

Memory card types

RS-Multimedia Card and Mini Secure

Digital cards require the use of an

adapter that is available with the media.

Important

Inserting a memory card

<Verify card types> The memory card reader supports Memory Stick®, Memory

Stick Pro®, MultiMediaCard™, Secure Digital™, xD Picture Card, Mini Secure
Digital™, and RS-MultiMediaCard™.

To insert a memory card:

■ Insert the memory card into the memory card slot with the label facing

up and the arrow on the label pointing towards the notebook.

25

CHAPTER 2: Checking Out Your Gateway Notebook www.gateway.com

Using a memory card

To access a file on a memory card:

1 Click Start, then click My Computer.

2 Double-click the drive letter (for example, the E: drive), then double-click

the file name.

Removing a memory card

Important

hardware icon in the taskbar to

remove the memory card. If you use the

remove hardware icon, your notebook

may not recognize your memory card

reader until you restart your notebook.

Do not use the remove

To remove a memory card from the top slot:

■ Pull the memory card out of the notebook.

To remove a memory card from the bottom slot:

1 Press the memory card into the notebook. The card pops out part way.

2 Pull the memory card out of the notebook.

26

www.gateway.com

Inserting and removing an Express Card

Your notebook has a Express Card slot. This slot accepts one Type 54 Express
Card. You do not need to restart your notebook when changing most cards
because your notebook supports hot-swapping. Hot-swapping means that you
can insert an Express Card while your notebook is running. If your Express Card
does not work after hot-swapping, see the Express Card manufacturer’s
documentation for further information.

To insert an Express Card:

■ Push the card firmly into the Express Card slot, label-side up, until the outer

edge of the card is flush with the side of your notebook.

Inserting and removing an Express Card

If the remove hardware icon does not
appear on the taskbar, click the show

hidden icons button.

Important

To remove an Express Card:

1 Click the remove hardware icon in the taskbar, the Express Card name,

then click Stop.

-OR-

Turn off your notebook.

2 Pull the Express Card out of your notebook.

27

CHAPTER 2: Checking Out Your Gateway Notebook www.gateway.com

Installing a printer, scanner, digital camera, or other
peripheral device

Before you install a printer, scanner, or

other peripheral device, see the device

documentation and installation

For the location of these ports on your

notebook, see the poster or hardware

For more information about installing

peripheral devices, click Start, then click

Help and Support. Type the keyword

installing devices in the Search box,

Help and Support

Important

instructions.

Tips & Tricks

guide.

then click the arrow.

Your notebook has one or more of the following ports: IEEE 1394 (also known
as Firewire

®

or i.Link®), Universal Serial Bus (USB), and S-Video (digital video). You
use these ports to connect peripheral devices such as printers, scanners, and
digital cameras to your notebook.

IEEE 1394 and USB ports support plug-and-play and hot swapping, which means
that your notebook will usually recognize such a device whenever you plug it
into the appropriate port. When you use an IEEE 1394 or USB device for the first
time, your notebook will prompt you to install any software the device needs.
After doing this, you can disconnect and reconnect the device at any time.

Installing a USB printer or scanner

USB devices may have special installation instructions. See your USB device’s
installation guide.

Viewing the display on a projector or monitor

Press FN+F4 to switch between viewing

the display on the LCD panel and viewing

the display on the projector or monitor.

If an external monitor or projector is

connected and you close the LCD panel,

your notebook may turn off the LCD

panel, but will not enter Standby mode.

For the location of the VGA port on your

notebook, see “Left” on page 7.

Important

Important

Tips & Tricks

You can use your notebook for giving presentations by connecting an external
monitor or projector to your monitor (VGA) port. Your notebook supports
simultaneous LCD and external display. Simultaneous display lets you control
the presentation from your notebook and at the same time face your audience.

To use a projector or external monitor:

1 Turn off your notebook.

2 Plug the projector or monitor cable into the VGA port on your

notebook.

3 Turn on your notebook.

28

4 Plug the projector’s or monitor’s power cord into an AC power source and

turn it on. Windows recognizes the new hardware and searches for its
driver. You may need to install the driver from the disc supplied by the
manufacturer or download the driver from the manufacturer’s Web site.

5 After the driver is installed, right-click any empty space on the desktop,

then click Properties. The Display Properties dialog box opens.

www.gateway.com

Viewing the display on a projector or monitor

6 Click the Settings tab.

7 Right-click the second monitor icon (labeled 2), then click Attached.

8 Click Apply.

9 Adjust properties such as Screen Resolution or Color Quality if

necessary.

10 Click OK.

29

CHAPTER 2: Checking Out Your Gateway Notebook www.gateway.com

Viewing the display on a television

The TV out feature is available only on

The dialog boxes shown in this section

are for demonstrative purposes only and

may not represent the screens on your

To turn on external video by default,

connect the television (or other external

select Gateway notebooks.

Important

notebook.

Important

video device) before starting your

notebook.

Important

Important

Audio is not transmitted through an

S-Video out jack. Use the built-in speakers

or a set of headphones or external

powered speakers, or connect your

notebook to a stereo system using the

headphone jack to hear sound while

playing a DVD. DVD playback to a VCR

will be scrambled by copyright protection

software.

Tips & Tricks

For the location of the S-Video out jack on

your notebook, see “Left” on page 7.

The S-Video out jack on your notebook lets you view your notebook display on
a television screen using a standard S-Video cable.

To view your notebook display on a television:

1 With your notebook off, connect one end of a standard S-Video cable to

the S-Video out jack on your notebook.

2 Connect the other end of the cable to the Video in jack on your television

or VCR.

3 Turn on the television or VCR.

4 Start your notebook.

5 Click Start, then click Control Panel. The Control Panel window opens. If

your Control Panel is in Category View, click Appearance and Themes.

6 Click/Double-click the Display icon. The Display Properties dialog box

opens.

7 Click the Settings tab.

30

8 Click Advanced. The Plug and Play Properties dialog box opens.

9 If you see an Intel Graphics tab, click it, then do the following:

a Click the Graphics Properties button.

b Adjust the television properties.

-OR-

If you see an ATI C ataly st tab, click it, then do the following:

c Click Advanced, then click Next.

d Click Ye s . The ATI Catalyst Control Center opens.

www.gateway.com

Connecting a video camera to your notebook

e Click Help. for instructions on adjusting the television properties.

Connecting a video camera to your notebook

For more information about using the

IEEE 1394 port on your video camera, see

your camera’s documentation.

Tips & Tricks

Important

For the location of the IEEE 1394 port on

your notebook, see “Right” on page 7.

For more information about editing

Tips & Tricks

video, see your User Guide.

Changing batteries

Replacing the battery

Danger of explosion if battery is

Replace only with a battery specifically

manufactured for your Gateway

notebook. Discard used batteries

according to local hazardous material

The battery used in this device may

present a fire or chemical burn hazard if

mishandled. Do not disassemble, heat

above 212°F (100°C), or incinerate.

Dispose of used battery promptly. Keep

Warnin g

incorrectly replaced.

regulations.

away from children.

Your notebook has a 4-pin IEEE 1394 port (also known as a Firewire® or i.Link®
port) for connecting devices such as a video camera.

To connect your video camera to your notebook:

1 Connect one end of the IEEE 1394 cable to your video camera.

2 Connect the other end of the cable to the IEEE 1394 port on your

notebook.

To replace the battery:

1 If your notebook is on and is connected directly to AC power, go to Step 2.

-OR-

If your notebook is on and is no t plug ged into an AC out let, save you r work
and turn off the notebook.

2 Close the LCD panel.

3 Turn your notebook over so the bottom is facing up.

If your notebook is connected to AC

power, you can change the battery while

the notebook is turned on. If your

notebook is not plugged into an AC

outlet, you must turn the notebook off

while changing the battery or you will

lose any unsaved data.

Caution

4 Slide the battery lock to the unlocked position.

5 Slide the battery release latch.

31

CHAPTER 2: Checking Out Your Gateway Notebook www.gateway.com

6 Lift the battery out of the notebook.

7 Slide a recharged battery into the notebook until it snaps into place.

8 Slide the battery lock to the locked position.

9 Turn your notebook over.

10 Open the LCD panel and press the power button.

Recalibrating the battery

Do not interrupt the battery recalibration

process. If recalibration is interrupted,

you must start the process over again.

Do not use your notebook during the
recalibration process. Do not connect the
AC adapter to your notebook during this

process, or you will interrupt the

recalibration process and will have to

Important

Important

start again.

If your notebook unexpectedly goes into Standby mode while you are using it
but the battery charge is not low, you may need to recalibrate your battery. You
should also recalibrate the battery periodically to maintain the accuracy of the
battery gauge.

To recalibrate the battery:

1 Close all open files and programs.

2 Connect your notebook to AC power and let the battery charge

completely.

3 Disconnect the AC power and restart your notebook.

4 Completely discharge the battery by doing the following:

a From the desktop, right-click on the power icon, then select Adjust

Power Properties.

b Click the Power Schemes tab.

c Click the arrow button to open the Power Schemes list, then click

Always On.

d Click the Alarms tab.

e Click to clear the Low battery alarm and Critical battery alarm

check boxes. Let the battery drain until your notebook
automatically turns off.

32

5 After the battery is completely drained, reconnect your notebook to AC

power.

www.gateway.com

Ordering accessories

Ordering accessories

6 Charge the battery completely until the battery status indicator turns blue.

7 When you are ready to use your notebook again, do the following:

a From the desktop, right-click on the power icon, then select Adjust

Power Properties.

b Click the Power Schemes tab.

c Click the arrow button to open the Power Schemes list, then click

the power scheme you want.

d Click the Alarms tab.

e Click to select the Low battery alarm and Critical battery alarm

check boxes.

The battery charge indicator now displays an accurate battery charge. If
the battery charge indicator does not show an accurate charge, contact
Gateway Customer Care at www.gateway.com

.

To order accessories, visit the Accessory Store at www.gateway.com.

Batteries

If you run your notebook on battery power for extended periods, you may want
to buy an additional battery so you can swap batteries when necessary. See

“Changing batteries” on page 31 for more information about using an

additional battery.

Carrying cases

Gateway has large-capacity carrying cases if you need additional space for
accessories or supplies.

Memory

Large programs, such as multimedia games or graphics programs, use a lot of
memory. If your programs are running more slowly than you think they should,
try adding more memory. See “Adding or replacing memory modules” on

page 36 for more information.

Printers

You can attach almost any type of printer to your notebook. The most common
types are inkjet and laser printers, which print in color or black and white.

Inkjet printers and cartridges are relatively inexpensive, but they are slower than
laser printers. Using an inkjet color printer, you can print pictures, banners, and
greeting cards, as well as documents.

Laser printers and cartridges are more expensive, but they print much faster
than inkjet printers. Laser printers are better than inkjet printers when you are
printing large documents.

USB flash drive

Use a USB flash drive for storing files or transferring files to another computer.

33

CHAPTER 2: Checking Out Your Gateway Notebook www.gateway.com

34

CHAPTER 3

Maintaining and Upgrading Your Notebook

• Preventing static electricity discharge

• Adding or replacing memory modules

• Replacing the CD or DVD drive

• Replacing the hard drive kit

• Replacing the keyboard

35

CHAPTER 3: Maintaining and Upgrading Your Notebook www.gateway.com

Preventing static electricity discharge

To avoid exposure to dangerous electrical
voltages and moving parts, turn off your

notebook, unplug the power cord,

modem cable, and network cable, and

remove the batteries before opening the

Warnin g

case.

The components inside your notebook are extremely sensitive to static
electricity, also known as electrostatic discharge (ESD).

Before installing or replacing components, follow these guidelines:

■ Avoid static-causing surfaces such as carpeted floors, plastic, and packing

foam.

To prevent risk of electric shock, do not

insert any object in to the vent holes of the

Before installing or replacing

components, you should read and

understand the information in this

Warnin g

notebook.

Important

section.

■ Remove components from their antistatic bags only when you are ready

to use them. Do not lay components on the outside of antistatic bags
because only the inside of the bags provide electrostatic protection.

■ Always hold components by their edges. Avoid touching the edge

connectors. Never slide components over any surface.

■ Wear a grounding wrist strap (available at most electronics stores) and

attach it to a bare metal part of your workbench or other grounded
connection.

■ Touch a bare metal surface on your workbench or other grounded object.

Adding or replacing memory modules

Use only memory modules designed for

You need a small Phillips screwdriver to

your Gateway notebook.

replace memory modules.

Important

Tools Required

Your notebook uses memory modules called SO-DIMMs (Small Outline Dual
Inline Memory Modules). The modules are available in various capacities and
any module can be placed in any slot.

36

Memory

bay

To add or replace memory modules:

1 Follow the guidelines under “Preventing static electricity discharge” on

page 36.

2 Turn off your notebook.

3 Disconnect the AC adapter, modem cable, and network cable.

www.gateway.com

Adding or replacing memory modules

4 Disconnect all peripheral devices connected to the notebook and remove

any Express cards.

5 Turn your notebook over so the bottom is facing up, then remove the

battery. For more information, see “Changing batteries” on page 31.

6 Remove the memory bay cover screw and put it in a safe place.

7 Slide the memory bay cover in the direction shown, then remove it.

37

CHAPTER 3: Maintaining and Upgrading Your Notebook www.gateway.com

8 If you are removing a module, gently press outward on the clip at each

end of the memory module until the module tilts upward.

Clip

38

Clip

www.gateway.com

Adding or replacing memory modules

9 Pull the memory module out of the slot.

10 Hold the new or replacement module at a 30-degree angle and press it

into the empty memory slot. This module is keyed so it can only be
inserted in one direction. If the module does not fit, make sure that the
notch in the module lines up with the tab in the memory bay.

11 Replace the memory bay cover, then replace the cover screw.

12 Insert the battery, then turn your notebook over.

13 Connect the power adapter, modem cable, and network cable, then turn

on your notebook.

14 Reconnect all peripheral devices and replace any Express cards.

39

CHAPTER 3: Maintaining and Upgrading Your Notebook www.gateway.com

Replacing the CD or DVD drive

If your CD or DVD drive becomes damaged, you can replace it with a similar drive
obtained from Gateway.

Replace the CD or DVD drive only with a

Important

similar drive provided by Gateway.

To replace the CD or DVD drive:

1 Make sure that the CD or DVD drive is empty.

You need a small Phillips screwdriver to

Tools Required

replace the CD or DVD drive.

2 Follow the guidelines under “Preventing static electricity discharge” on

page 36.

3 Turn off your notebook.

4 Disconnect the AC adapter, modem cable, and network cable.

5 Disconnect all peripheral devices and remove any Express cards.

6 Turn your notebook over so the bottom is facing up, then remove the

battery. For more information, see “Changing batteries” on page 31.

7 With a small Phillips screwdriver, remove the CD or DVD drive screws, then

put them in a safe place.

Screw

40

www.gateway.com

Replacing the CD or DVD drive

8 Insert a straightened paper clip into the CD or DVD drive’s manual eject

hole, push in the paper clip to eject the drive tray, then pull the drive tray
open.

9 Carefully slide the drive out of the drive bay.

10 Slide the new CD or DVD drive into the drive bay. Make sure that the drive

fits securely in the bay.

11 Secure the CD or DVD drive with the screws removed in Step 7.

12 Insert the battery, then turn your notebook over.

13 Connect the power adapter, modem cable, and network cable, then turn

on your notebook.

14 Reconnect all peripheral devices and replace any Express cards.

41

CHAPTER 3: Maintaining and Upgrading Your Notebook www.gateway.com

Replacing the hard drive kit

You need a small Phillips screwdriver to

Tools Required

replace the hard drive kit.

If you would like more hard drive capacity, you can replace your original drive
with a higher-capacity drive.

Hard

drive bay

To replace the hard drive kit:

1 Create a Drivers and Applications Recovery disc. For more information, see

“Creating Drivers and Applications Recovery discs” in the online User
Guide.

2 Print the “Recovering Your System” chapter from the online User Guide for

use in Step 20.

3 Back up any data you want to transfer to the new hard drive. For more

information, see “Backing up files” in the online User Guide.

4 Follow the guidelines under “Preventing static electricity discharge” on

page 36.

5 Turn off your notebook.

6 Disconnect the AC adapter, modem cable, and network cable.

7 Disconnect all peripheral devices connected to the notebook and remove

any Express cards.

8 Turn your notebook over so the bottom is facing up, then remove the

battery. For more information, see “Changing batteries” on page 31.

42

www.gateway.com

Replacing the hard drive kit

9 Remove the hard drive kit screw, then put it in a safe place.

Screw

Screw

Screw
Screw

10 Slide the hard drive out of the notebook in the direction shown.

Screw

11 If your new hard drive already includes the hard drive bracket, go to

Step 16.

-OR-

If you need to move the hard drive bracket from your old hard drive to
your new hard drive, go to Step 12.

43

CHAPTER 3: Maintaining and Upgrading Your Notebook www.gateway.com

12 Remove the four screws that secure the hard drive to the hard drive

bracket.

Screw

Screw

Screw

Screw

13 Remove the bracket from the old drive.

44

14 Place the new drive, label side up, onto the bracket so the screw holes line

up.

15 Replace the screws that secure the bracket to the drive.

16 Slide the new hard drive kit into your notebook, then replace the screw

that secures the hard drive kit to the notebook.

17 Insert the battery, then turn your notebook over.

18 Connect the power adapter, modem cable, and network cable

19 Turn on your notebook.

20 For instructions on installing Windows, your drivers, and your applications,

see the “Recovering Your System” chapter you printed in Step 2.

21 Reconnect all peripheral devices and replace any Express cards.

www.gateway.com

Replacing the keyboard

Replacing the keyboard

Replace the keyboard only with a similar

keyboard provided by Gateway.

You need a small Phillips and a small

flat-blade screwdriver to replace the

Important

Tools Required

keyboard.

Removing the keyboard

If your keyboard becomes damaged, you can replace it with a similar keyboard
obtained from Gateway.

To remove the keyboard:

1 Follow the guidelines under “Preventing static electricity discharge” on

page 36.

2 Turn off your notebook.

3 Disconnect the AC adapter, modem cable, and network cable.

4 Disconnect all peripheral devices connected to the notebook and remove

any Express cards.

5 Turn your notebook over so the bottom is facing up, then remove the

battery. For more information, see “Changing batteries” on page 31.

6 Remove the keyboard cover screw.

7 Remove the memory bay cover screw and put it in a safe place.

45

CHAPTER 3: Maintaining and Upgrading Your Notebook www.gateway.com

8 Slide the memory bay cover in the direction shown, then remove it.

9 Remove the keyboard screw.

Inserting a piece of cloth between the

screwdriver and keyboard will help

prevent damage to the notebook.

Tips & Tricks

10 Turn the notebook over so the top is facing up.

11 Carefully open the LCD panel to the fully opened position.

12 Insert the small flat-blade screwdriver or non-marring tool under the

keyboard cover and gently pry it up.

13 Pull the old cover off the notebook. You will hear small snapping sounds

as the cover comes away from the notebook.

46

14 Gently lift the back edge of the keyboard.

www.gateway.com

Replacing the keyboard

15 With the back edge of the keyboard raised, carefully push it toward the

LCD panel to release the keyboard retaining tabs. Be careful not to damage
the LCD panel.

16 Rotate the keyboard toward you so it lies keys-down on top of your

notebook.

47

CHAPTER 3: Maintaining and Upgrading Your Notebook www.gateway.com

17 Lift the connector clip, then remove the cable. Be careful not to touch or

damage any other components.

Connector

18 Lift the old keyboard away from the notebook.

48

www.gateway.com

Installing the keyboard

Replacing the keyboard

To install the keyboard:

1 Place the new keyboard keys-down on your notebook with the space bar

away from you.

The keyboard cable is correctly orien ted if

Important

the cable is not twisted

2 Make sure the keyboard connector clip is fully raised, insert the cable into

the connector, then lower the black connector clip back to lock the
connectors in place.

3 Rotate the keyboard toward the LCD panel until the keyboard is

almost face-up.

4 Insert the tabs on the front edge of the keyboard into the slots under the

palm rest. You may need to press down on the keyboard keys along the
front edge of the keyboard to seat the retaining tabs into their
corresponding slots.

If the cover is not correctly replaced, your

notebook could be damaged when you

try to close the LCD panel.

Caution

5 Gently press the keyboard down until it is flat all the way across. The

keyboard should easily fall into place. Be careful not to damage the
LCD panel.

6 Place the cover on the notebook, then press down on the cover in several

places until it clicks in place. The cover is correctly mounted when you can
run your finger along the cover and find no loose spots. The cover should
be flat all the way across.

7 Close the LCD panel, then turn the notebook over so the bottom is facing

up.

8 Replace the keyboard screw.

9 Replace the keyboard cover screw.

10 Replace the memory bay cover.

11 Insert the battery, then turn your notebook over.

12 Connect the power adapter, modem cable, and network cable, then turn

on your notebook.

49

CHAPTER 3: Maintaining and Upgrading Your Notebook www.gateway.com

13 Reconnect all peripheral devices and replace any Express cards.

50

APPENDIX A

Safety, Regulatory, and Legal Information

• Important safety information

• Regulatory compliance statements

• Environmental information

•Notices

51

APPENDIX A: Safety, Regulatory, and Legal Information www.gateway.com

Important safety information

Always follow these instructions to help

guard against personal injury and

damage to your Gateway system.

Warnin g

Warnin g

Do not use Gateway products in areas

classified as hazardous locations. Such

areas include patient care areas of

medical and dental facilities,

oxygen-laden environments, or

industrial facilities.

Warnin g

To reduce the risk of fire, use only No. 26

AWG or larger telecommunications line

cord.

Your Gateway notebook is designed and tested to meet the latest standards for
safety of information technology equipment. However, to ensure safe use of this
notebook, it is important that the safety instructions marked on the notebook
and in the documentation are followed.

Setting up your system

■ Read and follow all instructions marked on the notebook and in the

documentation before you operate your notebook. Retain all safety and
operating instructions for future use.

■ Do not use this notebook near water or a heat source such as a radiator.

■ Set up the notebook on a stable work surface.

■ The notebook should be operated only from the type of power source

indicated on the rating label.

■ If your notebook has a voltage selector switch, make sure that the switch

is in the proper position for your area. The voltage selector switch is set
at the factory to the correct voltage.

■ Openings in the notebook case are provided for ventilation. Do not block

or cover these openings. Make sure you provide adequate space, at least
6 inches (15 cm), around the notebook for ventilation when you set up
your work area. Never insert objects of any kind into the notebook
ventilation openings.

■ Some notebook are equipped with a three-wire power cord to make sure

that the notebook is properly grounded when in use. The plug on this cord
will fit only into a grounding-type outlet. This is a safety feature. If you are
unable to insert the plug into an outlet, contact an electrician to install
the appropriate outlet.

■ If you use an extension cord with this notebook, make sure that the total

ampere rating on the products plugged into the extension cord does not
exceed the extension cord ampere rating.

■ If your notebook is fitted with a TV Tuner, cable, or satellite receiver card,

make sure that the antenna or cable system is electrically grounded to
provide some protection against voltage surges and buildup of static
charges.

52

Care during use

■ Do not walk on the power cord or allow anything to rest on it.

■ Do not spill anything on the notebook. The best way to avoid spills is to

avoid eating and drinking near your notebook.

■ Some notebooks have a replaceable CMOS battery on the system board.

There is a danger of explosion if the CMOS battery is replaced incorrectly.
Replace the battery with the same or equivalent type recommended by
the manufacturer. Dispose of batteries according to the manufacturer’s
instructions.

■ When the notebook is turned off, a small amount of electrical current still

flows through the notebook. To avoid electrical shock, always unplug all
power cables and modem cables from the wall outlets before cleaning the
notebook.

www.gateway.com

■ Unplug the notebook from the wall outlet and refer servicing to qualified

personnel if:

■ The power cord or plug is damaged.

■ Liquid has been spilled into the notebook.

■ The notebook does not operate properly when the operating

instructions are followed.

■ The notebook was dropped or the cabinet is damaged.

■ The notebook performance changes.

Replacement parts and accessories

Use only replacement parts and accessories recommended by Gateway.

53

APPENDIX A: Safety, Regulatory, and Legal Information www.gateway.com

Regulatory compliance statements

Wireless guidance

Radio frequency wireless com munication

can interfere with equipment on

commercial aircraft. Current aviation
regulations require wireless devices to be
turned off while traveling in an airplane.

802.11b (also known as wireless Ethernet

or Wifi) and Bluetooth communication

devices are examples of devices that

provide wireless communication.

In environments where the risk of

interference to other devices or services is

harmful or perceived as harmful, the

option to use a wireless device may be

restricted or eliminated. Airports,

hospitals, and oxygen or flammable gas

laden atmospheres are limited examples

where use of wireless devices may be

restricted or eliminated. When in

environments where you are uncerta in of

the sanction to use wireless devices, ask

authorization prior to use or turning on

the applicable authority for

Warnin g

Warnin g

the wireless device.

Warnin g

If your notebook came equipped with an

internal embedded wireless device, do

not operate the wireless device unless all

covers and shields are in place and the

notebook is fully assembled.

Caution

Wireless devices are not user serviceable.

Do not modify them in any way.
Modification to a wireless d evice will void
the authorization to use it . Please contact

Only use drivers approved for the country

in which the device will be used. See the

Gateway System Restoration Kit, or

contact Gateway Customer Care for

Gateway for service.

Caution

additional information.

Low power, radio transmitting type devices (radio frequency (RF) wireless
communication devices), may be present (e mbed ded) in yo ur no tebo ok s yste m.
These devices may operate in the 2.4 GHz (802.11b/g LAN & Bluetooth), 5.2 GHz
(802.11a LAN), and traditional cellular or PCS cellular bands (i.e. Cellular data
modem). The following section is a general overview of considerations while
operating a wireless device.

Additional limitations, cautions, and concerns for specific countries are listed in
the specific country sections (or country group sections). The wireless devices
in your system are only qualified for use in the countries identified by the Radio
Approval Marks on the system rating label. If the country you will be using the
wireless device in is not listed, please contact your local Radio Approval agency
for requirements. Wireless devices are closely regulated and use may not be
allowed.

The power output of the wireless device or devices that may be embedded in
your notebook is well below the RF exposure limits as known at this time.
Because the wireless devices (which may be embedded into your notebook)
emit less energy than is allowed in radio frequency safety standards and
recommendations, Gateway believes these devices are safe for use. Regardless
of the power levels, care should be taken to minimize human contact during
normal operation.

Measurements have been performed to show that the RF exposure is below
what is considered safe limits; however care should be taken to make sure that
the user or bystanders keep the transmitter away from their bodies when the
wireless device is transmitting. The transmitting antenna installed in the top
third of the lid should be used in a manner to maintain 20 cm (8 inches) from
user’s or bystander’s bodies.

The wireless devices installed in this system are intended to be used indoors.
In some areas, use of these devices outdoors is prohibited.

Some circumstances require restrictions on wireless devices. Examples of
common restrictions are listed to the left.

Every country has different restrictions on

the use of wireless devices. If your

notebook is equipped with a wireless
device, when traveling between countries
with your notebook, check with the local

Radio Approval authorities prior to any

move or trip for any restrictions on the

use of a wireless device in the destination

54

Important

count ry.

www.gateway.com

United States of America

Wireless devices are not user-serviceable.

Do not modify them in any way.

Modification to a wireless d evice will void

the authorization to use it. Contact

The transmitting device embedded in this

notebook may not be used with any

antenna other than the one provided

In order to comply with FCC requirements
this transmitter must not be operated (or
co-located) in conjunction with any other

transmitter or antenna installed in the

Caution

Gateway for service.

Caution

with the notebook.

Caution

notebook.

Federal Communications Commission (FCC) Intentional emitter per FCC Part 15

Low power, radio transmitter type devices (radio frequency (RF) wireless
communication devices), operating in the 2.4 GHz band or 5.15 – 5.35 GHz
band, may be present (embedded) in your notebook system. This section is only
applicable if these devices are present. Refer to the system label to verify the
presence of wireless devices.

Wireless devices that may be in your system are only qualified for use in the
United States of America if an FCC ID number is on the system label.

The FCC has set a general guideline of 20 cm (8 inches) separation between the
device and the body, for use of a wireless device near the body (this does not
include extremities). This device should be used more than 20 cm (8 inches)
from the body when wireless devices are on. The power output of the wireless
device (or devices), which may be embedded in your notebook, is well below
the RF exposure limits as set by the FCC.

The wireless devices installed in this system are intended to be used indoors.
In some areas, use of these devices outdoors is prohibited.

Operation of this device is subject to the following two conditions: (1) This
device may not cause harmful interference, and (2) this device must accept any
interference received, including interference that may cause undesired
operation of the device.

Unintentional emitter per FCC Part 15

This device has been tested and found to comply with the limits for a ClassB
digital device, pursuant to Part 15 of the FCC rules. These limits are designed
to provide reasonable protection against harmful interference in a residential
installation. This equipment generates, uses, and can radiate radio frequency
energy and, if not installed and used in accordance with the instructions, may
cause harmful interference to radio or television reception. However, there is no
guarantee that interference will not occur in a particular installation. If this
equipment does cause interference to radio and television reception, which can
be determined by turning the equipment off and on, the user is encouraged to
try to correct the interference by one or more of the following measures:

■ Reorient or relocate the receiving antenna

■ Increase the separation between the equipment and receiver

■ Connect the equipment into an outlet on a circuit different from that to

which the receiver is connected

■ Consult the dealer or an experienced radio/TV technician for help.

Compliance Accessories: The accessories associated with this equipment are:
shielded video cable when an external monitor is connected. These accessories
are required to be used in order to ensure compliance with FCC rules.

55

APPENDIX A: Safety, Regulatory, and Legal Information www.gateway.com

FCC declaration of conformity

Changes or modifications not expressly
approved by Gateway could void the FCC
compliance and negate your authority to

Recycle or dispose of the used notebook

properly according to federal, state and

operate the notebook.

Hg

Caution

Caution

local laws.

Warnin g California Proposition 65 Warning

Warnin g

Responsible party:

Gateway Companies, Inc.
7565 Irvine Center Drive
Irvine, CA 92618 USA
[phone] Fax: [phone]

Product: W740

This device complies with Part 15 of the FCC Rules. Operation of this product is
subject to the following two conditions: (1) this device may not cause harmful
interference, and (2) this device must accept any interference received,
including interference that may cause undesired operation.

This product contains chemicals, including lead, known to the State of California
to cause cancer, birth defects or reproductive harm.

Mercury Warning

The lamp in this display contains mercury. Do not put in trash. Recycle or dispose
as hazardous waste.

Telecommunications per Part 68 of the Code of Federal Regulations (CFR 47)
(applicable to products fitted with USA modems)

Your modem complies with Part 68 of the Code of Federal Regulations (CFR 47)
rules. On the computer or modem card is a label that contains the FCC
registration number and Ringer Equivalence Number (REN) for this device. If
requested, this information must be provided to the telephone company.

A telephone line cord with a modular plug is required for use with this device.
The modem is designed to be connected to the telephone network or premises
wiring using a compatible modular jack which is Part 68-compliant. See
installation instructions for details.

The Ringer Equivalence Number (REN) is used to determine the number of
devices which may be connected to the telephone line. Excessive RENs on a
telephone line may result in the devices not ringing in response to an incoming
call. In most areas, the sum of RENs should not exceed five (5.0). To be certain
of the number of devices that may be connected to a line, as determined by
the total RENs, contact the local telephone company.

If this device causes harm to the telephone network, the telephone company
will notify you in advance that temporary discontinuance of service may be
required. The telephone company may request that you disconnect the
equipment until the problem is resolved.

The telephone company may make changes in its facilities, equipment,
operations, or procedures that could affect the operation of this equipment. If
this happens, the telephone company will provide advance notice in order for
you to make necessary modifications to maintain uninterrupted service.

56

This equipment cannot be used on telephone company-provided coin service.
Connection to party line service is subject to state tariffs. Contact the state
public utility commission or public service commission for information.

When programming or making test calls to emergency numbers:

www.gateway.com

Canada

To prevent radio interference to licensed

service or co-channel Mobile Satellite

systems, this device is intended to be

operated indoors and away from
windows to provide maximum shielding.
Equipment (or its transmit antenna) that

is installed outdoors is subject to

Wireless devices are not user-serviceable.

Do not modify them in any way.

Modification to a wireless d evice will void

the authorization to use it. Contact

The transmitting device embedded in this

notebook may not be used with any

antenna other than provide with the

The IEEE 802.11 or Bluetooth radio your
notebook may have been equipped with
operates in the same frequency range as
high power radar, which has priority use,

and may damage the radio LAN if both

are present and being used in the same

Gateway for service.

Caution

licensing.

Caution

Caution

notebook.

Caution

area.

■ Remain on the line and briefly explain to the dispatcher the reason for the

call.

■ Perform such activities in the off-peak hours such as early morning or late

evenings.

The United States Telephone Consumer Protection Act of 1991 makes it
unlawful for any person to use a computer or other electronic device to send
any message via a telephone fax machine unless such message clearly contains,
in a margin at the top or bottom of each transmitted page or on the first page
of the transmission, the date and time it is sent, an identification of the business,
other entity, or other individual sending the message, and the telephone
number of the sending machine or such business, other entity, or individual.
Refer to your fax communication software documentation for details on how
to comply with the fax-branding requirement.

Industry Canada (IC) Intentional emitter per RSS 210

Low power, Radio transmitter type devices (radio frequency (RF) wireless
communication devices), operating in the 2.4 GHz band and/or 5.15 – 5.35 GHz
band, may be present (embedded) in your notebook system. This section is only
applicable if these devices are present. Refer to the system label to verify the
presence of wireless devices.

Wireless devices that may be in your system are only qualified for use in Canada
if an Industry Canada ID number is on the system label.

As a general guideline, a separation of 20 cm (8 inches) between the wireless
device and the body, for use of a wireless device near the body (this does not
include extremities) is typical. This device should be used more than 20 cm
(8 inches) from the body when wireless devices are on. The power output of the
wireless device (or devices), which may be embedded in your notebook, is well
below the RF exposure limits as set by Industry Canada.

Operation of this device is subject to the following two conditions: (1) This
device may not cause harmful interference, and (2) this device must accept any
interference received, including interference that may cause undesired
operation of the device.

Unintentional emitter per ICES-003

This digital apparatus does not exceed the Class B limits for radio noise
emissions from digital apparatus as set out in the radio interference regulations
of Industry Canada.

Le présent appareil numérique n’émet pas de bruits radioélectriques dépassant
les limites applicables aux appareils numériques de Classe B prescrites dans le
règlement sur le brouillage radioélectrique édicté par Industrie Canada.

57

APPENDIX A: Safety, Regulatory, and Legal Information www.gateway.com

Telecommunications per Industry Canada CS-03 (for products fitted with an
IC-compliant mo dem)

The Industry Canada label identifies certified equipment. This certification
means that the equipment meets certain telecommunications network
protective, operation, and safety requirements. The Department does not
guarantee the equipment will operate to the users’ satisfaction.

Before installing this equipment, users should make sure that it is permissible
to be connected to the facilities of the local telecommunications company. The
equipment must also be installed using an acceptable method of connection.
In some cases, the inside wiring associated with a single-line individual service
may be extended by means of a certified connector assembly. The customer
should be aware that compliance with the above conditions may not prevent
degradation of service in some situations.

Repairs to certified equipment should be made by an authorized Canadian
maintenance facility designated by the supplier. Any repairs or alterations made
by the user to this equipment, or equipment malfunctions, may give the
telecommunications company cause to request the user to disconnect the
equipment.

To avoid electrical shock or equipment

malfunction do not attempt to make

electrical ground connections by yourself.

Contact the appropriate inspection

authority or an electrician, as

Warnin g

appropriate.

Japan

Users should make sure, for their own protection, that the electrical ground
connections of the power utility, telephone lines, and internal metallic water
pipe system, if present, are connected together. This precaution may be
particularly important in rural areas.

The Ringer Equivalence Number (REN) assigned to each terminal device
provides an indication of the maximum number of terminals allowed to be
connected to a telephone interface. The termination on an inter face may consist
of any combination of devices subject only to the requirement that the sum of
the Ringer Equivalence Numbers of all the devices does not exceed 5.

58

Japanese Modem Notice

www.gateway.com

Laser safety statement

Use of controls or adjustments or

performance of procedures other than

those specified in this manual may result

in hazardous radiation exposure. To

prevent exposure to laser beams, do not

try to open the enclosure of a CD or DVD

Warnin g

EPA ENERGY STAR

drive.

All Gateway systems equipped with CD and DVD drives comply with the
appropriate safety standards, including IEC 825. The laser devices in these
components are classified as “Class 1 Laser Products” under a US Department
of Health and Human Services (DHHS) Radiation Performance Standard. Should
the unit ever need servicing, contact an authorized service location.

As an ENERGY STAR® Partner, Gateway has determined that this
product meets the ENERGY STAR guidelines for energy efficiency
when used with a computer equipped with a Display Power

ENERGY STAR

Management System.

59

APPENDIX A: Safety, Regulatory, and Legal Information www.gateway.com

Environmental information

The product you have purchased contains extracted natural resources that have
been used in the manufacturing process. This product may contain substances
known to be hazardous to the environment or to human health.

To prevent releases of harmful substances into the environment and to
maximize the use of our natural resources, Gateway provides the following
information on how you can responsibly recycle or reuse most of the materials
in your “end of life” product.

Waste Electrical and Electronic Equipment (commonly known as
WEEE) should never be disposed of in the municipal waste stream
(residential garbage collection). The “Crossed-Out Waste Bin” label
affixed to this product is your reminder to dispose of your “end of life”
product properly.

Substances such as glass, plastics, and certain chemical compounds are highly
recoverable, recyclable, and reusable. You can do your part for the environment
by following these simple steps:

■ When your electrical or electronic equipment is no longer useful to you,

“take it back” to your local or regional waste collection administration for
recycling.

■ In some cases, your “end of life” product may be “traded in” for credit

towards the purchase of new Gateway equipment. Call Gateway to see if
this program is available in your area.

■ If you need further assistance in recycling, reusing, or trading in your “end

of life” product, you may contact us at the Customer Care number listed
in your product’s user guide and we will be glad to help you with your
effort.

Finally, we suggest that you practice other environmentally friendly actions by
understanding and using the energy-saving features of this product (where
applicable), recycling the inner and outer packaging (including shipping
containers) this product was delivered in, and by disposing of or recycling used
batteries properly.

With your help, we can reduce the amount of natural resources needed to
produce electrical and electronic equipment, minimize the use of landfills for
the disposal of “end of life” products, and generally improve our quality of life
by ensuring that potentially hazardous substances are not released into the
environment and are disposed of properly.

60

www.gateway.com

Notices

Copyright © 2006 Gateway, Inc.
All Rights Reserved
7565 Irvine Center Drive
Irvine, CA 92618 USA

All Rights Reserved

This publication is protected by copyright and all rights are reserved. No part
of it may be reproduced or transmitted by any means or in any form, without
prior consent in writing from Gateway.

The information in this manual has been carefully checked and is believed to
be accurate. However, changes are made periodically. These changes are
incorporated in newer publication editions. Gateway may improve and/or
change products described in this publication at any time. Due to continuing
system improvements, Gateway is not responsible for inaccurate information
which may appear in this manual. For the latest product updates, consult the
Gateway Web site at www.gateway.com
direct, indirect, special, exemplary, incidental, or consequential damages
resulting from any defect or omission in this manual, even if advised of the
possibility of such damages.

. In no event will Gateway be liable for

In the interest of continued product development, Gateway reserves the right
to make improvements in this manual and the products it describes at any time,
without notices or obligation.

Trademark Acknowledgments

Gateway and the Black-and-White Spot Design are trademarks or registered
trademarks of Gateway, Inc. in the U.S. and other countries. SpotShop,
Spotshop.com, and Your:)Ware are trademarks of Gateway, Inc. Intel, Intel Inside
logo, and Pentium are registered trademarks and MMX is a trademark of Intel
Corporation. Microsoft, MS, MS-DOS, and Windows are trademarks or registered
trademarks of Microsoft Corporation. All other product names mentioned
herein are used for identification purposes only, and may be the trademarks or
registered trademarks of their respective companies.

Macrovision statement

If your not ebook has a DVD d riv e and an analog TV Out port, the follo wing
paragrap h applies:

This product incorporates copyright protection technology that is protected by
U.S. patents and other intellectual property rights. Use of this copyright
protection technology must be authorized by Macrovision Corporation, and is
intended for home and other limited viewing uses only unless otherwise
authorized by Macrovision Corporation. Reverse engineering or disassembly is
prohibited.

61

APPENDIX A: Safety, Regulatory, and Legal Information www.gateway.com

62

Index

A

AC adapter

connecting

connector 8

accessories

purchasing

safety precautions 53

application key 18
arrow keys 18
audio

adjusting volume

back button 19, 20

headphone jack 6

microphone jack 6

muting 19, 20, 23

next button 19, 20

pause button 19, 20

play button 19, 20

stop button 19, 20

volume down button 19, 20

volume up button 19, 20

11

33

19, 23

B

battery

31

bay

changing 31

charge indicator 6

charging 11

installing main 31

latch 9

locating 9

purchasing 33

recalibrating 32

recharging 11

release latch 9

replacing 31

bays

battery

hard drive 9

memory 9, 36

Bluetooth 19
brightness

adjusting

system keys 19

31

19

C

cable lock 8
cable modem 8, 13
camera

See digital camera

See digital video camera

Caps Lock indicator
cards

16

Express Card slot
inserting Express Card 27
inserting memory card 25
memory card slot 6
memory cards supported 25
removing Express Card 27
removing memory card 25

slots 25, 27
carrying case 33
CD

inserting
CD drive

See DVD drive
cellular phone

memory cards
Certificate of Authenticity 3
clicking 22
closing unresponsive program 15
connecting

AC adapter

dial-up modem 12

external keyboard 17

external monitor 28

keyboard 17

printer 28

projector 28

scanner 28

television 30

to cable modem 13

to DSL modem 13

to Ethernet 13

to network 13

video camera 31
connections

audio

broadband Internet 8, 13

cable modem 8, 13

dial-up modem 8, 12

digital camera 7, 8

digital video camera 7, 28

DSL modem 8, 13

Ethernet 8, 13

external audio 6

external diskette drive 7, 8

external speakers 6

Firewire 7, 28

flash drive 7, 8

headphone 6

i.Link 7, 28

IEEE 1394 7, 28

keyboard 7, 8

microphone 6

modem (dial-up) 8, 12

monitor (VGA) 8, 28

25

6

7

25

11

mouse 7, 8
network 8, 13
power 8, 11
printer 7, 8
projector 28
scanner 7, 8
speaker 6
S-Video (TV) out 8
S-Video out 30
television 30
USB 7, 8, 28
VGA 8, 28

video camera 7
copyright notice 61
CyberLink PowerCinema 14

D

dial-up modem 8, 12
digital camera

memory card reader

USB port 7, 8
digital video camera

connecting

IEEE 1394 port 7
directional keys 18
display

properties

switching 18
double-clicking 22
dragging 22
drives

24, 40

CD

DVD 24, 40

DVD/CD-RW 7, 24, 40

DVD±RW 7, 24, 40

hard drive 9, 42

identifying drive types 24

multi-format DVD±RW 7, 24, 40

replacing hard drive 42

types 24
DSL modem 8, 13
DVD

inserting

playing 30
DVD drive

identifying

installing 40

locating 7

replacing 40

using 24
DVD/CD-RW drive

See DVD drive
DVD±RW drive

31

28

25

24

6, 25

63

Index www.gateway.com

See DVD drive

E

electrostatic discharge (ESD) 36
Ethernet

connecting 13
jack 8, 13

Express Card

adding

27

inserting 27
installing 27
removing 27

slot 27
external monitor 8, 18
EZ Pad touchpad

See touchpad

F

fan 7, 8
files

opening 22
Firewire port 7, 28
Fn key 18
folders

opening

22

function keys 17

G

Gateway

model number 2

serial number 2

Support 3

H

hard drive

9

bay

indicator 16

installing 42

replacing 42
headphone jack 6
hot-swapping 27, 28

I

i.Link port 7, 28
IEEE 1394 port 7, 28
indicators

See status indicators
inkjet printer
installing

battery

devices 28

digital camera 28

digital video camera 28

DVD drive 40

Express Card 27

33

31

hard drive 42
memory 36
peripheral devices 28
printer 28
scanner 28

J

jacks

See connections

K

Kensington cable lock

lock slot

8

key combinations 18
keyboard

buttons

17

connecting 17
features 17
locating 10
USB port 7, 8

keys

application

18

arrow 18
battery status 18
brightness 19
directional 18
Fn 18
function 17
LCD brightness 19
LCD/CRT 18
navigation 17
numeric keypad 18
power status 18
Standby 18
Status 18
system 17
system key combinations 18
toggle display 18
Windows 18

L

labels

Microsoft Certificate of

Authenticity
model number 2
serial number 2

laser printer 33
latch

battery
LCD panel release 6

LCD panel

release latch
switching display 18

LCD/CRT system key 18
Live Launch

button

lock

9

6

10, 14

Kensington cable

8

M

memory

9

bay
installing 36
purchasing 33
removing 36
replacing 36

memory card reader

locating

6

memory cards supported 25
using 25

microphone

6

jack

Microsoft Certificate of

Authenticity

3

model number 2
modem

cable 8, 13
connecting 12, 13
DSL 8, 13
jack (dial-up) 8, 12

monitor

adding external 28
color quality 29
display properties 28
port 8
screen resolution 29
using 18

mouse

USB port

7, 8

moving

pointer

22

screen objects 22

MP3 player

memory cards 25
multi-function buttons 10, 20
multimedia

adjusting volume

23

using DVD drive 24
muting sound 19, 20, 23

3

N

navigation keys 17
network jack 8, 13
networking

turning off wireless network

turning on wireless network 23
NTSC/PAL jack 30
Num Lock

status indicator

16

system key 18
numeric keypad

status indicator

16

23

64

www.gateway.com

Index

using 18

O

opening

22

files
folders 22
LCD panel 6
notebook 6
programs 22
shortcut menu 22

P

PCMCIA card

See Express Card

PDA

memory cards

25

peripheral devices 28
Plug and Play devices

IEEE 1394 support for
USB support for 28

pointer

identifying 21
moving 22

power

AC adapter

11

battery 31, 32
button 10, 18
connector 8, 11
indicator 6, 14
source problems 12
Standby mode 14, 18
status box 18
status indicator 6
turning off notebook 15
turning on notebook 14

printer

inkjet

33

installing 28
laser 33
USB port 7, 8

programs

closing unresponsive
opening 22

projector

adding 28
color quality 29
display properties 28
port 8
screen resolution 29
using 18

R

RAM

See memory
rebooting notebook
recalibrating battery 32

15

28

15

replacing

See installing

resetting notebook

15

restarting notebook 15
right-clicking 22

S

safety

general precautions
static electricity 36

scanner

installing 28
USB port 7, 8

screen

resolution

29

screen objects

getting information
moving 22

selecting 22
scroll zone 21
security features

Kensington cable lock
serial number 2
setting up

safety precautions
shortcut menus

accessing

22

shortcuts

opening menu
shutting down notebook 15
SO-DIMM

See memory
sound

adjusting

19, 20, 23

controls 20, 23

muting 19, 20, 23
speakers

built-in

6

jack 6
Standby

mode 14, 18

system key 18
starting

notebook

14

programs 22
static electricity 36
status indicators

battery charge 6

Caps Lock 16

drive activity 16

hard drive 16

location 10

numeric keypad 16

Pad Lock 16

power 6

52

22

52

22

toggle on or off 18
surge protector 12
Suspend 18
S-Video (TV) out

30

jack
S-Video (TV) out jack 8
system identification label 2
system keys

combinations 18

locating 17

T

technical support

Support

3

television

playing DVD on

30

TV out jack 30

viewing display on 30
television (S-Video out) jack 8
touchpad

8

clicking 22

buttons

21

double-clicking 22

dragging screen objects 22

locating 10

moving pointer 21, 22

moving screen objects 22

opening files, folders, and

programs

22

opening shortcut menu 22

right-clicking 22

scroll zone 21

selecting screen objects 22
turning off

notebook

15

wireless network 18, 23
turning on

notebook

14

wireless network 18, 23
TV out (S-Video out) jack 8

U

upgrading 35
USB port 7, 8, 28

V

VGA port 8, 28
video

monitor port

projector port 8

S-Video out jack 8

VGA port 8
video camera

connecting
volume

8

31

65

Index www.gateway.com

adjusting 19, 23
controls 20, 23
muting 19, 20, 23
system keys 19

W

waking up notebook 14
Windows

key 18
Product Key Code 3

wireless network

button
turning off 23
turning on 23

18

66

MAN BANSHEE HW REF R0 7/06
