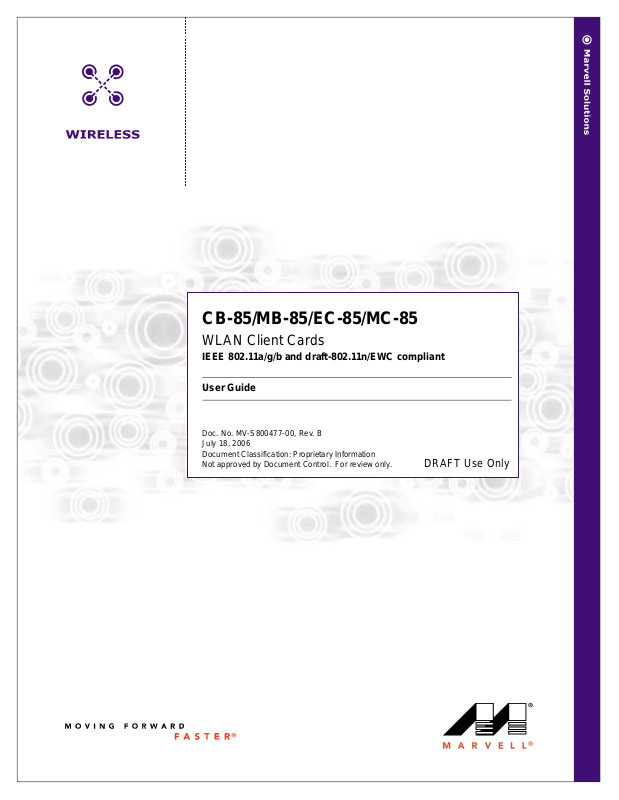

Cover

CB-85/MB-85/EC-85/MC-85

WLAN Client Cards

IEEE 802.11a/g/b and draft-802.11n/EWC compliant

User Guide

Doc. No. MV-S800477-00, Rev. B July 18, 2006 Document Classification: Proprietary Information Not approved by Document Control. For review only.

DRAFT Use Only

Page 2

CB-85/MB-85/EC-85/MC-85 User Guide

Document Conventions

Note

Provides related information or information of special importance.

Caution

Indicates potential damage to hardware or software, or loss of data.

Warning

Indicates a risk of personal injury.

Document Status

Doc Status: 0.00 Technical Publication: 0.x

For more information, visit our website at: www.marvell.com

Disclaimer This document provides preliminary information about the products described, and such information should not be used for purpose of final design. Visit the Marvell®

web site at www.marvell.com for the latest information on Marvell products.

No part of this document may be reproduced or transmitted in any form or by any means, electronic or mechanical, including photocopying and recording, for any purpose, without the express written permission of Marvell. Marvell retains the right to make changes to this document at any time, without notice. Marvell makes no warranty of any kind, expressed or implied, with regard to any information contained in this document, including, but not limited to, the implied warranties of merchantability or fitness for any particular purpose. Further, Marvell does not warrant the accuracy or completeness of the inform ation, text, graphics, or other items contained within this document. Marvell products are not designed for use in life-support equipment or applications that would cause a life-threatening situation if any such products failed. Do not use Marvell products in these types of equipment or applications. With respect to the products described herein, the user or recipient, in the absence of appropriate U.S. government authorization, agrees:

1) Not to re-export or release any such information consistin g of technol ogy, software or source code controlled for na tional securit y reasons by th e U.S. Expor t Contro l Regulations ("EAR"), to a national of EAR Country Groups D:1 or E:2;

2) Not to export the direct product of such technology or such software, to EAR Country Groups D:1 or E:2, if such technology or software and direct products thereof are controlled for national security reasons by the EAR; and,

3) In the case of technology controlled for national security reasons under the EAR where the direct product of the technology is a complete plant or component of a plant, not to export to EAR Country Group s D:1 o r E:2 the direct pr oduct of th e plant or major co mponent th ereof, i f such dire ct product is con trolled for national secur ity reasons by the EAR, or is subject to controls under the U.S. Munitions List ("USML"). At all times hereunder, th e recipi ent of any such informat ion agre es that they shall be deem ed to have ma nually signed this document in connection with their receipt of any such information. Copyright © 2006. Marvell International Ltd. All rights reserved. Marvell, the Marvell logo, Moving Forward Faster, Alaska, Fastwriter, Datacom Systems on Silicon, Libertas, Link S treet, NetGX, PHYAdvantage, Prestera, Raising The Technology Bar, The T echnolo gy Within, V irtual C able Tester, and Yukon are registered trademarks of Marvell. Ants, AnyVolt age, Discove ry, DSP Switcher, Feroceon , GalNet, GalTis, Horizon, Marvell Makes It All Possible, RADLAN, UniMAC, and VCT are trademarks of Marvell. All other trademarks are the property of their respective owners.

Doc. No. MV-S800477-00 Rev. B

CONFIDENTIAL

Page 2 Document Classification: Proprietary Information July 18, 2006, 0.00

Not approved by Document Control. For review only.

Page 3

Table of Contents

Table of Contents..................................................................................................................3

List of Figures ....................................................................................................................... 5

List of Tables......................................................................................................................... 7

Section 1. Introduction........................................................................................................9

1.1 Overview......................................................................................................................................9

1.2 Wireless Networks..................................................................... ... ... ... .........................................9

1.2.1 Ad-Hoc Mode ....................................................................................................................................9

1.2.2 Infrastructure Mode.........................................................................................................................10

Section 2. Marvell Configuration Utility Overview.......................................................... 11

2.1 Overview....................................................................................................................................11

2.2 Windows XP and Windows Server 2003 Users.........................................................................11

2.2.1 Disabling Windows Zero Configuration Utility .................................................................................11

2.2.2 Marvell Configuration Utility.............................................................................................................15

2.3 Security......................................................................................................................................16

Section 3. Marvell Configuration Utility User Interface.................................................. 17

3.1 Network Status Tab...................................................................................................................18

3.1.1 Select Profile...................................................................................................................................18

3.1.2 Link Information...............................................................................................................................19

3.1.3 Signal Strength / Wireless Mode Indicator ......................................................................................20

3.1.4 Internet Protocol (TCP/IP)........................................... ... .................................................................21

3.1.5 Actual Throughput Performance .....................................................................................................22

3.1.6 Radio On/Off Check Box.................................................................................................................22

3.2 Profile Manager Tab..................................................................................................................23

3.2.1 Profile Setting—Network Info Tab...................................................................................................25

3.2.2 Profile Setting—Security Tab..........................................................................................................27

3.2.3 Profile Setting—Protocol Tab..........................................................................................................37

3.3 Site Survey Tab.........................................................................................................................39

3.3.1 Site Survey—Networks Filter ..........................................................................................................39

3.3.2 Site Survey—List of Detected Stations ...........................................................................................40

3.3.3 Site Survey—Filter Button...............................................................................................................41

3.3.4 Site Survey—Refresh Button ..........................................................................................................41

3.3.5 Site Survey—Associate Button .......................................................................................................42

Not approved by Document Control. For review only.

CONFIDENTIAL

Doc. No. MV-S800477-00 Rev. B

Page 4

CB-85/MB-85/EC-85/MC-85 User Guide

3.4 Statistics Tab......... .... ... ... ... .... ... ... ....................................................... ... ... .... ............................ 42

3.4.1 Signal Strength...............................................................................................................................42

3.4.2 Transmit Section............................................................................................................................. 43

3.4.3 Receive Section.............................................................................................................................. 44

3.4.4 Protocol Section .............................................................................................................................45

3.5 Advanced Tab........................................................................................................................... 46

3.5.1 Advanced Tab—Marvell Wireless Card.......................................................................................... 46

3.5.2 Advanced Tab—Miscellaneous...................................................................................................... 47

3.6 AutoLink Tab............................................................................................................................. 48

3.7 Admin Tab................................................................................................................................. 50

3.7.1 Admin Tab—Import Profiles ........................................................................................................... 50

3.7.2 Admin Tab—Export Profiles........................................................................................................... 50

3.8 About Tab.................................................................................................................................. 51

Appendix A. Compliance Statements ............................................................................... 53

A.1 Federal Communications Commission (FCC) Compliance....................................................... 53

A.2 Industry Canada Notice.......... ....................................................... ... ... ...................................... 54

A.3 European Community ............................................................................................................... 55

Appendix B. Acronyms and Abbreviations...................................................................... 57

Appendix C. Revision History........................................................................................... 59

Doc. No. MV-S800477-00 Rev. B Page 4 Document Classification: Proprietary Information July 18, 2006, 0.00

Not approved by Document Control. For review only.

CONFIDENTIAL

Page 5

List of Figures

Section 1. Introduction....................................................................................................... 9

Section 2. Marvell Configuration Utility Overview......................................................... 11

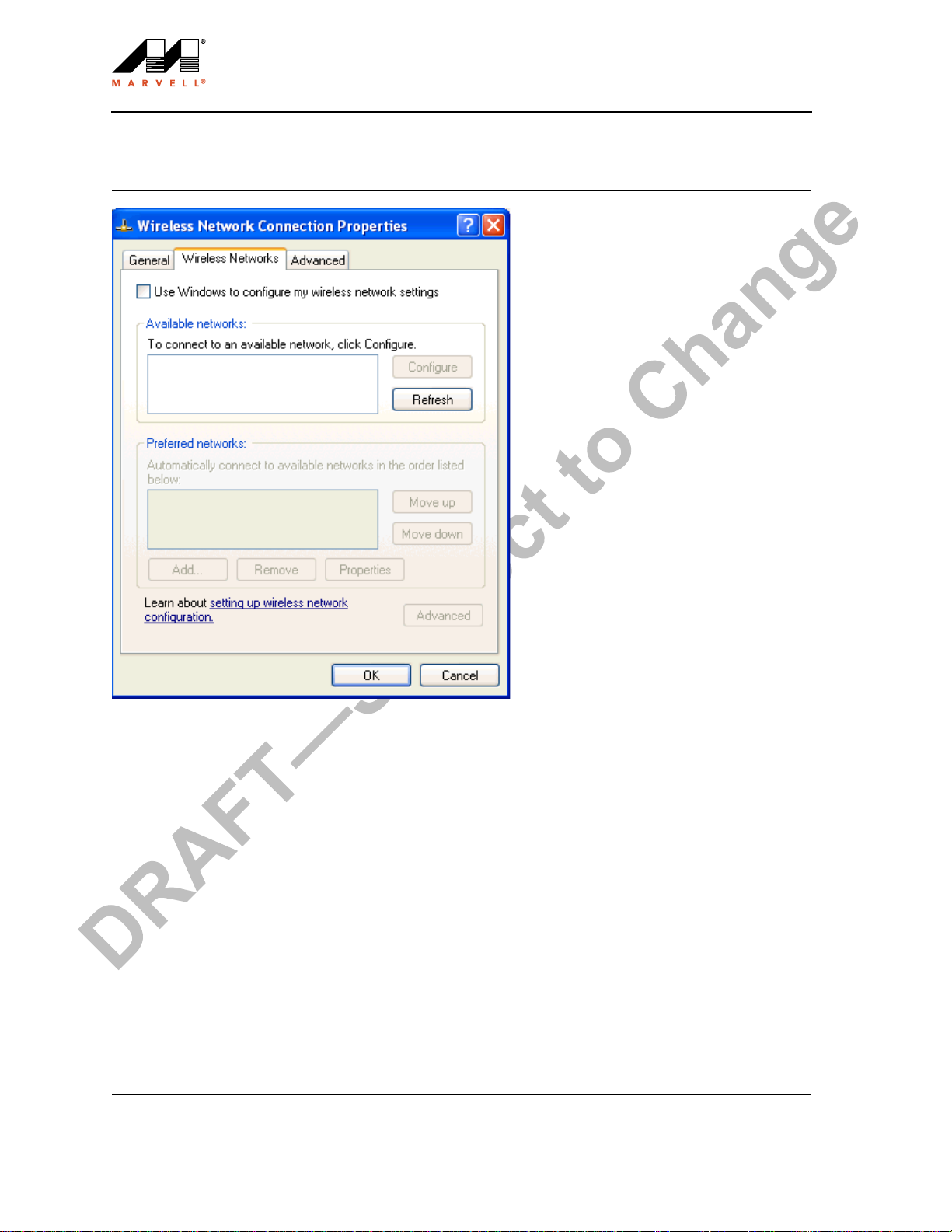

Figure 1: Windows Zero Configuration Utility Disabled................................................................................... 12

Figure 2: Marvell Configuration Utility (Windows Zero Configuration Utility Enabled) ....................................13

Figure 3: Marvell Configuration Utility (Windows Zero Configuration Utility Disabled)....................................14

Figure 4: Marvell Configuration Utility Icon .................................................................................................... 15

Figure 5: Tray Status Icons Window...............................................................................................................15

Section 3. Marvell Configuration Utility User Interface................................................. 17

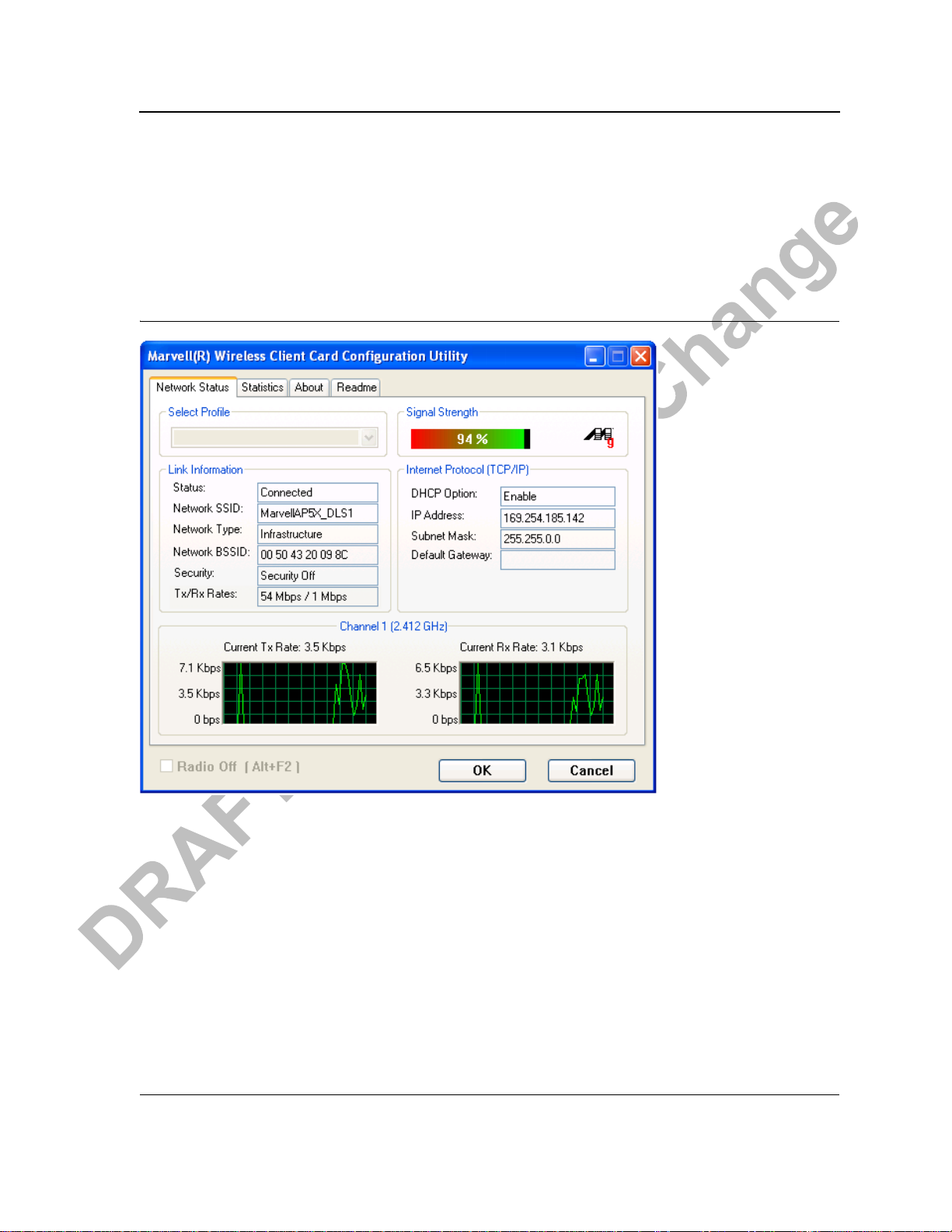

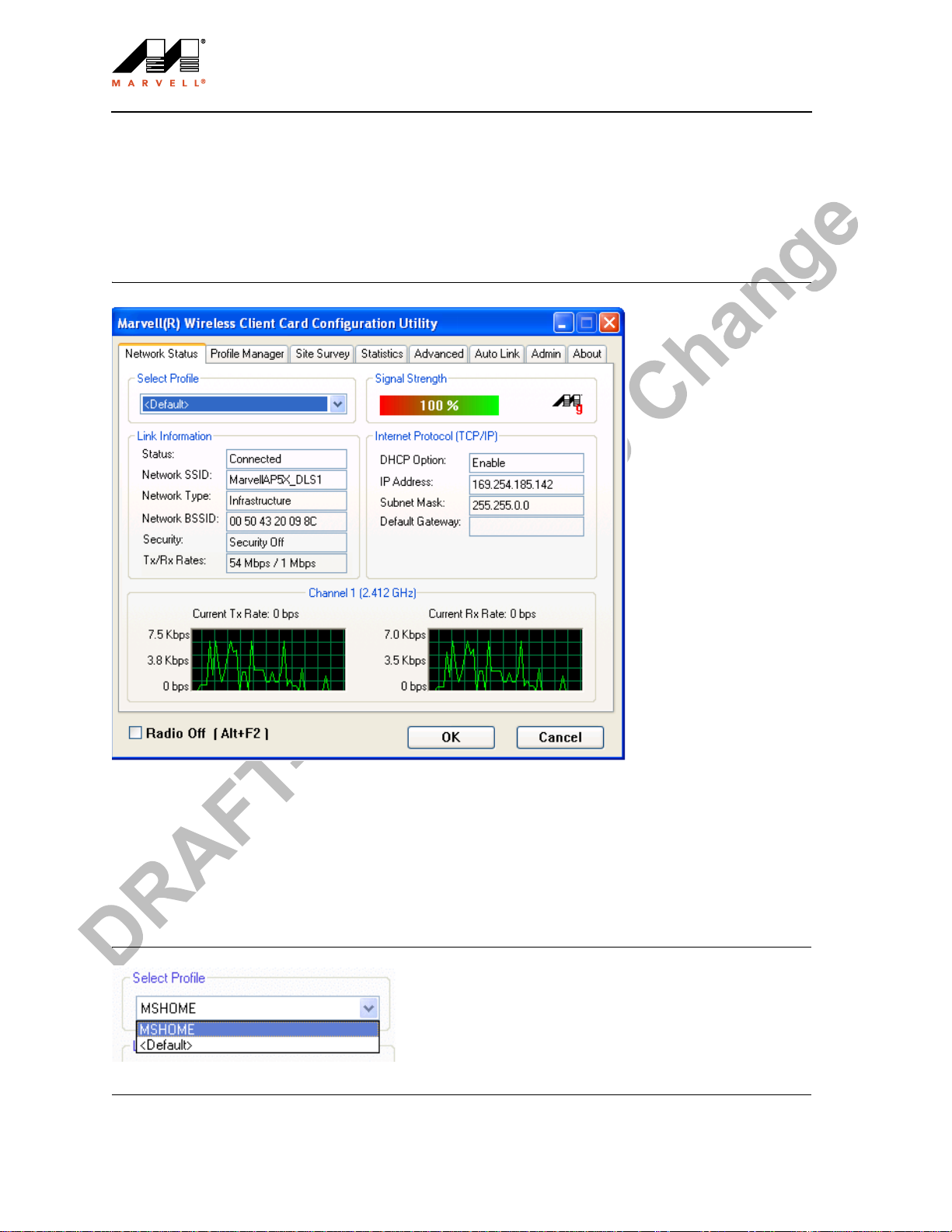

Figure 6: Network Status Tab......................................................................................................................... 18

Figure 7: Select Profile Section.......................................................................................................................18

Figure 8: Link Information Section .................................................................................................................. 19

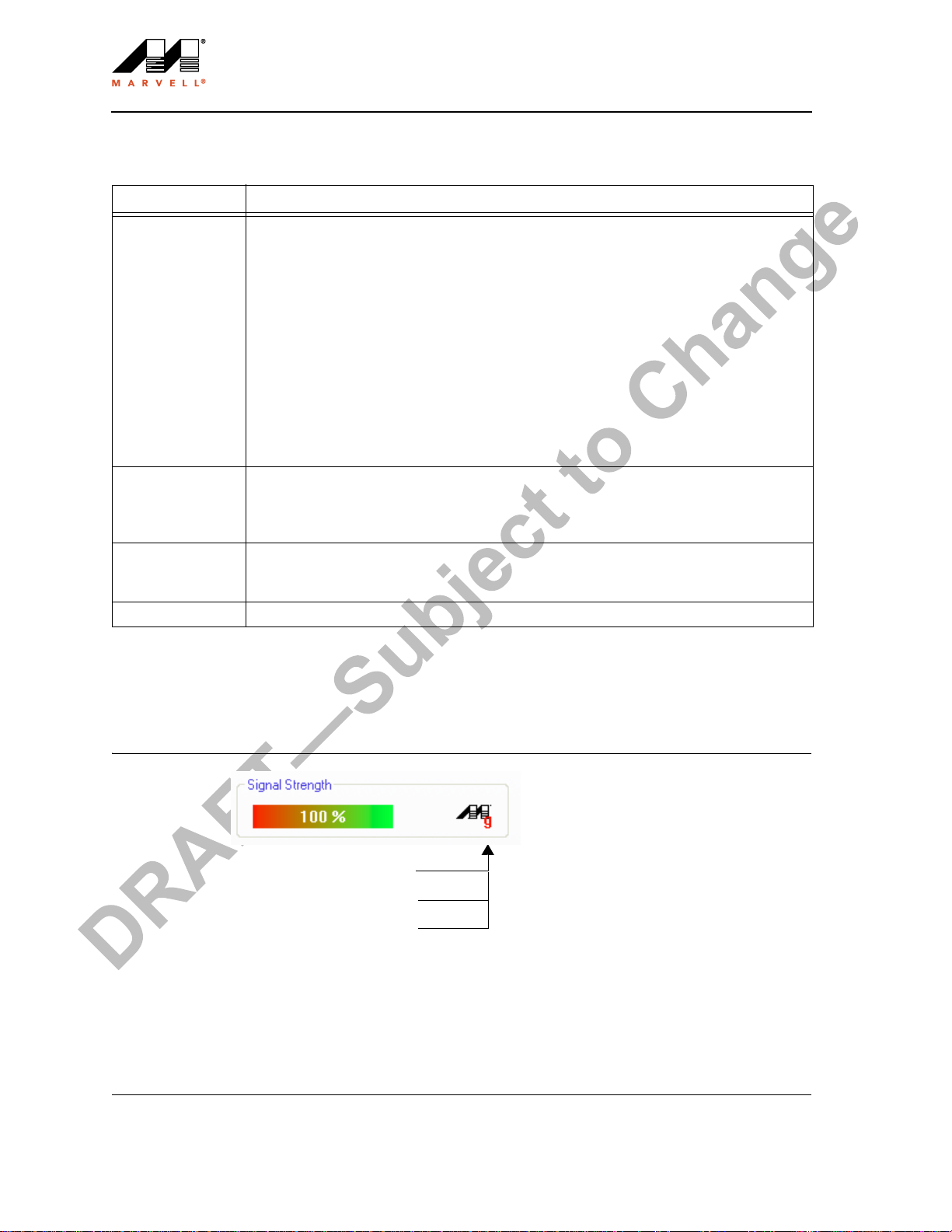

Figure 9: Signal Strength Bar .........................................................................................................................20

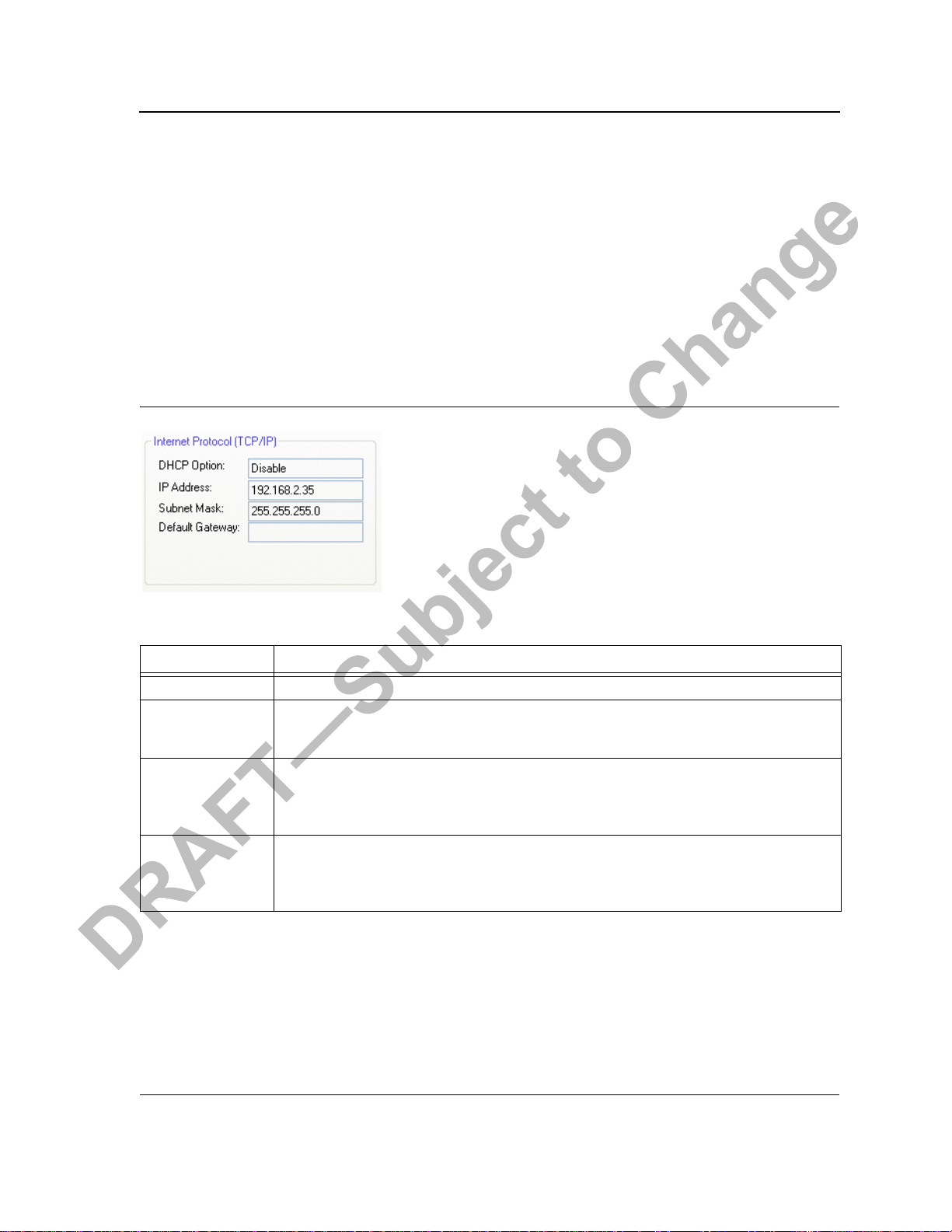

Figure 10: Internet Protocol Section ................................................................................................................. 21

Figure 11: Actual Throughput Performance Section......................................................................................... 22

Figure 12: Radio On/Off Check Box .................................................................................................................22

Figure 13: Radio On/Off in the System Tray..................................................................................................... 22

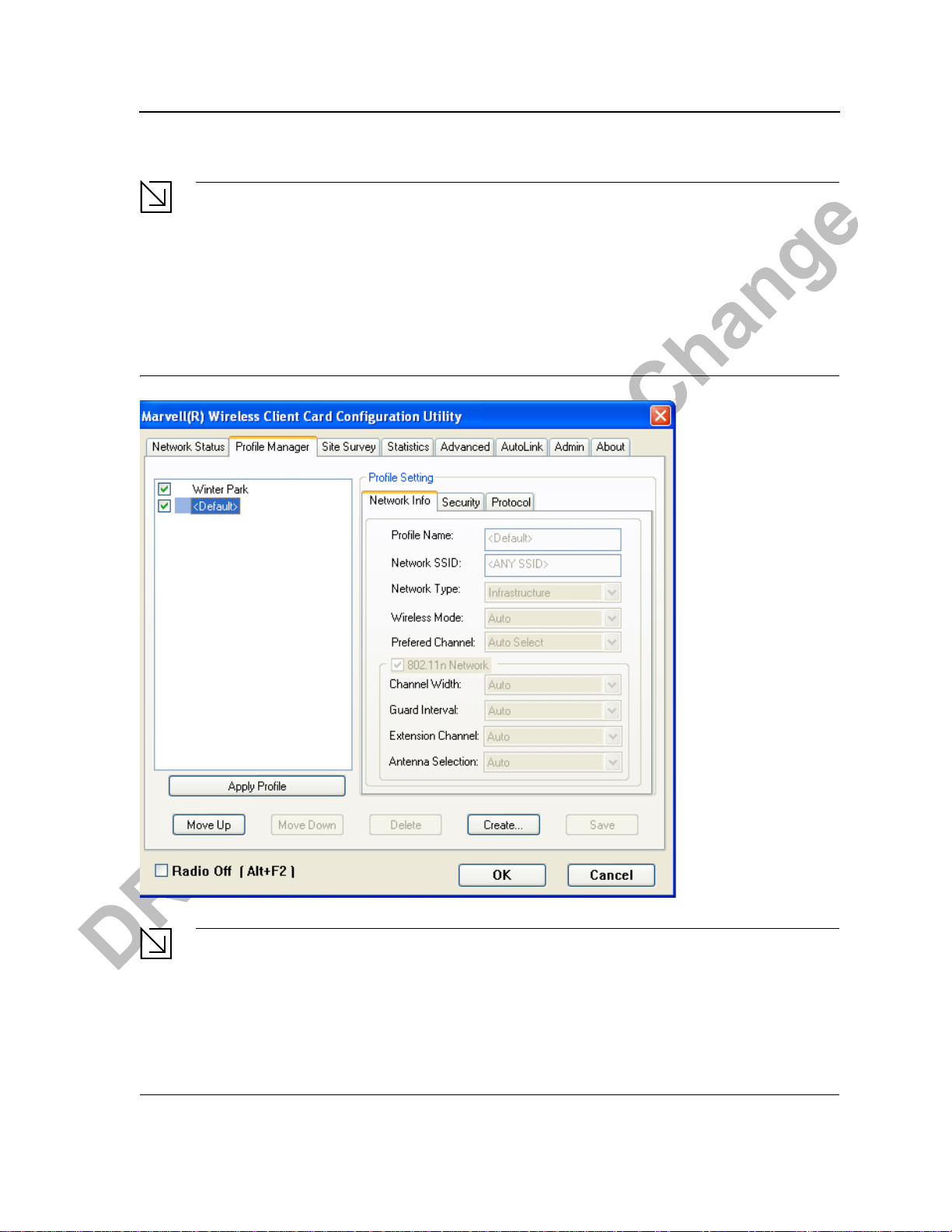

Figure 14: Profile Manager Tab........................................................................................................................ 23

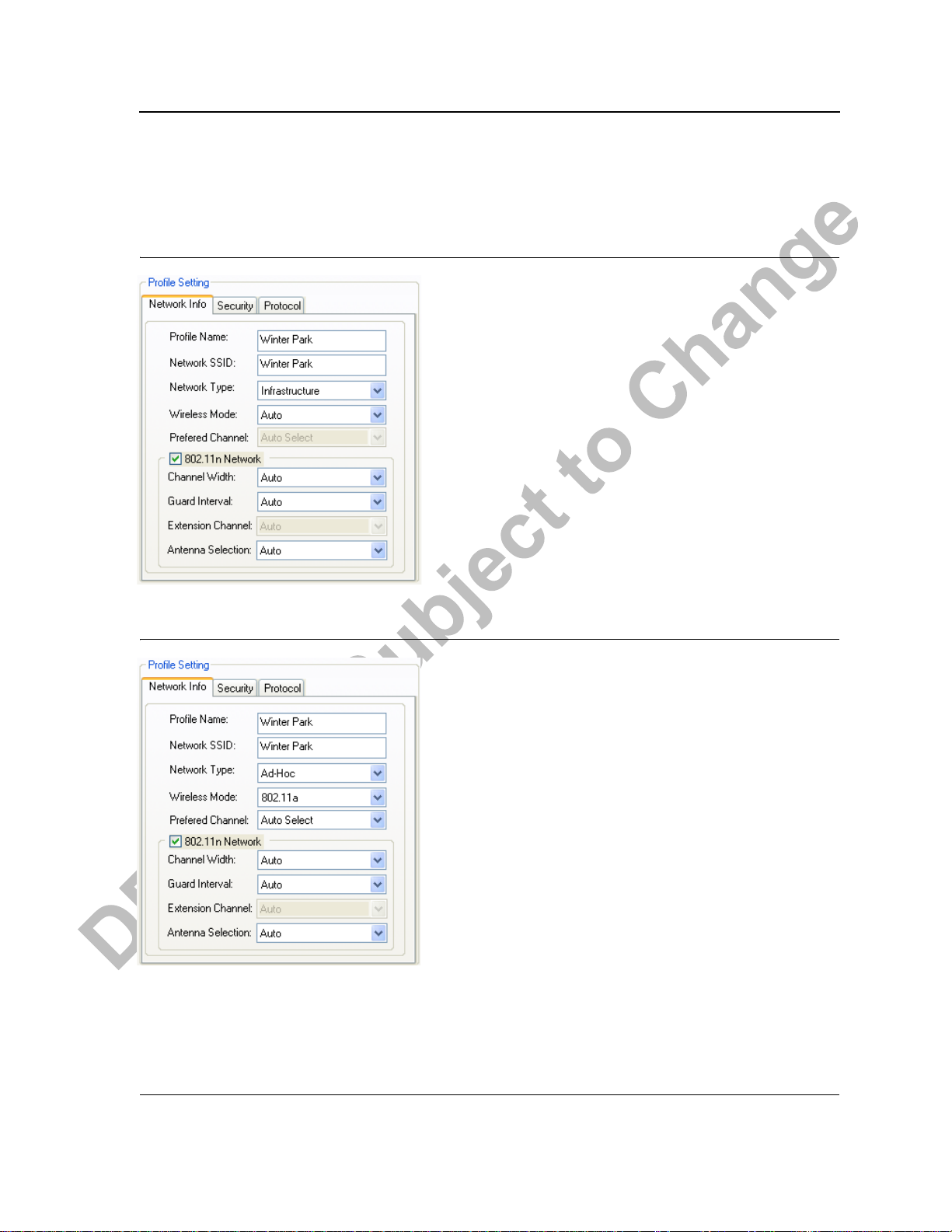

Figure 15: Network Info Tab (Infrastructure Network)....................................................................................... 25

Figure 16: Network Info Tab (Ad-Hoc Network)................................................................................................ 25

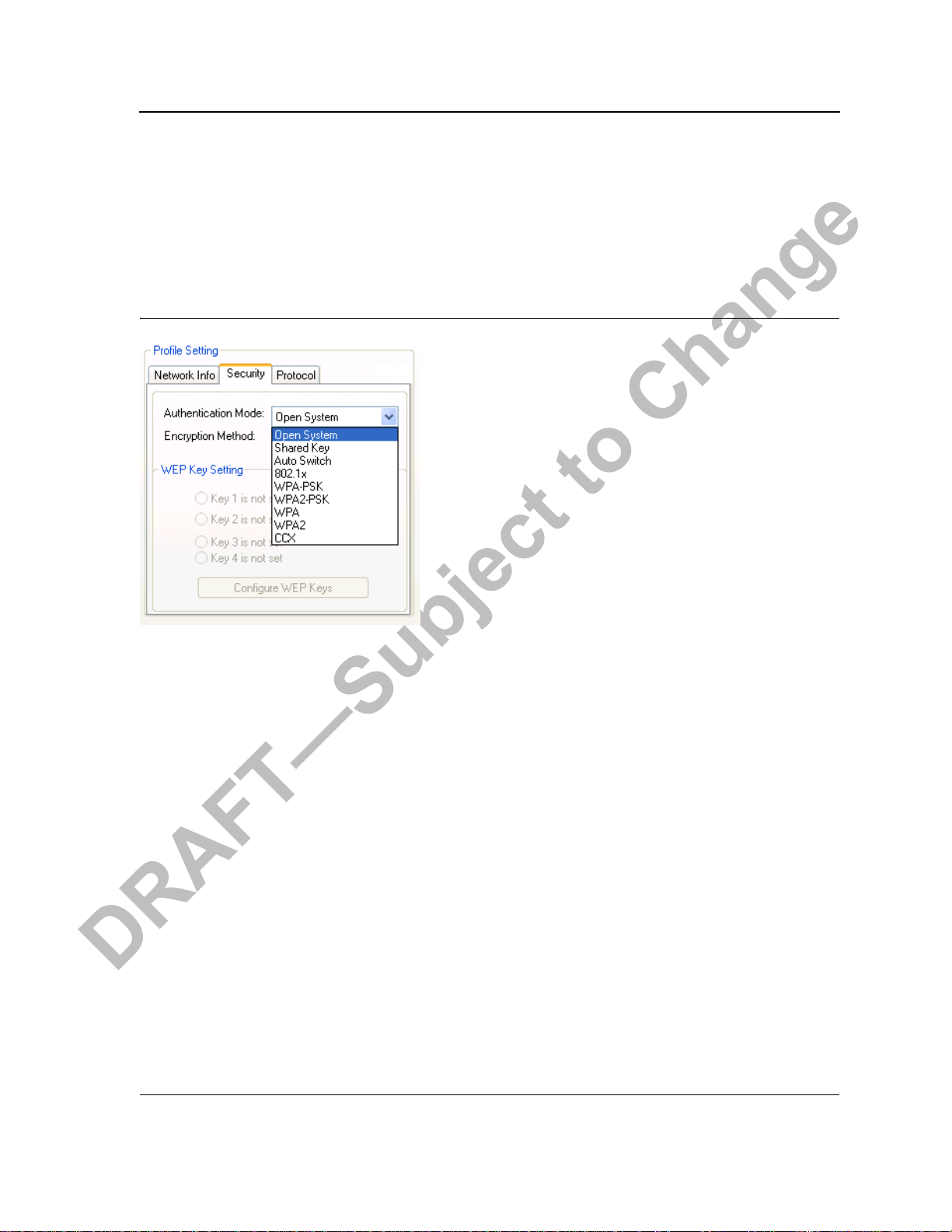

Figure 17: Security Tab—Authentication Modes.............................................................................................. 27

Figure 18: Security Tab—WPA-PSK/WPA2-PSK Authentication..................................................................... 28

Figure 19: Security Tab—WPA-PSK/WPA2-PSK with TKIP............................................................................. 28

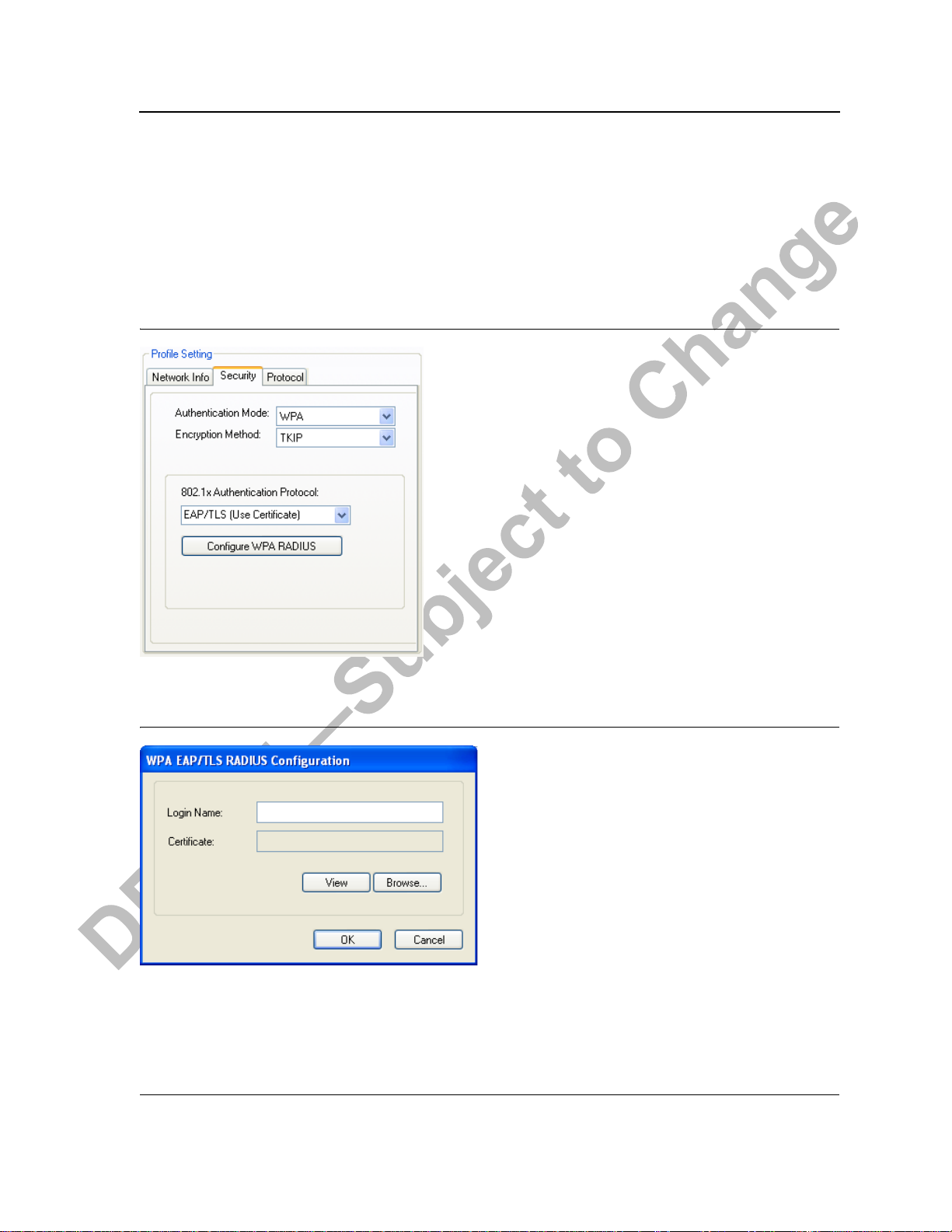

Figure 20: Security Tab—802.1x/WPA/WPA2 EAP/TLS Authentication.......................................................... 29

Figure 21: 802.1x/WPA/WPA2 EAP/TLS RADIUS Configuration Window....................................................... 29

Figure 22: Select Certificate Window................................................................................................................ 30

Figure 23: WPA RADIUS Configuration Window with Certificate.....................................................................30

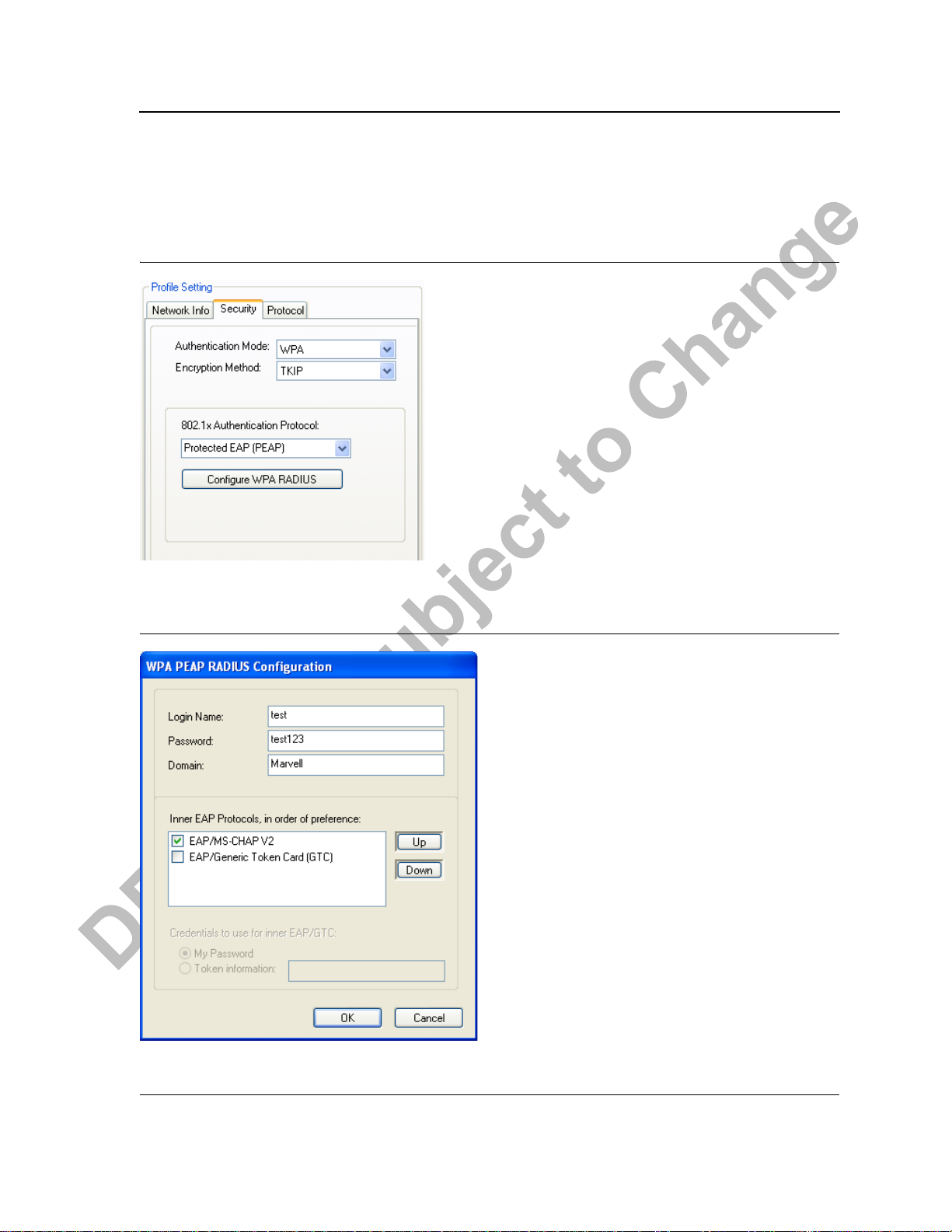

Figure 24: Security Tab—802.1x/WPA/WPA2 PEAP Authentication ............................................................... 31

Figure 25: 802.1x/WPA/WPA2 PEAP RADIUS Configuration Window............................................................ 31

Figure 26: WPA/WPA2 EAP/TTLS Authentication............................................................................................32

Figure 27: WPA EAP RADIUS Configuration Window...................................................................................... 33

Figure 28: Security Tab—CCX EAP/LEAP Authentication............................................................................... 34

Figure 29: CCX EAP/LEAP RADIUS Configuration Window............................................................................ 3

Figure 30: Security Tab—WEP Key Settings....................................................................................................35

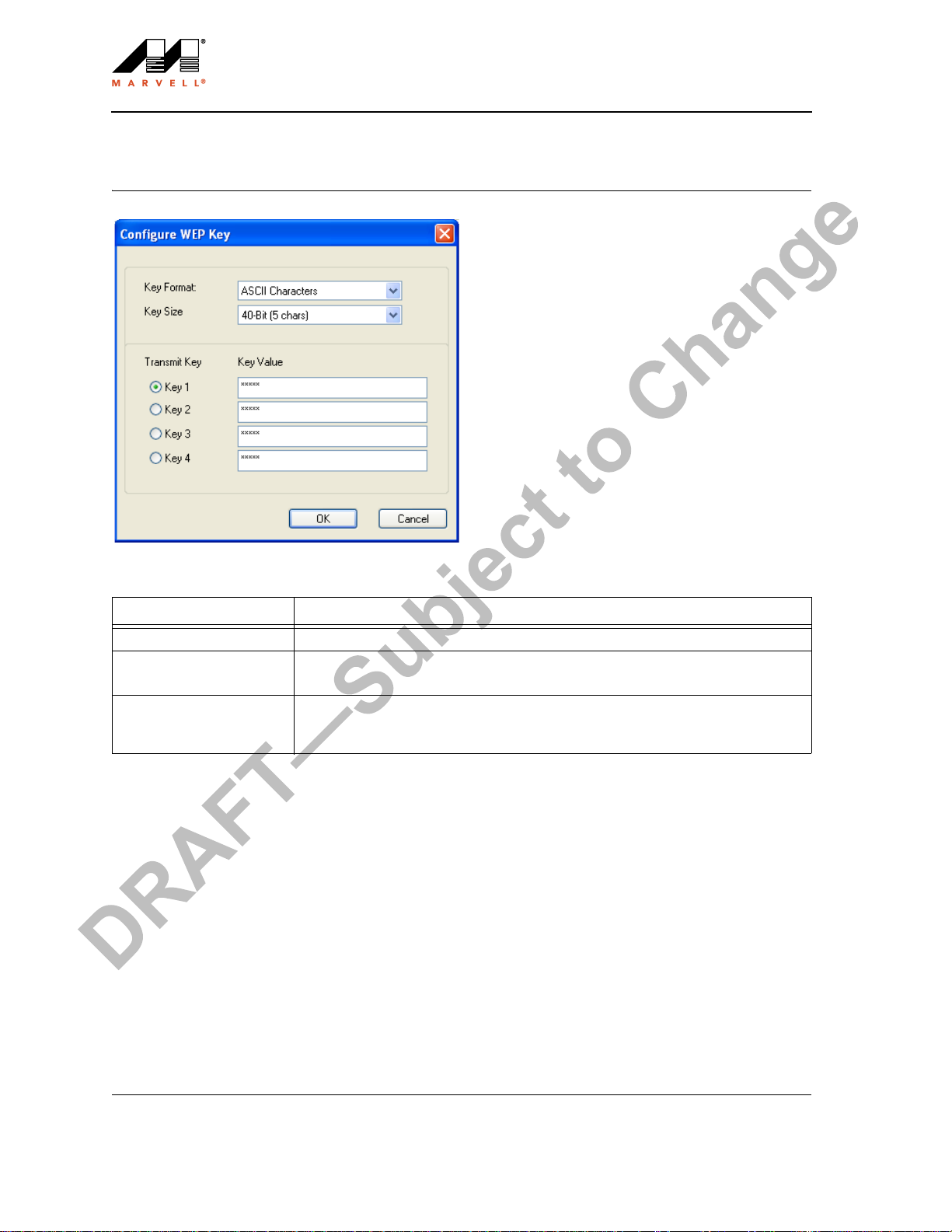

Figure 31: WEP Key Configuration Window .....................................................................................................36

Figure 32: TKIP/AES Settings........................................................................................................................... 37

Figure 33: Protocol Tab .................................................................................................................................... 37

Figure 34: Site Survey Tab...............................................................................................................................39

Figure 35: Site Survey—List of Detected Stations............................................................................................ 40

Not approved by Document Control. For review only.

CONFIDENTIAL

Doc. No. MV-S800477-00 Rev. B

Page 6

CB-85/MB-85/EC-85/MC-85 User Guide

Figure 36: Site Survey—Advanced Filter Window............................................................................................41

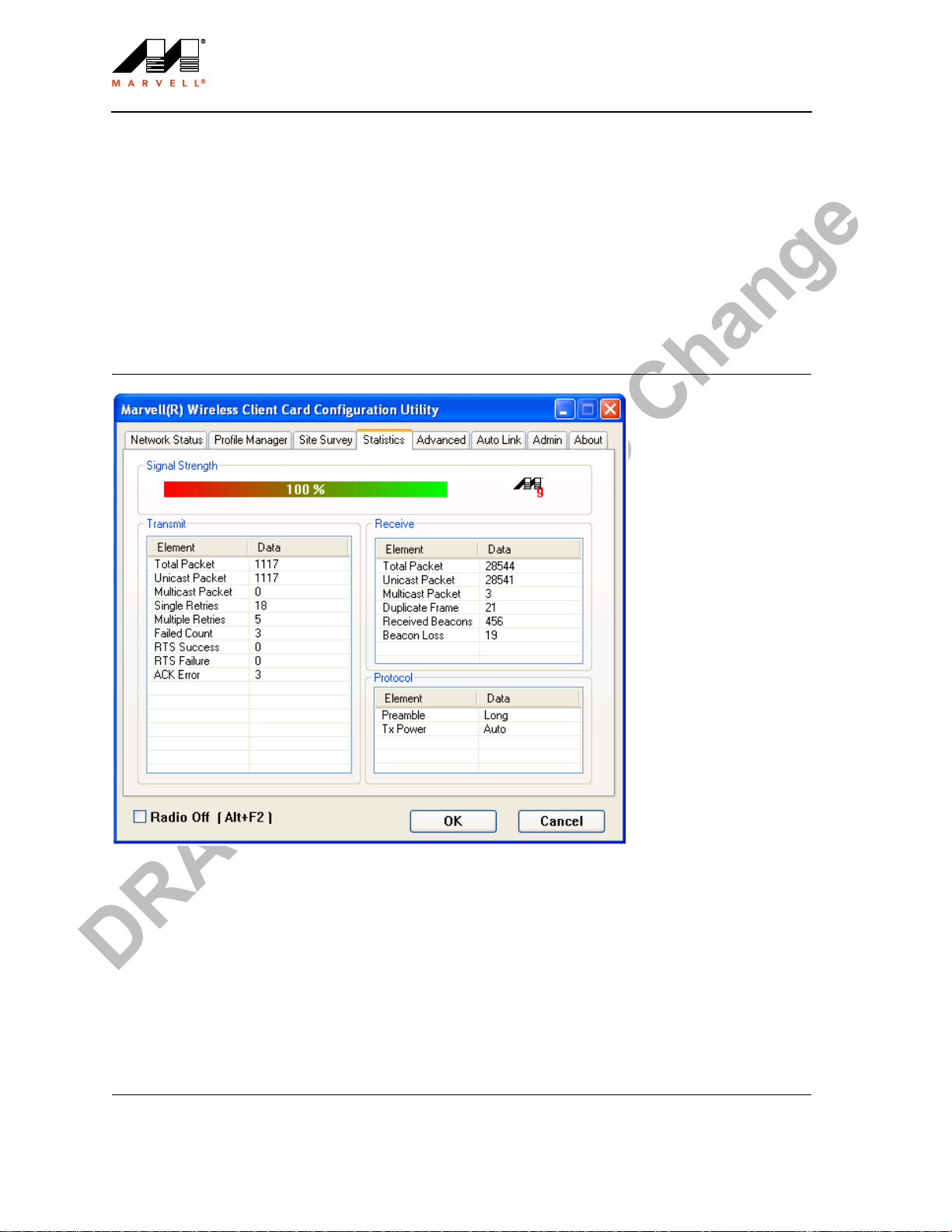

Figure 37: Statistics Tab...................................................................................................................................42

Figure 38: Transmit Section..............................................................................................................................43

Figure 39: Receive Section...............................................................................................................................44

Figure 40: Protocol Section...............................................................................................................................45

Figure 41: Advanced Tab..................................................................................................................................46

Figure 42: Miscellaneous Section.....................................................................................................................47

Figure 43: Access Point AutoLink Button..........................................................................................................48

Figure 44: AutoLink Tab (Client).......................................................................................................................48

Figure 45: AutoLink Tab (AutoLink Complete)..................................................................................................49

Figure 46: Admin Tab........................................................................................................................................50

Figure 47: About Tab ........................................................................................................................................51

Appendix A. Compliance Statements .............................................................................. 53

Appendix B. Acronyms and Abbreviations..................................................................... 57

Appendix C. Revision History.......................................................................................... 59

Doc. No. MV-S800477-00 Rev. B Page 6 Document Classification: Proprietary Information July 18, 2006, 0.00

Not approved by Document Control. For review only.

CONFIDENTIAL

Page 7

List of Tables

Section 1. Introduction....................................................................................................... 9

Section 2. Marvell Configuration Utility Overview......................................................... 11

Section 3. Marvell Configuration Utility User Interface................................................. 17

Table 1: Link Information Section Description ................................................................................................19

Table 2: Internet Protocol Section Description ...............................................................................................21

Table 3: Profile List Section Description.........................................................................................................24

Table 4: Network Info Tab Description ...........................................................................................................26

Table 5: 802.1x/WPA/WPA2 EAP/TLS RADIUS Configuration Window Description.....................................30

Table 6: WPA PEAP RADIUS Configuration Window Description .................................................................32

Table 7: WPA TTLS RADIUS Configuration Window Description..................................................................33

Table 8: CCX EAP/LEAP RADIUS Configuration Window Description..........................................................35

Table 9: WEP Key Configuration Window Description ...................................................................................36

Table 10: Protocol Tab Description ..................................................................................................................38

Table 11: List of Detected Stations Description................................................................................................40

Table 12: Transmit Section Description............................................................................................................43

Table 13: Receive Section Description.............................................................................................................44

Table 14: Protocol Section Description.............................................................................................................45

Table 15: Advanced Tab Miscellaneous Section Description...........................................................................47

Appendix A. Compliance Statements.............................................................................. 53

Appendix B. Acronyms and Abbreviations..................................................................... 57

Table 16: Acronyms and Abbreviations............................................................................................................57

Appendix C. Revision History .......................................................................................... 59

Table 17: Revision History................................................................................................................................59

Not approved by Document Control. For review only.

CONFIDENTIAL

Doc. No. MV-S800477-00 Rev. B

Page 8

CB-85/MB-85/EC-85/MC-85 User Guide

THIS P AGE INT ENT IONALLY LEFT BLANK

Doc. No. MV-S800477-00 Rev. B Page 8 Document Classification: Proprietary Information July 18, 2006, 0.00

Not approved by Document Control. For review only.

CONFIDENTIAL

Page 9

Introduction

Overview

Section 1. Introduction

1.1 Overview

This document describes the functions of the Marvell Client Card Configuration Utility for the following Marvell® IEEE 802.11a/g/b and high throughput WLAN client cards:

• Marvell CB-85 CardBus WLAN Client Card

• Marvell MB-85 Mini PCI WLAN Client Card

• Marvell EC-85 PCI Express WLAN Client Card

• Marvell MC-85 PCI E xpress WLAN Client Mini Card

Marvell high throughput client cards are both IEEE 802.11a/g/b and draft-802.11n/EWC compliant.

Notes

• For information on installing the Marvell Configuration Utility, the Marvell client card, and the Marvell Windows driver, see the CB-85/MB-85/EC-85/MC-85 Installation Guide.

• For a list of acronyms used throughout this document see Appendix B. "Acronyms and Abbreviations"

on page 57.

1.2 Wireless Networks

The Marvell client cards operate similar to Ethernet cards, except that a radio replaces the wires between communication devices. All existing applications that operate over Ethernet operate over a Marvell wireless network without any modification or need for special wireless networking software. The Marvell client cards support the following network technologies:

• Ad-Hoc (peer-to-peer group) mode

• Access Point (AP) Infrastructure mode

1.2.1 Ad-Hoc Mode

In Ad-Hoc mode (also referred to as peer-to-peer mode), wireless clients send and receive information to other wireless clients without using an AP. In comparison to Infrastructure mode, this type of WLAN connection only contains wireless clients. Ad-Hoc mode is useful for establishing a network where wireless infrastructure does not exist or where services are not required. Two or more computers can establish an Ad-Hoc network when within range of one another. Each computer dynamically connects to one another without additional configuration. Ad-Hoc mode is used to connect network computers at home or in small offices. It is also used to set up a temporary wireless network for meetings.

Not approved by Document Control. For review only.

CONFIDENTIAL

Doc. No. MV-S800477-00 Rev. B

Page 10

CB-85/MB-85/EC-85/MC-85 User Guide

1.2.2 Infrastructure Mode

In Infrastructure mode, wireless devices communicate with other wireless devices or devices on the LAN side wired network through APs. When communicating through wired networks, client cards send and re ceive information through APs. The AP receives the information and redirects it for clients to then receive the information.

Access Points are typically strategically located within an area to provide optimal coverage for wireless clients. A large WLAN uses multiple APs to provide coverage over a wide area. APs connect to a LAN through a wired Ethernet connection. APs send and receive information from the LAN through this wired connection. Most corporate WLANs operate in Infrastructure mode because they require access to the wired LAN in order to use services such as file servers or printers.

Doc. No. MV-S800477-00 Rev. B Page 10 Document Classification: Proprietary Information July 18, 2006, 0.00

Not approved by Document Control. For review only.

CONFIDENTIAL

Page 11

Marvell Configuration Utility Overview

Overview

Section 2. Marvell Configuration Utility Overview

2.1 Overview

The Marvell Client Card Configuration Utility is a Windows® based application that allows configuration and management of the Marvell high throughput client cards. The Marvell Configuration Utility sets up profiles and performs other wireless network management tasks. For information on installing the Marvell Configuration Utility see the Installation Guide.

2.2 Windows XP and Windows Server 2003 Users

For Windows XP and Windows Server 2003, either use the Windows Zero Configuration Utility or the Marvell Configuration Utility to configure the Marvell client card. Both utilities cannot be used at the same time. When launching the Marvell Configuration Utility, the Marvell Configuration Utility disables the Windows Zero Configuration Utility automatically. While exiting, the Marvell Configuration Utility recovers the Windows Zero Configuration Utility.

Note

When using the Marvell Configuration Utility on Windows XP or Windows Server 2003, Marvell recommends turning off the Windows wireless configuration feature. For further information on this feature, refer to Windows documentation.

2.2.1 Disabling Windows Zero Configuration Utility

To disable the Windows Zero Configuration Utility (if not already disabled while running the setup program for the Marvell Configuration Utility):

1. From Control Panel, click Network Connections.

2. Right-click the icon for the Marvell client card, and select

3. Click the Wireless Networks tab.

4. Clear the Use Windows to configure my wireless settings check box to disable the Windows Zero Configuration Utility.

Properties.

Not approved by Document Control. For review only.

CONFIDENTIAL

Doc. No. MV-S800477-00 Rev. B

Page 12

CB-85/MB-85/EC-85/MC-85 User Guide

Figure 1: Windows Zero Configuration Utility Disabled

Doc. No. MV-S800477-00 Rev. B Page 12 Document Classification: Proprietary Information July 18, 2006, 0.00

Not approved by Document Control. For review only.

CONFIDENTIAL

Page 13

Marvell Configuration Utility Overview

Windows XP and Windows Server 2003 Users

2.2.1.1 Marvell Configuration Utility Tabs

When Windows Zero Configuration Utility is enabled, the Marvell Configuration Utility enters Monitor mode. When in Monitor mode, the Marvell Configuration Utility has the following properties:

• Limited tab display (Network Status, Statistics, About, and Readme tabs)

• Information reporting only (the utility cannot be used to configure the client card)

Figure 2: Marvell Configuration Utility (Windows Zero Configuration Utility Enabled)

Not approved by Document Control. For review only.

CONFIDENTIAL

Doc. No. MV-S800477-00 Rev. B

Page 14

CB-85/MB-85/EC-85/MC-85 User Guide

When Windows Zero Configuration Utility is disabled, all tabs available through the Marvell Configuration Utility are active, as shown in Figure 3.

Figure 3: Marvell Configuration Utility (Windows Zero Configuration Utility Disabled)

Doc. No. MV-S800477-00 Rev. B Page 14 Document Classification: Proprietary Information July 18, 2006, 0.00

Not approved by Document Control. For review only.

CONFIDENTIAL

Page 15

Marvell Configuration Utility Overview

Windows XP and Windows Server 2003 Users

2.2.2 Marvell Configuration Utility

Once installed, the Marvell Configuration Utility is accessed from the Start menu or from the Desktop. Start menu:

• Start > Marvell Configuration Utility

• Start > Programs > Marvell > Marvell Configuration Utility

Desktop:

• Double-click the Marvell Configuration Utility icon.

Figure 4: Marvell Configuration Utility Icon

2.2.2.1 Tray Status Icons

Different icons in the system tray indicate the status of the wireless connection.

Figure 5: Tray Status Icons Window

Card Unplugged (red with “X” mark)

Not Connected (red)

Connected (green)

Not approved by Document Control. For review only.

CONFIDENTIAL

Doc. No. MV-S800477-00 Rev. B

Page 16

CB-85/MB-85/EC-85/MC-85 User Guide

2.3 Security

Implementing a security infrastructure to monitor physical access to WLAN networks is more difficult than monitoring access on wired networks. Unlike wired networks where a physical connection is required, anyone within the range of a wireless AP can send and receiv e frames, as well as listen for frames being sent.

IEEE 802.11 defines a set of standards and protocols for use in minimizing the security risks on wireless networks. Three of these security standar ds ar e as fo l lo w s:

• 802.1x—802.1x authentication provides authenticated access to 802.11 wireless networks and to wired

Ethernet networks. 802.1x minimizes wireless network security risks by providing user and computer identification, centralized authentication, and encryption services based on the Wired Equivalent Privacy (WEP) algorithm. 802.1x supports the Extensible Authentication Protocol (EAP). EAP allows the use of different authentication methods, such as smart cards and certificates.

• Wi-Fi Protected Access (WPA)—WPA is a security implementation based on a subset of the 802.11i stan-

dard. WPA provides enhanced security for wireless networks when used with the Temporal Key Integrity Protocol (TKIP) and the Message Integrity Check (MIC) algorithms.

• Wi-Fi Protected Access 2 (WPA2)—Next generation Wi-Fi security, based on the final 802.11i standard.

WPA2 offers the strongest available security in the form of Advanced Encryption Standard (AES) level encryption, plus faster roaming between APs.

SECURITY CONFIGURATIONS

The Marvell Configuration Utility supports the following security protocols:

• Authentication Modes – Open System – Shared Key – Auto Switch – 802.1x – WPA-PSK – WPA2-PSK – WPA – WPA2 – Cisco Compatible eXtension (CCX)

• Encryption Methods – Security Off – WEP (including support for Cisco

Message Integrity Check (CMIC) and Key Integrity Protocol (CKIP))

– TKIP – AES

• 802.1x Authentication Protocol – EAP/Transport Layer Security (TLS) (equivalent to Microsoft “Smart Card or other Certificate”) – Protected EAP (PEAP) – EAP Tunneled TLS Authentication Protocol (TTLS) – Light EAP (LEAP)

• WEP Key Size – 64 bits WEP (40-bit key) – 128bits WEP (104-bit key)

Doc. No. MV-S800477-00 Rev. B Page 16 Document Classification: Proprietary Information July 18, 2006, 0.00

Not approved by Document Control. For review only.

CONFIDENTIAL

Page 17

Marvell Configuration Utility User Interface

Section 3. Marvell Configuration Utility

User Interface

The Marvell Client Card Configuration Utility allows configuration of Marvell high throughput client cards through the following tabs:

• Network Status—displays the status of the network to which the user is connected. The Marvell Configura-

tion Utility initializes on this page.

• Profile Manager—displays the current profiles and allows the user to set attributes for network type, security

options, and protocols, as well as create/modify/delete profiles.

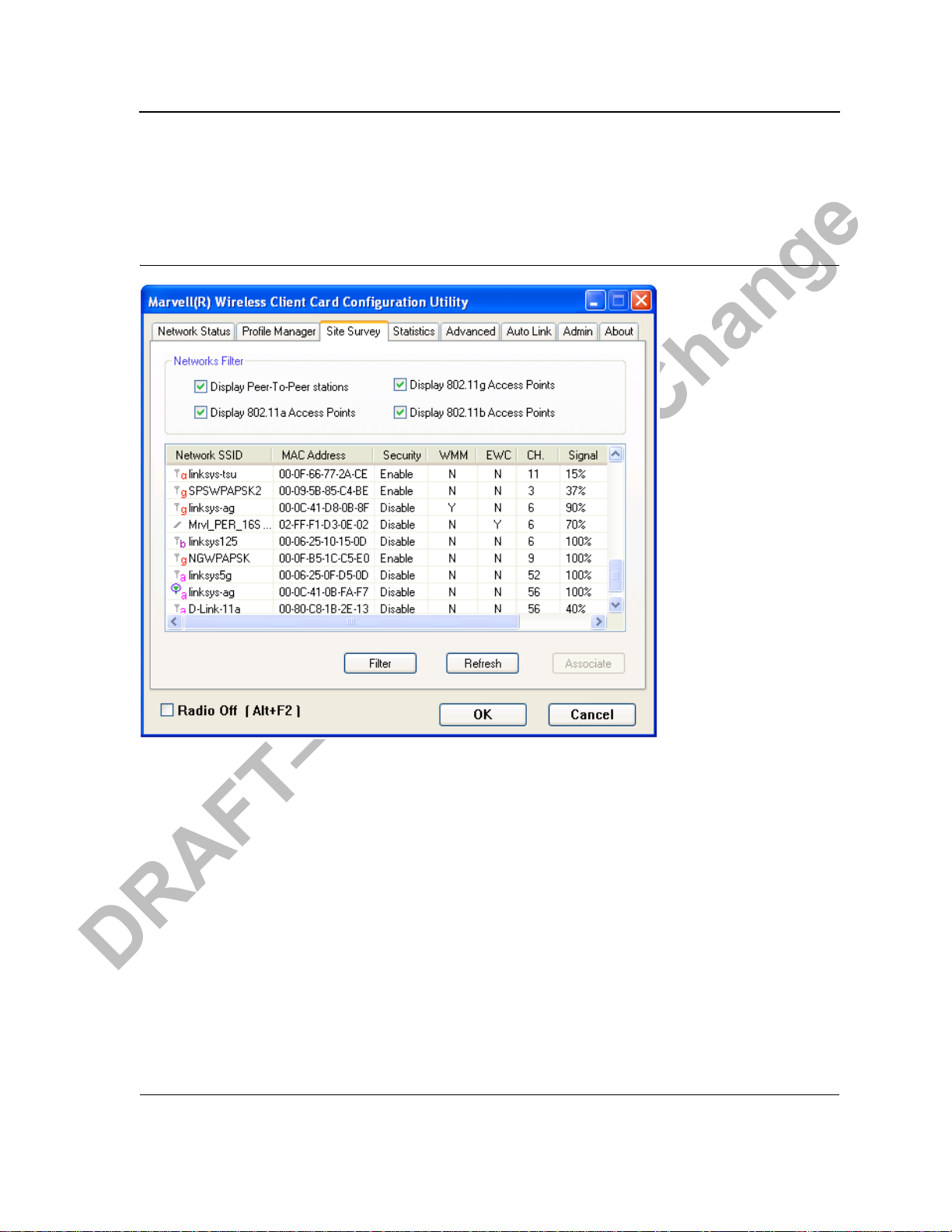

• Site Survey—displays site survey information.

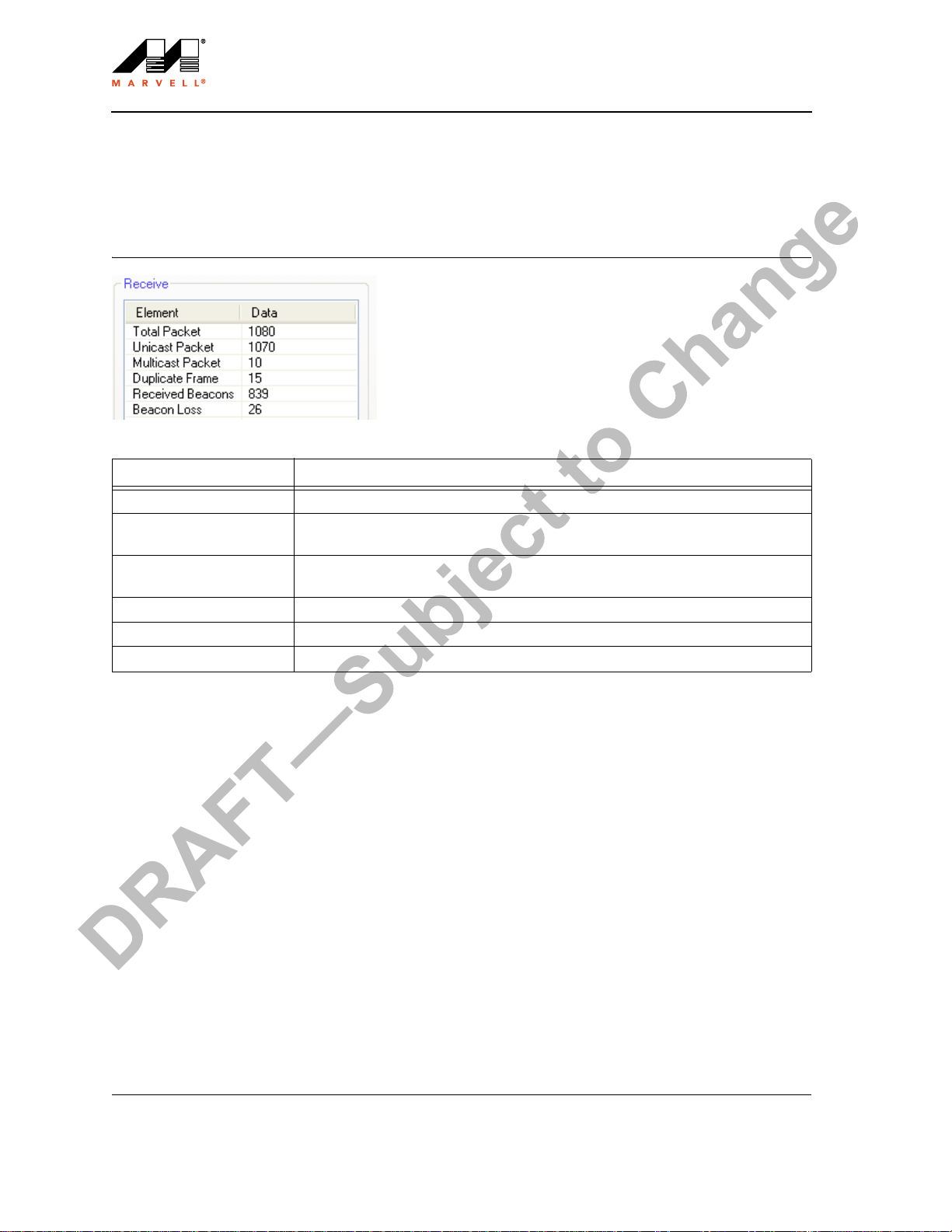

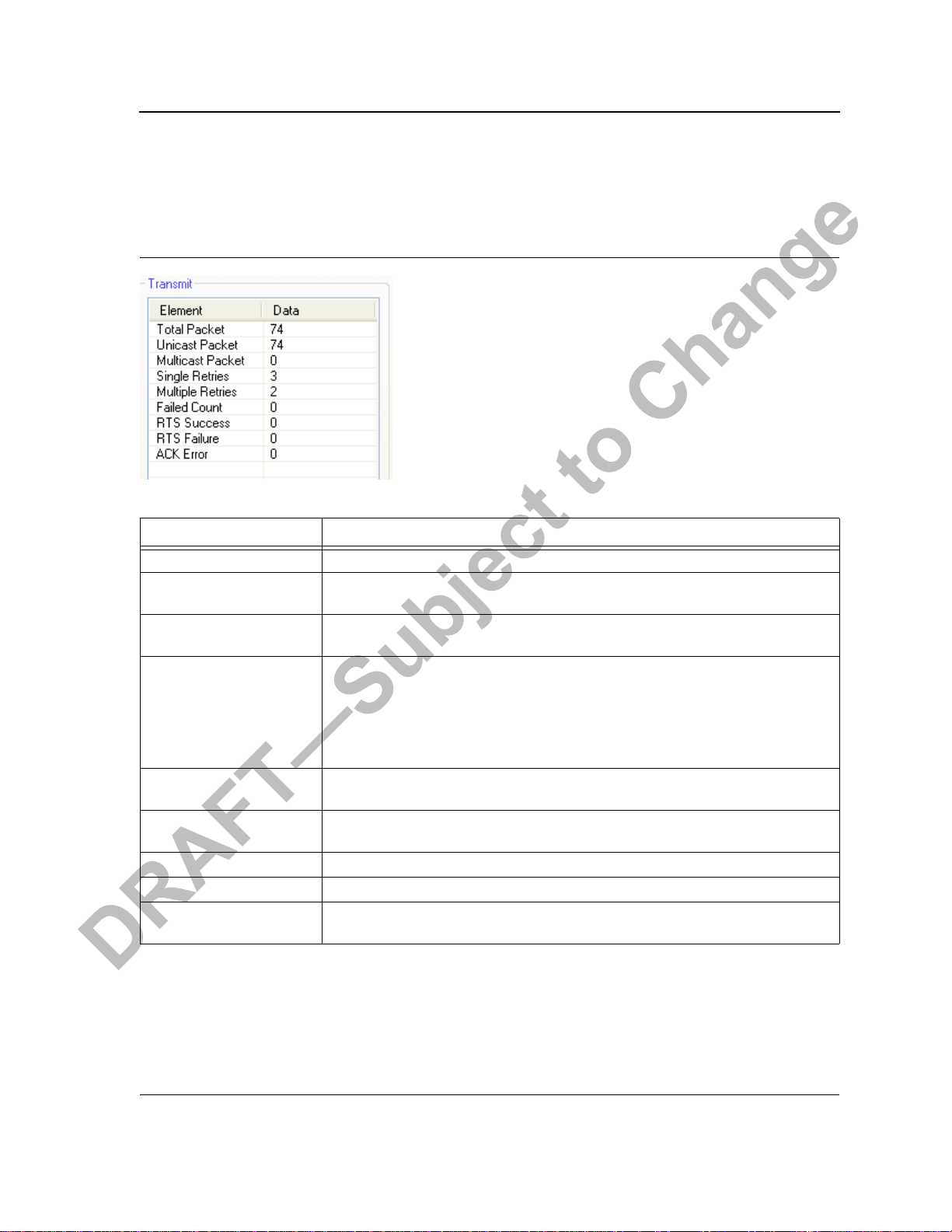

• Statistics—displays the statistics of the current session.

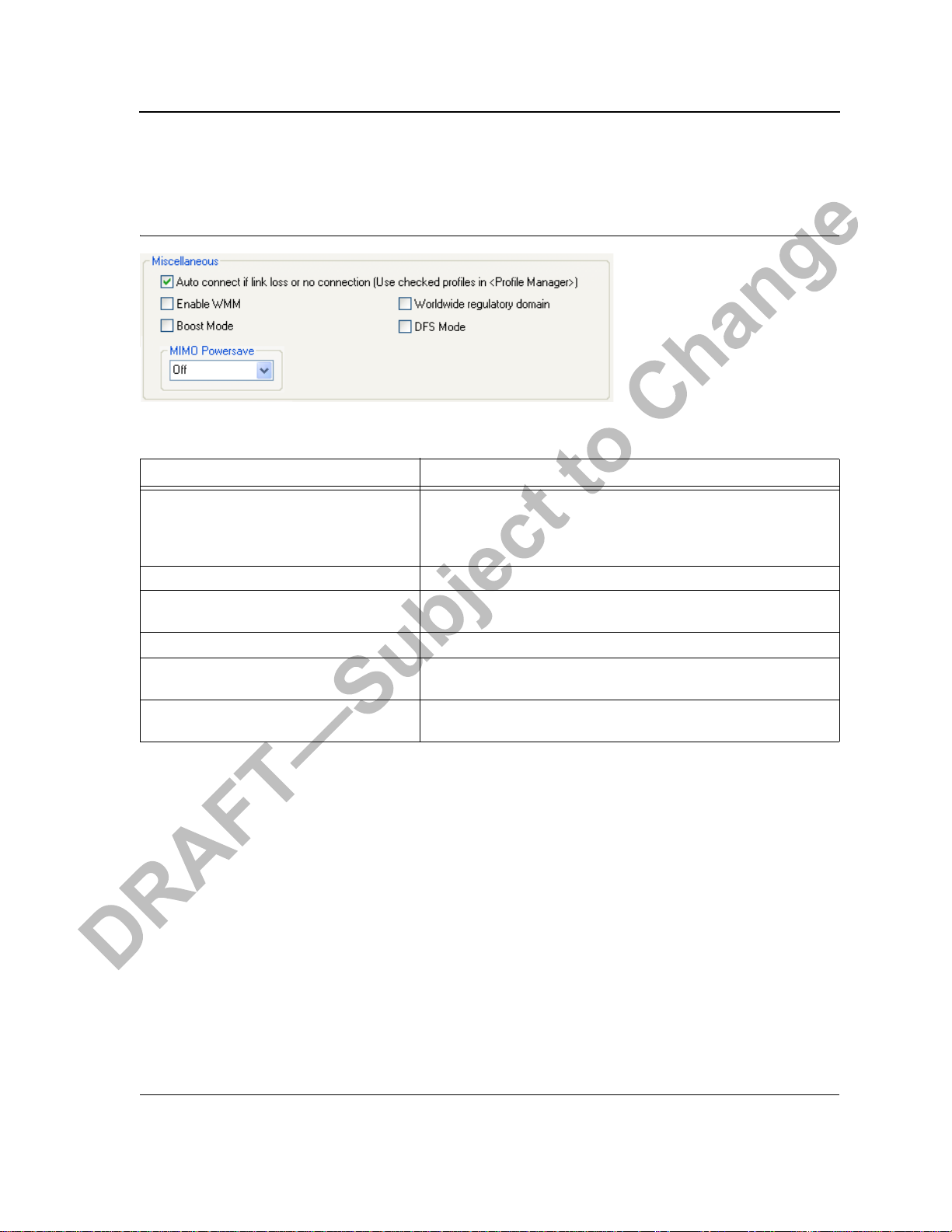

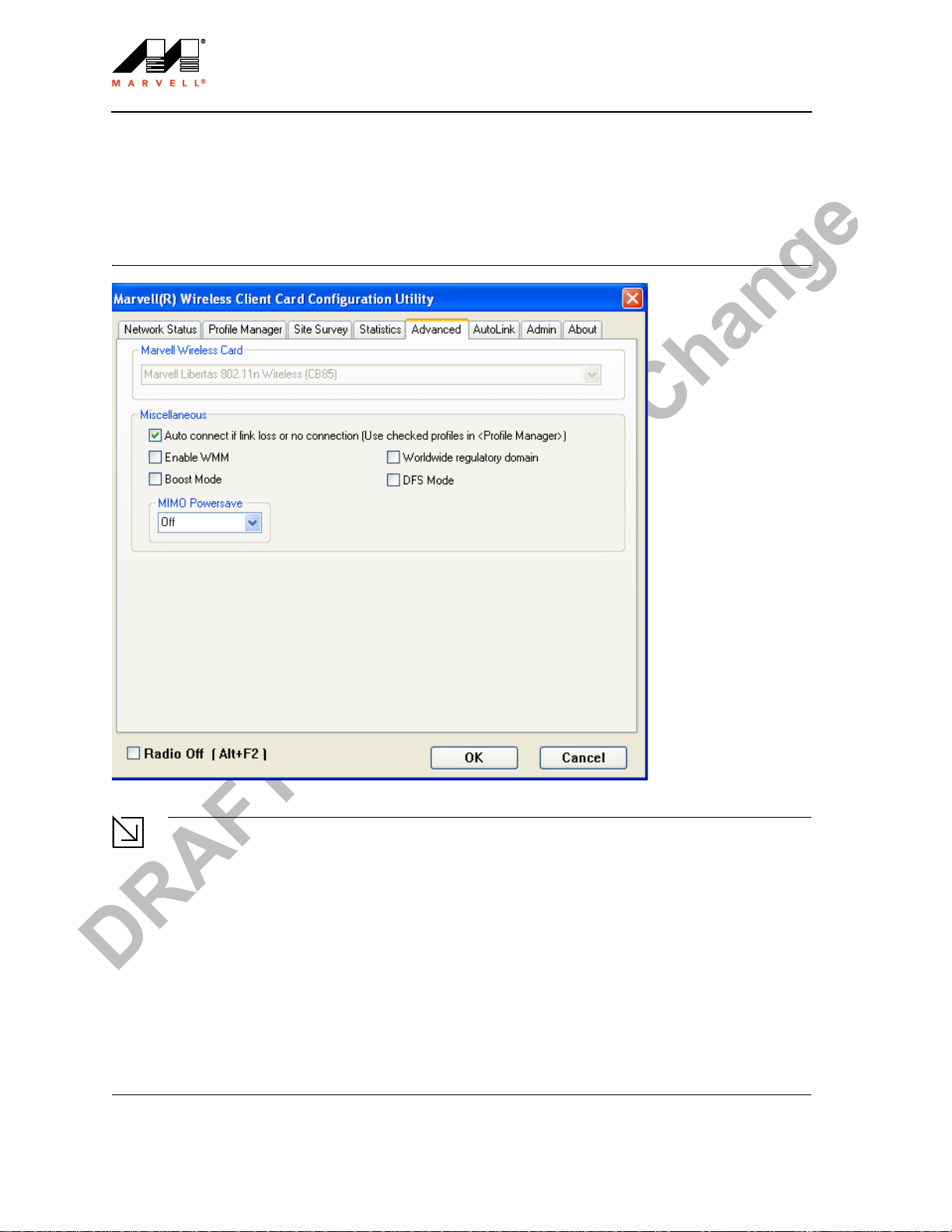

• Advanced—used to set protocol parameters.

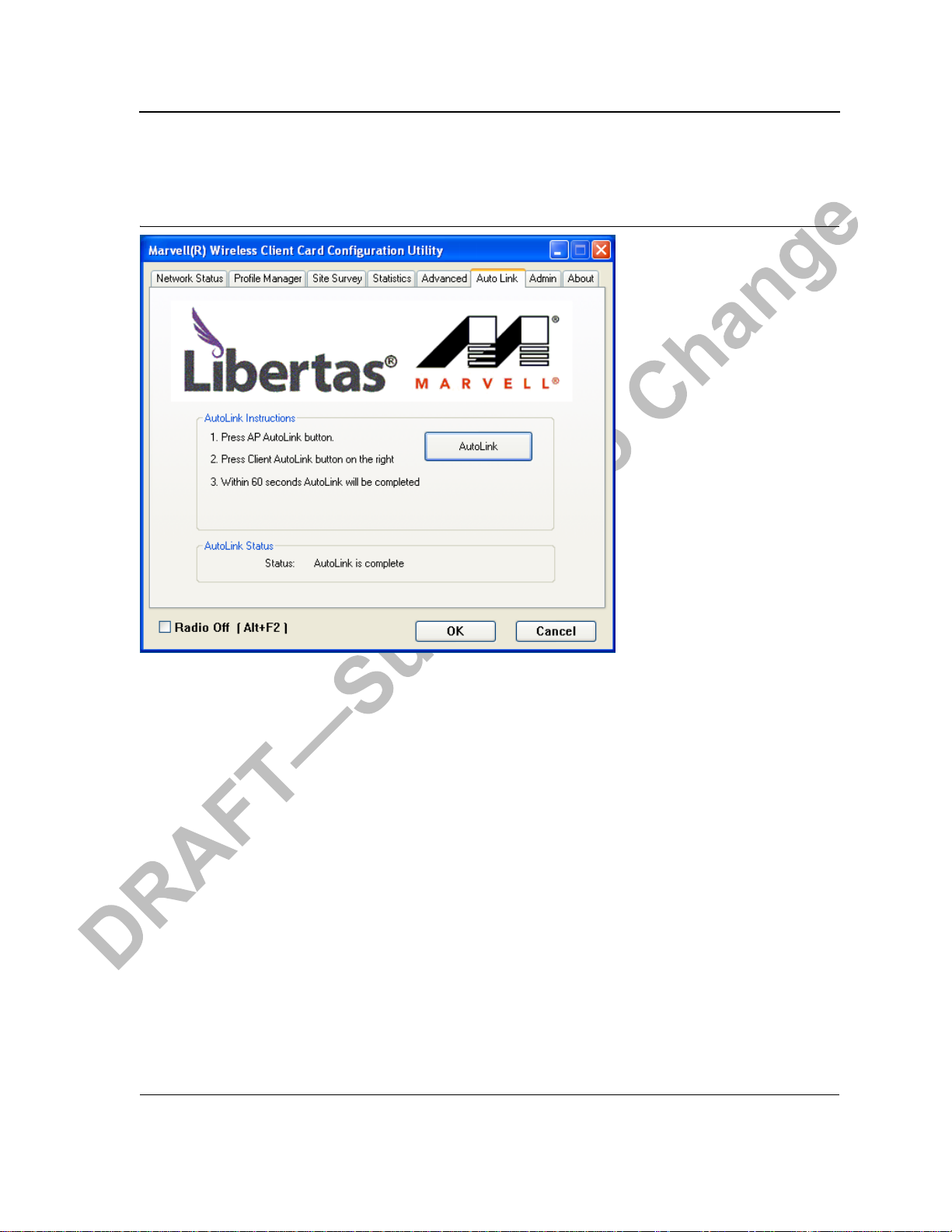

• AutoLink—to set AutoLink connection

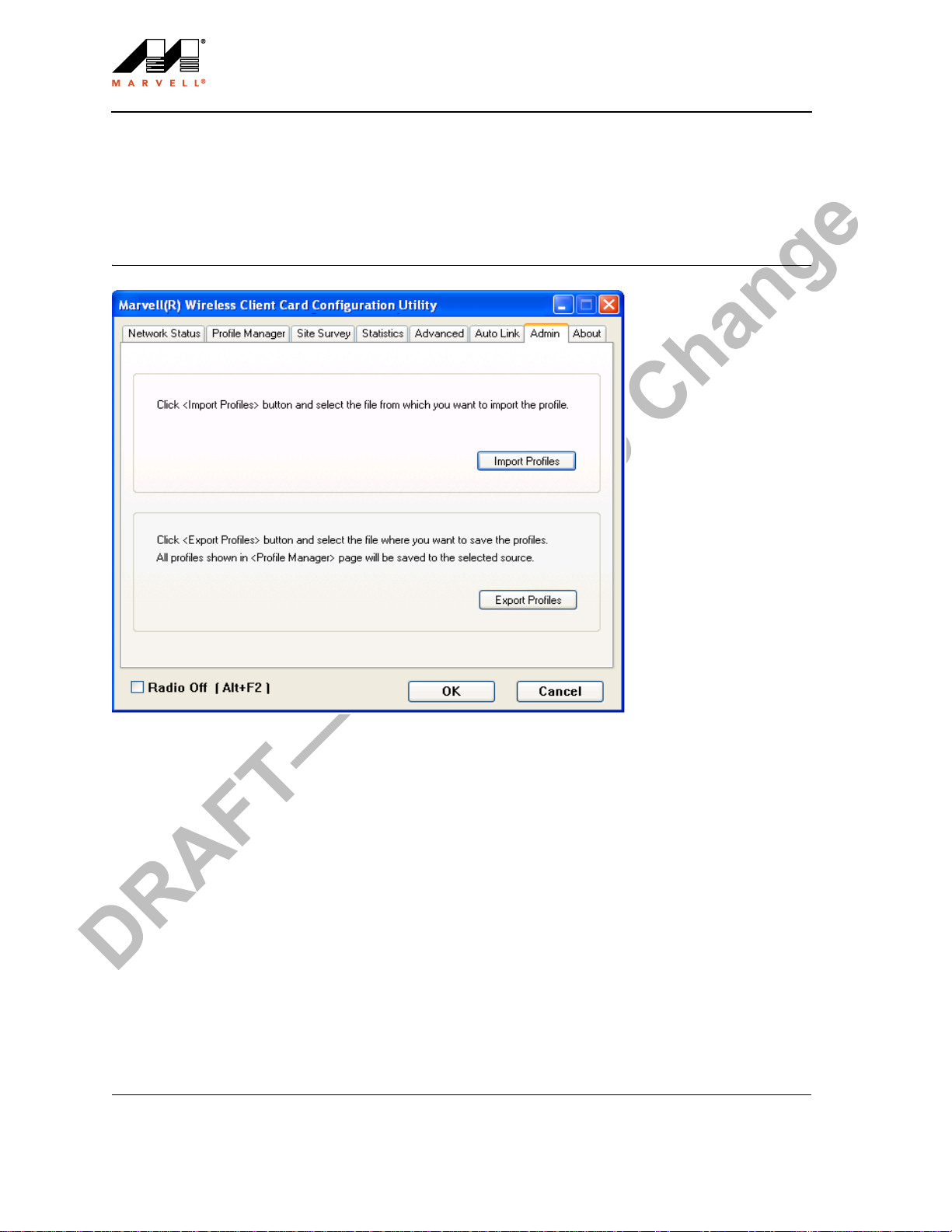

• Admin—used to import and export profiles.

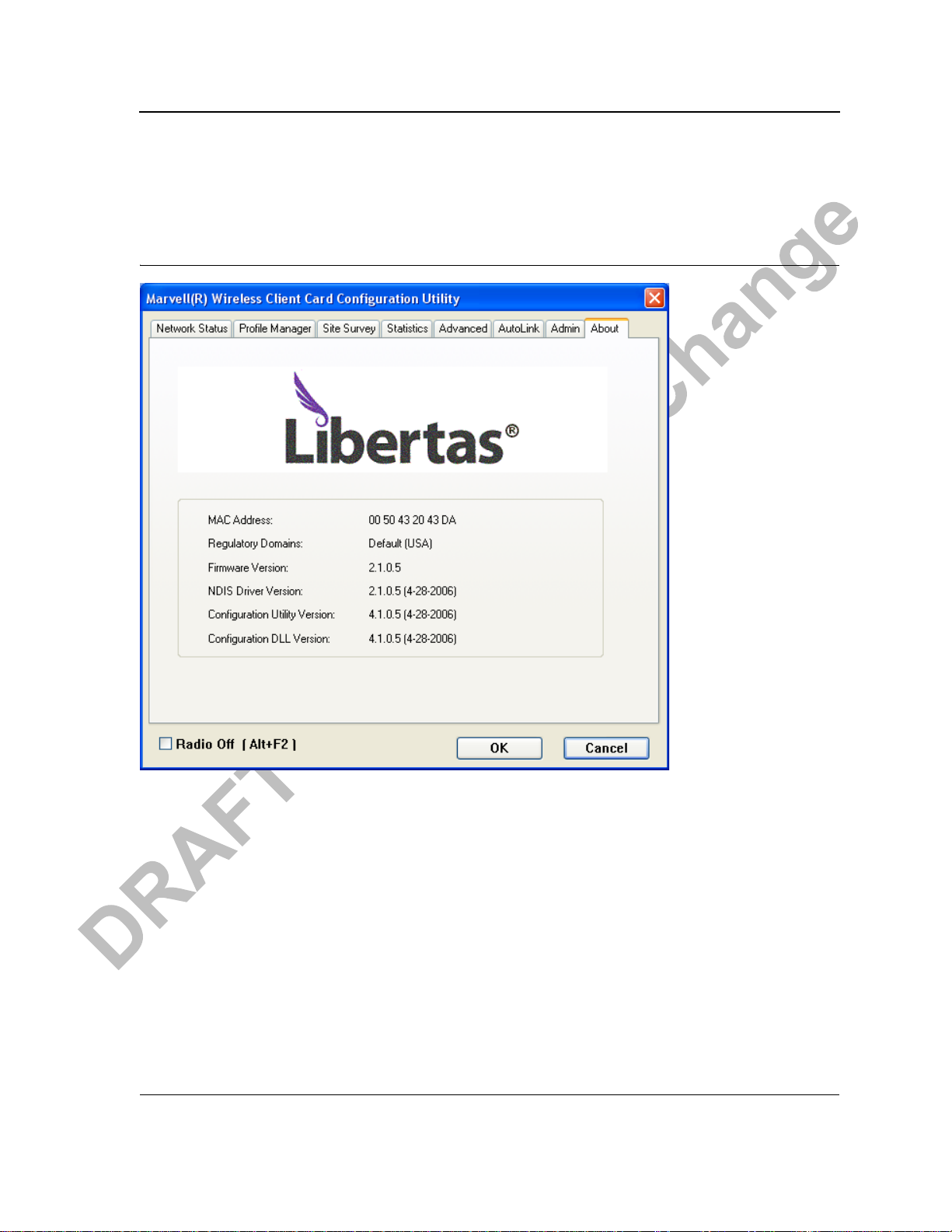

• About—provides the information for the driver version number, firmware version number, Marvell Configura-

tion Utility version number, and Medium Access Controller (MAC) address of the client card.

Not approved by Document Control. For review only.

CONFIDENTIAL

Doc. No. MV-S800477-00 Rev. B

Page 18

CB-85/MB-85/EC-85/MC-85 User Guide

3.1 Network Status Tab

The Network Status tab displays the status of the network. When the Marvell Configuration Utility initializes, it displays the Network Status tab.

Figure 6: Network Status Tab

3.1.1 Select Profile

The Select Profile section displays the name of the profile in use. Additional information about the profile is provided in the Profile Manager.

Select one of the profiles previously defined by clicking the down arrow and highlighting a profile from the pulldown list.

Figure 7: Select Profile Section

Doc. No. MV-S800477-00 Rev. B Page 18 Document Classification: Proprietary Information July 18, 2006, 0.00

Not approved by Document Control. For review only.

CONFIDENTIAL

Page 19

Marvell Configuration Utility User Interface

Profiles are created, modified, and deleted through the Profile Manager.

Note

This feature is disabled when Windows Zero Configuration Utility is enabled.

3.1.2 Link Information

The Link Information section contains the current information about the wireless connection.

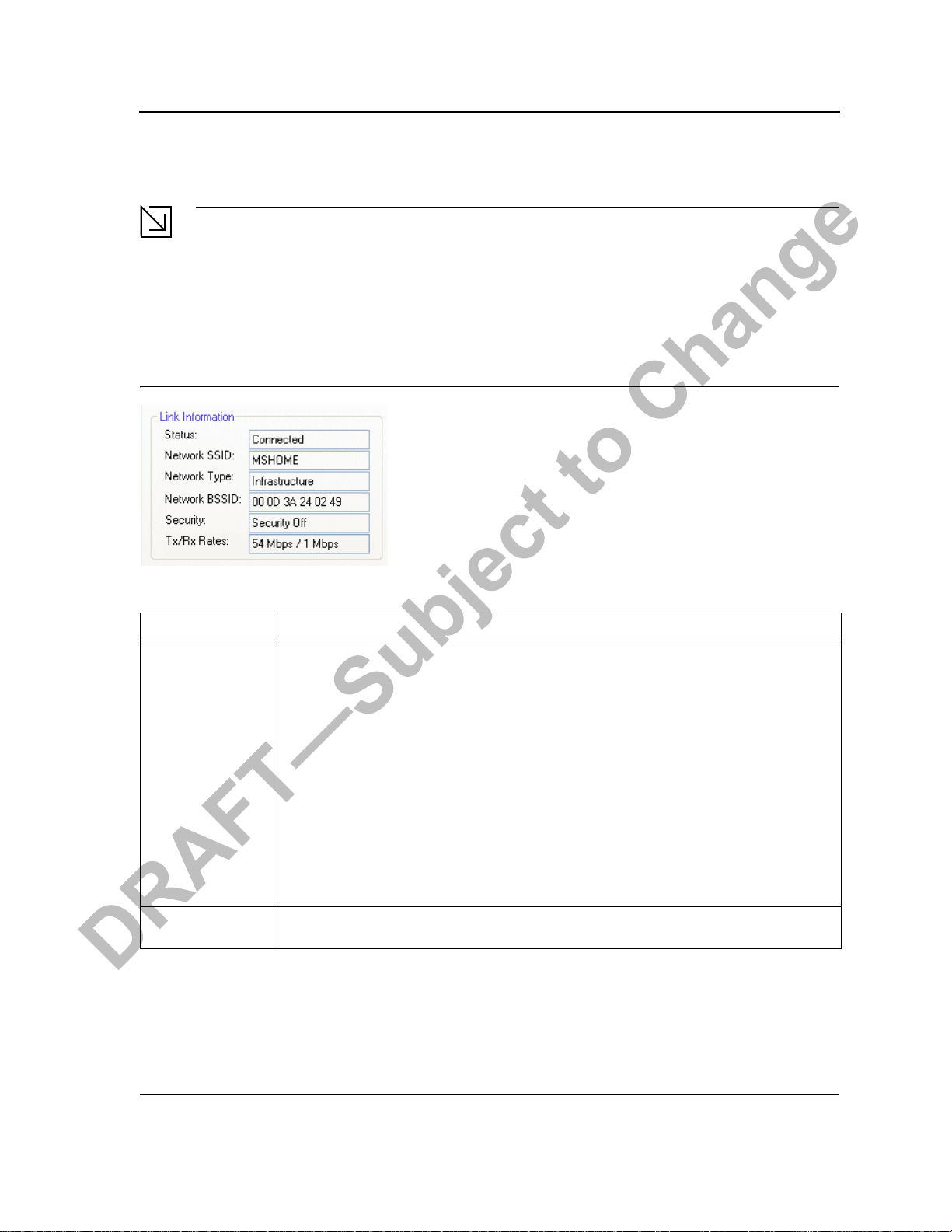

Figure 8: Link Information Section

Network Status Tab

Table 1: Link Information Section Description

Field Description

Status Status of the wireless network connection:

• Card Unplugged

Client card is not plugged in, or client card is plugged in but not recognized.

• Connected

Client card is plugged in and connected to a wireless network.

• No Connection

Client card is plugged in, but no wireless connection.

• No Radio

Client card is plugged in, but the radio is turned off. Clear the Radio Off check box to turn the radio on.

• Scanning for

Scanning for available APs and wireless stations in the area.

• Waiting for peer

Waiting for a peer station to connect to the wireless network (Ad-Hoc network only).

Network SSID Network SSID label (i.e., Network Name). The Network Name is a text string of up to

32 characters.

Not approved by Document Control. For review only.

CONFIDENTIAL

Doc. No. MV-S800477-00 Rev. B

Page 20

CB-85/MB-85/EC-85/MC-85 User Guide

Table 1: Link Information Section Description (Continued)

Field Description

Network Type Type of environment connected to:

• Infrastructure Mode

In this mode, wireless clients send and receive information through APs. When a wireless client communicates with another, it transmits to the AP. First the AP receives the information and rebroadcasts it, then other devices receive the information. The APs are strategically located wi thin an area to provide optimal coverage for wireless clients. A large WLAN uses multiple APs to provide coverage over a wide area. APs can connect to a LAN through a wired Ethernet connection. APs send and receive information from the LAN through the wired connection.

• Ad-Hoc Mode

In this mode, wireless clients send and receive information to other wireless clients without using an AP. This type of WLAN only contains wireless clients. Use Ad-Hoc mode to connect network computers at home or in small office, or to set up a temporary wireless network for a meeting.

Network BSSID Network Basic Service Set Identifier. The BSSID is a 48-bit identity used to identify a par-

ticular BSS within an area. In Infrastructure BSS networks, the BSSID is the MAC address of the AP. In independent BSS or Ad-Hoc networks, the BSSID is generated randomly.

Security Reports the type and level of security set. The security level is set through the Profile

Setting of the Profile Manager tab. Configure security settings also through the Site Survey tab when connecting to a network.

Tx/Rx Rates Current Tx Rate and Rx Rate of the channel being monitored.

3.1.3 Signal Strength / Wireless Mode Indicator

The color-coded Signal Strength bar displays the signal strength of the last packet received by the client card.

Figure 9: Signal Strength Bar

a means connected to an 802.11a capable AP b means connected to an 802.11b capable AP g means connected to an 802.11g capable AP

Signal strength is reported as a percentage. A signal in the red indicates a bad connection. A signal in the green indicates a good connection.

Doc. No. MV-S800477-00 Rev. B Page 20 Document Classification: Proprietary Information July 18, 2006, 0.00

Not approved by Document Control. For review only.

CONFIDENTIAL

Page 21

Marvell Configuration Utility User Interface

Network Status Tab

The Wireless Mode indicator shows the data rates the client card operates. There are three modes:

• 802.11a

• 802.11b

• 802.11g (backward compatible to 802.11b)

3.1.4 Internet Protocol (TCP/IP)

The Internet Protocol specifies the format of packets, also called datagrams, and the addressing scheme. Most networks combine IP with a higher-level protocol called TCP, which establishes a virtual connection between a destination and a source.

Figure 10: Internet Protocol Section

Table 2: Internet Protocol Section Description

Field Description

DHCP Option Dynamic Host Configuration Protocol. Either enabled or disabled. IP Address An identifier for a computer or device on a TCP/IP network. The format of an IP address

is a 32-bit numeric address written as four numbers separated by periods. Each number can be 0 t o 255.

Subnet Mask A mask used to determine what subnet an IP address belongs to. An IP address has two

components, the network address and the host address. The first two numbers represent the Class B network address, and the second two numbers identify a particular host on this network.

Default Gateway The default node on a network that serves as an entrance to another network. In

enterprises, the gateway is the computer that routes the traffic from a workstation to the outside network that is serving the Web pages. In homes, the gateway is the ISP that connects the user to the Internet.

Not approved by Document Control. For review only.

CONFIDENTIAL

Doc. No. MV-S800477-00 Rev. B

Page 22

CB-85/MB-85/EC-85/MC-85 User Guide

3.1.5 Actual Throughput Performance

This section of the Network Status tab displays the Current Tx Rate and the Current Rx Rate of the channel being monitored.

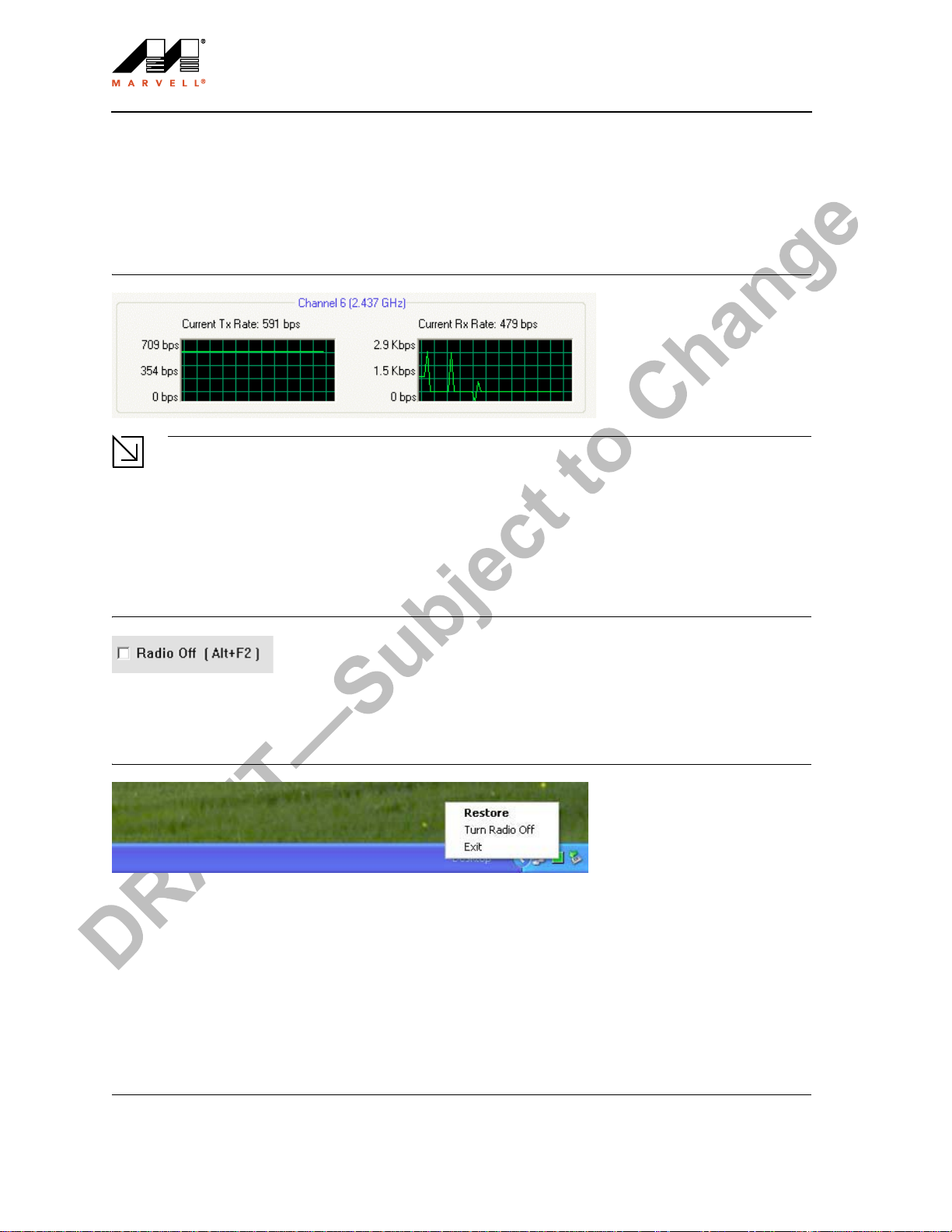

Figure 11: Actual Throughput Performance Section

Note

These are actual throughput diagrams (without the WLAN overhead delivered by the client card).

3.1.6 Radio On/Off Check Box

Selecting the Radio Off check box turns off the radio. Clearing the check box turns on the radio.

Figure 12: Radio On/Off Check Box

Another way to turn the radio on or off is to right-click the Configuration Utility icon in System Tray and select Turn Radio Off to turn the radio off. When the radio is off, select Turn Radio On to turn the radio back on.

Figure 13: Radio On/Off in the System Tray

The system hot key Alt+F2 can also be used to turn the radio on/off. When the radio is off, there is no radio activity, and the following tabs are disabled:

• Profile Manager

• Site Survey

• Statistics

• Advanced

• AutoLink

Doc. No. MV-S800477-00 Rev. B Page 22 Document Classification: Proprietary Information July 18, 2006, 0.00

Not approved by Document Control. For review only.

CONFIDENTIAL

Page 23

Marvell Configuration Utility User Interface

Profile Manager Tab

Note

This feature is disabled when Windows Zero Configuration Utility is enabled.

3.2 Profile Manager Tab

The Profile Manager tab displays the profiles available and allows you to create, modify, and delete profiles.

Figure 14: Profile Manager Tab

Note

The Profile Manager tab is not accessible when Windows Zero Configuration Utility is enabled.

Not approved by Document Control. For review only.

CONFIDENTIAL

Doc. No. MV-S800477-00 Rev. B

Page 24

CB-85/MB-85/EC-85/MC-85 User Guide

PROFILE MANAGER—PROFILE LIST

The section on the left side of this tab lists all of the profiles available. Highlighting a profile selects it. If the check box next to the profile is selected, that profile is used in auto-configuration mode when the link is lost. If it is not selected, that profile is excluded in auto-configuration. The buttons associated with this window are as follows.

Table 3: Profile List Section Description

Button Description

Apply Profile Applies the profile selected.

Apply the profile by double-clicking the desired profile.

Move Up / Down Moves the list up and down in the window.

All profiles with the Network Type set to Infrastructure are displayed before the profiles with the Network Type set to Ad-Hoc. In auto-configuration mode, the selected profiles at

the top of the list have higher priority than selected profiles at the bottom of the list. Delete Deletes a profile Create Creates a profile Save Saves changes made to a selected profile

PROFILE MANAGER—PROFILE SETTING

The Profile Settings are used to set, modify, and display information about the profile selected in the Profile List section. The information is divided into three tabs:

• Network Info

• Security

• Protocol

Doc. No. MV-S800477-00 Rev. B Page 24 Document Classification: Proprietary Information July 18, 2006, 0.00

Not approved by Document Control. For review only.

CONFIDENTIAL

Page 25

Marvell Configuration Utility User Interface

3.2.1 Profile Setting—Network Info Tab

The Profile Manager initially displays the Network Info tab.

Figure 15: Network Info Tab (Infrastructure Network)

Profile Manager Tab

Figure 16: Network Info Tab (Ad-Hoc Network)

Not approved by Document Control. For review only.

CONFIDENTIAL

Doc. No. MV-S800477-00 Rev. B

Page 26

CB-85/MB-85/EC-85/MC-85 User Guide

The Network Info tab fields are as follows. Table 4: Network Info Tab Description

Field Description

Profile Name Name of profile selected Network SSID Network SSID label Network Type

• Infrastructure

When an Infrastructure network is selected, the Profile Setting displays the

Wireless Mode field.

• Ad-Hoc

When an Ad-Hoc network is selected, the Profile Setting displays an additional Preferred Channel field.

Wireless Mode

• Auto

Connects to 802.11a network, 802.11g network, or 802.11b network (Infrastructure network only).

• 802.11a

Connects to 802.11a only.

• 802.11g

Connects to either 802.11g network or 802.11b network.

• 802.11b

Connects to 802.11b network only.

Preferred Channel Channel being used (Ad-Hoc network only)

802.11n Network Enables/disables draft-802.11n/EWC functionality.

If enabled, the Modulation and Coding Scheme (MCS) index and 802.11n options can be configured.

Channel Width Sets the channel bandwidth. Available options are Auto, 20 MHz, and 40 MHz.

The default is Auto.

Guard Interval Sets the Guard Interval. Available options are Auto, Standard, and Short.

The default is Auto.

Extension Channel Sets the extension channel mode when bandwidth is 40 MHz. Available options are

Auto, None, Lower, and Upper. The default is Auto.

Antenna Selection Sets the antenna selections. Available options are Auto, Antenna A, Antenna B, 2 by 2,

and 2 b y 3. The default is Auto.

Note

The fields Wireless Mode and Preferred Channel are used only when an Ad-Hoc network is started by the client card. These two attributes are ignored if the client card is connected to an existing Ad-Hoc network with the same desired SSID.

Doc. No. MV-S800477-00 Rev. B Page 26 Document Classification: Proprietary Information July 18, 2006, 0.00

Not approved by Document Control. For review only.

CONFIDENTIAL

Page 27

Marvell Configuration Utility User Interface

3.2.2 Profile Setting—Security Tab

Clicking the Security tab displays the following security options:

• Authentication Mode

• Encryption Mode (Security off, WEP, TKIP, and AES)

• WEP Key Setting (Passphrase Key or Authentication Protocol)

Figure 17: Security Tab—Authentication Modes

Profile Manager Tab

3.2.2.1 Non-EAP Authentication Modes

The Marvell Configuration Utility currently supports the following non-EAP authentication modes:

• Open System—Open Authentication (no key or a pre-shared WEP key is required).

• Shared Key—Shared Authentication (a pre-shared WEP key is required)

• Auto Switch—Auto Select Authentication modes (Open System or Shared Key, WEP key required)

• WPA-PSK—WPA Pre-Shared Key

• WPA2-PSK—WPA2 Pre-Shared Key

3.2.2.2 EAP Authentication Modes

The Marvell Configuration Utility currently supports the following EAP authentication modes:

• 802.1x (TLS/PEAP)

• WPA (TLS/PEAP/LEAP)

• WPA2 (TLS/PEAP/LEAP)

• CCX (LEAP)

Not approved by Document Control. For review only.

CONFIDENTIAL

Doc. No. MV-S800477-00 Rev. B

Page 28

CB-85/MB-85/EC-85/MC-85 User Guide

3.2.2.2.1 WPA-PSK/WPA2-PSK SUPPORT

In Infrastructure mode, if WPA-PSK/WPA2-PSK is selected as the Authentication Mode, the encryption method AES or TKIP can be selected.

Figure 18: Security Tab—WPA-PSK/WPA2-PSK Authentication

Figure 19: Security Tab—WPA-PSK/WPA2-PSK with TKIP

Enter the network passphrase into the Passphrase and Confirm boxes.

Note

WPA-PSK/WPA2-PSK is not supported in Ad-Hoc network mode.

Doc. No. MV-S800477-00 Rev. B Page 28 Document Classification: Proprietary Information July 18, 2006, 0.00

Not approved by Document Control. For review only.

CONFIDENTIAL

Page 29

Marvell Configuration Utility User Interface

Profile Manager Tab

3.2.2.2.2 802.1X/WPA/WPA2 EAP/TLS SUPPORT

If the 802.1x EAP/TLS option is selected, the encryption method AES or TKIP can be selected, and a certificate is required for the authentication.

1. To connect to an AP through the RADIUS server, select 802.1x WPA/WPA2 as the Authentication Mode.

2. Select TKIP or AES as the Encryption Method.

3. Select EAP/TLS (Use Certificate) as the 802.1x Authentication Protocol.

Figure 20: Security Tab—802.1x/WPA/WPA2 EAP/TLS Authentication

4. Click the Configure WPA RADIUS button to configure security settings.

Figure 21: 802.1x/WPA/WPA2 EAP/TLS RADIUS Configuration Window

5. Click Browse to activate the dialog for selecting a certificate.

6. Before clicking OK to exit the dialog, make sure that the Login Name is entered.

Not approved by Document Control. For review only.

CONFIDENTIAL

Doc. No. MV-S800477-00 Rev. B

Page 30

CB-85/MB-85/EC-85/MC-85 User Guide

Figure 22: Select Certificate Window

Figure 23: WPA RADIUS Configuration Window wit h Certificate

Table 5: 802.1x/WPA/WPA2 EAP/TLS RADIUS Configuration Window Description

Field/Button Description

Login Name Login name to the RADIUS server Certificate Certificate selected for authentication View Shows the selected certificate Browse Selects the certificate

Doc. No. MV-S800477-00 Rev. B Page 30 Document Classification: Proprietary Information July 18, 2006, 0.00

Not approved by Document Control. For review only.

CONFIDENTIAL

Page 31

Marvell Configuration Utility User Interface

Profile Manager Tab

3.2.2.2.3 802.1X/WPA/WPA2 PEAP SUPPORT IN INFRASTRUCTURE MODE

To connect to an AP through the RADIUS server , select 802.1x/WPA/WP A2 as the Authentication Mode, PEAP as the Authentication Protocol, and AES or TKIP as the Encryption Method.

Figure 24: Security Tab—802.1x/WPA/WPA2 PEAP Authentication

Clicking the Configure WPA RADIUS button displays the WPA PEAP RADIUS Configuration window. Enter all of the required information.

Figure 25: 802.1x/WPA/WPA2 PEAP RADIUS Configuration Window

Not approved by Document Control. For review only.

CONFIDENTIAL

Doc. No. MV-S800477-00 Rev. B

Page 32

CB-85/MB-85/EC-85/MC-85 User Guide

Table 6: WPA PEAP RADIUS Configuration Window Description

Field Description

Login Name Login name to the RADIUS server Password Password to login to the RADIUS server Domain Domain name for login to the RADIUS server (optional) Inner EAP Protocol Use EAP/MS-CHAP V2 or EAP/GTC to login to the RADIUS server

Click OK to set the configuration.

3.2.2.2.4 WPA/WPA2 EAP/TTLS

To connect to an AP through the RADIUS server, select WPA/WPA2 as the Authentication Mode, TTLS as the

802.1x Authentication Protocol, and TKIP as the Encryption Method for WPA TTLS or AES as the Encryption Method for WPA2 TTLS.

Figure 26: WPA/WPA2 EAP/TTLS Authentication

Clicking the Configure WPA RADIUS button displ ays the WPA EAP/TTLS RADIUS Configuration window. Enter all the required information.

Doc. No. MV-S800477-00 Rev. B Page 32 Document Classification: Proprietary Information July 18, 2006, 0.00

Not approved by Document Control. For review only.

CONFIDENTIAL

Page 33

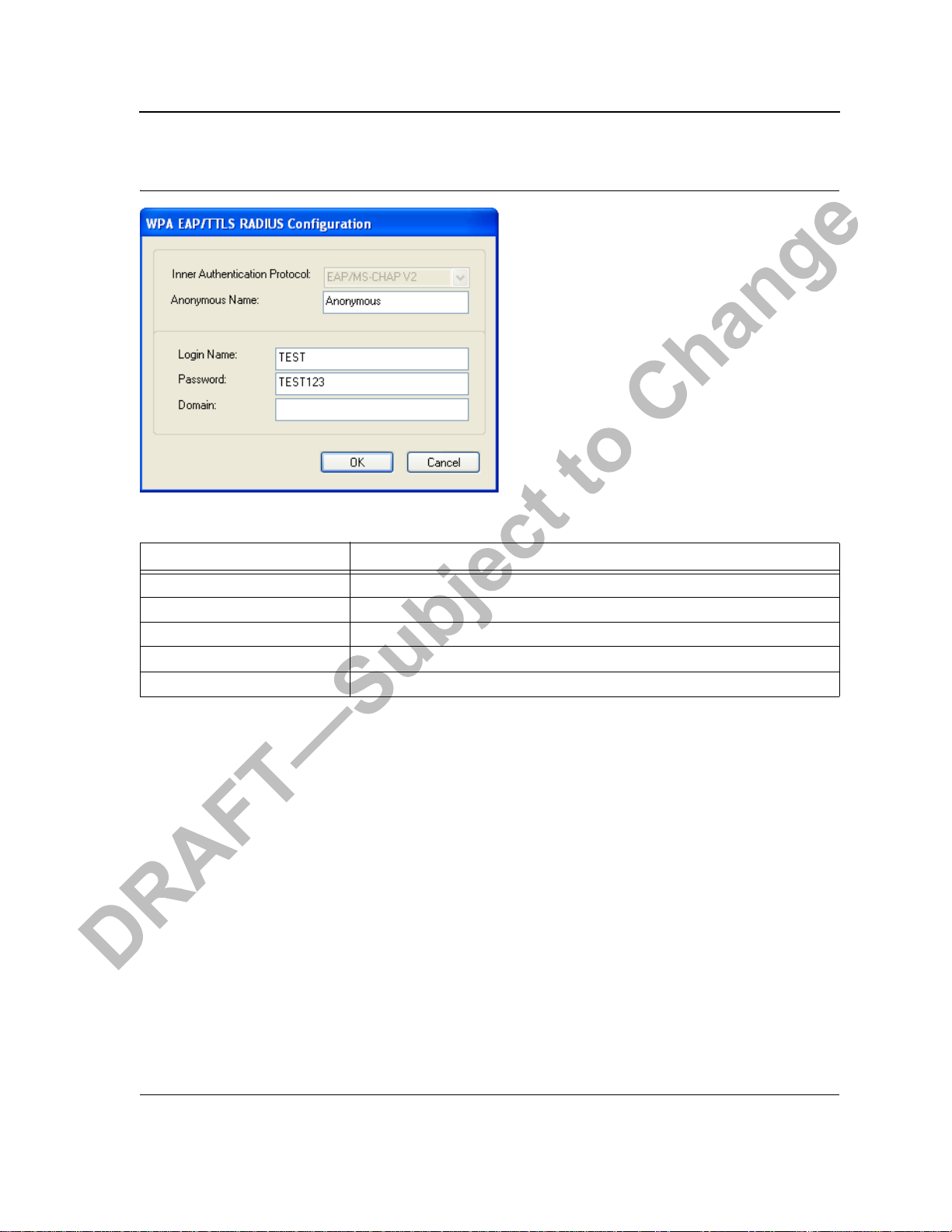

Figure 27: WPA EAP RADIUS Configuration Window

Marvell Configuration Utility User Interface

Profile Manager Tab

Table 7: WPA TTLS RADIUS Configuration Window Description

Field Description

Inner Authentication Protocol Currently supports EAP/MS-CHAP V2 only Anonymous Name Indicates the identity of the authentication server with which to make contact Login Name Login name to the RADIUS server Password Password to login to the RADIUS server Domain Domain name for login to the RADIUS server (optional)

Click OK to set the configuration.

Not approved by Document Control. For review only.

CONFIDENTIAL

Doc. No. MV-S800477-00 Rev. B

Page 34

CB-85/MB-85/EC-85/MC-85 User Guide

3.2.2.2.5 CCX EAP/LEAP

T o connect to a Cisco AP through the RADIUS server, select CCX EAP/LEAP. WEP is the Encryption Method, and the key is generated automatically.

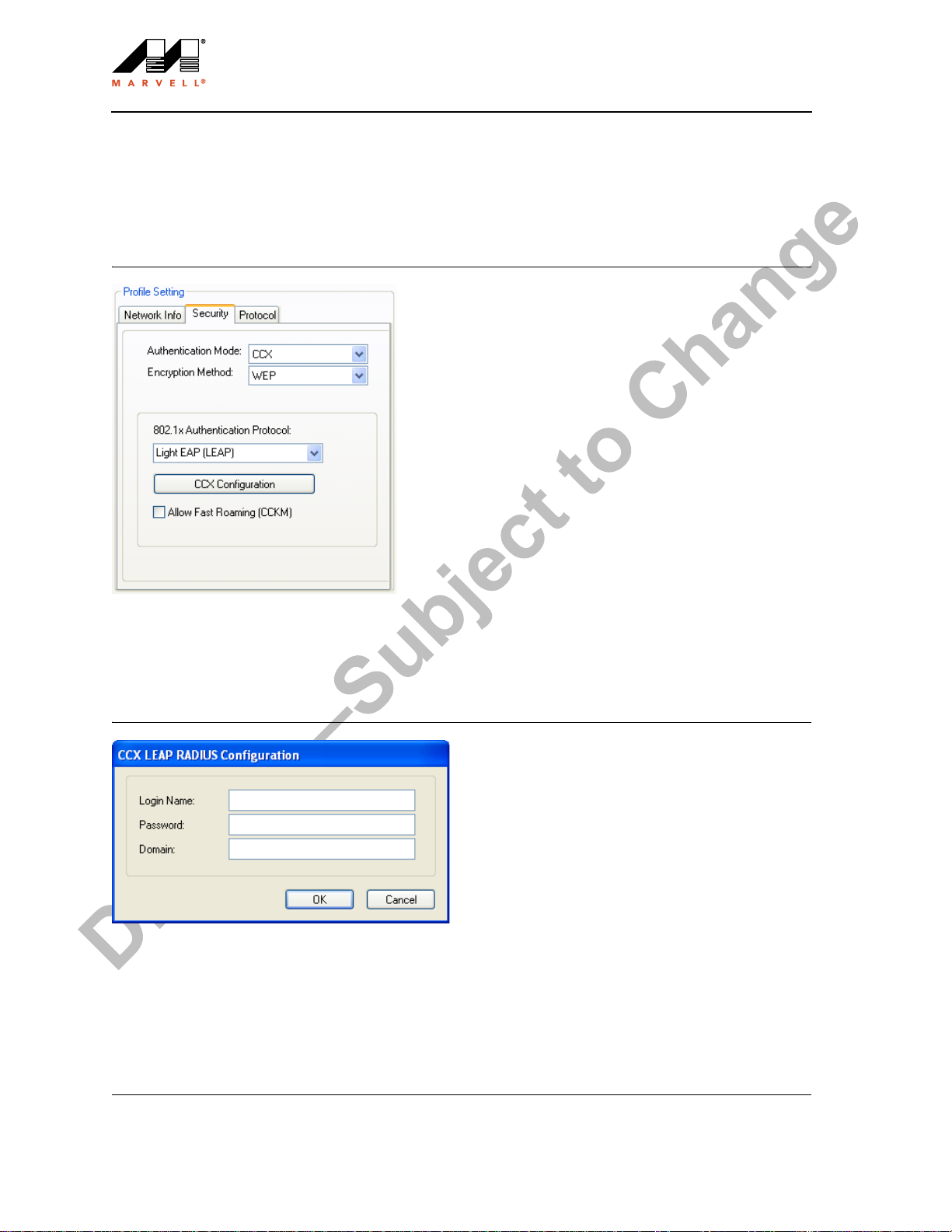

Figure 28: Security Tab—CCX EAP/LEAP Authentication

If Allow Fast Roaming (CCKM) is selected, Fast Roaming (Cisco Centralized Key Management (CCKM)) is enabled.

Clicking the CCX Configuration button displays the CCX LEAP RADIUS Configuration win dow. Enter all the required information.

Figure 29: CCX EAP/LEAP RADIUS Configuration Window

Doc. No. MV-S800477-00 Rev. B Page 34 Document Classification: Proprietary Information July 18, 2006, 0.00

Not approved by Document Control. For review only.

CONFIDENTIAL

Page 35

Marvell Configuration Utility User Interface

Table 8: CCX EAP/LEAP RADIUS Configuration Window Description

Field Description

Login Name Login name to the RADIUS server Password Password to login to the RADIUS server Domain Domain name for login to the RADIUS server (optional)

Click OK to set the configuration.

3.2.2.3 Encryption Methods

The following encryption methods are available, depending on the authentication mode:

• Security Off

• WEP

• TKIP

• AES

Profile Manager Tab

3.2.2.4 WEP Key Settings

If the WEP Encryption Method is selected, the Security tab displays the WEP Key Setting. To configure the WEP keys, select the WEP Key Setting, and click the Configure WEP Keys button.

Note

The WEP key used for the transmission must be identical on the sending and the receiving station.

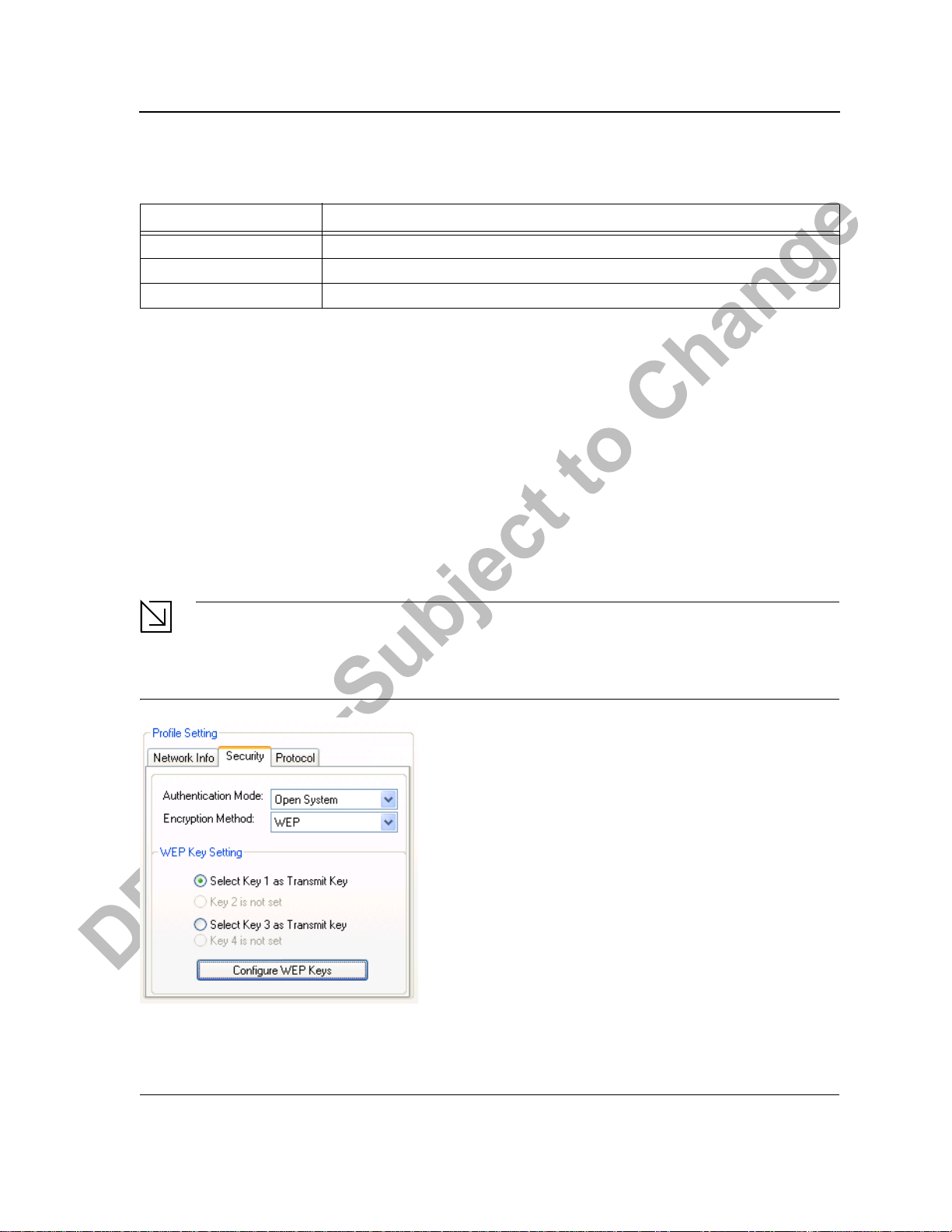

Figure 30: Security Tab—WEP Key Settings

Clicking the Configure WEP Keys button displays the Configure WEP Key window. Enter all the required information.

Not approved by Document Control. For review only.

CONFIDENTIAL

Doc. No. MV-S800477-00 Rev. B

Page 36

CB-85/MB-85/EC-85/MC-85 User Guide

Figure 31: WEP Key Configuration Window

Table 9: WEP Key Configuration Window Description

Field Description

Key Format Either ASCII characters or hexadecimal digits Key Size

• 40-bit, 5 character ASCII key size (40-bit, 10 character hexadecimal)

• 104-bit, 13 character ASCII key size (104-bit, 26 character hexadecimal)

Transmit Keys There are four transmit keys. The key value is in ASCII or hexadecimal,

depending on the format selected. The WEP key size shown depends on the key size selected.

Click OK to set the configuration.

Doc. No. MV-S800477-00 Rev. B Page 36 Document Classification: Proprietary Information July 18, 2006, 0.00

Not approved by Document Control. For review only.

CONFIDENTIAL

Page 37

Marvell Configuration Utility User Interface

Profile Manager Tab

3.2.2.5 TKIP/AES Settings

If TKIP/AES is selected and the Authentication Mode is WPA-PSK or WPA2-PSK, the security tab displays the TKIP/AES passphrase settings. Enter the passphrase into the Passphrase and Confirm boxes, and click OK.

Figure 32: TKIP/AES Settings

Currently, only the functions WPA-PSK + TKIP and WP A2-PSK + AES are available. There is no such combination as WPA-PSK + AES or WPA2-PSK + TKIP.

3.2.3 Profile Setting—Protocol Tab

The Protocol tab allows you to set or change the protocol information.

Figure 33: Protocol Tab

Not approved by Document Control. For review only.

CONFIDENTIAL

Doc. No. MV-S800477-00 Rev. B

Page 38

CB-85/MB-85/EC-85/MC-85 User Guide

DO NOT CHANGE SETTINGS

If this check box is selected, the protocol setting is not changed when the profile is appl ied.

USE BELOW SETTINGS

If the Do not change setting check box is not selected, the protocol settings include the following parameters.

Table 10: Protocol Tab Description

Field Description

Power Save Mode Sets the power mode. Available options are Continuous Access or Max Power

Save. The default setting is Continuous Access.

Preamble (802.11b) Sets the Radio Preamble to Auto, Short or Long. This option takes effect only

when attaching to an 802.11b network.

Transmit Rate The range of the data rate depends on the type of AP that the client card is

connected to. The default setting is Auto Select. MCS index will be allowed to select when the 802.1 1n Network check box in the

Network Info tab is selected.

Fragment Threshold Sets the fragmentation threshold (the size that packets are fragmented into for

transmission). The default setting is 2346.

Region Code Sets the region code. Available options are FCC (U.S.), IC (Canada), ETSI

(Europe), Spain, France, and MKK (Japan).

RTS/CTS Threshold Sets the packet size at which the AP issues a Request-To-Send (RTS) or Clear-

to-Send (CTS) frame before sending the packet. The default setting is 2347.

Reset Resets the protocol settings to their default values

Doc. No. MV-S800477-00 Rev. B Page 38 Document Classification: Proprietary Information July 18, 2006, 0.00

Not approved by Document Control. For review only.

CONFIDENTIAL

Page 39

Marvell Configuration Utility User Interface

Site Survey Tab

3.3 Site Survey Tab

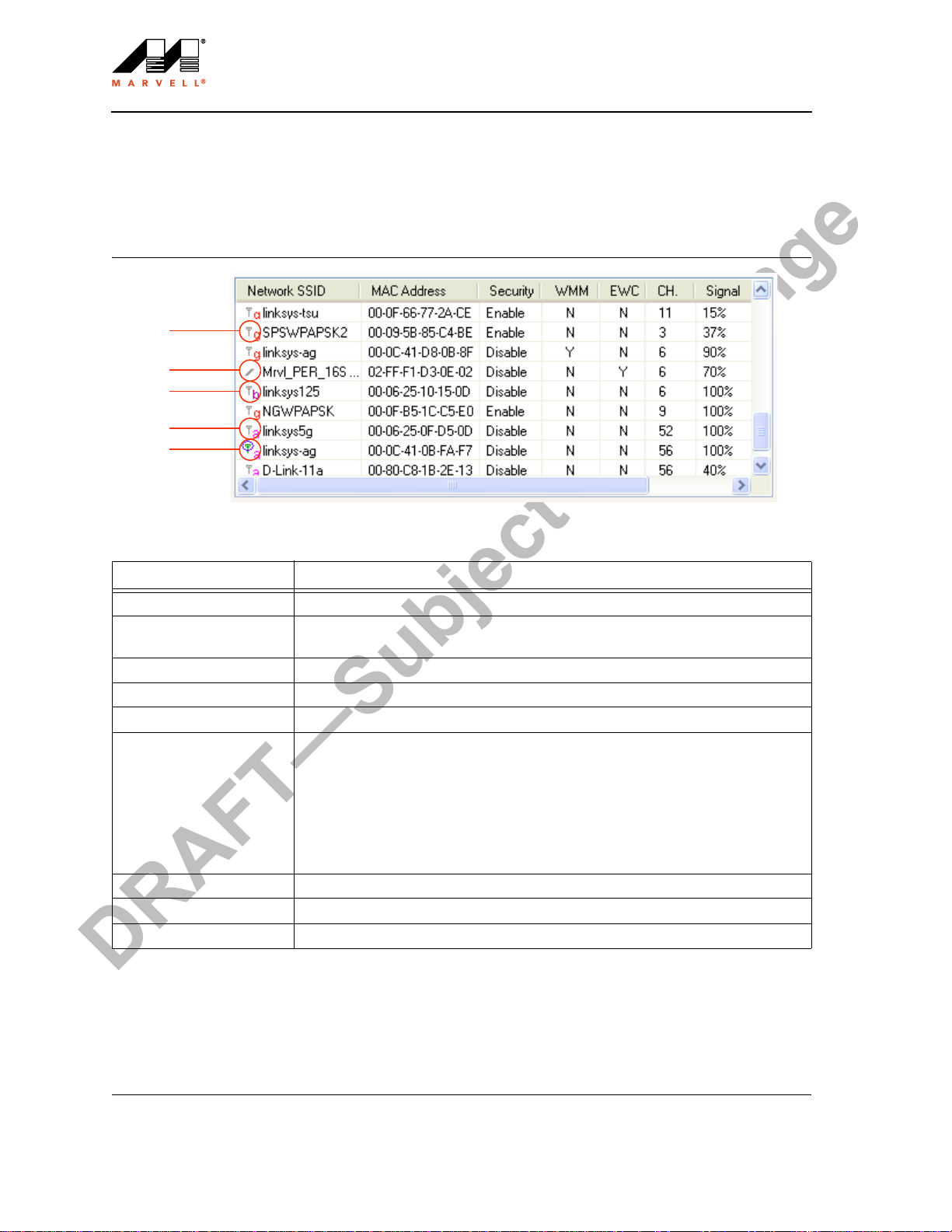

The Site Survey tab displays a list of all peer-to-peer (Ad-Hoc) and AP stations within range of the client card.

Figure 34: Site Survey Tab

3.3.1 Site Survey—Networks Filter

This section lets you customize which sites are displayed in the Site Survey list:

• Display Peer-To-Peer stations—selecting this check box displays all peer-to-peer (Ad-Hoc) stations within

range.

• Display 802.11a Access Points—selecting this check box displays all 802.11a APs within range.

• Display 802.11g Access Points—selecting this check box displays all 802.11g APs within range.

• Display 802.11b Access Points—selecting this check box displays all 802.11b APs within range.

Not approved by Document Control. For review only.

CONFIDENTIAL

Doc. No. MV-S800477-00 Rev. B

Page 40

CB-85/MB-85/EC-85/MC-85

User Guide

3.3.2 Site Survey—List of Detected Stations

This section reports information on the peer-to-peer (Ad-Hoc) stations or AP stations detected.

Figure 35: Site Survey—List of Detected Stations

802.11g AP Icon

d-Hoc Network

802.11b AP Icon

802.11a AP Icon Circle means

connected

Table 11: List of Detected Stations Description

Field Description

Network SSID Network SSID label (i.e., the Network Name). The Network Name is a text string. MAC Address MAC address, a hardware address that uniquely identifies each node of a

network Security Security enabled or disabled CH Channel used by the detected device Signal Signal strength of the detected device as a percentage Icons The following icons may be displayed left of the Network SSID:

• An antenna icon with a subscript a indicates an 802.11a AP.

• An antenna icon with a subscript b indicates an 802.11b AP.

• An antenna icon with a subscript g indicates an 802.11g AP.

• A circle around the antenna icon means the client card is connected to this

network.

• A slash icon indicates an Ad-Hoc network.

WMM Wireless Multimedia Enhancements (WMM) supported by the detected device EWC Draft-802.11n/EWC functionality supported by the detected device Network Type Type of environment connected to: Ad-Hoc or Infrastructure

Doc. No. MV-S800477-00 Rev. B Page 40 Document Classification: Proprietary Information July 18, 2006, 0.00

Not approved by Document Control. For review only.

CONFIDENTIAL

Page 41

3.3.3 Site Survey—Filter Button

Clicking the Filter button displays the Advanced Filter window.

Figure 36: Site Survey—Advanced Filter Window

Marvell Configuration Utility User Interface

Site Survey Tab

3.3.3.1 Network SSID

• Any SSID—no specific SSID is used when scanning for available networks in the area.

• Find network with this SSID—the utility searches for the specified SSID.

3.3.3.2 Network BSSID

• Any BSSID—no specific BSSID is used when scanning for available networks in the area.

• Find network with this BSSID—the utility searches for the specified BSSID.

3.3.3.3 Select Channel

• Scan all channels—all channels are scanned when searching for available networks in the area.

• Scan channel Only—only the specified channel is scanned when searching for available ne tworks in the

area.

• Scan Channel to Channel—a range of channels are scanned when searching for available networks in the

area.

3.3.4 Site Survey—Refresh Button

Clicking the Refresh button requests a survey of the wireless networks in the area.

Not approved by Document Control. For review only.

CONFIDENTIAL

Doc. No. MV-S800477-00 Rev. B

Page 42

CB-85/MB-85/EC-85/MC-85 User Guide

3.3.5 Site Survey—Associate Button

Select an available network, and then click the Associate button to establish a connection. Alternatively, the connection can be established by double-clicking the selected network.

3.4 Statistics Tab

Clicking the Statistics tab displays the statistics of the current connect session.

Figure 37: Statistics Tab

3.4.1 Signal Strength

The color-coded Signal Strength bar displays the signal strength of the last packet received by the client card. Signal strength is reported as a percentage. A signal in the red indicates a bad connection. A signal in the green indicates a good connection.

Doc. No. MV-S800477-00 Rev. B Page 42 Document Classification: Proprietary Information July 18, 2006, 0.00

Not approved by Document Control. For review only.

CONFIDENTIAL

Page 43

Marvell Configuration Utility User Interface

3.4.2 Transmit Section

The Transmit section displays the information on the packets sent.

Figure 38: Transmit Section

Table 12: Transmit Section Description

Statistics Tab

Field Description

Total Packet Reports the total number of packets transmitted Unicast Packet Reports the number of packets transmitted by the client card that were destined

for a single network node

Multicast Packet Reports the number of packets transmitted by the client card that were destined

for more than one network node

Single Retries Reports the number of packets that require one retry before the client card

received an acknowledgement. NOTE:After the client card sends a packet, it waits for an acknowledge from the

receiving radio to confirm that the packet was successfully received. If the acknowledge is not received within a specified period of time, the client card retransmits the packet.

Multiple Retries Reports the number of packets that require more than one retry before the client

card received an acknowledgement

Failed Count Reports the number of packets that were not successfully transmitted because

the client card did not receive an acknowledge within the specified period of time RTS Success Reports the number of RTS attempts that were successful RTS Failure Reports the number of RTS attempts that were not successful ACK Error Reports the number of unicast transmit attempts for which no acknowledgement

was received

Not approved by Document Control. For review only.

CONFIDENTIAL

Doc. No. MV-S800477-00 Rev. B

Page 44

CB-85/MB-85/EC-85/MC-85 User Guide

3.4.3 Receive Section

The Receive section displays the information on the packets received.

Figure 39: Receive Section

Table 13: Receive Section Description

Field Description

Total Packet Reports the total number of packets received Unicast Packet Reports the number of packets received by the client card that were destined for

a single network node

Multicast Packet Reports the number of packets received by the client card that were destined for

more than one network node Duplicate Frame Reports the number of duplicate frames received Received Beacons Reports the number of beacons received after association is established Beacon Loss Reports the number of missing beacons after association is established

Doc. No. MV-S800477-00 Rev. B Page 44 Document Classification: Proprietary Information July 18, 2006, 0.00

Not approved by Document Control. For review only.

CONFIDENTIAL

Page 45

Marvell Configuration Utility User Interface

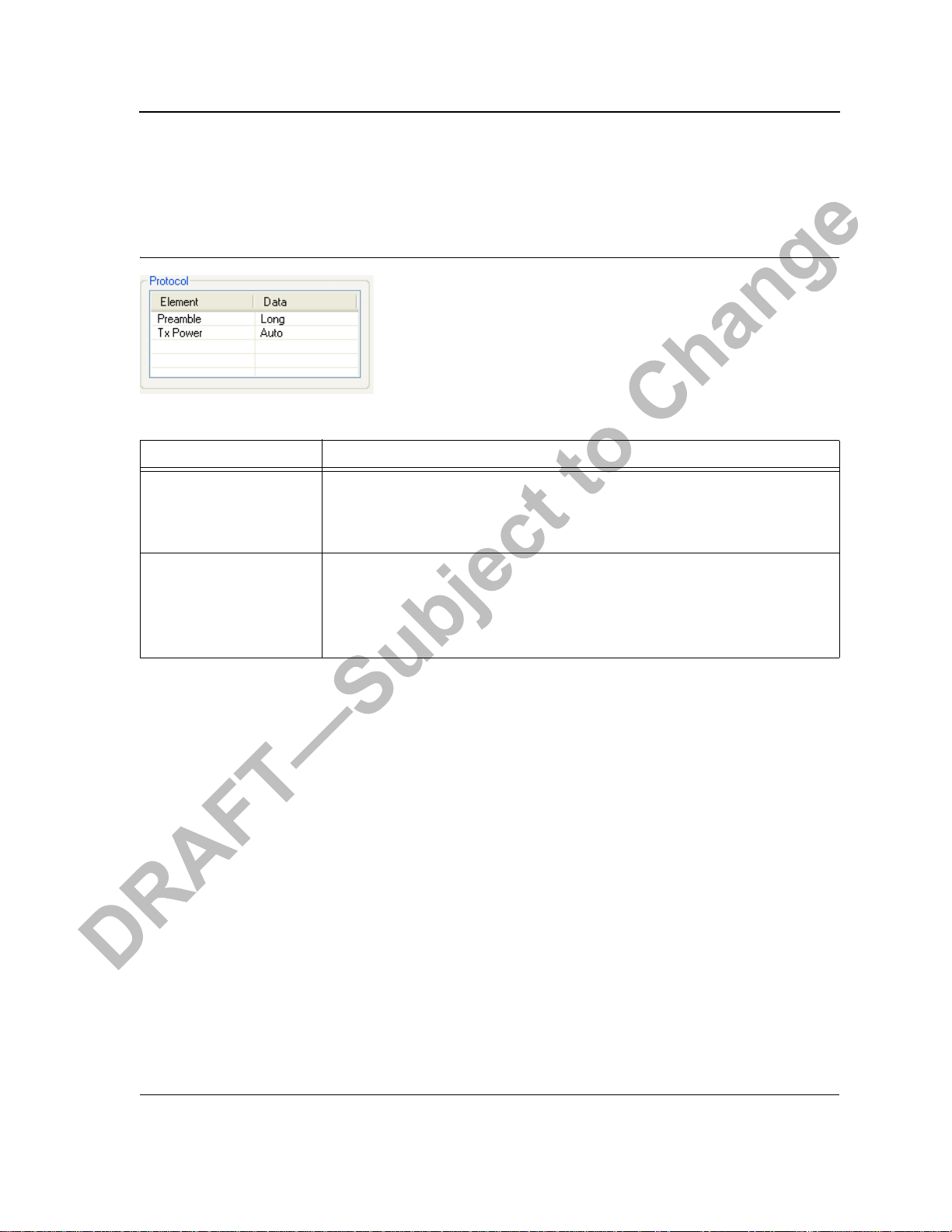

3.4.4 Protocol Section

The Protocol section displays the information on the protocol status.

Figure 40: Protocol Section

Table 14: Protocol Section Description

Field Description

Preamble Displays radio preamble type:

• Auto

• Short

• Long

Tx Power Displays transmit power mode:

• Auto

• High

• Medium

• Low

Statistics Tab

Not approved by Document Control. For review only.

CONFIDENTIAL

Doc. No. MV-S800477-00 Rev. B

Page 46

CB-85/MB-85/EC-85/MC-85 User Guide

3.5 Advanced Tab

The Advanced tab displays the advanced parameters available for the installed Marvell client cards.

Figure 41: Advanced Tab

Note

The Advanced tab is not accessible when the Windows Zero Configuration Utility is enabled.

3.5.1 Advanced Tab—Marvell Wireless Card

This section of the Advanced tab reports the type of Marvell client card installed.

Doc. No. MV-S800477-00 Rev. B Page 46 Document Classification: Proprietary Information July 18, 2006, 0.00

Not approved by Document Control. For review only.

CONFIDENTIAL

Page 47

Marvell Configuration Utility User Interface

Advanced Tab

3.5.2 Advanced Tab—Miscellaneous

Figure 42: Miscellaneous Section

T able 15: Advanced Tab Miscellaneous Section Description

Field Description

Auto connect if link loss or no connection (Use checked profiles in <Profile Manager>)

Boost Mode Select this check box for performance enhancement. Enable WMM Select this check box to enable/disable the Wireless Multimedia

Worldwide regulatory domain Select this check box to set the regulatory domain DFS Mode Select this check box to enable Dynamic Frequency Selection

MIMO Powersave Enables/disables the Multiple Input Multiple Output (MIMO)

Clear this check box to disable the auto-configuration feature. Whenever there is a link loss, auto-configuration tries to establish

a connection to the checked profiles in the Profile Manager window.

Enhancements (WMM) feature.

(DFS)

Powersave Mode. Available options are Off and Static.

Not approved by Document Control. For review only.

CONFIDENTIAL

Doc. No. MV-S800477-00 Rev. B

Page 48

CB-85/MB-85/EC-85/MC-85 User Guide

3.6 AutoLink Tab

To enable AutoLink mode, proceed as follows:

1. Toggle the AutoLink button on the Access Point to enable AutoLink mode.

2. Toggle the AutoLink button on the client to enter AutoLink mode.

Figure 43: Access Point AutoLink Button

Within 60 seconds, the AutoLink will be completed.

Figure 44: AutoLink Tab (Client)

Doc. No. MV-S800477-00 Rev. B Page 48 Document Classification: Proprietary Information July 18, 2006, 0.00

Not approved by Document Control. For review only.

CONFIDENTIAL

Page 49

AutoLink is complete.

Figure 45: AutoLink Tab (AutoLink Complete)

Marvell Configuration Utility User Interface

AutoLink Tab

Not approved by Document Control. For review only.

CONFIDENTIAL

Doc. No. MV-S800477-00 Rev. B

Page 50

CB-85/MB-85/EC-85/MC-85 User Guide

3.7 Admin Tab

The Admin tab allows you to import and export profiles.

Figure 46: Admin Tab

3.7.1 Admin Tab—Import Profiles

To import a profile, proceed as follows:

1. Click Import Profiles.

2. Select the path and filename of the profile.

3. Click Open.

3.7.2 Admin Tab—Export Profiles

To export a profile, proceed as follows:

1. Click Export Profiles.

2. Select or enter the path and filename of the profile.

3. Click Save.

Doc. No. MV-S800477-00 Rev. B Page 50 Document Classification: Proprietary Information July 18, 2006, 0.00

Not approved by Document Control. For review only.

CONFIDENTIAL

Page 51

Marvell Configuration Utility User Interface

3.8 About Tab

The About tab displays information about the Marvell Client Card Configuration Utility.

Figure 47: About Tab

About Tab

Not approved by Document Control. For review only.

CONFIDENTIAL

Doc. No. MV-S800477-00 Rev. B

Page 52

CB-85/MB-85/EC-85/MC-85 User Guide

THIS PA GE LEFT INTENTIO NALLY BLANK

Doc. No. MV-S800477-00 Rev. B Page 52 Document Classification: Proprietary Information July 18, 2006, 0.00

Not approved by Document Control. For review only.

CONFIDENTIAL

Page 53

Compliance Statements

Federal Communications Commission (FCC) Compliance

Appendix A.Compliance Statements

A.1 Federal Communications Commission (FCC)

Compliance

Transmitter Module Approval Conditions

1. Antennas must be installed to provide 20 cm separation distance from the transmitting antenna to the body of the user during normal operating condition. This device must not be co-located or operating in conjunction with any other antenna or transmitter.

2. Only those antennas filed under FCC ID:UAY-MMC85M can be used with this device.

3. When the module is installed in the final system where the antenna location is less than 20 cm separation distance to the body of user, additional equipment authorization must be applied.

4. FCC ID label on the final system must be labeled with "Contains FCC ID:UAY-MMC85M" or "Contains transmitter module FCC ID:UAY-MMC85M".

5. In the user manual, final system integrator must be ensure that there is no instruction provided in the user manual to install or remove the transmitter module.

6. The transmitter module must be installed and used in strict accordance with the manufacturer's instructions as described in the user documentation that comes with the product. This device complies with the following radio frequency and safety standards.

USA-Federal Communications Commission (FCC)

This equipment has been tested and found to comply with the limits for a Class B digital device, pursuant to Part 15 of FCC Rules. These limits are designed to provide reasonable protection against harmful interference in a residential installation. This equipment generates, uses, and can radiate radio frequency energy. If not installed and used in accordance with the instructions, it may cause harmful interference to radio communications. However, there is no guarantee that interference will not occur in a particular installation.

If this equipment does cause harmful interference to radio or television reception, which can be determined by tuning the equipment off and on, the user is encouraged to try and correct the interference by one or more of the following measures:

• Reorient or relocate the receiving antenna.

• Increase the distance between the equipment and the receiver.

• Connect the equipment to outlet on a circuit different from that to which the receiver is connected.

• Consult the dealer or an experienced radio/TV technician for help.

Any changes or modifications not expressly approved by the party responsible for compliance could void the user's authority to operate the equipment.

Not approved by Document Control. For review only.

CONFIDENTIAL

Doc. No. MV-S800477-00 Rev. B

Page 54

CB-85/MB-85/EC-85/MC-85 User Guide

Caution

This device is restricted to indoor use due to its operation in the 5.15 to 5.25 GHz frequency range. FCC requires this product to be used indoors for frequency range 5.15 to 5.25 GHz to reduce the potential for harmful interference to co-channel mobile satellite systems. High power radars are allocated as primary users of the 5.25 to 5.35 GHz and 5.65 to 5.85 GHz bands. These radar stations can cause interference with and/or damage this device.

Caution

Exposure to Radio Frequency Radiation

To comply with FCC RF exposure compliance requirements, a separation distance of at least 20 cm must be maintained between the antenna of this device and all persons. This device must not be co-located or operating in conjunction with any other antenna or transmitter.

A.2 Industry Canada Notice

This device complies with Canadian RSS-210.

"This Class B digital apparatus complies with Canadian ICES-003" Cet appareil numérique de la classe B est conforme à la norme NMB-003 du Canada

Operation is subject to the following two conditions: (1) this device may not cause interference, and (2) this device must accept any interference, including interference that may cause undesired operation of this device."

L'utilisation de ce dispositif est autorisée seulement aux conditions suivantes : (1) il ne doit pas produire de brouillage et (2) l'utilisateur du dispositif doit étre prêt à accepter tout brouillage radioélectrique reçu, même si ce brouillage est susceptible de compromettre le fonctionnement du dispositif.

The term "IC" before the equipment certification number only signifies that the Industry Canada technical specifications were met.

To reduce potential radio interference to other users, the antenna type and its gain should be so chosen that the equivalent isotropically radiated power (EIRP) is not more than that required for successful communication.

To prevent radio interference to the licensed service, this device is intended to be operated indoors and away from windows to provide maximum shielding. Equipment (or its transmit antenna) that is installed outdoors is subject to licensing.

Doc. No. MV-S800477-00 Rev. B Page 54 Document Classification: Proprietary Information July 18, 2006, 0.00

Not approved by Document Control. For review only.

CONFIDENTIAL

Page 55

Compliance Statements

European Community

A.3 European Community

This equipment is marked with the 0984 symbol and can be used throughout the European community.

This indicates compliance with the R&TTE Directive 1999/5/EC and meets the relevant parts of following technical specifications:

• EN 301 893 – Broadband Radio Access Networks (BRAN); 5 GHz high performance RLAN; Harmonized EN

covering essential requirements of article 3.2 of the R&TTE Directive.

• EN 300 328-2 – Electromagnetic compatibility and Radio spectrum Matters (ERM); Wideband Transmission

systems; data transmission equipment operating in the 2,4 GHz ISM band and using spread spectrum modulation techniques

• EN 301 489-17 – Electromagnetic compatibility and Radio Spectrum Matters (ERM); Electromagnetic Com-

patibility (EMC) standard for radio equipment and services; Part 17: Specific conditions for 2.4 GHz wideband transmission systems and 5 GHz high performance RLAN equipment.

• EN 60950 – Safety of information technology equipment, including electrical business equipment. Marking by

the symbol: ! indicates that usage restrictions apply.

Marking by the symbol indicates that usage restrictions apply.

Not approved by Document Control. For review only.

CONFIDENTIAL

Doc. No. MV-S800477-00 Rev. B

Page 56

CB-85/MB-85/EC-85/MC-85 User Guide

THIS PA GE LEFT INTENTIO NALLY BLANK

Doc. No. MV-S800477-00 Rev. B Page 56 Document Classification: Proprietary Information July 18, 2006, 0.00

Not approved by Document Control. For review only.

CONFIDENTIAL

Page 57

Acronyms and Abbreviations

Appendix B.Acronyms and Abbreviations

Table 16: Acronyms and Abbreviations

Term Definition

AES Advanced Encryption Standard AP Access Point BRAN Broadband Radio Access Networks BSS Basic Service Set BSSID Basic Service Set ID CCKM Cisco Centralized Key Management CCX Cisco Compatible eXtensions CE Conformité Européenne (European Conformity) CTS Clear to Send DFS Dynamic Frequency Selection DHCP Dynamic Host Configuration Protocol EAP Extensible Authentication Protocol EC European Community EIRP Equivalent Isotropically Radiated Power EMC Electromagnetic Compatibility EN European Standard ERM Electromagnetic compatibility and Radio spectrum Matters EWC Enhanced Wireless Consortium FCC Federal Communications Commission ICES Interference-Causing Equipment Standard IEEE Institute of Electrical and Electronics Engineers IP Internet Protocol ISM Industrial, Scientific, and Medical appli cations (of radio) LAN Local Area Network LEAP Light EAP IC Industry Canada MAC Medium Access Controller Mbps Megabits per second MCS Modulation and Coding Scheme MIC Message Integrity Check MIMO Multiple Input Multiple Output

Not approved by Document Control. For review only.

CONFIDENTIAL

Doc. No. MV-S800477-00 Rev. B

Page 58

CB-85/MB-85/EC-85/MC-85 User Guide

Table 16: Acronyms and Abbreviations (Continued)

Term Definition

NMB Norme sur le Matériel Brouilleur (ICES) PEAP Protected EAP PSK Pre-Shared Keys R&TTE Radio and Telecommunications Terminal Equipment RADIUS Remote Authentication Dial In User Service RLAN Radio Local Area Network RSS Radio Standards Specification RTS Request to Send SSID Service Set Identifier TCP/IP Transmission Control Protocol/Internet Protocol TKIP Temporal Key Integrity Protocol TLS Transport Layer Security TTLS Tunneled TLS WEP Wired Equivalent Privacy Wi-Fi Wireless Fidelity (IEEE 802.11) WLAN Wireless Local Area Network WMM Wireless Multimedia Enhancements WPA Wi-Fi Protected Access WPA2 Wi-Fi Protected Access 2 WPA2-PSK Wi-Fi Protected Access 2-Pre-Shared Keys WPA-PSK Wi-Fi Protected Access-Pre-Shared Keys

Doc. No. MV-S800477-00 Rev. B Page 58 Document Classification: Proprietary Information July 18, 2006, 0.00

Not approved by Document Control. For review only.

CONFIDENTIAL

Page 59

Appendix C.Revision History

Table 17: Revision History

Document Type Revision

Release Rev. B

Revision History

Appendix A. "Compliance Statements" on page 53

added

Not approved by Document Control. For review only.

CONFIDENTIAL

Doc. No. MV-S800477-00 Rev. B

Page 60

Address

Marvell Semiconductor, Inc.

5488 Marvell Lane Santa Clara, CA 95054, USA

Tel: 1.408.222.2500 Fax: 1.408.752.9028

www.marvell.com

Worldwide Corporate Offices

Marvell Semiconductor, Inc.

5488 Marvell Lane Santa Clara, CA 95054, USA Tel: 1.408.222.2500 Fax: 1.408.752.9028

Marvell Asia Pte, Ltd.

151 Lorong Chuan, #02-05 New Tech Park, Singapore 556741 Tel: 65.6756.1600 Fax: 65.6756.7600

Marvell Japan K.K.

Shinjuku Center Bldg. 44F 1-25-1, Nishi-Shinjuku, Shinjuku-ku Tokyo 163-0644, Japan Tel: 81.3.5324.0355 Fax: 81.3.5324.0354

Marvell Semiconductor Israel, Ltd.

6 Hamada Street Mordot HaCarmel Industrial Park Yokneam 20692, Israel Tel: 972.4.909.1500 Fax: 972.4.909.1501

Marvell Semiconductor Korea, Ltd.

Rm. 1603, Korea Trade Center 159-1 Samsung-Dong, Kangnam-Ku Seoul, Korea 135-729 Tel: 82.2.551-6070-6079 Fax: 82.2.551.6080

Radlan Computer Communications, Ltd.

Atidim Technological Park, Bldg. #4 P O Box 58179 Tel Aviv 61580, Israel Tel: 972.3.645.8555 Fax: 972.3.645.8544

Worldwide Sales Offices

Western US

Marvell

5488 Marvell Lane Santa Clara, CA 95054, USA Tel: 1.408.222.2500 Fax: 1.408.752.9028 Sales Fax: 1.408.752.9029

Central US

Marvell

9600 North MoPac Drive, Suite #215 Austin, TX 78759, USA Tel: 1.512.343.0593 Fax: 1.512.340.9970

Eastern US/Canada

Marvell

Parlee Office Park 1 Meeting House Road, Suite 1 Chelmsford, MA 01824 , USA Tel: 1.978.250.0588 Fax: 1.978.250.0589

Europe

Marvell

c/o Harts CA 3 Churchgates Church Lane Berkhamsted Hertfordshire, HP4 2UB United Kingdom Tel: 44.1442.263341 Fax: 44.1442.211543

Israel

Marvell

6 Hamada Street Mordot HaCarmel Industrial Park Yokneam 20692, Israel Tel: 972.4.909.1500 Fax: 972.4.909.1501

China

Marvell

10J, No. 1800, Zhong Shan West Road Shanghai, PRC 200235 Tel: 86.21.6440.1350 Fax: 86.21.6440.1705

Marvell

Rm. 1102/1103, Jintai Fudi Mansion #9 An Ning Zhuang West Rd. Qing He, Haidian District Beijing, PRC 100085 Tel: 86.10.8274.3831 Fax: 86.10.8274.3830

Japan

Marvell

Shinjuku Center Bldg. 44F 1-25-1, Nishi-Shinjuku, Shinjuku-ku Tokyo 163-0644, Japan Tel: 81.3.5324.0355 Fax: 81.3.5324.0354

Taiwan

Marvell

2Fl., No.1, Alley 20, Lane 407, Sec. 2 Ti-Ding Blvd., Nei Hu District Taipei, Taiwan, 114, R.O.C Tel: 886.2.8177.7071 Fax: 886.2.8752.5707

Korea

Marvell

Rm. 1603, Korea Trade Center 159-1 Samsung-Dong, Kangnam-Ku Seoul, Korea 135-729 Tel: 82.2.551-6070-6079 Fax: 82.2.551.6080

For more information, visit our website at: www.marvell.com
