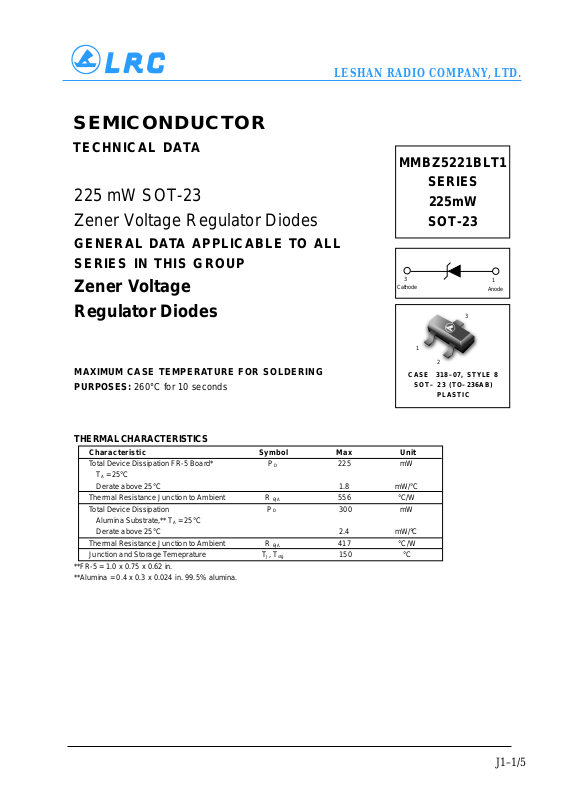

SEMICONDUCTOR
TECHNICAL DATA
225 mW SOT-23
LESHAN RADIO COMPANY, LTD.
MMBZ5221BLT1
SERIES
225mW
Zener Voltage Regulator Diodes
GENERAL DATA APPLICABLE TO ALL
SERIES IN THIS GROUP
Zener Voltage
Regulator Diodes
MAXIMUM CASE TEMPERATURE FOR SOLDERING
PURPOSES: 260°C for 10 seconds
THERMAL CHARACTERISTICS
Characteristic Symbol Ma x Unit
Total Device Dissipation FR-5 Board* P
TA = 25°C
Derate above 25°C 1.8 mW/°C
Thermal Resistance Junction to Ambient R
Total Device Dissipation P
Alumina Substrate,** TA = 25°C
Derate above 25°C 2.4 mW/°C
Thermal Resistance Junction to Ambient R
Junction and Storage Temeprature TJ , T
**FR-5 = 1.0 x 0.75 x 0.62 in.
**Alumina = 0.4 x 0.3 x 0.024 in. 99.5% alumina.
D
θJA
D
θJA
stg
225 mW
556 °C/W
300 mW
417 °C/W
150 °C
SOT-23
3
Cathode
3
1
2
CASE 318–07, STYLE 8
SOT– 23 (TO–236AB)
PLASTIC
1
Anode
J1–1/5
Page 2
LESHAN RADIO COMPANY, LTD.
GENERAL DATA - 225 mW SOT-23
ELECTRICAL CHARACTERISTICS
(Pinout: 1-Anode, 2-NC, 3-Cathode) (V F = 0.9 V Max @ I F = 10 mA for all types.)
Test
Current
I
Device
MMBZ5221BLT1 18A 20 2.4 1200 30 100 1
MMBZ5222BLT1 18B 20 2.5 1250 30 100 1
MMBZ5223BLT1 18C 20 2.7 1300 30 75 1
MMBZ5224BLT1 18D 20 2.8 1400 30 75 1
MMBZ5225BLT1 18E 20 3 1600 29 50 1
MMBZ5226BLT1 8A 20 3.3 1600 28 25 1
MMBZ5227BLT1 8B 20 3.6 1700 24 15 1
MMBZ5228BLT1 8C 20 3.9 1900 23 10 1
MMBZ5229BLT1 8D 20 4.3 2000 22 5 1
MMBZ5230BLT1 8 E 20 4.7 1900 19 5 2
MMBZ5231BLT1 8F 20 5.1 1600 17 5 2
MMBZ5232BLT1 8G 20 5.6 1600 11 5 3
MMBZ5233BLT1 8H 20 6 1600 7 5 3.5
MMBZ5234BLT1 8J 20 6.2 1000 7 5 4
MMBZ5235BLT1 8K 20 6.8 750 5 3 5
MMBZ5236BLT1 8L 20 7.5 500 6 3 6
MMBZ5237BLT1 8M 20 8.2 500 8 3 6.5
MMBZ5238BLT1 8N 20 8.7 600 8 3 6.5
MMBZ5239BLT1 8 P 20 9.1 600 10 3 7
MMBZ5240BLT1 8Q 20 10 600 17 3 8
MMBZ5241BLT1 8R 20 11 600 22 2 8.4
MMBZ5242BLT1 8S 20 12 600 30 1 9 .1
MMBZ5243BLT1 8T 9.5 13 600 13 0.5 9.9
MMBZ5244BLT1 8U 9 14 600 15 0.1 10
MMBZ5245BLT1 8V 8.5 15 600 16 0.1 11
MMBZ5246BLT1 8W 7.8 16 600 17 0.1 12
MMBZ5247BLT1 8X 7.4 17 600 19 0.1 13
MMBZ5248BLT1 8 Y 7 18 600 21 0. 1 14
MMBZ5249BLT1 8Z 6.6 19 600 23 0.1 14
MMBZ5250BLT1 81A 6.2 20 600 25 0.1 15
MMBZ5251BLT1 81B 5.6 22 600 29 0.1 17
MMBZ5252BLT1 81C 5.2 24 600 33 0.1 18
MMBZ5253BLT1 81D 5 25 6 00 35 0.1 19
MMBZ5254BLT1 81E 4.6 27 600 41 0.1 21
MMBZ5255BLT1 81F 4.5 28 600 44 0.1 21
MMBZ5256BLT1 81G 4.2 30 600 49 0.1 23
MMBZ5257BLT1 81H 3.8 33 700 58 0.1 25
MMBZ5258BLT1 81J 3.4 36 700 70 0.1 27
MMBZ5259BLT1 81K 3.2 39 800 80 0.1 30
MMBZ5260BLT1 18F 3 43 900 93 0.1 33
MMBZ5261BLT1 81M 2.7 47 1000 105 0.1 36
MMBZ5262BLT1 81N 2 .5 51 1100 125 0.1 39
MMBZ5263BLT1 81P 2.2 56 1300 150 0.1 43
MMBZ5264BLT1 81Q 2.1 60 1400 170 0.1 46
MMBZ5265BLT1 81R 2 62 1400 185 0.1 47
MMBZ5266BLT1 81S 1.8 68 1600 230 0.1 52
MMBZ5267BLT1 81T 1.7 75 1700 270 0.1 56
MMBZ5268BLT1 81U 1.5 82 2000 330 0.1 62
MMBZ5269BLT1 81V 1.4 87 2200 370 0.1 68
MMBZ5270BLT1 81W 1.4 91 2300 400 0.1 69
Marking
ZT
mA
Zener
Voltage
VZ(+5%)
Nominal
(Note1)
Z
Zk
IZ=0.25mA
ΩΩ
ΩMax
ΩΩ
Z
Zk
IZ=IZT@10%Mod
ΩΩ
ΩMax
ΩΩ
Max
I
@V
R
µµ
µAV
µµ
R
NOTE 1. Zener voltage is measured with a pulse test current (I ZT ) applied at an ambient temperature of 25 °C
J1–2/5
Page 3
LESHAN RADIO COMPANY, LTD.
GENERAL DATA — 225mW SOT–23
TYPICAL CHARACTERISICS
8
7
TYPICAL T
FOR MMBZ5221BLT1
6
SERIES
5
4
3
2
1
0
-1
-2
, TEMPERA TURE COEFFICIENT (mV/ °C)
-3
VZ
2 3 4 5 6 7 8 9 10 11 12
θ
VALUES
C
@ I
V
Z
V Z , NOMINAL ZENER VOLTAGE (V)
Figure 1. Temperature Coefficients
(Temperature Range –55°C to +150°C)
1K
T
= 25°C
J
I
= 0.1 I
100
I Z = 1 mA
5 mA
Z(AC)
f = 1 kHz
Z(DC)
100
TYPICAL T
FOR MMBZ5221BLT1
VALUES
C
SERIES
V Z @ I
ZT
10
, TEMPERATURE COEFFICIENT (mV/ ° C)
1
VZ
10 100
θ
ZT
V Z , NOMINAL ZENER VOLTAGE (V)
Figure 2. Temperature Coefficients
(Temperature Range –55°C to +150°C)
1000
75 V (MMBZ5267BLT1)
91 V (MMBZ5270BLT1)
100
20 mA
10
, DYNAMIC IMPEDANCE (Ω)
ZT
Z
1
1 10 100
V Z , NOMINAL ZENER VOLTAGE
Figure 3. Effect of Zener Voltage on
Zener Impedance
10
, FORWARD CURRENT (mA)
F
150°C
I
1
0.4 0.5 0.6 0.7 0.8 0.9 1.0 1.1 1.2
75°C 25°C
0°C
V F , FORWARD VOLTAGE (V)
Figure 4. Typical Forward Voltage
J1–3/5
Page 4
LESHAN RADIO COMPANY, LTD.
GENERAL DATA — 225mW SOT–23
TYPICAL CHARACTERISICS
1000
T A = 25°C
100
10
0 V BIAS
1 V BIAS
50% OF V
BIAS AT
NOM
Z
C, CAPACITANCE (pF)
1
1 10 100
V Z , NOMINAL ZENER VOLTAGE (V)
Figure 5. Typical Capacitance
100
10
1
T
= 25°C
A
1000
100
10
1
0.1
0.01
0.001
, LEAKAGE CURRENT (µA)
R
0.0001
I
0.00001
0 102030 40 506070 8090
+150°C
+25°C
–55°C
V Z , NOMINAL ZENER VOLTAGE (V)
Figure 6. Typical Leakage
100
10
1
T
Current
= 25°C
A
0.1
, ZENER CURRENT (mA)
Z
I
0
024681012
V Z , ZENER VOLTAGE (V)
Figure 7. Zener Voltage versus Zener Current
Up to 12 V)
(V
Z
0.1
, ZENER CURRENT (mA)
Z
I
0.01
10 30 50 70 90
V Z , ZENER VOLTAGE (V)
Figure 8. Zener Voltage versus Zener Current
(12 V to 91 V)
J1–4/5
Page 5
LESHAN RADIO COMPANY, LTD.
GENERAL DATA — 225 mW SOT-23
Zener Voltage Regulator Diodes — Surface Mounted
225 mW SOT-23
NOTES:
1. DIMENSIONING AND TOLERANCING PER
ANSI Y14.5M, 1982.
2. CONTROLLING DIMENSION: INCH.
3. MAXIMUM LEAD THICKNESS INCLUDES
LEAD FINISH THICKNESS. MINIMUM LEAD
THICKNESS IS THE MINIMUM THICKNESS
OF BASE MATERIAL.
A
L
3
B
1
V
G
S
2
DIM MIN MAX MIN MAX
STYLE 8:
PIN 1. ANODE
2. NO CONNECTION
3. CATHODE
INCHES MILLIMETERS
0.1102
A
0.0472
B
0.0350
C
0.0150
D
0.0701
G
0.0005
H
0.0034
J
0.0180
K
0.0350
L
0.0830
S
0.0177
V
C
D
H
K
J
CASE 318-07
PLASTIC
(Refer to Section 10 for Surface Mount, Thermal Data and Footprint Information.)
0.1197
0.0551
0.0440
0.0200
0.0807
0.0040
0.0070
0.0236
0.0401
0.0984
0.0236
0.035
0.9
3.04
1.40
1.11
0.50
2.04
0.100
0.177
0.60
1.02
2.50
0.60
0.031
0.8
2.80
1.20
0.89
0.37
1.78
0.013
0.085
0.45
0.89
2.10
0.45
0.037
0.95
SOT-23 Footprint
0.037
0.95
0.079
2.0
mm
()
inches
MULTIPLE PACKAGE QUANTITY (MPQ)
REQUIREMENTS
Package Option Type No. Suffix MPQ (Units)
Tape and Reel T1 3K
Tape and Ammo T3 10K
(Refer to Section 10 for more information on Packaging Specifications.)
J1–5/5
