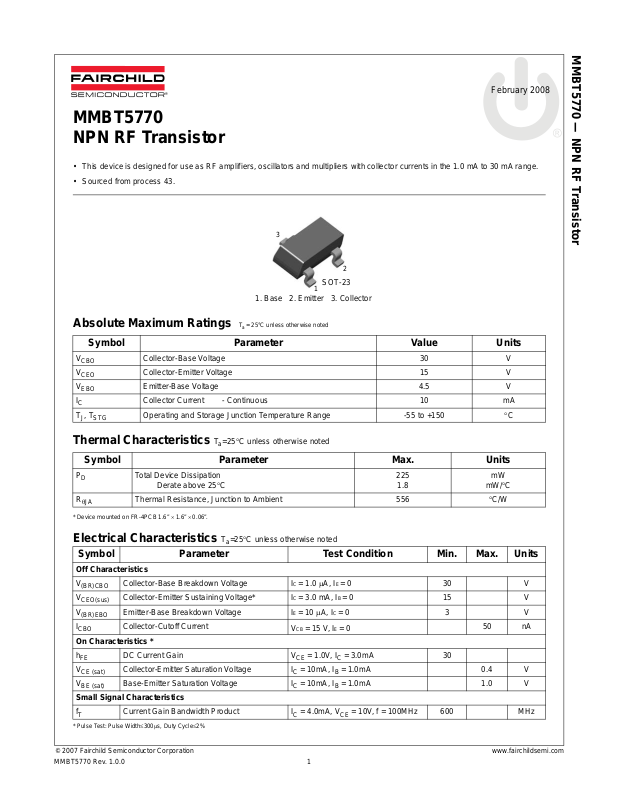

MMBT5770 NPN RF Transistor

• This device is designed for use as RF amplifiers, oscillators and multipliers with collector currents in the 1.0 mA to 30 mA range.

• Sourced from process 43.

3

2

SOT-23

1. Base 2. Emitter 3. Collector

1

MMBT5770 — NPN RF Transistor

Absolute Maximum Ratings T

= 25°C unless otherwise noted

a

Symbol Parameter Value Units

V

CBO

V

CEO

V

EBO

I

C

TJ, T

STG

Thermal Characteristics T

Collector-Base Voltage 30 V Collector-Emitter Voltage 15 V Emitter-Base Voltage 4.5 V Collector Current - Continuous 10 mA Operating and Storage Junction Temperature Range -55 to +150 °C

=25°C unless otherwise noted

a

Symbol Parameter Max. Units

P

D

R

θJA

* Device mounted on FR-4PCB 1.6” × 1.6” × 0.06”.

Electrical Characteristics T

Total Device Dissipation

Derate above 25°C

225

1.8

mW

mW/°C

Thermal Resistance, Junction to Ambient 556 °C/W

=25°C unless otherwise noted

a

Symbol Parameter Test Condition Min. Max. Units

Off Characteristics

V

(BR)CBO

V

CEO(sus)

V

(BR)EBO

I

CBO

On Characteristics *

h

FE

V

CE (sat)

V

BE (sat)

Small Signal Characteristics

f

T

* Pulse Test: Pulse Width≤300μs, Duty Cycle≤2%

Collector-Base Breakdown Voltage IC = 1.0 μA, IE = 0 30 V Collector-Emitter Sustaining Voltage* IC = 3.0 mA, IB = 0 15 V Emitter-Base Breakdown Voltage IE = 10 μA, IC = 0 3 V Collector-Cutoff Current

DC Current Gain V

VCB = 15 V, IE = 0

= 1.0V, IC = 3.0mA 30

CE

50 nA

Collector-Emitter Saturation Voltage IC = 10mA, IB = 1.0mA 0.4 V Base-Emitter Saturation Voltage IC = 10mA, IB = 1.0mA 1.0 V

Current Gain Bandwidth Product IC = 4.0mA, V

= 10V, f = 100MHz 600 MHz

CE

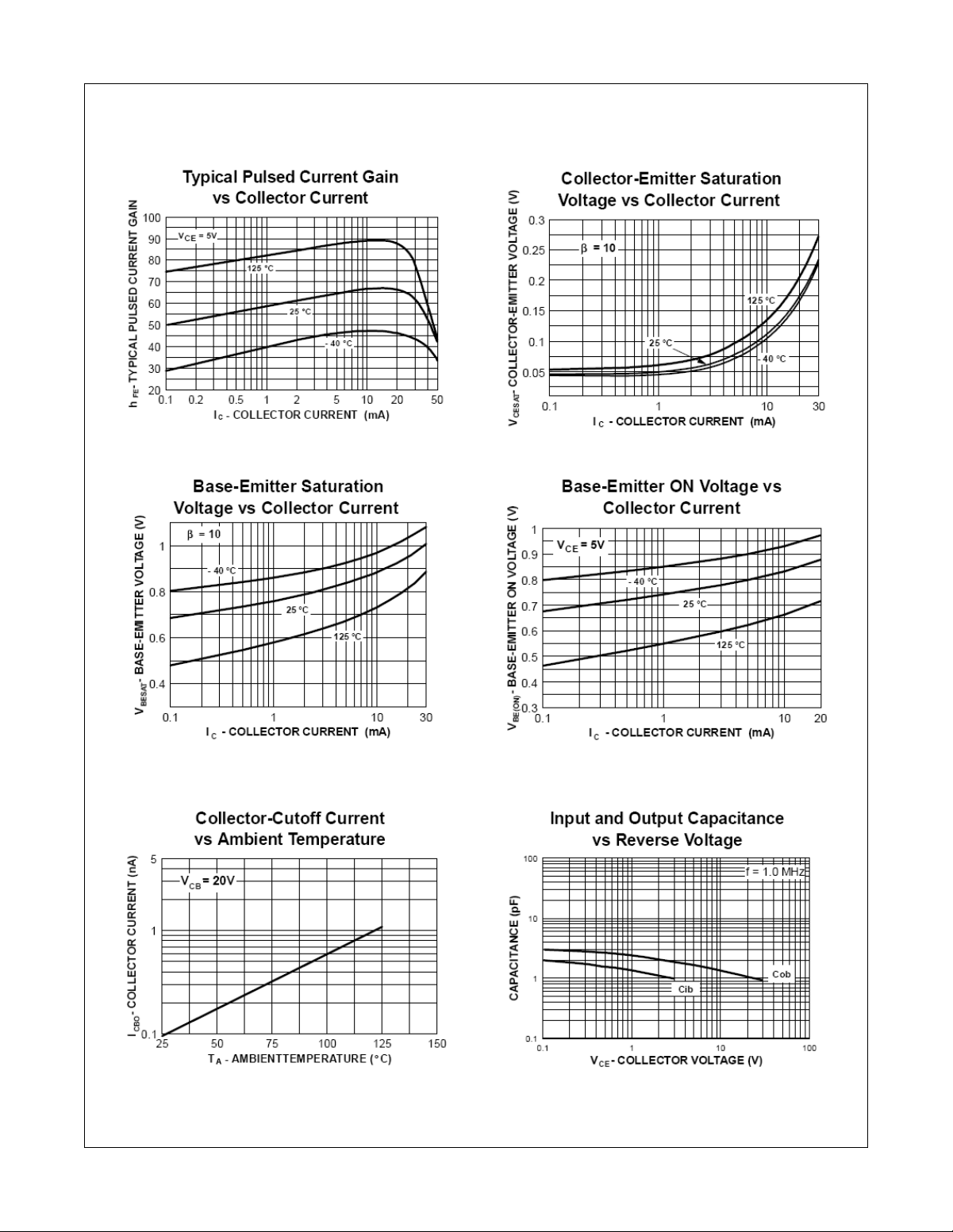

Typical Characteristics

MMBT5770 — NPN RF Transistor

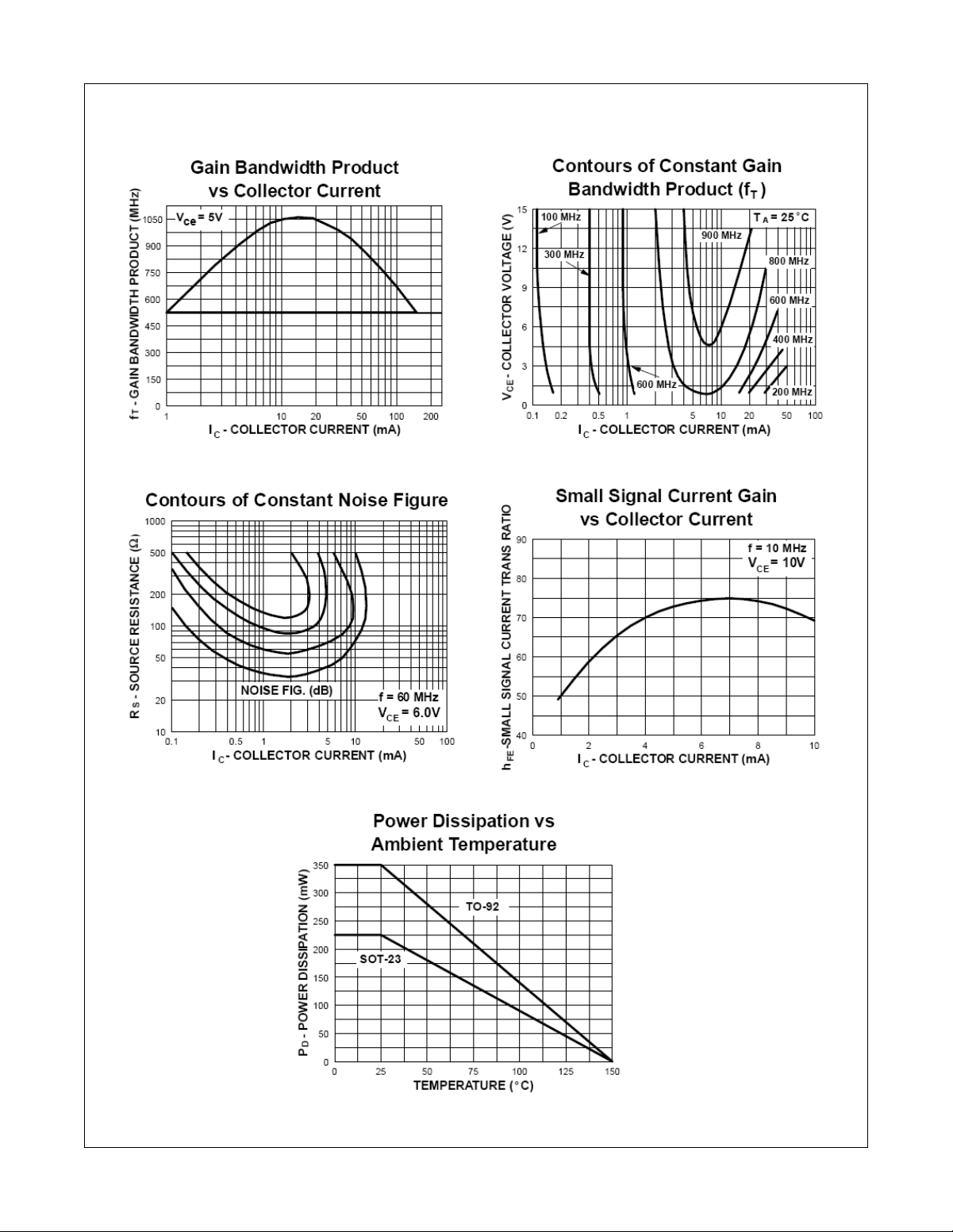

Typical Characteristics (continued)

MMBT5770 — NPN RF Transistor

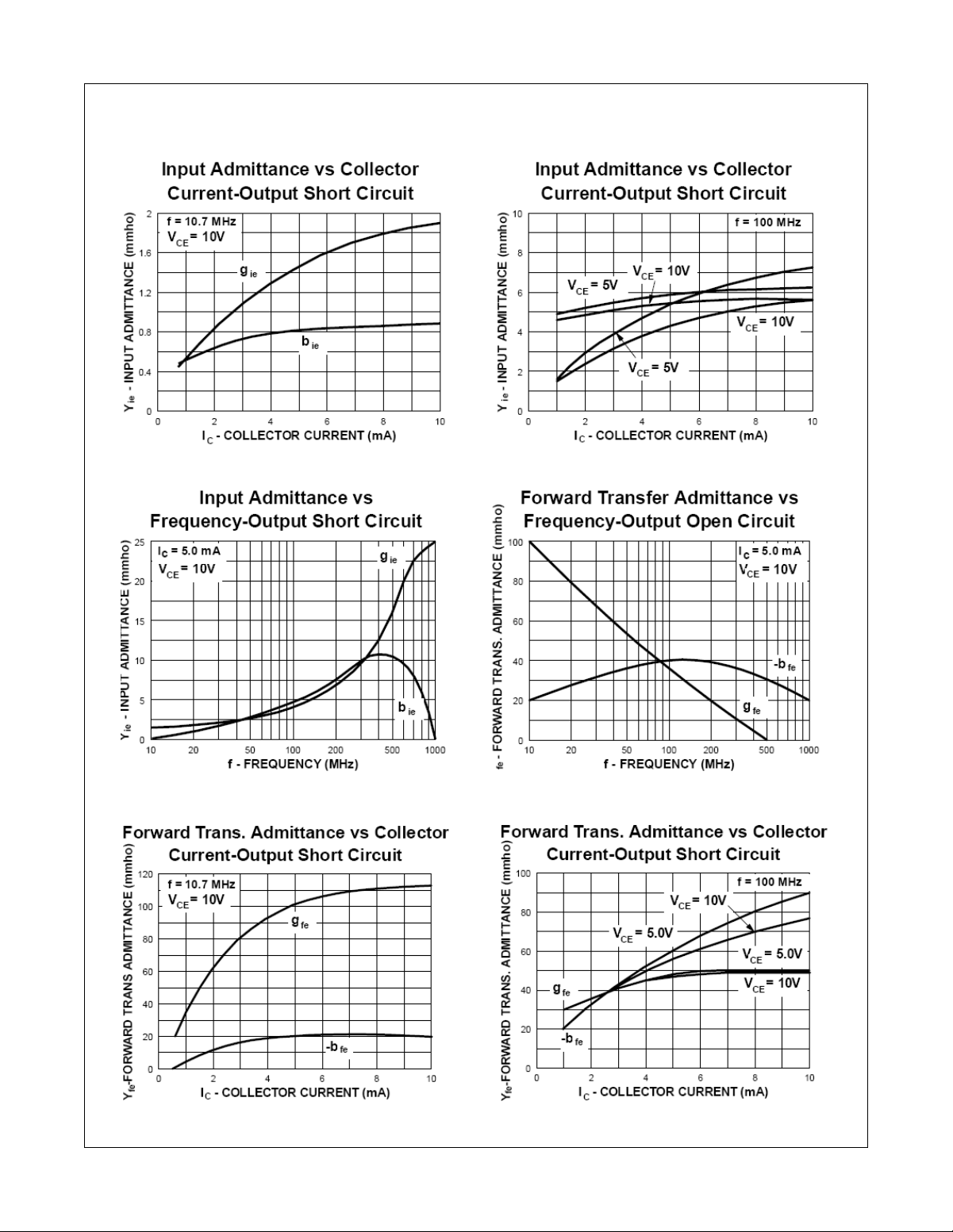

Typical Characteristics (continued)

MMBT5770 — NPN RF Transistor

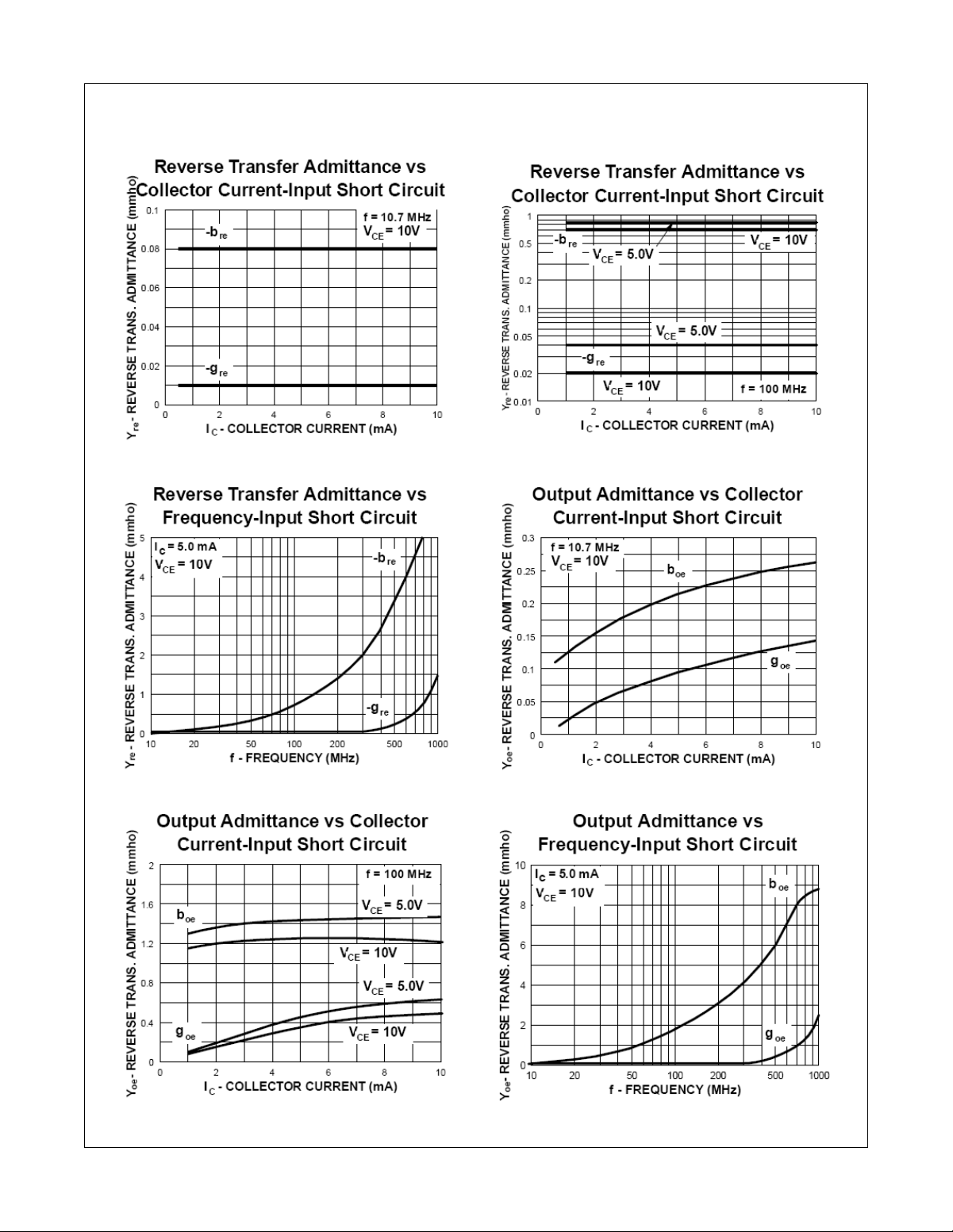

Typical Characteristics (continued)

MMBT5770 — NPN RF Transistor
