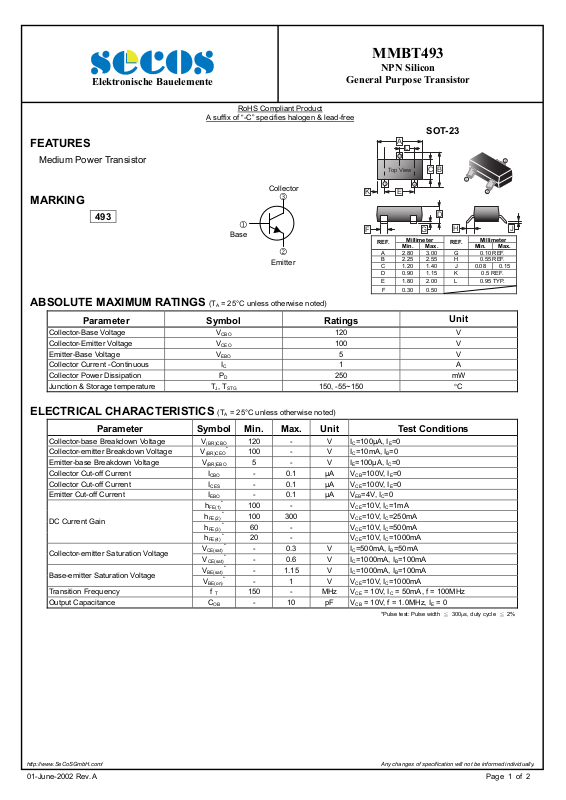

MMBT493
Elektronische Bauelemente
General Purpose Transistor
RoHS Compliant Product
A suffix of “-C” specifies halogen & lead-free
FEATURES
Medium Power Transistor
MARKING
493
1
Base
ABSOLUTE MAXIMUM RATINGS (T
Parameter Symbol Ratings
Collector-Base Voltage V
Collector-Emitter Voltage V
Emitter-Base Voltage V
Collector Current -Continuous IC 1 A
Collector Power Dissipation PD 250 mW
Junction & Storage temperature TJ, T
= 25°C unless otherwise noted)
A
120 V
CBO
100 V
CEO
5 V
EBO
150, -55~150 °C
STG
Collector
3
2
Emitte
ELECTRICAL CHARACTERISTICS (T
= 25°C unless otherwise noted)
A
NPN Silicon
SOT-23
A
L
3
Top View
1
K E
F
REF.
A 2.80 3.00 G 0.10 REF.
B 2.25 2.55 H 0.55 REF.
C 1.20 1.40 J 0.08 0.15
D 0.90 1.15 K 0.5 REF.
E 1.80 2.00 L 0.95 TYP.
F 0.30 0.50
C B
2
D
G
Millimeter Millimete
Min. Max.
H J
REF.
Unit
3
1
2
Min. Max.
Parameter Symbol Min. Max. Unit Test Conditions
Collector-base Breakdown Voltage V
Collector-emitter Breakdown Voltage V
Emitter-base Breakdown Voltage V
Collector Cut-off Current I
Collector Cut-off Current I
Emitter Cut-off Current I
DC Current Gain
Collector-emitter Saturation Voltage
Base-emitter Saturation Voltage
Transition Frequency f T 150 - MHz VCE = 10V, IC = 50mA, f = 100MHz
Output Capacitance COB - 10 pF VCB = 10V, f = 1.0MHz, IE = 0
120 - V IC=100μA, IE=0
(BR)CBO
*
100 - V IC=10mA, IB=0
(BR)CEO
5 - V IE=100μA, IC=0
(BR)EBO
- 0.1 μA VCB=100V, IE=0
CBO
- 0.1 μA VCE=100V, IE=0
CES
- 0.1 μA VEB=4V, IC=0
EBO
*
h
100 - VCE=10V, IC=1mA
FE(1)
*
h
100 300 VCE=10V, IC=250mA
FE(2)
*
h
60 - VCE=10V, IC=500mA
FE(3)
*
h
20 - VCE=10V, IC=1000mA
FE(4)
*
V
- 0.3 V IC=500mA, IB=50mA
CE(sat)
*
- 0.6 V IC=1000mA, IB=100mA
V
CE(sat)
*
V
- 1.15 V IC=1000mA, IB=100mA
BE(sat)
*
- 1 V VCE=10V, IC=1000mA
V
BE(on)
*Pulse test: Pulse width ≦ 300μs, duty cycle ≦ 2%
http://www.SeCoSGmbH.com/ Any changes of specification will not be informed individually.
01-June-2002 Rev. A Page 1 of 2
Page 2
Elektronische Bauelemente

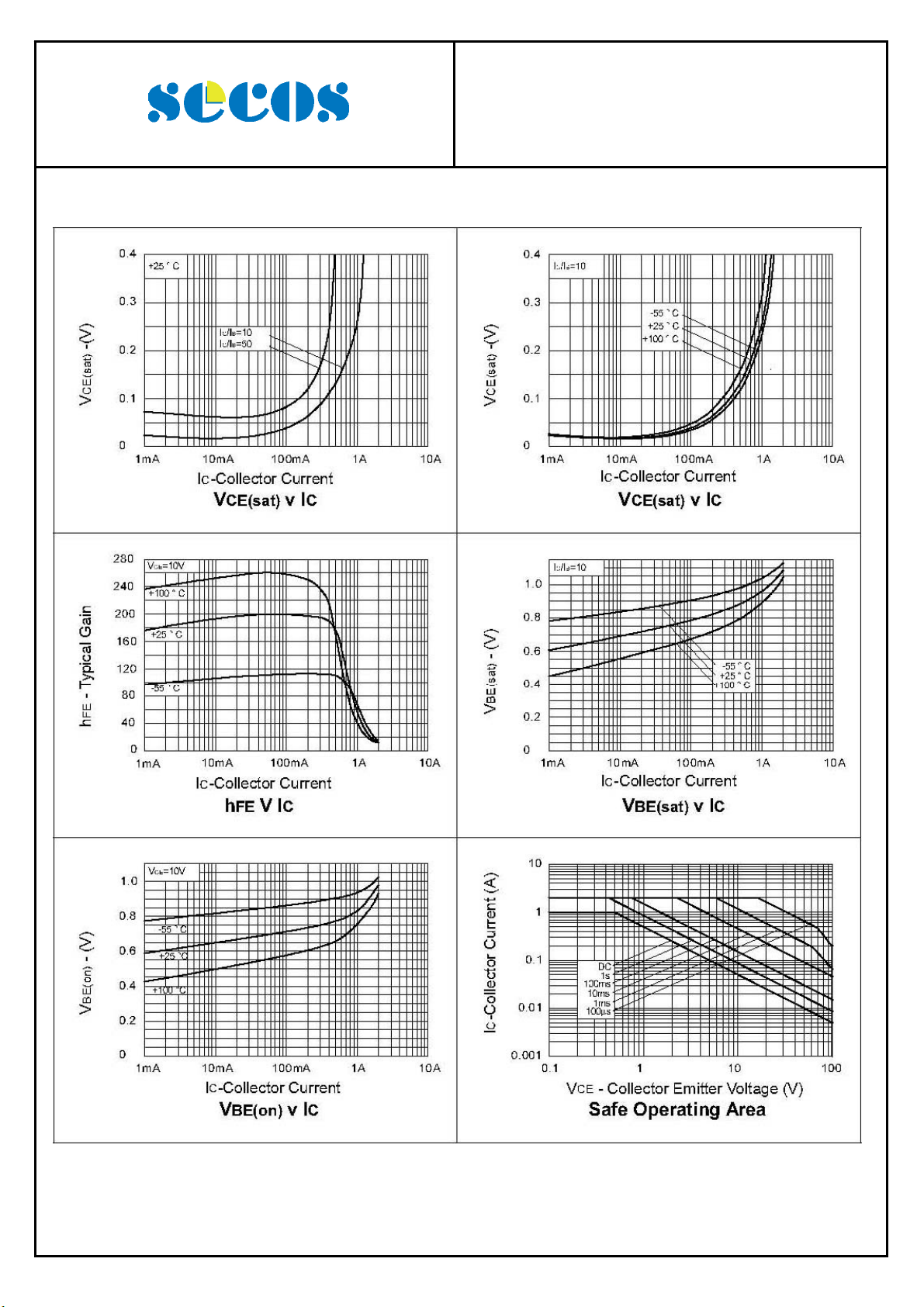

CHARACTERISTIC CURVES
MMBT493
General Purpose Transistor
NPN Silicon
http://www.SeCoSGmbH.com/ Any changes of specification will not be informed individually.
01-June-2002 Rev. A Page 2 of 2
