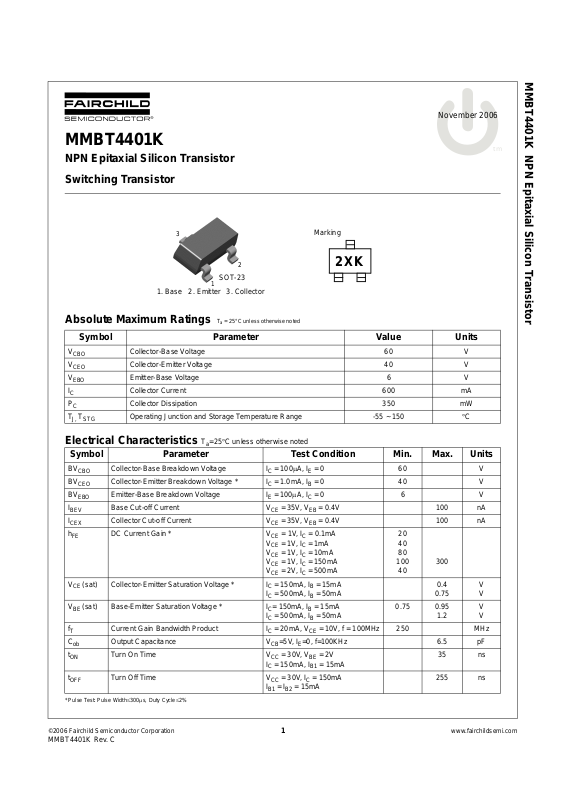

MMBT4401K
NPN Epitaxial Silicon Transistor
Switching Transistor
MMBT4401K NPN Epitaxial Silicon Transistor
November 2006
3
2
SOT-23
1
Marking
2XK
1. Base 2. Emitter 3. Collector
Absolute Maximum Ratings T
= 25°C unless otherwise noted
a
Symbol Parameter Value Units
V
CBO
V
CEO
V
EBO
I
C
P
C
T
J, TSTG
Electrical Characteristics T
Collector-Base Voltage 60 V
Collector-Emitter Voltage 40 V
Emitter-Base Voltage 6 V
Collector Current 600 mA
Collector Dissipation 350 mW
Operating Junction and Storage Temperature Range -55 ~ 150 °C
=25°C unless otherwise noted
a
Symbol Parameter Test Condition Min. Max. Units
BV
CBO
BV
CEO
BV
EBO
I
BEV
I
CEX
h
FE
V
CE
V
(sat) Base-Emitter Saturation Voltage * IC= 150mA, IB = 15mA
BE
f
T
C
ob
t
ON
t
OFF
* Pulse Test: Pulse Width≤300µs, Duty Cycle≤2%
Collector-Base Breakdown Voltage IC = 100µA, IE = 0 60 V
Collector-Emitter Breakdown Voltage * IC = 1.0mA, IB = 0 40 V
Emitter-Base Breakdown Voltage IE = 100µA, IC = 0 6 V
Base Cut-off Current V
Collector Cut-off Current V
DC Current Gain * VCE = 1V, IC = 0.1mA
= 35V, V
CE
= 35V, V
CE
V
= 1V, IC = 1mA
CE
V
= 1V, IC = 10mA
CE
V
= 1V, IC = 150mA
CE
V
= 2V, IC = 500mA
CE
= 0.4V 100 nA
EB
= 0.4V 100 nA
EB
20
40
80
100
40
(sat) Collector-Emitter Saturation Voltage * IC = 150mA, IB = 15mA
IC = 500mA, IB = 50mA
0.75 0.95
IC = 500mA, IB = 50mA
Current Gain Bandwidth Product IC = 20mA, V
= 10V, f = 100MHz 250 MHz
CE
Output Capacitance VCB=5V, IE=0, f=100KHz 6.5 pF
Turn On Time V
Turn Off Time V
= 30V, V
CC
IC = 150mA, IB1 = 15mA
= 30V, IC = 150mA
CC
I
= I
B1
B2
BE
= 15mA
= 2V
300
0.4
0.75
1.2
35 ns
255 ns
V
V
V
V
©2006 Fairchild Semiconductor Corporation 1 www.fairchildsemi.com
MMBT4401K Rev. C
Page 2
Typical Performance Characteristics
Figure 1. DC current Gain Figure 2. Collector-Emitter Saturation Voltage
MMBT4401K NPN Epitaxial Silicon Transistor
400
350
300
250
200
hfe, Current Gain
150
100
50
0
1 10 100
0oC
25oC
50oC
75oC
Colle ctor Cur r ent, [mA]
100oC
125oC
Vce=5V
Ic=10Ib
0.4
0.3
0.2
0.1
25oC
0oC
Vce(sat), Saturation Current,[V]
0.0
1 10 100
Collector Cu r rent, [mA ]
125oC
100oC
75oC
50oC
Figure 3. Base-Emitter Saturation Voltage Figure 4. Collector - Base Leakage Current
1.0
Ic=10 Ib
0.9
0.8
0.7
0.6
0.5
0.4
Vbe(sat), Saturation Current,[V]
0.3
1 10 100
0oC
25oC
50oC
75oC
Collector C urrent, [mA]
100oC
125oC
10
Leakage current of Collector - Base(nA)
1
25 50 75 100 125 150
Temperature, ['C]
VCB = 40V
Figure 5. Collector-Base Capacitance Figure 6. Power Dissipation vs
Ambient Temperature
10
[pF], Capacitance
cb
C
1
1 10 100
MMBT4401K Rev. C
IE = 0
f = 100KHz
VCB [V], Collector-Base Voltage
0.4
0.3
0.2
- Power Dissipation (W)
0.1
D
P
0.0
0 25 50 75 100 125 150
Temperature, [ OC]
2 www.fairchildsemi.com
Page 3
Mechanical Dimensions
0
F
3
N
0.40
±0.03
MMBT4401K NPN Epitaxial Silicon Transistor
SOT-23
0.20 MI
0.45~0.60
0.95
2.90
±0.03
1.90
±0.10
0.95
±0.03
±0.03
±0.10
0.40
±0.03
0.97REF 1.30
0.508REF
±0.10
2.40
0.96~1.14
0.03~0.1
0.38 RE
+0.05
0.12
–0.02
MMBT4401K Rev. C
Dimensions in Millimeters
3 www.fairchildsemi.com
