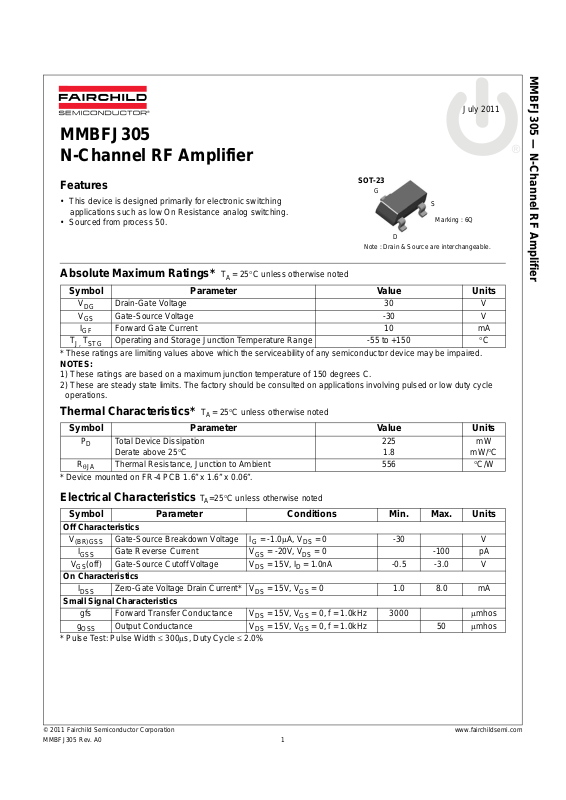

MMBFJ305 N-Channel RF Amplifier

MMBFJ305 — N-Channel RF Amplifier

July 2011

Features

• This device is designed primarily for electronic switching

SOT-23

applications such as low On Resistance analog switching.

• Sourced from process 50.

Absolute Maximum Ratings* T

= 25°C unless otherwise noted

Note : Drain & Source are interchangeable.

Marking : 6Q

Symbol Parameter Value Units

J, TSTG

* These ratings are limiting values above which the serviceability of any semiconductor device may be impaired.

NOTES:

1) These ratings are based on a maximum junction temperature of 150 degrees C.

2) These are steady state limits. The factory should be consulted on applications involving pulsed or low duty cycle operations.

Thermal Characteristics* T

Drain-Gate Voltage 30 V Gate-Source Voltage -30 V Forward Gate Current 10 mA Operating and Storage Junction Temperature Range -55 to +150 °C

= 25°C unless otherwise noted

Symbol Parameter Value Units

θJA

* Device mounted on FR-4 PCB 1.6” x 1.6” x 0.06”.

Total Device Dissipation

Derate above 25°C

225

1.8

Thermal Resistance, Junction to Ambient 556 °C/W

mW/°C

Electrical Characteristics T

=25°C unless otherwise noted

Symbol Parameter Conditions Min. Max. Units

Off Characteristics

(BR)GSS

GSS

On Characteristics

DSS

Small Signal Characteristics

gfs Forward Transfer Conductance V

OSS

* Pulse Test: Pulse Width ≤ 300μs, Duty Cycle ≤ 2.0%

Gate-Source Breakdown Voltage IG = -1.0μA, VDS = 0 -30 V Gate Reverse Current VGS = -20V, VDS = 0 -100 pA

(off) Gate-Source Cutoff Voltage VDS = 15V, ID = 1.0nA -0.5 -3.0 V

Zero-Gate Voltage Drain Current* VDS = 15V, VGS = 0 1.0 8.0 mA

= 15V, VGS = 0, f = 1.0kHz 3000 μmhos

Output Conductance VDS = 15V, VGS = 0, f = 1.0kHz 50 μmhos

Page 2

Physical Dimensions

MMBFJ305 — N-Channel RF Amplifier

SOT-23

Dimensions in Millimeters

Page 3
