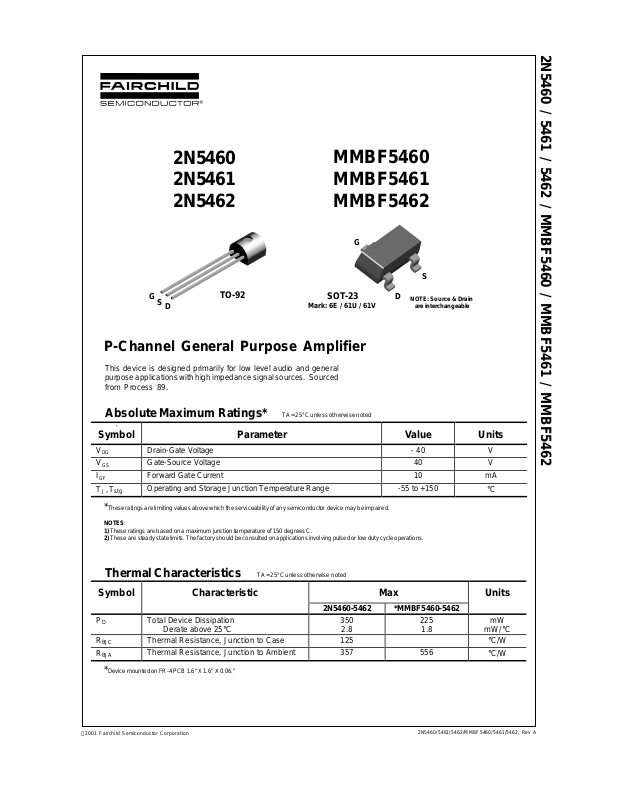

2N5460 / 5461 / 5462 / MMBF5460 / MMBF5461 / MMBF5462
2N5460
2N5461
2N5462
G
S
D
TO-92
MMBF5460
MMBF5461
MMBF5462
G
SOT-23
Mark: 6E / 61U / 61V
S
D
NOTE: Source & Drain
are interchangeable
P-Channel General Purpose Amplifier
This device is designed primarily for low level audio and general
purpose applications with high impedance signal sources. Sourced
from Process 89.
Absolute Maximum Ratings* TA = 25°C unless otherwise noted
-
Symbol Parameter Value Units
V
DG
V
GS
I
GF
TJ ,T
st
*These ratings are limiting values above which the serviceability of any semiconductor device may be impaired.
NOTES:
1) These ratings are based on a maximum junction temperature of 150 degrees C.
2) These are steady state limits. The factory should be consulted on applications involving pulsed or low duty cycle operations.
Drain-Gate Voltage - 40 V
Gate-Source Voltage 40 V
Forward Gate Current 10 mA
Operating and Stora ge Junction Temperature Range -55 to +150
°
C
Thermal Characteristics TA = 25°C unless otherwise noted
Symbol Characteristic Max Units
2N5460-5462 *MMBF5460-5462
P
D
R
θJC
R
θJA
*Device mounted on FR-4 PCB 1.6" X 1.6" X 0.06."
2001 Fairchild Semiconductor Corporation
Total Device Dissipation
Derate above 25°C
Thermal Resistance, J unction to Case 125
Thermal Resistance, Junction to Ambient 357 556
350
2.8
225
1.8
2N5460/5461/5462/MMBF5460/5461/5462, Rev A
mW
mW/°C
°C/W
°C/W
Page 2
mhosµmhosµmhos
mhos
P-Channel General Purpose Amplifier
(continued)
Electrical Characteristics TA = 25°C unless otherwise noted
Symbol Parameter Test Conditions Min Typ Max Units
OFF CHARACTERISTICS
V
(BR)GSS
I
GSS
V
GS(off)
V
GS
ON CHARACTERISTICS
I
DSS
Gate-Source Breakdown Voltage
Gate Reverse Current VGS = 20 V, VDS = 0
Gate-Source Cutoff Voltage
Gate-Source Voltage
Zero-Gate Voltage Drain Current*
IG = 10 µA, VDS = 0
VGS = 20 V, VDS = 0, TA = 100°C
VDS = 15 V, ID = 1.0 µA
VDS = 15 V, ID = 0.1 mA
VDS = 15 V, ID = 0.2 mA
VDS = 15 V, ID = 0.4 mA
VDS = 15 V, VGS = 0
5460
5461
5462
5460
5461
5462
5460
5461
5462
40 V
5.0
1.0
0.75
1.0
1.8
0.5
0.8
1.5
- 1.0
- 2.0
- 4.0
6.0
7.5
9.0
4.0
4.5
6.0
- 5.0
- 9.0
- 16
nA
µ
V
V
V
V
V
V
mA
mA
mA
A
2N5460 / 5461 / 5462 / MMBF5460 / MMBF5461 / MMBF5462
SMALL SIGNAL CHARACTERISTICS
g
fs
g
os
C
iss
C
rss
NF Noise Figure VDS = 15 V, VGS = 0,
e
n
Forward Transfer Conductance VDS = 15 V, VGS = 0, f = 1.0 kHz
Output Conductance VDS = 15 V, VGS = 0, f = 1.0 kHz 75
Input Capacitance VDS = 15 V, VGS = 0, f = 1.0 MHz 5.0 7.0 pF
Reverse Transfer Capacitance VDS = 15 V, VGS = 0, f = 1.0 MHz 1.0 2.0 pF
RG = 1.0 megohm, f = 100 Hz,
Equivalent Short-Circuit Input
Noise Voltage
BW = 1.0 Hz
VDS = 15 V, VGS = 0, f = 100 Hz,
BW = 1.0 Hz
*Pulse Test: Pulse Width ≤ 300 ms, Duty Cycle ≤ 2%
5460
5461
5462
1000
1500
2000
4000
µ
5000
6000
µ
1.0 2.5 dB
60 115
nV/√Hz
5
Page 3
Typical Characteristics (continued)
2N5460 / 5461 / 5462 / MMBF5460 / MMBF5461 / MMBF5462
P-Channel General Purpose Amplifier
(continued)

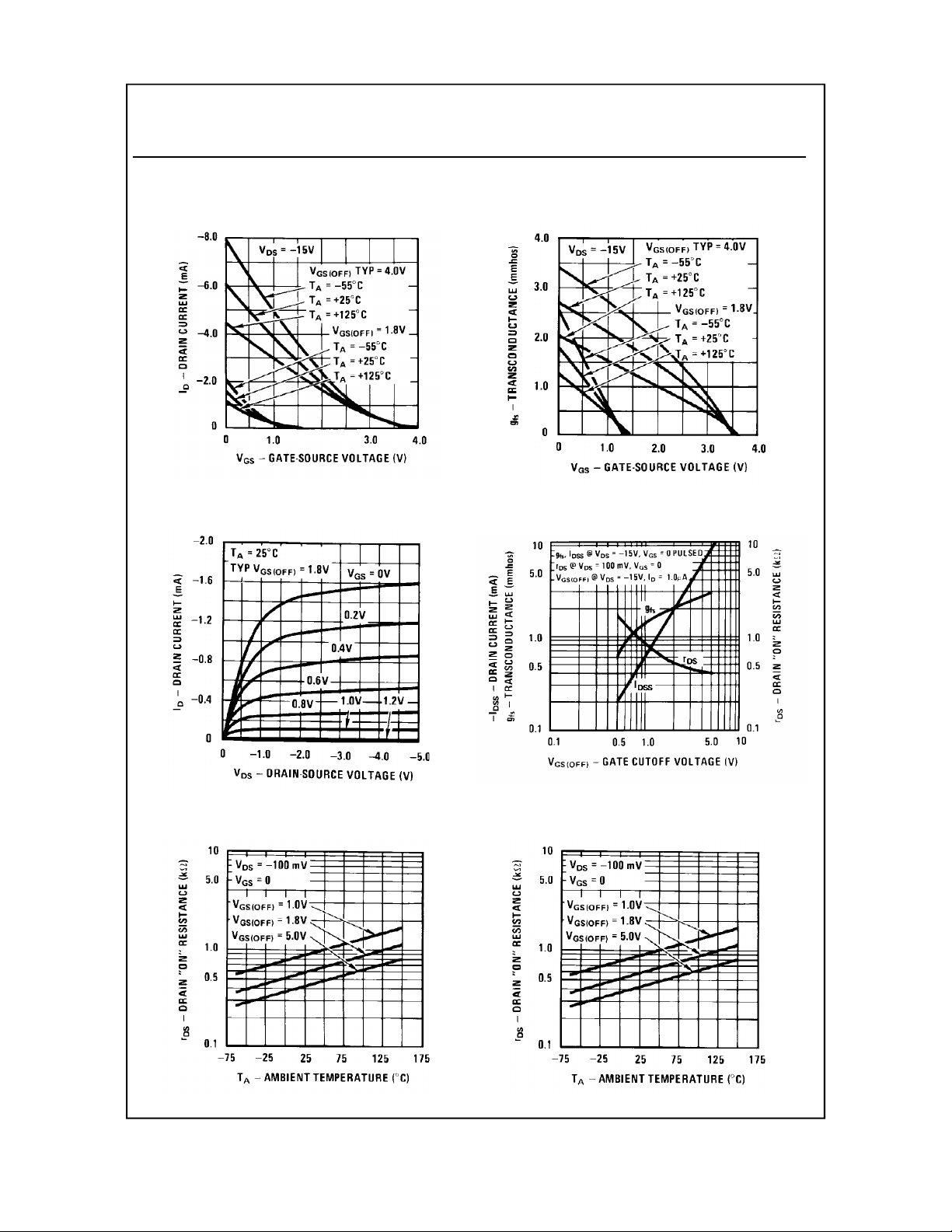

Transfer Characteristics
Common Drain-Source
Transfer Charactersitics
Parameter Interactions
Leakage Current vs. Voltage
Channel Resistance vs.
Temperature
Page 4
Typical Characteristics (continued)
2N5460 / 5461 / 5462 / MMBF5460 / MMBF5461 / MMBF5462
P-Channel General Purpose Amplifier
(continued)
Output Conductance vs.
Drain Current
Transconductance vs.
Drain Current
Noise Voltage vs. Frequency Capacitance vs. Voltage
Power Dissipation vs.
Ambient Temperature
350
300
SOT-23
250
200
150
100
50
D
P - POWER DISSIPATION (mW)
0
0 25 50 75 100 125 150
TO-92
TEMPERATURE ( C)
º
5
Page 5
