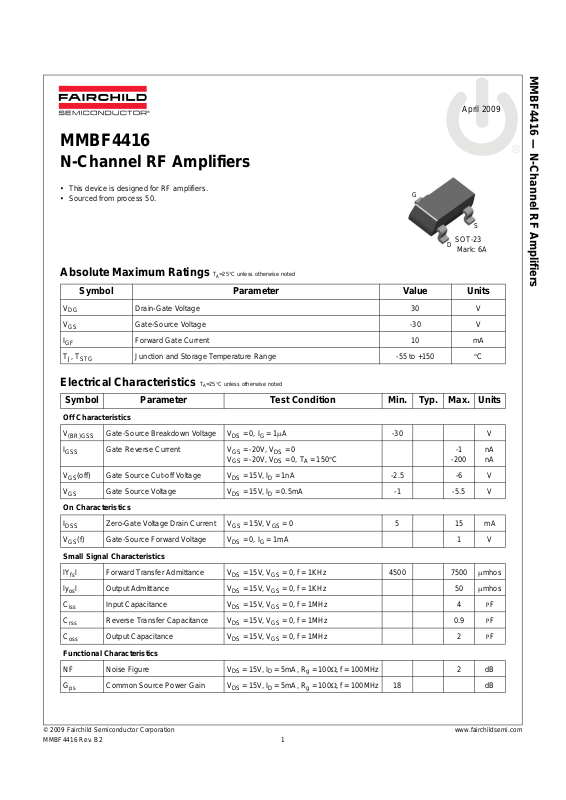

MMBF4416

N-Channel RF Amplifiers

MMBF4416 — N-Channel RF Amplifiers

April 2009

• This device is designed for RF amplifiers.

• Sourced from process 50.

Absolute Maximum Ratings T

=25°C unless otherwise noted

SOT-23

Mark: 6A

Symbol Parameter Value Units

, T

STG

Electrical Characteristics T

Drain-Gate Voltage 30 V Gate-Source Voltage -30 V Forward Gate Current 10 mA Junction and Storage Temperature Range -55 to +150 °C

=25°C unless otherwise noted

Symbol Parameter Test Condition Min. Typ. Max. Units

Off Characteristics

(BR)GSS

GSS

(off) Gate Source Cut-off Voltage VDS = 15V, ID = 1nA -2.5 -6 V

On Characteristics

DSS

(f) Gate-Source Forward Voltage VDS = 0, IG = 1mA 1 V

Small Signal Characteristics

l Forward Transfer Admittance VDS = 15V, VGS = 0, f = 1KHz 4500 7500 μmhos

l Output Admittance VDS = 15V, VGS = 0, f = 1KHz 50 μmhos

iss

rss

oss

Functional Characteristics

NF Noise Figure V G

Gate-Source Breakdown Voltage VDS = 0, IG = 1μA-30V Gate Reverse Current VGS = -20V, VDS = 0

= -20V, VDS = 0, TA = 150°C

-1

-200nAnA

Gate Source Voltage VDS = 15V, ID = 0.5mA -1 -5.5 V

Zero-Gate Voltage Drain Current VGS = 15V, VGS = 0 5 15 mA

Input Capacitance VDS = 15V, VGS = 0, f = 1MHz 4 PF Reverse Transfer Capacitance VDS = 15V, VGS = 0, f = 1MHz 0.9 PF Output Capacitance VDS = 15V, VGS = 0, f = 1MHz 2 PF

= 15V , ID = 5mA, Rg = 100Ω, f = 100MHz 2 dB

Common Source Power Gain VDS = 15V , ID = 5mA, Rg = 100Ω, f = 100MHz 18 dB

Page 2

MMBF4416 — N-Channel RF Amplifiers

Thermal Characteristics T

=25°C unless otherwise noted

Symbol Parameter Max. Units

θJA

* Device mounted on FR-4 PCB 1.6” × 1.6” × 0.06”.

Total Device Dissipation Derate above 25°C

Thermal Resistance, Junction to Ambient 556 °C/W

225

1.8

mW/°C

Page 3

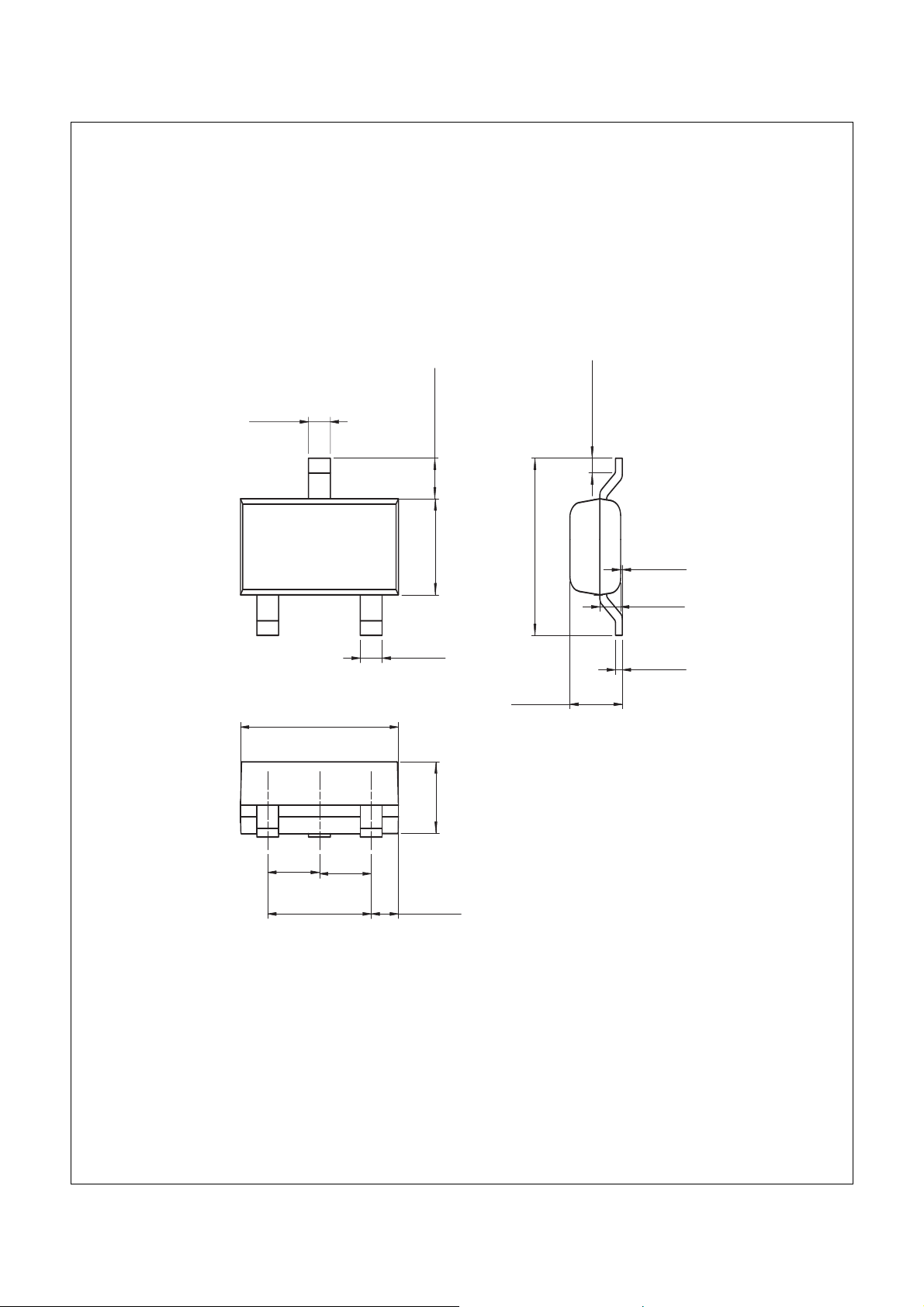

Mechanical Dimensions

MMBF4416 — N-Channel RF Amplifiers

SOT-23

0.40 ±0.03

2.90 ±0.10

0.95 ±0.03 0.95 ±0.03

0.20 MI

0.45~0.60

±0.10

0.03~0.1

2.40

0.38 RE

0.40 ±0.03

0.12

+0.05 –0.02

0.96~1.14

0.97REF 1.30 ±0.10

1.90 ±0.03

0.508REF

Dimensions in Millimeters
