MM74HC161 • MM74HC163 Synchronous Binary Counter with Asynchronous Clear • Synchronous Binary

Counter with Synchronous Clear

© 1999 Fairchild Semiconductor Corporation DS005008.prf www.fairchildsemi.com

MM74HC161 • MM74HC163
Synchronous Binary Counter with Asynchronous Clear

• Synchronous Binary Counter with Synchronous Clear

General Description

The MM74HC161 and MM74HC163 synchronous presetta­ble counters utilize advanced silicon-gate CMOS technol­ogy and internal look-ahead carry logic for use in high
speed counting applications. They offer the high noise
immunity and low po wer consumption inherent to CMOS
with speeds similar to low power Schottky TTL. The HC161
and the HC163 are 4 bit binary c ounters. All flip-flops are
clocked simultaneously on the LOW-to-HIGH transition
(positive edge) of the CLOCK input waveform.

These counters may be p reset u sing the LO AD inpu t. Pr e­setting of all four flip-flops is synchronous to the rising edge
of CLOCK. When LOAD is held LOW cou nting is disabled
and the data on the A, B, C, and D inputs is loaded into the
counter on the rising edge o f CLOCK. If the load input is
taken HIGH before the positive edge of CLOCK the count
operation will be unaffected.

All of these counters may be cleared by utilizing the
CLEAR input. The clear function on the MM74HC163
counter is synchronous t o the clock. That is, the counters
are cleared on the positive edge o f CLO CK while th e cle ar
input is held LOW.

The MM74HC161 counter is cleared asynchronously.
When the CLEAR is taken LOW the counter is cleared
immediately regardless of the CLOCK.

Two active HIGH enable inputs (ENP and ENT) and a RIP­PLE CARRY (RC) output are pr ovid ed to e na ble e asy cas­cading of counters. Both ENABL E inputs must be HIG H to
count. The ENT input also enables the RC outp ut. When
enabled, the RC outputs a positive pulse wh en t he c oun ter
overflows. This pulse is approximately equal in duration to
the HIGH level portion of the Q

A

output. The RC output is

fed to successive cascaded stages to fa cilitate ea sy im ple­mentation of N-bit counters.

All inputs are protected from damage due to static dis­charge by diodes to V

CC

and ground.

Features

■ Typical operating frequency: 40 MHz

■ Typical propagation delay; clock to Q: 18 ns

■ Low quiescent current: 80 µA maximum (74HC Series)

■ Low input current: 1 µA maximum

■ Wide power supply range: 2–6V

Ordering Code:

Devices also availab le in Tape and Reel. Specify by appending th e s uffix let t er “X” to the ordering cod e.

Order Number Package Number Package Description

MM74HC161M M16A 16-Lead Small Outline Integrated Circuit (SOIC), JEDEC MS-012, 0.150” Narrow
MM74HC161SJ M16D 16-Lead Small Outline Package (SOP), EIAJ TYPE II, 5.3mm Wide
MM74HC161MTC MTC16 16-Lead Thin Shrink Small Outline Package (TSSOP), JEDEC MO-153, 4.4mm Wide
MM74HC161N N16E 16-Lead Plastic Dual-In-Line Package (PDIP), JEDEC MS-001, 0.300” Wide
MM74HC163 M M16A 16-Lead Small Outli n e Integrated Circuit (SOIC), JEDEC MS-012, 0.150” Narrow
MM74HC163SJ M16D 16-Lead Small Outline Package (SOP), EIAJ TYPE II, 5.3mm Wide
MM74HC163MTC MTC16 16-Lead Thin Shrink Small Outline Package (TSSOP), JEDEC MO-153, 4.4mm Wide
MM74HC163N N16E 16-Lead Plastic Dual-In-Line Package (PDIP), JEDEC MS-001, 0.300” Wide

www.fairchildsemi.com 2

MM74HC161 • MM74HC163

Connection Diagram

Pin Assignments for DIP, SOIC, SOP and TSSOP

Truth Tables

MM74HC161

MM74HC163

H = HIGH Level
L = LOW Level
X = Don’t Care

↑ = LOW-to-HIGH Transition

Logic Diagram

CLK CLR ENP ENT Load Function

X L X X X Clear
X H H L H Count & RC disabled
X H L H H Count disabled
X H L L H Count & RC disabled

↑ H X X L Load
↑ H H H H Increment Counter

CLK CLR ENP ENT Load Function

↑ L X X X Clear
X H H L H Count & RC disabled
X H L H H Count disabled
X H L L H Count & RC disabled

↑ H X X L Load
↑ H H H H Increment Counter

3 www.fairchildsemi.com

MM74HC161 • MM74HC163

Absolute Maximum Ratings(Note 1)

(Note 2)

Recommended Operating
Conditions

Note 1: Absolute Maximum Ra tings are those valu es beyond w hich dam-

age to the device may occur.

Note 2: Unless otherwise specified all voltages are referenced to ground.
Note 3: Power Dissipation te mperature d erating — pl astic “N” pa ckage: −

12 mW/°C from 65°C to 85°C.

DC Electrical Characteristics (Note 4)

Note 4: For a powe r supply o f 5V ±10% the worst case output voltages (VOH, and VOL) occur for HC at 4.5V. Thus the 4. 5V valu es shou ld be u sed when

designing with this supply. Worst case V

IH

and VIL occur at VCC=5.5V and 4.5V respectively. (The VIH value at 5.5V is 3. 85V.) The wor st c ase le ak ag e cur ren t

(I

IN

, ICC, and IOZ) occur for CMOS at the higher voltage and s o t he 6.0V values should be used.

Supply Voltage (VCC) −0.5 to +7.0V
DC Input Voltage (V

IN

) −1.5 to VCC+1.5V

DC Output Voltage (V

OUT

) −0.5 to VCC+0.5V

Clamp Diode Current (I

IK

, IOK) ±20 mA

DC Output Current, per pin (I

OUT

) ±25 mA

DC V

CC

or GND Current, per pin (ICC) ±50 mA

Storage Temperature Range (T

STG

) −65°C to +150°C

Power Dissipation (P

D

)
(Note 3) 600 mW
S.O. Package only 500 mW

Lead Temper ature

(T

L

) (Solderin g 10 seconds) 260°C

Min Max Units

Supply Voltage (V

CC

)26V

DC Input or Output Voltage 0 V

CC

V

(V

IN

, V

OUT

)

Operating Temperature Range (T

A

) −40 +85 °C

Input Rise or Fall Times

(t

r

, tf) V

CC

= 2.0V 1000 ns

V

CC

= 4.5V 500 ns

V

CC

= 6.0V 400 ns

Symbol Parameter Conditions

V

CC

TA=25°CTA=−40 to 85°CTA=−55 to 125°C

Units

Typ Guaranteed Limits

V

IH

Minimum HIGH Level 2.0V 1.5 1.5 1.5 V
Input Voltage 4.5V 3.15 3.15 3.15 V

6.0V 4.2 4.2 4.2 V

V

IL

Maximum LOW Level 2.0V 0.5 0.5 0.5 V
Input Voltage 4.5V 1.35 1.35 1.35 V

6.0V 1.8 1.8 1.8 V

V

OH

Minimum HIGH Level V

IN

= VIH or V

IL

Output Voltage |I

OUT

| ≤ 20 µA 2.0V 2.0 1.9 1.9 1.9 V

4.5V 4.5 4.4 4.4 4.4 V

6.0V 6.0 5.9 5.9 5.9 V

V

IN

= VIH or V

IL

|I

OUT

| ≤ 4.0 mA 4.5V 4.2 3.98 3.84 3.7 V

|I

OUT

| ≤ 5.2 mA 6.0V 5.7 5.48 5.34 5.2 V

V

OL

Maximum LOW Level V

IN

= VIH or V

IL

Output Voltage |I

OUT

| ≤ 20 µA2.0V00.10.10.1V

4.5V 0 0.1 0.1 0.1 V

6.0V 0 0.1 0.1 0.1 V

VIN = VIH or V

IL

|I

OUT

| ≤ 4.0 mA 4.5V 0.2 0.26 0.33 0.4 V

|I

OUT

| ≤ 5.2 mA 6.0V 0.2 0.26 0.33 0.4 V

I

IN

Maximum Input V

IN

= VCC or GND 6.0V ±0.1 ±1.0 ±1.0 µA

Current

I

CC

Maximum Quiescent V

IN

= VCC or GND 6.0V 8.0 80 160 µA

Supply Current I

OUT

= 0 µA

www.fairchildsemi.com 4

MM74HC161 • MM74HC163

AC Electrical Characteristics

V

CC

= 5V, TA = 25°C, CL = 15 pF, tr = t

f

= 6 ns

AC Electrical Characteristics

C

L

= 50 pF, tr = t

f

= 6 ns (unless otherwise specified)

Symbol Parameter Conditions Typ Guaranteed Limit Units

f

MAX

Maximum Operating Frequency 43 30 MHz

t

PHL

, t

PLH

Maximum Propagation Delay, Clock to RC 30 35 ns

t

PHL

, t

PLH

Maximum Propagation Delay, Clock to Q 29 34 ns

t

PHL

, t

PLH

Maximum Propagation Delay, ENT to RC 18 32 ns

t

PHL

Maximum Propagation Delay, Clear to Q or RC 27 38 ns

t

REM

Minimum Removal Time, Clear to Clock 10 20 ns

t

S

Minimum Set Up Time Clear, Load, 30 ns
Enable or Data to Clock

t

H

Minimum Hold Time, Data from Clock 5 ns

t

W

Minimum Pulse Width Clock, 16 ns
Clear, or Load

Symbol Parameter Conditions

V

CC

TA=25°CTA=−40 to 85°CTA=−55 to 125°C

Units

Typ Guaranteed Limits

f

MAX

Maximum Operating 2.0V 10 5 4 4 MHz
Frequency 4.5V 40 27 21 18 MHz

6.0V 45 32 25 21 MHz

t

PHL

Maximum Propagation 2.0V 100 215 271 320 ns
Delay, Clock to RC 4.5V 32 43 54 64 ns

6.0V 28 37 46 54 ns

t

PLH

Maximum Propagation 2.0V 88 175 220 260 ns
Delay, Clock to RC 4.5V 18 35 44 52 ns

6.0V 15 30 37 44 ns

t

PHL

Maximum Propagation 2.0V 95 205 258 305 ns
Delay, Clock to Q 4.5V 30 41 52 61 ns

6.0V 26 35 44 52 ns

t

PLH

Maximum Propagation 2.0V 85 170 214 253 ns
Delay, Clock to Q 4.5V 17 34 43 51 ns

6.0V 14 29 36 43 ns

t

PHL

Maximum Propagation 2.0V 90 195 246 291 ns
Delay, ENT to RC 4.5V 28 39 49 58 ns

6.0V 24 33 42 49 ns

t

PLH

Maximum Propagation 2.0V 80 160 202 238 ns
Delay, ENT to RC 4.5V 16 32 40 48 ns

6.0V 14 27 34 41 ns

t

PHL

Maximum Propagation 2.0V 100 220 275 325 ns
Delay, Clear to RC 4.5V 32 44 55 66 ns

6.0V 28 37 47 55 ns

t

PHL

Maximum Propagation 2.0V 100 210 260 315 ns
Delay, Clear to Q 4.5V 32 42 52 63 ns

6.0V 28 36 45 54 ns

t

REM

Minimum Removal 2.0V 125 158 186 ns
Time Clear to Clock 4.5V 25 32 37 ns

6.0V 21 27 32 ns

t

S

Minimum Setup 2.0V 150 190 225 ns
Time Clear or Data 4.5V 30 38 45 ns
to Clock 6.0V 26 32 38 ns

t

S

Minimum Setup 2.0V 135 170 200 ns
Time Load 4.5V 27 34 41 ns
to Clock 6.0V 23 29 35 ns

5 www.fairchildsemi.com

MM74HC161 • MM74HC163

AC Electrical Characteristics (Continued)

Note 5: CPD determines the no load dynamic power con s um ption, PD = CPD V

CC

2

f + ICC VCC, and the no load dynam ic current consumpt ion,

I

S

= CPDVCCf + ICC.

Logic Waveforms

Synchronous Binary Counters Typical Clear, Preset, Count and Inhibit Sequences

Sequence: (1) Clear outputs to zero (2 ) Preset to binary twelve (3) Count to thirteen, fourteen, fifteen, zero , o ne and two (4) Inhibit

Symbol Parameter Conditions

V

CC

TA=25°CTA=−40 to 85°CTA=−55 to 125°C

Units

Typ Guaranteed Limits

t

S

Minimum Setup 2.0V 175 220 260 ns
Time Enable 4.5V 35 44 52 ns
to Clock 6.0V 30 37 44 ns

t

H

Minimum Hold Time 2.0V 50 63 75 ns
Data from Clock 4.5V 10 13 15 ns

6.0V 9 11 13 ns

t

H

Minimum Hold Time 2.0V 0 0 0 ns
Enable, Load or Clear 4.5V 0 0 0 ns
to Clock 6.0V 0 0 0 ns

t

W

Minimum Pulse Width 2.0V 80 100 120 ns
Clock, Clear, or 4.5V 16 20 24 ns
Load 6.0V 14 17 20 ns

t

TLH

, t

THL

Maximum 2.0V 40 75 95 110 ns
Output Rise and 4.5V 8 15 19 22 ns
Fall Time 6.0V 7 13 16 19 ns

tr, t

f

Maximum Input Rise 2.0V 1000 1000 1000 ns
and Fall Time 4.5V 500 500 500 500 ns

6.0V 400 400 400 ns

C

PD

Powert Dissipation (per package) 90 pF
Capacitance (Note 5)

C

IN

Maximum Input Capacitance 5 10 10 10 pF

www.fairchildsemi.com 6

MM74HC161 • MM74HC163

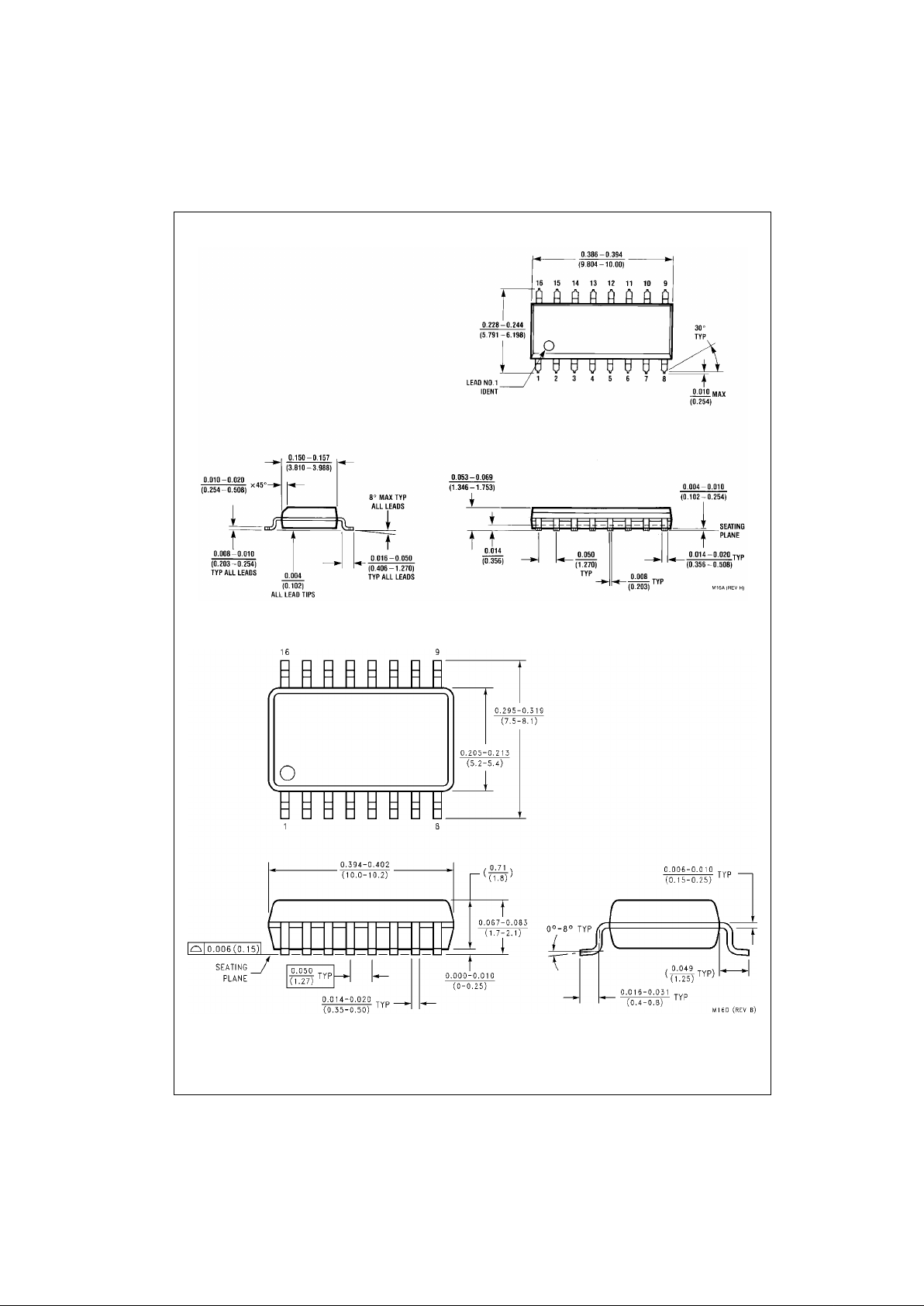

Physical Dimensions inches (millimeters) unless otherwise noted

16-Lead Small Outline Integrated Circuit (SOIC), JEDEC MS-012, 0.150” Narrow

Package Number M16A

16-Lead Small Outline Package (SOP), EIAJ TYPE II, 5.3mm Wide

Package Number M16D

7 www.fairchildsemi.com

MM74HC161 • MM74HC163

Physical Dimensions inches (millimeters) unless otherwise noted (Continued)

16-Lead Thin Shrink Small Outline Package (TSSOP), JEDEC MO-153, 4.4mm Wide

Package Number MTC16

Fairchild does not assume any responsibility for use of any circuitry described, no circuit patent licenses are implied and Fairchild reserves the right at any time without notice to change said circuitry and specifications.

MM74HC161 • MM74HC163 Synchronous Binary Counter with Asynchronous Clear • Synchronous Binary

Counter with Synchronous Clear

LIFE SUPPORT POLICY

FAIRCHILD’S PRODUCTS ARE NOT AUTHORIZED FOR USE AS CRITICAL COMPONENTS IN LIFE SUPPORT
DEVICES OR SYSTEMS WITHOUT THE EXPRESS WRITTEN APPROVAL OF THE PRESIDENT OF FAIRCHILD
SEMICONDUCTOR CORPORATION. As used herein:

1. Life support devices or systems are devices or syste ms
which, (a) are intended for surgical implant into the
body, or (b) support or sustain life, and (c) whose failure
to perform when properly used in accordance with
instructions for use provided in the labeling, can be rea­sonably expected to result in a significant inju ry to the
user.

2. A critical component i n any compon ent of a lif e support
device or system whose failu re to perform can be rea­sonably expected to ca use the fa i lure of the life su pp ort
device or system, or to affect its safety or effectiveness.

www.fairchildsemi.com

Physical Dimensions inches (millimeters) unless otherwise noted (Continued)

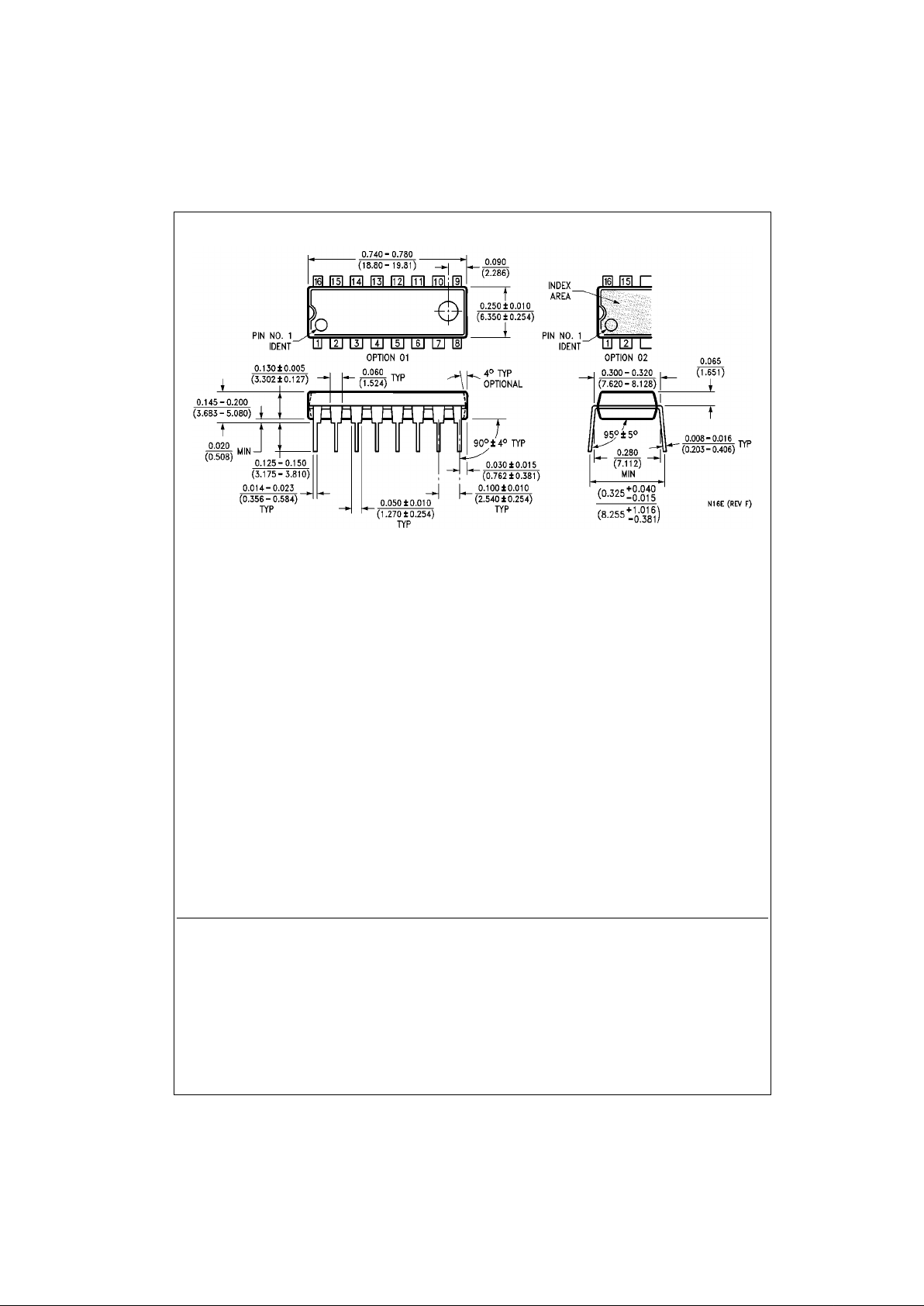

16-Lead Plastic Dual-In-Line Package (PDIP), JEDEC MS-001, 0.300” Wide

Package Number N16E
