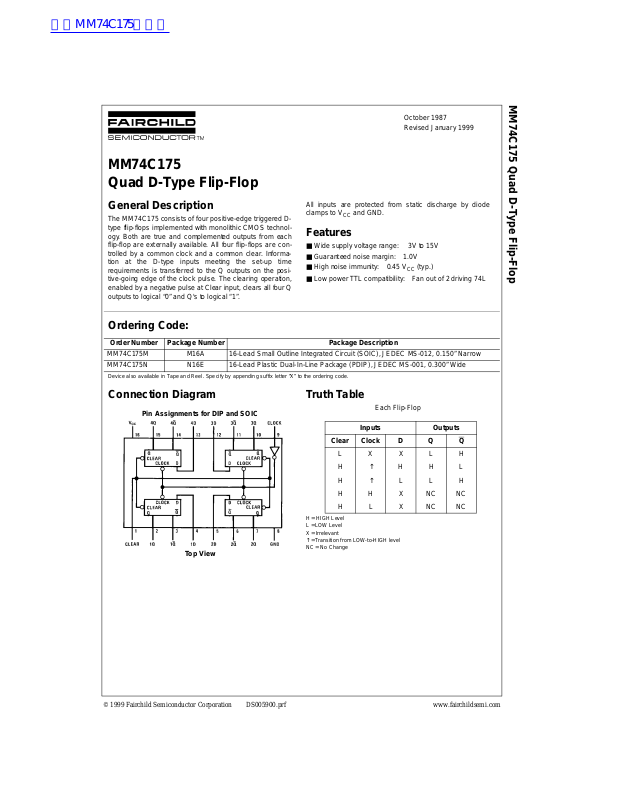

MM74C175
Quad D-Type Flip-Flop

MM74C175 Quad D-Type Flip-Flop

October 1987
Revised January 1999

General Description

The MM74C175 consis ts of four positive-edge triggered D ­type flip-flops implemented with monolithic CMOS technol­ogy. Both are true and compleme nted outputs from each
flip-flop are externally available. All four flip-flops are con­trolled by a common clock and a common clear. Informa­tion at the D-type inputs meeting the set-up time
requirements is transferred t o the Q outputs on the posi­tive-going edge of the clock pulse. The clear ing operation,
enabled by a negative pulse at Clear input, clears all four Q

outputs to logical “0” and Q's to logical “1”.

All inputs are protected from static discharge by diode
clamps to V

and GND.

CC

Features

■ Wide supply voltage range: 3V to 15V

■ Guaranteed noise margin: 1.0V

■ High noise immunity: 0.45 V

■ Low power TTL compatibility: Fan out of 2 driving 74L

CC

(typ.)

Ordering Code:

Order Number Package Number Package Description

MM74C175M M16A 16-Lead Small Outline Integrated Circuit (SOIC), JEDEC MS-012, 0.150” Narrow
MM74C175N N16E 16-Lead Plastic Dual-In-Line Package (PDIP), JEDEC MS-001, 0.300” Wide

Device also available in Tape and Reel. Specify by appendin g s uf f ix let t er “X” to the ordering code.

Connection Diagram

Pin Assignments for DIP and SOIC

Top View

Truth Table

Each Flip-Flop

Inputs Outputs

Clear Clock D Q Q

LXXLH
H ↑ HHL
H ↑ LLH
HHXNCNC
HLXNCNC

H = HIGH Level
L = LOW Level
X = Irrelevant
↑ = Transition from LOW-to-HIGH level
NC = No Change

© 1999 Fairchild Semiconductor Corporation DS005900.prf www.fairchildsemi.com

Block Diagrams

MM74C175

Typical One of Four

www.fairchildsemi.com 2

Absolute Maximum Ratings(Note 1)

Voltage at Any Pin −0.3V to VCC +0.3V
Operating Temperature Range −40°C to +85°C
Storage Temperature Range −65°C to +150°C
Power Dissipation (P

Dual-In-Line 700 mW
Small Outline 500 mW

Operating V

CC

)

D

Range 3V to 15V

Absolute Maximum V

CC

Lead Temperature

(Soldering, 10 seconds) 260°C

Note 1: “Absolute Maximum Rat ings” are tho se values beyond which the
safety of the device cannot be guaranteed. Ex c ept for “ Operating Tempera­ture Range” they are not mea nt to imply that the devices sh ould be oper­ated at these limits. The Electrical Charact eristics table provides c onditions
for actual device operation.

DC Electrical Characteristics

Min/Max limits apply across temperature range unless otherwise specified

Symbol Parameter Conditions Min Typ Max Units

CMOS TO CMOS

V

IN(1)

V

IN(0)

V

OUT(1)

V

OUT(0)

I

IN(1)

I

IN(0)

I

CC

CMOS/LPTTL INTERFACE

V

IN(1)

V

IN(0)

V

OUT(1)

V

OUT(0)

OUTPUT DRIVE (See Family Characteristics Data Sheet) (Short Circuit Current)

I

SOURCE

I

SOURCE

I

SINK

I

SINK

Logical “1” Input Voltage VCC = 5V 3.5 V

VCC = 10V 8.0 V

Logical “0” Input Voltage VCC = 5V 1.5 V

VCC = 10V 2.0 V

Logical “1” Output Voltage VCC = 5V, IO = −10 µA4.5 V

VCC = 10V, IO = −10 µA9.0 V

Logical “0” Output Voltage VCC = 5V, IO = 10 µA0.5V

VCC = 10V, IO = 10 µA1.0V
Logical “1” Input Current VCC = 15V, VIN = 15V 0.005 1.0 µA
Logical “0” Input Current VCC = 15V, VIN = 0V −1.0 −0.005 µA
Supply Current VCC = 15V 0.05 300 µA

Logical “1” Input Voltage 74C, VCC = 4.75V VCC − 1.5 V
Logical “0” Input Voltage 74C, VCC = 4.75V 0.8 V
Logical “1” Output Voltage 74C, VCC = 4.75V, IO = −360 µA2.4 V
Logical “0” Output Voltage 74C, VCC = 4.75V, IO = 360 µA0.4V

Output Source Current VCC = 5V, TA = 25°C, −1.75 −3.3 mA
(P-Channel) V

OUT

= 0V
Output Source Current VCC = 10V, TA = 25°C, −8.0 −15 mA
(P-Channel) V

OUT

= 0V
Output Sink Current VCC = 5V, TA = 25°C, 1.75 3.6 mA
(N-Channel) V

OUT

= V

CC

Output Sink Current VCC = 10V, TA = 25°C, 8.0 16 mA
(N-Channel) V

OUT

= V

CC

MM74C175

18V

3 www.fairchildsemi.com

AC Electrical Charac teristics (Note 2)

= 25°C, CL = 50 pF, unless otherwise noted

T

A

Symbol Parameter Conditions Min Typ Max Units

t

pd

MM74C175

t

pd

t

pd

t

S

t

H

t

W

t

W

t

r

t

f

f

MAX

C

IN

C

PD

Note 2: AC Parameters are guara nt eed by DC correlated testin g.
Note 3: Capacitance is guaranteed by periodic testing.
Note 4: C

AN-90.

Propagation Delay Time to VCC = 5V 190 300 ns

a Logical “0” or Logical “1” from VCC = 10V 75 110 ns
Clock to Q or Q
Propagation Delay Time to a VCC = 5V 180 300 ns
Logical “0” from Clear to Q VCC = 10V 70 110 ns
Propagation Delay Time to a VCC = 5V 230 400 ns
Logical “1” from Clear to Q VCC = 10V 90 150 ns
Time Prior to Clock Pulse that VCC = 5V 100 45 ns
Data Must be Present VCC = 10V 40 16 ns
Time After Clock Pulse that VCC = 5V 0 −11 ns
Data Must be Held VCC = 10V 0 −4ns
Minimum Clock Pulse Width VCC = 5.0V 130 250 ns

VCC = 10V 45 100 ns

Minimum Clear Pulse Width VCC = 5.0V 120 250 ns

VCC = 10V 45 100 ns

Maximum Clock Rise Time VCC = 5V 15 450 µs

VCC = 10V 5.0 125 µs

Maximum Clock Fall Time VCC = 5V 15 50 µs

VCC = 10V 5.0 50 µs

Maximum Clock Frequency VCC = 5V 2.0 3.5 MHz

VCC = 10V 5.0 10 MHz

Input Capacitance Clear Input (Note 3) 10 pF

Any Other Input 5.0 pF

Power Dissipation Capacitance Per Package (Note 4) 130 pF

determines the no load AC power consumption of any C M OS device. For complete explanation se e Family Characteristics Application Note

PD

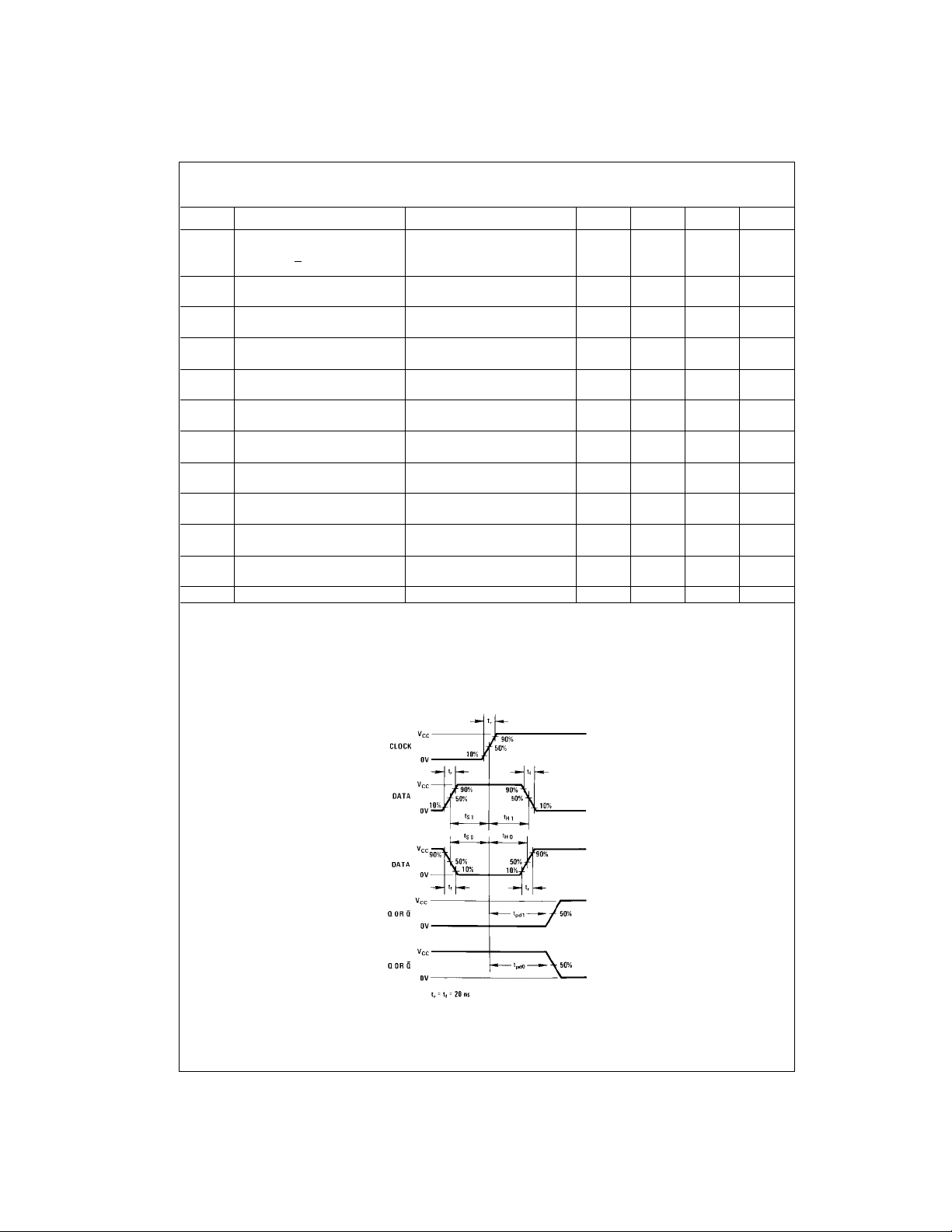

Switching Time Waveforms

CMOS to CMOS

www.fairchildsemi.com 4

Physical Dimensions inches (millimeters) unless otherwise noted

MM74C175

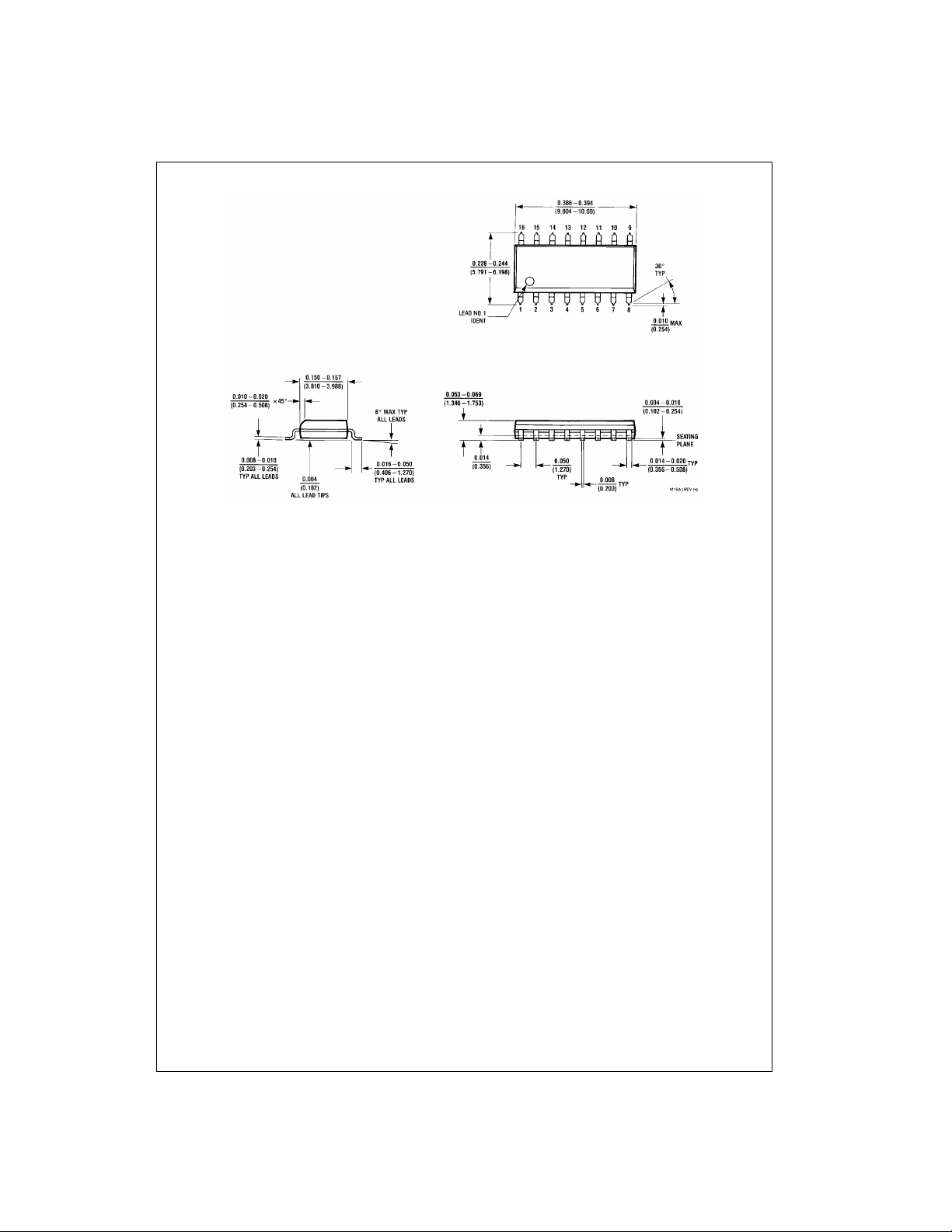

16-Lead Small Outline Integrated Circuit (SOIC), JEDEC MS-012, 0.150” Narrow

Package Number M16A

5 www.fairchildsemi.com

Physical Dimensions inches (millimeters) unless otherwise noted (Continued)

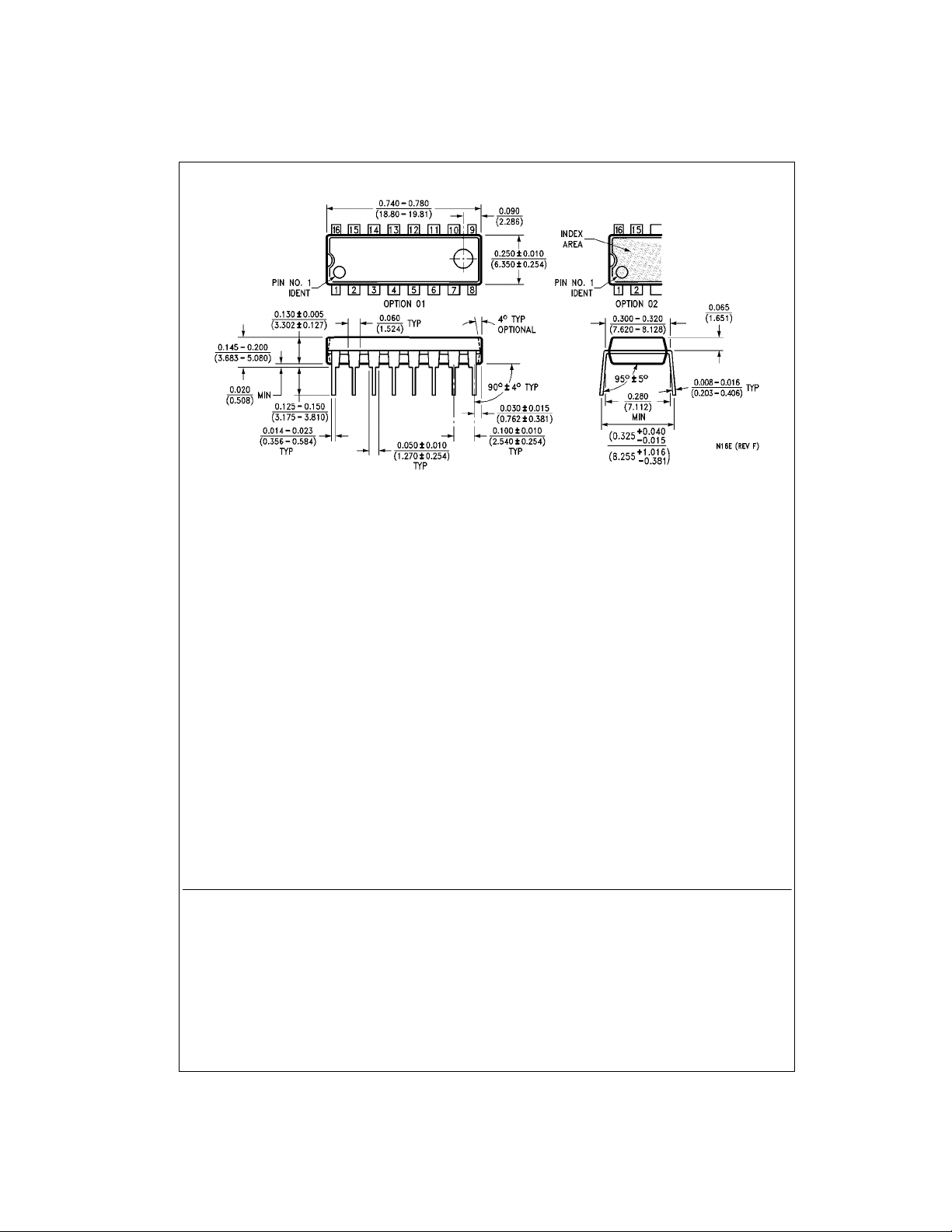

MM74C175 Quad D-Type Flip-Flop

16-Lead Plastic Dual-In-Line Package (PDIP), JEDEC MS-001, 0.300” Wide

LIFE SUPPORT POLICY

FAIRCHILD’S PRODUCTS ARE NOT AUTHORIZED FOR USE AS CRITICAL COMPONENTS IN LIFE SUPPORT
DEVICES OR SYSTEMS WITHOUT THE EXPRESS WRITTEN APPROVAL OF THE PRESIDENT OF FAIRCHILD
SEMICONDUCTOR CORPORATION. As used herein:

1. Life support devices or system s ar e devices or syste ms
which, (a) are intended for surgical implant into the
body, or (b) support or sustain life, and (c) whose failure
to perform when properly used in accordance with
instructions for use provided in the labeling, can be rea­sonably expected to result in a significant injury to the
user.

Package Number N16E

2. A critical component in a ny compon ent of a life suppor t
device or system whose failure to perform can be rea­sonably expected to cause the failure of the life suppor t
device or system, or to affect its safety or effectiveness.

www.fairchildsemi.com

Fairchild does not assume any responsibility for use of any circuitry described, no circuit patent licenses are implied and Fairchild reserves the right at any time without notice to change said circuitry and specifications.
