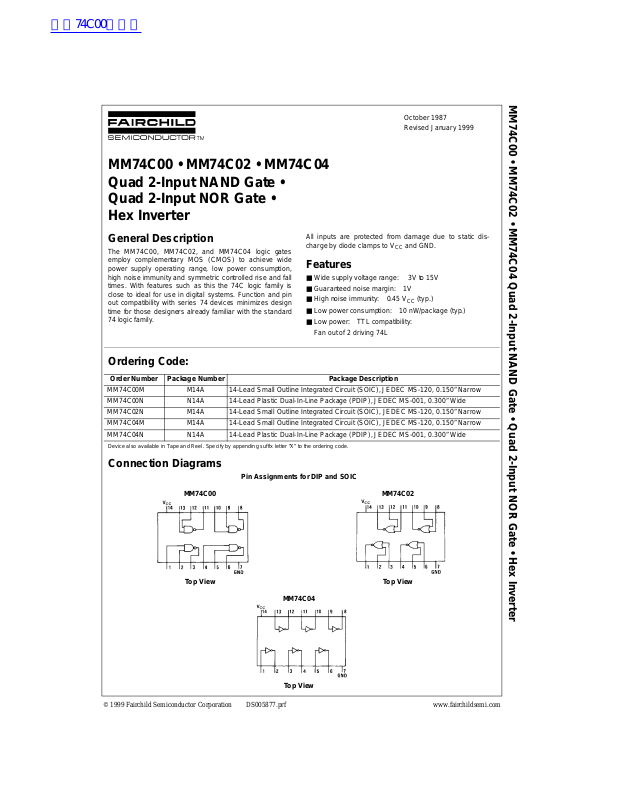

MM74C00 • MM74C02 • MM74C04
Quad 2-Input NAND Gate •

Quad 2-Input NOR Gate •
Hex Inverter

MM74C00 • MM74C02 • MM74C04 Quad 2-Input NAND Gate • Quad 2-Input NOR Gate • Hex Inverter

October 1987
Revised January 1999

General Description

The MM74C00, MM74C02, and MM74C04 logic gates
employ complementary MOS (CMOS) to achieve wide
power supply operating range, low power consumption,
high noise immunity a nd symmet ric contr olled ri se and fall
times. With features such as this the 74C logic family is
close to ideal for use in digital systems. Function and pin
out compatibility with series 74 devices minimizes de sign
time for those designer s already familiar wi th the standard
74 logic family.

All inputs are protected from damage due to static dis­charge by diode clamps to V

and GND.

CC

Features

■ Wide supply voltage range: 3V to 15V

■ Guaranteed noise margin: 1V

■ High noise immunity: 0.45 V

■ Low power consumption: 10 nW/package (typ.)

■ Low power: TTL compatibility:

Fan out of 2 driving 74L

CC

(typ.)

Ordering Code:

Order Number Package Number Package Description

MM74C00M M14A 14-Lead Small Outline Integrated Circuit (SOIC), JEDEC MS-120, 0.150” Narrow
MM74C00N N14A 14-Lead Plastic Dual-In-Line Package (PDIP), JEDEC MS-001, 0.300” Wide
MM74C02N M14A 14-Lead Small Outline Integrated Circuit (SOIC), JEDEC MS-120, 0.150” Narrow
MM74C04M M14A 14-Lead Small Outline Integrated Circuit (SOIC), JEDEC MS-120, 0.150” Narrow
MM74C04N N14A 14-Lead Plastic Dual-In-Line Package (PDIP), JEDEC MS-001, 0.300” Wide

Device also available in Tape and Reel. Specify by appendin g s uf f ix let t er “X” to the ordering co de.

Connection Diagrams

Pin Assignments for DIP and SOIC

MM74C00

MM74C02

Top View

MM74C04

Top View

© 1999 Fairchild Semiconductor Corporation DS005877.prf www.fairchildsemi.com

Top View

Absolute Maximum Ratings(Note 1)

Voltage at Any Pin −0.3V to VCC + 0.3V

Lead Temperature

(Soldering, 10 seconds) 300°C

Operating Temperature Range −40°C to +85°C
Storage Temperature Range −65°C to +150°C
Operating V
Maximum V
Power Dissipation (P

Range 3.0V to 15V

CC

Voltage 18V

CC

)

D

Note 1: “Absolute Maxi mum Ratings” are those valu es beyond which the
safety of the device cannot be guaranteed. E x ce pt for “O perating Tempera­ture Range” they are not mean t to imply that the devices sho uld be oper­ated at these limits. The table of “Electrical Characteristics” provides
conditions for actual device op eration.

Dual-In-Line 700 mW
Small Outline 500 mW

DC Electrical Characteristics

Min/Max limits apply across the guaranteed temperature range unless otherwise noted

Symbol Parameter Conditions Min Typ Max Units

MM74C00 • MM74C02 • MM74C04

CMOS TO CMOS

V

IN(1)

V

IN(0)

V

OUT(1)

V

OUT(0)

I

IN(1)

I

IN(0)

I

CC

LOW POWER TO CMOS

V

IN(1)

V

IN(0)

V

OUT(1)

V

OUT(0)

CMOS TO LOW POWER

V

IN(1)

V

IN(0)

V

OUT(1)

V

OUT(0)

OUTPUT DRIVE (see Family Characteristics Data Sheet) TA = 25°C (short circuit current)

I

SOURCE

I

SOURCE

I

SINK

I

SINK

Logical “1” Input Voltage VCC = 5.0V 3.5 V

VCC = 10V 8.0 V

Logical “0” Input Voltage VCC = 5.0V 1.5 V

VCC = 10V 2.0 V

Logical “1” Output Volt age VCC = 5.0V, IO = −10 µA4.5 V

VCC = 10V, IO = −10 µA9.0 V

Logical “0” Output Volt age VCC = 5.0V, IO = 10 µA0.5V

VCC = 10V, IO = 10 µA1.0V
Logical “1” Input Current VCC = 15V, VIN = 15V 0.005 1.0 µA
Logical “0” Input Current VCC = 15V, VIN = 0V −1.0 −0.005 µA
Supply Current VCC = 15V 0.01 15 µA

Logical “1” Input Voltage 74C, VCC = 4.75V VCC − 1.5 V
Logical “0” Input Voltage 74C, VCC = 4.75V 0.8 V
Logical “1” Output Volt age 74C, VCC = 4.75V, IO = −10 µA4.4 V
Logical “0” Output Volt age 74C, VCC = 4.75V, IO = 10 µA0.4V

Logical “1” Input Voltage 74C, VCC = 4.75V 4.0 V
Logical “0” Input Voltage 74C, VCC = 4.75V 1.0 V
Logical “1” Output Volt age 74C, VCC = 4.75V, IO = −360 µA2.4 V
Logical “0” Output Volt age 74C, VCC = 4.75V, IO = 360 µA0.4V

Output Source Current VCC = 5.0V, V
Output Source Current VCC = 10V, V
Output Sink Current VCC = 5.0V, V
Output Sink Current VCC = 10V, V

IN(0)

IN(0)

IN(1)

IN(1)

= 0V, V

= 0V, V

= 5.0V, V

= 10V, V

= 0V −1.75 mA

OUT

= 0V −8.0 mA

OUT

OUT

OUT

= V

= V

1.75 mA

CC

8.0 mA

CC

AC Electrical Charac teristics (Note 2)

TA = 25°C, CL = 50 pF, unless otherwise specified

Symbol Parameter Conditions Min Typ Max Units

MM74C00, MM74C02, MM74C04

t

, t

pd0

pd1

C

IN

C

PD

Note 2: AC Parameters are guara nt eed by DC correlated test ing.
Note 3: Capacitance is guaranteed by periodic testing.
Note 4: C

AN-90.

www.fairchildsemi.com 2

Propagation Delay Time to VCC = 5.0V 50 90 ns
Logical “1” or “0” VCC = 10V 30 60 ns
Input Capacitance (Note 3) 6.0 pF
Power Dissipation Capacitance Per Gate or Inverter (Note 4) 12 pF

determines t he no loa d AC power c ons um ption of a ny CM OS d evice. For com plet e expla natio n se e Family Cha ract eris tics Appl icat ion N ote —

PD

Typical Performance Characteristics

MM74C00 • MM74C02 • MM74C04

Gate Transfer Characteristics

Guaranteed Noise Margin
Over Temperature vs V

CC

Propagation Delay vs
Ambient Temperature

MM74C00, MM74C02, MM74C04

Propagation Delay vs
Ambient Temperature

MM74C00, MM74C02, MM74C04

Power Dissipation vs Frequency

MM74C00, MM74C02, MM74C 0 4

Propag ation Delay Time vs

Load Capacitance

MM74C00, MM74C02, MM74C04

3 www.fairchildsemi.com

Switching Time Waveforms and AC Test Circuit

CMOS to CMOS

MM74C00 • MM74C02 • MM74C04

Delays measured with input tr, tf ≤ 20 ns.

www.fairchildsemi.com 4

Physical Dimensions inches (millimeters) unless otherwise noted

MM74C00 • MM74C02 • MM74C04

14-Lead Small Outline Integrated Circuit (SOIC), JEDEC MS-120, 0.150” Narrow

Package Number M14A

5 www.fairchildsemi.com

Physical Dimensions inches (millimeters) unless otherwise noted (Continued)

14-Lead Plastic Dual-In-Line Package (PDIP), JEDEC MS-001, 0.300” Wide

LIFE SUPPORT POLICY

FAIRCHILD’S PRODUCTS ARE NOT AUTHORIZED FOR USE AS CRITICAL COMPONENTS IN LIFE SUPPORT
DEVICES OR SYSTEMS WITHOUT THE EXPRESS WRITTEN APPROVAL OF THE PRESIDENT OF FAIRCHILD
SEMICONDUCTOR CORPORATION. As used herein:

MM74C00 • MM74C02 • MM74C04 Quad 2-Input NAND Gate • Quad 2-Input NOR Gate • Hex Inverter

1. Life support devices or system s ar e devices or syste ms
which, (a) are intended for surgical implant into the
body, or (b) support or sustain life, and (c) whose failure
to perform when properly used in accordance with
instructions for use provided in the labeling, can be rea­sonably expected to result in a significant injury to the
user.

Package Number N14A

2. A critical component in a ny compon ent of a life suppor t
device or system whose failure to perform can be rea­sonably expected to cause the failure of the life suppor t
device or system, or to affect its safety or effectiveness.
